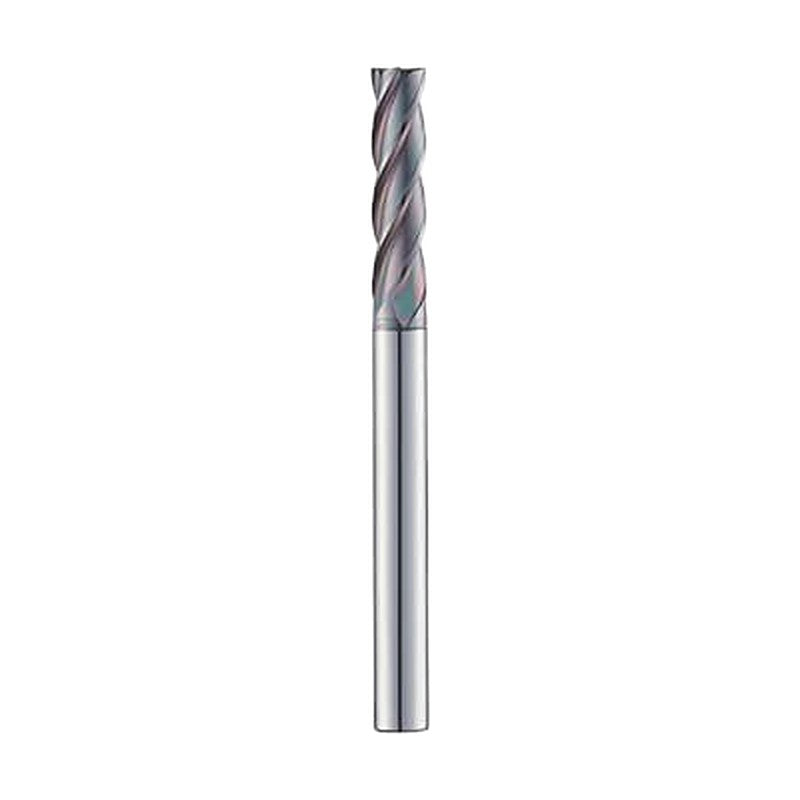

Korloy U-Star 4 Flute Flat End Mill UE524

Korloy U-Star 4 Flute Flat End Mill UE524

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 35°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 4
Coating AlCrN
Helix angle 35°
ØD tolerance Ø1~Ø25: 0~-0.03mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
UE52401003 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 60
UE52401004 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 60
UE52401005 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 60
UE52401006 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52401007 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UE52401008 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52401010 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52401012 ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52401204 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 60
UE52401206 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52401208 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52401210 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52401212 ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52401506 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52401508 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52401510 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52401512 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52401514 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 60
UE52401516 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52401520 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UE52401526 ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 60
UE52402008 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52402008S4 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 40
UE52402010 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52402012 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52402014 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 60
UE52402016 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52402510 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52402512 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52402516 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52402520 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UE52402526 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 60
UE52403010 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UE52403012 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 70
UE52403014 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 70
UE52403016 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 70
UE52403016S3 ØD (mm): 3 | Ød (mm): 3 | ℓ (mm): 16 | L (mm): 100
UE52403020 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52403026 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 70
UE52403030 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 70
UE52403035 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52404012 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 70
UE52404016 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 70
UE52404020 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52404020S4 ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 20 | L (mm): 100
UE52404026 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 70
UE52404030 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 70
UE52405015 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 70
UE52405020 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52405025100 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 100
UE52405025 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 70
UE52405030 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE52405035 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52405040 ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 100
UE52406015080 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 80
UE52406015 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE52406020090 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 90
UE52406020 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52406025 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 75
UE52406030150 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 150
UE52406030100 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 100
UE52406030 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE52406035 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52406040120 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 120
UE52406040 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 90
UE52406045 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 45 | L (mm): 150
UE52407035 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 85
UE52408020 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UE52408025 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 25 | L (mm): 80
UE52408030100 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 100
UE52408030 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 80
UE52408035 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 90
UE52408040150 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 150
UE52408040120 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 120
UE52408040 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 90
UE52408045 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 45 | L (mm): 100
UE52408050150 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 50 | L (mm): 150
UE52408050 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 50 | L (mm): 100
UE52408060 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 60 | L (mm): 155
UE52408080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 80 | L (mm): 200
UE52409045 ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 45 | L (mm): 100
UE52410025 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UE524100100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 100
UE52410030 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 80
UE52410035 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 35 | L (mm): 90
UE52410040120 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 120
UE52410040 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 90
UE52410045 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 45 | L (mm): 100
UE52410050200 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 200
UE52410050150 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 150
UE52410050 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 100
UE52410055 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 55 | L (mm): 150
UE52410060200 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 200
UE52410060155 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 155
UE52410060 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 110
UE52410080200 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 80 | L (mm): 200
UE52411050 ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 110
UE52412030 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UE52412035 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 90
UE52412040120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 120
UE52412040 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 100
UE52412045 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 45 | L (mm): 130
UE52412050150 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 150
UE52412050 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 100
UE52412055 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 55 | L (mm): 110
UE52412060200 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 200
UE52412060150 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 150
UE52412060 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 110
UE52412065 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 65 | L (mm): 150
UE52412070200 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 70 | L (mm): 200
UE52412070 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 70 | L (mm): 120
UE52412080 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 80 | L (mm): 200
UE52414040 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 110
UE52414050 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE52414060 ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 150
UE52416040 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UE52416050150 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 150
UE52416050 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE52416060 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 120
UE52416070200 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 200
UE52416070150 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 150
UE52416070 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 130
UE52416080 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 80 | L (mm): 150
UE52416090 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 90 | L (mm): 150
UE524160100 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 100 | L (mm): 200
UE524160110 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 110 | L (mm): 200
UE524160120 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 120 | L (mm): 250
UE52418050 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 120
UE52418070 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE524180100 ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 100 | L (mm): 200
UE52420050150 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 150
UE52420050 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 110
UE52420060 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 60 | L (mm): 130
UE52420070 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE52420080 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 80 | L (mm): 150
UE52420090200 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 90 | L (mm): 200
UE52420090 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 90 | L (mm): 150
UE524200100 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 100 | L (mm): 200
UE524200110 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE524200120 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 120 | L (mm): 250
UE524200130 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 130 | L (mm): 250
UE52422075 ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 75 | L (mm): 150
UE524220110 ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE52425070 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 70 | L (mm): 150
UE52425090 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 90 | L (mm): 150
UE524250100 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 100 | L (mm): 200
UE524250110 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 110 | L (mm): 200
UE524250120 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 120 | L (mm): 250
UE524250150 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 150 | L (mm): 250
End MillsKorloy
149 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 4 Flute Flat End Mill UE524

Brand Korloy·End Mills

Available part numbers (149)

UE52401003, UE52401004, UE52401005, UE52401006, UE52401007, UE52401008, UE52401010, UE52401012, UE52401204, UE52401206 + 139 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UE52401003ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 60
UE52401004ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 60
UE52401005ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 5 | L (mm): 60
UE52401006ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52401007ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UE52401008ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52401010ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52401012ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52401204ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 60
UE52401206ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52401208ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52401210ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52401212ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52401506ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 60
UE52401508ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52401510ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52401512ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52401514ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 60
UE52401516ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52401520ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UE52401526ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 60
UE52402008ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UE52402008S4ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | L (mm): 40
UE52402010ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52402012ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52402014ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 60
UE52402016ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52402510ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 60
UE52402512ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 60
UE52402516ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 60
UE52402520ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 60
UE52402526ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 60
UE52403010ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UE52403012ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 70
UE52403014ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | L (mm): 70
UE52403016ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 70
UE52403016S3ØD (mm): 3 | Ød (mm): 3 | ℓ (mm): 16 | L (mm): 100
UE52403020ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52403026ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 70
UE52403030ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 70
UE52403035ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52404012ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 12 | L (mm): 70
UE52404016ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | L (mm): 70
UE52404020ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52404020S4ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 20 | L (mm): 100
UE52404026ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 26 | L (mm): 70
UE52404030ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 70
UE52405015ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 70
UE52405020ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52405025100ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 100
UE52405025ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 70
UE52405030ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE52405035ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52405040ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 100
UE52406015080ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 80
UE52406015ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE52406020090ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 90
UE52406020ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE52406025ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 25 | L (mm): 75
UE52406030150ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 150
UE52406030100ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 100
UE52406030ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE52406035ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 35 | L (mm): 90
UE52406040120ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 120
UE52406040ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 40 | L (mm): 90
UE52406045ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 45 | L (mm): 150
UE52407035ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 85
UE52408020ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UE52408025ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 25 | L (mm): 80
UE52408030100ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 100
UE52408030ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 80
UE52408035ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 90
UE52408040150ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 150
UE52408040120ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 120
UE52408040ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 90
UE52408045ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 45 | L (mm): 100
UE52408050150ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 50 | L (mm): 150
UE52408050ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 50 | L (mm): 100
UE52408060ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 60 | L (mm): 155
UE52408080ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 80 | L (mm): 200
UE52409045ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 45 | L (mm): 100
UE52410025ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UE524100100ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 100
UE52410030ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 80
UE52410035ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 35 | L (mm): 90
UE52410040120ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 120
UE52410040ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 90
UE52410045ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 45 | L (mm): 100
UE52410050200ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 200
UE52410050150ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 150
UE52410050ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 100
UE52410055ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 55 | L (mm): 150
UE52410060200ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 200
UE52410060155ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 155
UE52410060ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 60 | L (mm): 110
UE52410080200ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 80 | L (mm): 200
UE52411050ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 110
UE52412030ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UE52412035ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 35 | L (mm): 90
UE52412040120ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 120
UE52412040ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 100
UE52412045ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 45 | L (mm): 130
UE52412050150ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 150
UE52412050ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 100
UE52412055ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 55 | L (mm): 110
UE52412060200ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 200
UE52412060150ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 150
UE52412060ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 110
UE52412065ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 65 | L (mm): 150
UE52412070200ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 70 | L (mm): 200
UE52412070ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 70 | L (mm): 120
UE52412080ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 80 | L (mm): 200
UE52414040ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 110
UE52414050ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE52414060ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 150
UE52416040ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UE52416050150ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 150
UE52416050ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE52416060ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 120
UE52416070200ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 200
UE52416070150ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 150
UE52416070ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 70 | L (mm): 130
UE52416080ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 80 | L (mm): 150
UE52416090ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 90 | L (mm): 150
UE524160100ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 100 | L (mm): 200
UE524160110ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 110 | L (mm): 200
UE524160120ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 120 | L (mm): 250
UE52418050ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 120
UE52418070ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE524180100ØD (mm): 18 | Ød (mm): 20 | ℓ (mm): 100 | L (mm): 200
UE52420050150ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 150
UE52420050ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 50 | L (mm): 110
UE52420060ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 60 | L (mm): 130
UE52420070ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE52420080ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 80 | L (mm): 150
UE52420090200ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 90 | L (mm): 200
UE52420090ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 90 | L (mm): 150
UE524200100ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 100 | L (mm): 200
UE524200110ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE524200120ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 120 | L (mm): 250
UE524200130ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 130 | L (mm): 250
UE52422075ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 75 | L (mm): 150
UE524220110ØD (mm): 22 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE52425070ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 70 | L (mm): 150
UE52425090ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 90 | L (mm): 150
UE524250100ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 100 | L (mm): 200
UE524250110ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 110 | L (mm): 200
UE524250120ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 120 | L (mm): 250
UE524250150ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 150 | L (mm): 250

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
