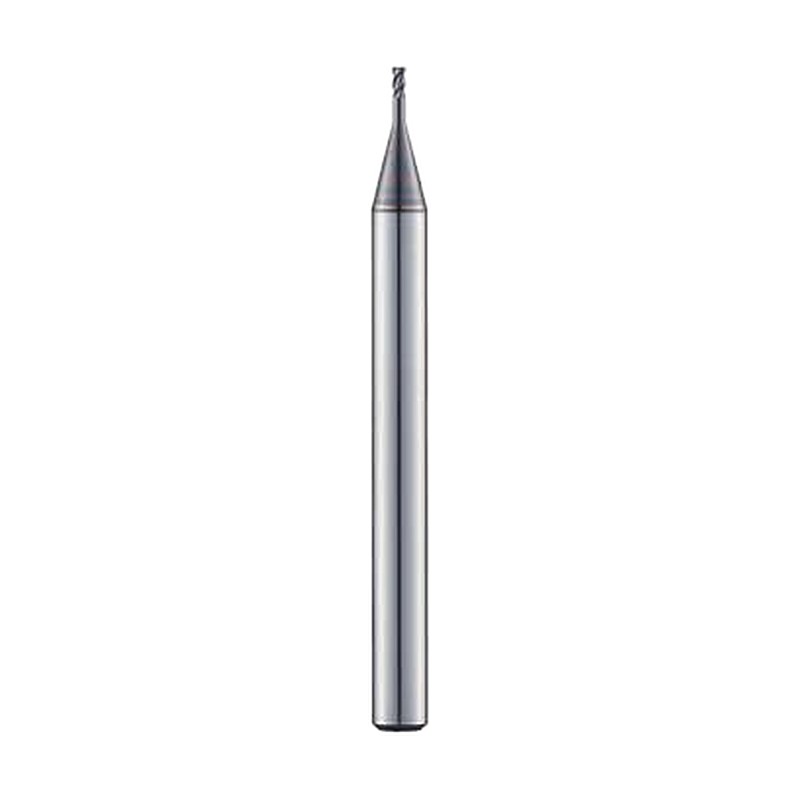

Korloy U-Star 4 Flute Multi Helix Neck Radius End Mill UXR514

Korloy U-Star 4 Flute Multi Helix Neck Radius End Mill UXR514

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 34° / 36°
  • Radius tolerance ±0.02 (Corner R)
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 4
Coating AlCrN
Helix angle 34° / 36°
ØD tolerance Ø1~Ø20: 0~-0.03mm
Shank tolerance h5
Radius tolerance ±0.02 (Corner R)
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Hardened steel SKD61~HRC55, Cast iron ~FCD500
UXR51401000503 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UXR51401000504 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UXR51401000506 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UXR51401000508 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UXR51401000510 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UXR51401000512 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UXR51401000514 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UXR51401000516 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UXR51401000520 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UXR5140100103 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UXR5140100104 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UXR5140100106 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UXR5140100108 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140100110 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140100112 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140100114 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UXR5140100116 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UXR5140100120 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UXR5140100203 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UXR5140100204 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UXR5140100206 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UXR5140100208 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140100210 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140100212 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140100214 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UXR5140100216 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UXR5140100220 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UXR5140100303 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UXR5140100304 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UXR5140100306 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UXR5140100308 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140100310 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140100312 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140100314 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UXR5140100316 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UXR5140100320 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UXR51401200503 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 3 | L (mm): 50
UXR51401200504 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UXR51401200506 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UXR51401200508 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UXR51401200510 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UXR51401200512 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UXR51401200516 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UXR51401200520 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UXR5140120103 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 3 | L (mm): 50
UXR5140120104 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UXR5140120106 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UXR5140120108 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UXR5140120110 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UXR5140120112 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UXR5140120116 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UXR5140120120 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UXR5140120203 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 3 | L (mm): 50
UXR5140120204 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UXR5140120206 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UXR5140120208 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UXR5140120210 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UXR5140120212 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UXR5140120216 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UXR5140120220 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UXR5140120303 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 3 | L (mm): 50
UXR5140120304 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UXR5140120306 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UXR5140120308 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UXR5140120310 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UXR5140120312 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UXR5140120316 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UXR5140120320 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UXR51401500504 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR51401500506 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR51401500508 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR51401500510 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR51401500512 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR51401500514 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR51401500516 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR51401500520 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR51401500522 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR51401500526 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140150104 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR5140150106 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140150108 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140150110 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140150112 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140150114 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140150116 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140150120 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140150122 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140150126 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140150204 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR5140150206 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140150208 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140150210 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140150212 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140150214 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140150216 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140150220 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140150222 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140150226 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140150304 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR5140150306 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140150308 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140150310 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140150312 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140150314 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140150316 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140150320 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140150322 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140150326 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140150504 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR5140150506 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140150508 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140150510 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140150512 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140150514 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140150516 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140150520 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140150522 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140150526 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200106 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140200108 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140200110 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140200112 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140200114 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140200116 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140200120 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140200122 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140200126 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200130 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UXR5140200206 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140200208 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140200210 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140200212 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140200214 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140200216 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140200220 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140200222 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140200226 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200230 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UXR5140200306 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140200308 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140200310 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140200312 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140200314 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140200316 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140200320 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140200322 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140200326 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200330 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UXR5140200506 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140200508 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140200510 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140200512 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140200514 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140200516 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140200520 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140200522 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140200526 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200530 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UXR5140250108 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UXR5140250110 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UXR5140250112 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UXR5140250114 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UXR5140250116 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UXR5140250120 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UXR5140250126 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UXR5140250130 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UXR5140250208 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UXR5140250210 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UXR5140250212 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UXR5140250214 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UXR5140250216 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UXR5140250220 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UXR5140250226 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UXR5140250230 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UXR5140250308 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UXR5140250310 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UXR5140250312 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UXR5140250314 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UXR5140250316 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UXR5140250320 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UXR5140250326 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UXR5140250330 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UXR5140250508 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UXR5140250510 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UXR5140250512 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UXR5140250514 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UXR5140250516 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UXR5140250520 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UXR5140250526 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UXR5140250530 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300108 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140300110 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140300112 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140300114 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140300116 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140300120 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140300126 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140300130 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300135 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140300140 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140300208 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140300210 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140300212 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140300214 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140300216 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140300220 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140300226 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140300230 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300235 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140300240 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140300308 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140300310 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140300312 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140300314 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140300316 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140300320 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140300326 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140300330 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300335 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140300340 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140300508 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140300510 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140300512 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140300514 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140300516 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140300520 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140300526 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140300530 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300535 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140300540 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140301008 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140301010 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140301012 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140301014 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140301016 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140301020 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140301026 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140301030 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140301035 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140301040 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400110 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140400112 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140400114 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140400116 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140400120 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140400126 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140400130 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140400135 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140400140 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400145 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140400150 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR5140400210 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140400212 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140400214 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140400216 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140400220 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140400226 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140400230 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140400235 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140400240 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400245 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140400250 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR5140400310 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140400312 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140400314 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140400316 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140400320 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140400326 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140400330 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140400335 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140400340 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400345 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140400350 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR5140400510 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140400512 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140400514 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140400516 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140400520 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140400526 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140400530 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140400535 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140400540 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400545 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140400550 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR5140401010 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140401012 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140401014 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140401016 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140401020 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140401026 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140401030 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140401035 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140401040 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140401045 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140401050 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR51405001 R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405002 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405003 R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405005 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405010 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405015 R (mm): 1.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405020 R (mm): 2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51406001 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406002 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406003 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406003090 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 90
UXR51406005 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406005090 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 90
UXR51406010 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406010090 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 90
UXR51406015 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406020 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51408001 R (mm): 0.1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408002 R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408003 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408003100 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51408005 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408005100 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51408010 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408010100 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51408015 R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408020 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51410001 R (mm): 0.1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410002 R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410003 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410003100 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51410005 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410005100 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51410010 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410010100 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51410015 R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410020 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51412002 R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412003 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412003110 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 30 | ℓ2 (mm): 45 | L (mm): 110
UXR51412005 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412005110 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 30 | ℓ2 (mm): 45 | L (mm): 110
UXR51412010 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412010110 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 30 | ℓ2 (mm): 45 | L (mm): 110
UXR51412015 R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412020 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51416005 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51416005150 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 35 | ℓ2 (mm): 50 | L (mm): 150
UXR51416010 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51416010150 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 35 | ℓ2 (mm): 50 | L (mm): 150
UXR51420005 R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51420005150 R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 40 | ℓ2 (mm): 55 | L (mm): 150
UXR51420010 R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51420010150 R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 40 | ℓ2 (mm): 55 | L (mm): 150
End MillsKorloy
349 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 4 Flute Multi Helix Neck Radius End Mill UXR514

Brand Korloy·End Mills

Available part numbers (349)

UXR51401000503, UXR51401000504, UXR51401000506, UXR51401000508, UXR51401000510, UXR51401000512, UXR51401000514, UXR51401000516, UXR51401000520, UXR5140100103 + 339 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UXR51401000503R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UXR51401000504R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UXR51401000506R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UXR51401000508R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UXR51401000510R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UXR51401000512R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UXR51401000514R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UXR51401000516R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UXR51401000520R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UXR5140100103R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UXR5140100104R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UXR5140100106R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UXR5140100108R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140100110R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140100112R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140100114R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UXR5140100116R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UXR5140100120R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UXR5140100203R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UXR5140100204R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UXR5140100206R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UXR5140100208R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140100210R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140100212R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140100214R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UXR5140100216R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UXR5140100220R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UXR5140100303R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 3 | L (mm): 50
UXR5140100304R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
UXR5140100306R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 6 | L (mm): 50
UXR5140100308R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140100310R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140100312R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140100314R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 14 | L (mm): 50
UXR5140100316R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 16 | L (mm): 50
UXR5140100320R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | ℓ1 (mm): 1.5 | ℓ2 (mm): 20 | L (mm): 50
UXR51401200503R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 3 | L (mm): 50
UXR51401200504R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UXR51401200506R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UXR51401200508R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UXR51401200510R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UXR51401200512R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UXR51401200516R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UXR51401200520R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UXR5140120103R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 3 | L (mm): 50
UXR5140120104R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UXR5140120106R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UXR5140120108R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UXR5140120110R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UXR5140120112R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UXR5140120116R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UXR5140120120R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UXR5140120203R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 3 | L (mm): 50
UXR5140120204R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UXR5140120206R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UXR5140120208R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UXR5140120210R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UXR5140120212R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UXR5140120216R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UXR5140120220R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UXR5140120303R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 3 | L (mm): 50
UXR5140120304R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 4 | L (mm): 50
UXR5140120306R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 6 | L (mm): 50
UXR5140120308R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 8 | L (mm): 50
UXR5140120310R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 10 | L (mm): 50
UXR5140120312R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 12 | L (mm): 50
UXR5140120316R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 16 | L (mm): 50
UXR5140120320R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | ℓ1 (mm): 1.8 | ℓ2 (mm): 20 | L (mm): 50
UXR51401500504R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR51401500506R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR51401500508R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR51401500510R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR51401500512R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR51401500514R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR51401500516R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR51401500520R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR51401500522R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR51401500526R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140150104R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR5140150106R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140150108R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140150110R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140150112R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140150114R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140150116R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140150120R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140150122R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140150126R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140150204R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR5140150206R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140150208R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140150210R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140150212R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140150214R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140150216R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140150220R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140150222R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140150226R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140150304R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR5140150306R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140150308R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140150310R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140150312R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140150314R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140150316R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140150320R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140150322R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140150326R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140150504R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 4 | L (mm): 50
UXR5140150506R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140150508R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140150510R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140150512R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140150514R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140150516R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140150520R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140150522R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140150526R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 4 | ℓ1 (mm): 2.3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200106R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140200108R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140200110R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140200112R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140200114R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140200116R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140200120R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140200122R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140200126R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200130R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UXR5140200206R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140200208R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140200210R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140200212R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140200214R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140200216R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140200220R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140200222R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140200226R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200230R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UXR5140200306R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140200308R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140200310R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140200312R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140200314R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140200316R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140200320R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140200322R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140200326R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200330R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UXR5140200506R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 6 | L (mm): 50
UXR5140200508R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
UXR5140200510R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 10 | L (mm): 50
UXR5140200512R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 12 | L (mm): 50
UXR5140200514R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 14 | L (mm): 50
UXR5140200516R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 16 | L (mm): 50
UXR5140200520R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 20 | L (mm): 50
UXR5140200522R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 22 | L (mm): 60
UXR5140200526R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 26 | L (mm): 60
UXR5140200530R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 4 | ℓ1 (mm): 3 | ℓ2 (mm): 30 | L (mm): 70
UXR5140250108R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UXR5140250110R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UXR5140250112R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UXR5140250114R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UXR5140250116R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UXR5140250120R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UXR5140250126R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UXR5140250130R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UXR5140250208R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UXR5140250210R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UXR5140250212R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UXR5140250214R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UXR5140250216R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UXR5140250220R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UXR5140250226R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UXR5140250230R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UXR5140250308R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UXR5140250310R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UXR5140250312R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UXR5140250314R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UXR5140250316R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UXR5140250320R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UXR5140250326R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UXR5140250330R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UXR5140250508R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 8 | L (mm): 50
UXR5140250510R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
UXR5140250512R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 12 | L (mm): 50
UXR5140250514R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 14 | L (mm): 50
UXR5140250516R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 16 | L (mm): 50
UXR5140250520R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 20 | L (mm): 50
UXR5140250526R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 26 | L (mm): 60
UXR5140250530R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 4 | ℓ1 (mm): 4 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300108R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140300110R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140300112R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140300114R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140300116R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140300120R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140300126R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140300130R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300135R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140300140R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140300208R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140300210R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140300212R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140300214R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140300216R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140300220R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140300226R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140300230R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300235R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140300240R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140300308R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140300310R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140300312R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140300314R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140300316R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140300320R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140300326R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140300330R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300335R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140300340R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140300508R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140300510R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140300512R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140300514R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140300516R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140300520R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140300526R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140300530R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140300535R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140300540R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140301008R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 8 | L (mm): 50
UXR5140301010R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 10 | L (mm): 50
UXR5140301012R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 12 | L (mm): 50
UXR5140301014R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 14 | L (mm): 60
UXR5140301016R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 16 | L (mm): 60
UXR5140301020R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 20 | L (mm): 60
UXR5140301026R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 26 | L (mm): 65
UXR5140301030R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 30 | L (mm): 70
UXR5140301035R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 35 | L (mm): 70
UXR5140301040R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 4.5 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400110R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140400112R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140400114R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140400116R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140400120R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140400126R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140400130R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140400135R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140400140R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400145R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140400150R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR5140400210R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140400212R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140400214R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140400216R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140400220R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140400226R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140400230R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140400235R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140400240R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400245R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140400250R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR5140400310R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140400312R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140400314R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140400316R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140400320R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140400326R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140400330R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140400335R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140400340R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400345R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140400350R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR5140400510R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140400512R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140400514R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140400516R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140400520R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140400526R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140400530R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140400535R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140400540R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140400545R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140400550R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR5140401010R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 10 | L (mm): 50
UXR5140401012R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 12 | L (mm): 50
UXR5140401014R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 14 | L (mm): 60
UXR5140401016R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 16 | L (mm): 60
UXR5140401020R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 20 | L (mm): 60
UXR5140401026R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 26 | L (mm): 65
UXR5140401030R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 30 | L (mm): 70
UXR5140401035R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 35 | L (mm): 70
UXR5140401040R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 40 | L (mm): 80
UXR5140401045R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 45 | L (mm): 90
UXR5140401050R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 50 | L (mm): 100
UXR51405001R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405002R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405003R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405005R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405010R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405015R (mm): 1.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51405020R (mm): 2 | ØD (mm): 5 | Ød (mm): 6 | ℓ1 (mm): 8 | ℓ2 (mm): 15 | L (mm): 60
UXR51406001R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406002R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406003R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406003090R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 90
UXR51406005R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406005090R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 90
UXR51406010R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406010090R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 90
UXR51406015R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51406020R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 9 | ℓ2 (mm): 20 | L (mm): 60
UXR51408001R (mm): 0.1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408002R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408003R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408003100R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51408005R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408005100R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51408010R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408010100R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51408015R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51408020R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 12 | ℓ2 (mm): 25 | L (mm): 70
UXR51410001R (mm): 0.1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410002R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410003R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410003100R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51410005R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410005100R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51410010R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410010100R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51410015R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51410020R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 15 | ℓ2 (mm): 30 | L (mm): 75
UXR51412002R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412003R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412003110R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 30 | ℓ2 (mm): 45 | L (mm): 110
UXR51412005R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412005110R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 30 | ℓ2 (mm): 45 | L (mm): 110
UXR51412010R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412010110R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 30 | ℓ2 (mm): 45 | L (mm): 110
UXR51412015R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51412020R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 18 | ℓ2 (mm): 32 | L (mm): 80
UXR51416005R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51416005150R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 35 | ℓ2 (mm): 50 | L (mm): 150
UXR51416010R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 20 | ℓ2 (mm): 35 | L (mm): 100
UXR51416010150R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 35 | ℓ2 (mm): 50 | L (mm): 150
UXR51420005R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51420005150R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 40 | ℓ2 (mm): 55 | L (mm): 150
UXR51420010R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 25 | ℓ2 (mm): 40 | L (mm): 100
UXR51420010150R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 40 | ℓ2 (mm): 55 | L (mm): 150

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
