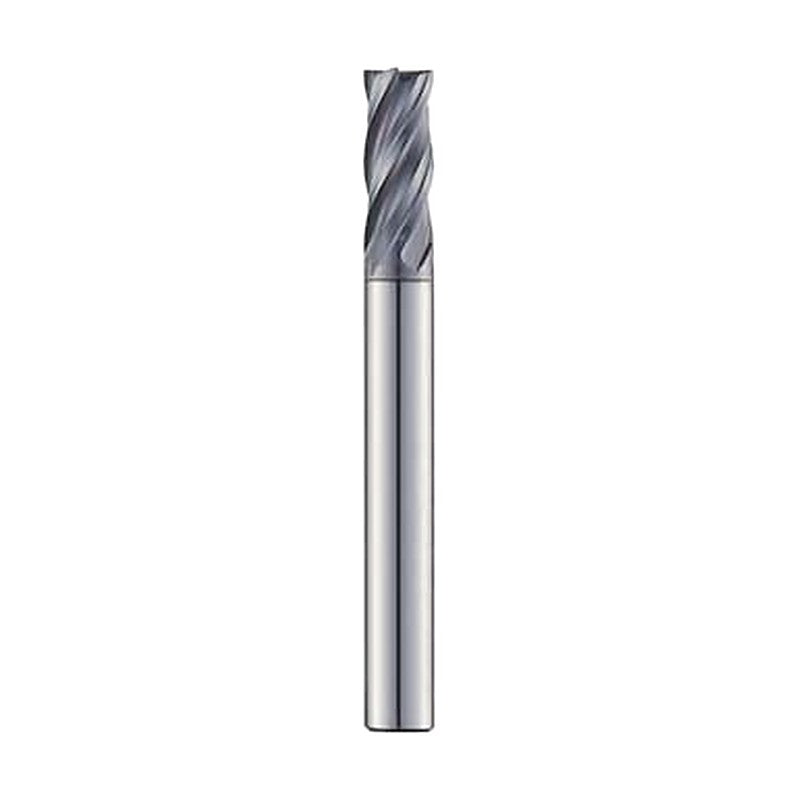

Korloy U-Star 4 Flute Multi Helix Radius End Mill UXR504

Korloy U-Star 4 Flute Multi Helix Radius End Mill UXR504

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 34° / 36°
  • Radius tolerance ±0.02 (Corner R)
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 4
Coating AlCrN
Helix angle 34° / 36°
ØD tolerance Ø1~Ø20: 0~-0.03mm
Shank tolerance h5
Radius tolerance ±0.02 (Corner R)
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
UXR504010005 R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXR50401001 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXR50401002 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXR50401003 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXR504012005 R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXR50401201 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXR50401202 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXR50401203 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXR504015005 R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50401501 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50401502 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50401503 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50401505 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50402001 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXR50402002 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXR50402003 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXR50402005 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXR50402501 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UXR50402502 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UXR50402503 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UXR50402505 R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UXR50403001 R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403002 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403003 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403005 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403010 R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403501 R (mm): 0.1 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50403502 R (mm): 0.2 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50403503 R (mm): 0.3 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50403505 R (mm): 0.5 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404001 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404001100S4 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404001S4 R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404002 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404002100S4 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404002S4 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404003 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404003100S4 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404003S4 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404005 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404005100S4 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404005S4 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404010 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404010100S4 R (mm): 1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404010S4 R (mm): 1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404501 R (mm): 0.1 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UXR50404502 R (mm): 0.2 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UXR50404503 R (mm): 0.3 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UXR50404505 R (mm): 0.5 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UXR50405001 R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405002 R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405003 R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405005 R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405010 R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405501 R (mm): 0.1 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405502 R (mm): 0.2 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405503 R (mm): 0.3 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405505 R (mm): 0.5 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405510 R (mm): 1 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50406001 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406001060 R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXR50406002 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406002060 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXR50406003 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406005 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406005060 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXR50406005110 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 110
UXR50406005130 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 130
UXR50406010 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406010060 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXR50406010110 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 110
UXR50406010130 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 130
UXR50406015 R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406020 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50407001 R (mm): 0.1 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407002 R (mm): 0.2 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407003 R (mm): 0.3 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407005 R (mm): 0.5 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407010 R (mm): 1 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407020 R (mm): 2 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50408001 R (mm): 0.1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408002 R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408003 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408003070 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408005 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408005070 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408005120 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 120
UXR50408005150 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 150
UXR50408010 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408010070 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408010120 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 120
UXR50408010150 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 150
UXR50408015 R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408015070 R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408020 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408020070 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408025 R (mm): 2.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408030 R (mm): 3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50410001 R (mm): 0.1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410002 R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410003 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410003075 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UXR50410005 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410005075 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UXR50410005130 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 130
UXR50410005150 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 150
UXR50410010 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410010075 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UXR50410010130 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 130
UXR50410010150 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 150
UXR50410015 R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410020 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410025 R (mm): 2.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410030 R (mm): 3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410040 R (mm): 4 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50411002 R (mm): 0.2 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50411003 R (mm): 0.3 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50411005 R (mm): 0.5 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50411010 R (mm): 1 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50411020 R (mm): 2 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50412001 R (mm): 0.1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412002 R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412003 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412003080 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412005 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412005080 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412005130 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 130
UXR50412005150 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 150
UXR50412010 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412010080 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412010130 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 130
UXR50412010150 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 150
UXR50412015 R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412015080 R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412020 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412020080 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412025 R (mm): 2.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412025080 R (mm): 2.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412030 R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412030080 R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412040 R (mm): 4 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412050 R (mm): 5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50414005 R (mm): 0.5 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 150
UXR50414010 R (mm): 1 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 150
UXR50414020 R (mm): 2 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 150
UXR50416005 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50416005150 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UXR50416010 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50416010150 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UXR50416015 R (mm): 1.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50416015150 R (mm): 1.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UXR50416020 R (mm): 2 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50416020150 R (mm): 2 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UXR50416030 R (mm): 3 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50420005 R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
UXR50420005150 R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150
UXR50420010 R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
UXR50420010150 R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150
UXR50420015 R (mm): 1.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
UXR50420015150 R (mm): 1.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150
UXR50420020 R (mm): 2 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
UXR50420020150 R (mm): 2 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150
UXR50420030 R (mm): 3 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
End MillsKorloy
163 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 4 Flute Multi Helix Radius End Mill UXR504

Brand Korloy·End Mills

Available part numbers (163)

UXR504010005, UXR50401001, UXR50401002, UXR50401003, UXR504012005, UXR50401201, UXR50401202, UXR50401203, UXR504015005, UXR50401501 + 153 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UXR504010005R (mm): 0.05 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXR50401001R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXR50401002R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXR50401003R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ (mm): 2.5 | L (mm): 50
UXR504012005R (mm): 0.05 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXR50401201R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXR50401202R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXR50401203R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 6 | ℓ (mm): 3 | L (mm): 50
UXR504015005R (mm): 0.05 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50401501R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50401502R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50401503R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50401505R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ (mm): 4 | L (mm): 50
UXR50402001R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXR50402002R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXR50402003R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXR50402005R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 6 | L (mm): 50
UXR50402501R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UXR50402502R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UXR50402503R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UXR50402505R (mm): 0.5 | ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 7 | L (mm): 60
UXR50403001R (mm): 0.1 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403002R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403003R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403005R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403010R (mm): 1 | ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 8 | L (mm): 60
UXR50403501R (mm): 0.1 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50403502R (mm): 0.2 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50403503R (mm): 0.3 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50403505R (mm): 0.5 | ØD (mm): 3.5 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404001R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404001100S4R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404001S4R (mm): 0.1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404002R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404002100S4R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404002S4R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404003R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404003100S4R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404003S4R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404005R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404005100S4R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404005S4R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404010R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 10 | L (mm): 70
UXR50404010100S4R (mm): 1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 100
UXR50404010S4R (mm): 1 | ØD (mm): 4 | Ød (mm): 4 | ℓ (mm): 10 | L (mm): 70
UXR50404501R (mm): 0.1 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UXR50404502R (mm): 0.2 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UXR50404503R (mm): 0.3 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UXR50404505R (mm): 0.5 | ØD (mm): 4.5 | Ød (mm): 6 | ℓ (mm): 11 | L (mm): 80
UXR50405001R (mm): 0.1 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405002R (mm): 0.2 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405003R (mm): 0.3 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405005R (mm): 0.5 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405010R (mm): 1 | ØD (mm): 5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405501R (mm): 0.1 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405502R (mm): 0.2 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405503R (mm): 0.3 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405505R (mm): 0.5 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50405510R (mm): 1 | ØD (mm): 5.5 | Ød (mm): 6 | ℓ (mm): 13 | L (mm): 90
UXR50406001R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406001060R (mm): 0.1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXR50406002R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406002060R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXR50406003R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406005R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406005060R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXR50406005110R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 110
UXR50406005130R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 130
UXR50406010R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406010060R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UXR50406010110R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 110
UXR50406010130R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 130
UXR50406015R (mm): 1.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50406020R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UXR50407001R (mm): 0.1 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407002R (mm): 0.2 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407003R (mm): 0.3 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407005R (mm): 0.5 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407010R (mm): 1 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50407020R (mm): 2 | ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 16 | L (mm): 90
UXR50408001R (mm): 0.1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408002R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408003R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408003070R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408005R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408005070R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408005120R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 120
UXR50408005150R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 150
UXR50408010R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408010070R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408010120R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 120
UXR50408010150R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 150
UXR50408015R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408015070R (mm): 1.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408020R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408020070R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UXR50408025R (mm): 2.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50408030R (mm): 3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UXR50410001R (mm): 0.1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410002R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410003R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410003075R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UXR50410005R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410005075R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UXR50410005130R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 130
UXR50410005150R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 150
UXR50410010R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410010075R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UXR50410010130R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 130
UXR50410010150R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 150
UXR50410015R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410020R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410025R (mm): 2.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410030R (mm): 3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50410040R (mm): 4 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UXR50411002R (mm): 0.2 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50411003R (mm): 0.3 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50411005R (mm): 0.5 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50411010R (mm): 1 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50411020R (mm): 2 | ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 25 | L (mm): 110
UXR50412001R (mm): 0.1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412002R (mm): 0.2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412003R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412003080R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412005R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412005080R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412005130R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 130
UXR50412005150R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 150
UXR50412010R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412010080R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412010130R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 130
UXR50412010150R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 150
UXR50412015R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412015080R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412020R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412020080R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412025R (mm): 2.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412025080R (mm): 2.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412030R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412030080R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UXR50412040R (mm): 4 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50412050R (mm): 5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UXR50414005R (mm): 0.5 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 150
UXR50414010R (mm): 1 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 150
UXR50414020R (mm): 2 | ØD (mm): 14 | Ød (mm): 16 | ℓ (mm): 35 | L (mm): 150
UXR50416005R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50416005150R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UXR50416010R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50416010150R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UXR50416015R (mm): 1.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50416015150R (mm): 1.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UXR50416020R (mm): 2 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50416020150R (mm): 2 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 150
UXR50416030R (mm): 3 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UXR50420005R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
UXR50420005150R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150
UXR50420010R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
UXR50420010150R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150
UXR50420015R (mm): 1.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
UXR50420015150R (mm): 1.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150
UXR50420020R (mm): 2 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110
UXR50420020150R (mm): 2 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 150
UXR50420030R (mm): 3 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 110

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
