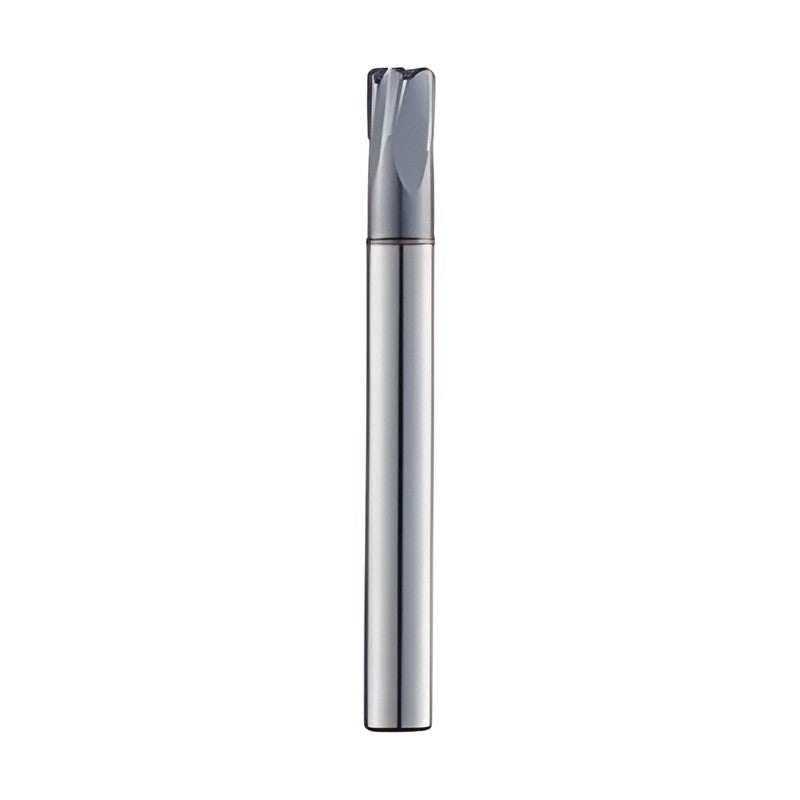

Korloy U-Star 4 Flute Radius End Mill for High Speed Machining USPM4

Korloy U-Star 4 Flute Radius End Mill for High Speed Machining USPM4

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 10°
  • Radius tolerance ±0.02 (Corner R)
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 4
Coating AlCrN
Helix angle 10°
ØD tolerance Ø1~Ø20: 0~-0.03mm
Shank tolerance h5
Radius tolerance ±0.02 (Corner R)
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
USPM4010-01 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 2.5 | L (mm): 50
USPM4010-02 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 2.5 | L (mm): 50
USPM4010-03 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 6 | ℓ1 (mm): 1 | ℓ2 (mm): 2.5 | L (mm): 50
USPM4015-02 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
USPM4015-03 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
USPM4015-05 R (mm): 0.5 | ØD (mm): 1.5 | Ød (mm): 6 | ℓ1 (mm): 1.5 | ℓ2 (mm): 4 | L (mm): 50
USPM4020-02 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
USPM4020-03 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
USPM4020-05 R (mm): 0.5 | ØD (mm): 2 | Ød (mm): 6 | ℓ1 (mm): 2 | ℓ2 (mm): 6 | L (mm): 50
USPM4030-02 R (mm): 0.2 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
USPM4030-03 R (mm): 0.3 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
USPM4030-05 R (mm): 0.5 | ØD (mm): 3 | Ød (mm): 6 | ℓ1 (mm): 3 | ℓ2 (mm): 8 | L (mm): 50
USPM4040-02 R (mm): 0.2 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
USPM4040-03 R (mm): 0.3 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
USPM4040-05 R (mm): 0.5 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
USPM4040-10 R (mm): 1 | ØD (mm): 4 | Ød (mm): 6 | ℓ1 (mm): 4 | ℓ2 (mm): 10 | L (mm): 50
USPM4060-02 R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
USPM4060-02L R (mm): 0.2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 90
USPM4060-03 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
USPM4060-03L R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 90
USPM4060-05 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
USPM4060-05L R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 90
USPM4060-10 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
USPM4060-10L R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 90
USPM4060-20 R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 60
USPM4060-20L R (mm): 2 | ØD (mm): 6 | Ød (mm): 6 | ℓ1 (mm): 6 | ℓ2 (mm): 15 | L (mm): 90
USPM4080-02 R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 70
USPM4080-02L R (mm): 0.2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 100
USPM4080-03 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 70
USPM4080-03L R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 100
USPM4080-05 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 70
USPM4080-05L R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 100
USPM4080-10 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 70
USPM4080-10L R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 100
USPM4080-20 R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 70
USPM4080-20L R (mm): 2 | ØD (mm): 8 | Ød (mm): 8 | ℓ1 (mm): 8 | ℓ2 (mm): 20 | L (mm): 100
USPM4100-02 R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 75
USPM4100-02L R (mm): 0.2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 100
USPM4100-03 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 75
USPM4100-03L R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 100
USPM4100-05 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 75
USPM4100-05L R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 100
USPM4100-10 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 75
USPM4100-10L R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 100
USPM4100-15 R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 75
USPM4100-15L R (mm): 1.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 100
USPM4100-20 R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 75
USPM4100-20L R (mm): 2 | ØD (mm): 10 | Ød (mm): 10 | ℓ1 (mm): 10 | ℓ2 (mm): 25 | L (mm): 100
USPM4120-03 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
USPM4120-03L R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 110
USPM4120-05 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
USPM4120-05L R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 110
USPM4120-10 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
USPM4120-10L R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 110
USPM4120-15 R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
USPM4120-15L R (mm): 1.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 110
USPM4120-20 R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
USPM4120-20L R (mm): 2 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 110
USPM4120-30 R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 80
USPM4120-30L R (mm): 3 | ØD (mm): 12 | Ød (mm): 12 | ℓ1 (mm): 12 | ℓ2 (mm): 30 | L (mm): 110
USPM4160-05 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 16 | ℓ2 (mm): 35 | L (mm): 100
USPM4160-05L R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 16 | ℓ2 (mm): 35 | L (mm): 150
USPM4160-10 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 16 | ℓ2 (mm): 35 | L (mm): 100
USPM4160-10L R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 16 | ℓ2 (mm): 35 | L (mm): 150
USPM4160-20 R (mm): 2 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 16 | ℓ2 (mm): 35 | L (mm): 100
USPM4160-20L R (mm): 2 | ØD (mm): 16 | Ød (mm): 16 | ℓ1 (mm): 16 | ℓ2 (mm): 35 | L (mm): 150
USPM4200-05 R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 100
USPM4200-05L R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 150
USPM4200-10 R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 100
USPM4200-10L R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 150
USPM4200-20 R (mm): 2 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 100
USPM4200-20L R (mm): 2 | ØD (mm): 20 | Ød (mm): 20 | ℓ1 (mm): 20 | ℓ2 (mm): 40 | L (mm): 150
