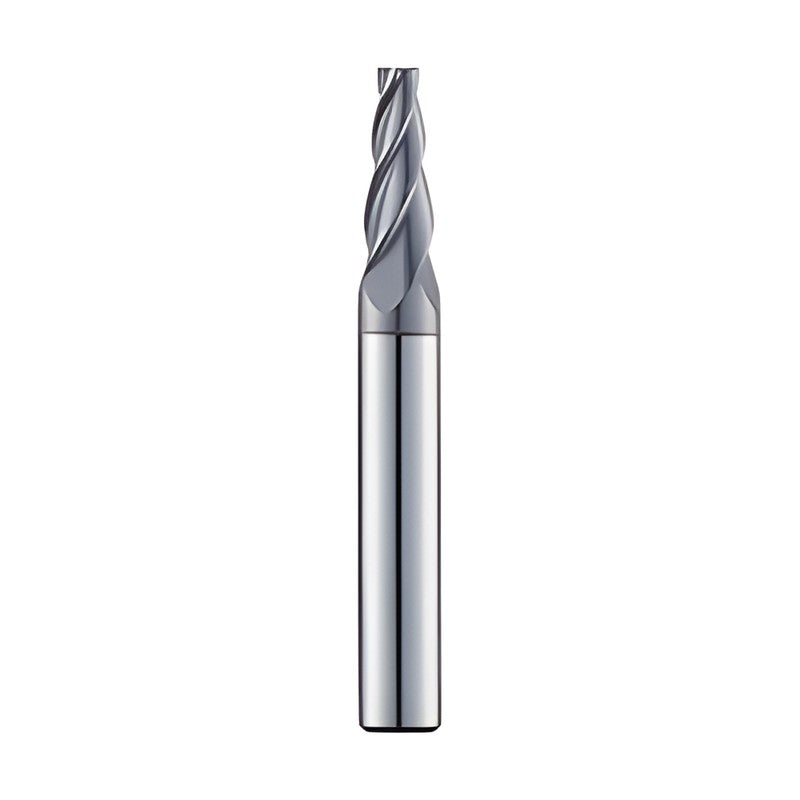

Korloy U-Star 4 Flute Tapered Flat End Mill UTE504

Korloy U-Star 4 Flute Tapered Flat End Mill UTE504

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 4
Coating AlCrN
Helix angle 30°
ØD tolerance Ø0.8~Ø12: 0~-0.08mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Hardened steel SKD61~HRC55, Cast iron ~FCD500
UTE50400800504 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 0.5 | L (mm): 45
UTE50400800506 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 45
UTE50400800508 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 45
UTE50400800510 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 45
UTE50400800512 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 45
UTE50400801004 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1 | L (mm): 45
UTE50400801006 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 45
UTE50400801008 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 45
UTE50400801010 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 45
UTE50400801012 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 45
UTE50400801504 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1.5 | L (mm): 45
UTE50400801506 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 45
UTE50400801508 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 45
UTE50400801510 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 45
UTE50400801512 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 45
UTE50400802004 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 2 | L (mm): 45
UTE50400802006 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 45
UTE50400802008 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 45
UTE50400802010 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 45
UTE50400802012 ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 45
UTE50401000504 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 0.5 | L (mm): 50
UTE50401000506 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 50
UTE50401000508 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50401000510 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50401000512 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50401000516 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50401001004 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1 | L (mm): 50
UTE50401001006 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 50
UTE50401001008 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE50401001010 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50401001012 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50401001016 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50401001504 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1.5 | L (mm): 50
UTE50401001506 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 50
UTE50401001508 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50401001510 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50401001512 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50401001516 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50401002004 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 2 | L (mm): 50
UTE50401002006 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 50
UTE50401002008 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50401002010 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50401002012 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50401002016 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50401003004 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 3 | L (mm): 50
UTE50401003006 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 3 | L (mm): 50
UTE50401003008 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50401003010 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50401003012 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50401003016 ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50401200506 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 50
UTE50401200508 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50401200510 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50401200512 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50401200516 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50401201006 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 50
UTE50401201008 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE50401201010 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50401201012 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50401201016 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50401201506 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 50
UTE50401201508 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50401201510 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50401201512 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50401201516 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50401202006 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 50
UTE50401202008 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50401202010 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50401202012 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50401202016 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50401203006 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 3 | L (mm): 50
UTE50401203008 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50401203010 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50401203012 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50401203016 ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50401500506 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 50
UTE50401500508 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50401500510 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50401500512 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50401500516 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50401500520 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 60
UTE50401501006 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 50
UTE50401501008 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE50401501010 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50401501012 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50401501016 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50401501020 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 60
UTE50401501506 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 50
UTE50401501508 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50401501510 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50401501512 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50401501516 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50401501520 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 60
UTE50401502006 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 50
UTE50401502008 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50401502010 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50401502012 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50401502016 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50401502020 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 60
UTE50401503006 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 3 | L (mm): 50
UTE50401503008 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50401503010 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50401503012 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50401503016 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50401503020 ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 3 | L (mm): 60
UTE50402000508 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50402000510 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50402000512 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50402000516 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50402000520 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 60
UTE50402000525 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 0.5 | L (mm): 60
UTE50402001008 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE50402001010 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50402001012 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50402001016 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50402001020 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 60
UTE50402001025 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 1 | L (mm): 60
UTE50402001508 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50402001510 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50402001512 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50402001516 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50402001520 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 60
UTE50402001525 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 1.5 | L (mm): 60
UTE50402002008 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50402002010 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50402002012 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50402002016 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50402002020 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 60
UTE50402002025 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 2 | L (mm): 60
UTE50402003008 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50402003010 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50402003012 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50402003016 ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50402003020 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 20 | θ (deg): 3 | L (mm): 60
UTE50402003025 ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 25 | θ (deg): 3 | L (mm): 60
UTE50402500510 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50402500512 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50402500516 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50402500520 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 60
UTE50402500525 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 0.5 | L (mm): 60
UTE50402500530 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 30 | θ (deg): 0.5 | L (mm): 60
UTE50402501010 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50402501012 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50402501016 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50402501020 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 60
UTE50402501025 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 1 | L (mm): 60
UTE50402501030 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 30 | θ (deg): 1 | L (mm): 60
UTE50402501510 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50402501512 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50402501516 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50402501520 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 60
UTE50402501525 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 1.5 | L (mm): 60
UTE50402501530 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 30 | θ (deg): 1.5 | L (mm): 60
UTE50402502010 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50402502012 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50402502016 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50402502020 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 60
UTE50402502025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 25 | θ (deg): 2 | L (mm): 60
UTE50402502030 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 30 | θ (deg): 2 | L (mm): 60
UTE50402503010 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50402503012 ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50402503016 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50402503020 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 20 | θ (deg): 3 | L (mm): 60
UTE50402503025 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 25 | θ (deg): 3 | L (mm): 60
UTE50402503030 ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 30 | θ (deg): 3 | L (mm): 60
UTE504030005 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50403001 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE504030015 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50403002 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 2 | L (mm): 50
UTE50403003 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 3 | L (mm): 50
UTE50403005 ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 5 | L (mm): 50
UTE50403007 ØD (mm): 3 | Ød (mm): 8 | ℓ (mm): 16 | θ (deg): 7 | L (mm): 50
UTE50403010 ØD (mm): 3 | Ød (mm): 10 | ℓ (mm): 16 | θ (deg): 10 | L (mm): 50
UTE504040005 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 60
UTE50404001 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 60
UTE504040015 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 60
UTE50404002 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 60
UTE50404003 ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 19 | θ (deg): 3 | L (mm): 60
UTE50404005 ØD (mm): 4 | Ød (mm): 8 | ℓ (mm): 22 | θ (deg): 5 | L (mm): 65
UTE50404007 ØD (mm): 4 | Ød (mm): 8 | ℓ (mm): 16 | θ (deg): 7 | L (mm): 65
UTE50404010 ØD (mm): 4 | Ød (mm): 10 | ℓ (mm): 17 | θ (deg): 10 | L (mm): 65
UTE504060005 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 65
UTE50406001 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 65
UTE504060015 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 65
UTE50406002 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 65
UTE50406003 ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 19 | θ (deg): 3 | L (mm): 65
UTE50406005 ØD (mm): 6 | Ød (mm): 10 | ℓ (mm): 22 | θ (deg): 5 | L (mm): 75
UTE50406007 ØD (mm): 6 | Ød (mm): 12 | ℓ (mm): 24 | θ (deg): 7 | L (mm): 75
UTE50406010 ØD (mm): 6 | Ød (mm): 12 | ℓ (mm): 17 | θ (deg): 10 | L (mm): 75
UTE504070005 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 28 | θ (deg): 0.5 | L (mm): 70
UTE50407001 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 28 | θ (deg): 1 | L (mm): 70
UTE504070015 ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 1.5 | L (mm): 70
UTE50407002 ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 2 | L (mm): 80
UTE50407003 ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 3 | L (mm): 80
UTE50407005 ØD (mm): 7 | Ød (mm): 12 | ℓ (mm): 28 | θ (deg): 5 | L (mm): 80
UTE504080005 ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 0.5 | L (mm): 90
UTE50408001 ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 1 | L (mm): 90
UTE504080015 ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 1.5 | L (mm): 90
UTE50408002 ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 2 | L (mm): 90
UTE50408003 ØD (mm): 8 | Ød (mm): 12 | ℓ (mm): 38 | θ (deg): 3 | L (mm): 90
UTE50408005 ØD (mm): 8 | Ød (mm): 16 | ℓ (mm): 45 | θ (deg): 5 | L (mm): 100
UTE50408007 ØD (mm): 8 | Ød (mm): 16 | ℓ (mm): 32 | θ (deg): 7 | L (mm): 90
UTE50408010 ØD (mm): 8 | Ød (mm): 20 | ℓ (mm): 34 | θ (deg): 10 | L (mm): 100
UTE504100005 ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 40 | θ (deg): 0.5 | L (mm): 90
UTE50410001 ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 40 | θ (deg): 1 | L (mm): 90
UTE504100015 ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 38 | θ (deg): 1.5 | L (mm): 90
UTE50410002 ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 40 | θ (deg): 2 | L (mm): 90
UTE50410003 ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 40 | θ (deg): 3 | L (mm): 100
UTE50410005 ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 34 | θ (deg): 5 | L (mm): 100
UTE50410007 ØD (mm): 10 | Ød (mm): 20 | ℓ (mm): 40 | θ (deg): 7 | L (mm): 90
UTE50410010 ØD (mm): 10 | Ød (mm): 25 | ℓ (mm): 42 | θ (deg): 10 | L (mm): 100
End MillsKorloy
211 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 4 Flute Tapered Flat End Mill UTE504

Brand Korloy·End Mills

Available part numbers (211)

UTE50400800504, UTE50400800506, UTE50400800508, UTE50400800510, UTE50400800512, UTE50400801004, UTE50400801006, UTE50400801008, UTE50400801010, UTE50400801012 + 201 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UTE50400800504ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 0.5 | L (mm): 45
UTE50400800506ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 45
UTE50400800508ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 45
UTE50400800510ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 45
UTE50400800512ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 45
UTE50400801004ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1 | L (mm): 45
UTE50400801006ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 45
UTE50400801008ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 45
UTE50400801010ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 45
UTE50400801012ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 45
UTE50400801504ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1.5 | L (mm): 45
UTE50400801506ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 45
UTE50400801508ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 45
UTE50400801510ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 45
UTE50400801512ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 45
UTE50400802004ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 2 | L (mm): 45
UTE50400802006ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 45
UTE50400802008ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 45
UTE50400802010ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 45
UTE50400802012ØD (mm): 0.8 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 45
UTE50401000504ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 0.5 | L (mm): 50
UTE50401000506ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 50
UTE50401000508ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50401000510ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50401000512ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50401000516ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50401001004ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1 | L (mm): 50
UTE50401001006ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 50
UTE50401001008ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE50401001010ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50401001012ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50401001016ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50401001504ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 1.5 | L (mm): 50
UTE50401001506ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 50
UTE50401001508ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50401001510ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50401001512ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50401001516ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50401002004ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 2 | L (mm): 50
UTE50401002006ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 50
UTE50401002008ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50401002010ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50401002012ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50401002016ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50401003004ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 4 | θ (deg): 3 | L (mm): 50
UTE50401003006ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 3 | L (mm): 50
UTE50401003008ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50401003010ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50401003012ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50401003016ØD (mm): 1 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50401200506ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 50
UTE50401200508ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50401200510ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50401200512ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50401200516ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50401201006ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 50
UTE50401201008ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE50401201010ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50401201012ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50401201016ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50401201506ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 50
UTE50401201508ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50401201510ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50401201512ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50401201516ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50401202006ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 50
UTE50401202008ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50401202010ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50401202012ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50401202016ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50401203006ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 3 | L (mm): 50
UTE50401203008ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50401203010ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50401203012ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50401203016ØD (mm): 1.2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50401500506ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 0.5 | L (mm): 50
UTE50401500508ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50401500510ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50401500512ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50401500516ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50401500520ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 60
UTE50401501006ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1 | L (mm): 50
UTE50401501008ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE50401501010ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50401501012ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50401501016ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50401501020ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 60
UTE50401501506ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 1.5 | L (mm): 50
UTE50401501508ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50401501510ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50401501512ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50401501516ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50401501520ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 60
UTE50401502006ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 2 | L (mm): 50
UTE50401502008ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50401502010ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50401502012ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50401502016ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50401502020ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 60
UTE50401503006ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 6 | θ (deg): 3 | L (mm): 50
UTE50401503008ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50401503010ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50401503012ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50401503016ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50401503020ØD (mm): 1.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 3 | L (mm): 60
UTE50402000508ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 0.5 | L (mm): 50
UTE50402000510ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50402000512ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50402000516ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50402000520ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 60
UTE50402000525ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 0.5 | L (mm): 60
UTE50402001008ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1 | L (mm): 50
UTE50402001010ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50402001012ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50402001016ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50402001020ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 60
UTE50402001025ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 1 | L (mm): 60
UTE50402001508ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 1.5 | L (mm): 50
UTE50402001510ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50402001512ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50402001516ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50402001520ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 60
UTE50402001525ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 1.5 | L (mm): 60
UTE50402002008ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 2 | L (mm): 50
UTE50402002010ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50402002012ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50402002016ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50402002020ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 60
UTE50402002025ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 2 | L (mm): 60
UTE50402003008ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 8 | θ (deg): 3 | L (mm): 50
UTE50402003010ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50402003012ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50402003016ØD (mm): 2 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50402003020ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 20 | θ (deg): 3 | L (mm): 60
UTE50402003025ØD (mm): 2 | Ød (mm): 6 | ℓ (mm): 25 | θ (deg): 3 | L (mm): 60
UTE50402500510ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 0.5 | L (mm): 50
UTE50402500512ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50402500516ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 50
UTE50402500520ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 60
UTE50402500525ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 0.5 | L (mm): 60
UTE50402500530ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 30 | θ (deg): 0.5 | L (mm): 60
UTE50402501010ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1 | L (mm): 50
UTE50402501012ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE50402501016ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 50
UTE50402501020ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 60
UTE50402501025ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 1 | L (mm): 60
UTE50402501030ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 30 | θ (deg): 1 | L (mm): 60
UTE50402501510ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 1.5 | L (mm): 50
UTE50402501512ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50402501516ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 50
UTE50402501520ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 60
UTE50402501525ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 25 | θ (deg): 1.5 | L (mm): 60
UTE50402501530ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 30 | θ (deg): 1.5 | L (mm): 60
UTE50402502010ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 2 | L (mm): 50
UTE50402502012ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 2 | L (mm): 50
UTE50402502016ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 50
UTE50402502020ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 60
UTE50402502025ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 25 | θ (deg): 2 | L (mm): 60
UTE50402502030ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 30 | θ (deg): 2 | L (mm): 60
UTE50402503010ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 10 | θ (deg): 3 | L (mm): 50
UTE50402503012ØD (mm): 2.5 | Ød (mm): 4 | ℓ (mm): 12 | θ (deg): 3 | L (mm): 50
UTE50402503016ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 3 | L (mm): 50
UTE50402503020ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 20 | θ (deg): 3 | L (mm): 60
UTE50402503025ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 25 | θ (deg): 3 | L (mm): 60
UTE50402503030ØD (mm): 2.5 | Ød (mm): 6 | ℓ (mm): 30 | θ (deg): 3 | L (mm): 60
UTE504030005ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 0.5 | L (mm): 50
UTE50403001ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 1 | L (mm): 50
UTE504030015ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 12 | θ (deg): 1.5 | L (mm): 50
UTE50403002ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 2 | L (mm): 50
UTE50403003ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 14 | θ (deg): 3 | L (mm): 50
UTE50403005ØD (mm): 3 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 5 | L (mm): 50
UTE50403007ØD (mm): 3 | Ød (mm): 8 | ℓ (mm): 16 | θ (deg): 7 | L (mm): 50
UTE50403010ØD (mm): 3 | Ød (mm): 10 | ℓ (mm): 16 | θ (deg): 10 | L (mm): 50
UTE504040005ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 0.5 | L (mm): 60
UTE50404001ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 1 | L (mm): 60
UTE504040015ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 1.5 | L (mm): 60
UTE50404002ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 16 | θ (deg): 2 | L (mm): 60
UTE50404003ØD (mm): 4 | Ød (mm): 6 | ℓ (mm): 19 | θ (deg): 3 | L (mm): 60
UTE50404005ØD (mm): 4 | Ød (mm): 8 | ℓ (mm): 22 | θ (deg): 5 | L (mm): 65
UTE50404007ØD (mm): 4 | Ød (mm): 8 | ℓ (mm): 16 | θ (deg): 7 | L (mm): 65
UTE50404010ØD (mm): 4 | Ød (mm): 10 | ℓ (mm): 17 | θ (deg): 10 | L (mm): 65
UTE504060005ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 0.5 | L (mm): 65
UTE50406001ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 1 | L (mm): 65
UTE504060015ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 1.5 | L (mm): 65
UTE50406002ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 20 | θ (deg): 2 | L (mm): 65
UTE50406003ØD (mm): 6 | Ød (mm): 8 | ℓ (mm): 19 | θ (deg): 3 | L (mm): 65
UTE50406005ØD (mm): 6 | Ød (mm): 10 | ℓ (mm): 22 | θ (deg): 5 | L (mm): 75
UTE50406007ØD (mm): 6 | Ød (mm): 12 | ℓ (mm): 24 | θ (deg): 7 | L (mm): 75
UTE50406010ØD (mm): 6 | Ød (mm): 12 | ℓ (mm): 17 | θ (deg): 10 | L (mm): 75
UTE504070005ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 28 | θ (deg): 0.5 | L (mm): 70
UTE50407001ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 28 | θ (deg): 1 | L (mm): 70
UTE504070015ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 1.5 | L (mm): 70
UTE50407002ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 2 | L (mm): 80
UTE50407003ØD (mm): 7 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 3 | L (mm): 80
UTE50407005ØD (mm): 7 | Ød (mm): 12 | ℓ (mm): 28 | θ (deg): 5 | L (mm): 80
UTE504080005ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 0.5 | L (mm): 90
UTE50408001ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 1 | L (mm): 90
UTE504080015ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 35 | θ (deg): 1.5 | L (mm): 90
UTE50408002ØD (mm): 8 | Ød (mm): 10 | ℓ (mm): 28 | θ (deg): 2 | L (mm): 90
UTE50408003ØD (mm): 8 | Ød (mm): 12 | ℓ (mm): 38 | θ (deg): 3 | L (mm): 90
UTE50408005ØD (mm): 8 | Ød (mm): 16 | ℓ (mm): 45 | θ (deg): 5 | L (mm): 100
UTE50408007ØD (mm): 8 | Ød (mm): 16 | ℓ (mm): 32 | θ (deg): 7 | L (mm): 90
UTE50408010ØD (mm): 8 | Ød (mm): 20 | ℓ (mm): 34 | θ (deg): 10 | L (mm): 100
UTE504100005ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 40 | θ (deg): 0.5 | L (mm): 90
UTE50410001ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 40 | θ (deg): 1 | L (mm): 90
UTE504100015ØD (mm): 10 | Ød (mm): 12 | ℓ (mm): 38 | θ (deg): 1.5 | L (mm): 90
UTE50410002ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 40 | θ (deg): 2 | L (mm): 90
UTE50410003ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 40 | θ (deg): 3 | L (mm): 100
UTE50410005ØD (mm): 10 | Ød (mm): 16 | ℓ (mm): 34 | θ (deg): 5 | L (mm): 100
UTE50410007ØD (mm): 10 | Ød (mm): 20 | ℓ (mm): 40 | θ (deg): 7 | L (mm): 90
UTE50410010ØD (mm): 10 | Ød (mm): 25 | ℓ (mm): 42 | θ (deg): 10 | L (mm): 100

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
