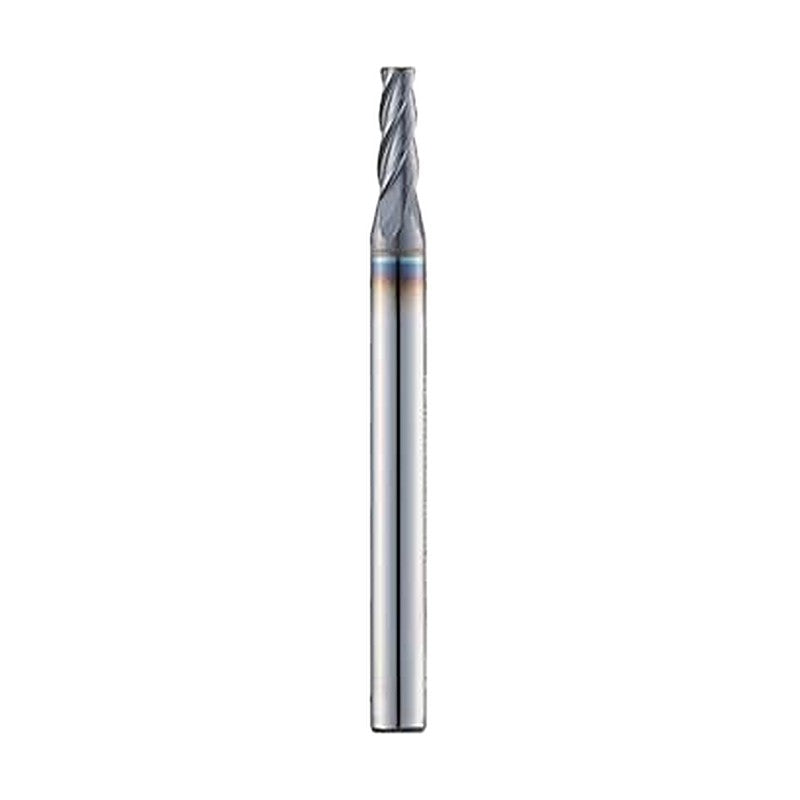

Korloy U-Star 4 Flute Tapered Radius End Mill UTR504

Korloy U-Star 4 Flute Tapered Radius End Mill UTR504

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 30°
  • Radius tolerance ±0.01 (Corner R)
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 4
Coating AlCrN
Helix angle 30°
ØD tolerance Ø0.8~Ø2.5: 0~-0.03mm
Shank tolerance h5
Radius tolerance ±0.01 (Corner R)
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55 SKD11 HRC55~ SKD61~HRC55, Cast iron ~FCD500
UTR504008010104 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 45
UTR504008010106 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 45
UTR504008010108 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 45
UTR5040080101504 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 45
UTR5040080101506 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 45
UTR5040080101508 R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 45
UTR504008020104 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 45
UTR504008020106 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 45
UTR504008020108 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 45
UTR5040080201504 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 45
UTR5040080201506 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 45
UTR5040080201508 R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 45
UTR504010010104 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 50
UTR504010010106 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504010010108 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504010010110 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504010010112 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR5040100101504 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 50
UTR5040100101506 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 50
UTR5040100101508 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 50
UTR5040100101510 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 10 | L (mm): 50
UTR5040100101512 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 12 | L (mm): 50
UTR504010010204 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 4 | L (mm): 50
UTR504010010206 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504010010208 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504010010210 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504010010212 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504010010304 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 4 | L (mm): 50
UTR504010010306 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504010010308 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504010010310 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504010010312 R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504010020104 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 50
UTR504010020106 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504010020108 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504010020110 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504010020112 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR5040100201504 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 50
UTR5040100201506 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 50
UTR5040100201508 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 50
UTR5040100201510 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 10 | L (mm): 50
UTR5040100201512 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 12 | L (mm): 50
UTR504010020204 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 4 | L (mm): 50
UTR504010020206 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504010020208 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504010020210 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504010020212 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504010020304 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 4 | L (mm): 50
UTR504010020306 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504010020308 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504010020310 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504010020312 R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504010030104 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 50
UTR504010030106 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504010030108 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504010030110 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504010030112 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR5040100301504 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 50
UTR5040100301506 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 50
UTR5040100301508 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 50
UTR5040100301510 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 10 | L (mm): 50
UTR5040100301512 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 12 | L (mm): 50
UTR504010030204 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 4 | L (mm): 50
UTR504010030206 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504010030208 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504010030210 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504010030212 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504010030304 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 4 | L (mm): 50
UTR504010030306 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504010030308 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504010030310 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504010030312 R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504012010106 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504012010108 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504012010110 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504012010112 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504012010206 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504012010208 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504012010210 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504012010212 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504012010306 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504012010308 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504012010310 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504012010312 R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504012020106 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504012020108 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504012020110 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504012020112 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504012020206 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504012020208 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504012020210 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504012020212 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504012020306 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504012020308 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504012020310 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504012020312 R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504012030106 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504012030108 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504012030110 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504012030112 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504012030206 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504012030208 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504012030210 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504012030212 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504012030306 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504012030308 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504012030310 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504012030312 R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504015010106 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504015010108 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504015010110 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504015010112 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504015010116 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504015010120 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504015010206 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504015010208 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504015010210 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504015010212 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504015010216 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504015010220 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504015010306 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504015010308 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504015010310 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504015010312 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504015010316 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504015010320 R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504015020106 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504015020108 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504015020110 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504015020112 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504015020116 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504015020120 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504015020206 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504015020208 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504015020210 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504015020212 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504015020216 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504015020220 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504015020306 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504015020308 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504015020310 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504015020312 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504015020316 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504015020320 R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504015030106 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504015030108 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504015030110 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504015030112 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504015030116 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504015030120 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504015030206 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504015030208 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504015030210 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504015030212 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504015030216 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504015030220 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504015030306 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504015030308 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504015030310 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504015030312 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504015030316 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504015030320 R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504020010108 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504020010110 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504020010112 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504020010116 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504020010120 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504020010125 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504020010208 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504020010210 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504020010212 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504020010216 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504020010220 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504020010225 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504020010308 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504020010310 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504020010312 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504020010316 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504020010320 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504020010325 R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504020020108 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504020020110 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504020020112 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504020020116 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504020020120 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504020020125 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504020020208 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504020020210 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504020020212 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504020020216 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504020020220 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504020020225 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504020020308 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504020020310 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504020020312 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504020020316 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504020020320 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504020020325 R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504020030108 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504020030110 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504020030112 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504020030116 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504020030120 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504020030125 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504020030208 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504020030210 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504020030212 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504020030216 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504020030220 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504020030225 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504020030308 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504020030310 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504020030312 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504020030316 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504020030320 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504020030325 R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504025010110 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504025010112 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504025010116 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504025010120 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504025010125 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504025010130 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 30 | L (mm): 60
UTR504025010210 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504025010212 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504025010216 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504025010220 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504025010225 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504025010230 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 30 | L (mm): 60
UTR504025010310 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504025010312 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504025010316 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504025010320 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504025010325 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504025010330 R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 30 | L (mm): 60
UTR504025020110 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504025020112 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504025020116 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504025020120 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504025020125 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504025020130 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 30 | L (mm): 60
UTR504025020210 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504025020212 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504025020216 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504025020220 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504025020225 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504025020230 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 30 | L (mm): 60
UTR504025020310 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504025020312 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504025020316 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504025020320 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504025020325 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504025020330 R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 30 | L (mm): 60
UTR504025030110 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504025030112 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504025030116 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504025030120 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504025030125 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504025030130 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 30 | L (mm): 60
UTR504025030212 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504025030216 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504025030220 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504025030225 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504025030230 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 30 | L (mm): 60
UTR504025030310 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504025030312 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504025030316 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504025030320 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504025030325 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504025030330 R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 30 | L (mm): 60
End MillsKorloy
269 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 4 Flute Tapered Radius End Mill UTR504

Brand Korloy·End Mills

Available part numbers (269)

UTR504008010104, UTR504008010106, UTR504008010108, UTR5040080101504, UTR5040080101506, UTR5040080101508, UTR504008020104, UTR504008020106, UTR504008020108, UTR5040080201504 + 259 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UTR504008010104R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 45
UTR504008010106R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 45
UTR504008010108R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 45
UTR5040080101504R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 45
UTR5040080101506R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 45
UTR5040080101508R (mm): 0.1 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 45
UTR504008020104R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 45
UTR504008020106R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 45
UTR504008020108R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 45
UTR5040080201504R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 45
UTR5040080201506R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 45
UTR5040080201508R (mm): 0.2 | ØD (mm): 0.8 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 45
UTR504010010104R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 50
UTR504010010106R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504010010108R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504010010110R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504010010112R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR5040100101504R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 50
UTR5040100101506R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 50
UTR5040100101508R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 50
UTR5040100101510R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 10 | L (mm): 50
UTR5040100101512R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 12 | L (mm): 50
UTR504010010204R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 4 | L (mm): 50
UTR504010010206R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504010010208R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504010010210R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504010010212R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504010010304R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 4 | L (mm): 50
UTR504010010306R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504010010308R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504010010310R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504010010312R (mm): 0.1 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504010020104R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 50
UTR504010020106R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504010020108R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504010020110R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504010020112R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR5040100201504R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 50
UTR5040100201506R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 50
UTR5040100201508R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 50
UTR5040100201510R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 10 | L (mm): 50
UTR5040100201512R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 12 | L (mm): 50
UTR504010020204R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 4 | L (mm): 50
UTR504010020206R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504010020208R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504010020210R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504010020212R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504010020304R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 4 | L (mm): 50
UTR504010020306R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504010020308R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504010020310R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504010020312R (mm): 0.2 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504010030104R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 4 | L (mm): 50
UTR504010030106R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504010030108R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504010030110R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504010030112R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR5040100301504R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 4 | L (mm): 50
UTR5040100301506R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 6 | L (mm): 50
UTR5040100301508R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 8 | L (mm): 50
UTR5040100301510R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 10 | L (mm): 50
UTR5040100301512R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 1.5 | ℓ (mm): 12 | L (mm): 50
UTR504010030204R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 4 | L (mm): 50
UTR504010030206R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504010030208R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504010030210R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504010030212R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504010030304R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 4 | L (mm): 50
UTR504010030306R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504010030308R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504010030310R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504010030312R (mm): 0.3 | ØD (mm): 1 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504012010106R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504012010108R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504012010110R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504012010112R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504012010206R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504012010208R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504012010210R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504012010212R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504012010306R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504012010308R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504012010310R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504012010312R (mm): 0.1 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504012020106R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504012020108R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504012020110R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504012020112R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504012020206R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504012020208R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504012020210R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504012020212R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504012020306R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504012020308R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504012020310R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504012020312R (mm): 0.2 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504012030106R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504012030108R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504012030110R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504012030112R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504012030206R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504012030208R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504012030210R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504012030212R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504012030306R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504012030308R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504012030310R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504012030312R (mm): 0.3 | ØD (mm): 1.2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504015010106R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504015010108R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504015010110R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504015010112R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504015010116R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504015010120R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504015010206R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504015010208R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504015010210R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504015010212R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504015010216R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504015010220R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504015010306R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504015010308R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504015010310R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504015010312R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504015010316R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504015010320R (mm): 0.1 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504015020106R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504015020108R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504015020110R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504015020112R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504015020116R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504015020120R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504015020206R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504015020208R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504015020210R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504015020212R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504015020216R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504015020220R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504015020306R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504015020308R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504015020310R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504015020312R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504015020316R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504015020320R (mm): 0.2 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504015030106R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 6 | L (mm): 50
UTR504015030108R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504015030110R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504015030112R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504015030116R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504015030120R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504015030206R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 6 | L (mm): 50
UTR504015030208R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504015030210R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504015030212R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504015030216R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504015030220R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504015030306R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 6 | L (mm): 50
UTR504015030308R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504015030310R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504015030312R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504015030316R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504015030320R (mm): 0.3 | ØD (mm): 1.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504020010108R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504020010110R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504020010112R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504020010116R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504020010120R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504020010125R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504020010208R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504020010210R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504020010212R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504020010216R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504020010220R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504020010225R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504020010308R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504020010310R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504020010312R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504020010316R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504020010320R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504020010325R (mm): 0.1 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504020020108R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504020020110R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504020020112R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504020020116R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504020020120R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504020020125R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504020020208R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504020020210R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504020020212R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504020020216R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504020020220R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504020020225R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504020020308R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504020020310R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504020020312R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504020020316R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504020020320R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504020020325R (mm): 0.2 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504020030108R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 8 | L (mm): 50
UTR504020030110R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504020030112R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504020030116R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504020030120R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504020030125R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504020030208R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 8 | L (mm): 50
UTR504020030210R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504020030212R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504020030216R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504020030220R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504020030225R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504020030308R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 8 | L (mm): 50
UTR504020030310R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504020030312R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504020030316R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504020030320R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504020030325R (mm): 0.3 | ØD (mm): 2 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504025010110R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504025010112R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504025010116R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504025010120R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504025010125R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504025010130R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 30 | L (mm): 60
UTR504025010210R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504025010212R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504025010216R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504025010220R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504025010225R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504025010230R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 30 | L (mm): 60
UTR504025010310R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504025010312R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504025010316R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504025010320R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504025010325R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504025010330R (mm): 0.1 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 30 | L (mm): 60
UTR504025020110R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504025020112R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504025020116R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504025020120R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504025020125R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504025020130R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 30 | L (mm): 60
UTR504025020210R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 10 | L (mm): 50
UTR504025020212R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504025020216R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504025020220R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504025020225R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504025020230R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 30 | L (mm): 60
UTR504025020310R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504025020312R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504025020316R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504025020320R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504025020325R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504025020330R (mm): 0.2 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 30 | L (mm): 60
UTR504025030110R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 10 | L (mm): 50
UTR504025030112R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 12 | L (mm): 50
UTR504025030116R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 16 | L (mm): 50
UTR504025030120R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 20 | L (mm): 60
UTR504025030125R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 25 | L (mm): 60
UTR504025030130R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 1 | ℓ (mm): 30 | L (mm): 60
UTR504025030212R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 12 | L (mm): 50
UTR504025030216R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 16 | L (mm): 50
UTR504025030220R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 2 | ℓ (mm): 20 | L (mm): 60
UTR504025030225R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 25 | L (mm): 60
UTR504025030230R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 2 | ℓ (mm): 30 | L (mm): 60
UTR504025030310R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 10 | L (mm): 50
UTR504025030312R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 4 | θ (deg): 3 | ℓ (mm): 12 | L (mm): 50
UTR504025030316R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 16 | L (mm): 50
UTR504025030320R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 20 | L (mm): 60
UTR504025030325R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 25 | L (mm): 60
UTR504025030330R (mm): 0.3 | ØD (mm): 2.5 | Ød (mm): 6 | θ (deg): 3 | ℓ (mm): 30 | L (mm): 60

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
