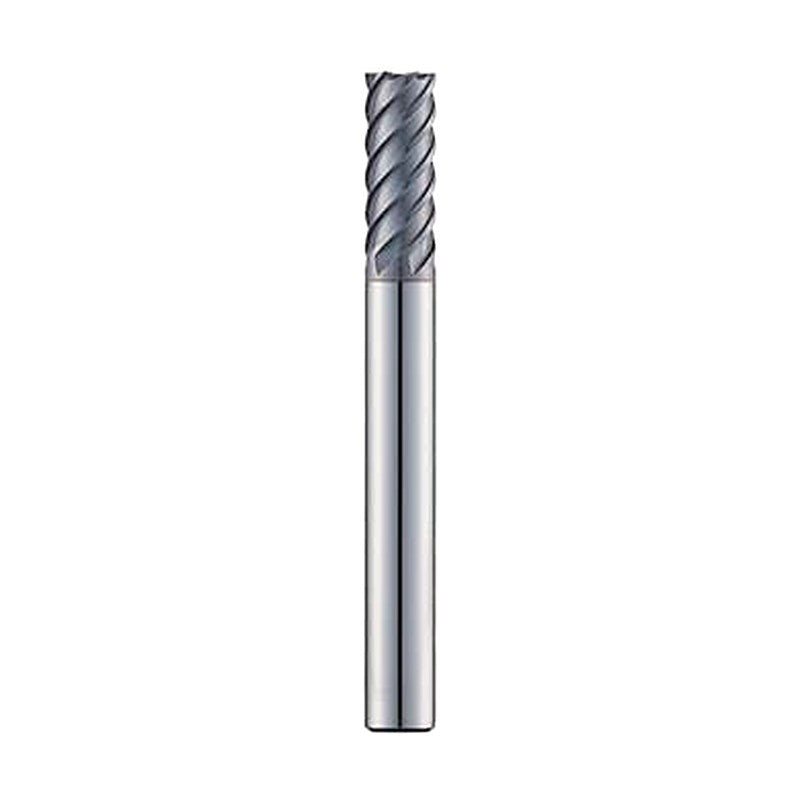

Korloy U-Star 6 Flute Flat End Mill UE506

Korloy U-Star 6 Flute Flat End Mill UE506

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 45°
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 6
Coating AlCrN
Helix angle 45°
ØD tolerance Ø6~Ø25: 0~-0.03mm
Shank tolerance h5
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
UE506060 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE50606020 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE50606030110 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 110
UE50606030 ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE506070 ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 18 | L (mm): 60
UE506080 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UE50608030 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 80
UE50608035 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 90
UE50608040130 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 130
UE50608040 ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 90
UE506090 ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
UE506100 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UE50610030 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 80
UE50610040 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 90
UE50610050150 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 150
UE50610050 ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 100
UE506110 ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
UE506120 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UE50612040 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 90
UE50612050 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 100
UE50612060150 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 150
UE50612060 ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 110
UE506130 ØD (mm): 13 | Ød (mm): 14 | ℓ (mm): 32 | L (mm): 85
UE506140 ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 32 | L (mm): 85
UE506160 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UE50616050 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE50616060 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 120
UE50616090 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 90 | L (mm): 150
UE506160110250 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 110 | L (mm): 250
UE506160110 ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 110 | L (mm): 200
UE506180 ØD (mm): 18 | Ød (mm): 18 | ℓ (mm): 44 | L (mm): 100
UE506200 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
UE50620060 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 60 | L (mm): 120
UE50620070 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE506200110300 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 300
UE506200110250 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 250
UE506200110 ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE506250 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 120
UE506251 ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 92 | L (mm): 180
End MillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 6 Flute Flat End Mill UE506

Brand Korloy·End Mills

Available part numbers (39)

UE506060, UE50606020, UE50606030110, UE50606030, UE506070, UE506080, UE50608030, UE50608035, UE50608040130, UE50608040 + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UE506060ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 60
UE50606020ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 20 | L (mm): 70
UE50606030110ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 110
UE50606030ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 30 | L (mm): 80
UE506070ØD (mm): 7 | Ød (mm): 8 | ℓ (mm): 18 | L (mm): 60
UE506080ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 70
UE50608030ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 30 | L (mm): 80
UE50608035ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 35 | L (mm): 90
UE50608040130ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 130
UE50608040ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 40 | L (mm): 90
UE506090ØD (mm): 9 | Ød (mm): 10 | ℓ (mm): 22 | L (mm): 70
UE506100ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 75
UE50610030ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 30 | L (mm): 80
UE50610040ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 40 | L (mm): 90
UE50610050150ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 150
UE50610050ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 50 | L (mm): 100
UE506110ØD (mm): 11 | Ød (mm): 12 | ℓ (mm): 26 | L (mm): 75
UE506120ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 80
UE50612040ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 40 | L (mm): 90
UE50612050ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 50 | L (mm): 100
UE50612060150ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 150
UE50612060ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 60 | L (mm): 110
UE506130ØD (mm): 13 | Ød (mm): 14 | ℓ (mm): 32 | L (mm): 85
UE506140ØD (mm): 14 | Ød (mm): 14 | ℓ (mm): 32 | L (mm): 85
UE506160ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 40 | L (mm): 100
UE50616050ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 50 | L (mm): 110
UE50616060ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 60 | L (mm): 120
UE50616090ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 90 | L (mm): 150
UE506160110250ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 110 | L (mm): 250
UE506160110ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 110 | L (mm): 200
UE506180ØD (mm): 18 | Ød (mm): 18 | ℓ (mm): 44 | L (mm): 100
UE506200ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 45 | L (mm): 100
UE50620060ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 60 | L (mm): 120
UE50620070ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 70 | L (mm): 130
UE506200110300ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 300
UE506200110250ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 250
UE506200110ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 110 | L (mm): 200
UE506250ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 50 | L (mm): 120
UE506251ØD (mm): 25 | Ød (mm): 25 | ℓ (mm): 92 | L (mm): 180
