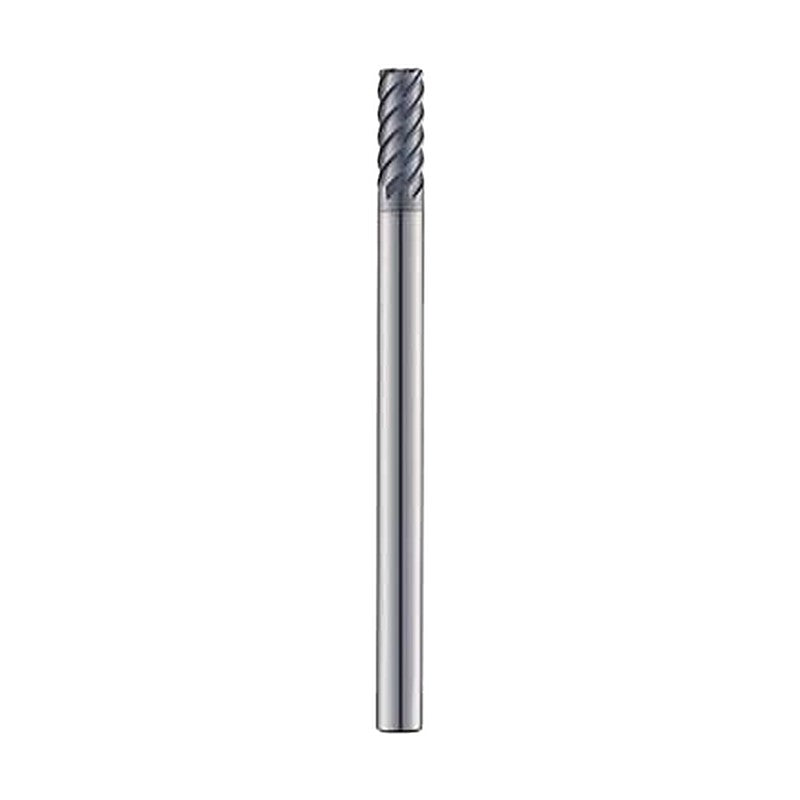

Korloy U-Star 6 Flute Radius End Mill UR506

Korloy U-Star 6 Flute Radius End Mill UR506

Solid carbide end mill of the U-Star series for mold and die machining of HRC30~50 medium hardness steel and die steel.

Key features

  • Carbide substrate for medium hardness steel cutting
  • AlCrN based multilayer coating for wear and oxidation resistance
  • S-curved gash shape disperses cutting force
  • Helix angle 45°
  • Radius tolerance ±0.015 (Corner R)
  • h5 shank tolerance

Specifications

Series line U-Star End Mill
Flutes 6
Coating AlCrN
Helix angle 45°
ØD tolerance Ø6~Ø20: 0~-0.03mm
Shank tolerance h5
Radius tolerance ±0.015 (Corner R)
Workpiece (excellent) Alloy steel HB225~325, Pre-hardened steel HRC30~50
Workpiece (good) Carbon steel ~ HB225, Hardened steel SKD61~HRC55, Cast iron ~FCD500
UR50606003 R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50606005 R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50606010 R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50608003 R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50608005 R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50608010 R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50610003 R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50610005 R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50610010 R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50612003 R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50612005 R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50612010 R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50616005 R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50616010 R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50616015 R (mm): 1.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50616020 R (mm): 2 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50620005 R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
UR50620010 R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
UR50620015 R (mm): 1.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
UR50620020 R (mm): 2 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
End MillsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy U-Star 6 Flute Radius End Mill UR506

Brand Korloy·End Mills

Available part numbers (20)

UR50606003, UR50606005, UR50606010, UR50608003, UR50608005, UR50608010, UR50610003, UR50610005, UR50610010, UR50612003 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UR50606003R (mm): 0.3 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50606005R (mm): 0.5 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50606010R (mm): 1 | ØD (mm): 6 | Ød (mm): 6 | ℓ (mm): 15 | L (mm): 90
UR50608003R (mm): 0.3 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50608005R (mm): 0.5 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50608010R (mm): 1 | ØD (mm): 8 | Ød (mm): 8 | ℓ (mm): 20 | L (mm): 100
UR50610003R (mm): 0.3 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50610005R (mm): 0.5 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50610010R (mm): 1 | ØD (mm): 10 | Ød (mm): 10 | ℓ (mm): 25 | L (mm): 100
UR50612003R (mm): 0.3 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50612005R (mm): 0.5 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50612010R (mm): 1 | ØD (mm): 12 | Ød (mm): 12 | ℓ (mm): 30 | L (mm): 110
UR50616005R (mm): 0.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50616010R (mm): 1 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50616015R (mm): 1.5 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50616020R (mm): 2 | ØD (mm): 16 | Ød (mm): 16 | ℓ (mm): 32 | L (mm): 150
UR50620005R (mm): 0.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
UR50620010R (mm): 1 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
UR50620015R (mm): 1.5 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
UR50620020R (mm): 2 | ØD (mm): 20 | Ød (mm): 20 | ℓ (mm): 38 | L (mm): 150
