Korloy Wind Mill Slot Milling Insert SNHT

Korloy Wind Mill Slot Milling Insert SNHT

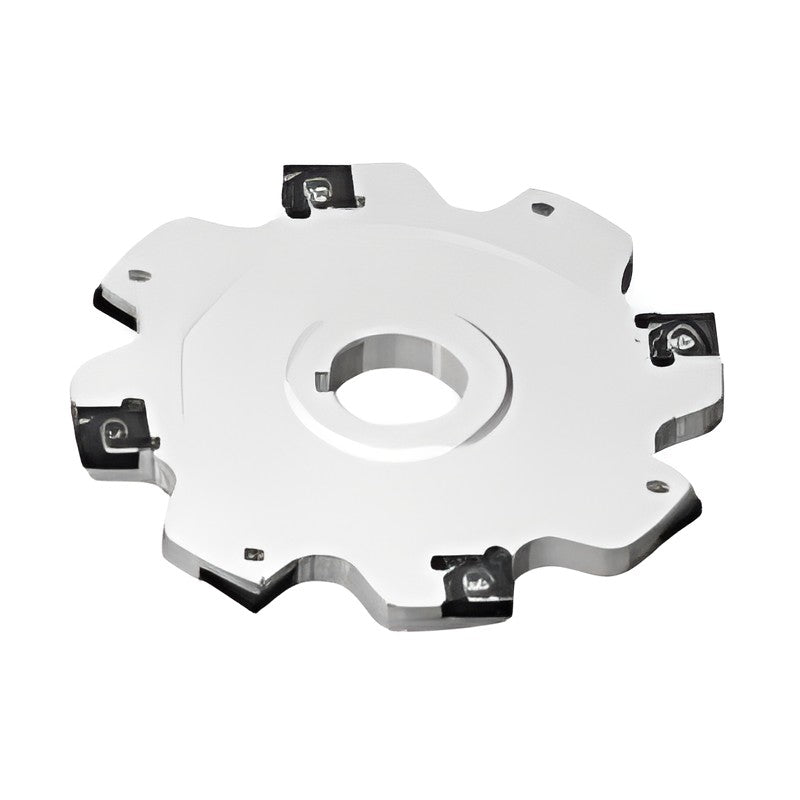

Wind Mill side and slot milling cutters with SNHT-WX inserts for slotting applications.

Key features

  • Optimal geometry for slotting
  • Recess design on minor cutting edge reduces cutting load
  • Special clamping prevents incorrect clamping and fracture
  • Corner radii R0.2 to R2.0
SNHT1102308R-WX PC5300 Chip breaker: WX | d (mm): 11 | t (mm): 2.30 | d1 (mm): 4 | Grade: PC5300 | Stock: Yes
SNHT1102308L-WX PC5300 Chip breaker: WX | d (mm): 11 | t (mm): 2.30 | d1 (mm): 4 | Grade: PC5300 | Stock: Yes
SNHT110308R-WX PC5300 Chip breaker: WX | d (mm): 11 | t (mm): 3.00 | d1 (mm): 4 | Grade: PC5300 | Stock: Yes
SNHT110308L-WX PC5300 Chip breaker: WX | d (mm): 11 | t (mm): 3.00 | d1 (mm): 4 | Grade: PC5300 | Stock: Yes
SNHT1203508R-WX PC5300 Chip breaker: WX | d (mm): 12.7 | t (mm): 3.50 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1203508L-WX PC5300 Chip breaker: WX | d (mm): 12.7 | t (mm): 3.50 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1204508R-WX PC5300 Chip breaker: WX | d (mm): 12.7 | t (mm): 4.54 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1204508L-WX PC5300 Chip breaker: WX | d (mm): 12.7 | t (mm): 4.54 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1205408R-WX PC5300 Chip breaker: WX | d (mm): 12.7 | t (mm): 5.47 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1205408L-WX PC5300 Chip breaker: WX | d (mm): 12.7 | t (mm): 5.47 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
Milling InsertsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Wind Mill Slot Milling Insert SNHT

Brand Korloy·Milling Inserts

Available part numbers (10)

SNHT1102308R-WX PC5300, SNHT1102308L-WX PC5300, SNHT110308R-WX PC5300, SNHT110308L-WX PC5300, SNHT1203508R-WX PC5300, SNHT1203508L-WX PC5300, SNHT1204508R-WX PC5300, SNHT1204508L-WX PC5300, SNHT1205408R-WX PC5300, SNHT1205408L-WX PC5300

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNHT1102308R-WX PC5300Chip breaker: WX | d (mm): 11 | t (mm): 2.30 | d1 (mm): 4 | Grade: PC5300 | Stock: Yes
SNHT1102308L-WX PC5300Chip breaker: WX | d (mm): 11 | t (mm): 2.30 | d1 (mm): 4 | Grade: PC5300 | Stock: Yes
SNHT110308R-WX PC5300Chip breaker: WX | d (mm): 11 | t (mm): 3.00 | d1 (mm): 4 | Grade: PC5300 | Stock: Yes
SNHT110308L-WX PC5300Chip breaker: WX | d (mm): 11 | t (mm): 3.00 | d1 (mm): 4 | Grade: PC5300 | Stock: Yes
SNHT1203508R-WX PC5300Chip breaker: WX | d (mm): 12.7 | t (mm): 3.50 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1203508L-WX PC5300Chip breaker: WX | d (mm): 12.7 | t (mm): 3.50 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1204508R-WX PC5300Chip breaker: WX | d (mm): 12.7 | t (mm): 4.54 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1204508L-WX PC5300Chip breaker: WX | d (mm): 12.7 | t (mm): 4.54 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1205408R-WX PC5300Chip breaker: WX | d (mm): 12.7 | t (mm): 5.47 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
SNHT1205408L-WX PC5300Chip breaker: WX | d (mm): 12.7 | t (mm): 5.47 | d1 (mm): 5 | Grade: PC5300 | Stock: Yes
