• Korloy Z Endmill Ball ZBE2000
1 1

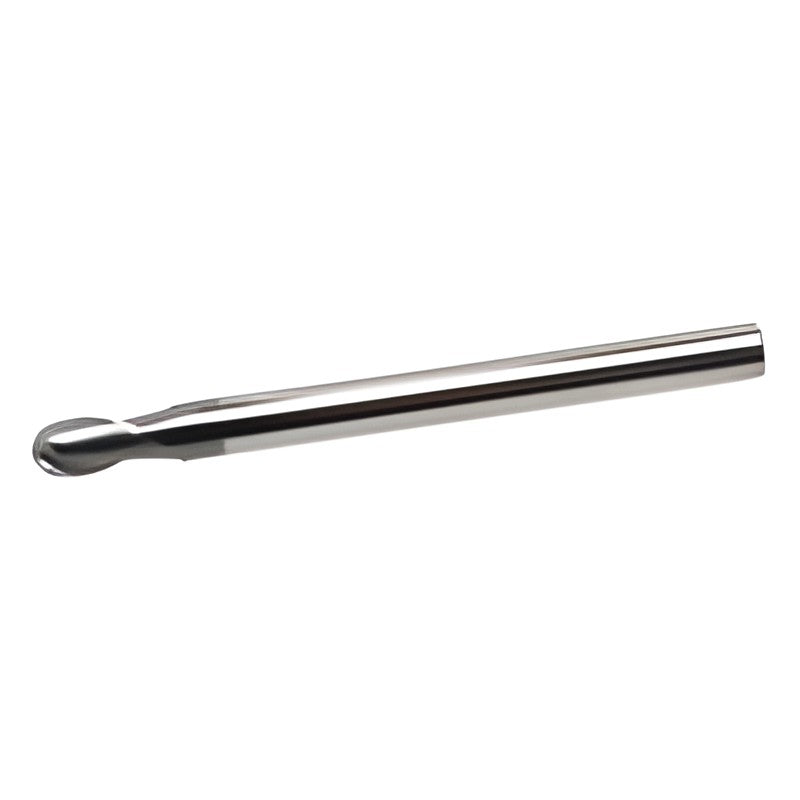

Korloy Z Endmill Ball ZBE2000

Korloy Z Endmill Ball ZBE2000

Z Endmill solid carbide end mills with irregular indexing and helix, PC315E grade and h5 tolerance.

Key features

  • Irregular indexing and helix prevent chattering
  • New PC315E grade for high speed and high temperature
  • Special edge treatment against chipping
  • Tolerance h5 throughout the series
ZBE2010-050-S4 Flutes: 2 | Dia. (mm): 1.0 | Length of cut (mm): 5.0
ZBE2010-050-S6 Flutes: 2 | Dia. (mm): 1.0 | Length of cut (mm): 5.0
ZBE2012-050-S4 Flutes: 2 | Dia. (mm): 1.2 | Length of cut (mm): 5.0
ZBE2012-050-S6 Flutes: 2 | Dia. (mm): 1.2 | Length of cut (mm): 5.0
ZBE2015-050-S4 Flutes: 2 | Dia. (mm): 1.5 | Length of cut (mm): 5.0
ZBE2015-050-S6 Flutes: 2 | Dia. (mm): 1.5 | Length of cut (mm): 5.0
ZBE2020-050-S4 Flutes: 2 | Dia. (mm): 2.0 | Length of cut (mm): 5.0
ZBE2020-050-S6 Flutes: 2 | Dia. (mm): 2.0 | Length of cut (mm): 5.0
ZBE2025-060-S4 Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 6.0
ZBE2025-060-S6 Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 6.0
ZBE2030-060-S4 Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 6.0
ZBE2030-060-S6 Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 6.0
ZBE2035-070 Flutes: 2 | Dia. (mm): 3.5 | Length of cut (mm): 7.0
ZBE2040-070-S4 Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 7.0
ZBE2040-070-S6 Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 7.0
ZBE2045-080 Flutes: 2 | Dia. (mm): 4.5 | Length of cut (mm): 8.0
ZBE2050-080 Flutes: 2 | Dia. (mm): 5.0 | Length of cut (mm): 8.0
ZBE2055-090 Flutes: 2 | Dia. (mm): 5.5 | Length of cut (mm): 9.0
ZBE2060-090 Flutes: 2 | Dia. (mm): 6.0 | Length of cut (mm): 9.0
ZBE2065-090 Flutes: 2 | Dia. (mm): 6.5 | Length of cut (mm): 9.0
ZBE2070-090 Flutes: 2 | Dia. (mm): 7.0 | Length of cut (mm): 9.0
ZBE2080-100 Flutes: 2 | Dia. (mm): 8.0 | Length of cut (mm): 10.0
ZBE2085-100 Flutes: 2 | Dia. (mm): 8.5 | Length of cut (mm): 10.0
ZBE2090-100 Flutes: 2 | Dia. (mm): 9.0 | Length of cut (mm): 10.0
ZBE2100-100 Flutes: 2 | Dia. (mm): 10.0 | Length of cut (mm): 10.0
ZBE2120-110 Flutes: 2 | Dia. (mm): 12.0 | Length of cut (mm): 11.0
Ball End MillsKorloy
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Z Endmill Ball ZBE2000

Brand Korloy·Ball End Mills

Available part numbers (26)

ZBE2010-050-S4, ZBE2010-050-S6, ZBE2012-050-S4, ZBE2012-050-S6, ZBE2015-050-S4, ZBE2015-050-S6, ZBE2020-050-S4, ZBE2020-050-S6, ZBE2025-060-S4, ZBE2025-060-S6 + 16 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZBE2010-050-S4Flutes: 2 | Dia. (mm): 1.0 | Length of cut (mm): 5.0
ZBE2010-050-S6Flutes: 2 | Dia. (mm): 1.0 | Length of cut (mm): 5.0
ZBE2012-050-S4Flutes: 2 | Dia. (mm): 1.2 | Length of cut (mm): 5.0
ZBE2012-050-S6Flutes: 2 | Dia. (mm): 1.2 | Length of cut (mm): 5.0
ZBE2015-050-S4Flutes: 2 | Dia. (mm): 1.5 | Length of cut (mm): 5.0
ZBE2015-050-S6Flutes: 2 | Dia. (mm): 1.5 | Length of cut (mm): 5.0
ZBE2020-050-S4Flutes: 2 | Dia. (mm): 2.0 | Length of cut (mm): 5.0
ZBE2020-050-S6Flutes: 2 | Dia. (mm): 2.0 | Length of cut (mm): 5.0
ZBE2025-060-S4Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 6.0
ZBE2025-060-S6Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 6.0
ZBE2030-060-S4Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 6.0
ZBE2030-060-S6Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 6.0
ZBE2035-070Flutes: 2 | Dia. (mm): 3.5 | Length of cut (mm): 7.0
ZBE2040-070-S4Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 7.0
ZBE2040-070-S6Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 7.0
ZBE2045-080Flutes: 2 | Dia. (mm): 4.5 | Length of cut (mm): 8.0
ZBE2050-080Flutes: 2 | Dia. (mm): 5.0 | Length of cut (mm): 8.0
ZBE2055-090Flutes: 2 | Dia. (mm): 5.5 | Length of cut (mm): 9.0
ZBE2060-090Flutes: 2 | Dia. (mm): 6.0 | Length of cut (mm): 9.0
ZBE2065-090Flutes: 2 | Dia. (mm): 6.5 | Length of cut (mm): 9.0
ZBE2070-090Flutes: 2 | Dia. (mm): 7.0 | Length of cut (mm): 9.0
ZBE2080-100Flutes: 2 | Dia. (mm): 8.0 | Length of cut (mm): 10.0
ZBE2085-100Flutes: 2 | Dia. (mm): 8.5 | Length of cut (mm): 10.0
ZBE2090-100Flutes: 2 | Dia. (mm): 9.0 | Length of cut (mm): 10.0
ZBE2100-100Flutes: 2 | Dia. (mm): 10.0 | Length of cut (mm): 10.0
ZBE2120-110Flutes: 2 | Dia. (mm): 12.0 | Length of cut (mm): 11.0
