• Korloy Z Endmill Flat ZFE4000
1 1

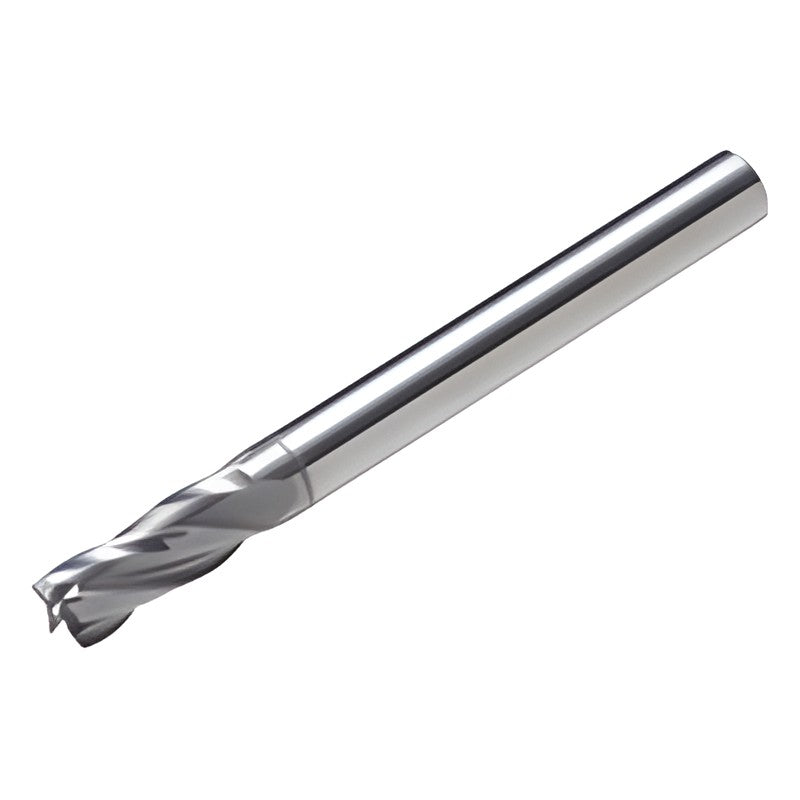

Korloy Z Endmill Flat ZFE4000

Korloy Z Endmill Flat ZFE4000

Z Endmill solid carbide end mills with irregular indexing and helix, PC315E grade and h5 tolerance.

Key features

  • Irregular indexing and helix prevent chattering
  • New PC315E grade for high speed and high temperature
  • Special edge treatment against chipping
  • Tolerance h5 throughout the series
ZFE4010-050-S4 Flutes: 4 | Dia. (mm): 1.0 | Length of cut (mm): 5.0
ZFE4010-050-S6 Flutes: 4 | Dia. (mm): 1.0 | Length of cut (mm): 5.0
ZFE4012-050-S4 Flutes: 4 | Dia. (mm): 1.2 | Length of cut (mm): 5.0
ZFE4012-050-S6 Flutes: 4 | Dia. (mm): 1.2 | Length of cut (mm): 5.0
ZFE4015-050-S4 Flutes: 4 | Dia. (mm): 1.5 | Length of cut (mm): 5.0
ZFE4015-050-S6 Flutes: 4 | Dia. (mm): 1.5 | Length of cut (mm): 5.0
ZFE4020-050-S4 Flutes: 4 | Dia. (mm): 2.0 | Length of cut (mm): 5.0
ZFE4020-050-S6 Flutes: 4 | Dia. (mm): 2.0 | Length of cut (mm): 5.0
ZFE4025-050-S4 Flutes: 4 | Dia. (mm): 2.5 | Length of cut (mm): 5.0
ZFE4025-050-S6 Flutes: 4 | Dia. (mm): 2.5 | Length of cut (mm): 5.0
ZFE4030-050-S4 Flutes: 4 | Dia. (mm): 3.0 | Length of cut (mm): 5.0
ZFE4030-050-S6 Flutes: 4 | Dia. (mm): 3.0 | Length of cut (mm): 5.0
ZFE4035-050 Flutes: 4 | Dia. (mm): 3.5 | Length of cut (mm): 5.0
ZFE4040-050-S4 Flutes: 4 | Dia. (mm): 4.0 | Length of cut (mm): 5.0
ZFE4040-050-S6 Flutes: 4 | Dia. (mm): 4.0 | Length of cut (mm): 5.0
ZFE4045-050 Flutes: 4 | Dia. (mm): 4.5 | Length of cut (mm): 5.0
ZFE4050-060 Flutes: 4 | Dia. (mm): 5.0 | Length of cut (mm): 6.0
ZFE4055-060 Flutes: 4 | Dia. (mm): 5.5 | Length of cut (mm): 6.0
ZFE4060-060 Flutes: 4 | Dia. (mm): 6.0 | Length of cut (mm): 6.0
ZFE4065-060 Flutes: 4 | Dia. (mm): 6.5 | Length of cut (mm): 6.0
ZFE4070-060 Flutes: 4 | Dia. (mm): 7.0 | Length of cut (mm): 6.0
ZFE4075-060 Flutes: 4 | Dia. (mm): 7.5 | Length of cut (mm): 6.0
ZFE4080-070 Flutes: 4 | Dia. (mm): 8.0 | Length of cut (mm): 7.0
ZFE4085-070 Flutes: 4 | Dia. (mm): 8.5 | Length of cut (mm): 7.0
ZFE4090-070 Flutes: 4 | Dia. (mm): 9.0 | Length of cut (mm): 7.0
ZFE4095-070 Flutes: 4 | Dia. (mm): 9.5 | Length of cut (mm): 7.0
ZFE4100-075 Flutes: 4 | Dia. (mm): 10.0 | Length of cut (mm): 7.5
ZFE4120-080 Flutes: 4 | Dia. (mm): 12.0 | Length of cut (mm): 8.0
ZFE4140-100 Flutes: 4 | Dia. (mm): 14.0 | Length of cut (mm): 10.0
ZFE4160-100 Flutes: 4 | Dia. (mm): 16.0 | Length of cut (mm): 10.0
End MillsKorloy
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Z Endmill Flat ZFE4000

Brand Korloy·End Mills

Available part numbers (30)

ZFE4010-050-S4, ZFE4010-050-S6, ZFE4012-050-S4, ZFE4012-050-S6, ZFE4015-050-S4, ZFE4015-050-S6, ZFE4020-050-S4, ZFE4020-050-S6, ZFE4025-050-S4, ZFE4025-050-S6 + 20 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZFE4010-050-S4Flutes: 4 | Dia. (mm): 1.0 | Length of cut (mm): 5.0
ZFE4010-050-S6Flutes: 4 | Dia. (mm): 1.0 | Length of cut (mm): 5.0
ZFE4012-050-S4Flutes: 4 | Dia. (mm): 1.2 | Length of cut (mm): 5.0
ZFE4012-050-S6Flutes: 4 | Dia. (mm): 1.2 | Length of cut (mm): 5.0
ZFE4015-050-S4Flutes: 4 | Dia. (mm): 1.5 | Length of cut (mm): 5.0
ZFE4015-050-S6Flutes: 4 | Dia. (mm): 1.5 | Length of cut (mm): 5.0
ZFE4020-050-S4Flutes: 4 | Dia. (mm): 2.0 | Length of cut (mm): 5.0
ZFE4020-050-S6Flutes: 4 | Dia. (mm): 2.0 | Length of cut (mm): 5.0
ZFE4025-050-S4Flutes: 4 | Dia. (mm): 2.5 | Length of cut (mm): 5.0
ZFE4025-050-S6Flutes: 4 | Dia. (mm): 2.5 | Length of cut (mm): 5.0
ZFE4030-050-S4Flutes: 4 | Dia. (mm): 3.0 | Length of cut (mm): 5.0
ZFE4030-050-S6Flutes: 4 | Dia. (mm): 3.0 | Length of cut (mm): 5.0
ZFE4035-050Flutes: 4 | Dia. (mm): 3.5 | Length of cut (mm): 5.0
ZFE4040-050-S4Flutes: 4 | Dia. (mm): 4.0 | Length of cut (mm): 5.0
ZFE4040-050-S6Flutes: 4 | Dia. (mm): 4.0 | Length of cut (mm): 5.0
ZFE4045-050Flutes: 4 | Dia. (mm): 4.5 | Length of cut (mm): 5.0
ZFE4050-060Flutes: 4 | Dia. (mm): 5.0 | Length of cut (mm): 6.0
ZFE4055-060Flutes: 4 | Dia. (mm): 5.5 | Length of cut (mm): 6.0
ZFE4060-060Flutes: 4 | Dia. (mm): 6.0 | Length of cut (mm): 6.0
ZFE4065-060Flutes: 4 | Dia. (mm): 6.5 | Length of cut (mm): 6.0
ZFE4070-060Flutes: 4 | Dia. (mm): 7.0 | Length of cut (mm): 6.0
ZFE4075-060Flutes: 4 | Dia. (mm): 7.5 | Length of cut (mm): 6.0
ZFE4080-070Flutes: 4 | Dia. (mm): 8.0 | Length of cut (mm): 7.0
ZFE4085-070Flutes: 4 | Dia. (mm): 8.5 | Length of cut (mm): 7.0
ZFE4090-070Flutes: 4 | Dia. (mm): 9.0 | Length of cut (mm): 7.0
ZFE4095-070Flutes: 4 | Dia. (mm): 9.5 | Length of cut (mm): 7.0
ZFE4100-075Flutes: 4 | Dia. (mm): 10.0 | Length of cut (mm): 7.5
ZFE4120-080Flutes: 4 | Dia. (mm): 12.0 | Length of cut (mm): 8.0
ZFE4140-100Flutes: 4 | Dia. (mm): 14.0 | Length of cut (mm): 10.0
ZFE4160-100Flutes: 4 | Dia. (mm): 16.0 | Length of cut (mm): 10.0

Need a different model, or a part not listed here? Send us your parts list →
