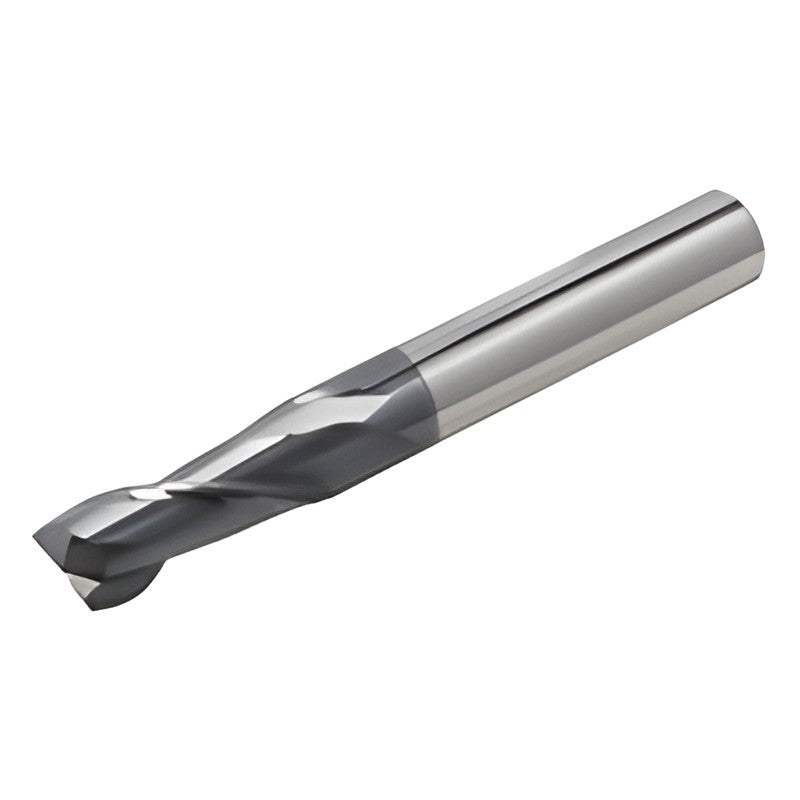

Korloy Z Endmill Short Flat ZSFE2000/4000

Korloy Z Endmill Short Flat ZSFE2000/4000

Z Endmill solid carbide end mills with irregular indexing and helix, PC315E grade and h5 tolerance.

Key features

  • Irregular indexing and helix prevent chattering
  • New PC315E grade for high speed and high temperature
  • Special edge treatment against chipping
  • Tolerance h5 throughout the series
ZSFE2010-040-S4 Flutes: 2 | Dia. (mm): 1.0 | Length of cut (mm): 4.0
ZSFE2010-040-S6 Flutes: 2 | Dia. (mm): 1.0 | Length of cut (mm): 4.0
ZSFE2012-040-S4 Flutes: 2 | Dia. (mm): 1.2 | Length of cut (mm): 4.0
ZSFE2012-040-S6 Flutes: 2 | Dia. (mm): 1.2 | Length of cut (mm): 4.0
ZSFE2015-040-S4 Flutes: 2 | Dia. (mm): 1.5 | Length of cut (mm): 4.0
ZSFE2015-040-S6 Flutes: 2 | Dia. (mm): 1.5 | Length of cut (mm): 4.0
ZSFE2020-040-S4 Flutes: 2 | Dia. (mm): 2.0 | Length of cut (mm): 4.0
ZSFE2020-040-S6 Flutes: 2 | Dia. (mm): 2.0 | Length of cut (mm): 4.0
ZSFE2025-040-S4 Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 4.0
ZSFE2025-040-S6 Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 4.0
ZSFE2030-045-S4 Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 4.5
ZSFE2030-045-S6 Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 4.5
ZSFE2040-045-S4 Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 4.5
ZSFE2040-045-S6 Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 4.5
ZSFE2060-050 Flutes: 2 | Dia. (mm): 6.0 | Length of cut (mm): 5.0
ZSFE2080-060 Flutes: 2 | Dia. (mm): 8.0 | Length of cut (mm): 6.0
ZSFE2100-065 Flutes: 2 | Dia. (mm): 10.0 | Length of cut (mm): 6.5
ZSFE2120-070 Flutes: 2 | Dia. (mm): 12.0 | Length of cut (mm): 7.0
ZSFE4010-040-S4 Flutes: 4 | Dia. (mm): 1.0 | Length of cut (mm): 4.0
ZSFE4010-040-S6 Flutes: 4 | Dia. (mm): 1.0 | Length of cut (mm): 4.0
ZSFE4012-040-S4 Flutes: 4 | Dia. (mm): 1.2 | Length of cut (mm): 4.0
ZSFE4012-040-S6 Flutes: 4 | Dia. (mm): 1.2 | Length of cut (mm): 4.0
ZSFE4015-040-S4 Flutes: 4 | Dia. (mm): 1.5 | Length of cut (mm): 4.0
ZSFE4015-040-S6 Flutes: 4 | Dia. (mm): 1.5 | Length of cut (mm): 4.0
ZSFE4020-040-S4 Flutes: 4 | Dia. (mm): 2.0 | Length of cut (mm): 4.0
ZSFE4020-040-S6 Flutes: 4 | Dia. (mm): 2.0 | Length of cut (mm): 4.0
ZSFE4025-040-S4 Flutes: 4 | Dia. (mm): 2.5 | Length of cut (mm): 4.0
ZSFE4025-040-S6 Flutes: 4 | Dia. (mm): 2.5 | Length of cut (mm): 4.0
ZSFE4030-045-S4 Flutes: 4 | Dia. (mm): 3.0 | Length of cut (mm): 4.5
ZSFE4030-045-S6 Flutes: 4 | Dia. (mm): 3.0 | Length of cut (mm): 4.5
ZSFE4040-045-S4 Flutes: 4 | Dia. (mm): 4.0 | Length of cut (mm): 4.5
ZSFE4040-045-S6 Flutes: 4 | Dia. (mm): 4.0 | Length of cut (mm): 4.5
ZSFE4060-050 Flutes: 4 | Dia. (mm): 6.0 | Length of cut (mm): 5.0
ZSFE4080-060 Flutes: 4 | Dia. (mm): 8.0 | Length of cut (mm): 6.0
ZSFE4100-065 Flutes: 4 | Dia. (mm): 10.0 | Length of cut (mm): 6.5
ZSFE4120-070 Flutes: 4 | Dia. (mm): 12.0 | Length of cut (mm): 7.0
End MillsKorloy
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Z Endmill Short Flat ZSFE2000/4000

Brand Korloy·End Mills

Available part numbers (36)

ZSFE2010-040-S4, ZSFE2010-040-S6, ZSFE2012-040-S4, ZSFE2012-040-S6, ZSFE2015-040-S4, ZSFE2015-040-S6, ZSFE2020-040-S4, ZSFE2020-040-S6, ZSFE2025-040-S4, ZSFE2025-040-S6 + 26 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZSFE2010-040-S4Flutes: 2 | Dia. (mm): 1.0 | Length of cut (mm): 4.0
ZSFE2010-040-S6Flutes: 2 | Dia. (mm): 1.0 | Length of cut (mm): 4.0
ZSFE2012-040-S4Flutes: 2 | Dia. (mm): 1.2 | Length of cut (mm): 4.0
ZSFE2012-040-S6Flutes: 2 | Dia. (mm): 1.2 | Length of cut (mm): 4.0
ZSFE2015-040-S4Flutes: 2 | Dia. (mm): 1.5 | Length of cut (mm): 4.0
ZSFE2015-040-S6Flutes: 2 | Dia. (mm): 1.5 | Length of cut (mm): 4.0
ZSFE2020-040-S4Flutes: 2 | Dia. (mm): 2.0 | Length of cut (mm): 4.0
ZSFE2020-040-S6Flutes: 2 | Dia. (mm): 2.0 | Length of cut (mm): 4.0
ZSFE2025-040-S4Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 4.0
ZSFE2025-040-S6Flutes: 2 | Dia. (mm): 2.5 | Length of cut (mm): 4.0
ZSFE2030-045-S4Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 4.5
ZSFE2030-045-S6Flutes: 2 | Dia. (mm): 3.0 | Length of cut (mm): 4.5
ZSFE2040-045-S4Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 4.5
ZSFE2040-045-S6Flutes: 2 | Dia. (mm): 4.0 | Length of cut (mm): 4.5
ZSFE2060-050Flutes: 2 | Dia. (mm): 6.0 | Length of cut (mm): 5.0
ZSFE2080-060Flutes: 2 | Dia. (mm): 8.0 | Length of cut (mm): 6.0
ZSFE2100-065Flutes: 2 | Dia. (mm): 10.0 | Length of cut (mm): 6.5
ZSFE2120-070Flutes: 2 | Dia. (mm): 12.0 | Length of cut (mm): 7.0
ZSFE4010-040-S4Flutes: 4 | Dia. (mm): 1.0 | Length of cut (mm): 4.0
ZSFE4010-040-S6Flutes: 4 | Dia. (mm): 1.0 | Length of cut (mm): 4.0
ZSFE4012-040-S4Flutes: 4 | Dia. (mm): 1.2 | Length of cut (mm): 4.0
ZSFE4012-040-S6Flutes: 4 | Dia. (mm): 1.2 | Length of cut (mm): 4.0
ZSFE4015-040-S4Flutes: 4 | Dia. (mm): 1.5 | Length of cut (mm): 4.0
ZSFE4015-040-S6Flutes: 4 | Dia. (mm): 1.5 | Length of cut (mm): 4.0
ZSFE4020-040-S4Flutes: 4 | Dia. (mm): 2.0 | Length of cut (mm): 4.0
ZSFE4020-040-S6Flutes: 4 | Dia. (mm): 2.0 | Length of cut (mm): 4.0
ZSFE4025-040-S4Flutes: 4 | Dia. (mm): 2.5 | Length of cut (mm): 4.0
ZSFE4025-040-S6Flutes: 4 | Dia. (mm): 2.5 | Length of cut (mm): 4.0
ZSFE4030-045-S4Flutes: 4 | Dia. (mm): 3.0 | Length of cut (mm): 4.5
ZSFE4030-045-S6Flutes: 4 | Dia. (mm): 3.0 | Length of cut (mm): 4.5
ZSFE4040-045-S4Flutes: 4 | Dia. (mm): 4.0 | Length of cut (mm): 4.5
ZSFE4040-045-S6Flutes: 4 | Dia. (mm): 4.0 | Length of cut (mm): 4.5
ZSFE4060-050Flutes: 4 | Dia. (mm): 6.0 | Length of cut (mm): 5.0
ZSFE4080-060Flutes: 4 | Dia. (mm): 8.0 | Length of cut (mm): 6.0
ZSFE4100-065Flutes: 4 | Dia. (mm): 10.0 | Length of cut (mm): 6.5
ZSFE4120-070Flutes: 4 | Dia. (mm): 12.0 | Length of cut (mm): 7.0
