• Korloy ZFE2000 Z General Purpose Flat End Mill
1 1

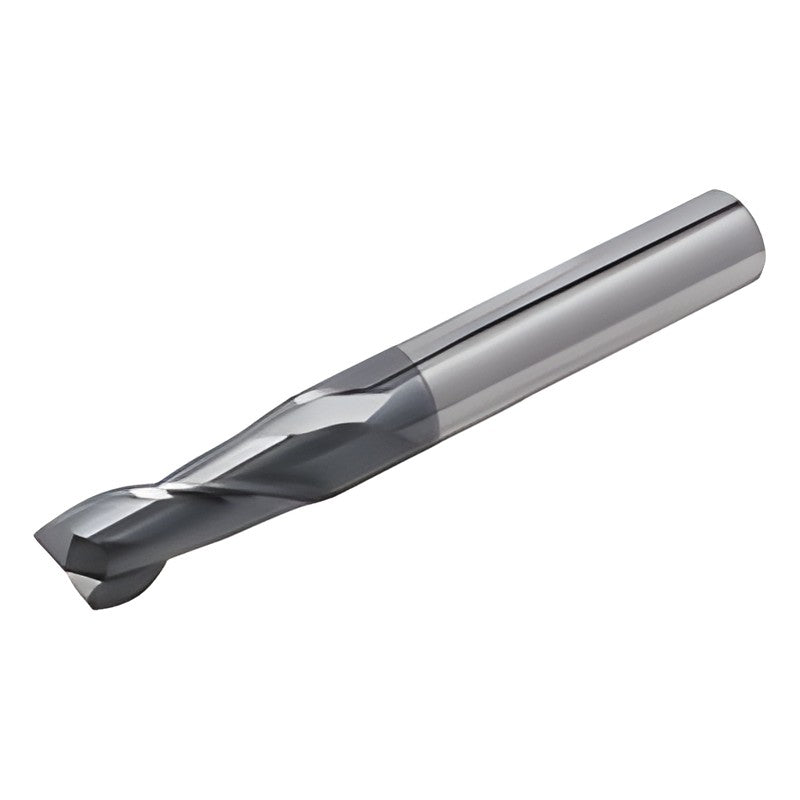

Korloy ZFE2000 Z General Purpose Flat End Mill

Korloy ZFE2000 Z General Purpose Flat End Mill

Solid carbide end mill for general cutting of carbon steel, alloy steel, cast iron and pre-hardened steel under HRC45.

Key features

  • General cutting under HRC45
  • Optimized blade design for less chipping
  • New shape and coating for longer tool life

Specifications

Grade PC315E
Helix angle 35 deg
Shank tolerance h5
ZFE2030-050-S4 Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZFE2030-050-S6 Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZFE2035-050 Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 2
ZFE2040-050-S4 Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZFE2040-050-S6 Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZFE2045-050 Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 14 | Overall length L (mm): 50 | Flutes: 2
ZFE2050-060 Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2
ZFE2055-060 Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2
ZFE2060-060 Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2
ZFE2065-060 Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 18 | Overall length L (mm): 60 | Flutes: 2
ZFE2070-060 Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZFE2075-060 Dia. D (mm): 7.5 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZFE2080-070 Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 70 | Flutes: 2
ZFE2085-070 Dia. D (mm): 8.5 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 70 | Flutes: 2
ZFE2090-070 Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 70 | Flutes: 2
ZFE2095-070 Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 24 | Overall length L (mm): 70 | Flutes: 2
ZFE2100-075 Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
ZFE2120-080 Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 80 | Flutes: 2
ZFE2140-100 Dia. D (mm): 14 | Shank dia. d (mm): 14 | Flute length l (mm): 35 | Overall length L (mm): 100 | Flutes: 2
ZFE2160-100 Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
End MillsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZFE2000 Z General Purpose Flat End Mill

Brand Korloy·End Mills

Available part numbers (20)

ZFE2030-050-S4, ZFE2030-050-S6, ZFE2035-050, ZFE2040-050-S4, ZFE2040-050-S6, ZFE2045-050, ZFE2050-060, ZFE2055-060, ZFE2060-060, ZFE2065-060 + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZFE2030-050-S4Dia. D (mm): 3 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZFE2030-050-S6Dia. D (mm): 3 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZFE2035-050Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 2
ZFE2040-050-S4Dia. D (mm): 4 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZFE2040-050-S6Dia. D (mm): 4 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZFE2045-050Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 14 | Overall length L (mm): 50 | Flutes: 2
ZFE2050-060Dia. D (mm): 5 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2
ZFE2055-060Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2
ZFE2060-060Dia. D (mm): 6 | Shank dia. d (mm): 6 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 2
ZFE2065-060Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 18 | Overall length L (mm): 60 | Flutes: 2
ZFE2070-060Dia. D (mm): 7 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZFE2075-060Dia. D (mm): 7.5 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZFE2080-070Dia. D (mm): 8 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 70 | Flutes: 2
ZFE2085-070Dia. D (mm): 8.5 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 70 | Flutes: 2
ZFE2090-070Dia. D (mm): 9 | Shank dia. d (mm): 10 | Flute length l (mm): 22 | Overall length L (mm): 70 | Flutes: 2
ZFE2095-070Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 24 | Overall length L (mm): 70 | Flutes: 2
ZFE2100-075Dia. D (mm): 10 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
ZFE2120-080Dia. D (mm): 12 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 80 | Flutes: 2
ZFE2140-100Dia. D (mm): 14 | Shank dia. d (mm): 14 | Flute length l (mm): 35 | Overall length L (mm): 100 | Flutes: 2
ZFE2160-100Dia. D (mm): 16 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
