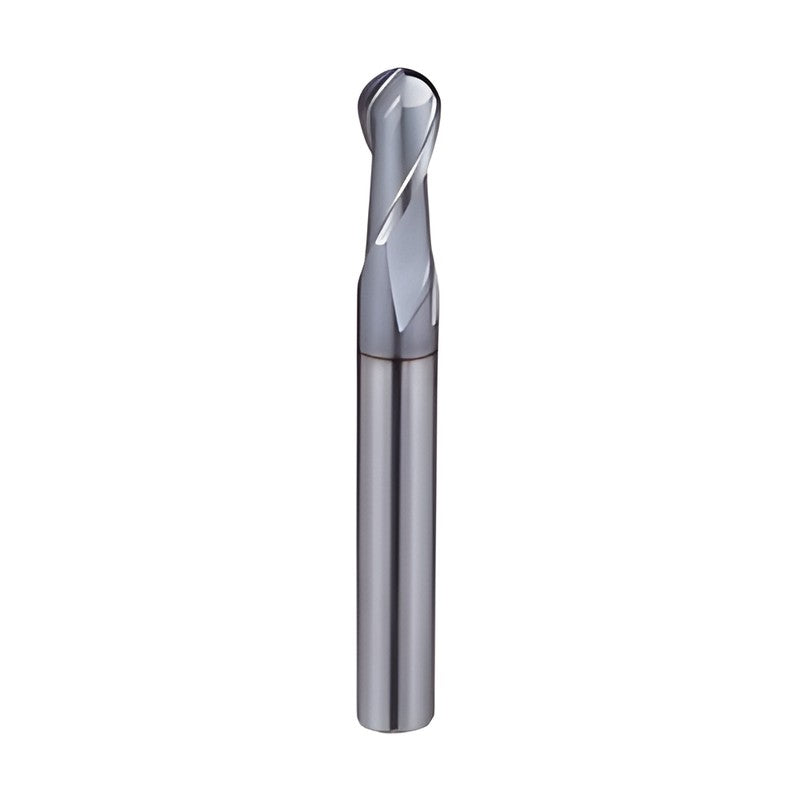

Korloy ZPBE2000 Z+ Ball End Mill

Korloy ZPBE2000 Z+ Ball End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPBE2008-050-S4 Ball radius R (mm): 0.4 | Dia. D (mm): 0.8 | Shank dia. d (mm): 4 | Flute length l (mm): 1.6 | Overall length L (mm): 50 | Flutes: 2
ZPBE2009-050-S4 Ball radius R (mm): 0.5 | Dia. D (mm): 0.9 | Shank dia. d (mm): 4 | Flute length l (mm): 1.8 | Overall length L (mm): 50 | Flutes: 2
ZPBE2010-050-S4 Ball radius R (mm): 0.5 | Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 2
ZPBE2015-050-S4 Ball radius R (mm): 0.8 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
ZPBE2020-050-S4 Ball radius R (mm): 1.0 | Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
ZPBE2020-050 Ball radius R (mm): 1.0 | Dia. D (mm): 2.0 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
ZPBE2025-050-S4 Ball radius R (mm): 1.3 | Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 2
ZPBE2030-050-S4 Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
ZPBE2030-050 Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
ZPBE2040-050-S4 Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
ZPBE2040-050 Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
ZPBE2050-050 Ball radius R (mm): 2.5 | Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 2
ZPBE2060-050 Ball radius R (mm): 3.0 | Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 2
ZPBE2070-060 Ball radius R (mm): 3.5 | Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 2
ZPBE2080-060 Ball radius R (mm): 4.0 | Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 2
ZPBE2090-075 Ball radius R (mm): 4.5 | Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 2
ZPBE2100-075 Ball radius R (mm): 5.0 | Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 75 | Flutes: 2
ZPBE2110-075 Ball radius R (mm): 5.5 | Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
ZPBE2120-075 Ball radius R (mm): 6.0 | Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 22 | Overall length L (mm): 75 | Flutes: 2
ZPBE2130-090 Ball radius R (mm): 6.5 | Dia. D (mm): 13.0 | Shank dia. d (mm): 14 | Flute length l (mm): 26 | Overall length L (mm): 90 | Flutes: 2
ZPBE2140-090 Ball radius R (mm): 7.0 | Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 26 | Overall length L (mm): 90 | Flutes: 2
ZPBE2150-090 Ball radius R (mm): 7.5 | Dia. D (mm): 15.0 | Shank dia. d (mm): 16 | Flute length l (mm): 30 | Overall length L (mm): 90 | Flutes: 2
ZPBE2160-100 Ball radius R (mm): 8.0 | Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 2
ZPBE2200-100 Ball radius R (mm): 10.0 | Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 38 | Overall length L (mm): 100 | Flutes: 2
Ball End MillsKorloy
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPBE2000 Z+ Ball End Mill

Brand Korloy·Ball End Mills

Available part numbers (24)

ZPBE2008-050-S4, ZPBE2009-050-S4, ZPBE2010-050-S4, ZPBE2015-050-S4, ZPBE2020-050-S4, ZPBE2020-050, ZPBE2025-050-S4, ZPBE2030-050-S4, ZPBE2030-050, ZPBE2040-050-S4 + 14 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPBE2008-050-S4Ball radius R (mm): 0.4 | Dia. D (mm): 0.8 | Shank dia. d (mm): 4 | Flute length l (mm): 1.6 | Overall length L (mm): 50 | Flutes: 2
ZPBE2009-050-S4Ball radius R (mm): 0.5 | Dia. D (mm): 0.9 | Shank dia. d (mm): 4 | Flute length l (mm): 1.8 | Overall length L (mm): 50 | Flutes: 2
ZPBE2010-050-S4Ball radius R (mm): 0.5 | Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 2
ZPBE2015-050-S4Ball radius R (mm): 0.8 | Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
ZPBE2020-050-S4Ball radius R (mm): 1.0 | Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
ZPBE2020-050Ball radius R (mm): 1.0 | Dia. D (mm): 2.0 | Shank dia. d (mm): 6 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
ZPBE2025-050-S4Ball radius R (mm): 1.3 | Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 2
ZPBE2030-050-S4Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
ZPBE2030-050Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
ZPBE2040-050-S4Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
ZPBE2040-050Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
ZPBE2050-050Ball radius R (mm): 2.5 | Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 2
ZPBE2060-050Ball radius R (mm): 3.0 | Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 2
ZPBE2070-060Ball radius R (mm): 3.5 | Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 2
ZPBE2080-060Ball radius R (mm): 4.0 | Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 2
ZPBE2090-075Ball radius R (mm): 4.5 | Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 2
ZPBE2100-075Ball radius R (mm): 5.0 | Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 75 | Flutes: 2
ZPBE2110-075Ball radius R (mm): 5.5 | Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
ZPBE2120-075Ball radius R (mm): 6.0 | Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 22 | Overall length L (mm): 75 | Flutes: 2
ZPBE2130-090Ball radius R (mm): 6.5 | Dia. D (mm): 13.0 | Shank dia. d (mm): 14 | Flute length l (mm): 26 | Overall length L (mm): 90 | Flutes: 2
ZPBE2140-090Ball radius R (mm): 7.0 | Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 26 | Overall length L (mm): 90 | Flutes: 2
ZPBE2150-090Ball radius R (mm): 7.5 | Dia. D (mm): 15.0 | Shank dia. d (mm): 16 | Flute length l (mm): 30 | Overall length L (mm): 90 | Flutes: 2
ZPBE2160-100Ball radius R (mm): 8.0 | Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 2
ZPBE2200-100Ball radius R (mm): 10.0 | Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 38 | Overall length L (mm): 100 | Flutes: 2
