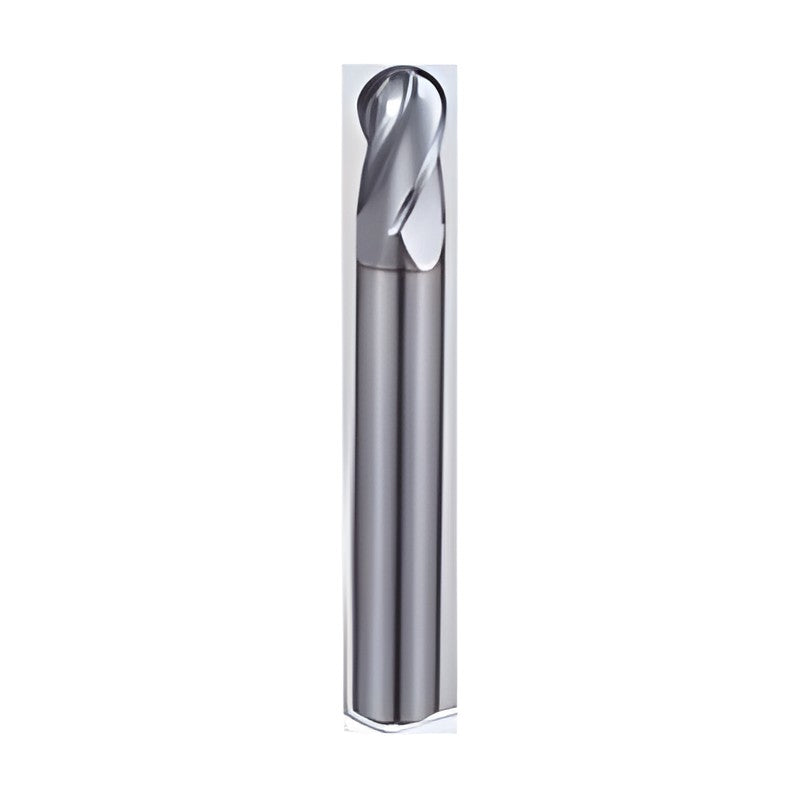

Korloy ZPBE4000 Z+ Ball End Mill

Korloy ZPBE4000 Z+ Ball End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPBE4020-050-S4 Ball radius R (mm): 1.0 | Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
ZPBE4025-050-S4 Ball radius R (mm): 1.3 | Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
ZPBE4030-050-S4 Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPBE4030-050 Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPBE4040-050-S4 Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPBE4040-050 Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPBE4050-050 Ball radius R (mm): 2.5 | Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 4
ZPBE4060-050 Ball radius R (mm): 3.0 | Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 4
ZPBE4070-060 Ball radius R (mm): 3.5 | Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 4
ZPBE4080-060 Ball radius R (mm): 4.0 | Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 4
ZPBE4090-075 Ball radius R (mm): 4.5 | Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 4
ZPBE4100-075 Ball radius R (mm): 5.0 | Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 75 | Flutes: 4
ZPBE4110-075 Ball radius R (mm): 5.5 | Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4
ZPBE4120-075 Ball radius R (mm): 6.0 | Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 22 | Overall length L (mm): 75 | Flutes: 4
ZPBE4140-075 Ball radius R (mm): 7.0 | Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 24 | Overall length L (mm): 75 | Flutes: 4
ZPBE4160-100 Ball radius R (mm): 8.0 | Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 4
ZPBE4200-100 Ball radius R (mm): 10.0 | Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 38 | Overall length L (mm): 100 | Flutes: 4
Ball End MillsKorloy
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPBE4000 Z+ Ball End Mill

Brand Korloy·Ball End Mills

Available part numbers (17)

ZPBE4020-050-S4, ZPBE4025-050-S4, ZPBE4030-050-S4, ZPBE4030-050, ZPBE4040-050-S4, ZPBE4040-050, ZPBE4050-050, ZPBE4060-050, ZPBE4070-060, ZPBE4080-060 + 7 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPBE4020-050-S4Ball radius R (mm): 1.0 | Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
ZPBE4025-050-S4Ball radius R (mm): 1.3 | Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
ZPBE4030-050-S4Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPBE4030-050Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPBE4040-050-S4Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPBE4040-050Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPBE4050-050Ball radius R (mm): 2.5 | Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 4
ZPBE4060-050Ball radius R (mm): 3.0 | Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 4
ZPBE4070-060Ball radius R (mm): 3.5 | Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 4
ZPBE4080-060Ball radius R (mm): 4.0 | Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 60 | Flutes: 4
ZPBE4090-075Ball radius R (mm): 4.5 | Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 16 | Overall length L (mm): 75 | Flutes: 4
ZPBE4100-075Ball radius R (mm): 5.0 | Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 75 | Flutes: 4
ZPBE4110-075Ball radius R (mm): 5.5 | Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4
ZPBE4120-075Ball radius R (mm): 6.0 | Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 22 | Overall length L (mm): 75 | Flutes: 4
ZPBE4140-075Ball radius R (mm): 7.0 | Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 24 | Overall length L (mm): 75 | Flutes: 4
ZPBE4160-100Ball radius R (mm): 8.0 | Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 4
ZPBE4200-100Ball radius R (mm): 10.0 | Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 38 | Overall length L (mm): 100 | Flutes: 4
