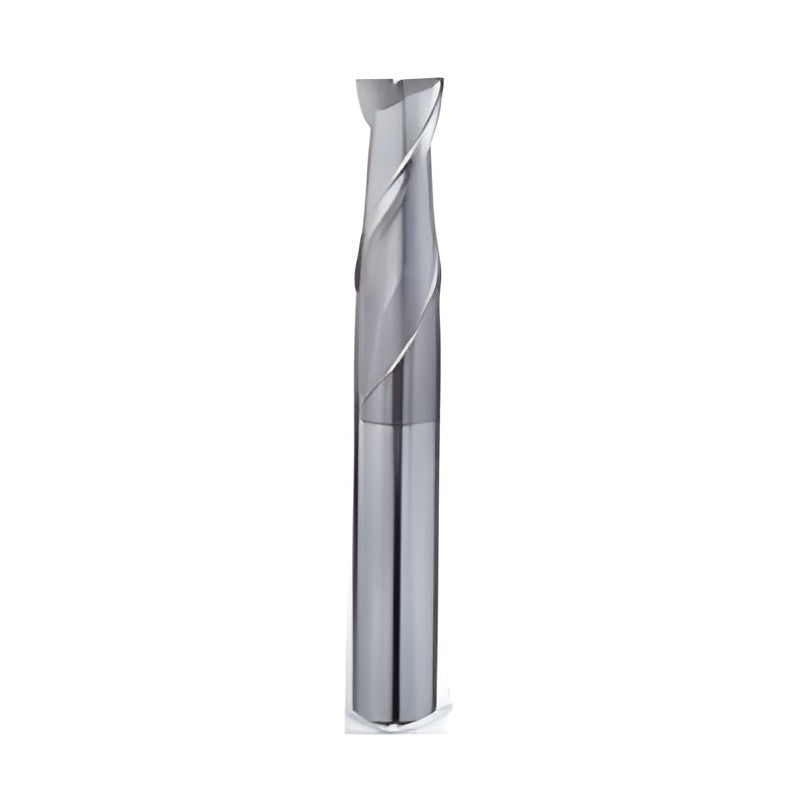

Korloy ZPFE2000 Z+ Flat End Mill

Korloy ZPFE2000 Z+ Flat End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPFE2010-050-S4 Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
ZPFE2015-050-S4 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
ZPFE2020-050-S4 Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
ZPFE2025-050-V6S4 Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
ZPFE2025-050-V8S4 Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
ZPFE2030-050-S4 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZPFE2030-050 Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZPFE2035-050-S4 Dia. D (mm): 3.5 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZPFE2035-050 Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZPFE2040-050-S4 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZPFE2040-050 Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZPFE2045-050 Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZPFE2050-050 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 2
ZPFE2060-050 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 2
ZPFE2065-060 Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 2
ZPFE2070-060 Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZPFE2075-060 Dia. D (mm): 7.5 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZPFE2080-060 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZPFE2085-075 Dia. D (mm): 8.5 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 2
ZPFE2090-075 Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 2
ZPFE2095-075 Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
ZPFE2100-075 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
ZPFE2105-075 Dia. D (mm): 10.5 | Shank dia. d (mm): 12 | Flute length l (mm): 26 | Overall length L (mm): 75 | Flutes: 2
ZPFE2110-075 Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 28 | Overall length L (mm): 75 | Flutes: 2
ZPFE2120-075 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 2
ZPFE2140-100 Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 34 | Overall length L (mm): 100 | Flutes: 2
ZPFE2150-090 Dia. D (mm): 15.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 90 | Flutes: 2
ZPFE2160-100 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 2
ZPFE2170-100 Dia. D (mm): 17.0 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
ZPFE2180-100 Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
ZPFE2190-100 Dia. D (mm): 19.0 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
ZPFE2200-100 Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
End MillsKorloy
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPFE2000 Z+ Flat End Mill

Brand Korloy·End Mills

Available part numbers (32)

ZPFE2010-050-S4, ZPFE2015-050-S4, ZPFE2020-050-S4, ZPFE2025-050-V6S4, ZPFE2025-050-V8S4, ZPFE2030-050-S4, ZPFE2030-050, ZPFE2035-050-S4, ZPFE2035-050, ZPFE2040-050-S4 + 22 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPFE2010-050-S4Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 2
ZPFE2015-050-S4Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 2
ZPFE2020-050-S4Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
ZPFE2025-050-V6S4Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 2
ZPFE2025-050-V8S4Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 2
ZPFE2030-050-S4Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZPFE2030-050Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZPFE2035-050-S4Dia. D (mm): 3.5 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZPFE2035-050Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 2
ZPFE2040-050-S4Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZPFE2040-050Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZPFE2045-050Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 2
ZPFE2050-050Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 2
ZPFE2060-050Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 2
ZPFE2065-060Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 2
ZPFE2070-060Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZPFE2075-060Dia. D (mm): 7.5 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZPFE2080-060Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 2
ZPFE2085-075Dia. D (mm): 8.5 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 2
ZPFE2090-075Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 2
ZPFE2095-075Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
ZPFE2100-075Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 2
ZPFE2105-075Dia. D (mm): 10.5 | Shank dia. d (mm): 12 | Flute length l (mm): 26 | Overall length L (mm): 75 | Flutes: 2
ZPFE2110-075Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 28 | Overall length L (mm): 75 | Flutes: 2
ZPFE2120-075Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 2
ZPFE2140-100Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 34 | Overall length L (mm): 100 | Flutes: 2
ZPFE2150-090Dia. D (mm): 15.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 90 | Flutes: 2
ZPFE2160-100Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 2
ZPFE2170-100Dia. D (mm): 17.0 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
ZPFE2180-100Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
ZPFE2190-100Dia. D (mm): 19.0 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
ZPFE2200-100Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 2
