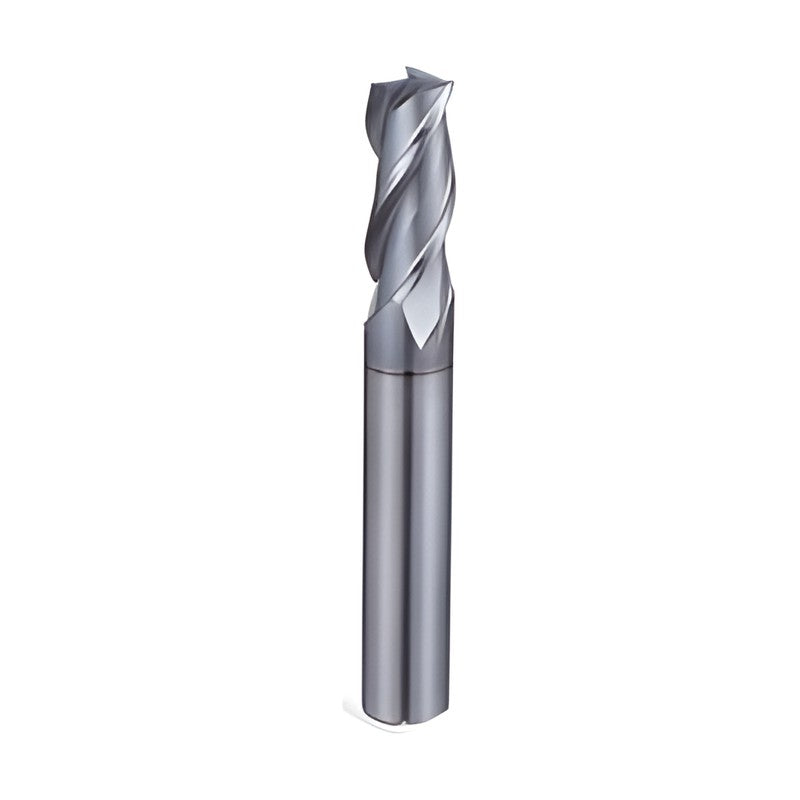

Korloy ZPFE3000 Z+ Flat End Mill

Korloy ZPFE3000 Z+ Flat End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPFE3020-050-S4 Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 3
ZPFE3030-050-S4 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 3
ZPFE3040-050-S4 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 3
ZPFE3050-050 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 3
ZPFE3060-050 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 3
ZPFE3065-060 Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 3
ZPFE3080-060 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 3
ZPFE3095-075 Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 24 | Overall length L (mm): 75 | Flutes: 3
ZPFE3100-075 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 3
ZPFE3120-075 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 3
ZPFE3106-100 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 3
ZPFE3180-100 Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 3
ZPFE3200-100 Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 3
ZPFE3250-100 Dia. D (mm): 25.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 3
End MillsKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPFE3000 Z+ Flat End Mill

Brand Korloy·End Mills

Available part numbers (14)

ZPFE3020-050-S4, ZPFE3030-050-S4, ZPFE3040-050-S4, ZPFE3050-050, ZPFE3060-050, ZPFE3065-060, ZPFE3080-060, ZPFE3095-075, ZPFE3100-075, ZPFE3120-075 + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPFE3020-050-S4Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 3
ZPFE3030-050-S4Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 3
ZPFE3040-050-S4Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 3
ZPFE3050-050Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 3
ZPFE3060-050Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 3
ZPFE3065-060Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 3
ZPFE3080-060Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 3
ZPFE3095-075Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 24 | Overall length L (mm): 75 | Flutes: 3
ZPFE3100-075Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 3
ZPFE3120-075Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 3
ZPFE3106-100Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 3
ZPFE3180-100Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 3
ZPFE3200-100Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 3
ZPFE3250-100Dia. D (mm): 25.0 | Shank dia. d (mm): 25 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 3
