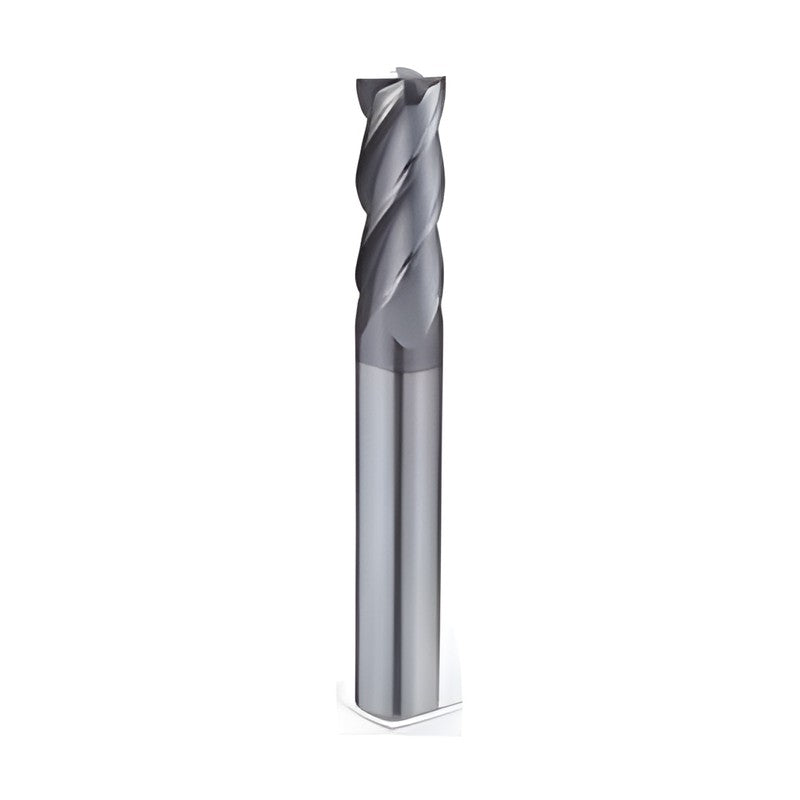

Korloy ZPFE4000 Z+ Flat End Mill

Korloy ZPFE4000 Z+ Flat End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPFE4010-050-S4 Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 4
ZPFE4015-050-S4 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
ZPFE4015-050 Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
ZPFE4020-050-S4 Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPFE4020-050 Dia. D (mm): 2.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPFE4025-050-S4 Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPFE4025-050 Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPFE4030-050 Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPFE4030-050-S4 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
ZPFE4030-050-V9S6 Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
ZPFE4035-050-S4 Dia. D (mm): 3.5 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 4
ZPFE4035-050 Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
ZPFE4040-050-S4 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 4
ZPFE4040-050 Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 4
ZPFE4045-050 Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 4
ZPFE4050-050 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPFE4050-050-V13S6 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 4
ZPFE4055-050 Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 4
ZPFE4060-050 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 4
ZPFE4065-060 Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 4
ZPFE4070-060 Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
ZPFE4075-060 Dia. D (mm): 7.5 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
ZPFE4080-060 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
ZPFE4085-075 Dia. D (mm): 8.5 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 4
ZPFE4090-075 Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 4
ZPFE4095-075 Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 4
ZPFE4100-075 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 4
ZPFE4110-075 Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 28 | Overall length L (mm): 75 | Flutes: 4
ZPFE4120-075 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
ZPFE4130-100 Dia. D (mm): 13.0 | Shank dia. d (mm): 14 | Flute length l (mm): 32 | Overall length L (mm): 100 | Flutes: 4
ZPFE4140-075 Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 32 | Overall length L (mm): 75 | Flutes: 4
ZPFE4140-100 Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 34 | Overall length L (mm): 100 | Flutes: 4
ZPFE4150-100 Dia. D (mm): 15.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 4
ZPFE4160-100 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 4
ZPFE4160-100-V40S16 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4
ZPFE4160-100-V45S16 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPFE4170-100-S18 Dia. D (mm): 17.0 | Shank dia. d (mm): 18 | Flute length l (mm): 38 | Overall length L (mm): 100 | Flutes: 4
ZPFE4180-100-S18 Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPFE4200-100-S20 Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
End MillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPFE4000 Z+ Flat End Mill

Brand Korloy·End Mills

Available part numbers (39)

ZPFE4010-050-S4, ZPFE4015-050-S4, ZPFE4015-050, ZPFE4020-050-S4, ZPFE4020-050, ZPFE4025-050-S4, ZPFE4025-050, ZPFE4030-050, ZPFE4030-050-S4, ZPFE4030-050-V9S6 + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPFE4010-050-S4Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 4
ZPFE4015-050-S4Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
ZPFE4015-050Dia. D (mm): 1.5 | Shank dia. d (mm): 6 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
ZPFE4020-050-S4Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPFE4020-050Dia. D (mm): 2.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPFE4025-050-S4Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPFE4025-050Dia. D (mm): 2.5 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPFE4030-050Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPFE4030-050-S4Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
ZPFE4030-050-V9S6Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
ZPFE4035-050-S4Dia. D (mm): 3.5 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 4
ZPFE4035-050Dia. D (mm): 3.5 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
ZPFE4040-050-S4Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 4
ZPFE4040-050Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 4
ZPFE4045-050Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 11 | Overall length L (mm): 50 | Flutes: 4
ZPFE4050-050Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPFE4050-050-V13S6Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Flutes: 4
ZPFE4055-050Dia. D (mm): 5.5 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 4
ZPFE4060-050Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Flutes: 4
ZPFE4065-060Dia. D (mm): 6.5 | Shank dia. d (mm): 8 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 4
ZPFE4070-060Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
ZPFE4075-060Dia. D (mm): 7.5 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
ZPFE4080-060Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
ZPFE4085-075Dia. D (mm): 8.5 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 4
ZPFE4090-075Dia. D (mm): 9.0 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 4
ZPFE4095-075Dia. D (mm): 9.5 | Shank dia. d (mm): 10 | Flute length l (mm): 23 | Overall length L (mm): 75 | Flutes: 4
ZPFE4100-075Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 4
ZPFE4110-075Dia. D (mm): 11.0 | Shank dia. d (mm): 12 | Flute length l (mm): 28 | Overall length L (mm): 75 | Flutes: 4
ZPFE4120-075Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
ZPFE4130-100Dia. D (mm): 13.0 | Shank dia. d (mm): 14 | Flute length l (mm): 32 | Overall length L (mm): 100 | Flutes: 4
ZPFE4140-075Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 32 | Overall length L (mm): 75 | Flutes: 4
ZPFE4140-100Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 34 | Overall length L (mm): 100 | Flutes: 4
ZPFE4150-100Dia. D (mm): 15.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 4
ZPFE4160-100Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Flutes: 4
ZPFE4160-100-V40S16Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4
ZPFE4160-100-V45S16Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPFE4170-100-S18Dia. D (mm): 17.0 | Shank dia. d (mm): 18 | Flute length l (mm): 38 | Overall length L (mm): 100 | Flutes: 4
ZPFE4180-100-S18Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPFE4200-100-S20Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
