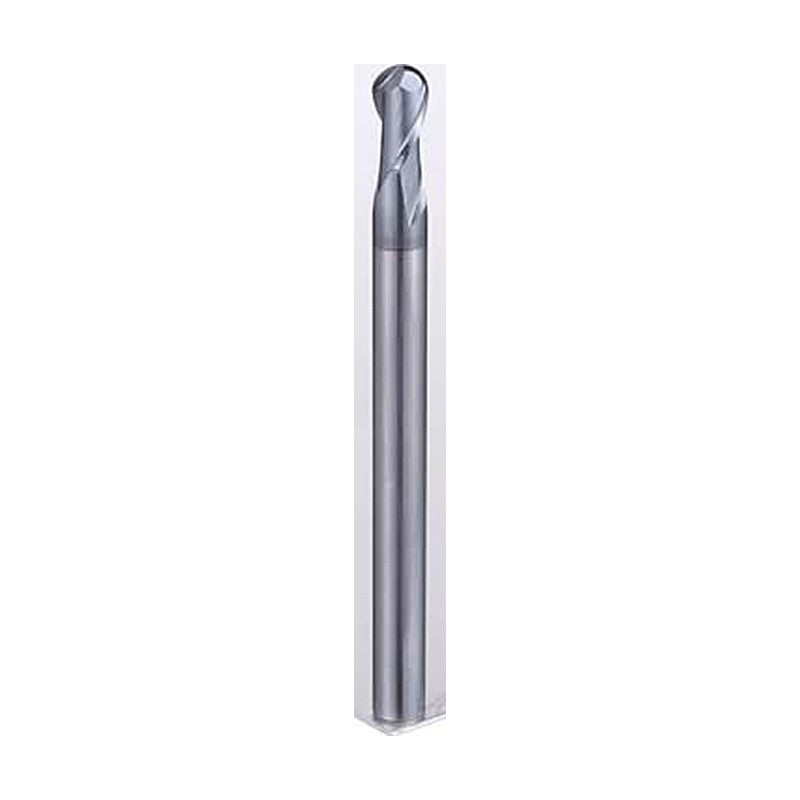

Korloy ZPLBE2000 Z+ Long Ball End Mill

Korloy ZPLBE2000 Z+ Long Ball End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPLBE2020-075-S4 Ball radius R (mm): 1.0 | Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2030-075-S4 Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2030-075 Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2040-075-S4 Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2040-075 Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2050-075 Ball radius R (mm): 2.5 | Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2060-075 Ball radius R (mm): 3.0 | Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2080-100 Ball radius R (mm): 4.0 | Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 100 | Flutes: 2
ZPLBE2100-100 Ball radius R (mm): 5.0 | Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 100 | Flutes: 2
ZPLBE2120-100 Ball radius R (mm): 6.0 | Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 2
Ball End MillsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPLBE2000 Z+ Long Ball End Mill

Brand Korloy·Ball End Mills

Available part numbers (10)

ZPLBE2020-075-S4, ZPLBE2030-075-S4, ZPLBE2030-075, ZPLBE2040-075-S4, ZPLBE2040-075, ZPLBE2050-075, ZPLBE2060-075, ZPLBE2080-100, ZPLBE2100-100, ZPLBE2120-100

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPLBE2020-075-S4Ball radius R (mm): 1.0 | Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2030-075-S4Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2030-075Ball radius R (mm): 1.5 | Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 6 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2040-075-S4Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 8 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2040-075Ball radius R (mm): 2.0 | Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2050-075Ball radius R (mm): 2.5 | Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 10 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2060-075Ball radius R (mm): 3.0 | Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 75 | Flutes: 2
ZPLBE2080-100Ball radius R (mm): 4.0 | Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 14 | Overall length L (mm): 100 | Flutes: 2
ZPLBE2100-100Ball radius R (mm): 5.0 | Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 18 | Overall length L (mm): 100 | Flutes: 2
ZPLBE2120-100Ball radius R (mm): 6.0 | Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 2
