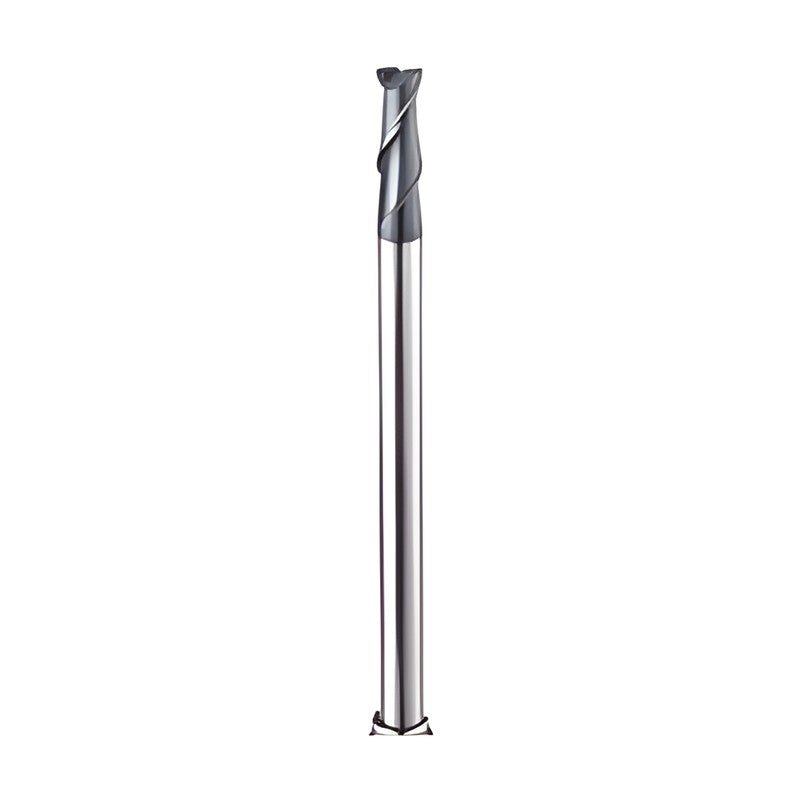

Korloy ZPLFE2000 Z+ Long Flat End Mill

Korloy ZPLFE2000 Z+ Long Flat End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPLFE2020-075-S4 Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2030-075-S4 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2030-075 Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2040-075-S4 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2050-075 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2060-100 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2060-100-V20S6 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2080-075 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2080-100 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 25 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2100-100 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2120-100 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 35 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2160-150 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Flutes: 2
ZPLFE2200-150 Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 150 | Flutes: 2
End MillsKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPLFE2000 Z+ Long Flat End Mill

Brand Korloy·End Mills

Available part numbers (13)

ZPLFE2020-075-S4, ZPLFE2030-075-S4, ZPLFE2030-075, ZPLFE2040-075-S4, ZPLFE2050-075, ZPLFE2060-100, ZPLFE2060-100-V20S6, ZPLFE2080-075, ZPLFE2080-100, ZPLFE2100-100 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPLFE2020-075-S4Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2030-075-S4Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2030-075Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2040-075-S4Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2050-075Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2060-100Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2060-100-V20S6Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2080-075Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 2
ZPLFE2080-100Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 25 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2100-100Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 30 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2120-100Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 35 | Overall length L (mm): 100 | Flutes: 2
ZPLFE2160-150Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Flutes: 2
ZPLFE2200-150Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 45 | Overall length L (mm): 150 | Flutes: 2
