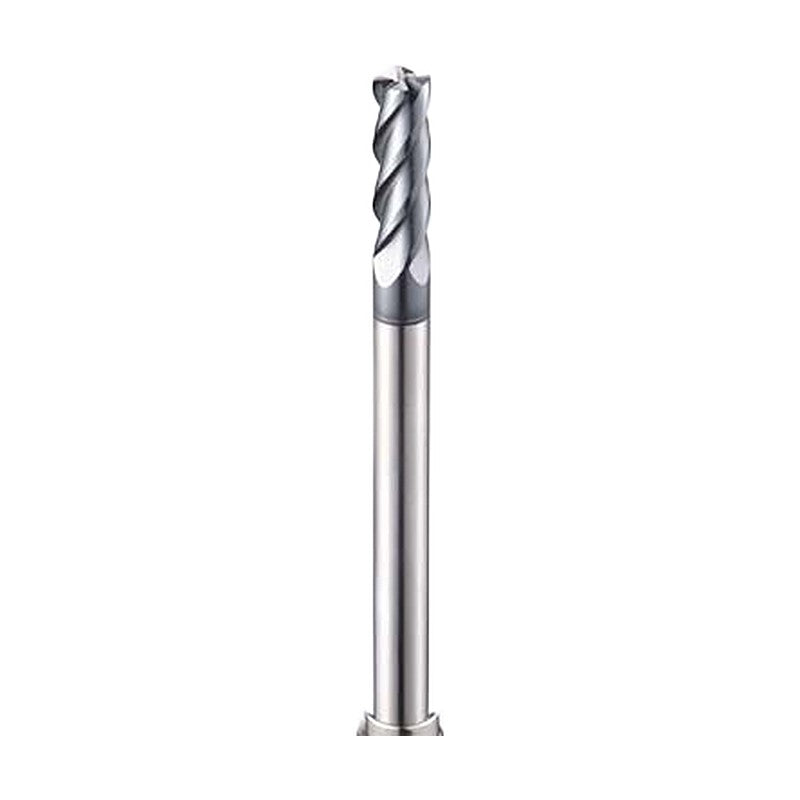

Korloy ZPLFE4000 Z+ Long Flat End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

Workpieces up to HRC47
Roughing to finishing
New substrate and advanced coating layers
Optimized blade design prevents chipping

Specifications

Grade	PC320U
Helix angle	35 deg
Shank tolerance	h6

ZPLFE4020-075-S4		Dia. D (mm): 2.0 \| Shank dia. d (mm): 4 \| Flute length l (mm): 10 \| Overall length L (mm): 75 \| Flutes: 4
ZPLFE4030-075-S4		Dia. D (mm): 3.0 \| Shank dia. d (mm): 4 \| Flute length l (mm): 12 \| Overall length L (mm): 75 \| Flutes: 4
ZPLFE4040-075-S4		Dia. D (mm): 4.0 \| Shank dia. d (mm): 4 \| Flute length l (mm): 11 \| Overall length L (mm): 75 \| Flutes: 4
ZPLFE4040-050-V15S4		Dia. D (mm): 4.0 \| Shank dia. d (mm): 4 \| Flute length l (mm): 15 \| Overall length L (mm): 75 \| Flutes: 4
ZPLFE4050-075		Dia. D (mm): 5.0 \| Shank dia. d (mm): 6 \| Flute length l (mm): 20 \| Overall length L (mm): 75 \| Flutes: 4
ZPLFE4060-075		Dia. D (mm): 6.0 \| Shank dia. d (mm): 6 \| Flute length l (mm): 16 \| Overall length L (mm): 75 \| Flutes: 4
ZPLFE4060-075-V20S6		Dia. D (mm): 6.0 \| Shank dia. d (mm): 6 \| Flute length l (mm): 20 \| Overall length L (mm): 75 \| Flutes: 4
ZPLFE4080-075		Dia. D (mm): 8.0 \| Shank dia. d (mm): 8 \| Flute length l (mm): 20 \| Overall length L (mm): 75 \| Flutes: 4
ZPLFE4080-100-S8		Dia. D (mm): 8.0 \| Shank dia. d (mm): 8 \| Flute length l (mm): 25 \| Overall length L (mm): 100 \| Flutes: 4
ZPLFE4100-100		Dia. D (mm): 10.0 \| Shank dia. d (mm): 10 \| Flute length l (mm): 30 \| Overall length L (mm): 100 \| Flutes: 4
ZPLFE4100-100-V35S10		Dia. D (mm): 10.0 \| Shank dia. d (mm): 10 \| Flute length l (mm): 35 \| Overall length L (mm): 100 \| Flutes: 4
ZPLFE4120-100		Dia. D (mm): 12.0 \| Shank dia. d (mm): 12 \| Flute length l (mm): 35 \| Overall length L (mm): 100 \| Flutes: 4
ZPLFE4160-150		Dia. D (mm): 16.0 \| Shank dia. d (mm): 16 \| Flute length l (mm): 36 \| Overall length L (mm): 150 \| Flutes: 4
ZPLFE4200-150		Dia. D (mm): 20.0 \| Shank dia. d (mm): 20 \| Flute length l (mm): 45 \| Overall length L (mm): 150 \| Flutes: 4

End MillsKorloy

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPLFE4000 Z+ Long Flat End Mill

Brand Korloy·End Mills

Available part numbers (14)

ZPLFE4020-075-S4, ZPLFE4030-075-S4, ZPLFE4040-075-S4, ZPLFE4040-050-V15S4, ZPLFE4050-075, ZPLFE4060-075, ZPLFE4060-075-V20S6, ZPLFE4080-075, ZPLFE4080-100-S8, ZPLFE4100-100 + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
