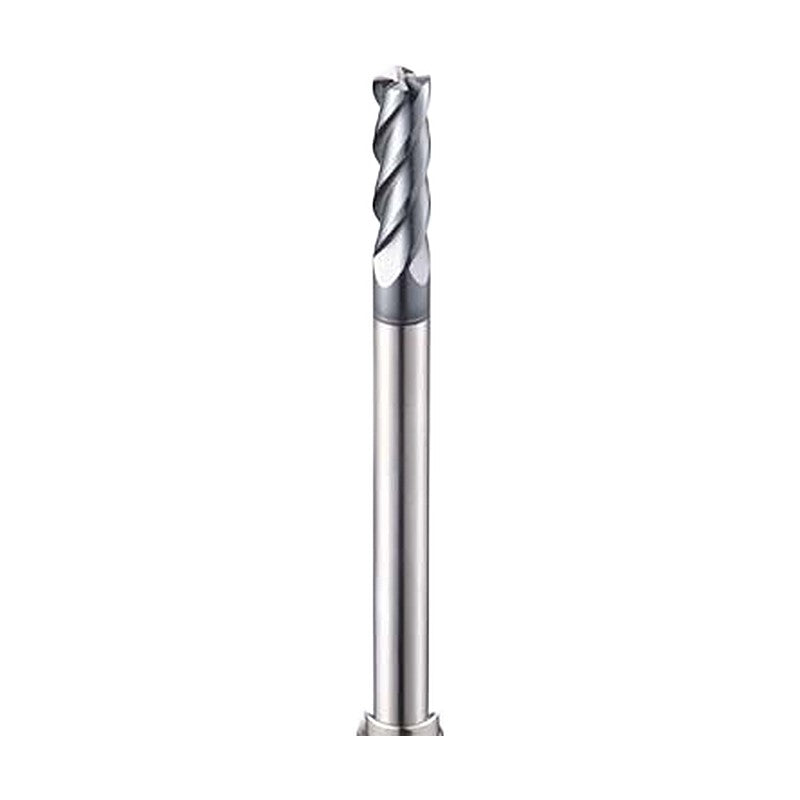

Korloy ZPLFE4000 Z+ Long Flute End Mill

Korloy ZPLFE4000 Z+ Long Flute End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPLFE4010-050-V04S4 Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
ZPLFE4020-050-V10S4 Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 4
ZPLFE4030-060-V15S4 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 4
ZPLFE4030-060-V16S6 Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 4
ZPLFE4040-060-V20S4 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
ZPLFE4040-075-V20S6 Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4040-075-V30S4 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4050-075-V25S6 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4050-075-V30S6 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4060-075-V30S6 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4060-075-V35S6 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 35 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4080-100-V35S8 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 35 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4080-100-V40S8 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4100-100-V45S10 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4100-100-V50S10 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4120-100-V45S12 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4120-100-V50S12 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4140-100-V45S14 Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4160-150-V50S16 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 150 | Flutes: 4
ZPLFE4160-150-V60S16 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 60 | Overall length L (mm): 150 | Flutes: 4
ZPLFE4160-150-V70S16 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 70 | Overall length L (mm): 150 | Flutes: 4
ZPLFE4180-150-V70S18 Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 70 | Overall length L (mm): 150 | Flutes: 4
ZPLFE4200-150-V70S20 Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 70 | Overall length L (mm): 150 | Flutes: 4
End MillsKorloy
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPLFE4000 Z+ Long Flute End Mill

Brand Korloy·End Mills

Available part numbers (23)

ZPLFE4010-050-V04S4, ZPLFE4020-050-V10S4, ZPLFE4030-060-V15S4, ZPLFE4030-060-V16S6, ZPLFE4040-060-V20S4, ZPLFE4040-075-V20S6, ZPLFE4040-075-V30S4, ZPLFE4050-075-V25S6, ZPLFE4050-075-V30S6, ZPLFE4060-075-V30S6 + 13 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPLFE4010-050-V04S4Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
ZPLFE4020-050-V10S4Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 4
ZPLFE4030-060-V15S4Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 15 | Overall length L (mm): 60 | Flutes: 4
ZPLFE4030-060-V16S6Dia. D (mm): 3.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 60 | Flutes: 4
ZPLFE4040-060-V20S4Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 20 | Overall length L (mm): 60 | Flutes: 4
ZPLFE4040-075-V20S6Dia. D (mm): 4.0 | Shank dia. d (mm): 6 | Flute length l (mm): 20 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4040-075-V30S4Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4050-075-V25S6Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 25 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4050-075-V30S6Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4060-075-V30S6Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 30 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4060-075-V35S6Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 35 | Overall length L (mm): 75 | Flutes: 4
ZPLFE4080-100-V35S8Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 35 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4080-100-V40S8Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 40 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4100-100-V45S10Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4100-100-V50S10Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4120-100-V45S12Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4120-100-V50S12Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 50 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4140-100-V45S14Dia. D (mm): 14.0 | Shank dia. d (mm): 14 | Flute length l (mm): 45 | Overall length L (mm): 100 | Flutes: 4
ZPLFE4160-150-V50S16Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 50 | Overall length L (mm): 150 | Flutes: 4
ZPLFE4160-150-V60S16Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 60 | Overall length L (mm): 150 | Flutes: 4
ZPLFE4160-150-V70S16Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 70 | Overall length L (mm): 150 | Flutes: 4
ZPLFE4180-150-V70S18Dia. D (mm): 18.0 | Shank dia. d (mm): 18 | Flute length l (mm): 70 | Overall length L (mm): 150 | Flutes: 4
ZPLFE4200-150-V70S20Dia. D (mm): 20.0 | Shank dia. d (mm): 20 | Flute length l (mm): 70 | Overall length L (mm): 150 | Flutes: 4
