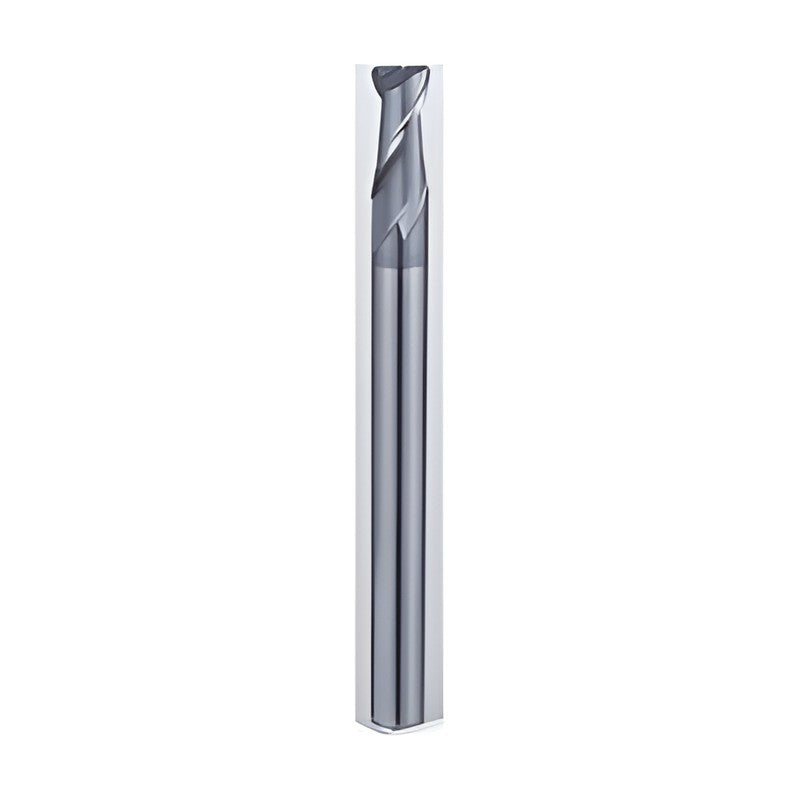

Korloy ZPLRE2000 Z+ Long Radius End Mill

Korloy ZPLRE2000 Z+ Long Radius End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPLRE2060-075-R05 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2060-075-R10 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2060-075-R15 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2080-100-R05 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2080-100-R10 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2080-100-R15 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2100-100-R05 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2100-100-R10 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2100-100-R15 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2100-100-R20 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 2.0 | Flutes: 2
ZPLRE2120-100-R05 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2120-100-R10 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2120-100-R15 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2120-100-R20 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 2.0 | Flutes: 2
ZPLRE2160-150-R05 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2160-150-R10 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2160-150-R15 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2160-150-R20 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Corner radius r (mm): 2.0 | Flutes: 2
End MillsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPLRE2000 Z+ Long Radius End Mill

Brand Korloy·End Mills

Available part numbers (18)

ZPLRE2060-075-R05, ZPLRE2060-075-R10, ZPLRE2060-075-R15, ZPLRE2080-100-R05, ZPLRE2080-100-R10, ZPLRE2080-100-R15, ZPLRE2100-100-R05, ZPLRE2100-100-R10, ZPLRE2100-100-R15, ZPLRE2100-100-R20 + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPLRE2060-075-R05Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2060-075-R10Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2060-075-R15Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2080-100-R05Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2080-100-R10Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2080-100-R15Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2100-100-R05Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2100-100-R10Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2100-100-R15Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2100-100-R20Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 100 | Corner radius r (mm): 2.0 | Flutes: 2
ZPLRE2120-100-R05Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2120-100-R10Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2120-100-R15Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2120-100-R20Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 100 | Corner radius r (mm): 2.0 | Flutes: 2
ZPLRE2160-150-R05Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Corner radius r (mm): 0.5 | Flutes: 2
ZPLRE2160-150-R10Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Corner radius r (mm): 1.0 | Flutes: 2
ZPLRE2160-150-R15Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Corner radius r (mm): 1.5 | Flutes: 2
ZPLRE2160-150-R20Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 150 | Corner radius r (mm): 2.0 | Flutes: 2
