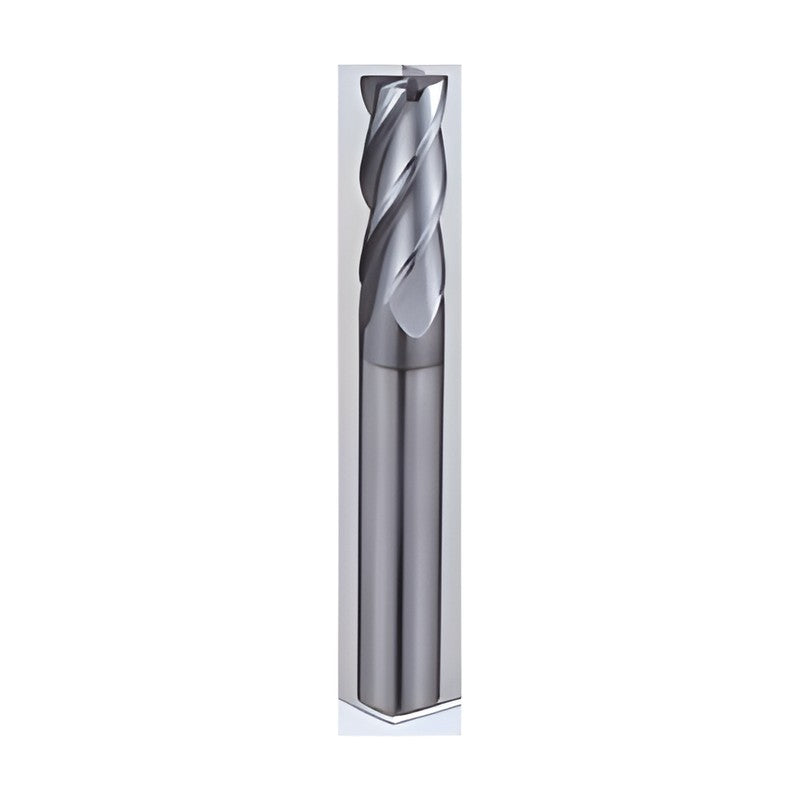

Korloy ZPRE4000 Z+ Radius End Mill

Korloy ZPRE4000 Z+ Radius End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPRE4015-050-S4-R02 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4020-050-S4-R02 Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4030-050-S4-R02 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4030-050-S4-R03 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
ZPRE4030-050-S4-R05 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4040-050-S4-R02 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4040-050-S4-R03 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
ZPRE4040-050-S4-R05 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4040-050-S4-R10 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4045-050-R10 Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 50 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4050-050-R02 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4050-050-R05 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4050-050-R10 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4050-050-R15 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4060-050-R05 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4060-050-R10 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4060-050-R15 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4080-060-R03 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 0.3 | Flutes: 4
ZPRE4080-060-R05 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4080-060-R10 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4080-060-R15 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4080-060-R20 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 2.0 | Flutes: 4
ZPRE4100-075-R03 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 4
ZPRE4100-075-R05 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4100-075-R10 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4100-075-R15 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4100-075-R20 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 2.0 | Flutes: 4
ZPRE4100-075-R25 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 2.5 | Flutes: 4
ZPRE4100-075-R30 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 3.0 | Flutes: 4
ZPRE4120-075-R05 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4120-075-R10 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4120-075-R15 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4120-075-R20 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 2.0 | Flutes: 4
ZPRE4120-075-R25 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 2.5 | Flutes: 4
ZPRE4120-075-R30 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 3.0 | Flutes: 4
ZPRE4160-100-R05 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4160-100-R10 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4160-100-R20 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Corner radius r (mm): 2.0 | Flutes: 4
ZPRE4160-100-R30 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Corner radius r (mm): 3.0 | Flutes: 4
End MillsKorloy
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPRE4000 Z+ Radius End Mill

Brand Korloy·End Mills

Available part numbers (39)

ZPRE4015-050-S4-R02, ZPRE4020-050-S4-R02, ZPRE4030-050-S4-R02, ZPRE4030-050-S4-R03, ZPRE4030-050-S4-R05, ZPRE4040-050-S4-R02, ZPRE4040-050-S4-R03, ZPRE4040-050-S4-R05, ZPRE4040-050-S4-R10, ZPRE4045-050-R10 + 29 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPRE4015-050-S4-R02Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4020-050-S4-R02Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4030-050-S4-R02Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4030-050-S4-R03Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
ZPRE4030-050-S4-R05Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 9 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4040-050-S4-R02Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4040-050-S4-R03Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Corner radius r (mm): 0.3 | Flutes: 4
ZPRE4040-050-S4-R05Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4040-050-S4-R10Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 11 | Overall length L (mm): 50 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4045-050-R10Dia. D (mm): 4.5 | Shank dia. d (mm): 6 | Flute length l (mm): 12 | Overall length L (mm): 50 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4050-050-R02Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 0.2 | Flutes: 4
ZPRE4050-050-R05Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4050-050-R10Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4050-050-R15Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 13 | Overall length L (mm): 50 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4060-050-R05Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4060-050-R10Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4060-050-R15Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 16 | Overall length L (mm): 50 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4080-060-R03Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 0.3 | Flutes: 4
ZPRE4080-060-R05Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4080-060-R10Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4080-060-R15Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4080-060-R20Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 20 | Overall length L (mm): 60 | Corner radius r (mm): 2.0 | Flutes: 4
ZPRE4100-075-R03Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 0.3 | Flutes: 4
ZPRE4100-075-R05Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4100-075-R10Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4100-075-R15Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4100-075-R20Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 2.0 | Flutes: 4
ZPRE4100-075-R25Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 2.5 | Flutes: 4
ZPRE4100-075-R30Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 25 | Overall length L (mm): 75 | Corner radius r (mm): 3.0 | Flutes: 4
ZPRE4120-075-R05Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4120-075-R10Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4120-075-R15Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 1.5 | Flutes: 4
ZPRE4120-075-R20Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 2.0 | Flutes: 4
ZPRE4120-075-R25Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 2.5 | Flutes: 4
ZPRE4120-075-R30Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 30 | Overall length L (mm): 75 | Corner radius r (mm): 3.0 | Flutes: 4
ZPRE4160-100-R05Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Corner radius r (mm): 0.5 | Flutes: 4
ZPRE4160-100-R10Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Corner radius r (mm): 1.0 | Flutes: 4
ZPRE4160-100-R20Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Corner radius r (mm): 2.0 | Flutes: 4
ZPRE4160-100-R30Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 36 | Overall length L (mm): 100 | Corner radius r (mm): 3.0 | Flutes: 4

Need a different model, or a part not listed here? Send us your parts list →
