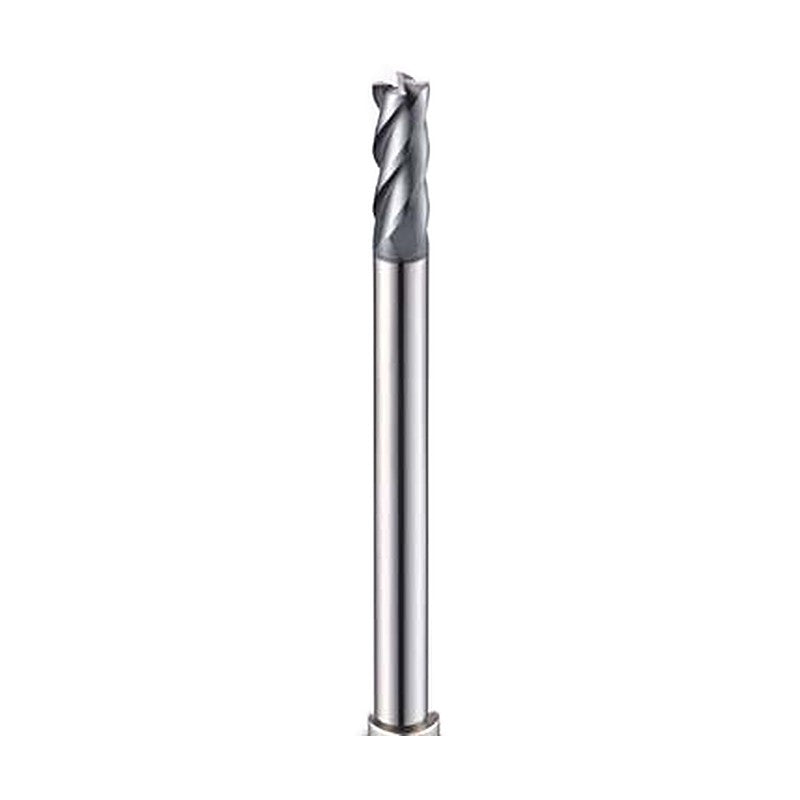

Korloy ZPSFE4000 Z+ Short Flat End Mill

Korloy ZPSFE4000 Z+ Short Flat End Mill

Highly efficient and economical solid carbide end mill for general cutting of a wide range of workpiece materials up to HRC47.

Key features

  • Workpieces up to HRC47
  • Roughing to finishing
  • New substrate and advanced coating layers
  • Optimized blade design prevents chipping

Specifications

Grade PC320U
Helix angle 35 deg
Shank tolerance h6
ZPSFE4010-050-S4 Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4015-050-S4 Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4020-050-S4 Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4025-050-S4 Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4030-050-S4 Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4040-050-S4 Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4050-050 Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4060-050 Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4070-050 Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4080-050 Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4100-075 Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 15 | Overall length L (mm): 75 | Flutes: 4
ZPSFE4120-075 Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 18 | Overall length L (mm): 75 | Flutes: 4
ZPSFE4160-100 Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 24 | Overall length L (mm): 100 | Flutes: 4
End MillsKorloy
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy ZPSFE4000 Z+ Short Flat End Mill

Brand Korloy·End Mills

Available part numbers (13)

ZPSFE4010-050-S4, ZPSFE4015-050-S4, ZPSFE4020-050-S4, ZPSFE4025-050-S4, ZPSFE4030-050-S4, ZPSFE4040-050-S4, ZPSFE4050-050, ZPSFE4060-050, ZPSFE4070-050, ZPSFE4080-050 + 3 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPSFE4010-050-S4Dia. D (mm): 1.0 | Shank dia. d (mm): 4 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4015-050-S4Dia. D (mm): 1.5 | Shank dia. d (mm): 4 | Flute length l (mm): 2 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4020-050-S4Dia. D (mm): 2.0 | Shank dia. d (mm): 4 | Flute length l (mm): 3 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4025-050-S4Dia. D (mm): 2.5 | Shank dia. d (mm): 4 | Flute length l (mm): 4 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4030-050-S4Dia. D (mm): 3.0 | Shank dia. d (mm): 4 | Flute length l (mm): 5 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4040-050-S4Dia. D (mm): 4.0 | Shank dia. d (mm): 4 | Flute length l (mm): 6 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4050-050Dia. D (mm): 5.0 | Shank dia. d (mm): 6 | Flute length l (mm): 8 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4060-050Dia. D (mm): 6.0 | Shank dia. d (mm): 6 | Flute length l (mm): 9 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4070-050Dia. D (mm): 7.0 | Shank dia. d (mm): 8 | Flute length l (mm): 10 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4080-050Dia. D (mm): 8.0 | Shank dia. d (mm): 8 | Flute length l (mm): 12 | Overall length L (mm): 50 | Flutes: 4
ZPSFE4100-075Dia. D (mm): 10.0 | Shank dia. d (mm): 10 | Flute length l (mm): 15 | Overall length L (mm): 75 | Flutes: 4
ZPSFE4120-075Dia. D (mm): 12.0 | Shank dia. d (mm): 12 | Flute length l (mm): 18 | Overall length L (mm): 75 | Flutes: 4
ZPSFE4160-100Dia. D (mm): 16.0 | Shank dia. d (mm): 16 | Flute length l (mm): 24 | Overall length L (mm): 100 | Flutes: 4
