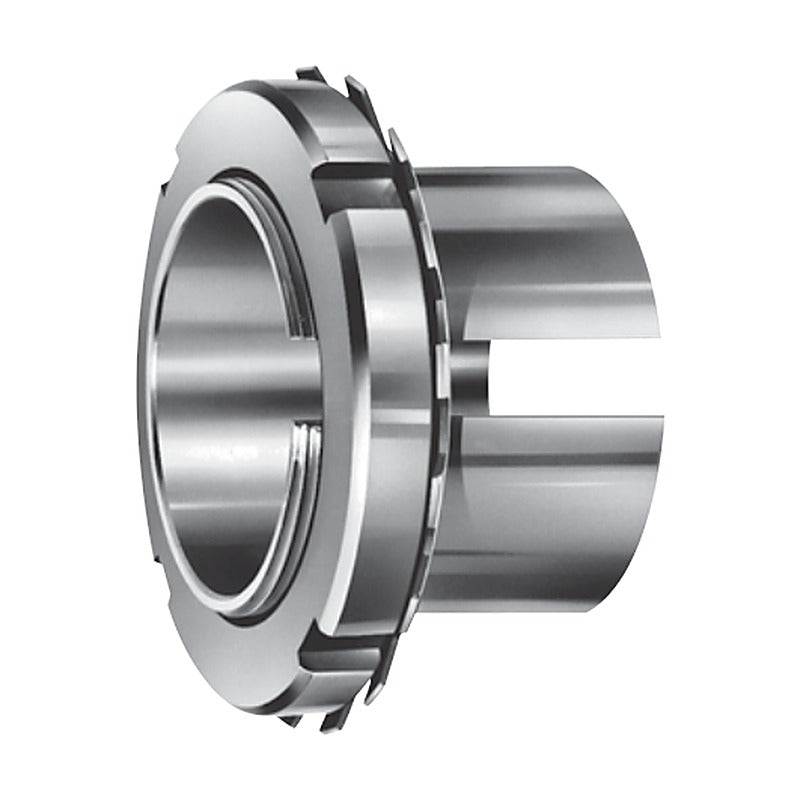

KOYO Adapter Assemblies for Self-Aligning Ball Bearings (H..X)

KOYO Adapter Assemblies for Self-Aligning Ball Bearings (H..X)

Adapter assemblies (adapter sleeve, locknut and lockwasher) for mounting tapered-bore self-aligning ball bearings on plain shafts, shaft diameter 17 to 125 mm.

Key features

  • Complete assembly: sleeve, locknut and lockwasher
  • Mounts K-type tapered bore bearings on cylindrical shafts
  • Allows simple axial positioning on the shaft
  • Matched to 12K, 13K, 22K and 23K bearing series

Specifications

Product type Adapter assembly
Components Adapter sleeve, locknut, lockwasher
Bearing taper 1:12
Use with Self-aligning ball bearings, K bore
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B150-B153
H204X Shaft d1: 17 mm | B1: 24 mm | d2: 32 mm | For: 1204K | Mass: 0.162 kg
H310X Shaft d1: 45 mm | B1: 42 mm | d2: 70 mm | For: 1310K, 2210K | Mass: 1.51 kg
H304X Shaft d1: 17 mm | B1: 28 mm | d2: 32 mm | For: 2204K, 1304K | Mass: 0.185 kg
H2310X Shaft d1: 45 mm | B1: 55 mm | d2: 70 mm | For: 2310K | Mass: 1.98 kg
H211X Shaft d1: 50 mm | B1: 37 mm | d2: 75 mm | For: 1211K | Mass: 1.02 kg
H2304X Shaft d1: 17 mm | B1: 31 mm | d2: 32 mm | For: 2304K | Mass: 0.257 kg
H311X Shaft d1: 50 mm | B1: 45 mm | d2: 75 mm | For: 2211K, 1311K | Mass: 1.16 kg
H205X Shaft d1: 20 mm | B1: 26 mm | d2: 38 mm | For: 1205K | Mass: 0.218 kg
H305X Shaft d1: 20 mm | B1: 29 mm | d2: 38 mm | For: 2205K, 1305K | Mass: 0.243 kg
H2311X Shaft d1: 50 mm | B1: 59 mm | d2: 75 mm | For: 2311K | Mass: 2.50 kg
H212X Shaft d1: 55 mm | B1: 38 mm | d2: 80 mm | For: 1212K | Mass: 1.25 kg
H2305X Shaft d1: 20 mm | B1: 35 mm | d2: 38 mm | For: 2305K | Mass: 0.424 kg
H312X Shaft d1: 55 mm | B1: 47 mm | d2: 80 mm | For: 2212K, 1312K | Mass: 1.49 kg
H206X Shaft d1: 25 mm | B1: 27 mm | d2: 45 mm | For: 1206K | Mass: 0.320 kg
H306X Shaft d1: 25 mm | B1: 31 mm | d2: 45 mm | For: 2206K, 1306K | Mass: 0.368 kg
H2312X Shaft d1: 55 mm | B1: 62 mm | d2: 80 mm | For: 2312K | Mass: 3.04 kg
H213X Shaft d1: 60 mm | B1: 40 mm | d2: 85 mm | For: 1213K | Mass: 1.56 kg
H2306X Shaft d1: 25 mm | B1: 38 mm | d2: 45 mm | For: 2306K | Mass: 0.620 kg
H313X Shaft d1: 60 mm | B1: 50 mm | d2: 85 mm | For: 2213K, 1313K | Mass: 1.92 kg
H207X Shaft d1: 30 mm | B1: 29 mm | d2: 52 mm | For: 1207K | Mass: 0.462 kg
H307X Shaft d1: 30 mm | B1: 35 mm | d2: 52 mm | For: 2207K, 1307K | Mass: 0.557 kg
H2313X Shaft d1: 60 mm | B1: 65 mm | d2: 85 mm | For: 2313K | Mass: 3.74 kg
H215X Shaft d1: 65 mm | B1: 43 mm | d2: 98 mm | For: 1215K | Mass: 2.09 kg
H2307X Shaft d1: 30 mm | B1: 43 mm | d2: 52 mm | For: 2307K | Mass: 0.843 kg
H315X Shaft d1: 65 mm | B1: 55 mm | d2: 98 mm | For: 2215K, 1315K | Mass: 2.47 kg
H208X Shaft d1: 35 mm | B1: 31 mm | d2: 58 mm | For: 1208K | Mass: 0.597 kg
H308X Shaft d1: 35 mm | B1: 36 mm | d2: 58 mm | For: 2208K, 1308K | Mass: 0.696 kg
H2315X Shaft d1: 65 mm | B1: 73 mm | d2: 98 mm | For: 2315K | Mass: 6.12 kg
H216X Shaft d1: 70 mm | B1: 46 mm | d2: 105 mm | For: 1216K | Mass: 2.57 kg
H2308X Shaft d1: 35 mm | B1: 46 mm | d2: 58 mm | For: 2308K | Mass: 1.14 kg
H316X Shaft d1: 70 mm | B1: 59 mm | d2: 105 mm | For: 2216K, 1316K | Mass: 3.06 kg
H209X Shaft d1: 40 mm | B1: 33 mm | d2: 65 mm | For: 1209K | Mass: 0.701 kg
H309X Shaft d1: 40 mm | B1: 39 mm | d2: 65 mm | For: 2209K, 1309K | Mass: 0.798 kg
H2316X Shaft d1: 70 mm | B1: 78 mm | d2: 105 mm | For: 2316K | Mass: 7.30 kg
H217X Shaft d1: 75 mm | B1: 50 mm | d2: 110 mm | For: 1217K | Mass: 3.11 kg
H2309X Shaft d1: 40 mm | B1: 50 mm | d2: 65 mm | For: 2309K | Mass: 1.51 kg
H317X Shaft d1: 75 mm | B1: 63 mm | d2: 110 mm | For: 2217K, 1317K | Mass: 3.70 kg
H210X Shaft d1: 45 mm | B1: 35 mm | d2: 70 mm | For: 1210K | Mass: 0.804 kg
H2317X Shaft d1: 75 mm | B1: 82 mm | d2: 110 mm | For: 2317K | Mass: 8.41 kg
H218X Shaft d1: 80 mm | B1: 52 mm | d2: 120 mm | For: 1218K | Mass: 3.75 kg
H318X Shaft d1: 80 mm | B1: 65 mm | d2: 120 mm | For: 2218K, 1318K | Mass: 4.78 kg
H2318X Shaft d1: 80 mm | B1: 86 mm | d2: 120 mm | For: 2318K | Mass: 9.95 kg
H219X Shaft d1: 85 mm | B1: 55 mm | d2: 125 mm | For: 1219K | Mass: 4.47 kg
H319X Shaft d1: 85 mm | B1: 68 mm | d2: 125 mm | For: 2219K, 1319K | Mass: 5.62 kg
H2319X Shaft d1: 85 mm | B1: 90 mm | d2: 125 mm | For: 2319K | Mass: 11.6 kg
H220X Shaft d1: 90 mm | B1: 58 mm | d2: 130 mm | For: 1220K | Mass: 5.23 kg
H320X Shaft d1: 90 mm | B1: 71 mm | d2: 130 mm | For: 2220K, 1320K | Mass: 6.67 kg
H2320X Shaft d1: 90 mm | B1: 97 mm | d2: 130 mm | For: 2320K | Mass: 14.4 kg
H222X Shaft d1: 100 mm | B1: 63 mm | d2: 145 mm | For: 1222K | Mass: 7.10 kg
H322X Shaft d1: 100 mm | B1: 77 mm | d2: 145 mm | For: 2222K, 1322K | Mass: 9.23 kg
H2322X Shaft d1: 100 mm | B1: 105 mm | d2: 145 mm | For: 2322K | Mass: 19.8 kg
