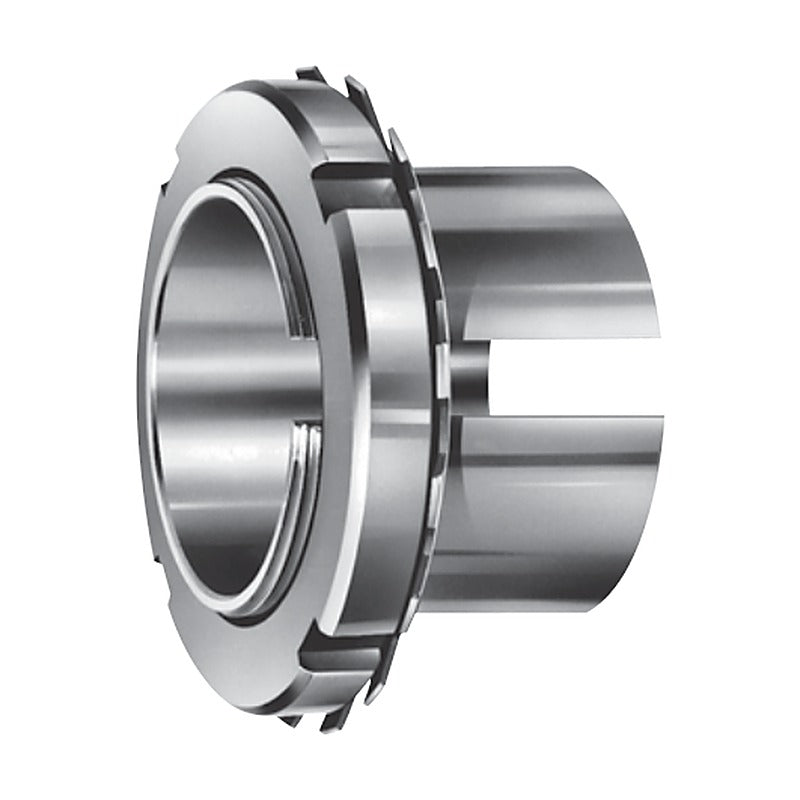

KOYO Adapter Assemblies for Spherical Roller Bearings (H, H..X)

KOYO Adapter Assemblies for Spherical Roller Bearings (H, H..X)

Adapter assemblies (adapter sleeve, locknut and lockwasher or lock plate) for mounting tapered-bore spherical roller bearings on plain shafts, shaft diameter 20 mm and above.

Key features

  • Sleeve, locknut and locking device supplied as an assembly
  • Mounts K tapered bore spherical roller bearings
  • Lock plate design for larger sizes (d1 >= 200 mm)
  • Allows bearing positioning anywhere on a plain shaft

Specifications

Product type Adapter assembly
Components Adapter sleeve, locknut, lockwasher / lock plate
Use with Spherical roller bearings, K bore
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B330-B337
H3122X Shaft d1: 100 mm | B1: 81 mm | d2: 145 mm | For: 23122RHK | Mass: 7.91 kg
H3024X Shaft d1: 110 mm | B1: 72 mm | d2: 145 mm | For: 23024RHK | Mass: 6.12 kg
H3124X Shaft d1: 110 mm | B1: 88 mm | d2: 155 mm | For: 23124RHK, 22224RHRK | Mass: 10.5 kg
H2324X Shaft d1: 110 mm | B1: 112 mm | d2: 155 mm | For: 23224RHK, 22324RHRK | Mass: 15.1 kg
H3026 Shaft d1: 115 mm | B1: 80 mm | d2: 155 mm | For: 23026RHK | Mass: 9.01 kg
H2334 Shaft d1: 150 mm | B1: 154 mm | d2: 220 mm | For: 23234RRK, 23234RHAK | Mass: 47.2 kg
H3126 Shaft d1: 115 mm | B1: 92 mm | d2: 165 mm | For: 23126RHK, 22226RHRK | Mass: 12.3 kg
H2326 Shaft d1: 115 mm | B1: 121 mm | d2: 165 mm | For: 23226RHK, 22326RHRK | Mass: 18.8 kg
H3036 Shaft d1: 160 mm | B1: 109 mm | d2: 210 mm | For: 23036RHK | Mass: 24.2 kg
H3028 Shaft d1: 125 mm | B1: 82 mm | d2: 165 mm | For: 23028RHK | Mass: 9.79 kg
H3136 Shaft d1: 160 mm | B1: 131 mm | d2: 230 mm | For: 23136RK, 23136RHAK | Mass: 37.1 kg
H3128 Shaft d1: 125 mm | B1: 97 mm | d2: 180 mm | For: 23128RHK, 22228RHRK | Mass: 14.9 kg
H2328 Shaft d1: 125 mm | B1: 131 mm | d2: 180 mm | For: 23228RHK, 22328RHK | Mass: 24.3 kg
H2336 Shaft d1: 160 mm | B1: 161 mm | d2: 230 mm | For: 23236RRK, 23236RHAK | Mass: 50.5 kg
H3030 Shaft d1: 135 mm | B1: 87 mm | d2: 180 mm | For: 23030RHK | Mass: 11.9 kg
H3130 Shaft d1: 135 mm | B1: 111 mm | d2: 195 mm | For: 23130RHK, 22230RHRK | Mass: 21.7 kg
H2330 Shaft d1: 135 mm | B1: 139 mm | d2: 195 mm | For: 23230RHK, 22330RK | Mass: 30.8 kg
H3038 Shaft d1: 170 mm | B1: 112 mm | d2: 220 mm | For: 23038RK, 23038RHAK | Mass: 26.1 kg
H3138 Shaft d1: 170 mm | B1: 141 mm | d2: 240 mm | For: 23138RK, 23138RHAK | Mass: 45.3 kg
H3032 Shaft d1: 140 mm | B1: 93 mm | d2: 190 mm | For: 23032RHK | Mass: 15.0 kg
H3132 Shaft d1: 140 mm | B1: 119 mm | d2: 210 mm | For: 23132RHK, 22232RK | Mass: 27.9 kg
H2338 Shaft d1: 170 mm | B1: 169 mm | d2: 240 mm | For: 23238RRK, 23238RHAK | Mass: 59.2 kg
H2332 Shaft d1: 140 mm | B1: 147 mm | d2: 210 mm | For: 23232RK, 23232RHAK | Mass: 39.6 kg
H3040 Shaft d1: 180 mm | B1: 120 mm | d2: 240 mm | For: 23040RK, 23040RHAK | Mass: 32.8 kg
H3034 Shaft d1: 150 mm | B1: 101 mm | d2: 200 mm | For: 23034RHK | Mass: 19.2 kg
H3140 Shaft d1: 180 mm | B1: 150 mm | d2: 250 mm | For: 23140RRK, 23140RHAK | Mass: 54.7 kg
H3134 Shaft d1: 150 mm | B1: 122 mm | d2: 220 mm | For: 23134RHK, 22234RK | Mass: 30.0 kg
H2340 Shaft d1: 180 mm | B1: 176 mm | d2: 250 mm | For: 23240RK, 23240RHAK | Mass: 71.0 kg
H3152 Shaft d1: 240 mm | B1: 187 mm | d2: 330 mm | For: 22252RK, 22252RHAK | Mass: 131 kg
H2352 Shaft d1: 240 mm | B1: 208 mm | d2: 330 mm | For: 23252RK, 23252RHAK | Mass: 165 kg
H3044 Shaft d1: 200 mm | B1: 128 mm | d2: 260 mm | For: 23044RK, 23044RHAK | Mass: 41.4 kg
H3144 Shaft d1: 200 mm | B1: 158 mm | d2: 280 mm | For: 23144RK, 23144RHAK | Mass: 68.4 kg
H3056 Shaft d1: 260 mm | B1: 152 mm | d2: 330 mm | For: 23056RK, 23056RHAK | Mass: 71.5 kg
H3156 Shaft d1: 260 mm | B1: 192 mm | d2: 350 mm | For: 23156RRK, 23156RHAK | Mass: 123 kg
H2344 Shaft d1: 200 mm | B1: 183 mm | d2: 280 mm | For: 23244RK, 23244RHAK | Mass: 96.5 kg
H2356 Shaft d1: 260 mm | B1: 221 mm | d2: 350 mm | For: 23256RK, 23256RHAK | Mass: 178 kg
H3048 Shaft d1: 220 mm | B1: 133 mm | d2: 290 mm | For: 23048RRK, 23048RHAK | Mass: 47.7 kg
H3148 Shaft d1: 220 mm | B1: 169 mm | d2: 300 mm | For: 23148RRK, 23148RHAK | Mass: 83.6 kg
H3060 Shaft d1: 280 mm | B1: 168 mm | d2: 360 mm | For: 23060RK, 23060RHAK | Mass: 97.7 kg
H3160 Shaft d1: 280 mm | B1: 208 mm | d2: 380 mm | For: 23160RRK, 23160RHAK | Mass: 159 kg
H2348 Shaft d1: 220 mm | B1: 196 mm | d2: 300 mm | For: 23248RRK, 23248RHAK | Mass: 128 kg
H3260 Shaft d1: 280 mm | B1: 240 mm | d2: 380 mm | For: 23260RK, 23260RHAK | Mass: 227 kg
H3064 Shaft d1: 300 mm | B1: 171 mm | d2: 380 mm | For: 23064RK, 23064RHAK | Mass: 105 kg
H3052 Shaft d1: 240 mm | B1: 147 mm | d2: 310 mm | For: 23052RK, 23052RHAK | Mass: 65.4 kg
H3164 Shaft d1: 300 mm | B1: 226 mm | d2: 400 mm | For: 23164RK, 23164RHAK | Mass: 202 kg
H3264 Shaft d1: 300 mm | B1: 258 mm | d2: 400 mm | For: 23264RK, 23264RHAK | Mass: 283 kg
H3184 Shaft d1: 400 mm | B1: 304 mm | d2: 540 mm | For: 23184RK, 23184RHA | Mass: 441 kg
H3284 Shaft d1: 400 mm | B1: 352 mm | d2: 540 mm | For: 23284RK, 23284RHAK | Mass: 639 kg
H3068 Shaft d1: 320 mm | B1: 187 mm | d2: 400 mm | For: 23068RK, 23068RHAK | Mass: 135 kg
H3168 Shaft d1: 320 mm | B1: 254 mm | d2: 440 mm | For: 23168RK, 23168RHAK | Mass: 262 kg
H3088 Shaft d1: 410 mm | B1: 228 mm | d2: 520 mm | For: 23088RK, 23088RHAK | Mass: 252 kg
H3268 Shaft d1: 320 mm | B1: 288 mm | d2: 440 mm | For: 23268RK, 23268RHAK | Mass: 355 kg
H3188 Shaft d1: 410 mm | B1: 307 mm | d2: 560 mm | For: 23188RK, 23188RHAK | Mass: 474 kg
H3288 Shaft d1: 410 mm | B1: 361 mm | d2: 560 mm | For: 23288RK, 23288RHAK | Mass: 718 kg
H3072 Shaft d1: 340 mm | B1: 188 mm | d2: 420 mm | For: 23072RK, 23072RHAK | Mass: 143 kg
H3172 Shaft d1: 340 mm | B1: 259 mm | d2: 460 mm | For: 23172RK, 23172RHAK | Mass: 278 kg
H3092 Shaft d1: 430 mm | B1: 234 mm | d2: 540 mm | For: 23092RK, 23092RHAK | Mass: 283 kg
H3272 Shaft d1: 340 mm | B1: 299 mm | d2: 460 mm | For: 23272RK, 23272RHAK | Mass: 400 kg
H3192 Shaft d1: 430 mm | B1: 326 mm | d2: 580 mm | For: 23192RK, 23192RHAK | Mass: 559 kg
H3292 Shaft d1: 430 mm | B1: 382 mm | d2: 580 mm | For: 23292RK, 23292RHAK | Mass: 838 kg
H3076 Shaft d1: 360 mm | B1: 193 mm | d2: 450 mm | For: 23076RK, 23076RHAK | Mass: 156 kg
H3176 Shaft d1: 360 mm | B1: 264 mm | d2: 490 mm | For: 23176RK, 23176RHAK | Mass: 298 kg
H3096 Shaft d1: 450 mm | B1: 237 mm | d2: 560 mm | For: 23096RK, 23096RHAK | Mass: 295 kg
H3276 Shaft d1: 360 mm | B1: 310 mm | d2: 490 mm | For: 23276RK, 23276RHAK | Mass: 448 kg
H3196 Shaft d1: 450 mm | B1: 335 mm | d2: 620 mm | For: 23196RK, 23196RHAK | Mass: 628 kg
H3296 Shaft d1: 450 mm | B1: 397 mm | d2: 620 mm | For: 23296RK, 23296RHAK | Mass: 966 kg
H3080 Shaft d1: 380 mm | B1: 210 mm | d2: 470 mm | For: 23080RK, 23080RHAK | Mass: 195 kg
H3180 Shaft d1: 380 mm | B1: 272 mm | d2: 520 mm | For: 23180RK, 23180RHAK | Mass: 339 kg
H30/500 Shaft d1: 470 mm | B1: 247 mm | d2: 580 mm | For: 230/500RK | Mass: 315 kg
H31/500 Shaft d1: 470 mm | B1: 356 mm | d2: 630 mm | For: 231/500RK | Mass: 727 kg
H3280 Shaft d1: 380 mm | B1: 328 mm | d2: 520 mm | For: 23280RK, 23280RHAK | Mass: 539 kg
H32/500 Shaft d1: 470 mm | B1: 428 mm | d2: 630 mm | For: 232/500RK | Mass: 1 167 kg
H3084 Shaft d1: 400 mm | B1: 212 mm | d2: 490 mm | For: 23084RK, 23084RHAK | Mass: 205 kg
