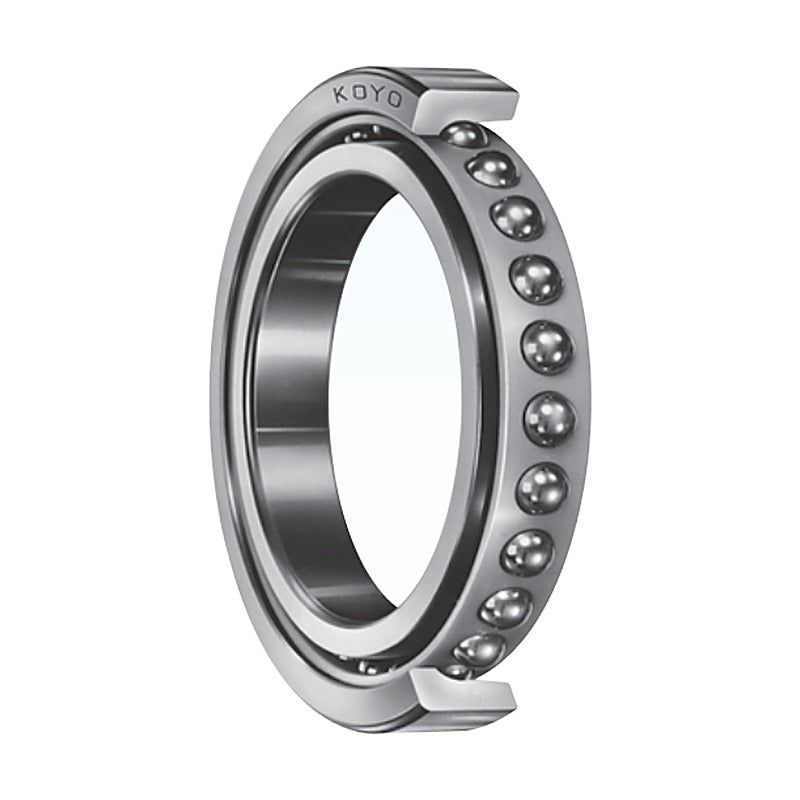

KOYO Matched Pair Angular Contact Ball Bearings (DB, DF, DT)

KOYO Matched Pair Angular Contact Ball Bearings (DB, DF, DT)

Factory-matched pairs of single-row angular contact ball bearings in back-to-back (DB), face-to-face (DF) and tandem (DT) arrangements, series 79, 70, 72, 73, 74 and HAR. Load ratings are for the pair.

Key features

  • DB back-to-back: rigid against moment loads
  • DF face-to-face: tolerant of misalignment
  • DT tandem: high one-direction axial capacity
  • Preload set at the factory
  • Load ratings and mass given per pair

Specifications

Bearing type Matched pair angular contact ball bearing
Arrangement DB, DF, DT
Series 79, 70, 72, 73, 74, HAR
Load ratings Per pair, machined cage
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B92-B123
7900CDB d: 10 mm | D: 22 mm | B1 (pair): 12 mm | Cr: 4.90 kN | C0r: 3.05 kN | Mass: 0.016 kg
7900CDF d: 10 mm | D: 22 mm | B1 (pair): 12 mm | Cr: 4.90 kN | C0r: 3.05 kN | Mass: 0.016 kg
7900CDT d: 10 mm | D: 22 mm | B1 (pair): 12 mm | Cr: 4.90 kN | C0r: 3.05 kN | Mass: 0.016 kg
7000DB d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 4.65 kN | Mass: 0.042 kg
7000DF d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 4.65 kN | Mass: 0.042 kg
7000DT d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 4.65 kN | Mass: 0.042 kg
7000BDB d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 7.55 kN | C0r: 4.35 kN | Mass: 0.042 kg
7000BDF d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 7.55 kN | C0r: 4.35 kN | Mass: 0.042 kg
7000BDT d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 7.55 kN | C0r: 4.35 kN | Mass: 0.042 kg
7000CDB d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.60 kN | C0r: 4.95 kN | Mass: 0.042 kg
7000CDF d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.60 kN | C0r: 4.95 kN | Mass: 0.042 kg
7000CDT d: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.60 kN | C0r: 4.95 kN | Mass: 0.042 kg
7200DB d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 7.55 kN | C0r: 4.40 kN | Mass: 0.062 kg
7200DF d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 7.55 kN | C0r: 4.40 kN | Mass: 0.062 kg
7200DT d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 7.55 kN | C0r: 4.40 kN | Mass: 0.062 kg
7200BDB d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 6.95 kN | C0r: 4.05 kN | Mass: 0.062 kg
7200BDF d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 6.95 kN | C0r: 4.05 kN | Mass: 0.062 kg
7200BDT d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 6.95 kN | C0r: 4.05 kN | Mass: 0.062 kg
7200CDB d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 8.10 kN | C0r: 4.70 kN | Mass: 0.062 kg
7200CDF d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 8.10 kN | C0r: 4.70 kN | Mass: 0.062 kg
7200CDT d: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 8.10 kN | C0r: 4.70 kN | Mass: 0.062 kg
7300DB d: 10 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.8 kN | C0r: 7.55 kN | Mass: 0.108 kg
7300DF d: 10 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.8 kN | C0r: 7.55 kN | Mass: 0.108 kg
7300DT d: 10 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.8 kN | C0r: 7.55 kN | Mass: 0.108 kg
7901CDB d: 12 mm | D: 24 mm | B1 (pair): 12 mm | Cr: 5.15 kN | C0r: 3.45 kN | Mass: 0.020 kg
7901CDF d: 12 mm | D: 24 mm | B1 (pair): 12 mm | Cr: 5.15 kN | C0r: 3.45 kN | Mass: 0.020 kg
7901CDT d: 12 mm | D: 24 mm | B1 (pair): 12 mm | Cr: 5.15 kN | C0r: 3.45 kN | Mass: 0.020 kg
7001DB d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.80 kN | C0r: 5.45 kN | Mass: 0.048 kg
7001DF d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.80 kN | C0r: 5.45 kN | Mass: 0.048 kg
7001DT d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.80 kN | C0r: 5.45 kN | Mass: 0.048 kg
7001BDB d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 5.05 kN | Mass: 0.048 kg
7001BDF d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 5.05 kN | Mass: 0.048 kg
7001BDT d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 5.05 kN | Mass: 0.048 kg
7001CDB d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 9.40 kN | C0r: 5.85 kN | Mass: 0.048 kg
7001CDF d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 9.40 kN | C0r: 5.85 kN | Mass: 0.048 kg
7001CDT d: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 9.40 kN | C0r: 5.85 kN | Mass: 0.048 kg
7201DB d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.1 kN | C0r: 7.25 kN | Mass: 0.076 kg
7201DF d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.1 kN | C0r: 7.25 kN | Mass: 0.076 kg
7201DT d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.1 kN | C0r: 7.25 kN | Mass: 0.076 kg
7201BDB d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 11.3 kN | C0r: 6.80 kN | Mass: 0.076 kg
7201BDF d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 11.3 kN | C0r: 6.80 kN | Mass: 0.076 kg
7201BDT d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 11.3 kN | C0r: 6.80 kN | Mass: 0.076 kg
7201CDB d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.8 kN | C0r: 7.70 kN | Mass: 0.076 kg
7201CDF d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.8 kN | C0r: 7.70 kN | Mass: 0.076 kg
7201CDT d: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.8 kN | C0r: 7.70 kN | Mass: 0.076 kg
7301DB d: 12 mm | D: 37 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 9.20 kN | Mass: 0.130 kg
7301DF d: 12 mm | D: 37 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 9.20 kN | Mass: 0.130 kg
7301DT d: 12 mm | D: 37 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 9.20 kN | Mass: 0.130 kg
7902CDB d: 15 mm | D: 28 mm | B1 (pair): 14 mm | Cr: 7.75 kN | C0r: 5.30 kN | Mass: 0.030 kg
7902CDF d: 15 mm | D: 28 mm | B1 (pair): 14 mm | Cr: 7.75 kN | C0r: 5.30 kN | Mass: 0.030 kg
7902CDT d: 15 mm | D: 28 mm | B1 (pair): 14 mm | Cr: 7.75 kN | C0r: 5.30 kN | Mass: 0.030 kg
7002DB d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.95 kN | C0r: 6.85 kN | Mass: 0.070 kg
7002DF d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.95 kN | C0r: 6.85 kN | Mass: 0.070 kg
7002DT d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.95 kN | C0r: 6.85 kN | Mass: 0.070 kg
7002BDB d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.05 kN | C0r: 6.30 kN | Mass: 0.070 kg
7002BDF d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.05 kN | C0r: 6.30 kN | Mass: 0.070 kg
7002BDT d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.05 kN | C0r: 6.30 kN | Mass: 0.070 kg
7002CDB d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 10.7 kN | C0r: 7.40 kN | Mass: 0.070 kg
7002CDF d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 10.7 kN | C0r: 7.40 kN | Mass: 0.070 kg
7002CDT d: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 10.7 kN | C0r: 7.40 kN | Mass: 0.070 kg
7202DB d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.2 kN | C0r: 8.55 kN | Mass: 0.096 kg
7202DF d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.2 kN | C0r: 8.55 kN | Mass: 0.096 kg
7202DT d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.2 kN | C0r: 8.55 kN | Mass: 0.096 kg
7202BDB d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 12.1 kN | C0r: 7.85 kN | Mass: 0.096 kg
7202BDF d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 12.1 kN | C0r: 7.85 kN | Mass: 0.096 kg
7202BDT d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 12.1 kN | C0r: 7.85 kN | Mass: 0.096 kg
7202CDB d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 14.1 kN | C0r: 9.15 kN | Mass: 0.096 kg
7202CDF d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 14.1 kN | C0r: 9.15 kN | Mass: 0.096 kg
7202CDT d: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 14.1 kN | C0r: 9.15 kN | Mass: 0.096 kg
7302DB d: 15 mm | D: 42 mm | B1 (pair): 26 mm | Cr: 20.3 kN | C0r: 12.9 kN | Mass: 0.176 kg
7302DF d: 15 mm | D: 42 mm | B1 (pair): 26 mm | Cr: 20.3 kN | C0r: 12.9 kN | Mass: 0.176 kg
7302DT d: 15 mm | D: 42 mm | B1 (pair): 26 mm | Cr: 20.3 kN | C0r: 12.9 kN | Mass: 0.176 kg
7903CDB d: 17 mm | D: 30 mm | B1 (pair): 14 mm | Cr: 8.10 kN | C0r: 5.90 kN | Mass: 0.032 kg
7903CDF d: 17 mm | D: 30 mm | B1 (pair): 14 mm | Cr: 8.10 kN | C0r: 5.90 kN | Mass: 0.032 kg
7903CDT d: 17 mm | D: 30 mm | B1 (pair): 14 mm | Cr: 8.10 kN | C0r: 5.90 kN | Mass: 0.032 kg
7003DB d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 10.9 kN | C0r: 8.25 kN | Mass: 0.090 kg
7003DF d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 10.9 kN | C0r: 8.25 kN | Mass: 0.090 kg
7003DT d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 10.9 kN | C0r: 8.25 kN | Mass: 0.090 kg
7003BDB d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 9.90 kN | C0r: 7.50 kN | Mass: 0.090 kg
7003BDF d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 9.90 kN | C0r: 7.50 kN | Mass: 0.090 kg
7003BDT d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 9.90 kN | C0r: 7.50 kN | Mass: 0.090 kg
7003CDB d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 11.9 kN | C0r: 8.95 kN | Mass: 0.090 kg
7003CDF d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 11.9 kN | C0r: 8.95 kN | Mass: 0.090 kg
7003CDT d: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 11.9 kN | C0r: 8.95 kN | Mass: 0.090 kg
7203DB d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 16.5 kN | C0r: 11.0 kN | Mass: 0.140 kg
7203DF d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 16.5 kN | C0r: 11.0 kN | Mass: 0.140 kg
7203DT d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 16.5 kN | C0r: 11.0 kN | Mass: 0.140 kg
7203BDB d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 10.1 kN | Mass: 0.140 kg
7203BDF d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 10.1 kN | Mass: 0.140 kg
7203BDT d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 10.1 kN | Mass: 0.140 kg
7203CDB d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 17.7 kN | C0r: 11.8 kN | Mass: 0.140 kg
7203CDF d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 17.7 kN | C0r: 11.8 kN | Mass: 0.140 kg
7203CDT d: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 17.7 kN | C0r: 11.8 kN | Mass: 0.140 kg
7303DB d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 24.2 kN | C0r: 15.8 kN | Mass: 0.240 kg
7303DF d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 24.2 kN | C0r: 15.8 kN | Mass: 0.240 kg
7303DT d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 24.2 kN | C0r: 15.8 kN | Mass: 0.240 kg
7303BDB d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 22.5 kN | C0r: 14.6 kN | Mass: 0.240 kg
7303BDF d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 22.5 kN | C0r: 14.6 kN | Mass: 0.240 kg
7303BDT d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 22.5 kN | C0r: 14.6 kN | Mass: 0.240 kg
7303CDB d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 16.8 kN | Mass: 0.240 kg
7303CDF d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 16.8 kN | Mass: 0.240 kg
7303CDT d: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 16.8 kN | Mass: 0.240 kg
7904CDB d: 20 mm | D: 37 mm | B1 (pair): 18 mm | Cr: 11.8 kN | C0r: 9.15 kN | Mass: 0.070 kg
7904CDF d: 20 mm | D: 37 mm | B1 (pair): 18 mm | Cr: 11.8 kN | C0r: 9.15 kN | Mass: 0.070 kg
7904CDT d: 20 mm | D: 37 mm | B1 (pair): 18 mm | Cr: 11.8 kN | C0r: 9.15 kN | Mass: 0.070 kg
7004DB d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 16.7 kN | C0r: 12.2 kN | Mass: 0.158 kg
7004DF d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 16.7 kN | C0r: 12.2 kN | Mass: 0.158 kg
7004DT d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 16.7 kN | C0r: 12.2 kN | Mass: 0.158 kg
7004BDB d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 11.1 kN | Mass: 0.158 kg
7004BDF d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 11.1 kN | Mass: 0.158 kg
7004BDT d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 11.1 kN | Mass: 0.158 kg
7004CDB d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 18.0 kN | C0r: 13.2 kN | Mass: 0.158 kg
7004CDF d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 18.0 kN | C0r: 13.2 kN | Mass: 0.158 kg
7004CDT d: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 18.0 kN | C0r: 13.2 kN | Mass: 0.158 kg
7204DB d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 23.5 kN | C0r: 16.8 kN | Mass: 0.224 kg
7204DF d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 23.5 kN | C0r: 16.8 kN | Mass: 0.224 kg
7204DT d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 23.5 kN | C0r: 16.8 kN | Mass: 0.224 kg
7204BDB d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 21.6 kN | C0r: 15.4 kN | Mass: 0.224 kg
7204BDF d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 21.6 kN | C0r: 15.4 kN | Mass: 0.224 kg
7204BDT d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 21.6 kN | C0r: 15.4 kN | Mass: 0.224 kg
7204CDB d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.2 kN | C0r: 18.0 kN | Mass: 0.224 kg
7204CDF d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.2 kN | C0r: 18.0 kN | Mass: 0.224 kg
7204CDT d: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.2 kN | C0r: 18.0 kN | Mass: 0.224 kg
7304DB d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 28.3 kN | C0r: 18.8 kN | Mass: 0.300 kg
7304DF d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 28.3 kN | C0r: 18.8 kN | Mass: 0.300 kg
7304DT d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 28.3 kN | C0r: 18.8 kN | Mass: 0.300 kg
7304BDB d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.3 kN | C0r: 17.4 kN | Mass: 0.300 kg
7304BDF d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.3 kN | C0r: 17.4 kN | Mass: 0.300 kg
7304BDT d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.3 kN | C0r: 17.4 kN | Mass: 0.300 kg
7304CDB d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 30.1 kN | C0r: 19.9 kN | Mass: 0.300 kg
7304CDF d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 30.1 kN | C0r: 19.9 kN | Mass: 0.300 kg
7304CDT d: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 30.1 kN | C0r: 19.9 kN | Mass: 0.300 kg
7404DB d: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 57.8 kN | C0r: 38.2 kN | Mass: 0.790 kg
7404DF d: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 57.8 kN | C0r: 38.2 kN | Mass: 0.790 kg
7404DT d: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 57.8 kN | C0r: 38.2 kN | Mass: 0.790 kg
7404BDB d: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 54.4 kN | C0r: 35.9 kN | Mass: 0.790 kg
7404BDF d: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 54.4 kN | C0r: 35.9 kN | Mass: 0.790 kg
7404BDT d: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 54.4 kN | C0r: 35.9 kN | Mass: 0.790 kg
7905CDB d: 25 mm | D: 42 mm | B1 (pair): 18 mm | Cr: 12.7 kN | C0r: 10.9 kN | Mass: 0.082 kg
7905CDF d: 25 mm | D: 42 mm | B1 (pair): 18 mm | Cr: 12.7 kN | C0r: 10.9 kN | Mass: 0.082 kg
7905CDT d: 25 mm | D: 42 mm | B1 (pair): 18 mm | Cr: 12.7 kN | C0r: 10.9 kN | Mass: 0.082 kg
7005DB d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 18.3 kN | C0r: 14.8 kN | Mass: 0.182 kg
7005DF d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 18.3 kN | C0r: 14.8 kN | Mass: 0.182 kg
7005DT d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 18.3 kN | C0r: 14.8 kN | Mass: 0.182 kg
7005BDB d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 13.4 kN | Mass: 0.182 kg
7005BDF d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 13.4 kN | Mass: 0.182 kg
7005BDT d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 13.4 kN | Mass: 0.182 kg
7005CDB d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 20.0 kN | C0r: 16.0 kN | Mass: 0.182 kg
7005CDF d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 20.0 kN | C0r: 16.0 kN | Mass: 0.182 kg
7005CDT d: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 20.0 kN | C0r: 16.0 kN | Mass: 0.182 kg
7205DB d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 24.9 kN | C0r: 19.0 kN | Mass: 0.270 kg
7205DF d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 24.9 kN | C0r: 19.0 kN | Mass: 0.270 kg
7205DT d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 24.9 kN | C0r: 19.0 kN | Mass: 0.270 kg
7205BDB d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 22.7 kN | C0r: 17.4 kN | Mass: 0.270 kg
7205BDF d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 22.7 kN | C0r: 17.4 kN | Mass: 0.270 kg
7205BDT d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 22.7 kN | C0r: 17.4 kN | Mass: 0.270 kg
7205CDB d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.9 kN | C0r: 20.5 kN | Mass: 0.270 kg
7205CDF d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.9 kN | C0r: 20.5 kN | Mass: 0.270 kg
7205CDT d: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.9 kN | C0r: 20.5 kN | Mass: 0.270 kg
7305DB d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 40.3 kN | C0r: 28.8 kN | Mass: 0.486 kg
7305DF d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 40.3 kN | C0r: 28.8 kN | Mass: 0.486 kg
7305DT d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 40.3 kN | C0r: 28.8 kN | Mass: 0.486 kg
7305BDB d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 37.2 kN | C0r: 26.6 kN | Mass: 0.486 kg
7305BDF d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 37.2 kN | C0r: 26.6 kN | Mass: 0.486 kg
7305BDT d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 37.2 kN | C0r: 26.6 kN | Mass: 0.486 kg
7305CDB d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 42.8 kN | C0r: 30.6 kN | Mass: 0.486 kg
7305CDF d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 42.8 kN | C0r: 30.6 kN | Mass: 0.486 kg
7305CDT d: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 42.8 kN | C0r: 30.6 kN | Mass: 0.486 kg
7405DB d: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 64.5 kN | C0r: 46.3 kN | Mass: 1.05 kg
7405DF d: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 64.5 kN | C0r: 46.3 kN | Mass: 1.05 kg
7405DT d: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 64.5 kN | C0r: 46.3 kN | Mass: 1.05 kg
7405BDB d: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 60.0 kN | C0r: 43.0 kN | Mass: 1.05 kg
7405BDF d: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 60.0 kN | C0r: 43.0 kN | Mass: 1.05 kg
7405BDT d: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 60.0 kN | C0r: 43.0 kN | Mass: 1.05 kg
7906CDB d: 30 mm | D: 47 mm | B1 (pair): 18 mm | Cr: 13.5 kN | C0r: 12.5 kN | Mass: 0.092 kg
7906CDF d: 30 mm | D: 47 mm | B1 (pair): 18 mm | Cr: 13.5 kN | C0r: 12.5 kN | Mass: 0.092 kg
7906CDT d: 30 mm | D: 47 mm | B1 (pair): 18 mm | Cr: 13.5 kN | C0r: 12.5 kN | Mass: 0.092 kg
HAR006CDB d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 14.2 kN | C0r: 9.75 kN | Mass: 0.232 kg
HAR006CDF d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 14.2 kN | C0r: 9.75 kN | Mass: 0.232 kg
HAR006CDT d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 14.2 kN | C0r: 9.75 kN | Mass: 0.232 kg
7006DB d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 23.6 kN | C0r: 20.2 kN | Mass: 0.266 kg
7006DF d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 23.6 kN | C0r: 20.2 kN | Mass: 0.266 kg
7006DT d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 23.6 kN | C0r: 20.2 kN | Mass: 0.266 kg
7006BDB d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 21.3 kN | C0r: 18.4 kN | Mass: 0.266 kg
7006BDF d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 21.3 kN | C0r: 18.4 kN | Mass: 0.266 kg
7006BDT d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 21.3 kN | C0r: 18.4 kN | Mass: 0.266 kg
7006CDB d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 25.7 kN | C0r: 22.0 kN | Mass: 0.266 kg
7006CDF d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 25.7 kN | C0r: 22.0 kN | Mass: 0.266 kg
7006CDT d: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 25.7 kN | C0r: 22.0 kN | Mass: 0.266 kg
7206DB d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 34.7 kN | C0r: 27.4 kN | Mass: 0.416 kg
7206DF d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 34.7 kN | C0r: 27.4 kN | Mass: 0.416 kg
7206DT d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 34.7 kN | C0r: 27.4 kN | Mass: 0.416 kg
7206BDB d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 31.6 kN | C0r: 25.0 kN | Mass: 0.416 kg
7206BDF d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 31.6 kN | C0r: 25.0 kN | Mass: 0.416 kg
7206BDT d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 31.6 kN | C0r: 25.0 kN | Mass: 0.416 kg
7206CDB d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 37.4 kN | C0r: 29.5 kN | Mass: 0.416 kg
7206CDF d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 37.4 kN | C0r: 29.5 kN | Mass: 0.416 kg
7206CDT d: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 37.4 kN | C0r: 29.5 kN | Mass: 0.416 kg
7306DB d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 48.9 kN | C0r: 37.8 kN | Mass: 0.724 kg
7306DF d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 48.9 kN | C0r: 37.8 kN | Mass: 0.724 kg
7306DT d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 48.9 kN | C0r: 37.8 kN | Mass: 0.724 kg
7306BDB d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 44.9 kN | C0r: 34.7 kN | Mass: 0.724 kg
7306BDF d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 44.9 kN | C0r: 34.7 kN | Mass: 0.724 kg
7306BDT d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 44.9 kN | C0r: 34.7 kN | Mass: 0.724 kg
7306CDB d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 52.5 kN | C0r: 40.5 kN | Mass: 0.724 kg
7306CDF d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 52.5 kN | C0r: 40.5 kN | Mass: 0.724 kg
7306CDT d: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 52.5 kN | C0r: 40.5 kN | Mass: 0.724 kg
7406DB d: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 77.3 kN | C0r: 56.9 kN | Mass: 1.37 kg
7406DF d: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 77.3 kN | C0r: 56.9 kN | Mass: 1.37 kg
7406DT d: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 77.3 kN | C0r: 56.9 kN | Mass: 1.37 kg
7406BDB d: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 71.8 kN | C0r: 52.8 kN | Mass: 1.37 kg
7406BDF d: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 71.8 kN | C0r: 52.8 kN | Mass: 1.37 kg
7406BDT d: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 71.8 kN | C0r: 52.8 kN | Mass: 1.37 kg
7907CDB d: 35 mm | D: 55 mm | B1 (pair): 20 mm | Cr: 20.4 kN | C0r: 19.4 kN | Mass: 0.148 kg
7907CDF d: 35 mm | D: 55 mm | B1 (pair): 20 mm | Cr: 20.4 kN | C0r: 19.4 kN | Mass: 0.148 kg
7907CDT d: 35 mm | D: 55 mm | B1 (pair): 20 mm | Cr: 20.4 kN | C0r: 19.4 kN | Mass: 0.148 kg
HAR007CDB d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 15.0 kN | C0r: 11.1 kN | Mass: 0.316 kg
HAR007CDF d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 15.0 kN | C0r: 11.1 kN | Mass: 0.316 kg
HAR007CDT d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 15.0 kN | C0r: 11.1 kN | Mass: 0.316 kg
7007DB d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 28.4 kN | C0r: 25.2 kN | Mass: 0.340 kg
7007DF d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 28.4 kN | C0r: 25.2 kN | Mass: 0.340 kg
7007DT d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 28.4 kN | C0r: 25.2 kN | Mass: 0.340 kg
7007BDB d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 22.8 kN | Mass: 0.340 kg
7007BDF d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 22.8 kN | Mass: 0.340 kg
7007BDT d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 22.8 kN | Mass: 0.340 kg
7007CDB d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 31.0 kN | C0r: 27.4 kN | Mass: 0.340 kg
7007CDF d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 31.0 kN | C0r: 27.4 kN | Mass: 0.340 kg
7007CDT d: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 31.0 kN | C0r: 27.4 kN | Mass: 0.340 kg
7207DB d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 45.7 kN | C0r: 37.3 kN | Mass: 0.590 kg
7207DF d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 45.7 kN | C0r: 37.3 kN | Mass: 0.590 kg
7207DT d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 45.7 kN | C0r: 37.3 kN | Mass: 0.590 kg
7207BDB d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 41.6 kN | C0r: 34.1 kN | Mass: 0.590 kg
7207BDF d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 41.6 kN | C0r: 34.1 kN | Mass: 0.590 kg
7207BDT d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 41.6 kN | C0r: 34.1 kN | Mass: 0.590 kg
7207CDB d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 49.4 kN | C0r: 40.2 kN | Mass: 0.590 kg
7207CDF d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 49.4 kN | C0r: 40.2 kN | Mass: 0.590 kg
7207CDT d: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 49.4 kN | C0r: 40.2 kN | Mass: 0.590 kg
7307DB d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 57.5 kN | C0r: 44.0 kN | Mass: 0.950 kg
7307DF d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 57.5 kN | C0r: 44.0 kN | Mass: 0.950 kg
7307DT d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 57.5 kN | C0r: 44.0 kN | Mass: 0.950 kg
7307BDB d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 52.7 kN | C0r: 40.5 kN | Mass: 0.950 kg
7307BDF d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 52.7 kN | C0r: 40.5 kN | Mass: 0.950 kg
7307BDT d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 52.7 kN | C0r: 40.5 kN | Mass: 0.950 kg
7307CDB d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 61.6 kN | C0r: 47.2 kN | Mass: 0.950 kg
7307CDF d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 61.6 kN | C0r: 47.2 kN | Mass: 0.950 kg
7307CDT d: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 61.6 kN | C0r: 47.2 kN | Mass: 0.950 kg
7407DB d: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 98.2 kN | C0r: 73.9 kN | Mass: 1.90 kg
7407DF d: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 98.2 kN | C0r: 73.9 kN | Mass: 1.90 kg
7407DT d: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 98.2 kN | C0r: 73.9 kN | Mass: 1.90 kg
7407BDB d: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 91.3 kN | C0r: 68.6 kN | Mass: 1.90 kg
7407BDF d: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 91.3 kN | C0r: 68.6 kN | Mass: 1.90 kg
7407BDT d: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 91.3 kN | C0r: 68.6 kN | Mass: 1.90 kg
7908CDB d: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 25.6 kN | C0r: 24.9 kN | Mass: 0.214 kg
7908CDF d: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 25.6 kN | C0r: 24.9 kN | Mass: 0.214 kg
7908CDT d: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 25.6 kN | C0r: 24.9 kN | Mass: 0.214 kg
HAR908CDB d: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 10.3 kN | C0r: 8.15 kN | Mass: 0.230 kg
HAR908CDF d: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 10.3 kN | C0r: 8.15 kN | Mass: 0.230 kg
HAR908CDT d: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 10.3 kN | C0r: 8.15 kN | Mass: 0.230 kg
HAR008CDB d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 15.8 kN | C0r: 12.4 kN | Mass: 0.400 kg
HAR008CDF d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 15.8 kN | C0r: 12.4 kN | Mass: 0.400 kg
HAR008CDT d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 15.8 kN | C0r: 12.4 kN | Mass: 0.400 kg
7008DB d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 30.4 kN | C0r: 29.2 kN | Mass: 0.420 kg
7008DF d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 30.4 kN | C0r: 29.2 kN | Mass: 0.420 kg
7008DT d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 30.4 kN | C0r: 29.2 kN | Mass: 0.420 kg
7008BDB d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 27.4 kN | C0r: 26.4 kN | Mass: 0.420 kg
7008BDF d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 27.4 kN | C0r: 26.4 kN | Mass: 0.420 kg
7008BDT d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 27.4 kN | C0r: 26.4 kN | Mass: 0.420 kg
7008CDB d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 33.4 kN | C0r: 31.8 kN | Mass: 0.420 kg
7008CDF d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 33.4 kN | C0r: 31.8 kN | Mass: 0.420 kg
7008CDT d: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 33.4 kN | C0r: 31.8 kN | Mass: 0.420 kg
7208DB d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 54.6 kN | C0r: 46.7 kN | Mass: 0.764 kg
7208DF d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 54.6 kN | C0r: 46.7 kN | Mass: 0.764 kg
7208DT d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 54.6 kN | C0r: 46.7 kN | Mass: 0.764 kg
7208BDB d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 49.7 kN | C0r: 42.7 kN | Mass: 0.764 kg
7208BDF d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 49.7 kN | C0r: 42.7 kN | Mass: 0.764 kg
7208BDT d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 49.7 kN | C0r: 42.7 kN | Mass: 0.764 kg
7208CDB d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 59.1 kN | C0r: 50.4 kN | Mass: 0.764 kg
7208CDF d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 59.1 kN | C0r: 50.4 kN | Mass: 0.764 kg
7208CDT d: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 59.1 kN | C0r: 50.4 kN | Mass: 0.764 kg
7308DB d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 70.2 kN | C0r: 54.9 kN | Mass: 1.31 kg
7308DF d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 70.2 kN | C0r: 54.9 kN | Mass: 1.31 kg
7308DT d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 70.2 kN | C0r: 54.9 kN | Mass: 1.31 kg
7308BDB d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 64.5 kN | C0r: 50.5 kN | Mass: 1.31 kg
7308BDF d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 64.5 kN | C0r: 50.5 kN | Mass: 1.31 kg
7308BDT d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 64.5 kN | C0r: 50.5 kN | Mass: 1.31 kg
7308CDB d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 75.3 kN | C0r: 58.8 kN | Mass: 1.31 kg
7308CDF d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 75.3 kN | C0r: 58.8 kN | Mass: 1.31 kg
7308CDT d: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 75.3 kN | C0r: 58.8 kN | Mass: 1.31 kg
7408DB d: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 87.1 kN | Mass: 2.46 kg
7408DF d: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 87.1 kN | Mass: 2.46 kg
7408DT d: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 87.1 kN | Mass: 2.46 kg
7408BDB d: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 80.8 kN | Mass: 2.46 kg
7408BDF d: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 80.8 kN | Mass: 2.46 kg
7408BDT d: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 80.8 kN | Mass: 2.46 kg
7909CDB d: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 27.0 kN | C0r: 28.2 kN | Mass: 0.254 kg
7909CDF d: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 27.0 kN | C0r: 28.2 kN | Mass: 0.254 kg
7909CDT d: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 27.0 kN | C0r: 28.2 kN | Mass: 0.254 kg
HAR909CDB d: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 11.0 kN | C0r: 9.35 kN | Mass: 0.272 kg
HAR909CDF d: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 11.0 kN | C0r: 9.35 kN | Mass: 0.272 kg
HAR909CDT d: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 11.0 kN | C0r: 9.35 kN | Mass: 0.272 kg
HAR009CDB d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 17.6 kN | C0r: 14.2 kN | Mass: 0.502 kg
HAR009CDF d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 17.6 kN | C0r: 14.2 kN | Mass: 0.502 kg
HAR009CDT d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 17.6 kN | C0r: 14.2 kN | Mass: 0.502 kg
7009DB d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 36.2 kN | C0r: 35.4 kN | Mass: 0.520 kg
7009DF d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 36.2 kN | C0r: 35.4 kN | Mass: 0.520 kg
7009DT d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 36.2 kN | C0r: 35.4 kN | Mass: 0.520 kg
7009BDB d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 32.5 kN | C0r: 32.0 kN | Mass: 0.520 kg
7009BDF d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 32.5 kN | C0r: 32.0 kN | Mass: 0.520 kg
7009BDT d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 32.5 kN | C0r: 32.0 kN | Mass: 0.520 kg
7009CDB d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 39.6 kN | C0r: 38.5 kN | Mass: 0.520 kg
7009CDF d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 39.6 kN | C0r: 38.5 kN | Mass: 0.520 kg
7009CDT d: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 39.6 kN | C0r: 38.5 kN | Mass: 0.520 kg
7209DB d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 61.3 kN | C0r: 53.2 kN | Mass: 0.860 kg
7209DF d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 61.3 kN | C0r: 53.2 kN | Mass: 0.860 kg
7209DT d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 61.3 kN | C0r: 53.2 kN | Mass: 0.860 kg
7209BDB d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 55.8 kN | C0r: 48.6 kN | Mass: 0.860 kg
7209BDF d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 55.8 kN | C0r: 48.6 kN | Mass: 0.860 kg
7209BDT d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 55.8 kN | C0r: 48.6 kN | Mass: 0.860 kg
7209CDB d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 66.3 kN | C0r: 57.4 kN | Mass: 0.860 kg
7209CDF d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 66.3 kN | C0r: 57.4 kN | Mass: 0.860 kg
7209CDT d: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 66.3 kN | C0r: 57.4 kN | Mass: 0.860 kg
7309DB d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 89.6 kN | C0r: 74.2 kN | Mass: 1.75 kg
7309DF d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 89.6 kN | C0r: 74.2 kN | Mass: 1.75 kg
7309DT d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 89.6 kN | C0r: 74.2 kN | Mass: 1.75 kg
7309BDB d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 82.1 kN | C0r: 68.2 kN | Mass: 1.75 kg
7309BDF d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 82.1 kN | C0r: 68.2 kN | Mass: 1.75 kg
7309BDT d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 82.1 kN | C0r: 68.2 kN | Mass: 1.75 kg
7309CDB d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 96.1 kN | C0r: 79.5 kN | Mass: 1.75 kg
7309CDF d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 96.1 kN | C0r: 79.5 kN | Mass: 1.75 kg
7309CDT d: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 96.1 kN | C0r: 79.5 kN | Mass: 1.75 kg
7409DB d: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 138 kN | C0r: 108 kN | Mass: 3.10 kg
7409DF d: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 138 kN | C0r: 108 kN | Mass: 3.10 kg
7409DT d: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 138 kN | C0r: 108 kN | Mass: 3.10 kg
7409BDB d: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 128 kN | C0r: 100 kN | Mass: 3.10 kg
7409BDF d: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 128 kN | C0r: 100 kN | Mass: 3.10 kg
7409BDT d: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 128 kN | C0r: 100 kN | Mass: 3.10 kg
7910CDB d: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 28.3 kN | C0r: 31.4 kN | Mass: 0.256 kg
7910CDF d: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 28.3 kN | C0r: 31.4 kN | Mass: 0.256 kg
7910CDT d: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 28.3 kN | C0r: 31.4 kN | Mass: 0.256 kg
HAR910CDB d: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 14.8 kN | C0r: 12.6 kN | Mass: 0.262 kg
HAR910CDF d: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 14.8 kN | C0r: 12.6 kN | Mass: 0.262 kg
HAR910CDT d: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 14.8 kN | C0r: 12.6 kN | Mass: 0.262 kg
HAR010CDB d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 18.5 kN | C0r: 15.7 kN | Mass: 0.546 kg
HAR010CDF d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 18.5 kN | C0r: 15.7 kN | Mass: 0.546 kg
HAR010CDT d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 18.5 kN | C0r: 15.7 kN | Mass: 0.546 kg
7010DB d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 38.4 kN | C0r: 40.2 kN | Mass: 0.580 kg
7010DF d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 38.4 kN | C0r: 40.2 kN | Mass: 0.580 kg
7010DT d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 38.4 kN | C0r: 40.2 kN | Mass: 0.580 kg
7010BDB d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 34.5 kN | C0r: 36.2 kN | Mass: 0.580 kg
7010BDF d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 34.5 kN | C0r: 36.2 kN | Mass: 0.580 kg
7010BDT d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 34.5 kN | C0r: 36.2 kN | Mass: 0.580 kg
7010CDB d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 42.2 kN | C0r: 43.9 kN | Mass: 0.580 kg
7010CDF d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 42.2 kN | C0r: 43.9 kN | Mass: 0.580 kg
7010CDT d: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 42.2 kN | C0r: 43.9 kN | Mass: 0.580 kg
7210DB d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 64.0 kN | C0r: 58.7 kN | Mass: 0.970 kg
7210DF d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 64.0 kN | C0r: 58.7 kN | Mass: 0.970 kg
7210DT d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 64.0 kN | C0r: 58.7 kN | Mass: 0.970 kg
7210BDB d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 58.0 kN | C0r: 53.5 kN | Mass: 0.970 kg
7210BDF d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 58.0 kN | C0r: 53.5 kN | Mass: 0.970 kg
7210BDT d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 58.0 kN | C0r: 53.5 kN | Mass: 0.970 kg
7210CDB d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 69.6 kN | C0r: 63.6 kN | Mass: 0.970 kg
7210CDF d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 69.6 kN | C0r: 63.6 kN | Mass: 0.970 kg
7210CDT d: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 69.6 kN | C0r: 63.6 kN | Mass: 0.970 kg
7310DB d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 96.3 kN | Mass: 2.28 kg
7310DF d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 96.3 kN | Mass: 2.28 kg
7310DT d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 96.3 kN | Mass: 2.28 kg
7310BDB d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 88.6 kN | Mass: 2.28 kg
7310BDF d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 88.6 kN | Mass: 2.28 kg
7310BDT d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 88.6 kN | Mass: 2.28 kg
7310CDB d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 122 kN | C0r: 103 kN | Mass: 2.28 kg
7310CDF d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 122 kN | C0r: 103 kN | Mass: 2.28 kg
7310CDT d: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 122 kN | C0r: 103 kN | Mass: 2.28 kg
7410DB d: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 158 kN | C0r: 131 kN | Mass: 3.84 kg
7410DF d: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 158 kN | C0r: 131 kN | Mass: 3.84 kg
7410DT d: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 158 kN | C0r: 131 kN | Mass: 3.84 kg
7410BDB d: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 147 kN | C0r: 121 kN | Mass: 3.84 kg
7410BDF d: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 147 kN | C0r: 121 kN | Mass: 3.84 kg
7410BDT d: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 147 kN | C0r: 121 kN | Mass: 3.84 kg
7911CDB d: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 32.0 kN | C0r: 37.0 kN | Mass: 0.356 kg
7911CDF d: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 32.0 kN | C0r: 37.0 kN | Mass: 0.356 kg
7911CDT d: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 32.0 kN | C0r: 37.0 kN | Mass: 0.356 kg
HAR911CDB d: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 16.4 kN | C0r: 15.3 kN | Mass: 0.378 kg
HAR911CDF d: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 16.4 kN | C0r: 15.3 kN | Mass: 0.378 kg
HAR911CDT d: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 16.4 kN | C0r: 15.3 kN | Mass: 0.378 kg
HAR011CDB d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 22.9 kN | C0r: 19.8 kN | Mass: 0.806 kg
HAR011CDF d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 22.9 kN | C0r: 19.8 kN | Mass: 0.806 kg
HAR011CDT d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 22.9 kN | C0r: 19.8 kN | Mass: 0.806 kg
7011DB d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 50.5 kN | C0r: 52.5 kN | Mass: 0.840 kg
7011DF d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 50.5 kN | C0r: 52.5 kN | Mass: 0.840 kg
7011DT d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 50.5 kN | C0r: 52.5 kN | Mass: 0.840 kg
7011BDB d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 45.4 kN | C0r: 47.5 kN | Mass: 0.840 kg
7011BDF d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 45.4 kN | C0r: 47.5 kN | Mass: 0.840 kg
7011BDT d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 45.4 kN | C0r: 47.5 kN | Mass: 0.840 kg
7011CDB d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 55.4 kN | C0r: 57.3 kN | Mass: 0.840 kg
7011CDF d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 55.4 kN | C0r: 57.3 kN | Mass: 0.840 kg
7011CDT d: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 55.4 kN | C0r: 57.3 kN | Mass: 0.840 kg
7211DB d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 79.1 kN | C0r: 74.2 kN | Mass: 1.27 kg
7211DF d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 79.1 kN | C0r: 74.2 kN | Mass: 1.27 kg
7211DT d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 79.1 kN | C0r: 74.2 kN | Mass: 1.27 kg
7211BDB d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 71.6 kN | C0r: 67.6 kN | Mass: 1.27 kg
7211BDF d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 71.6 kN | C0r: 67.6 kN | Mass: 1.27 kg
7211BDT d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 71.6 kN | C0r: 67.6 kN | Mass: 1.27 kg
7211CDB d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 85.9 kN | C0r: 80.4 kN | Mass: 1.27 kg
7211CDF d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 85.9 kN | C0r: 80.4 kN | Mass: 1.27 kg
7211CDT d: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 85.9 kN | C0r: 80.4 kN | Mass: 1.27 kg
7311DB d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 132 kN | C0r: 113 kN | Mass: 2.90 kg
7311DF d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 132 kN | C0r: 113 kN | Mass: 2.90 kg
7311DT d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 132 kN | C0r: 113 kN | Mass: 2.90 kg
7311BDB d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 121 kN | C0r: 104 kN | Mass: 2.90 kg
7311BDF d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 121 kN | C0r: 104 kN | Mass: 2.90 kg
7311BDT d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 121 kN | C0r: 104 kN | Mass: 2.90 kg
7311CDB d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 141 kN | C0r: 121 kN | Mass: 2.90 kg
7311CDF d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 141 kN | C0r: 121 kN | Mass: 2.90 kg
7311CDT d: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 141 kN | C0r: 121 kN | Mass: 2.90 kg
7411DB d: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 192 kN | C0r: 165 kN | Mass: 4.72 kg
7411DF d: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 192 kN | C0r: 165 kN | Mass: 4.72 kg
7411DT d: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 192 kN | C0r: 165 kN | Mass: 4.72 kg
7411BDB d: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 179 kN | C0r: 153 kN | Mass: 4.72 kg
7411BDF d: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 179 kN | C0r: 153 kN | Mass: 4.72 kg
7411BDT d: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 179 kN | C0r: 153 kN | Mass: 4.72 kg
7912CDB d: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 37.8 kN | C0r: 43.6 kN | Mass: 0.374 kg
7912CDF d: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 37.8 kN | C0r: 43.6 kN | Mass: 0.374 kg
7912CDT d: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 37.8 kN | C0r: 43.6 kN | Mass: 0.374 kg
HAR912CDB d: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 16.2 kN | C0r: 15.5 kN | Mass: 0.404 kg
HAR912CDF d: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 16.2 kN | C0r: 15.5 kN | Mass: 0.404 kg
HAR912CDT d: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 16.2 kN | C0r: 15.5 kN | Mass: 0.404 kg
HAR012CDB d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 23.9 kN | C0r: 21.7 kN | Mass: 0.866 kg
HAR012CDF d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 23.9 kN | C0r: 21.7 kN | Mass: 0.866 kg
HAR012CDT d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 23.9 kN | C0r: 21.7 kN | Mass: 0.866 kg
7012DB d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 51.8 kN | C0r: 56.1 kN | Mass: 0.900 kg
7012DF d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 51.8 kN | C0r: 56.1 kN | Mass: 0.900 kg
7012DT d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 51.8 kN | C0r: 56.1 kN | Mass: 0.900 kg
7012BDB d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 46.4 kN | C0r: 50.7 kN | Mass: 0.900 kg
7012BDF d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 46.4 kN | C0r: 50.7 kN | Mass: 0.900 kg
7012BDT d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 46.4 kN | C0r: 50.7 kN | Mass: 0.900 kg
7012CDB d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 56.9 kN | C0r: 61.3 kN | Mass: 0.900 kg
7012CDF d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 56.9 kN | C0r: 61.3 kN | Mass: 0.900 kg
7012CDT d: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 56.9 kN | C0r: 61.3 kN | Mass: 0.900 kg
7212DB d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 95.7 kN | C0r: 91.5 kN | Mass: 1.64 kg
7212DF d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 95.7 kN | C0r: 91.5 kN | Mass: 1.64 kg
7212DT d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 95.7 kN | C0r: 91.5 kN | Mass: 1.64 kg
7212BDB d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 86.8 kN | C0r: 83.3 kN | Mass: 1.64 kg
7212BDF d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 86.8 kN | C0r: 83.3 kN | Mass: 1.64 kg
7212BDT d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 86.8 kN | C0r: 83.3 kN | Mass: 1.64 kg
7212CDB d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 104 kN | C0r: 99.0 kN | Mass: 1.64 kg
7212CDF d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 104 kN | C0r: 99.0 kN | Mass: 1.64 kg
7212CDT d: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 104 kN | C0r: 99.0 kN | Mass: 1.64 kg
7312DB d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 150 kN | C0r: 131 kN | Mass: 3.62 kg
7312DF d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 150 kN | C0r: 131 kN | Mass: 3.62 kg
7312DT d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 150 kN | C0r: 131 kN | Mass: 3.62 kg
7312BDB d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 138 kN | C0r: 121 kN | Mass: 3.62 kg
7312BDF d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 138 kN | C0r: 121 kN | Mass: 3.62 kg
7312BDT d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 138 kN | C0r: 121 kN | Mass: 3.62 kg
7312CDB d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 161 kN | C0r: 141 kN | Mass: 3.62 kg
7312CDF d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 161 kN | C0r: 141 kN | Mass: 3.62 kg
7312CDT d: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 161 kN | C0r: 141 kN | Mass: 3.62 kg
7412DB d: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 209 kN | C0r: 187 kN | Mass: 5.70 kg
7412DF d: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 209 kN | C0r: 187 kN | Mass: 5.70 kg
7412DT d: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 209 kN | C0r: 187 kN | Mass: 5.70 kg
7412BDB d: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 194 kN | C0r: 173 kN | Mass: 5.70 kg
7412BDF d: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 194 kN | C0r: 173 kN | Mass: 5.70 kg
7412BDT d: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 194 kN | C0r: 173 kN | Mass: 5.70 kg
7913CDB d: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 33.7 kN | C0r: 42.3 kN | Mass: 0.410 kg
7913CDF d: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 33.7 kN | C0r: 42.3 kN | Mass: 0.410 kg
7913CDT d: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 33.7 kN | C0r: 42.3 kN | Mass: 0.410 kg
HAR913CDB d: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 19.1 kN | C0r: 18.9 kN | Mass: 0.424 kg
HAR913CDF d: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 19.1 kN | C0r: 18.9 kN | Mass: 0.424 kg
HAR913CDT d: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 19.1 kN | C0r: 18.9 kN | Mass: 0.424 kg
HAR013CDB d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 24.8 kN | C0r: 23.5 kN | Mass: 0.924 kg
HAR013CDF d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 24.8 kN | C0r: 23.5 kN | Mass: 0.924 kg
HAR013CDT d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 24.8 kN | C0r: 23.5 kN | Mass: 0.924 kg
7013DB d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 54.7 kN | C0r: 62.8 kN | Mass: 0.940 kg
7013DF d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 54.7 kN | C0r: 62.8 kN | Mass: 0.940 kg
7013DT d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 54.7 kN | C0r: 62.8 kN | Mass: 0.940 kg
7013BDB d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 48.9 kN | C0r: 56.6 kN | Mass: 0.940 kg
7013BDF d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 48.9 kN | C0r: 56.6 kN | Mass: 0.940 kg
7013BDT d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 48.9 kN | C0r: 56.6 kN | Mass: 0.940 kg
7013CDB d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 60.2 kN | C0r: 68.7 kN | Mass: 0.940 kg
7013CDF d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 60.2 kN | C0r: 68.7 kN | Mass: 0.940 kg
7013CDT d: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 60.2 kN | C0r: 68.7 kN | Mass: 0.940 kg
7213DB d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 109 kN | C0r: 108 kN | Mass: 2.04 kg
7213DF d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 109 kN | C0r: 108 kN | Mass: 2.04 kg
7213DT d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 109 kN | C0r: 108 kN | Mass: 2.04 kg
7213BDB d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 99.0 kN | C0r: 98.7 kN | Mass: 2.04 kg
7213BDF d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 99.0 kN | C0r: 98.7 kN | Mass: 2.04 kg
7213BDT d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 99.0 kN | C0r: 98.7 kN | Mass: 2.04 kg
7213CDB d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 119 kN | C0r: 117 kN | Mass: 2.04 kg
7213CDF d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 119 kN | C0r: 117 kN | Mass: 2.04 kg
7213CDT d: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 119 kN | C0r: 117 kN | Mass: 2.04 kg
7313DB d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 170 kN | C0r: 151 kN | Mass: 4.44 kg
7313DF d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 170 kN | C0r: 151 kN | Mass: 4.44 kg
7313DT d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 170 kN | C0r: 151 kN | Mass: 4.44 kg
7313BDB d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 156 kN | C0r: 139 kN | Mass: 4.44 kg
7313BDF d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 156 kN | C0r: 139 kN | Mass: 4.44 kg
7313BDT d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 156 kN | C0r: 139 kN | Mass: 4.44 kg
7313CDB d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 182 kN | C0r: 161 kN | Mass: 4.44 kg
7313CDF d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 182 kN | C0r: 161 kN | Mass: 4.44 kg
7313CDT d: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 182 kN | C0r: 161 kN | Mass: 4.44 kg
7413DB d: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 226 kN | C0r: 209 kN | Mass: 6.82 kg
7413DF d: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 226 kN | C0r: 209 kN | Mass: 6.82 kg
7413DT d: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 226 kN | C0r: 209 kN | Mass: 6.82 kg
7413BDB d: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 209 kN | C0r: 194 kN | Mass: 6.82 kg
7413BDF d: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 209 kN | C0r: 194 kN | Mass: 6.82 kg
7413BDT d: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 209 kN | C0r: 194 kN | Mass: 6.82 kg
7914CDB d: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 47.0 kN | C0r: 58.0 kN | Mass: 0.664 kg
7914CDF d: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 47.0 kN | C0r: 58.0 kN | Mass: 0.664 kg
7914CDT d: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 47.0 kN | C0r: 58.0 kN | Mass: 0.664 kg
HAR914CDB d: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 20.9 kN | C0r: 20.9 kN | Mass: 0.712 kg
HAR914CDF d: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 20.9 kN | C0r: 20.9 kN | Mass: 0.712 kg
HAR914CDT d: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 20.9 kN | C0r: 20.9 kN | Mass: 0.712 kg
HAR014CDB d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 33.7 kN | C0r: 30.9 kN | Mass: 1.26 kg
HAR014CDF d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 33.7 kN | C0r: 30.9 kN | Mass: 1.26 kg
HAR014CDT d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 33.7 kN | C0r: 30.9 kN | Mass: 1.26 kg
7014DB d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 69.3 kN | C0r: 78.7 kN | Mass: 1.32 kg
7014DF d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 69.3 kN | C0r: 78.7 kN | Mass: 1.32 kg
7014DT d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 69.3 kN | C0r: 78.7 kN | Mass: 1.32 kg
7014BDB d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 62.1 kN | C0r: 71.1 kN | Mass: 1.32 kg
7014BDF d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 62.1 kN | C0r: 71.1 kN | Mass: 1.32 kg
7014BDT d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 62.1 kN | C0r: 71.1 kN | Mass: 1.32 kg
7014CDB d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 76.2 kN | C0r: 86.0 kN | Mass: 1.32 kg
7014CDF d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 76.2 kN | C0r: 86.0 kN | Mass: 1.32 kg
7014CDT d: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 76.2 kN | C0r: 86.0 kN | Mass: 1.32 kg
7214DB d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 113 kN | C0r: 111 kN | Mass: 2.24 kg
7214DF d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 113 kN | C0r: 111 kN | Mass: 2.24 kg
7214DT d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 113 kN | C0r: 111 kN | Mass: 2.24 kg
7214BDB d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 103 kN | C0r: 101 kN | Mass: 2.24 kg
7214BDF d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 103 kN | C0r: 101 kN | Mass: 2.24 kg
7214BDT d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 103 kN | C0r: 101 kN | Mass: 2.24 kg
7214CDB d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 123 kN | C0r: 120 kN | Mass: 2.24 kg
7214CDF d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 123 kN | C0r: 120 kN | Mass: 2.24 kg
7214CDT d: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 123 kN | C0r: 120 kN | Mass: 2.24 kg
7314DB d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 191 kN | C0r: 172 kN | Mass: 5.40 kg
7314DF d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 191 kN | C0r: 172 kN | Mass: 5.40 kg
7314DT d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 191 kN | C0r: 172 kN | Mass: 5.40 kg
7314BDB d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 175 kN | C0r: 158 kN | Mass: 5.40 kg
7314BDF d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 175 kN | C0r: 158 kN | Mass: 5.40 kg
7314BDT d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 175 kN | C0r: 158 kN | Mass: 5.40 kg
7314CDB d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 205 kN | C0r: 184 kN | Mass: 5.40 kg
7314CDF d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 205 kN | C0r: 184 kN | Mass: 5.40 kg
7314CDT d: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 205 kN | C0r: 184 kN | Mass: 5.40 kg
7414DB d: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 242 kN | C0r: 230 kN | Mass: 9.98 kg
7414DF d: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 242 kN | C0r: 230 kN | Mass: 9.98 kg
7414DT d: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 242 kN | C0r: 230 kN | Mass: 9.98 kg
7414BDB d: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 241 kN | C0r: 237 kN | Mass: 9.98 kg
7414BDF d: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 241 kN | C0r: 237 kN | Mass: 9.98 kg
7414BDT d: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 241 kN | C0r: 237 kN | Mass: 9.98 kg
7915CDB d: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 47.7 kN | C0r: 60.9 kN | Mass: 0.700 kg
7915CDF d: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 47.7 kN | C0r: 60.9 kN | Mass: 0.700 kg
7915CDT d: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 47.7 kN | C0r: 60.9 kN | Mass: 0.700 kg
HAR915CDB d: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 21.5 kN | C0r: 22.4 kN | Mass: 0.740 kg
HAR915CDF d: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 21.5 kN | C0r: 22.4 kN | Mass: 0.740 kg
HAR915CDT d: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 21.5 kN | C0r: 22.4 kN | Mass: 0.740 kg
HAR015CDB d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 34.3 kN | C0r: 32.4 kN | Mass: 1.33 kg
HAR015CDF d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 34.3 kN | C0r: 32.4 kN | Mass: 1.33 kg
HAR015CDT d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 34.3 kN | C0r: 32.4 kN | Mass: 1.33 kg
7015DB d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 70.9 kN | C0r: 83.4 kN | Mass: 1.38 kg
7015DF d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 70.9 kN | C0r: 83.4 kN | Mass: 1.38 kg
7015DT d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 70.9 kN | C0r: 83.4 kN | Mass: 1.38 kg
7015BDB d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 63.5 kN | C0r: 75.2 kN | Mass: 1.38 kg
7015BDF d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 63.5 kN | C0r: 75.2 kN | Mass: 1.38 kg
7015BDT d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 63.5 kN | C0r: 75.2 kN | Mass: 1.38 kg
7015CDB d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 78.0 kN | C0r: 91.3 kN | Mass: 1.38 kg
7015CDF d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 78.0 kN | C0r: 91.3 kN | Mass: 1.38 kg
7015CDT d: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 78.0 kN | C0r: 91.3 kN | Mass: 1.38 kg
7215DB d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 129 kN | C0r: 130 kN | Mass: 2.46 kg
7215DF d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 129 kN | C0r: 130 kN | Mass: 2.46 kg
7215DT d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 129 kN | C0r: 130 kN | Mass: 2.46 kg
7215BDB d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 116 kN | C0r: 119 kN | Mass: 2.46 kg
7215BDF d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 116 kN | C0r: 119 kN | Mass: 2.46 kg
7215BDT d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 116 kN | C0r: 119 kN | Mass: 2.46 kg
7215CDB d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 140 kN | C0r: 141 kN | Mass: 2.46 kg
7215CDF d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 140 kN | C0r: 141 kN | Mass: 2.46 kg
7215CDT d: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 140 kN | C0r: 141 kN | Mass: 2.46 kg
7315DB d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 208 kN | C0r: 194 kN | Mass: 6.30 kg
7315DF d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 208 kN | C0r: 194 kN | Mass: 6.30 kg
7315DT d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 208 kN | C0r: 194 kN | Mass: 6.30 kg
7315BDB d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 191 kN | C0r: 178 kN | Mass: 6.30 kg
7315BDF d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 191 kN | C0r: 178 kN | Mass: 6.30 kg
7315BDT d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 191 kN | C0r: 178 kN | Mass: 6.30 kg
7315CDB d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 223 kN | C0r: 208 kN | Mass: 6.30 kg
7315CDF d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 223 kN | C0r: 208 kN | Mass: 6.30 kg
7315CDT d: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 223 kN | C0r: 208 kN | Mass: 6.30 kg
7415DB d: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 278 kN | C0r: 282 kN | Mass: 11.8 kg
7415DF d: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 278 kN | C0r: 282 kN | Mass: 11.8 kg
7415DT d: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 278 kN | C0r: 282 kN | Mass: 11.8 kg
7415BDB d: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 257 kN | C0r: 261 kN | Mass: 11.8 kg
7415BDF d: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 257 kN | C0r: 261 kN | Mass: 11.8 kg
7415BDT d: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 257 kN | C0r: 261 kN | Mass: 11.8 kg
7916CDB d: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 48.4 kN | C0r: 63.2 kN | Mass: 0.736 kg
7916CDF d: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 48.4 kN | C0r: 63.2 kN | Mass: 0.736 kg
7916CDT d: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 48.4 kN | C0r: 63.2 kN | Mass: 0.736 kg
HAR916CDB d: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 22.2 kN | C0r: 23.9 kN | Mass: 0.796 kg
HAR916CDF d: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 22.2 kN | C0r: 23.9 kN | Mass: 0.796 kg
HAR916CDT d: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 22.2 kN | C0r: 23.9 kN | Mass: 0.796 kg
HAR016CDB d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 40.1 kN | C0r: 38.5 kN | Mass: 1.81 kg
HAR016CDF d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 40.1 kN | C0r: 38.5 kN | Mass: 1.81 kg
HAR016CDT d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 40.1 kN | C0r: 38.5 kN | Mass: 1.81 kg
7016DB d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 86.7 kN | C0r: 101 kN | Mass: 1.86 kg
7016DF d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 86.7 kN | C0r: 101 kN | Mass: 1.86 kg
7016DT d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 86.7 kN | C0r: 101 kN | Mass: 1.86 kg
7016BDB d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 77.7 kN | C0r: 91.3 kN | Mass: 1.86 kg
7016BDF d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 77.7 kN | C0r: 91.3 kN | Mass: 1.86 kg
7016BDT d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 77.7 kN | C0r: 91.3 kN | Mass: 1.86 kg
7016CDB d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 95.3 kN | C0r: 111 kN | Mass: 1.86 kg
7016CDF d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 95.3 kN | C0r: 111 kN | Mass: 1.86 kg
7016CDT d: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 95.3 kN | C0r: 111 kN | Mass: 1.86 kg
7216DB d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 139 kN | C0r: 143 kN | Mass: 3.00 kg
7216DF d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 139 kN | C0r: 143 kN | Mass: 3.00 kg
7216DT d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 139 kN | C0r: 143 kN | Mass: 3.00 kg
7216BDB d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 125 kN | C0r: 130 kN | Mass: 3.00 kg
7216BDF d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 125 kN | C0r: 130 kN | Mass: 3.00 kg
7216BDT d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 125 kN | C0r: 130 kN | Mass: 3.00 kg
7216CDB d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 151 kN | C0r: 155 kN | Mass: 3.00 kg
7216CDF d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 151 kN | C0r: 155 kN | Mass: 3.00 kg
7216CDT d: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 151 kN | C0r: 155 kN | Mass: 3.00 kg
7316DB d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 226 kN | C0r: 218 kN | Mass: 7.70 kg
7316DF d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 226 kN | C0r: 218 kN | Mass: 7.70 kg
7316DT d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 226 kN | C0r: 218 kN | Mass: 7.70 kg
7316BDB d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 207 kN | C0r: 200 kN | Mass: 7.70 kg
7316BDF d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 207 kN | C0r: 200 kN | Mass: 7.70 kg
7316BDT d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 207 kN | C0r: 200 kN | Mass: 7.70 kg
7316CDB d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 242 kN | C0r: 233 kN | Mass: 7.70 kg
7316CDF d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 242 kN | C0r: 233 kN | Mass: 7.70 kg
7316CDT d: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 242 kN | C0r: 233 kN | Mass: 7.70 kg
7416DB d: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 313 kN | C0r: 332 kN | Mass: 12.0 kg
7416DF d: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 313 kN | C0r: 332 kN | Mass: 12.0 kg
7416DT d: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 313 kN | C0r: 332 kN | Mass: 12.0 kg
7416BDB d: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 290 kN | C0r: 307 kN | Mass: 12.0 kg
7416BDF d: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 290 kN | C0r: 307 kN | Mass: 12.0 kg
7416BDT d: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 290 kN | C0r: 307 kN | Mass: 12.0 kg
7917CDB d: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 63.2 kN | C0r: 81.3 kN | Mass: 1.05 kg
7917CDF d: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 63.2 kN | C0r: 81.3 kN | Mass: 1.05 kg
7917CDT d: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 63.2 kN | C0r: 81.3 kN | Mass: 1.05 kg
HAR917CDB d: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 26.6 kN | C0r: 28.4 kN | Mass: 1.14 kg
HAR917CDF d: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 26.6 kN | C0r: 28.4 kN | Mass: 1.14 kg
HAR917CDT d: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 26.6 kN | C0r: 28.4 kN | Mass: 1.14 kg
HAR017CDB d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 40.8 kN | C0r: 40.2 kN | Mass: 1.89 kg
HAR017CDF d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 40.8 kN | C0r: 40.2 kN | Mass: 1.89 kg
HAR017CDT d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 40.8 kN | C0r: 40.2 kN | Mass: 1.89 kg
7017DB d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 88.6 kN | C0r: 107 kN | Mass: 1.94 kg
7017DF d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 88.6 kN | C0r: 107 kN | Mass: 1.94 kg
7017DT d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 88.6 kN | C0r: 107 kN | Mass: 1.94 kg
7017BDB d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 79.3 kN | C0r: 96.7 kN | Mass: 1.94 kg
7017BDF d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 79.3 kN | C0r: 96.7 kN | Mass: 1.94 kg
7017BDT d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 79.3 kN | C0r: 96.7 kN | Mass: 1.94 kg
7017CDB d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 97.6 kN | C0r: 117 kN | Mass: 1.94 kg
7017CDF d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 97.6 kN | C0r: 117 kN | Mass: 1.94 kg
7017CDT d: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 97.6 kN | C0r: 117 kN | Mass: 1.94 kg
7217DB d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 160 kN | C0r: 167 kN | Mass: 3.74 kg
7217DF d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 160 kN | C0r: 167 kN | Mass: 3.74 kg
7217DT d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 160 kN | C0r: 167 kN | Mass: 3.74 kg
7217BDB d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 145 kN | C0r: 152 kN | Mass: 3.74 kg
7217BDF d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 145 kN | C0r: 152 kN | Mass: 3.74 kg
7217BDT d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 145 kN | C0r: 152 kN | Mass: 3.74 kg
7217CDB d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 174 kN | C0r: 181 kN | Mass: 3.74 kg
7217CDF d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 174 kN | C0r: 181 kN | Mass: 3.74 kg
7217CDT d: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 174 kN | C0r: 181 kN | Mass: 3.74 kg
7317DB d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 243 kN | C0r: 243 kN | Mass: 9.06 kg
7317DF d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 243 kN | C0r: 243 kN | Mass: 9.06 kg
7317DT d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 243 kN | C0r: 243 kN | Mass: 9.06 kg
7317BDB d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 223 kN | C0r: 223 kN | Mass: 9.06 kg
7317BDF d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 223 kN | C0r: 223 kN | Mass: 9.06 kg
7317BDT d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 223 kN | C0r: 223 kN | Mass: 9.06 kg
7317CDB d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 261 kN | C0r: 261 kN | Mass: 9.06 kg
7317CDF d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 261 kN | C0r: 261 kN | Mass: 9.06 kg
7317CDT d: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 261 kN | C0r: 261 kN | Mass: 9.06 kg
7417DB d: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 331 kN | C0r: 360 kN | Mass: 17.1 kg
7417DF d: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 331 kN | C0r: 360 kN | Mass: 17.1 kg
7417DT d: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 331 kN | C0r: 360 kN | Mass: 17.1 kg
7417BDB d: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 307 kN | C0r: 334 kN | Mass: 17.1 kg
7417BDF d: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 307 kN | C0r: 334 kN | Mass: 17.1 kg
7417BDT d: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 307 kN | C0r: 334 kN | Mass: 17.1 kg
7918CDB d: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 64.3 kN | C0r: 85.2 kN | Mass: 1.10 kg
7918CDF d: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 64.3 kN | C0r: 85.2 kN | Mass: 1.10 kg
7918CDT d: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 64.3 kN | C0r: 85.2 kN | Mass: 1.10 kg
HAR918CDB d: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 27.3 kN | C0r: 30.2 kN | Mass: 1.20 kg
HAR918CDF d: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 27.3 kN | C0r: 30.2 kN | Mass: 1.20 kg
HAR918CDT d: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 27.3 kN | C0r: 30.2 kN | Mass: 1.20 kg
HAR018CDB d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 53.3 kN | C0r: 52.1 kN | Mass: 2.43 kg
HAR018CDF d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 53.3 kN | C0r: 52.1 kN | Mass: 2.43 kg
HAR018CDT d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 53.3 kN | C0r: 52.1 kN | Mass: 2.43 kg
7018DB d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 106 kN | C0r: 127 kN | Mass: 2.52 kg
7018DF d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 106 kN | C0r: 127 kN | Mass: 2.52 kg
7018DT d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 106 kN | C0r: 127 kN | Mass: 2.52 kg
7018BDB d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 94.9 kN | C0r: 114 kN | Mass: 2.52 kg
7018BDF d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 94.9 kN | C0r: 114 kN | Mass: 2.52 kg
7018BDT d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 94.9 kN | C0r: 114 kN | Mass: 2.52 kg
7018CDB d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 116 kN | C0r: 138 kN | Mass: 2.52 kg
7018CDF d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 116 kN | C0r: 138 kN | Mass: 2.52 kg
7018CDT d: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 116 kN | C0r: 138 kN | Mass: 2.52 kg
7218DB d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 183 kN | C0r: 193 kN | Mass: 4.60 kg
7218DF d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 183 kN | C0r: 193 kN | Mass: 4.60 kg
7218DT d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 183 kN | C0r: 193 kN | Mass: 4.60 kg
7218BDB d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 166 kN | C0r: 176 kN | Mass: 4.60 kg
7218BDF d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 166 kN | C0r: 176 kN | Mass: 4.60 kg
7218BDT d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 166 kN | C0r: 176 kN | Mass: 4.60 kg
7218CDB d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 199 kN | C0r: 209 kN | Mass: 4.60 kg
7218CDF d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 199 kN | C0r: 209 kN | Mass: 4.60 kg
7218CDT d: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 199 kN | C0r: 209 kN | Mass: 4.60 kg
7318DB d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 261 kN | C0r: 270 kN | Mass: 10.6 kg
7318DF d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 261 kN | C0r: 270 kN | Mass: 10.6 kg
7318DT d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 261 kN | C0r: 270 kN | Mass: 10.6 kg
7318BDB d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 240 kN | C0r: 248 kN | Mass: 10.6 kg
7318BDF d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 240 kN | C0r: 248 kN | Mass: 10.6 kg
7318BDT d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 240 kN | C0r: 248 kN | Mass: 10.6 kg
7318CDB d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 281 kN | C0r: 289 kN | Mass: 10.6 kg
7318CDF d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 281 kN | C0r: 289 kN | Mass: 10.6 kg
7318CDT d: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 281 kN | C0r: 289 kN | Mass: 10.6 kg
7418DB d: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 351 kN | C0r: 393 kN | Mass: 22.8 kg
7418DF d: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 351 kN | C0r: 393 kN | Mass: 22.8 kg
7418DT d: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 351 kN | C0r: 393 kN | Mass: 22.8 kg
7418BDB d: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 325 kN | C0r: 364 kN | Mass: 22.8 kg
7418BDF d: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 325 kN | C0r: 364 kN | Mass: 22.8 kg
7418BDT d: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 325 kN | C0r: 364 kN | Mass: 22.8 kg
7919CDB d: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 65.3 kN | C0r: 88.3 kN | Mass: 1.15 kg
7919CDF d: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 65.3 kN | C0r: 88.3 kN | Mass: 1.15 kg
7919CDT d: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 65.3 kN | C0r: 88.3 kN | Mass: 1.15 kg
HAR919CDB d: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 28.1 kN | C0r: 32.1 kN | Mass: 1.25 kg
HAR919CDF d: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 28.1 kN | C0r: 32.1 kN | Mass: 1.25 kg
HAR919CDT d: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 28.1 kN | C0r: 32.1 kN | Mass: 1.25 kg
HAR019CDB d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 54.3 kN | C0r: 54.4 kN | Mass: 2.56 kg
HAR019CDF d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 54.3 kN | C0r: 54.4 kN | Mass: 2.56 kg
HAR019CDT d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 54.3 kN | C0r: 54.4 kN | Mass: 2.56 kg
7019DB d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 108 kN | C0r: 134 kN | Mass: 2.64 kg
7019DF d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 108 kN | C0r: 134 kN | Mass: 2.64 kg
7019DT d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 108 kN | C0r: 134 kN | Mass: 2.64 kg
7019BDB d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 96.8 kN | C0r: 121 kN | Mass: 2.64 kg
7019BDF d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 96.8 kN | C0r: 121 kN | Mass: 2.64 kg
7019BDT d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 96.8 kN | C0r: 121 kN | Mass: 2.64 kg
7019CDB d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 119 kN | C0r: 147 kN | Mass: 2.64 kg
7019CDF d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 119 kN | C0r: 147 kN | Mass: 2.64 kg
7019CDT d: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 119 kN | C0r: 147 kN | Mass: 2.64 kg
7219DB d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 198 kN | C0r: 207 kN | Mass: 5.56 kg
7219DF d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 198 kN | C0r: 207 kN | Mass: 5.56 kg
7219DT d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 198 kN | C0r: 207 kN | Mass: 5.56 kg
7219BDB d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 180 kN | C0r: 188 kN | Mass: 5.56 kg
7219BDF d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 180 kN | C0r: 188 kN | Mass: 5.56 kg
7219BDT d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 180 kN | C0r: 188 kN | Mass: 5.56 kg
7219CDB d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 216 kN | C0r: 224 kN | Mass: 5.56 kg
7219CDF d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 216 kN | C0r: 224 kN | Mass: 5.56 kg
7219CDT d: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 216 kN | C0r: 224 kN | Mass: 5.56 kg
7319DB d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 280 kN | C0r: 298 kN | Mass: 12.2 kg
7319DF d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 280 kN | C0r: 298 kN | Mass: 12.2 kg
7319DT d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 280 kN | C0r: 298 kN | Mass: 12.2 kg
7319BDB d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 256 kN | C0r: 273 kN | Mass: 12.2 kg
7319BDF d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 256 kN | C0r: 273 kN | Mass: 12.2 kg
7319BDT d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 256 kN | C0r: 273 kN | Mass: 12.2 kg
7319CDB d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 300 kN | C0r: 319 kN | Mass: 12.2 kg
7319CDF d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 300 kN | C0r: 319 kN | Mass: 12.2 kg
7319CDT d: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 300 kN | C0r: 319 kN | Mass: 12.2 kg
7920CDB d: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 90.2 kN | C0r: 117 kN | Mass: 1.55 kg
7920CDF d: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 90.2 kN | C0r: 117 kN | Mass: 1.55 kg
7920CDT d: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 90.2 kN | C0r: 117 kN | Mass: 1.55 kg
HAR920CDB d: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 39.2 kN | C0r: 43.5 kN | Mass: 1.68 kg
HAR920CDF d: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 39.2 kN | C0r: 43.5 kN | Mass: 1.68 kg
HAR920CDT d: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 39.2 kN | C0r: 43.5 kN | Mass: 1.68 kg
HAR020CDB d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 55.2 kN | C0r: 56.7 kN | Mass: 2.64 kg
HAR020CDF d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 55.2 kN | C0r: 56.7 kN | Mass: 2.64 kg
HAR020CDT d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 55.2 kN | C0r: 56.7 kN | Mass: 2.64 kg
7020DB d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 111 kN | C0r: 141 kN | Mass: 2.74 kg
7020DF d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 111 kN | C0r: 141 kN | Mass: 2.74 kg
7020DT d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 111 kN | C0r: 141 kN | Mass: 2.74 kg
7020BDB d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 99.4 kN | C0r: 127 kN | Mass: 2.74 kg
7020BDF d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 99.4 kN | C0r: 127 kN | Mass: 2.74 kg
7020BDT d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 99.4 kN | C0r: 127 kN | Mass: 2.74 kg
7020CDB d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 122 kN | C0r: 154 kN | Mass: 2.74 kg
7020CDF d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 122 kN | C0r: 154 kN | Mass: 2.74 kg
7020CDT d: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 122 kN | C0r: 154 kN | Mass: 2.74 kg
7220DB d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 223 kN | C0r: 235 kN | Mass: 6.64 kg
7220DF d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 223 kN | C0r: 235 kN | Mass: 6.64 kg
7220DT d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 223 kN | C0r: 235 kN | Mass: 6.64 kg
7220BDB d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 202 kN | C0r: 214 kN | Mass: 6.64 kg
7220BDF d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 202 kN | C0r: 214 kN | Mass: 6.64 kg
7220BDT d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 202 kN | C0r: 214 kN | Mass: 6.64 kg
7220CDB d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 242 kN | C0r: 254 kN | Mass: 6.64 kg
7220CDF d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 242 kN | C0r: 254 kN | Mass: 6.64 kg
7220CDT d: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 242 kN | C0r: 254 kN | Mass: 6.64 kg
7320DB d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 298 kN | C0r: 323 kN | Mass: 15.1 kg
7320DF d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 298 kN | C0r: 323 kN | Mass: 15.1 kg
7320DT d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 298 kN | C0r: 323 kN | Mass: 15.1 kg
7320BDB d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 274 kN | C0r: 297 kN | Mass: 15.1 kg
7320BDF d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 274 kN | C0r: 297 kN | Mass: 15.1 kg
7320BDT d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 274 kN | C0r: 297 kN | Mass: 15.1 kg
7320CDB d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 320 kN | C0r: 346 kN | Mass: 15.1 kg
7320CDF d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 320 kN | C0r: 346 kN | Mass: 15.1 kg
7320CDT d: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 320 kN | C0r: 346 kN | Mass: 15.1 kg
7921CDB d: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 92.1 kN | C0r: 123 kN | Mass: 1.62 kg
7921CDF d: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 92.1 kN | C0r: 123 kN | Mass: 1.62 kg
7921CDT d: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 92.1 kN | C0r: 123 kN | Mass: 1.62 kg
HAR921CDB d: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 40.4 kN | C0r: 46.2 kN | Mass: 1.75 kg
HAR921CDF d: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 40.4 kN | C0r: 46.2 kN | Mass: 1.75 kg
HAR921CDT d: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 40.4 kN | C0r: 46.2 kN | Mass: 1.75 kg
HAR021CDB d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 62.6 kN | C0r: 65.1 kN | Mass: 3.37 kg
HAR021CDF d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 62.6 kN | C0r: 65.1 kN | Mass: 3.37 kg
HAR021CDT d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 62.6 kN | C0r: 65.1 kN | Mass: 3.37 kg
7021DB d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 130 kN | C0r: 164 kN | Mass: 3.46 kg
7021DF d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 130 kN | C0r: 164 kN | Mass: 3.46 kg
7021DT d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 130 kN | C0r: 164 kN | Mass: 3.46 kg
7021BDB d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 116 kN | C0r: 148 kN | Mass: 3.46 kg
7021BDF d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 116 kN | C0r: 148 kN | Mass: 3.46 kg
7021BDT d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 116 kN | C0r: 148 kN | Mass: 3.46 kg
7021CDB d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 143 kN | C0r: 179 kN | Mass: 3.46 kg
7021CDF d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 143 kN | C0r: 179 kN | Mass: 3.46 kg
7021CDT d: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 143 kN | C0r: 179 kN | Mass: 3.46 kg
7221DB d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 243 kN | C0r: 265 kN | Mass: 7.90 kg
7221DF d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 243 kN | C0r: 265 kN | Mass: 7.90 kg
7221DT d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 243 kN | C0r: 265 kN | Mass: 7.90 kg
7221BDB d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 220 kN | C0r: 241 kN | Mass: 7.90 kg
7221BDF d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 220 kN | C0r: 241 kN | Mass: 7.90 kg
7221BDT d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 220 kN | C0r: 241 kN | Mass: 7.90 kg
7221CDB d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 264 kN | C0r: 287 kN | Mass: 7.90 kg
7221CDF d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 264 kN | C0r: 287 kN | Mass: 7.90 kg
7221CDT d: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 264 kN | C0r: 287 kN | Mass: 7.90 kg
7321DB d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 337 kN | C0r: 386 kN | Mass: 17.2 kg
7321DF d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 337 kN | C0r: 386 kN | Mass: 17.2 kg
7321DT d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 337 kN | C0r: 386 kN | Mass: 17.2 kg
7321BDB d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 310 kN | C0r: 355 kN | Mass: 17.2 kg
7321BDF d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 310 kN | C0r: 355 kN | Mass: 17.2 kg
7321BDT d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 310 kN | C0r: 355 kN | Mass: 17.2 kg
7321CDB d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 362 kN | C0r: 413 kN | Mass: 17.2 kg
7321CDF d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 362 kN | C0r: 413 kN | Mass: 17.2 kg
7321CDT d: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 362 kN | C0r: 413 kN | Mass: 17.2 kg
7922CDB d: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 93.8 kN | C0r: 129 kN | Mass: 1.68 kg
7922CDF d: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 93.8 kN | C0r: 129 kN | Mass: 1.68 kg
7922CDT d: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 93.8 kN | C0r: 129 kN | Mass: 1.68 kg
HAR922CDB d: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 40.8 kN | C0r: 47.7 kN | Mass: 1.82 kg
HAR922CDF d: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 40.8 kN | C0r: 47.7 kN | Mass: 1.82 kg
HAR922CDT d: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 40.8 kN | C0r: 47.7 kN | Mass: 1.82 kg
HAR022CDB d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 70.5 kN | C0r: 73.9 kN | Mass: 4.22 kg
HAR022CDF d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 70.5 kN | C0r: 73.9 kN | Mass: 4.22 kg
HAR022CDT d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 70.5 kN | C0r: 73.9 kN | Mass: 4.22 kg
7022DB d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 149 kN | C0r: 186 kN | Mass: 4.28 kg
7022DF d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 149 kN | C0r: 186 kN | Mass: 4.28 kg
7022DT d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 149 kN | C0r: 186 kN | Mass: 4.28 kg
7022BDB d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 134 kN | C0r: 167 kN | Mass: 4.28 kg
7022BDF d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 134 kN | C0r: 167 kN | Mass: 4.28 kg
7022BDT d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 134 kN | C0r: 167 kN | Mass: 4.28 kg
7022CDB d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 164 kN | C0r: 203 kN | Mass: 4.28 kg
7022CDF d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 164 kN | C0r: 203 kN | Mass: 4.28 kg
7022CDT d: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 164 kN | C0r: 203 kN | Mass: 4.28 kg
7222DB d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 263 kN | C0r: 297 kN | Mass: 9.30 kg
7222DF d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 263 kN | C0r: 297 kN | Mass: 9.30 kg
7222DT d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 263 kN | C0r: 297 kN | Mass: 9.30 kg
7222BDB d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 238 kN | C0r: 270 kN | Mass: 9.30 kg
7222BDF d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 238 kN | C0r: 270 kN | Mass: 9.30 kg
7222BDT d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 238 kN | C0r: 270 kN | Mass: 9.30 kg
7222CDB d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 286 kN | C0r: 321 kN | Mass: 9.30 kg
7222CDF d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 286 kN | C0r: 321 kN | Mass: 9.30 kg
7222CDT d: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 286 kN | C0r: 321 kN | Mass: 9.30 kg
7322DB d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 377 kN | C0r: 452 kN | Mass: 20.2 kg
7322DF d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 377 kN | C0r: 452 kN | Mass: 20.2 kg
7322DT d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 377 kN | C0r: 452 kN | Mass: 20.2 kg
7322BDB d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 346 kN | C0r: 416 kN | Mass: 20.2 kg
7322BDF d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 346 kN | C0r: 416 kN | Mass: 20.2 kg
7322BDT d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 346 kN | C0r: 416 kN | Mass: 20.2 kg
7322CDB d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 404 kN | C0r: 484 kN | Mass: 20.2 kg
7322CDF d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 404 kN | C0r: 484 kN | Mass: 20.2 kg
7322CDT d: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 404 kN | C0r: 484 kN | Mass: 20.2 kg
7924CDB d: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 117 kN | C0r: 162 kN | Mass: 2.30 kg
7924CDF d: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 117 kN | C0r: 162 kN | Mass: 2.30 kg
7924CDT d: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 117 kN | C0r: 162 kN | Mass: 2.30 kg
HAR924CDB d: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 47.7 kN | C0r: 56.8 kN | Mass: 2.49 kg
HAR924CDF d: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 47.7 kN | C0r: 56.8 kN | Mass: 2.49 kg
HAR924CDT d: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 47.7 kN | C0r: 56.8 kN | Mass: 2.49 kg
HAR024CDB d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 72.9 kN | C0r: 79.9 kN | Mass: 4.52 kg
HAR024CDF d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 72.9 kN | C0r: 79.9 kN | Mass: 4.52 kg
HAR024CDT d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 72.9 kN | C0r: 79.9 kN | Mass: 4.52 kg
7024DB d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 157 kN | C0r: 206 kN | Mass: 4.54 kg
7024DF d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 157 kN | C0r: 206 kN | Mass: 4.54 kg
7024DT d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 157 kN | C0r: 206 kN | Mass: 4.54 kg
7024BDB d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 140 kN | C0r: 186 kN | Mass: 4.54 kg
7024BDF d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 140 kN | C0r: 186 kN | Mass: 4.54 kg
7024BDT d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 140 kN | C0r: 186 kN | Mass: 4.54 kg
7024CDB d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 173 kN | C0r: 226 kN | Mass: 4.54 kg
7024CDF d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 173 kN | C0r: 226 kN | Mass: 4.54 kg
7024CDT d: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 173 kN | C0r: 226 kN | Mass: 4.54 kg
7224DB d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 283 kN | C0r: 332 kN | Mass: 11.0 kg
7224DF d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 283 kN | C0r: 332 kN | Mass: 11.0 kg
7224DT d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 283 kN | C0r: 332 kN | Mass: 11.0 kg
7224BDB d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 257 kN | C0r: 302 kN | Mass: 11.0 kg
7224BDF d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 257 kN | C0r: 302 kN | Mass: 11.0 kg
7224BDT d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 257 kN | C0r: 302 kN | Mass: 11.0 kg
7224CDB d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 308 kN | C0r: 359 kN | Mass: 11.0 kg
7224CDF d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 308 kN | C0r: 359 kN | Mass: 11.0 kg
7224CDT d: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 308 kN | C0r: 359 kN | Mass: 11.0 kg
7324DB d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 400 kN | C0r: 504 kN | Mass: 25.2 kg
7324DF d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 400 kN | C0r: 504 kN | Mass: 25.2 kg
7324DT d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 400 kN | C0r: 504 kN | Mass: 25.2 kg
7324BDB d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 366 kN | C0r: 462 kN | Mass: 25.2 kg
7324BDF d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 366 kN | C0r: 462 kN | Mass: 25.2 kg
7324BDT d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 366 kN | C0r: 462 kN | Mass: 25.2 kg
7324CDB d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 431 kN | C0r: 542 kN | Mass: 25.2 kg
7324CDF d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 431 kN | C0r: 542 kN | Mass: 25.2 kg
7324CDT d: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 431 kN | C0r: 542 kN | Mass: 25.2 kg
7926CDB d: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 142 kN | C0r: 200 kN | Mass: 3.00 kg
7926CDF d: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 142 kN | C0r: 200 kN | Mass: 3.00 kg
7926CDT d: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 142 kN | C0r: 200 kN | Mass: 3.00 kg
HAR926CDB d: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 57.0 kN | C0r: 70.3 kN | Mass: 3.32 kg
HAR926CDF d: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 57.0 kN | C0r: 70.3 kN | Mass: 3.32 kg
HAR926CDT d: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 57.0 kN | C0r: 70.3 kN | Mass: 3.32 kg
HAR026CDB d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 91.5 kN | C0r: 96.7 kN | Mass: 6.77 kg
HAR026CDF d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 91.5 kN | C0r: 96.7 kN | Mass: 6.77 kg
HAR026CDT d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 91.5 kN | C0r: 96.7 kN | Mass: 6.77 kg
7026DB d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 191 kN | C0r: 251 kN | Mass: 6.86 kg
7026DF d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 191 kN | C0r: 251 kN | Mass: 6.86 kg
7026DT d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 191 kN | C0r: 251 kN | Mass: 6.86 kg
7026BDB d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 171 kN | C0r: 226 kN | Mass: 6.86 kg
7026BDF d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 171 kN | C0r: 226 kN | Mass: 6.86 kg
7026BDT d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 171 kN | C0r: 226 kN | Mass: 6.86 kg
7026CDB d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 210 kN | C0r: 274 kN | Mass: 6.86 kg
7026CDF d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 210 kN | C0r: 274 kN | Mass: 6.86 kg
7026CDT d: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 210 kN | C0r: 274 kN | Mass: 6.86 kg
7226DB d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 318 kN | C0r: 395 kN | Mass: 12.4 kg
7226DF d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 318 kN | C0r: 395 kN | Mass: 12.4 kg
7226DT d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 318 kN | C0r: 395 kN | Mass: 12.4 kg
7226BDB d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 288 kN | C0r: 360 kN | Mass: 12.4 kg
7226BDF d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 288 kN | C0r: 360 kN | Mass: 12.4 kg
7226BDT d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 288 kN | C0r: 360 kN | Mass: 12.4 kg
7226CDB d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 346 kN | C0r: 428 kN | Mass: 12.4 kg
7226CDF d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 346 kN | C0r: 428 kN | Mass: 12.4 kg
7226CDT d: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 346 kN | C0r: 428 kN | Mass: 12.4 kg
7326DB d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 489 kN | C0r: 659 kN | Mass: 30.8 kg
7326DF d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 489 kN | C0r: 659 kN | Mass: 30.8 kg
7326DT d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 489 kN | C0r: 659 kN | Mass: 30.8 kg
7326BDB d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 406 kN | C0r: 536 kN | Mass: 30.8 kg
7326BDF d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 406 kN | C0r: 536 kN | Mass: 30.8 kg
7326BDT d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 406 kN | C0r: 536 kN | Mass: 30.8 kg
7326CDB d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 478 kN | C0r: 629 kN | Mass: 30.8 kg
7326CDF d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 478 kN | C0r: 629 kN | Mass: 30.8 kg
7326CDT d: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 478 kN | C0r: 629 kN | Mass: 30.8 kg
7928CDB d: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 143 kN | C0r: 210 kN | Mass: 3.18 kg
7928CDF d: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 143 kN | C0r: 210 kN | Mass: 3.18 kg
7928CDT d: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 143 kN | C0r: 210 kN | Mass: 3.18 kg
HAR928CDB d: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 57.2 kN | C0r: 72.4 kN | Mass: 3.52 kg
HAR928CDF d: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 57.2 kN | C0r: 72.4 kN | Mass: 3.52 kg
HAR928CDT d: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 57.2 kN | C0r: 72.4 kN | Mass: 3.52 kg
HAR028CDB d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 99.6 kN | C0r: 112 kN | Mass: 7.24 kg
HAR028CDF d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 99.6 kN | C0r: 112 kN | Mass: 7.24 kg
HAR028CDT d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 99.6 kN | C0r: 112 kN | Mass: 7.24 kg
7028DB d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 194 kN | C0r: 265 kN | Mass: 7.28 kg
7028DF d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 194 kN | C0r: 265 kN | Mass: 7.28 kg
7028DT d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 194 kN | C0r: 265 kN | Mass: 7.28 kg
7028BDB d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 174 kN | C0r: 237 kN | Mass: 7.28 kg
7028BDF d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 174 kN | C0r: 237 kN | Mass: 7.28 kg
7028BDT d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 174 kN | C0r: 237 kN | Mass: 7.28 kg
7028CDB d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 214 kN | C0r: 290 kN | Mass: 7.28 kg
7028CDF d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 214 kN | C0r: 290 kN | Mass: 7.28 kg
7028CDT d: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 214 kN | C0r: 290 kN | Mass: 7.28 kg
7228DB d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 355 kN | C0r: 468 kN | Mass: 15.5 kg
7228DF d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 355 kN | C0r: 468 kN | Mass: 15.5 kg
7228DT d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 355 kN | C0r: 468 kN | Mass: 15.5 kg
7228BDB d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 320 kN | C0r: 426 kN | Mass: 15.5 kg
7228BDF d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 320 kN | C0r: 426 kN | Mass: 15.5 kg
7228BDT d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 320 kN | C0r: 426 kN | Mass: 15.5 kg
7228CDB d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 386 kN | C0r: 508 kN | Mass: 15.5 kg
7228CDF d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 386 kN | C0r: 508 kN | Mass: 15.5 kg
7228CDT d: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 386 kN | C0r: 508 kN | Mass: 15.5 kg
7328DB d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 535 kN | C0r: 748 kN | Mass: 37.6 kg
7328DF d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 535 kN | C0r: 748 kN | Mass: 37.6 kg
7328DT d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 535 kN | C0r: 748 kN | Mass: 37.6 kg
7328BDB d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 491 kN | C0r: 688 kN | Mass: 37.6 kg
7328BDF d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 491 kN | C0r: 688 kN | Mass: 37.6 kg
7328BDT d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 491 kN | C0r: 688 kN | Mass: 37.6 kg
7328CDB d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 573 kN | C0r: 802 kN | Mass: 37.6 kg
7328CDF d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 573 kN | C0r: 802 kN | Mass: 37.6 kg
7328CDT d: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 573 kN | C0r: 802 kN | Mass: 37.6 kg
7930CDB d: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 187 kN | C0r: 263 kN | Mass: 4.94 kg
7930CDF d: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 187 kN | C0r: 263 kN | Mass: 4.94 kg
7930CDT d: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 187 kN | C0r: 263 kN | Mass: 4.94 kg
HAR930CDB d: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 79.5 kN | C0r: 97.7 kN | Mass: 5.36 kg
HAR930CDF d: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 79.5 kN | C0r: 97.7 kN | Mass: 5.36 kg
HAR930CDT d: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 79.5 kN | C0r: 97.7 kN | Mass: 5.36 kg
HAR030CDB d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 117 kN | C0r: 132 kN | Mass: 8.72 kg
HAR030CDF d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 117 kN | C0r: 132 kN | Mass: 8.72 kg
HAR030CDT d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 117 kN | C0r: 132 kN | Mass: 8.72 kg
7030DB d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 222 kN | C0r: 308 kN | Mass: 8.86 kg
7030DF d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 222 kN | C0r: 308 kN | Mass: 8.86 kg
7030DT d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 222 kN | C0r: 308 kN | Mass: 8.86 kg
7030BDB d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 199 kN | C0r: 275 kN | Mass: 8.86 kg
7030BDF d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 199 kN | C0r: 275 kN | Mass: 8.86 kg
7030BDT d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 199 kN | C0r: 275 kN | Mass: 8.86 kg
7030CDB d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 245 kN | C0r: 337 kN | Mass: 8.86 kg
7030CDF d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 245 kN | C0r: 337 kN | Mass: 8.86 kg
7030CDT d: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 245 kN | C0r: 337 kN | Mass: 8.86 kg
7230DB d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 403 kN | C0r: 560 kN | Mass: 19.5 kg
7230DF d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 403 kN | C0r: 560 kN | Mass: 19.5 kg
7230DT d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 403 kN | C0r: 560 kN | Mass: 19.5 kg
7230BDB d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 365 kN | C0r: 509 kN | Mass: 19.5 kg
7230BDF d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 365 kN | C0r: 509 kN | Mass: 19.5 kg
7230BDT d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 365 kN | C0r: 509 kN | Mass: 19.5 kg
7230CDB d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 439 kN | C0r: 607 kN | Mass: 19.5 kg
7230CDF d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 439 kN | C0r: 607 kN | Mass: 19.5 kg
7230CDT d: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 439 kN | C0r: 607 kN | Mass: 19.5 kg
7330DB d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 565 kN | C0r: 829 kN | Mass: 44.8 kg
7330DF d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 565 kN | C0r: 829 kN | Mass: 44.8 kg
7330DT d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 565 kN | C0r: 829 kN | Mass: 44.8 kg
7330BDB d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 516 kN | C0r: 760 kN | Mass: 44.8 kg
7330BDF d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 516 kN | C0r: 760 kN | Mass: 44.8 kg
7330BDT d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 516 kN | C0r: 760 kN | Mass: 44.8 kg
7330CDB d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 607 kN | C0r: 891 kN | Mass: 44.8 kg
7330CDF d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 607 kN | C0r: 891 kN | Mass: 44.8 kg
7330CDT d: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 607 kN | C0r: 891 kN | Mass: 44.8 kg
7932CDB d: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 196 kN | C0r: 289 kN | Mass: 5.20 kg
7932CDF d: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 196 kN | C0r: 289 kN | Mass: 5.20 kg
7932CDT d: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 196 kN | C0r: 289 kN | Mass: 5.20 kg
HAR932CDB d: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 81.5 kN | C0r: 104 kN | Mass: 5.66 kg
HAR932CDF d: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 81.5 kN | C0r: 104 kN | Mass: 5.66 kg
HAR932CDT d: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 81.5 kN | C0r: 104 kN | Mass: 5.66 kg
HAR032CDB d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 127 kN | C0r: 145 kN | Mass: 10.8 kg
HAR032CDF d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 127 kN | C0r: 145 kN | Mass: 10.8 kg
HAR032CDT d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 127 kN | C0r: 145 kN | Mass: 10.8 kg
7032DB d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 252 kN | C0r: 353 kN | Mass: 10.9 kg
7032DF d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 252 kN | C0r: 353 kN | Mass: 10.9 kg
7032DT d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 252 kN | C0r: 353 kN | Mass: 10.9 kg
7032BDB d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 225 kN | C0r: 316 kN | Mass: 10.9 kg
7032BDF d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 225 kN | C0r: 316 kN | Mass: 10.9 kg
7032BDT d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 225 kN | C0r: 316 kN | Mass: 10.9 kg
7032CDB d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 278 kN | C0r: 386 kN | Mass: 10.9 kg
7032CDF d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 278 kN | C0r: 386 kN | Mass: 10.9 kg
7032CDT d: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 278 kN | C0r: 386 kN | Mass: 10.9 kg
7232DB d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 374 kN | C0r: 525 kN | Mass: 24.2 kg
7232DF d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 374 kN | C0r: 525 kN | Mass: 24.2 kg
7232DT d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 374 kN | C0r: 525 kN | Mass: 24.2 kg
7232BDB d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 386 kN | C0r: 557 kN | Mass: 24.2 kg
7232BDF d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 386 kN | C0r: 557 kN | Mass: 24.2 kg
7232BDT d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 386 kN | C0r: 557 kN | Mass: 24.2 kg
7232CDB d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 465 kN | C0r: 665 kN | Mass: 24.2 kg
7232CDF d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 465 kN | C0r: 665 kN | Mass: 24.2 kg
7232CDT d: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 465 kN | C0r: 665 kN | Mass: 24.2 kg
7332DB d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 592 kN | C0r: 909 kN | Mass: 52.8 kg
7332DF d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 592 kN | C0r: 909 kN | Mass: 52.8 kg
7332DT d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 592 kN | C0r: 909 kN | Mass: 52.8 kg
7332BDB d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 540 kN | C0r: 831 kN | Mass: 52.8 kg
7332BDF d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 540 kN | C0r: 831 kN | Mass: 52.8 kg
7332BDT d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 540 kN | C0r: 831 kN | Mass: 52.8 kg
7332CDB d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 640 kN | C0r: 980 kN | Mass: 52.8 kg
7332CDF d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 640 kN | C0r: 980 kN | Mass: 52.8 kg
7332CDT d: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 640 kN | C0r: 980 kN | Mass: 52.8 kg
7934CDB d: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 199 kN | C0r: 302 kN | Mass: 6.42 kg
7934CDF d: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 199 kN | C0r: 302 kN | Mass: 6.42 kg
7934CDT d: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 199 kN | C0r: 302 kN | Mass: 6.42 kg
HAR934CDB d: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 83.4 kN | C0r: 110 kN | Mass: 5.94 kg
HAR934CDF d: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 83.4 kN | C0r: 110 kN | Mass: 5.94 kg
HAR934CDT d: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 83.4 kN | C0r: 110 kN | Mass: 5.94 kg
HAR034CDB d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 149 kN | C0r: 173 kN | Mass: 14.6 kg
HAR034CDF d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 149 kN | C0r: 173 kN | Mass: 14.6 kg
HAR034CDT d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 149 kN | C0r: 173 kN | Mass: 14.6 kg
7034DB d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 302 kN | C0r: 429 kN | Mass: 15.2 kg
7034DF d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 302 kN | C0r: 429 kN | Mass: 15.2 kg
7034DT d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 302 kN | C0r: 429 kN | Mass: 15.2 kg
7034BDB d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 270 kN | C0r: 386 kN | Mass: 15.5 kg
7034BDF d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 270 kN | C0r: 386 kN | Mass: 15.5 kg
7034BDT d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 270 kN | C0r: 386 kN | Mass: 15.5 kg
7034CDB d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 332 kN | C0r: 469 kN | Mass: 15.1 kg
7034CDF d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 332 kN | C0r: 469 kN | Mass: 15.1 kg
7034CDT d: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 332 kN | C0r: 469 kN | Mass: 15.1 kg
7234DB d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 441 kN | C0r: 661 kN | Mass: 30.2 kg
7234DF d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 441 kN | C0r: 661 kN | Mass: 30.2 kg
7234DT d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 441 kN | C0r: 661 kN | Mass: 30.2 kg
7234BDB d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 398 kN | C0r: 600 kN | Mass: 30.2 kg
7234BDF d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 398 kN | C0r: 600 kN | Mass: 30.2 kg
7234BDT d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 398 kN | C0r: 600 kN | Mass: 30.2 kg
7234CDB d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 482 kN | C0r: 719 kN | Mass: 30.2 kg
7234CDF d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 482 kN | C0r: 719 kN | Mass: 30.2 kg
7234CDT d: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 482 kN | C0r: 719 kN | Mass: 30.2 kg
7334DB d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 631 kN | C0r: 969 kN | Mass: 62.4 kg
7334DF d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 631 kN | C0r: 969 kN | Mass: 62.4 kg
7334DT d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 631 kN | C0r: 969 kN | Mass: 62.4 kg
7334BDB d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 577 kN | C0r: 888 kN | Mass: 62.4 kg
7334BDF d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 577 kN | C0r: 888 kN | Mass: 62.4 kg
7334BDT d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 577 kN | C0r: 888 kN | Mass: 62.4 kg
7334CDB d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 679 kN | C0r: 1 040 kN | Mass: 62.4 kg
7334CDF d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 679 kN | C0r: 1 040 kN | Mass: 62.4 kg
7334CDT d: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 679 kN | C0r: 1 040 kN | Mass: 62.4 kg
7936CDB d: 180 mm | D: 250 mm | B1 (pair): 66 mm | Cr: 253 kN | C0r: 375 kN | Mass: 9.36 kg
7936CDF d: 180 mm | D: 250 mm | B1 (pair): 66 mm | Cr: 253 kN | C0r: 375 kN | Mass: 9.36 kg
7936CDT d: 180 mm | D: 250 mm | B1 (pair): 66 mm | Cr: 253 kN | C0r: 375 kN | Mass: 9.36 kg
7036DB d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 344 kN | C0r: 506 kN | Mass: 20.2 kg
7036DF d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 344 kN | C0r: 506 kN | Mass: 20.2 kg
7036DT d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 344 kN | C0r: 506 kN | Mass: 20.2 kg
7036BDB d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 308 kN | C0r: 457 kN | Mass: 20.4 kg
7036BDF d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 308 kN | C0r: 457 kN | Mass: 20.4 kg
7036BDT d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 308 kN | C0r: 457 kN | Mass: 20.4 kg
7036CDB d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 378 kN | C0r: 553 kN | Mass: 19.9 kg
7036CDF d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 378 kN | C0r: 553 kN | Mass: 19.9 kg
7036CDT d: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 378 kN | C0r: 553 kN | Mass: 19.9 kg
7236DB d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 477 kN | C0r: 724 kN | Mass: 31.4 kg
7236DF d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 477 kN | C0r: 724 kN | Mass: 31.4 kg
7236DT d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 477 kN | C0r: 724 kN | Mass: 31.4 kg
7236BDB d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 430 kN | C0r: 657 kN | Mass: 31.4 kg
7236BDF d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 430 kN | C0r: 657 kN | Mass: 31.4 kg
7236BDT d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 430 kN | C0r: 657 kN | Mass: 31.4 kg
7236CDB d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 520 kN | C0r: 786 kN | Mass: 31.4 kg
7236CDF d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 520 kN | C0r: 786 kN | Mass: 31.4 kg
7236CDT d: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 520 kN | C0r: 786 kN | Mass: 31.4 kg
7336DB d: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 665 kN | C0r: 1 070 kN | Mass: 80.0 kg
7336DF d: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 665 kN | C0r: 1 070 kN | Mass: 80.0 kg
7336DT d: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 665 kN | C0r: 1 070 kN | Mass: 80.0 kg
7336BDB d: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 606 kN | C0r: 976 kN | Mass: 80.0 kg
7336BDF d: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 606 kN | C0r: 976 kN | Mass: 80.0 kg
7336BDT d: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 606 kN | C0r: 976 kN | Mass: 80.0 kg
7938CDB d: 190 mm | D: 260 mm | B1 (pair): 66 mm | Cr: 257 kN | C0r: 394 kN | Mass: 9.66 kg
7938CDF d: 190 mm | D: 260 mm | B1 (pair): 66 mm | Cr: 257 kN | C0r: 394 kN | Mass: 9.66 kg
7938CDT d: 190 mm | D: 260 mm | B1 (pair): 66 mm | Cr: 257 kN | C0r: 394 kN | Mass: 9.66 kg
7038DB d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 353 kN | C0r: 535 kN | Mass: 21.6 kg
7038DF d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 353 kN | C0r: 535 kN | Mass: 21.6 kg
7038DT d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 353 kN | C0r: 535 kN | Mass: 21.6 kg
7038BDB d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 316 kN | C0r: 483 kN | Mass: 21.6 kg
7038BDF d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 316 kN | C0r: 483 kN | Mass: 21.6 kg
7038BDT d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 316 kN | C0r: 483 kN | Mass: 21.6 kg
7038CDB d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 388 kN | C0r: 585 kN | Mass: 21.6 kg
7038CDF d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 388 kN | C0r: 585 kN | Mass: 21.6 kg
7038CDT d: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 388 kN | C0r: 585 kN | Mass: 21.6 kg
7238DB d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 493 kN | C0r: 779 kN | Mass: 37.6 kg
7238DF d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 493 kN | C0r: 779 kN | Mass: 37.6 kg
7238DT d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 493 kN | C0r: 779 kN | Mass: 37.6 kg
7238BDB d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 443 kN | C0r: 706 kN | Mass: 37.6 kg
7238BDF d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 443 kN | C0r: 706 kN | Mass: 37.6 kg
7238BDT d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 443 kN | C0r: 706 kN | Mass: 37.6 kg
7238CDB d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 538 kN | C0r: 848 kN | Mass: 37.6 kg
7238CDF d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 538 kN | C0r: 848 kN | Mass: 37.6 kg
7238CDT d: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 538 kN | C0r: 848 kN | Mass: 37.6 kg
7338DB d: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 731 kN | C0r: 1 200 kN | Mass: 91.0 kg
7338DF d: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 731 kN | C0r: 1 200 kN | Mass: 91.0 kg
7338DT d: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 731 kN | C0r: 1 200 kN | Mass: 91.0 kg
7338BDB d: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 668 kN | C0r: 1 100 kN | Mass: 91.0 kg
7338BDF d: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 668 kN | C0r: 1 100 kN | Mass: 91.0 kg
7338BDT d: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 668 kN | C0r: 1 100 kN | Mass: 91.0 kg
7940CDB d: 200 mm | D: 280 mm | B1 (pair): 76 mm | Cr: 332 kN | C0r: 509 kN | Mass: 13.7 kg
7940CDF d: 200 mm | D: 280 mm | B1 (pair): 76 mm | Cr: 332 kN | C0r: 509 kN | Mass: 13.7 kg
7940CDT d: 200 mm | D: 280 mm | B1 (pair): 76 mm | Cr: 332 kN | C0r: 509 kN | Mass: 13.7 kg
7040DB d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 396 kN | C0r: 618 kN | Mass: 25.4 kg
7040DF d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 396 kN | C0r: 618 kN | Mass: 25.4 kg
7040DT d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 396 kN | C0r: 618 kN | Mass: 25.4 kg
7040BDB d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 355 kN | C0r: 558 kN | Mass: 25.4 kg
7040BDF d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 355 kN | C0r: 558 kN | Mass: 25.4 kg
7040BDT d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 355 kN | C0r: 558 kN | Mass: 25.4 kg
7040CDB d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 435 kN | C0r: 676 kN | Mass: 25.4 kg
7040CDF d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 435 kN | C0r: 676 kN | Mass: 25.4 kg
7040CDT d: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 435 kN | C0r: 676 kN | Mass: 25.4 kg
7240DB d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 526 kN | C0r: 847 kN | Mass: 44.8 kg
7240DF d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 526 kN | C0r: 847 kN | Mass: 44.8 kg
7240DT d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 526 kN | C0r: 847 kN | Mass: 44.8 kg
7240BDB d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 474 kN | C0r: 768 kN | Mass: 44.8 kg
7240BDF d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 474 kN | C0r: 768 kN | Mass: 44.8 kg
7240BDT d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 474 kN | C0r: 768 kN | Mass: 44.8 kg
7240CDB d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 575 kN | C0r: 921 kN | Mass: 44.8 kg
7240CDF d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 575 kN | C0r: 921 kN | Mass: 44.8 kg
7240CDT d: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 575 kN | C0r: 921 kN | Mass: 44.8 kg
7340DB d: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 770 kN | C0r: 1 320 kN | Mass: 104 kg
7340DF d: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 770 kN | C0r: 1 320 kN | Mass: 104 kg
7340DT d: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 770 kN | C0r: 1 320 kN | Mass: 104 kg
7340BDB d: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 702 kN | C0r: 1 200 kN | Mass: 104 kg
7340BDF d: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 702 kN | C0r: 1 200 kN | Mass: 104 kg
7340BDT d: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 702 kN | C0r: 1 200 kN | Mass: 104 kg
7044DB d: 220 mm | D: 340 mm | B1 (pair): 112 mm | Cr: 434 kN | C0r: 705 kN | Mass: 37.0 kg
7044DF d: 220 mm | D: 340 mm | B1 (pair): 112 mm | Cr: 434 kN | C0r: 705 kN | Mass: 37.0 kg
7044BDB d: 220 mm | D: 340 mm | B1 (pair): 112 mm | Cr: 389 kN | C0r: 636 kN | Mass: 37.8 kg
7044BDF d: 220 mm | D: 340 mm | B1 (pair): 112 mm | Cr: 389 kN | C0r: 636 kN | Mass: 37.8 kg
7048DB d: 240 mm | D: 360 mm | B1 (pair): 112 mm | Cr: 443 kN | C0r: 751 kN | Mass: 39.4 kg
7048DF d: 240 mm | D: 360 mm | B1 (pair): 112 mm | Cr: 443 kN | C0r: 751 kN | Mass: 39.4 kg
7048BDB d: 240 mm | D: 360 mm | B1 (pair): 112 mm | Cr: 397 kN | C0r: 677 kN | Mass: 40.2 kg
7048BDF d: 240 mm | D: 360 mm | B1 (pair): 112 mm | Cr: 397 kN | C0r: 677 kN | Mass: 40.2 kg
7248DB d: 240 mm | D: 440 mm | B1 (pair): 144 mm | Cr: 655 kN | C0r: 1 190 kN | Mass: 104 kg
7248DF d: 240 mm | D: 440 mm | B1 (pair): 144 mm | Cr: 655 kN | C0r: 1 190 kN | Mass: 104 kg
7248BDB d: 240 mm | D: 440 mm | B1 (pair): 144 mm | Cr: 589 kN | C0r: 1 080 kN | Mass: 106 kg
7248BDF d: 240 mm | D: 440 mm | B1 (pair): 144 mm | Cr: 589 kN | C0r: 1 080 kN | Mass: 106 kg
7052DB d: 260 mm | D: 400 mm | B1 (pair): 130 mm | Cr: 529 kN | C0r: 956 kN | Mass: 57.4 kg
7052DF d: 260 mm | D: 400 mm | B1 (pair): 130 mm | Cr: 529 kN | C0r: 956 kN | Mass: 57.4 kg
7052BDB d: 260 mm | D: 400 mm | B1 (pair): 130 mm | Cr: 473 kN | C0r: 862 kN | Mass: 58.6 kg
7052BDF d: 260 mm | D: 400 mm | B1 (pair): 130 mm | Cr: 473 kN | C0r: 862 kN | Mass: 58.6 kg
7056DB d: 280 mm | D: 420 mm | B1 (pair): 130 mm | Cr: 540 kN | C0r: 1 010 kN | Mass: 60.8 kg
7056DF d: 280 mm | D: 420 mm | B1 (pair): 130 mm | Cr: 540 kN | C0r: 1 010 kN | Mass: 60.8 kg
7056BDB d: 280 mm | D: 420 mm | B1 (pair): 130 mm | Cr: 483 kN | C0r: 906 kN | Mass: 62.0 kg
7056BDF d: 280 mm | D: 420 mm | B1 (pair): 130 mm | Cr: 483 kN | C0r: 906 kN | Mass: 62.0 kg
7060DB d: 300 mm | D: 460 mm | B1 (pair): 148 mm | Cr: 693 kN | C0r: 1 360 kN | Mass: 87.4 kg
7060DF d: 300 mm | D: 460 mm | B1 (pair): 148 mm | Cr: 693 kN | C0r: 1 360 kN | Mass: 87.4 kg
7060BDB d: 300 mm | D: 460 mm | B1 (pair): 148 mm | Cr: 621 kN | C0r: 1 230 kN | Mass: 89.8 kg
7060BDF d: 300 mm | D: 460 mm | B1 (pair): 148 mm | Cr: 621 kN | C0r: 1 230 kN | Mass: 89.8 kg
7064DB d: 320 mm | D: 480 mm | B1 (pair): 148 mm | Cr: 710 kN | C0r: 1 440 kN | Mass: 92.0 kg
7064DF d: 320 mm | D: 480 mm | B1 (pair): 148 mm | Cr: 710 kN | C0r: 1 440 kN | Mass: 92.0 kg
7064BDB d: 320 mm | D: 480 mm | B1 (pair): 148 mm | Cr: 636 kN | C0r: 1 300 kN | Mass: 94.4 kg
7064BDF d: 320 mm | D: 480 mm | B1 (pair): 148 mm | Cr: 636 kN | C0r: 1 300 kN | Mass: 94.4 kg
7068DB d: 340 mm | D: 520 mm | B1 (pair): 164 mm | Cr: 816 kN | C0r: 1 720 kN | Mass: 124 kg
7068DF d: 340 mm | D: 520 mm | B1 (pair): 164 mm | Cr: 816 kN | C0r: 1 720 kN | Mass: 124 kg
7068BDB d: 340 mm | D: 520 mm | B1 (pair): 164 mm | Cr: 731 kN | C0r: 1 550 kN | Mass: 127 kg
7068BDF d: 340 mm | D: 520 mm | B1 (pair): 164 mm | Cr: 731 kN | C0r: 1 550 kN | Mass: 127 kg
7072DB d: 360 mm | D: 540 mm | B1 (pair): 164 mm | Cr: 837 kN | C0r: 1 830 kN | Mass: 129 kg
7072DF d: 360 mm | D: 540 mm | B1 (pair): 164 mm | Cr: 837 kN | C0r: 1 830 kN | Mass: 129 kg
7072BDB d: 360 mm | D: 540 mm | B1 (pair): 164 mm | Cr: 750 kN | C0r: 1 650 kN | Mass: 132 kg
7072BDF d: 360 mm | D: 540 mm | B1 (pair): 164 mm | Cr: 750 kN | C0r: 1 650 kN | Mass: 132 kg
7076DB d: 380 mm | D: 560 mm | B1 (pair): 164 mm | Cr: 858 kN | C0r: 1 930 kN | Mass: 134 kg
7076DF d: 380 mm | D: 560 mm | B1 (pair): 164 mm | Cr: 858 kN | C0r: 1 930 kN | Mass: 134 kg
7076BDB d: 380 mm | D: 560 mm | B1 (pair): 164 mm | Cr: 767 kN | C0r: 1 740 kN | Mass: 138 kg
7076BDF d: 380 mm | D: 560 mm | B1 (pair): 164 mm | Cr: 767 kN | C0r: 1 740 kN | Mass: 138 kg
Angular Contact Ball BearingsKOYO
1195 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Matched Pair Angular Contact Ball Bearings (DB, DF, DT)

Brand KOYO·Angular Contact Ball Bearings

Available part numbers (1195)

7900CDB, 7900CDF, 7900CDT, 7000DB, 7000DF, 7000DT, 7000BDB, 7000BDF, 7000BDT, 7000CDB + 1185 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7900CDBd: 10 mm | D: 22 mm | B1 (pair): 12 mm | Cr: 4.90 kN | C0r: 3.05 kN | Mass: 0.016 kg
7900CDFd: 10 mm | D: 22 mm | B1 (pair): 12 mm | Cr: 4.90 kN | C0r: 3.05 kN | Mass: 0.016 kg
7900CDTd: 10 mm | D: 22 mm | B1 (pair): 12 mm | Cr: 4.90 kN | C0r: 3.05 kN | Mass: 0.016 kg
7000DBd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 4.65 kN | Mass: 0.042 kg
7000DFd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 4.65 kN | Mass: 0.042 kg
7000DTd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 4.65 kN | Mass: 0.042 kg
7000BDBd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 7.55 kN | C0r: 4.35 kN | Mass: 0.042 kg
7000BDFd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 7.55 kN | C0r: 4.35 kN | Mass: 0.042 kg
7000BDTd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 7.55 kN | C0r: 4.35 kN | Mass: 0.042 kg
7000CDBd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.60 kN | C0r: 4.95 kN | Mass: 0.042 kg
7000CDFd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.60 kN | C0r: 4.95 kN | Mass: 0.042 kg
7000CDTd: 10 mm | D: 26 mm | B1 (pair): 16 mm | Cr: 8.60 kN | C0r: 4.95 kN | Mass: 0.042 kg
7200DBd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 7.55 kN | C0r: 4.40 kN | Mass: 0.062 kg
7200DFd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 7.55 kN | C0r: 4.40 kN | Mass: 0.062 kg
7200DTd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 7.55 kN | C0r: 4.40 kN | Mass: 0.062 kg
7200BDBd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 6.95 kN | C0r: 4.05 kN | Mass: 0.062 kg
7200BDFd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 6.95 kN | C0r: 4.05 kN | Mass: 0.062 kg
7200BDTd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 6.95 kN | C0r: 4.05 kN | Mass: 0.062 kg
7200CDBd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 8.10 kN | C0r: 4.70 kN | Mass: 0.062 kg
7200CDFd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 8.10 kN | C0r: 4.70 kN | Mass: 0.062 kg
7200CDTd: 10 mm | D: 30 mm | B1 (pair): 18 mm | Cr: 8.10 kN | C0r: 4.70 kN | Mass: 0.062 kg
7300DBd: 10 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.8 kN | C0r: 7.55 kN | Mass: 0.108 kg
7300DFd: 10 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.8 kN | C0r: 7.55 kN | Mass: 0.108 kg
7300DTd: 10 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.8 kN | C0r: 7.55 kN | Mass: 0.108 kg
7901CDBd: 12 mm | D: 24 mm | B1 (pair): 12 mm | Cr: 5.15 kN | C0r: 3.45 kN | Mass: 0.020 kg
7901CDFd: 12 mm | D: 24 mm | B1 (pair): 12 mm | Cr: 5.15 kN | C0r: 3.45 kN | Mass: 0.020 kg
7901CDTd: 12 mm | D: 24 mm | B1 (pair): 12 mm | Cr: 5.15 kN | C0r: 3.45 kN | Mass: 0.020 kg
7001DBd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.80 kN | C0r: 5.45 kN | Mass: 0.048 kg
7001DFd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.80 kN | C0r: 5.45 kN | Mass: 0.048 kg
7001DTd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.80 kN | C0r: 5.45 kN | Mass: 0.048 kg
7001BDBd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 5.05 kN | Mass: 0.048 kg
7001BDFd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 5.05 kN | Mass: 0.048 kg
7001BDTd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 8.10 kN | C0r: 5.05 kN | Mass: 0.048 kg
7001CDBd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 9.40 kN | C0r: 5.85 kN | Mass: 0.048 kg
7001CDFd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 9.40 kN | C0r: 5.85 kN | Mass: 0.048 kg
7001CDTd: 12 mm | D: 28 mm | B1 (pair): 16 mm | Cr: 9.40 kN | C0r: 5.85 kN | Mass: 0.048 kg
7201DBd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.1 kN | C0r: 7.25 kN | Mass: 0.076 kg
7201DFd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.1 kN | C0r: 7.25 kN | Mass: 0.076 kg
7201DTd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.1 kN | C0r: 7.25 kN | Mass: 0.076 kg
7201BDBd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 11.3 kN | C0r: 6.80 kN | Mass: 0.076 kg
7201BDFd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 11.3 kN | C0r: 6.80 kN | Mass: 0.076 kg
7201BDTd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 11.3 kN | C0r: 6.80 kN | Mass: 0.076 kg
7201CDBd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.8 kN | C0r: 7.70 kN | Mass: 0.076 kg
7201CDFd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.8 kN | C0r: 7.70 kN | Mass: 0.076 kg
7201CDTd: 12 mm | D: 32 mm | B1 (pair): 20 mm | Cr: 12.8 kN | C0r: 7.70 kN | Mass: 0.076 kg
7301DBd: 12 mm | D: 37 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 9.20 kN | Mass: 0.130 kg
7301DFd: 12 mm | D: 37 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 9.20 kN | Mass: 0.130 kg
7301DTd: 12 mm | D: 37 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 9.20 kN | Mass: 0.130 kg
7902CDBd: 15 mm | D: 28 mm | B1 (pair): 14 mm | Cr: 7.75 kN | C0r: 5.30 kN | Mass: 0.030 kg
7902CDFd: 15 mm | D: 28 mm | B1 (pair): 14 mm | Cr: 7.75 kN | C0r: 5.30 kN | Mass: 0.030 kg
7902CDTd: 15 mm | D: 28 mm | B1 (pair): 14 mm | Cr: 7.75 kN | C0r: 5.30 kN | Mass: 0.030 kg
7002DBd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.95 kN | C0r: 6.85 kN | Mass: 0.070 kg
7002DFd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.95 kN | C0r: 6.85 kN | Mass: 0.070 kg
7002DTd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.95 kN | C0r: 6.85 kN | Mass: 0.070 kg
7002BDBd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.05 kN | C0r: 6.30 kN | Mass: 0.070 kg
7002BDFd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.05 kN | C0r: 6.30 kN | Mass: 0.070 kg
7002BDTd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 9.05 kN | C0r: 6.30 kN | Mass: 0.070 kg
7002CDBd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 10.7 kN | C0r: 7.40 kN | Mass: 0.070 kg
7002CDFd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 10.7 kN | C0r: 7.40 kN | Mass: 0.070 kg
7002CDTd: 15 mm | D: 32 mm | B1 (pair): 18 mm | Cr: 10.7 kN | C0r: 7.40 kN | Mass: 0.070 kg
7202DBd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.2 kN | C0r: 8.55 kN | Mass: 0.096 kg
7202DFd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.2 kN | C0r: 8.55 kN | Mass: 0.096 kg
7202DTd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 13.2 kN | C0r: 8.55 kN | Mass: 0.096 kg
7202BDBd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 12.1 kN | C0r: 7.85 kN | Mass: 0.096 kg
7202BDFd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 12.1 kN | C0r: 7.85 kN | Mass: 0.096 kg
7202BDTd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 12.1 kN | C0r: 7.85 kN | Mass: 0.096 kg
7202CDBd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 14.1 kN | C0r: 9.15 kN | Mass: 0.096 kg
7202CDFd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 14.1 kN | C0r: 9.15 kN | Mass: 0.096 kg
7202CDTd: 15 mm | D: 35 mm | B1 (pair): 22 mm | Cr: 14.1 kN | C0r: 9.15 kN | Mass: 0.096 kg
7302DBd: 15 mm | D: 42 mm | B1 (pair): 26 mm | Cr: 20.3 kN | C0r: 12.9 kN | Mass: 0.176 kg
7302DFd: 15 mm | D: 42 mm | B1 (pair): 26 mm | Cr: 20.3 kN | C0r: 12.9 kN | Mass: 0.176 kg
7302DTd: 15 mm | D: 42 mm | B1 (pair): 26 mm | Cr: 20.3 kN | C0r: 12.9 kN | Mass: 0.176 kg
7903CDBd: 17 mm | D: 30 mm | B1 (pair): 14 mm | Cr: 8.10 kN | C0r: 5.90 kN | Mass: 0.032 kg
7903CDFd: 17 mm | D: 30 mm | B1 (pair): 14 mm | Cr: 8.10 kN | C0r: 5.90 kN | Mass: 0.032 kg
7903CDTd: 17 mm | D: 30 mm | B1 (pair): 14 mm | Cr: 8.10 kN | C0r: 5.90 kN | Mass: 0.032 kg
7003DBd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 10.9 kN | C0r: 8.25 kN | Mass: 0.090 kg
7003DFd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 10.9 kN | C0r: 8.25 kN | Mass: 0.090 kg
7003DTd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 10.9 kN | C0r: 8.25 kN | Mass: 0.090 kg
7003BDBd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 9.90 kN | C0r: 7.50 kN | Mass: 0.090 kg
7003BDFd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 9.90 kN | C0r: 7.50 kN | Mass: 0.090 kg
7003BDTd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 9.90 kN | C0r: 7.50 kN | Mass: 0.090 kg
7003CDBd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 11.9 kN | C0r: 8.95 kN | Mass: 0.090 kg
7003CDFd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 11.9 kN | C0r: 8.95 kN | Mass: 0.090 kg
7003CDTd: 17 mm | D: 35 mm | B1 (pair): 20 mm | Cr: 11.9 kN | C0r: 8.95 kN | Mass: 0.090 kg
7203DBd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 16.5 kN | C0r: 11.0 kN | Mass: 0.140 kg
7203DFd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 16.5 kN | C0r: 11.0 kN | Mass: 0.140 kg
7203DTd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 16.5 kN | C0r: 11.0 kN | Mass: 0.140 kg
7203BDBd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 10.1 kN | Mass: 0.140 kg
7203BDFd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 10.1 kN | Mass: 0.140 kg
7203BDTd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 10.1 kN | Mass: 0.140 kg
7203CDBd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 17.7 kN | C0r: 11.8 kN | Mass: 0.140 kg
7203CDFd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 17.7 kN | C0r: 11.8 kN | Mass: 0.140 kg
7203CDTd: 17 mm | D: 40 mm | B1 (pair): 24 mm | Cr: 17.7 kN | C0r: 11.8 kN | Mass: 0.140 kg
7303DBd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 24.2 kN | C0r: 15.8 kN | Mass: 0.240 kg
7303DFd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 24.2 kN | C0r: 15.8 kN | Mass: 0.240 kg
7303DTd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 24.2 kN | C0r: 15.8 kN | Mass: 0.240 kg
7303BDBd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 22.5 kN | C0r: 14.6 kN | Mass: 0.240 kg
7303BDFd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 22.5 kN | C0r: 14.6 kN | Mass: 0.240 kg
7303BDTd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 22.5 kN | C0r: 14.6 kN | Mass: 0.240 kg
7303CDBd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 16.8 kN | Mass: 0.240 kg
7303CDFd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 16.8 kN | Mass: 0.240 kg
7303CDTd: 17 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 16.8 kN | Mass: 0.240 kg
7904CDBd: 20 mm | D: 37 mm | B1 (pair): 18 mm | Cr: 11.8 kN | C0r: 9.15 kN | Mass: 0.070 kg
7904CDFd: 20 mm | D: 37 mm | B1 (pair): 18 mm | Cr: 11.8 kN | C0r: 9.15 kN | Mass: 0.070 kg
7904CDTd: 20 mm | D: 37 mm | B1 (pair): 18 mm | Cr: 11.8 kN | C0r: 9.15 kN | Mass: 0.070 kg
7004DBd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 16.7 kN | C0r: 12.2 kN | Mass: 0.158 kg
7004DFd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 16.7 kN | C0r: 12.2 kN | Mass: 0.158 kg
7004DTd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 16.7 kN | C0r: 12.2 kN | Mass: 0.158 kg
7004BDBd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 11.1 kN | Mass: 0.158 kg
7004BDFd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 11.1 kN | Mass: 0.158 kg
7004BDTd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 15.2 kN | C0r: 11.1 kN | Mass: 0.158 kg
7004CDBd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 18.0 kN | C0r: 13.2 kN | Mass: 0.158 kg
7004CDFd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 18.0 kN | C0r: 13.2 kN | Mass: 0.158 kg
7004CDTd: 20 mm | D: 42 mm | B1 (pair): 24 mm | Cr: 18.0 kN | C0r: 13.2 kN | Mass: 0.158 kg
7204DBd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 23.5 kN | C0r: 16.8 kN | Mass: 0.224 kg
7204DFd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 23.5 kN | C0r: 16.8 kN | Mass: 0.224 kg
7204DTd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 23.5 kN | C0r: 16.8 kN | Mass: 0.224 kg
7204BDBd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 21.6 kN | C0r: 15.4 kN | Mass: 0.224 kg
7204BDFd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 21.6 kN | C0r: 15.4 kN | Mass: 0.224 kg
7204BDTd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 21.6 kN | C0r: 15.4 kN | Mass: 0.224 kg
7204CDBd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.2 kN | C0r: 18.0 kN | Mass: 0.224 kg
7204CDFd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.2 kN | C0r: 18.0 kN | Mass: 0.224 kg
7204CDTd: 20 mm | D: 47 mm | B1 (pair): 28 mm | Cr: 25.2 kN | C0r: 18.0 kN | Mass: 0.224 kg
7304DBd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 28.3 kN | C0r: 18.8 kN | Mass: 0.300 kg
7304DFd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 28.3 kN | C0r: 18.8 kN | Mass: 0.300 kg
7304DTd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 28.3 kN | C0r: 18.8 kN | Mass: 0.300 kg
7304BDBd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.3 kN | C0r: 17.4 kN | Mass: 0.300 kg
7304BDFd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.3 kN | C0r: 17.4 kN | Mass: 0.300 kg
7304BDTd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.3 kN | C0r: 17.4 kN | Mass: 0.300 kg
7304CDBd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 30.1 kN | C0r: 19.9 kN | Mass: 0.300 kg
7304CDFd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 30.1 kN | C0r: 19.9 kN | Mass: 0.300 kg
7304CDTd: 20 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 30.1 kN | C0r: 19.9 kN | Mass: 0.300 kg
7404DBd: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 57.8 kN | C0r: 38.2 kN | Mass: 0.790 kg
7404DFd: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 57.8 kN | C0r: 38.2 kN | Mass: 0.790 kg
7404DTd: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 57.8 kN | C0r: 38.2 kN | Mass: 0.790 kg
7404BDBd: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 54.4 kN | C0r: 35.9 kN | Mass: 0.790 kg
7404BDFd: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 54.4 kN | C0r: 35.9 kN | Mass: 0.790 kg
7404BDTd: 20 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 54.4 kN | C0r: 35.9 kN | Mass: 0.790 kg
7905CDBd: 25 mm | D: 42 mm | B1 (pair): 18 mm | Cr: 12.7 kN | C0r: 10.9 kN | Mass: 0.082 kg
7905CDFd: 25 mm | D: 42 mm | B1 (pair): 18 mm | Cr: 12.7 kN | C0r: 10.9 kN | Mass: 0.082 kg
7905CDTd: 25 mm | D: 42 mm | B1 (pair): 18 mm | Cr: 12.7 kN | C0r: 10.9 kN | Mass: 0.082 kg
7005DBd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 18.3 kN | C0r: 14.8 kN | Mass: 0.182 kg
7005DFd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 18.3 kN | C0r: 14.8 kN | Mass: 0.182 kg
7005DTd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 18.3 kN | C0r: 14.8 kN | Mass: 0.182 kg
7005BDBd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 13.4 kN | Mass: 0.182 kg
7005BDFd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 13.4 kN | Mass: 0.182 kg
7005BDTd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 16.6 kN | C0r: 13.4 kN | Mass: 0.182 kg
7005CDBd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 20.0 kN | C0r: 16.0 kN | Mass: 0.182 kg
7005CDFd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 20.0 kN | C0r: 16.0 kN | Mass: 0.182 kg
7005CDTd: 25 mm | D: 47 mm | B1 (pair): 24 mm | Cr: 20.0 kN | C0r: 16.0 kN | Mass: 0.182 kg
7205DBd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 24.9 kN | C0r: 19.0 kN | Mass: 0.270 kg
7205DFd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 24.9 kN | C0r: 19.0 kN | Mass: 0.270 kg
7205DTd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 24.9 kN | C0r: 19.0 kN | Mass: 0.270 kg
7205BDBd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 22.7 kN | C0r: 17.4 kN | Mass: 0.270 kg
7205BDFd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 22.7 kN | C0r: 17.4 kN | Mass: 0.270 kg
7205BDTd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 22.7 kN | C0r: 17.4 kN | Mass: 0.270 kg
7205CDBd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.9 kN | C0r: 20.5 kN | Mass: 0.270 kg
7205CDFd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.9 kN | C0r: 20.5 kN | Mass: 0.270 kg
7205CDTd: 25 mm | D: 52 mm | B1 (pair): 30 mm | Cr: 26.9 kN | C0r: 20.5 kN | Mass: 0.270 kg
7305DBd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 40.3 kN | C0r: 28.8 kN | Mass: 0.486 kg
7305DFd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 40.3 kN | C0r: 28.8 kN | Mass: 0.486 kg
7305DTd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 40.3 kN | C0r: 28.8 kN | Mass: 0.486 kg
7305BDBd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 37.2 kN | C0r: 26.6 kN | Mass: 0.486 kg
7305BDFd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 37.2 kN | C0r: 26.6 kN | Mass: 0.486 kg
7305BDTd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 37.2 kN | C0r: 26.6 kN | Mass: 0.486 kg
7305CDBd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 42.8 kN | C0r: 30.6 kN | Mass: 0.486 kg
7305CDFd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 42.8 kN | C0r: 30.6 kN | Mass: 0.486 kg
7305CDTd: 25 mm | D: 62 mm | B1 (pair): 34 mm | Cr: 42.8 kN | C0r: 30.6 kN | Mass: 0.486 kg
7405DBd: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 64.5 kN | C0r: 46.3 kN | Mass: 1.05 kg
7405DFd: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 64.5 kN | C0r: 46.3 kN | Mass: 1.05 kg
7405DTd: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 64.5 kN | C0r: 46.3 kN | Mass: 1.05 kg
7405BDBd: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 60.0 kN | C0r: 43.0 kN | Mass: 1.05 kg
7405BDFd: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 60.0 kN | C0r: 43.0 kN | Mass: 1.05 kg
7405BDTd: 25 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 60.0 kN | C0r: 43.0 kN | Mass: 1.05 kg
7906CDBd: 30 mm | D: 47 mm | B1 (pair): 18 mm | Cr: 13.5 kN | C0r: 12.5 kN | Mass: 0.092 kg
7906CDFd: 30 mm | D: 47 mm | B1 (pair): 18 mm | Cr: 13.5 kN | C0r: 12.5 kN | Mass: 0.092 kg
7906CDTd: 30 mm | D: 47 mm | B1 (pair): 18 mm | Cr: 13.5 kN | C0r: 12.5 kN | Mass: 0.092 kg
HAR006CDBd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 14.2 kN | C0r: 9.75 kN | Mass: 0.232 kg
HAR006CDFd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 14.2 kN | C0r: 9.75 kN | Mass: 0.232 kg
HAR006CDTd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 14.2 kN | C0r: 9.75 kN | Mass: 0.232 kg
7006DBd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 23.6 kN | C0r: 20.2 kN | Mass: 0.266 kg
7006DFd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 23.6 kN | C0r: 20.2 kN | Mass: 0.266 kg
7006DTd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 23.6 kN | C0r: 20.2 kN | Mass: 0.266 kg
7006BDBd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 21.3 kN | C0r: 18.4 kN | Mass: 0.266 kg
7006BDFd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 21.3 kN | C0r: 18.4 kN | Mass: 0.266 kg
7006BDTd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 21.3 kN | C0r: 18.4 kN | Mass: 0.266 kg
7006CDBd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 25.7 kN | C0r: 22.0 kN | Mass: 0.266 kg
7006CDFd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 25.7 kN | C0r: 22.0 kN | Mass: 0.266 kg
7006CDTd: 30 mm | D: 55 mm | B1 (pair): 26 mm | Cr: 25.7 kN | C0r: 22.0 kN | Mass: 0.266 kg
7206DBd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 34.7 kN | C0r: 27.4 kN | Mass: 0.416 kg
7206DFd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 34.7 kN | C0r: 27.4 kN | Mass: 0.416 kg
7206DTd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 34.7 kN | C0r: 27.4 kN | Mass: 0.416 kg
7206BDBd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 31.6 kN | C0r: 25.0 kN | Mass: 0.416 kg
7206BDFd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 31.6 kN | C0r: 25.0 kN | Mass: 0.416 kg
7206BDTd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 31.6 kN | C0r: 25.0 kN | Mass: 0.416 kg
7206CDBd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 37.4 kN | C0r: 29.5 kN | Mass: 0.416 kg
7206CDFd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 37.4 kN | C0r: 29.5 kN | Mass: 0.416 kg
7206CDTd: 30 mm | D: 62 mm | B1 (pair): 32 mm | Cr: 37.4 kN | C0r: 29.5 kN | Mass: 0.416 kg
7306DBd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 48.9 kN | C0r: 37.8 kN | Mass: 0.724 kg
7306DFd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 48.9 kN | C0r: 37.8 kN | Mass: 0.724 kg
7306DTd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 48.9 kN | C0r: 37.8 kN | Mass: 0.724 kg
7306BDBd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 44.9 kN | C0r: 34.7 kN | Mass: 0.724 kg
7306BDFd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 44.9 kN | C0r: 34.7 kN | Mass: 0.724 kg
7306BDTd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 44.9 kN | C0r: 34.7 kN | Mass: 0.724 kg
7306CDBd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 52.5 kN | C0r: 40.5 kN | Mass: 0.724 kg
7306CDFd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 52.5 kN | C0r: 40.5 kN | Mass: 0.724 kg
7306CDTd: 30 mm | D: 72 mm | B1 (pair): 38 mm | Cr: 52.5 kN | C0r: 40.5 kN | Mass: 0.724 kg
7406DBd: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 77.3 kN | C0r: 56.9 kN | Mass: 1.37 kg
7406DFd: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 77.3 kN | C0r: 56.9 kN | Mass: 1.37 kg
7406DTd: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 77.3 kN | C0r: 56.9 kN | Mass: 1.37 kg
7406BDBd: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 71.8 kN | C0r: 52.8 kN | Mass: 1.37 kg
7406BDFd: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 71.8 kN | C0r: 52.8 kN | Mass: 1.37 kg
7406BDTd: 30 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 71.8 kN | C0r: 52.8 kN | Mass: 1.37 kg
7907CDBd: 35 mm | D: 55 mm | B1 (pair): 20 mm | Cr: 20.4 kN | C0r: 19.4 kN | Mass: 0.148 kg
7907CDFd: 35 mm | D: 55 mm | B1 (pair): 20 mm | Cr: 20.4 kN | C0r: 19.4 kN | Mass: 0.148 kg
7907CDTd: 35 mm | D: 55 mm | B1 (pair): 20 mm | Cr: 20.4 kN | C0r: 19.4 kN | Mass: 0.148 kg
HAR007CDBd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 15.0 kN | C0r: 11.1 kN | Mass: 0.316 kg
HAR007CDFd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 15.0 kN | C0r: 11.1 kN | Mass: 0.316 kg
HAR007CDTd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 15.0 kN | C0r: 11.1 kN | Mass: 0.316 kg
7007DBd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 28.4 kN | C0r: 25.2 kN | Mass: 0.340 kg
7007DFd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 28.4 kN | C0r: 25.2 kN | Mass: 0.340 kg
7007DTd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 28.4 kN | C0r: 25.2 kN | Mass: 0.340 kg
7007BDBd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 22.8 kN | Mass: 0.340 kg
7007BDFd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 22.8 kN | Mass: 0.340 kg
7007BDTd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 25.7 kN | C0r: 22.8 kN | Mass: 0.340 kg
7007CDBd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 31.0 kN | C0r: 27.4 kN | Mass: 0.340 kg
7007CDFd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 31.0 kN | C0r: 27.4 kN | Mass: 0.340 kg
7007CDTd: 35 mm | D: 62 mm | B1 (pair): 28 mm | Cr: 31.0 kN | C0r: 27.4 kN | Mass: 0.340 kg
7207DBd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 45.7 kN | C0r: 37.3 kN | Mass: 0.590 kg
7207DFd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 45.7 kN | C0r: 37.3 kN | Mass: 0.590 kg
7207DTd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 45.7 kN | C0r: 37.3 kN | Mass: 0.590 kg
7207BDBd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 41.6 kN | C0r: 34.1 kN | Mass: 0.590 kg
7207BDFd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 41.6 kN | C0r: 34.1 kN | Mass: 0.590 kg
7207BDTd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 41.6 kN | C0r: 34.1 kN | Mass: 0.590 kg
7207CDBd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 49.4 kN | C0r: 40.2 kN | Mass: 0.590 kg
7207CDFd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 49.4 kN | C0r: 40.2 kN | Mass: 0.590 kg
7207CDTd: 35 mm | D: 72 mm | B1 (pair): 34 mm | Cr: 49.4 kN | C0r: 40.2 kN | Mass: 0.590 kg
7307DBd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 57.5 kN | C0r: 44.0 kN | Mass: 0.950 kg
7307DFd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 57.5 kN | C0r: 44.0 kN | Mass: 0.950 kg
7307DTd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 57.5 kN | C0r: 44.0 kN | Mass: 0.950 kg
7307BDBd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 52.7 kN | C0r: 40.5 kN | Mass: 0.950 kg
7307BDFd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 52.7 kN | C0r: 40.5 kN | Mass: 0.950 kg
7307BDTd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 52.7 kN | C0r: 40.5 kN | Mass: 0.950 kg
7307CDBd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 61.6 kN | C0r: 47.2 kN | Mass: 0.950 kg
7307CDFd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 61.6 kN | C0r: 47.2 kN | Mass: 0.950 kg
7307CDTd: 35 mm | D: 80 mm | B1 (pair): 42 mm | Cr: 61.6 kN | C0r: 47.2 kN | Mass: 0.950 kg
7407DBd: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 98.2 kN | C0r: 73.9 kN | Mass: 1.90 kg
7407DFd: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 98.2 kN | C0r: 73.9 kN | Mass: 1.90 kg
7407DTd: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 98.2 kN | C0r: 73.9 kN | Mass: 1.90 kg
7407BDBd: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 91.3 kN | C0r: 68.6 kN | Mass: 1.90 kg
7407BDFd: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 91.3 kN | C0r: 68.6 kN | Mass: 1.90 kg
7407BDTd: 35 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 91.3 kN | C0r: 68.6 kN | Mass: 1.90 kg
7908CDBd: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 25.6 kN | C0r: 24.9 kN | Mass: 0.214 kg
7908CDFd: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 25.6 kN | C0r: 24.9 kN | Mass: 0.214 kg
7908CDTd: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 25.6 kN | C0r: 24.9 kN | Mass: 0.214 kg
HAR908CDBd: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 10.3 kN | C0r: 8.15 kN | Mass: 0.230 kg
HAR908CDFd: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 10.3 kN | C0r: 8.15 kN | Mass: 0.230 kg
HAR908CDTd: 40 mm | D: 62 mm | B1 (pair): 24 mm | Cr: 10.3 kN | C0r: 8.15 kN | Mass: 0.230 kg
HAR008CDBd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 15.8 kN | C0r: 12.4 kN | Mass: 0.400 kg
HAR008CDFd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 15.8 kN | C0r: 12.4 kN | Mass: 0.400 kg
HAR008CDTd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 15.8 kN | C0r: 12.4 kN | Mass: 0.400 kg
7008DBd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 30.4 kN | C0r: 29.2 kN | Mass: 0.420 kg
7008DFd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 30.4 kN | C0r: 29.2 kN | Mass: 0.420 kg
7008DTd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 30.4 kN | C0r: 29.2 kN | Mass: 0.420 kg
7008BDBd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 27.4 kN | C0r: 26.4 kN | Mass: 0.420 kg
7008BDFd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 27.4 kN | C0r: 26.4 kN | Mass: 0.420 kg
7008BDTd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 27.4 kN | C0r: 26.4 kN | Mass: 0.420 kg
7008CDBd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 33.4 kN | C0r: 31.8 kN | Mass: 0.420 kg
7008CDFd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 33.4 kN | C0r: 31.8 kN | Mass: 0.420 kg
7008CDTd: 40 mm | D: 68 mm | B1 (pair): 30 mm | Cr: 33.4 kN | C0r: 31.8 kN | Mass: 0.420 kg
7208DBd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 54.6 kN | C0r: 46.7 kN | Mass: 0.764 kg
7208DFd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 54.6 kN | C0r: 46.7 kN | Mass: 0.764 kg
7208DTd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 54.6 kN | C0r: 46.7 kN | Mass: 0.764 kg
7208BDBd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 49.7 kN | C0r: 42.7 kN | Mass: 0.764 kg
7208BDFd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 49.7 kN | C0r: 42.7 kN | Mass: 0.764 kg
7208BDTd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 49.7 kN | C0r: 42.7 kN | Mass: 0.764 kg
7208CDBd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 59.1 kN | C0r: 50.4 kN | Mass: 0.764 kg
7208CDFd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 59.1 kN | C0r: 50.4 kN | Mass: 0.764 kg
7208CDTd: 40 mm | D: 80 mm | B1 (pair): 36 mm | Cr: 59.1 kN | C0r: 50.4 kN | Mass: 0.764 kg
7308DBd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 70.2 kN | C0r: 54.9 kN | Mass: 1.31 kg
7308DFd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 70.2 kN | C0r: 54.9 kN | Mass: 1.31 kg
7308DTd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 70.2 kN | C0r: 54.9 kN | Mass: 1.31 kg
7308BDBd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 64.5 kN | C0r: 50.5 kN | Mass: 1.31 kg
7308BDFd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 64.5 kN | C0r: 50.5 kN | Mass: 1.31 kg
7308BDTd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 64.5 kN | C0r: 50.5 kN | Mass: 1.31 kg
7308CDBd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 75.3 kN | C0r: 58.8 kN | Mass: 1.31 kg
7308CDFd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 75.3 kN | C0r: 58.8 kN | Mass: 1.31 kg
7308CDTd: 40 mm | D: 90 mm | B1 (pair): 46 mm | Cr: 75.3 kN | C0r: 58.8 kN | Mass: 1.31 kg
7408DBd: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 87.1 kN | Mass: 2.46 kg
7408DFd: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 87.1 kN | Mass: 2.46 kg
7408DTd: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 87.1 kN | Mass: 2.46 kg
7408BDBd: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 80.8 kN | Mass: 2.46 kg
7408BDFd: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 80.8 kN | Mass: 2.46 kg
7408BDTd: 40 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 80.8 kN | Mass: 2.46 kg
7909CDBd: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 27.0 kN | C0r: 28.2 kN | Mass: 0.254 kg
7909CDFd: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 27.0 kN | C0r: 28.2 kN | Mass: 0.254 kg
7909CDTd: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 27.0 kN | C0r: 28.2 kN | Mass: 0.254 kg
HAR909CDBd: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 11.0 kN | C0r: 9.35 kN | Mass: 0.272 kg
HAR909CDFd: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 11.0 kN | C0r: 9.35 kN | Mass: 0.272 kg
HAR909CDTd: 45 mm | D: 68 mm | B1 (pair): 24 mm | Cr: 11.0 kN | C0r: 9.35 kN | Mass: 0.272 kg
HAR009CDBd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 17.6 kN | C0r: 14.2 kN | Mass: 0.502 kg
HAR009CDFd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 17.6 kN | C0r: 14.2 kN | Mass: 0.502 kg
HAR009CDTd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 17.6 kN | C0r: 14.2 kN | Mass: 0.502 kg
7009DBd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 36.2 kN | C0r: 35.4 kN | Mass: 0.520 kg
7009DFd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 36.2 kN | C0r: 35.4 kN | Mass: 0.520 kg
7009DTd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 36.2 kN | C0r: 35.4 kN | Mass: 0.520 kg
7009BDBd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 32.5 kN | C0r: 32.0 kN | Mass: 0.520 kg
7009BDFd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 32.5 kN | C0r: 32.0 kN | Mass: 0.520 kg
7009BDTd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 32.5 kN | C0r: 32.0 kN | Mass: 0.520 kg
7009CDBd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 39.6 kN | C0r: 38.5 kN | Mass: 0.520 kg
7009CDFd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 39.6 kN | C0r: 38.5 kN | Mass: 0.520 kg
7009CDTd: 45 mm | D: 75 mm | B1 (pair): 32 mm | Cr: 39.6 kN | C0r: 38.5 kN | Mass: 0.520 kg
7209DBd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 61.3 kN | C0r: 53.2 kN | Mass: 0.860 kg
7209DFd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 61.3 kN | C0r: 53.2 kN | Mass: 0.860 kg
7209DTd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 61.3 kN | C0r: 53.2 kN | Mass: 0.860 kg
7209BDBd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 55.8 kN | C0r: 48.6 kN | Mass: 0.860 kg
7209BDFd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 55.8 kN | C0r: 48.6 kN | Mass: 0.860 kg
7209BDTd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 55.8 kN | C0r: 48.6 kN | Mass: 0.860 kg
7209CDBd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 66.3 kN | C0r: 57.4 kN | Mass: 0.860 kg
7209CDFd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 66.3 kN | C0r: 57.4 kN | Mass: 0.860 kg
7209CDTd: 45 mm | D: 85 mm | B1 (pair): 38 mm | Cr: 66.3 kN | C0r: 57.4 kN | Mass: 0.860 kg
7309DBd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 89.6 kN | C0r: 74.2 kN | Mass: 1.75 kg
7309DFd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 89.6 kN | C0r: 74.2 kN | Mass: 1.75 kg
7309DTd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 89.6 kN | C0r: 74.2 kN | Mass: 1.75 kg
7309BDBd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 82.1 kN | C0r: 68.2 kN | Mass: 1.75 kg
7309BDFd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 82.1 kN | C0r: 68.2 kN | Mass: 1.75 kg
7309BDTd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 82.1 kN | C0r: 68.2 kN | Mass: 1.75 kg
7309CDBd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 96.1 kN | C0r: 79.5 kN | Mass: 1.75 kg
7309CDFd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 96.1 kN | C0r: 79.5 kN | Mass: 1.75 kg
7309CDTd: 45 mm | D: 100 mm | B1 (pair): 50 mm | Cr: 96.1 kN | C0r: 79.5 kN | Mass: 1.75 kg
7409DBd: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 138 kN | C0r: 108 kN | Mass: 3.10 kg
7409DFd: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 138 kN | C0r: 108 kN | Mass: 3.10 kg
7409DTd: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 138 kN | C0r: 108 kN | Mass: 3.10 kg
7409BDBd: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 128 kN | C0r: 100 kN | Mass: 3.10 kg
7409BDFd: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 128 kN | C0r: 100 kN | Mass: 3.10 kg
7409BDTd: 45 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 128 kN | C0r: 100 kN | Mass: 3.10 kg
7910CDBd: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 28.3 kN | C0r: 31.4 kN | Mass: 0.256 kg
7910CDFd: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 28.3 kN | C0r: 31.4 kN | Mass: 0.256 kg
7910CDTd: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 28.3 kN | C0r: 31.4 kN | Mass: 0.256 kg
HAR910CDBd: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 14.8 kN | C0r: 12.6 kN | Mass: 0.262 kg
HAR910CDFd: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 14.8 kN | C0r: 12.6 kN | Mass: 0.262 kg
HAR910CDTd: 50 mm | D: 72 mm | B1 (pair): 24 mm | Cr: 14.8 kN | C0r: 12.6 kN | Mass: 0.262 kg
HAR010CDBd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 18.5 kN | C0r: 15.7 kN | Mass: 0.546 kg
HAR010CDFd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 18.5 kN | C0r: 15.7 kN | Mass: 0.546 kg
HAR010CDTd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 18.5 kN | C0r: 15.7 kN | Mass: 0.546 kg
7010DBd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 38.4 kN | C0r: 40.2 kN | Mass: 0.580 kg
7010DFd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 38.4 kN | C0r: 40.2 kN | Mass: 0.580 kg
7010DTd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 38.4 kN | C0r: 40.2 kN | Mass: 0.580 kg
7010BDBd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 34.5 kN | C0r: 36.2 kN | Mass: 0.580 kg
7010BDFd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 34.5 kN | C0r: 36.2 kN | Mass: 0.580 kg
7010BDTd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 34.5 kN | C0r: 36.2 kN | Mass: 0.580 kg
7010CDBd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 42.2 kN | C0r: 43.9 kN | Mass: 0.580 kg
7010CDFd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 42.2 kN | C0r: 43.9 kN | Mass: 0.580 kg
7010CDTd: 50 mm | D: 80 mm | B1 (pair): 32 mm | Cr: 42.2 kN | C0r: 43.9 kN | Mass: 0.580 kg
7210DBd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 64.0 kN | C0r: 58.7 kN | Mass: 0.970 kg
7210DFd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 64.0 kN | C0r: 58.7 kN | Mass: 0.970 kg
7210DTd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 64.0 kN | C0r: 58.7 kN | Mass: 0.970 kg
7210BDBd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 58.0 kN | C0r: 53.5 kN | Mass: 0.970 kg
7210BDFd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 58.0 kN | C0r: 53.5 kN | Mass: 0.970 kg
7210BDTd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 58.0 kN | C0r: 53.5 kN | Mass: 0.970 kg
7210CDBd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 69.6 kN | C0r: 63.6 kN | Mass: 0.970 kg
7210CDFd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 69.6 kN | C0r: 63.6 kN | Mass: 0.970 kg
7210CDTd: 50 mm | D: 90 mm | B1 (pair): 40 mm | Cr: 69.6 kN | C0r: 63.6 kN | Mass: 0.970 kg
7310DBd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 96.3 kN | Mass: 2.28 kg
7310DFd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 96.3 kN | Mass: 2.28 kg
7310DTd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 114 kN | C0r: 96.3 kN | Mass: 2.28 kg
7310BDBd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 88.6 kN | Mass: 2.28 kg
7310BDFd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 88.6 kN | Mass: 2.28 kg
7310BDTd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 105 kN | C0r: 88.6 kN | Mass: 2.28 kg
7310CDBd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 122 kN | C0r: 103 kN | Mass: 2.28 kg
7310CDFd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 122 kN | C0r: 103 kN | Mass: 2.28 kg
7310CDTd: 50 mm | D: 110 mm | B1 (pair): 54 mm | Cr: 122 kN | C0r: 103 kN | Mass: 2.28 kg
7410DBd: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 158 kN | C0r: 131 kN | Mass: 3.84 kg
7410DFd: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 158 kN | C0r: 131 kN | Mass: 3.84 kg
7410DTd: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 158 kN | C0r: 131 kN | Mass: 3.84 kg
7410BDBd: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 147 kN | C0r: 121 kN | Mass: 3.84 kg
7410BDFd: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 147 kN | C0r: 121 kN | Mass: 3.84 kg
7410BDTd: 50 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 147 kN | C0r: 121 kN | Mass: 3.84 kg
7911CDBd: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 32.0 kN | C0r: 37.0 kN | Mass: 0.356 kg
7911CDFd: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 32.0 kN | C0r: 37.0 kN | Mass: 0.356 kg
7911CDTd: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 32.0 kN | C0r: 37.0 kN | Mass: 0.356 kg
HAR911CDBd: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 16.4 kN | C0r: 15.3 kN | Mass: 0.378 kg
HAR911CDFd: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 16.4 kN | C0r: 15.3 kN | Mass: 0.378 kg
HAR911CDTd: 55 mm | D: 80 mm | B1 (pair): 26 mm | Cr: 16.4 kN | C0r: 15.3 kN | Mass: 0.378 kg
HAR011CDBd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 22.9 kN | C0r: 19.8 kN | Mass: 0.806 kg
HAR011CDFd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 22.9 kN | C0r: 19.8 kN | Mass: 0.806 kg
HAR011CDTd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 22.9 kN | C0r: 19.8 kN | Mass: 0.806 kg
7011DBd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 50.5 kN | C0r: 52.5 kN | Mass: 0.840 kg
7011DFd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 50.5 kN | C0r: 52.5 kN | Mass: 0.840 kg
7011DTd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 50.5 kN | C0r: 52.5 kN | Mass: 0.840 kg
7011BDBd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 45.4 kN | C0r: 47.5 kN | Mass: 0.840 kg
7011BDFd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 45.4 kN | C0r: 47.5 kN | Mass: 0.840 kg
7011BDTd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 45.4 kN | C0r: 47.5 kN | Mass: 0.840 kg
7011CDBd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 55.4 kN | C0r: 57.3 kN | Mass: 0.840 kg
7011CDFd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 55.4 kN | C0r: 57.3 kN | Mass: 0.840 kg
7011CDTd: 55 mm | D: 90 mm | B1 (pair): 36 mm | Cr: 55.4 kN | C0r: 57.3 kN | Mass: 0.840 kg
7211DBd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 79.1 kN | C0r: 74.2 kN | Mass: 1.27 kg
7211DFd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 79.1 kN | C0r: 74.2 kN | Mass: 1.27 kg
7211DTd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 79.1 kN | C0r: 74.2 kN | Mass: 1.27 kg
7211BDBd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 71.6 kN | C0r: 67.6 kN | Mass: 1.27 kg
7211BDFd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 71.6 kN | C0r: 67.6 kN | Mass: 1.27 kg
7211BDTd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 71.6 kN | C0r: 67.6 kN | Mass: 1.27 kg
7211CDBd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 85.9 kN | C0r: 80.4 kN | Mass: 1.27 kg
7211CDFd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 85.9 kN | C0r: 80.4 kN | Mass: 1.27 kg
7211CDTd: 55 mm | D: 100 mm | B1 (pair): 42 mm | Cr: 85.9 kN | C0r: 80.4 kN | Mass: 1.27 kg
7311DBd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 132 kN | C0r: 113 kN | Mass: 2.90 kg
7311DFd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 132 kN | C0r: 113 kN | Mass: 2.90 kg
7311DTd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 132 kN | C0r: 113 kN | Mass: 2.90 kg
7311BDBd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 121 kN | C0r: 104 kN | Mass: 2.90 kg
7311BDFd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 121 kN | C0r: 104 kN | Mass: 2.90 kg
7311BDTd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 121 kN | C0r: 104 kN | Mass: 2.90 kg
7311CDBd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 141 kN | C0r: 121 kN | Mass: 2.90 kg
7311CDFd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 141 kN | C0r: 121 kN | Mass: 2.90 kg
7311CDTd: 55 mm | D: 120 mm | B1 (pair): 58 mm | Cr: 141 kN | C0r: 121 kN | Mass: 2.90 kg
7411DBd: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 192 kN | C0r: 165 kN | Mass: 4.72 kg
7411DFd: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 192 kN | C0r: 165 kN | Mass: 4.72 kg
7411DTd: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 192 kN | C0r: 165 kN | Mass: 4.72 kg
7411BDBd: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 179 kN | C0r: 153 kN | Mass: 4.72 kg
7411BDFd: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 179 kN | C0r: 153 kN | Mass: 4.72 kg
7411BDTd: 55 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 179 kN | C0r: 153 kN | Mass: 4.72 kg
7912CDBd: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 37.8 kN | C0r: 43.6 kN | Mass: 0.374 kg
7912CDFd: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 37.8 kN | C0r: 43.6 kN | Mass: 0.374 kg
7912CDTd: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 37.8 kN | C0r: 43.6 kN | Mass: 0.374 kg
HAR912CDBd: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 16.2 kN | C0r: 15.5 kN | Mass: 0.404 kg
HAR912CDFd: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 16.2 kN | C0r: 15.5 kN | Mass: 0.404 kg
HAR912CDTd: 60 mm | D: 85 mm | B1 (pair): 26 mm | Cr: 16.2 kN | C0r: 15.5 kN | Mass: 0.404 kg
HAR012CDBd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 23.9 kN | C0r: 21.7 kN | Mass: 0.866 kg
HAR012CDFd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 23.9 kN | C0r: 21.7 kN | Mass: 0.866 kg
HAR012CDTd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 23.9 kN | C0r: 21.7 kN | Mass: 0.866 kg
7012DBd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 51.8 kN | C0r: 56.1 kN | Mass: 0.900 kg
7012DFd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 51.8 kN | C0r: 56.1 kN | Mass: 0.900 kg
7012DTd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 51.8 kN | C0r: 56.1 kN | Mass: 0.900 kg
7012BDBd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 46.4 kN | C0r: 50.7 kN | Mass: 0.900 kg
7012BDFd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 46.4 kN | C0r: 50.7 kN | Mass: 0.900 kg
7012BDTd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 46.4 kN | C0r: 50.7 kN | Mass: 0.900 kg
7012CDBd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 56.9 kN | C0r: 61.3 kN | Mass: 0.900 kg
7012CDFd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 56.9 kN | C0r: 61.3 kN | Mass: 0.900 kg
7012CDTd: 60 mm | D: 95 mm | B1 (pair): 36 mm | Cr: 56.9 kN | C0r: 61.3 kN | Mass: 0.900 kg
7212DBd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 95.7 kN | C0r: 91.5 kN | Mass: 1.64 kg
7212DFd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 95.7 kN | C0r: 91.5 kN | Mass: 1.64 kg
7212DTd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 95.7 kN | C0r: 91.5 kN | Mass: 1.64 kg
7212BDBd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 86.8 kN | C0r: 83.3 kN | Mass: 1.64 kg
7212BDFd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 86.8 kN | C0r: 83.3 kN | Mass: 1.64 kg
7212BDTd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 86.8 kN | C0r: 83.3 kN | Mass: 1.64 kg
7212CDBd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 104 kN | C0r: 99.0 kN | Mass: 1.64 kg
7212CDFd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 104 kN | C0r: 99.0 kN | Mass: 1.64 kg
7212CDTd: 60 mm | D: 110 mm | B1 (pair): 44 mm | Cr: 104 kN | C0r: 99.0 kN | Mass: 1.64 kg
7312DBd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 150 kN | C0r: 131 kN | Mass: 3.62 kg
7312DFd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 150 kN | C0r: 131 kN | Mass: 3.62 kg
7312DTd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 150 kN | C0r: 131 kN | Mass: 3.62 kg
7312BDBd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 138 kN | C0r: 121 kN | Mass: 3.62 kg
7312BDFd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 138 kN | C0r: 121 kN | Mass: 3.62 kg
7312BDTd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 138 kN | C0r: 121 kN | Mass: 3.62 kg
7312CDBd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 161 kN | C0r: 141 kN | Mass: 3.62 kg
7312CDFd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 161 kN | C0r: 141 kN | Mass: 3.62 kg
7312CDTd: 60 mm | D: 130 mm | B1 (pair): 62 mm | Cr: 161 kN | C0r: 141 kN | Mass: 3.62 kg
7412DBd: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 209 kN | C0r: 187 kN | Mass: 5.70 kg
7412DFd: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 209 kN | C0r: 187 kN | Mass: 5.70 kg
7412DTd: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 209 kN | C0r: 187 kN | Mass: 5.70 kg
7412BDBd: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 194 kN | C0r: 173 kN | Mass: 5.70 kg
7412BDFd: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 194 kN | C0r: 173 kN | Mass: 5.70 kg
7412BDTd: 60 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 194 kN | C0r: 173 kN | Mass: 5.70 kg
7913CDBd: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 33.7 kN | C0r: 42.3 kN | Mass: 0.410 kg
7913CDFd: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 33.7 kN | C0r: 42.3 kN | Mass: 0.410 kg
7913CDTd: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 33.7 kN | C0r: 42.3 kN | Mass: 0.410 kg
HAR913CDBd: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 19.1 kN | C0r: 18.9 kN | Mass: 0.424 kg
HAR913CDFd: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 19.1 kN | C0r: 18.9 kN | Mass: 0.424 kg
HAR913CDTd: 65 mm | D: 90 mm | B1 (pair): 26 mm | Cr: 19.1 kN | C0r: 18.9 kN | Mass: 0.424 kg
HAR013CDBd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 24.8 kN | C0r: 23.5 kN | Mass: 0.924 kg
HAR013CDFd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 24.8 kN | C0r: 23.5 kN | Mass: 0.924 kg
HAR013CDTd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 24.8 kN | C0r: 23.5 kN | Mass: 0.924 kg
7013DBd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 54.7 kN | C0r: 62.8 kN | Mass: 0.940 kg
7013DFd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 54.7 kN | C0r: 62.8 kN | Mass: 0.940 kg
7013DTd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 54.7 kN | C0r: 62.8 kN | Mass: 0.940 kg
7013BDBd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 48.9 kN | C0r: 56.6 kN | Mass: 0.940 kg
7013BDFd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 48.9 kN | C0r: 56.6 kN | Mass: 0.940 kg
7013BDTd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 48.9 kN | C0r: 56.6 kN | Mass: 0.940 kg
7013CDBd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 60.2 kN | C0r: 68.7 kN | Mass: 0.940 kg
7013CDFd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 60.2 kN | C0r: 68.7 kN | Mass: 0.940 kg
7013CDTd: 65 mm | D: 100 mm | B1 (pair): 36 mm | Cr: 60.2 kN | C0r: 68.7 kN | Mass: 0.940 kg
7213DBd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 109 kN | C0r: 108 kN | Mass: 2.04 kg
7213DFd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 109 kN | C0r: 108 kN | Mass: 2.04 kg
7213DTd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 109 kN | C0r: 108 kN | Mass: 2.04 kg
7213BDBd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 99.0 kN | C0r: 98.7 kN | Mass: 2.04 kg
7213BDFd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 99.0 kN | C0r: 98.7 kN | Mass: 2.04 kg
7213BDTd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 99.0 kN | C0r: 98.7 kN | Mass: 2.04 kg
7213CDBd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 119 kN | C0r: 117 kN | Mass: 2.04 kg
7213CDFd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 119 kN | C0r: 117 kN | Mass: 2.04 kg
7213CDTd: 65 mm | D: 120 mm | B1 (pair): 46 mm | Cr: 119 kN | C0r: 117 kN | Mass: 2.04 kg
7313DBd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 170 kN | C0r: 151 kN | Mass: 4.44 kg
7313DFd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 170 kN | C0r: 151 kN | Mass: 4.44 kg
7313DTd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 170 kN | C0r: 151 kN | Mass: 4.44 kg
7313BDBd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 156 kN | C0r: 139 kN | Mass: 4.44 kg
7313BDFd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 156 kN | C0r: 139 kN | Mass: 4.44 kg
7313BDTd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 156 kN | C0r: 139 kN | Mass: 4.44 kg
7313CDBd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 182 kN | C0r: 161 kN | Mass: 4.44 kg
7313CDFd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 182 kN | C0r: 161 kN | Mass: 4.44 kg
7313CDTd: 65 mm | D: 140 mm | B1 (pair): 66 mm | Cr: 182 kN | C0r: 161 kN | Mass: 4.44 kg
7413DBd: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 226 kN | C0r: 209 kN | Mass: 6.82 kg
7413DFd: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 226 kN | C0r: 209 kN | Mass: 6.82 kg
7413DTd: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 226 kN | C0r: 209 kN | Mass: 6.82 kg
7413BDBd: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 209 kN | C0r: 194 kN | Mass: 6.82 kg
7413BDFd: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 209 kN | C0r: 194 kN | Mass: 6.82 kg
7413BDTd: 65 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 209 kN | C0r: 194 kN | Mass: 6.82 kg
7914CDBd: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 47.0 kN | C0r: 58.0 kN | Mass: 0.664 kg
7914CDFd: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 47.0 kN | C0r: 58.0 kN | Mass: 0.664 kg
7914CDTd: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 47.0 kN | C0r: 58.0 kN | Mass: 0.664 kg
HAR914CDBd: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 20.9 kN | C0r: 20.9 kN | Mass: 0.712 kg
HAR914CDFd: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 20.9 kN | C0r: 20.9 kN | Mass: 0.712 kg
HAR914CDTd: 70 mm | D: 100 mm | B1 (pair): 32 mm | Cr: 20.9 kN | C0r: 20.9 kN | Mass: 0.712 kg
HAR014CDBd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 33.7 kN | C0r: 30.9 kN | Mass: 1.26 kg
HAR014CDFd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 33.7 kN | C0r: 30.9 kN | Mass: 1.26 kg
HAR014CDTd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 33.7 kN | C0r: 30.9 kN | Mass: 1.26 kg
7014DBd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 69.3 kN | C0r: 78.7 kN | Mass: 1.32 kg
7014DFd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 69.3 kN | C0r: 78.7 kN | Mass: 1.32 kg
7014DTd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 69.3 kN | C0r: 78.7 kN | Mass: 1.32 kg
7014BDBd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 62.1 kN | C0r: 71.1 kN | Mass: 1.32 kg
7014BDFd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 62.1 kN | C0r: 71.1 kN | Mass: 1.32 kg
7014BDTd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 62.1 kN | C0r: 71.1 kN | Mass: 1.32 kg
7014CDBd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 76.2 kN | C0r: 86.0 kN | Mass: 1.32 kg
7014CDFd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 76.2 kN | C0r: 86.0 kN | Mass: 1.32 kg
7014CDTd: 70 mm | D: 110 mm | B1 (pair): 40 mm | Cr: 76.2 kN | C0r: 86.0 kN | Mass: 1.32 kg
7214DBd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 113 kN | C0r: 111 kN | Mass: 2.24 kg
7214DFd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 113 kN | C0r: 111 kN | Mass: 2.24 kg
7214DTd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 113 kN | C0r: 111 kN | Mass: 2.24 kg
7214BDBd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 103 kN | C0r: 101 kN | Mass: 2.24 kg
7214BDFd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 103 kN | C0r: 101 kN | Mass: 2.24 kg
7214BDTd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 103 kN | C0r: 101 kN | Mass: 2.24 kg
7214CDBd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 123 kN | C0r: 120 kN | Mass: 2.24 kg
7214CDFd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 123 kN | C0r: 120 kN | Mass: 2.24 kg
7214CDTd: 70 mm | D: 125 mm | B1 (pair): 48 mm | Cr: 123 kN | C0r: 120 kN | Mass: 2.24 kg
7314DBd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 191 kN | C0r: 172 kN | Mass: 5.40 kg
7314DFd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 191 kN | C0r: 172 kN | Mass: 5.40 kg
7314DTd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 191 kN | C0r: 172 kN | Mass: 5.40 kg
7314BDBd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 175 kN | C0r: 158 kN | Mass: 5.40 kg
7314BDFd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 175 kN | C0r: 158 kN | Mass: 5.40 kg
7314BDTd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 175 kN | C0r: 158 kN | Mass: 5.40 kg
7314CDBd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 205 kN | C0r: 184 kN | Mass: 5.40 kg
7314CDFd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 205 kN | C0r: 184 kN | Mass: 5.40 kg
7314CDTd: 70 mm | D: 150 mm | B1 (pair): 70 mm | Cr: 205 kN | C0r: 184 kN | Mass: 5.40 kg
7414DBd: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 242 kN | C0r: 230 kN | Mass: 9.98 kg
7414DFd: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 242 kN | C0r: 230 kN | Mass: 9.98 kg
7414DTd: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 242 kN | C0r: 230 kN | Mass: 9.98 kg
7414BDBd: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 241 kN | C0r: 237 kN | Mass: 9.98 kg
7414BDFd: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 241 kN | C0r: 237 kN | Mass: 9.98 kg
7414BDTd: 70 mm | D: 180 mm | B1 (pair): 84 mm | Cr: 241 kN | C0r: 237 kN | Mass: 9.98 kg
7915CDBd: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 47.7 kN | C0r: 60.9 kN | Mass: 0.700 kg
7915CDFd: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 47.7 kN | C0r: 60.9 kN | Mass: 0.700 kg
7915CDTd: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 47.7 kN | C0r: 60.9 kN | Mass: 0.700 kg
HAR915CDBd: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 21.5 kN | C0r: 22.4 kN | Mass: 0.740 kg
HAR915CDFd: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 21.5 kN | C0r: 22.4 kN | Mass: 0.740 kg
HAR915CDTd: 75 mm | D: 105 mm | B1 (pair): 32 mm | Cr: 21.5 kN | C0r: 22.4 kN | Mass: 0.740 kg
HAR015CDBd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 34.3 kN | C0r: 32.4 kN | Mass: 1.33 kg
HAR015CDFd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 34.3 kN | C0r: 32.4 kN | Mass: 1.33 kg
HAR015CDTd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 34.3 kN | C0r: 32.4 kN | Mass: 1.33 kg
7015DBd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 70.9 kN | C0r: 83.4 kN | Mass: 1.38 kg
7015DFd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 70.9 kN | C0r: 83.4 kN | Mass: 1.38 kg
7015DTd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 70.9 kN | C0r: 83.4 kN | Mass: 1.38 kg
7015BDBd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 63.5 kN | C0r: 75.2 kN | Mass: 1.38 kg
7015BDFd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 63.5 kN | C0r: 75.2 kN | Mass: 1.38 kg
7015BDTd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 63.5 kN | C0r: 75.2 kN | Mass: 1.38 kg
7015CDBd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 78.0 kN | C0r: 91.3 kN | Mass: 1.38 kg
7015CDFd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 78.0 kN | C0r: 91.3 kN | Mass: 1.38 kg
7015CDTd: 75 mm | D: 115 mm | B1 (pair): 40 mm | Cr: 78.0 kN | C0r: 91.3 kN | Mass: 1.38 kg
7215DBd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 129 kN | C0r: 130 kN | Mass: 2.46 kg
7215DFd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 129 kN | C0r: 130 kN | Mass: 2.46 kg
7215DTd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 129 kN | C0r: 130 kN | Mass: 2.46 kg
7215BDBd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 116 kN | C0r: 119 kN | Mass: 2.46 kg
7215BDFd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 116 kN | C0r: 119 kN | Mass: 2.46 kg
7215BDTd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 116 kN | C0r: 119 kN | Mass: 2.46 kg
7215CDBd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 140 kN | C0r: 141 kN | Mass: 2.46 kg
7215CDFd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 140 kN | C0r: 141 kN | Mass: 2.46 kg
7215CDTd: 75 mm | D: 130 mm | B1 (pair): 50 mm | Cr: 140 kN | C0r: 141 kN | Mass: 2.46 kg
7315DBd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 208 kN | C0r: 194 kN | Mass: 6.30 kg
7315DFd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 208 kN | C0r: 194 kN | Mass: 6.30 kg
7315DTd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 208 kN | C0r: 194 kN | Mass: 6.30 kg
7315BDBd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 191 kN | C0r: 178 kN | Mass: 6.30 kg
7315BDFd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 191 kN | C0r: 178 kN | Mass: 6.30 kg
7315BDTd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 191 kN | C0r: 178 kN | Mass: 6.30 kg
7315CDBd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 223 kN | C0r: 208 kN | Mass: 6.30 kg
7315CDFd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 223 kN | C0r: 208 kN | Mass: 6.30 kg
7315CDTd: 75 mm | D: 160 mm | B1 (pair): 74 mm | Cr: 223 kN | C0r: 208 kN | Mass: 6.30 kg
7415DBd: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 278 kN | C0r: 282 kN | Mass: 11.8 kg
7415DFd: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 278 kN | C0r: 282 kN | Mass: 11.8 kg
7415DTd: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 278 kN | C0r: 282 kN | Mass: 11.8 kg
7415BDBd: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 257 kN | C0r: 261 kN | Mass: 11.8 kg
7415BDFd: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 257 kN | C0r: 261 kN | Mass: 11.8 kg
7415BDTd: 75 mm | D: 190 mm | B1 (pair): 90 mm | Cr: 257 kN | C0r: 261 kN | Mass: 11.8 kg
7916CDBd: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 48.4 kN | C0r: 63.2 kN | Mass: 0.736 kg
7916CDFd: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 48.4 kN | C0r: 63.2 kN | Mass: 0.736 kg
7916CDTd: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 48.4 kN | C0r: 63.2 kN | Mass: 0.736 kg
HAR916CDBd: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 22.2 kN | C0r: 23.9 kN | Mass: 0.796 kg
HAR916CDFd: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 22.2 kN | C0r: 23.9 kN | Mass: 0.796 kg
HAR916CDTd: 80 mm | D: 110 mm | B1 (pair): 32 mm | Cr: 22.2 kN | C0r: 23.9 kN | Mass: 0.796 kg
HAR016CDBd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 40.1 kN | C0r: 38.5 kN | Mass: 1.81 kg
HAR016CDFd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 40.1 kN | C0r: 38.5 kN | Mass: 1.81 kg
HAR016CDTd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 40.1 kN | C0r: 38.5 kN | Mass: 1.81 kg
7016DBd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 86.7 kN | C0r: 101 kN | Mass: 1.86 kg
7016DFd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 86.7 kN | C0r: 101 kN | Mass: 1.86 kg
7016DTd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 86.7 kN | C0r: 101 kN | Mass: 1.86 kg
7016BDBd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 77.7 kN | C0r: 91.3 kN | Mass: 1.86 kg
7016BDFd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 77.7 kN | C0r: 91.3 kN | Mass: 1.86 kg
7016BDTd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 77.7 kN | C0r: 91.3 kN | Mass: 1.86 kg
7016CDBd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 95.3 kN | C0r: 111 kN | Mass: 1.86 kg
7016CDFd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 95.3 kN | C0r: 111 kN | Mass: 1.86 kg
7016CDTd: 80 mm | D: 125 mm | B1 (pair): 44 mm | Cr: 95.3 kN | C0r: 111 kN | Mass: 1.86 kg
7216DBd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 139 kN | C0r: 143 kN | Mass: 3.00 kg
7216DFd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 139 kN | C0r: 143 kN | Mass: 3.00 kg
7216DTd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 139 kN | C0r: 143 kN | Mass: 3.00 kg
7216BDBd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 125 kN | C0r: 130 kN | Mass: 3.00 kg
7216BDFd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 125 kN | C0r: 130 kN | Mass: 3.00 kg
7216BDTd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 125 kN | C0r: 130 kN | Mass: 3.00 kg
7216CDBd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 151 kN | C0r: 155 kN | Mass: 3.00 kg
7216CDFd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 151 kN | C0r: 155 kN | Mass: 3.00 kg
7216CDTd: 80 mm | D: 140 mm | B1 (pair): 52 mm | Cr: 151 kN | C0r: 155 kN | Mass: 3.00 kg
7316DBd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 226 kN | C0r: 218 kN | Mass: 7.70 kg
7316DFd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 226 kN | C0r: 218 kN | Mass: 7.70 kg
7316DTd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 226 kN | C0r: 218 kN | Mass: 7.70 kg
7316BDBd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 207 kN | C0r: 200 kN | Mass: 7.70 kg
7316BDFd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 207 kN | C0r: 200 kN | Mass: 7.70 kg
7316BDTd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 207 kN | C0r: 200 kN | Mass: 7.70 kg
7316CDBd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 242 kN | C0r: 233 kN | Mass: 7.70 kg
7316CDFd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 242 kN | C0r: 233 kN | Mass: 7.70 kg
7316CDTd: 80 mm | D: 170 mm | B1 (pair): 78 mm | Cr: 242 kN | C0r: 233 kN | Mass: 7.70 kg
7416DBd: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 313 kN | C0r: 332 kN | Mass: 12.0 kg
7416DFd: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 313 kN | C0r: 332 kN | Mass: 12.0 kg
7416DTd: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 313 kN | C0r: 332 kN | Mass: 12.0 kg
7416BDBd: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 290 kN | C0r: 307 kN | Mass: 12.0 kg
7416BDFd: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 290 kN | C0r: 307 kN | Mass: 12.0 kg
7416BDTd: 80 mm | D: 200 mm | B1 (pair): 96 mm | Cr: 290 kN | C0r: 307 kN | Mass: 12.0 kg
7917CDBd: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 63.2 kN | C0r: 81.3 kN | Mass: 1.05 kg
7917CDFd: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 63.2 kN | C0r: 81.3 kN | Mass: 1.05 kg
7917CDTd: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 63.2 kN | C0r: 81.3 kN | Mass: 1.05 kg
HAR917CDBd: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 26.6 kN | C0r: 28.4 kN | Mass: 1.14 kg
HAR917CDFd: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 26.6 kN | C0r: 28.4 kN | Mass: 1.14 kg
HAR917CDTd: 85 mm | D: 120 mm | B1 (pair): 36 mm | Cr: 26.6 kN | C0r: 28.4 kN | Mass: 1.14 kg
HAR017CDBd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 40.8 kN | C0r: 40.2 kN | Mass: 1.89 kg
HAR017CDFd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 40.8 kN | C0r: 40.2 kN | Mass: 1.89 kg
HAR017CDTd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 40.8 kN | C0r: 40.2 kN | Mass: 1.89 kg
7017DBd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 88.6 kN | C0r: 107 kN | Mass: 1.94 kg
7017DFd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 88.6 kN | C0r: 107 kN | Mass: 1.94 kg
7017DTd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 88.6 kN | C0r: 107 kN | Mass: 1.94 kg
7017BDBd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 79.3 kN | C0r: 96.7 kN | Mass: 1.94 kg
7017BDFd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 79.3 kN | C0r: 96.7 kN | Mass: 1.94 kg
7017BDTd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 79.3 kN | C0r: 96.7 kN | Mass: 1.94 kg
7017CDBd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 97.6 kN | C0r: 117 kN | Mass: 1.94 kg
7017CDFd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 97.6 kN | C0r: 117 kN | Mass: 1.94 kg
7017CDTd: 85 mm | D: 130 mm | B1 (pair): 44 mm | Cr: 97.6 kN | C0r: 117 kN | Mass: 1.94 kg
7217DBd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 160 kN | C0r: 167 kN | Mass: 3.74 kg
7217DFd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 160 kN | C0r: 167 kN | Mass: 3.74 kg
7217DTd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 160 kN | C0r: 167 kN | Mass: 3.74 kg
7217BDBd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 145 kN | C0r: 152 kN | Mass: 3.74 kg
7217BDFd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 145 kN | C0r: 152 kN | Mass: 3.74 kg
7217BDTd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 145 kN | C0r: 152 kN | Mass: 3.74 kg
7217CDBd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 174 kN | C0r: 181 kN | Mass: 3.74 kg
7217CDFd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 174 kN | C0r: 181 kN | Mass: 3.74 kg
7217CDTd: 85 mm | D: 150 mm | B1 (pair): 56 mm | Cr: 174 kN | C0r: 181 kN | Mass: 3.74 kg
7317DBd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 243 kN | C0r: 243 kN | Mass: 9.06 kg
7317DFd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 243 kN | C0r: 243 kN | Mass: 9.06 kg
7317DTd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 243 kN | C0r: 243 kN | Mass: 9.06 kg
7317BDBd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 223 kN | C0r: 223 kN | Mass: 9.06 kg
7317BDFd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 223 kN | C0r: 223 kN | Mass: 9.06 kg
7317BDTd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 223 kN | C0r: 223 kN | Mass: 9.06 kg
7317CDBd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 261 kN | C0r: 261 kN | Mass: 9.06 kg
7317CDFd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 261 kN | C0r: 261 kN | Mass: 9.06 kg
7317CDTd: 85 mm | D: 180 mm | B1 (pair): 82 mm | Cr: 261 kN | C0r: 261 kN | Mass: 9.06 kg
7417DBd: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 331 kN | C0r: 360 kN | Mass: 17.1 kg
7417DFd: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 331 kN | C0r: 360 kN | Mass: 17.1 kg
7417DTd: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 331 kN | C0r: 360 kN | Mass: 17.1 kg
7417BDBd: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 307 kN | C0r: 334 kN | Mass: 17.1 kg
7417BDFd: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 307 kN | C0r: 334 kN | Mass: 17.1 kg
7417BDTd: 85 mm | D: 210 mm | B1 (pair): 104 mm | Cr: 307 kN | C0r: 334 kN | Mass: 17.1 kg
7918CDBd: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 64.3 kN | C0r: 85.2 kN | Mass: 1.10 kg
7918CDFd: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 64.3 kN | C0r: 85.2 kN | Mass: 1.10 kg
7918CDTd: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 64.3 kN | C0r: 85.2 kN | Mass: 1.10 kg
HAR918CDBd: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 27.3 kN | C0r: 30.2 kN | Mass: 1.20 kg
HAR918CDFd: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 27.3 kN | C0r: 30.2 kN | Mass: 1.20 kg
HAR918CDTd: 90 mm | D: 125 mm | B1 (pair): 36 mm | Cr: 27.3 kN | C0r: 30.2 kN | Mass: 1.20 kg
HAR018CDBd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 53.3 kN | C0r: 52.1 kN | Mass: 2.43 kg
HAR018CDFd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 53.3 kN | C0r: 52.1 kN | Mass: 2.43 kg
HAR018CDTd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 53.3 kN | C0r: 52.1 kN | Mass: 2.43 kg
7018DBd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 106 kN | C0r: 127 kN | Mass: 2.52 kg
7018DFd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 106 kN | C0r: 127 kN | Mass: 2.52 kg
7018DTd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 106 kN | C0r: 127 kN | Mass: 2.52 kg
7018BDBd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 94.9 kN | C0r: 114 kN | Mass: 2.52 kg
7018BDFd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 94.9 kN | C0r: 114 kN | Mass: 2.52 kg
7018BDTd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 94.9 kN | C0r: 114 kN | Mass: 2.52 kg
7018CDBd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 116 kN | C0r: 138 kN | Mass: 2.52 kg
7018CDFd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 116 kN | C0r: 138 kN | Mass: 2.52 kg
7018CDTd: 90 mm | D: 140 mm | B1 (pair): 48 mm | Cr: 116 kN | C0r: 138 kN | Mass: 2.52 kg
7218DBd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 183 kN | C0r: 193 kN | Mass: 4.60 kg
7218DFd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 183 kN | C0r: 193 kN | Mass: 4.60 kg
7218DTd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 183 kN | C0r: 193 kN | Mass: 4.60 kg
7218BDBd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 166 kN | C0r: 176 kN | Mass: 4.60 kg
7218BDFd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 166 kN | C0r: 176 kN | Mass: 4.60 kg
7218BDTd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 166 kN | C0r: 176 kN | Mass: 4.60 kg
7218CDBd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 199 kN | C0r: 209 kN | Mass: 4.60 kg
7218CDFd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 199 kN | C0r: 209 kN | Mass: 4.60 kg
7218CDTd: 90 mm | D: 160 mm | B1 (pair): 60 mm | Cr: 199 kN | C0r: 209 kN | Mass: 4.60 kg
7318DBd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 261 kN | C0r: 270 kN | Mass: 10.6 kg
7318DFd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 261 kN | C0r: 270 kN | Mass: 10.6 kg
7318DTd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 261 kN | C0r: 270 kN | Mass: 10.6 kg
7318BDBd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 240 kN | C0r: 248 kN | Mass: 10.6 kg
7318BDFd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 240 kN | C0r: 248 kN | Mass: 10.6 kg
7318BDTd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 240 kN | C0r: 248 kN | Mass: 10.6 kg
7318CDBd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 281 kN | C0r: 289 kN | Mass: 10.6 kg
7318CDFd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 281 kN | C0r: 289 kN | Mass: 10.6 kg
7318CDTd: 90 mm | D: 190 mm | B1 (pair): 86 mm | Cr: 281 kN | C0r: 289 kN | Mass: 10.6 kg
7418DBd: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 351 kN | C0r: 393 kN | Mass: 22.8 kg
7418DFd: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 351 kN | C0r: 393 kN | Mass: 22.8 kg
7418DTd: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 351 kN | C0r: 393 kN | Mass: 22.8 kg
7418BDBd: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 325 kN | C0r: 364 kN | Mass: 22.8 kg
7418BDFd: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 325 kN | C0r: 364 kN | Mass: 22.8 kg
7418BDTd: 90 mm | D: 225 mm | B1 (pair): 108 mm | Cr: 325 kN | C0r: 364 kN | Mass: 22.8 kg
7919CDBd: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 65.3 kN | C0r: 88.3 kN | Mass: 1.15 kg
7919CDFd: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 65.3 kN | C0r: 88.3 kN | Mass: 1.15 kg
7919CDTd: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 65.3 kN | C0r: 88.3 kN | Mass: 1.15 kg
HAR919CDBd: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 28.1 kN | C0r: 32.1 kN | Mass: 1.25 kg
HAR919CDFd: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 28.1 kN | C0r: 32.1 kN | Mass: 1.25 kg
HAR919CDTd: 95 mm | D: 130 mm | B1 (pair): 36 mm | Cr: 28.1 kN | C0r: 32.1 kN | Mass: 1.25 kg
HAR019CDBd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 54.3 kN | C0r: 54.4 kN | Mass: 2.56 kg
HAR019CDFd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 54.3 kN | C0r: 54.4 kN | Mass: 2.56 kg
HAR019CDTd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 54.3 kN | C0r: 54.4 kN | Mass: 2.56 kg
7019DBd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 108 kN | C0r: 134 kN | Mass: 2.64 kg
7019DFd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 108 kN | C0r: 134 kN | Mass: 2.64 kg
7019DTd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 108 kN | C0r: 134 kN | Mass: 2.64 kg
7019BDBd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 96.8 kN | C0r: 121 kN | Mass: 2.64 kg
7019BDFd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 96.8 kN | C0r: 121 kN | Mass: 2.64 kg
7019BDTd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 96.8 kN | C0r: 121 kN | Mass: 2.64 kg
7019CDBd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 119 kN | C0r: 147 kN | Mass: 2.64 kg
7019CDFd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 119 kN | C0r: 147 kN | Mass: 2.64 kg
7019CDTd: 95 mm | D: 145 mm | B1 (pair): 48 mm | Cr: 119 kN | C0r: 147 kN | Mass: 2.64 kg
7219DBd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 198 kN | C0r: 207 kN | Mass: 5.56 kg
7219DFd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 198 kN | C0r: 207 kN | Mass: 5.56 kg
7219DTd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 198 kN | C0r: 207 kN | Mass: 5.56 kg
7219BDBd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 180 kN | C0r: 188 kN | Mass: 5.56 kg
7219BDFd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 180 kN | C0r: 188 kN | Mass: 5.56 kg
7219BDTd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 180 kN | C0r: 188 kN | Mass: 5.56 kg
7219CDBd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 216 kN | C0r: 224 kN | Mass: 5.56 kg
7219CDFd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 216 kN | C0r: 224 kN | Mass: 5.56 kg
7219CDTd: 95 mm | D: 170 mm | B1 (pair): 64 mm | Cr: 216 kN | C0r: 224 kN | Mass: 5.56 kg
7319DBd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 280 kN | C0r: 298 kN | Mass: 12.2 kg
7319DFd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 280 kN | C0r: 298 kN | Mass: 12.2 kg
7319DTd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 280 kN | C0r: 298 kN | Mass: 12.2 kg
7319BDBd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 256 kN | C0r: 273 kN | Mass: 12.2 kg
7319BDFd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 256 kN | C0r: 273 kN | Mass: 12.2 kg
7319BDTd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 256 kN | C0r: 273 kN | Mass: 12.2 kg
7319CDBd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 300 kN | C0r: 319 kN | Mass: 12.2 kg
7319CDFd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 300 kN | C0r: 319 kN | Mass: 12.2 kg
7319CDTd: 95 mm | D: 200 mm | B1 (pair): 90 mm | Cr: 300 kN | C0r: 319 kN | Mass: 12.2 kg
7920CDBd: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 90.2 kN | C0r: 117 kN | Mass: 1.55 kg
7920CDFd: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 90.2 kN | C0r: 117 kN | Mass: 1.55 kg
7920CDTd: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 90.2 kN | C0r: 117 kN | Mass: 1.55 kg
HAR920CDBd: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 39.2 kN | C0r: 43.5 kN | Mass: 1.68 kg
HAR920CDFd: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 39.2 kN | C0r: 43.5 kN | Mass: 1.68 kg
HAR920CDTd: 100 mm | D: 140 mm | B1 (pair): 40 mm | Cr: 39.2 kN | C0r: 43.5 kN | Mass: 1.68 kg
HAR020CDBd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 55.2 kN | C0r: 56.7 kN | Mass: 2.64 kg
HAR020CDFd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 55.2 kN | C0r: 56.7 kN | Mass: 2.64 kg
HAR020CDTd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 55.2 kN | C0r: 56.7 kN | Mass: 2.64 kg
7020DBd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 111 kN | C0r: 141 kN | Mass: 2.74 kg
7020DFd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 111 kN | C0r: 141 kN | Mass: 2.74 kg
7020DTd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 111 kN | C0r: 141 kN | Mass: 2.74 kg
7020BDBd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 99.4 kN | C0r: 127 kN | Mass: 2.74 kg
7020BDFd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 99.4 kN | C0r: 127 kN | Mass: 2.74 kg
7020BDTd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 99.4 kN | C0r: 127 kN | Mass: 2.74 kg
7020CDBd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 122 kN | C0r: 154 kN | Mass: 2.74 kg
7020CDFd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 122 kN | C0r: 154 kN | Mass: 2.74 kg
7020CDTd: 100 mm | D: 150 mm | B1 (pair): 48 mm | Cr: 122 kN | C0r: 154 kN | Mass: 2.74 kg
7220DBd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 223 kN | C0r: 235 kN | Mass: 6.64 kg
7220DFd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 223 kN | C0r: 235 kN | Mass: 6.64 kg
7220DTd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 223 kN | C0r: 235 kN | Mass: 6.64 kg
7220BDBd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 202 kN | C0r: 214 kN | Mass: 6.64 kg
7220BDFd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 202 kN | C0r: 214 kN | Mass: 6.64 kg
7220BDTd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 202 kN | C0r: 214 kN | Mass: 6.64 kg
7220CDBd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 242 kN | C0r: 254 kN | Mass: 6.64 kg
7220CDFd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 242 kN | C0r: 254 kN | Mass: 6.64 kg
7220CDTd: 100 mm | D: 180 mm | B1 (pair): 68 mm | Cr: 242 kN | C0r: 254 kN | Mass: 6.64 kg
7320DBd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 298 kN | C0r: 323 kN | Mass: 15.1 kg
7320DFd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 298 kN | C0r: 323 kN | Mass: 15.1 kg
7320DTd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 298 kN | C0r: 323 kN | Mass: 15.1 kg
7320BDBd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 274 kN | C0r: 297 kN | Mass: 15.1 kg
7320BDFd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 274 kN | C0r: 297 kN | Mass: 15.1 kg
7320BDTd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 274 kN | C0r: 297 kN | Mass: 15.1 kg
7320CDBd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 320 kN | C0r: 346 kN | Mass: 15.1 kg
7320CDFd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 320 kN | C0r: 346 kN | Mass: 15.1 kg
7320CDTd: 100 mm | D: 215 mm | B1 (pair): 94 mm | Cr: 320 kN | C0r: 346 kN | Mass: 15.1 kg
7921CDBd: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 92.1 kN | C0r: 123 kN | Mass: 1.62 kg
7921CDFd: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 92.1 kN | C0r: 123 kN | Mass: 1.62 kg
7921CDTd: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 92.1 kN | C0r: 123 kN | Mass: 1.62 kg
HAR921CDBd: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 40.4 kN | C0r: 46.2 kN | Mass: 1.75 kg
HAR921CDFd: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 40.4 kN | C0r: 46.2 kN | Mass: 1.75 kg
HAR921CDTd: 105 mm | D: 145 mm | B1 (pair): 40 mm | Cr: 40.4 kN | C0r: 46.2 kN | Mass: 1.75 kg
HAR021CDBd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 62.6 kN | C0r: 65.1 kN | Mass: 3.37 kg
HAR021CDFd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 62.6 kN | C0r: 65.1 kN | Mass: 3.37 kg
HAR021CDTd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 62.6 kN | C0r: 65.1 kN | Mass: 3.37 kg
7021DBd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 130 kN | C0r: 164 kN | Mass: 3.46 kg
7021DFd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 130 kN | C0r: 164 kN | Mass: 3.46 kg
7021DTd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 130 kN | C0r: 164 kN | Mass: 3.46 kg
7021BDBd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 116 kN | C0r: 148 kN | Mass: 3.46 kg
7021BDFd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 116 kN | C0r: 148 kN | Mass: 3.46 kg
7021BDTd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 116 kN | C0r: 148 kN | Mass: 3.46 kg
7021CDBd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 143 kN | C0r: 179 kN | Mass: 3.46 kg
7021CDFd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 143 kN | C0r: 179 kN | Mass: 3.46 kg
7021CDTd: 105 mm | D: 160 mm | B1 (pair): 52 mm | Cr: 143 kN | C0r: 179 kN | Mass: 3.46 kg
7221DBd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 243 kN | C0r: 265 kN | Mass: 7.90 kg
7221DFd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 243 kN | C0r: 265 kN | Mass: 7.90 kg
7221DTd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 243 kN | C0r: 265 kN | Mass: 7.90 kg
7221BDBd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 220 kN | C0r: 241 kN | Mass: 7.90 kg
7221BDFd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 220 kN | C0r: 241 kN | Mass: 7.90 kg
7221BDTd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 220 kN | C0r: 241 kN | Mass: 7.90 kg
7221CDBd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 264 kN | C0r: 287 kN | Mass: 7.90 kg
7221CDFd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 264 kN | C0r: 287 kN | Mass: 7.90 kg
7221CDTd: 105 mm | D: 190 mm | B1 (pair): 72 mm | Cr: 264 kN | C0r: 287 kN | Mass: 7.90 kg
7321DBd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 337 kN | C0r: 386 kN | Mass: 17.2 kg
7321DFd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 337 kN | C0r: 386 kN | Mass: 17.2 kg
7321DTd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 337 kN | C0r: 386 kN | Mass: 17.2 kg
7321BDBd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 310 kN | C0r: 355 kN | Mass: 17.2 kg
7321BDFd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 310 kN | C0r: 355 kN | Mass: 17.2 kg
7321BDTd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 310 kN | C0r: 355 kN | Mass: 17.2 kg
7321CDBd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 362 kN | C0r: 413 kN | Mass: 17.2 kg
7321CDFd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 362 kN | C0r: 413 kN | Mass: 17.2 kg
7321CDTd: 105 mm | D: 225 mm | B1 (pair): 98 mm | Cr: 362 kN | C0r: 413 kN | Mass: 17.2 kg
7922CDBd: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 93.8 kN | C0r: 129 kN | Mass: 1.68 kg
7922CDFd: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 93.8 kN | C0r: 129 kN | Mass: 1.68 kg
7922CDTd: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 93.8 kN | C0r: 129 kN | Mass: 1.68 kg
HAR922CDBd: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 40.8 kN | C0r: 47.7 kN | Mass: 1.82 kg
HAR922CDFd: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 40.8 kN | C0r: 47.7 kN | Mass: 1.82 kg
HAR922CDTd: 110 mm | D: 150 mm | B1 (pair): 40 mm | Cr: 40.8 kN | C0r: 47.7 kN | Mass: 1.82 kg
HAR022CDBd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 70.5 kN | C0r: 73.9 kN | Mass: 4.22 kg
HAR022CDFd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 70.5 kN | C0r: 73.9 kN | Mass: 4.22 kg
HAR022CDTd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 70.5 kN | C0r: 73.9 kN | Mass: 4.22 kg
7022DBd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 149 kN | C0r: 186 kN | Mass: 4.28 kg
7022DFd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 149 kN | C0r: 186 kN | Mass: 4.28 kg
7022DTd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 149 kN | C0r: 186 kN | Mass: 4.28 kg
7022BDBd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 134 kN | C0r: 167 kN | Mass: 4.28 kg
7022BDFd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 134 kN | C0r: 167 kN | Mass: 4.28 kg
7022BDTd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 134 kN | C0r: 167 kN | Mass: 4.28 kg
7022CDBd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 164 kN | C0r: 203 kN | Mass: 4.28 kg
7022CDFd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 164 kN | C0r: 203 kN | Mass: 4.28 kg
7022CDTd: 110 mm | D: 170 mm | B1 (pair): 56 mm | Cr: 164 kN | C0r: 203 kN | Mass: 4.28 kg
7222DBd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 263 kN | C0r: 297 kN | Mass: 9.30 kg
7222DFd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 263 kN | C0r: 297 kN | Mass: 9.30 kg
7222DTd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 263 kN | C0r: 297 kN | Mass: 9.30 kg
7222BDBd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 238 kN | C0r: 270 kN | Mass: 9.30 kg
7222BDFd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 238 kN | C0r: 270 kN | Mass: 9.30 kg
7222BDTd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 238 kN | C0r: 270 kN | Mass: 9.30 kg
7222CDBd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 286 kN | C0r: 321 kN | Mass: 9.30 kg
7222CDFd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 286 kN | C0r: 321 kN | Mass: 9.30 kg
7222CDTd: 110 mm | D: 200 mm | B1 (pair): 76 mm | Cr: 286 kN | C0r: 321 kN | Mass: 9.30 kg
7322DBd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 377 kN | C0r: 452 kN | Mass: 20.2 kg
7322DFd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 377 kN | C0r: 452 kN | Mass: 20.2 kg
7322DTd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 377 kN | C0r: 452 kN | Mass: 20.2 kg
7322BDBd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 346 kN | C0r: 416 kN | Mass: 20.2 kg
7322BDFd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 346 kN | C0r: 416 kN | Mass: 20.2 kg
7322BDTd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 346 kN | C0r: 416 kN | Mass: 20.2 kg
7322CDBd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 404 kN | C0r: 484 kN | Mass: 20.2 kg
7322CDFd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 404 kN | C0r: 484 kN | Mass: 20.2 kg
7322CDTd: 110 mm | D: 240 mm | B1 (pair): 100 mm | Cr: 404 kN | C0r: 484 kN | Mass: 20.2 kg
7924CDBd: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 117 kN | C0r: 162 kN | Mass: 2.30 kg
7924CDFd: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 117 kN | C0r: 162 kN | Mass: 2.30 kg
7924CDTd: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 117 kN | C0r: 162 kN | Mass: 2.30 kg
HAR924CDBd: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 47.7 kN | C0r: 56.8 kN | Mass: 2.49 kg
HAR924CDFd: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 47.7 kN | C0r: 56.8 kN | Mass: 2.49 kg
HAR924CDTd: 120 mm | D: 165 mm | B1 (pair): 44 mm | Cr: 47.7 kN | C0r: 56.8 kN | Mass: 2.49 kg
HAR024CDBd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 72.9 kN | C0r: 79.9 kN | Mass: 4.52 kg
HAR024CDFd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 72.9 kN | C0r: 79.9 kN | Mass: 4.52 kg
HAR024CDTd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 72.9 kN | C0r: 79.9 kN | Mass: 4.52 kg
7024DBd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 157 kN | C0r: 206 kN | Mass: 4.54 kg
7024DFd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 157 kN | C0r: 206 kN | Mass: 4.54 kg
7024DTd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 157 kN | C0r: 206 kN | Mass: 4.54 kg
7024BDBd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 140 kN | C0r: 186 kN | Mass: 4.54 kg
7024BDFd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 140 kN | C0r: 186 kN | Mass: 4.54 kg
7024BDTd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 140 kN | C0r: 186 kN | Mass: 4.54 kg
7024CDBd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 173 kN | C0r: 226 kN | Mass: 4.54 kg
7024CDFd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 173 kN | C0r: 226 kN | Mass: 4.54 kg
7024CDTd: 120 mm | D: 180 mm | B1 (pair): 56 mm | Cr: 173 kN | C0r: 226 kN | Mass: 4.54 kg
7224DBd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 283 kN | C0r: 332 kN | Mass: 11.0 kg
7224DFd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 283 kN | C0r: 332 kN | Mass: 11.0 kg
7224DTd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 283 kN | C0r: 332 kN | Mass: 11.0 kg
7224BDBd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 257 kN | C0r: 302 kN | Mass: 11.0 kg
7224BDFd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 257 kN | C0r: 302 kN | Mass: 11.0 kg
7224BDTd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 257 kN | C0r: 302 kN | Mass: 11.0 kg
7224CDBd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 308 kN | C0r: 359 kN | Mass: 11.0 kg
7224CDFd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 308 kN | C0r: 359 kN | Mass: 11.0 kg
7224CDTd: 120 mm | D: 215 mm | B1 (pair): 80 mm | Cr: 308 kN | C0r: 359 kN | Mass: 11.0 kg
7324DBd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 400 kN | C0r: 504 kN | Mass: 25.2 kg
7324DFd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 400 kN | C0r: 504 kN | Mass: 25.2 kg
7324DTd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 400 kN | C0r: 504 kN | Mass: 25.2 kg
7324BDBd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 366 kN | C0r: 462 kN | Mass: 25.2 kg
7324BDFd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 366 kN | C0r: 462 kN | Mass: 25.2 kg
7324BDTd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 366 kN | C0r: 462 kN | Mass: 25.2 kg
7324CDBd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 431 kN | C0r: 542 kN | Mass: 25.2 kg
7324CDFd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 431 kN | C0r: 542 kN | Mass: 25.2 kg
7324CDTd: 120 mm | D: 260 mm | B1 (pair): 110 mm | Cr: 431 kN | C0r: 542 kN | Mass: 25.2 kg
7926CDBd: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 142 kN | C0r: 200 kN | Mass: 3.00 kg
7926CDFd: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 142 kN | C0r: 200 kN | Mass: 3.00 kg
7926CDTd: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 142 kN | C0r: 200 kN | Mass: 3.00 kg
HAR926CDBd: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 57.0 kN | C0r: 70.3 kN | Mass: 3.32 kg
HAR926CDFd: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 57.0 kN | C0r: 70.3 kN | Mass: 3.32 kg
HAR926CDTd: 130 mm | D: 180 mm | B1 (pair): 48 mm | Cr: 57.0 kN | C0r: 70.3 kN | Mass: 3.32 kg
HAR026CDBd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 91.5 kN | C0r: 96.7 kN | Mass: 6.77 kg
HAR026CDFd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 91.5 kN | C0r: 96.7 kN | Mass: 6.77 kg
HAR026CDTd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 91.5 kN | C0r: 96.7 kN | Mass: 6.77 kg
7026DBd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 191 kN | C0r: 251 kN | Mass: 6.86 kg
7026DFd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 191 kN | C0r: 251 kN | Mass: 6.86 kg
7026DTd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 191 kN | C0r: 251 kN | Mass: 6.86 kg
7026BDBd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 171 kN | C0r: 226 kN | Mass: 6.86 kg
7026BDFd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 171 kN | C0r: 226 kN | Mass: 6.86 kg
7026BDTd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 171 kN | C0r: 226 kN | Mass: 6.86 kg
7026CDBd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 210 kN | C0r: 274 kN | Mass: 6.86 kg
7026CDFd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 210 kN | C0r: 274 kN | Mass: 6.86 kg
7026CDTd: 130 mm | D: 200 mm | B1 (pair): 66 mm | Cr: 210 kN | C0r: 274 kN | Mass: 6.86 kg
7226DBd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 318 kN | C0r: 395 kN | Mass: 12.4 kg
7226DFd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 318 kN | C0r: 395 kN | Mass: 12.4 kg
7226DTd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 318 kN | C0r: 395 kN | Mass: 12.4 kg
7226BDBd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 288 kN | C0r: 360 kN | Mass: 12.4 kg
7226BDFd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 288 kN | C0r: 360 kN | Mass: 12.4 kg
7226BDTd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 288 kN | C0r: 360 kN | Mass: 12.4 kg
7226CDBd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 346 kN | C0r: 428 kN | Mass: 12.4 kg
7226CDFd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 346 kN | C0r: 428 kN | Mass: 12.4 kg
7226CDTd: 130 mm | D: 230 mm | B1 (pair): 80 mm | Cr: 346 kN | C0r: 428 kN | Mass: 12.4 kg
7326DBd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 489 kN | C0r: 659 kN | Mass: 30.8 kg
7326DFd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 489 kN | C0r: 659 kN | Mass: 30.8 kg
7326DTd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 489 kN | C0r: 659 kN | Mass: 30.8 kg
7326BDBd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 406 kN | C0r: 536 kN | Mass: 30.8 kg
7326BDFd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 406 kN | C0r: 536 kN | Mass: 30.8 kg
7326BDTd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 406 kN | C0r: 536 kN | Mass: 30.8 kg
7326CDBd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 478 kN | C0r: 629 kN | Mass: 30.8 kg
7326CDFd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 478 kN | C0r: 629 kN | Mass: 30.8 kg
7326CDTd: 130 mm | D: 280 mm | B1 (pair): 116 mm | Cr: 478 kN | C0r: 629 kN | Mass: 30.8 kg
7928CDBd: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 143 kN | C0r: 210 kN | Mass: 3.18 kg
7928CDFd: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 143 kN | C0r: 210 kN | Mass: 3.18 kg
7928CDTd: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 143 kN | C0r: 210 kN | Mass: 3.18 kg
HAR928CDBd: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 57.2 kN | C0r: 72.4 kN | Mass: 3.52 kg
HAR928CDFd: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 57.2 kN | C0r: 72.4 kN | Mass: 3.52 kg
HAR928CDTd: 140 mm | D: 190 mm | B1 (pair): 48 mm | Cr: 57.2 kN | C0r: 72.4 kN | Mass: 3.52 kg
HAR028CDBd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 99.6 kN | C0r: 112 kN | Mass: 7.24 kg
HAR028CDFd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 99.6 kN | C0r: 112 kN | Mass: 7.24 kg
HAR028CDTd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 99.6 kN | C0r: 112 kN | Mass: 7.24 kg
7028DBd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 194 kN | C0r: 265 kN | Mass: 7.28 kg
7028DFd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 194 kN | C0r: 265 kN | Mass: 7.28 kg
7028DTd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 194 kN | C0r: 265 kN | Mass: 7.28 kg
7028BDBd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 174 kN | C0r: 237 kN | Mass: 7.28 kg
7028BDFd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 174 kN | C0r: 237 kN | Mass: 7.28 kg
7028BDTd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 174 kN | C0r: 237 kN | Mass: 7.28 kg
7028CDBd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 214 kN | C0r: 290 kN | Mass: 7.28 kg
7028CDFd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 214 kN | C0r: 290 kN | Mass: 7.28 kg
7028CDTd: 140 mm | D: 210 mm | B1 (pair): 66 mm | Cr: 214 kN | C0r: 290 kN | Mass: 7.28 kg
7228DBd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 355 kN | C0r: 468 kN | Mass: 15.5 kg
7228DFd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 355 kN | C0r: 468 kN | Mass: 15.5 kg
7228DTd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 355 kN | C0r: 468 kN | Mass: 15.5 kg
7228BDBd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 320 kN | C0r: 426 kN | Mass: 15.5 kg
7228BDFd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 320 kN | C0r: 426 kN | Mass: 15.5 kg
7228BDTd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 320 kN | C0r: 426 kN | Mass: 15.5 kg
7228CDBd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 386 kN | C0r: 508 kN | Mass: 15.5 kg
7228CDFd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 386 kN | C0r: 508 kN | Mass: 15.5 kg
7228CDTd: 140 mm | D: 250 mm | B1 (pair): 84 mm | Cr: 386 kN | C0r: 508 kN | Mass: 15.5 kg
7328DBd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 535 kN | C0r: 748 kN | Mass: 37.6 kg
7328DFd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 535 kN | C0r: 748 kN | Mass: 37.6 kg
7328DTd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 535 kN | C0r: 748 kN | Mass: 37.6 kg
7328BDBd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 491 kN | C0r: 688 kN | Mass: 37.6 kg
7328BDFd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 491 kN | C0r: 688 kN | Mass: 37.6 kg
7328BDTd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 491 kN | C0r: 688 kN | Mass: 37.6 kg
7328CDBd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 573 kN | C0r: 802 kN | Mass: 37.6 kg
7328CDFd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 573 kN | C0r: 802 kN | Mass: 37.6 kg
7328CDTd: 140 mm | D: 300 mm | B1 (pair): 124 mm | Cr: 573 kN | C0r: 802 kN | Mass: 37.6 kg
7930CDBd: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 187 kN | C0r: 263 kN | Mass: 4.94 kg
7930CDFd: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 187 kN | C0r: 263 kN | Mass: 4.94 kg
7930CDTd: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 187 kN | C0r: 263 kN | Mass: 4.94 kg
HAR930CDBd: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 79.5 kN | C0r: 97.7 kN | Mass: 5.36 kg
HAR930CDFd: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 79.5 kN | C0r: 97.7 kN | Mass: 5.36 kg
HAR930CDTd: 150 mm | D: 210 mm | B1 (pair): 56 mm | Cr: 79.5 kN | C0r: 97.7 kN | Mass: 5.36 kg
HAR030CDBd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 117 kN | C0r: 132 kN | Mass: 8.72 kg
HAR030CDFd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 117 kN | C0r: 132 kN | Mass: 8.72 kg
HAR030CDTd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 117 kN | C0r: 132 kN | Mass: 8.72 kg
7030DBd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 222 kN | C0r: 308 kN | Mass: 8.86 kg
7030DFd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 222 kN | C0r: 308 kN | Mass: 8.86 kg
7030DTd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 222 kN | C0r: 308 kN | Mass: 8.86 kg
7030BDBd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 199 kN | C0r: 275 kN | Mass: 8.86 kg
7030BDFd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 199 kN | C0r: 275 kN | Mass: 8.86 kg
7030BDTd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 199 kN | C0r: 275 kN | Mass: 8.86 kg
7030CDBd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 245 kN | C0r: 337 kN | Mass: 8.86 kg
7030CDFd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 245 kN | C0r: 337 kN | Mass: 8.86 kg
7030CDTd: 150 mm | D: 225 mm | B1 (pair): 70 mm | Cr: 245 kN | C0r: 337 kN | Mass: 8.86 kg
7230DBd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 403 kN | C0r: 560 kN | Mass: 19.5 kg
7230DFd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 403 kN | C0r: 560 kN | Mass: 19.5 kg
7230DTd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 403 kN | C0r: 560 kN | Mass: 19.5 kg
7230BDBd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 365 kN | C0r: 509 kN | Mass: 19.5 kg
7230BDFd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 365 kN | C0r: 509 kN | Mass: 19.5 kg
7230BDTd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 365 kN | C0r: 509 kN | Mass: 19.5 kg
7230CDBd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 439 kN | C0r: 607 kN | Mass: 19.5 kg
7230CDFd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 439 kN | C0r: 607 kN | Mass: 19.5 kg
7230CDTd: 150 mm | D: 270 mm | B1 (pair): 90 mm | Cr: 439 kN | C0r: 607 kN | Mass: 19.5 kg
7330DBd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 565 kN | C0r: 829 kN | Mass: 44.8 kg
7330DFd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 565 kN | C0r: 829 kN | Mass: 44.8 kg
7330DTd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 565 kN | C0r: 829 kN | Mass: 44.8 kg
7330BDBd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 516 kN | C0r: 760 kN | Mass: 44.8 kg
7330BDFd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 516 kN | C0r: 760 kN | Mass: 44.8 kg
7330BDTd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 516 kN | C0r: 760 kN | Mass: 44.8 kg
7330CDBd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 607 kN | C0r: 891 kN | Mass: 44.8 kg
7330CDFd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 607 kN | C0r: 891 kN | Mass: 44.8 kg
7330CDTd: 150 mm | D: 320 mm | B1 (pair): 130 mm | Cr: 607 kN | C0r: 891 kN | Mass: 44.8 kg
7932CDBd: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 196 kN | C0r: 289 kN | Mass: 5.20 kg
7932CDFd: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 196 kN | C0r: 289 kN | Mass: 5.20 kg
7932CDTd: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 196 kN | C0r: 289 kN | Mass: 5.20 kg
HAR932CDBd: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 81.5 kN | C0r: 104 kN | Mass: 5.66 kg
HAR932CDFd: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 81.5 kN | C0r: 104 kN | Mass: 5.66 kg
HAR932CDTd: 160 mm | D: 220 mm | B1 (pair): 56 mm | Cr: 81.5 kN | C0r: 104 kN | Mass: 5.66 kg
HAR032CDBd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 127 kN | C0r: 145 kN | Mass: 10.8 kg
HAR032CDFd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 127 kN | C0r: 145 kN | Mass: 10.8 kg
HAR032CDTd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 127 kN | C0r: 145 kN | Mass: 10.8 kg
7032DBd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 252 kN | C0r: 353 kN | Mass: 10.9 kg
7032DFd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 252 kN | C0r: 353 kN | Mass: 10.9 kg
7032DTd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 252 kN | C0r: 353 kN | Mass: 10.9 kg
7032BDBd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 225 kN | C0r: 316 kN | Mass: 10.9 kg
7032BDFd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 225 kN | C0r: 316 kN | Mass: 10.9 kg
7032BDTd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 225 kN | C0r: 316 kN | Mass: 10.9 kg
7032CDBd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 278 kN | C0r: 386 kN | Mass: 10.9 kg
7032CDFd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 278 kN | C0r: 386 kN | Mass: 10.9 kg
7032CDTd: 160 mm | D: 240 mm | B1 (pair): 76 mm | Cr: 278 kN | C0r: 386 kN | Mass: 10.9 kg
7232DBd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 374 kN | C0r: 525 kN | Mass: 24.2 kg
7232DFd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 374 kN | C0r: 525 kN | Mass: 24.2 kg
7232DTd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 374 kN | C0r: 525 kN | Mass: 24.2 kg
7232BDBd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 386 kN | C0r: 557 kN | Mass: 24.2 kg
7232BDFd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 386 kN | C0r: 557 kN | Mass: 24.2 kg
7232BDTd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 386 kN | C0r: 557 kN | Mass: 24.2 kg
7232CDBd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 465 kN | C0r: 665 kN | Mass: 24.2 kg
7232CDFd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 465 kN | C0r: 665 kN | Mass: 24.2 kg
7232CDTd: 160 mm | D: 290 mm | B1 (pair): 96 mm | Cr: 465 kN | C0r: 665 kN | Mass: 24.2 kg
7332DBd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 592 kN | C0r: 909 kN | Mass: 52.8 kg
7332DFd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 592 kN | C0r: 909 kN | Mass: 52.8 kg
7332DTd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 592 kN | C0r: 909 kN | Mass: 52.8 kg
7332BDBd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 540 kN | C0r: 831 kN | Mass: 52.8 kg
7332BDFd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 540 kN | C0r: 831 kN | Mass: 52.8 kg
7332BDTd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 540 kN | C0r: 831 kN | Mass: 52.8 kg
7332CDBd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 640 kN | C0r: 980 kN | Mass: 52.8 kg
7332CDFd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 640 kN | C0r: 980 kN | Mass: 52.8 kg
7332CDTd: 160 mm | D: 340 mm | B1 (pair): 136 mm | Cr: 640 kN | C0r: 980 kN | Mass: 52.8 kg
7934CDBd: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 199 kN | C0r: 302 kN | Mass: 6.42 kg
7934CDFd: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 199 kN | C0r: 302 kN | Mass: 6.42 kg
7934CDTd: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 199 kN | C0r: 302 kN | Mass: 6.42 kg
HAR934CDBd: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 83.4 kN | C0r: 110 kN | Mass: 5.94 kg
HAR934CDFd: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 83.4 kN | C0r: 110 kN | Mass: 5.94 kg
HAR934CDTd: 170 mm | D: 230 mm | B1 (pair): 56 mm | Cr: 83.4 kN | C0r: 110 kN | Mass: 5.94 kg
HAR034CDBd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 149 kN | C0r: 173 kN | Mass: 14.6 kg
HAR034CDFd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 149 kN | C0r: 173 kN | Mass: 14.6 kg
HAR034CDTd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 149 kN | C0r: 173 kN | Mass: 14.6 kg
7034DBd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 302 kN | C0r: 429 kN | Mass: 15.2 kg
7034DFd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 302 kN | C0r: 429 kN | Mass: 15.2 kg
7034DTd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 302 kN | C0r: 429 kN | Mass: 15.2 kg
7034BDBd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 270 kN | C0r: 386 kN | Mass: 15.5 kg
7034BDFd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 270 kN | C0r: 386 kN | Mass: 15.5 kg
7034BDTd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 270 kN | C0r: 386 kN | Mass: 15.5 kg
7034CDBd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 332 kN | C0r: 469 kN | Mass: 15.1 kg
7034CDFd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 332 kN | C0r: 469 kN | Mass: 15.1 kg
7034CDTd: 170 mm | D: 260 mm | B1 (pair): 84 mm | Cr: 332 kN | C0r: 469 kN | Mass: 15.1 kg
7234DBd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 441 kN | C0r: 661 kN | Mass: 30.2 kg
7234DFd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 441 kN | C0r: 661 kN | Mass: 30.2 kg
7234DTd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 441 kN | C0r: 661 kN | Mass: 30.2 kg
7234BDBd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 398 kN | C0r: 600 kN | Mass: 30.2 kg
7234BDFd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 398 kN | C0r: 600 kN | Mass: 30.2 kg
7234BDTd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 398 kN | C0r: 600 kN | Mass: 30.2 kg
7234CDBd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 482 kN | C0r: 719 kN | Mass: 30.2 kg
7234CDFd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 482 kN | C0r: 719 kN | Mass: 30.2 kg
7234CDTd: 170 mm | D: 310 mm | B1 (pair): 104 mm | Cr: 482 kN | C0r: 719 kN | Mass: 30.2 kg
7334DBd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 631 kN | C0r: 969 kN | Mass: 62.4 kg
7334DFd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 631 kN | C0r: 969 kN | Mass: 62.4 kg
7334DTd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 631 kN | C0r: 969 kN | Mass: 62.4 kg
7334BDBd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 577 kN | C0r: 888 kN | Mass: 62.4 kg
7334BDFd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 577 kN | C0r: 888 kN | Mass: 62.4 kg
7334BDTd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 577 kN | C0r: 888 kN | Mass: 62.4 kg
7334CDBd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 679 kN | C0r: 1 040 kN | Mass: 62.4 kg
7334CDFd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 679 kN | C0r: 1 040 kN | Mass: 62.4 kg
7334CDTd: 170 mm | D: 360 mm | B1 (pair): 144 mm | Cr: 679 kN | C0r: 1 040 kN | Mass: 62.4 kg
7936CDBd: 180 mm | D: 250 mm | B1 (pair): 66 mm | Cr: 253 kN | C0r: 375 kN | Mass: 9.36 kg
7936CDFd: 180 mm | D: 250 mm | B1 (pair): 66 mm | Cr: 253 kN | C0r: 375 kN | Mass: 9.36 kg
7936CDTd: 180 mm | D: 250 mm | B1 (pair): 66 mm | Cr: 253 kN | C0r: 375 kN | Mass: 9.36 kg
7036DBd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 344 kN | C0r: 506 kN | Mass: 20.2 kg
7036DFd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 344 kN | C0r: 506 kN | Mass: 20.2 kg
7036DTd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 344 kN | C0r: 506 kN | Mass: 20.2 kg
7036BDBd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 308 kN | C0r: 457 kN | Mass: 20.4 kg
7036BDFd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 308 kN | C0r: 457 kN | Mass: 20.4 kg
7036BDTd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 308 kN | C0r: 457 kN | Mass: 20.4 kg
7036CDBd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 378 kN | C0r: 553 kN | Mass: 19.9 kg
7036CDFd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 378 kN | C0r: 553 kN | Mass: 19.9 kg
7036CDTd: 180 mm | D: 280 mm | B1 (pair): 92 mm | Cr: 378 kN | C0r: 553 kN | Mass: 19.9 kg
7236DBd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 477 kN | C0r: 724 kN | Mass: 31.4 kg
7236DFd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 477 kN | C0r: 724 kN | Mass: 31.4 kg
7236DTd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 477 kN | C0r: 724 kN | Mass: 31.4 kg
7236BDBd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 430 kN | C0r: 657 kN | Mass: 31.4 kg
7236BDFd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 430 kN | C0r: 657 kN | Mass: 31.4 kg
7236BDTd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 430 kN | C0r: 657 kN | Mass: 31.4 kg
7236CDBd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 520 kN | C0r: 786 kN | Mass: 31.4 kg
7236CDFd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 520 kN | C0r: 786 kN | Mass: 31.4 kg
7236CDTd: 180 mm | D: 320 mm | B1 (pair): 104 mm | Cr: 520 kN | C0r: 786 kN | Mass: 31.4 kg
7336DBd: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 665 kN | C0r: 1 070 kN | Mass: 80.0 kg
7336DFd: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 665 kN | C0r: 1 070 kN | Mass: 80.0 kg
7336DTd: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 665 kN | C0r: 1 070 kN | Mass: 80.0 kg
7336BDBd: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 606 kN | C0r: 976 kN | Mass: 80.0 kg
7336BDFd: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 606 kN | C0r: 976 kN | Mass: 80.0 kg
7336BDTd: 180 mm | D: 380 mm | B1 (pair): 150 mm | Cr: 606 kN | C0r: 976 kN | Mass: 80.0 kg
7938CDBd: 190 mm | D: 260 mm | B1 (pair): 66 mm | Cr: 257 kN | C0r: 394 kN | Mass: 9.66 kg
7938CDFd: 190 mm | D: 260 mm | B1 (pair): 66 mm | Cr: 257 kN | C0r: 394 kN | Mass: 9.66 kg
7938CDTd: 190 mm | D: 260 mm | B1 (pair): 66 mm | Cr: 257 kN | C0r: 394 kN | Mass: 9.66 kg
7038DBd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 353 kN | C0r: 535 kN | Mass: 21.6 kg
7038DFd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 353 kN | C0r: 535 kN | Mass: 21.6 kg
7038DTd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 353 kN | C0r: 535 kN | Mass: 21.6 kg
7038BDBd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 316 kN | C0r: 483 kN | Mass: 21.6 kg
7038BDFd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 316 kN | C0r: 483 kN | Mass: 21.6 kg
7038BDTd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 316 kN | C0r: 483 kN | Mass: 21.6 kg
7038CDBd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 388 kN | C0r: 585 kN | Mass: 21.6 kg
7038CDFd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 388 kN | C0r: 585 kN | Mass: 21.6 kg
7038CDTd: 190 mm | D: 290 mm | B1 (pair): 92 mm | Cr: 388 kN | C0r: 585 kN | Mass: 21.6 kg
7238DBd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 493 kN | C0r: 779 kN | Mass: 37.6 kg
7238DFd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 493 kN | C0r: 779 kN | Mass: 37.6 kg
7238DTd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 493 kN | C0r: 779 kN | Mass: 37.6 kg
7238BDBd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 443 kN | C0r: 706 kN | Mass: 37.6 kg
7238BDFd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 443 kN | C0r: 706 kN | Mass: 37.6 kg
7238BDTd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 443 kN | C0r: 706 kN | Mass: 37.6 kg
7238CDBd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 538 kN | C0r: 848 kN | Mass: 37.6 kg
7238CDFd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 538 kN | C0r: 848 kN | Mass: 37.6 kg
7238CDTd: 190 mm | D: 340 mm | B1 (pair): 110 mm | Cr: 538 kN | C0r: 848 kN | Mass: 37.6 kg
7338DBd: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 731 kN | C0r: 1 200 kN | Mass: 91.0 kg
7338DFd: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 731 kN | C0r: 1 200 kN | Mass: 91.0 kg
7338DTd: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 731 kN | C0r: 1 200 kN | Mass: 91.0 kg
7338BDBd: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 668 kN | C0r: 1 100 kN | Mass: 91.0 kg
7338BDFd: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 668 kN | C0r: 1 100 kN | Mass: 91.0 kg
7338BDTd: 190 mm | D: 400 mm | B1 (pair): 156 mm | Cr: 668 kN | C0r: 1 100 kN | Mass: 91.0 kg
7940CDBd: 200 mm | D: 280 mm | B1 (pair): 76 mm | Cr: 332 kN | C0r: 509 kN | Mass: 13.7 kg
7940CDFd: 200 mm | D: 280 mm | B1 (pair): 76 mm | Cr: 332 kN | C0r: 509 kN | Mass: 13.7 kg
7940CDTd: 200 mm | D: 280 mm | B1 (pair): 76 mm | Cr: 332 kN | C0r: 509 kN | Mass: 13.7 kg
7040DBd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 396 kN | C0r: 618 kN | Mass: 25.4 kg
7040DFd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 396 kN | C0r: 618 kN | Mass: 25.4 kg
7040DTd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 396 kN | C0r: 618 kN | Mass: 25.4 kg
7040BDBd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 355 kN | C0r: 558 kN | Mass: 25.4 kg
7040BDFd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 355 kN | C0r: 558 kN | Mass: 25.4 kg
7040BDTd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 355 kN | C0r: 558 kN | Mass: 25.4 kg
7040CDBd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 435 kN | C0r: 676 kN | Mass: 25.4 kg
7040CDFd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 435 kN | C0r: 676 kN | Mass: 25.4 kg
7040CDTd: 200 mm | D: 310 mm | B1 (pair): 102 mm | Cr: 435 kN | C0r: 676 kN | Mass: 25.4 kg
7240DBd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 526 kN | C0r: 847 kN | Mass: 44.8 kg
7240DFd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 526 kN | C0r: 847 kN | Mass: 44.8 kg
7240DTd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 526 kN | C0r: 847 kN | Mass: 44.8 kg
7240BDBd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 474 kN | C0r: 768 kN | Mass: 44.8 kg
7240BDFd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 474 kN | C0r: 768 kN | Mass: 44.8 kg
7240BDTd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 474 kN | C0r: 768 kN | Mass: 44.8 kg
7240CDBd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 575 kN | C0r: 921 kN | Mass: 44.8 kg
7240CDFd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 575 kN | C0r: 921 kN | Mass: 44.8 kg
7240CDTd: 200 mm | D: 360 mm | B1 (pair): 116 mm | Cr: 575 kN | C0r: 921 kN | Mass: 44.8 kg
7340DBd: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 770 kN | C0r: 1 320 kN | Mass: 104 kg
7340DFd: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 770 kN | C0r: 1 320 kN | Mass: 104 kg
7340DTd: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 770 kN | C0r: 1 320 kN | Mass: 104 kg
7340BDBd: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 702 kN | C0r: 1 200 kN | Mass: 104 kg
7340BDFd: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 702 kN | C0r: 1 200 kN | Mass: 104 kg
7340BDTd: 200 mm | D: 420 mm | B1 (pair): 160 mm | Cr: 702 kN | C0r: 1 200 kN | Mass: 104 kg
7044DBd: 220 mm | D: 340 mm | B1 (pair): 112 mm | Cr: 434 kN | C0r: 705 kN | Mass: 37.0 kg
7044DFd: 220 mm | D: 340 mm | B1 (pair): 112 mm | Cr: 434 kN | C0r: 705 kN | Mass: 37.0 kg
7044BDBd: 220 mm | D: 340 mm | B1 (pair): 112 mm | Cr: 389 kN | C0r: 636 kN | Mass: 37.8 kg
7044BDFd: 220 mm | D: 340 mm | B1 (pair): 112 mm | Cr: 389 kN | C0r: 636 kN | Mass: 37.8 kg
7048DBd: 240 mm | D: 360 mm | B1 (pair): 112 mm | Cr: 443 kN | C0r: 751 kN | Mass: 39.4 kg
7048DFd: 240 mm | D: 360 mm | B1 (pair): 112 mm | Cr: 443 kN | C0r: 751 kN | Mass: 39.4 kg
7048BDBd: 240 mm | D: 360 mm | B1 (pair): 112 mm | Cr: 397 kN | C0r: 677 kN | Mass: 40.2 kg
7048BDFd: 240 mm | D: 360 mm | B1 (pair): 112 mm | Cr: 397 kN | C0r: 677 kN | Mass: 40.2 kg
7248DBd: 240 mm | D: 440 mm | B1 (pair): 144 mm | Cr: 655 kN | C0r: 1 190 kN | Mass: 104 kg
7248DFd: 240 mm | D: 440 mm | B1 (pair): 144 mm | Cr: 655 kN | C0r: 1 190 kN | Mass: 104 kg
7248BDBd: 240 mm | D: 440 mm | B1 (pair): 144 mm | Cr: 589 kN | C0r: 1 080 kN | Mass: 106 kg
7248BDFd: 240 mm | D: 440 mm | B1 (pair): 144 mm | Cr: 589 kN | C0r: 1 080 kN | Mass: 106 kg
7052DBd: 260 mm | D: 400 mm | B1 (pair): 130 mm | Cr: 529 kN | C0r: 956 kN | Mass: 57.4 kg
7052DFd: 260 mm | D: 400 mm | B1 (pair): 130 mm | Cr: 529 kN | C0r: 956 kN | Mass: 57.4 kg
7052BDBd: 260 mm | D: 400 mm | B1 (pair): 130 mm | Cr: 473 kN | C0r: 862 kN | Mass: 58.6 kg
7052BDFd: 260 mm | D: 400 mm | B1 (pair): 130 mm | Cr: 473 kN | C0r: 862 kN | Mass: 58.6 kg
7056DBd: 280 mm | D: 420 mm | B1 (pair): 130 mm | Cr: 540 kN | C0r: 1 010 kN | Mass: 60.8 kg
7056DFd: 280 mm | D: 420 mm | B1 (pair): 130 mm | Cr: 540 kN | C0r: 1 010 kN | Mass: 60.8 kg
7056BDBd: 280 mm | D: 420 mm | B1 (pair): 130 mm | Cr: 483 kN | C0r: 906 kN | Mass: 62.0 kg
7056BDFd: 280 mm | D: 420 mm | B1 (pair): 130 mm | Cr: 483 kN | C0r: 906 kN | Mass: 62.0 kg
7060DBd: 300 mm | D: 460 mm | B1 (pair): 148 mm | Cr: 693 kN | C0r: 1 360 kN | Mass: 87.4 kg
7060DFd: 300 mm | D: 460 mm | B1 (pair): 148 mm | Cr: 693 kN | C0r: 1 360 kN | Mass: 87.4 kg
7060BDBd: 300 mm | D: 460 mm | B1 (pair): 148 mm | Cr: 621 kN | C0r: 1 230 kN | Mass: 89.8 kg
7060BDFd: 300 mm | D: 460 mm | B1 (pair): 148 mm | Cr: 621 kN | C0r: 1 230 kN | Mass: 89.8 kg
7064DBd: 320 mm | D: 480 mm | B1 (pair): 148 mm | Cr: 710 kN | C0r: 1 440 kN | Mass: 92.0 kg
7064DFd: 320 mm | D: 480 mm | B1 (pair): 148 mm | Cr: 710 kN | C0r: 1 440 kN | Mass: 92.0 kg
7064BDBd: 320 mm | D: 480 mm | B1 (pair): 148 mm | Cr: 636 kN | C0r: 1 300 kN | Mass: 94.4 kg
7064BDFd: 320 mm | D: 480 mm | B1 (pair): 148 mm | Cr: 636 kN | C0r: 1 300 kN | Mass: 94.4 kg
7068DBd: 340 mm | D: 520 mm | B1 (pair): 164 mm | Cr: 816 kN | C0r: 1 720 kN | Mass: 124 kg
7068DFd: 340 mm | D: 520 mm | B1 (pair): 164 mm | Cr: 816 kN | C0r: 1 720 kN | Mass: 124 kg
7068BDBd: 340 mm | D: 520 mm | B1 (pair): 164 mm | Cr: 731 kN | C0r: 1 550 kN | Mass: 127 kg
7068BDFd: 340 mm | D: 520 mm | B1 (pair): 164 mm | Cr: 731 kN | C0r: 1 550 kN | Mass: 127 kg
7072DBd: 360 mm | D: 540 mm | B1 (pair): 164 mm | Cr: 837 kN | C0r: 1 830 kN | Mass: 129 kg
7072DFd: 360 mm | D: 540 mm | B1 (pair): 164 mm | Cr: 837 kN | C0r: 1 830 kN | Mass: 129 kg
7072BDBd: 360 mm | D: 540 mm | B1 (pair): 164 mm | Cr: 750 kN | C0r: 1 650 kN | Mass: 132 kg
7072BDFd: 360 mm | D: 540 mm | B1 (pair): 164 mm | Cr: 750 kN | C0r: 1 650 kN | Mass: 132 kg
7076DBd: 380 mm | D: 560 mm | B1 (pair): 164 mm | Cr: 858 kN | C0r: 1 930 kN | Mass: 134 kg
7076DFd: 380 mm | D: 560 mm | B1 (pair): 164 mm | Cr: 858 kN | C0r: 1 930 kN | Mass: 134 kg
7076BDBd: 380 mm | D: 560 mm | B1 (pair): 164 mm | Cr: 767 kN | C0r: 1 740 kN | Mass: 138 kg
7076BDFd: 380 mm | D: 560 mm | B1 (pair): 164 mm | Cr: 767 kN | C0r: 1 740 kN | Mass: 138 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
