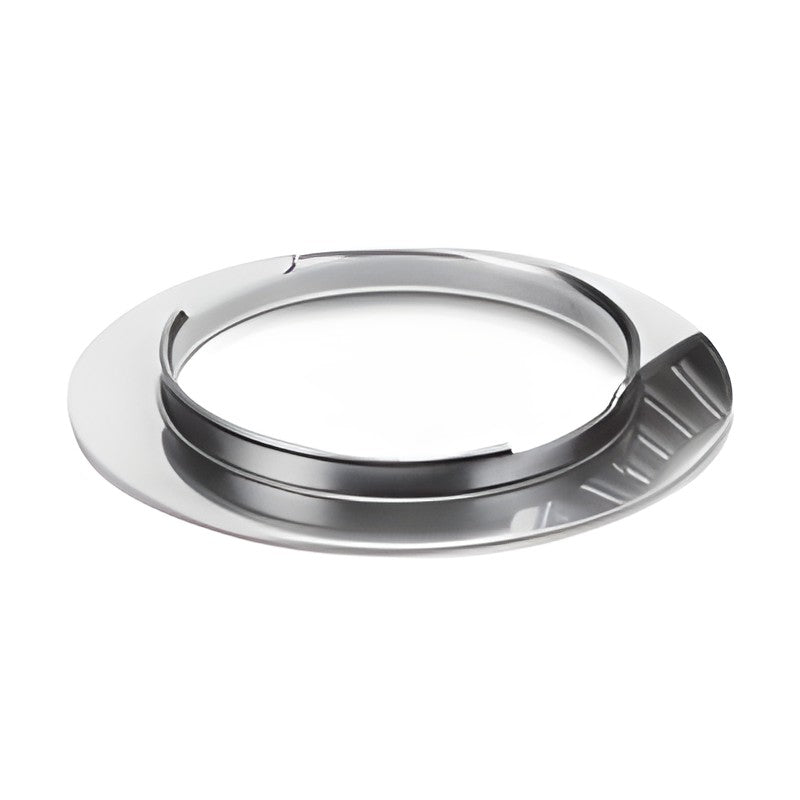

KOYO AS, LS, WS, GS Thrust Washers for Thrust Needle & Roller Bearings

KOYO AS, LS, WS, GS Thrust Washers for Thrust Needle & Roller Bearings

Metric thrust washers for thrust needle and cylindrical roller assemblies: thin AS washers, thick LS washers, and WS (shaft) / GS (housing) washers of the 811 and 812 series.

Key features

  • AS: thin hardened washer, e.g. as raceway on soft faces
  • LS: thick universal washer
  • WS shaft washers and GS housing washers
  • Ground raceway faces
  • Matched to AXK, FNT and K.811/812 assemblies

Specifications

Product type Thrust washer
Types AS, LS, WS, GS
Dimension system Metric
Source KOYO Needle Roller Bearings catalogue, p. B-6-14 to B-6-17, B-6-34 to B-6-37
AS0619 Type: Thin washer AS | d: 6 mm | D: 19 mm | Thickness: 1.00 mm
AS0821 Type: Thin washer AS | d: 8 mm | D: 21 mm | Thickness: 1.00 mm
LS0821 Type: Thick washer LS | d: 8 mm | D: 21 mm | Thickness: 2.75 mm
AS1024 Type: Thin washer AS | d: 10 mm | D: 24 mm | Thickness: 1.00 mm
LS1024 Type: Thick washer LS | d: 10 mm | D: 24 mm | Thickness: 2.75 mm
AS1226 Type: Thin washer AS | d: 12 mm | D: 26 mm | Thickness: 1.00 mm
LS1226 Type: Thick washer LS | d: 12 mm | D: 26 mm | Thickness: 2.75 mm
AS1528 Type: Thin washer AS | d: 15 mm | D: 28 mm | Thickness: 1.00 mm
LS1528 Type: Thick washer LS | d: 15 mm | D: 28 mm | Thickness: 2.75 mm
WS.81102 Type: Shaft washer WS | d: 15 mm | D: 28 mm | Thickness: 2.75 mm
GS.81102 Type: Housing washer GS | d: 15 mm | D: 28 mm | Thickness: 2.75 mm
AS1730 Type: Thin washer AS | d: 17 mm | D: 30 mm | Thickness: 1.00 mm
LS1730 Type: Thick washer LS | d: 17 mm | D: 30 mm | Thickness: 2.75 mm
WS.81103 Type: Shaft washer WS | d: 17 mm | D: 30 mm | Thickness: 2.75 mm
GS.81103 Type: Housing washer GS | d: 17 mm | D: 30 mm | Thickness: 2.75 mm
AS2035 Type: Thin washer AS | d: 20 mm | D: 35 mm | Thickness: 1.00 mm
LS2035 Type: Thick washer LS | d: 20 mm | D: 35 mm | Thickness: 2.75 mm
WS.81104 Type: Shaft washer WS | d: 20 mm | D: 35 mm | Thickness: 2.75 mm
GS.81104 Type: Housing washer GS | d: 20 mm | D: 35 mm | Thickness: 2.75 mm
AS2542 Type: Thin washer AS | d: 25 mm | D: 42 mm | Thickness: 1.00 mm
LS2542 Type: Thick washer LS | d: 25 mm | D: 42 mm | Thickness: 3.00 mm
WS.81105 Type: Shaft washer WS | d: 25 mm | D: 42 mm | Thickness: 3.00 mm
GS.81105 Type: Housing washer GS | d: 25 mm | D: 42 mm | Thickness: 3.00 mm
AS3047 Type: Thin washer AS | d: 30 mm | D: 47 mm | Thickness: 1.00 mm
LS3047 Type: Thick washer LS | d: 30 mm | D: 47 mm | Thickness: 3.00 mm
WS.81106 Type: Shaft washer WS | d: 30 mm | D: 47 mm | Thickness: 3.00 mm
GS.81106 Type: Housing washer GS | d: 30 mm | D: 47 mm | Thickness: 3.00 mm
AS3552 Type: Thin washer AS | d: 35 mm | D: 52 mm | Thickness: 1.00 mm
LS3552 Type: Thick washer LS | d: 35 mm | D: 52 mm | Thickness: 3.50 mm
WS.81107 Type: Shaft washer WS | d: 35 mm | D: 52 mm | Thickness: 3.50 mm
GS.81107 Type: Housing washer GS | d: 35 mm | D: 52 mm | Thickness: 3.50 mm
AS6085 Type: Thin washer AS | d: 60 mm | D: 85 mm | Thickness: 1.00 mm
LS6085 Type: Thick washer LS | d: 60 mm | D: 85 mm | Thickness: 4.75 mm
WS.81112 Type: Shaft washer WS | d: 60 mm | D: 85 mm | Thickness: 4.75 mm
GS.81112 Type: Housing washer GS | d: 60 mm | D: 85 mm | Thickness: 4.75 mm
AS6590 Type: Thin washer AS | d: 65 mm | D: 90 mm | Thickness: 1.00 mm
LS6590 Type: Thick washer LS | d: 65 mm | D: 90 mm | Thickness: 5.25 mm
WS.81113 Type: Shaft washer WS | d: 65 mm | D: 90 mm | Thickness: 5.25 mm
GS.81113 Type: Housing washer GS | d: 65 mm | D: 90 mm | Thickness: 5.25 mm
AS85110 Type: Thin washer AS | d: 85 mm | D: 110 mm | Thickness: 1.00 mm
LS85110 Type: Thick washer LS | d: 85 mm | D: 110 mm | Thickness: 5.75 mm
WS.81117 Type: Shaft washer WS | d: 85 mm | D: 110 mm | Thickness: 5.75 mm
GS.81117 Type: Housing washer GS | d: 85 mm | D: 110 mm | Thickness: 5.75 mm
AS90120 Type: Thin washer AS | d: 90 mm | D: 120 mm | Thickness: 1.00 mm
LS90120 Type: Thick washer LS | d: 90 mm | D: 120 mm | Thickness: 6.50 mm
WS.81118 Type: Shaft washer WS | d: 90 mm | D: 120 mm | Thickness: 6.50 mm
GS.81118 Type: Housing washer GS | d: 90 mm | D: 120 mm | Thickness: 6.50 mm
AS100135 Type: Thin washer AS | d: 100 mm | D: 135 mm | Thickness: 1.00 mm
AS110145 Type: Thin washer AS | d: 110 mm | D: 145 mm | Thickness: 1.00 mm
LS110145 Type: Thick washer LS | d: 110 mm | D: 145 mm | Thickness: 7.00 mm
AS4060 Type: Thin washer AS | d: 40 mm | D: 60 mm | Thickness: 1.00 mm
LS4060 Type: Thick washer LS | d: 40 mm | D: 60 mm | Thickness: 3.50 mm
WS.81108 Type: Shaft washer WS | d: 40 mm | D: 60 mm | Thickness: 3.50 mm
GS.81108 Type: Housing washer GS | d: 40 mm | D: 60 mm | Thickness: 3.50 mm
AS4565 Type: Thin washer AS | d: 45 mm | D: 65 mm | Thickness: 1.00 mm
LS4565 Type: Thick washer LS | d: 45 mm | D: 65 mm | Thickness: 4.00 mm
WS.81109 Type: Shaft washer WS | d: 45 mm | D: 65 mm | Thickness: 4.00 mm
GS.81109 Type: Housing washer GS | d: 45 mm | D: 65 mm | Thickness: 4.00 mm
AS5070 Type: Thin washer AS | d: 50 mm | D: 70 mm | Thickness: 1.00 mm
LS5070 Type: Thick washer LS | d: 50 mm | D: 70 mm | Thickness: 4.00 mm
WS.81110 Type: Shaft washer WS | d: 50 mm | D: 70 mm | Thickness: 4.00 mm
GS.81110 Type: Housing washer GS | d: 50 mm | D: 70 mm | Thickness: 4.00 mm
AS5578 Type: Thin washer AS | d: 55 mm | D: 78 mm | Thickness: 1.00 mm
LS5578 Type: Thick washer LS | d: 55 mm | D: 78 mm | Thickness: 5.00 mm
WS.81111 Type: Shaft washer WS | d: 55 mm | D: 78 mm | Thickness: 5.00 mm
GS.81111 Type: Housing washer GS | d: 55 mm | D: 78 mm | Thickness: 5.00 mm
AS7095 Type: Thin washer AS | d: 70 mm | D: 95 mm | Thickness: 1.00 mm
LS7095 Type: Thick washer LS | d: 70 mm | D: 95 mm | Thickness: 5.25 mm
WS.81114 Type: Shaft washer WS | d: 70 mm | D: 95 mm | Thickness: 5.25 mm
GS.81114 Type: Housing washer GS | d: 70 mm | D: 95 mm | Thickness: 5.25 mm
AS75100 Type: Thin washer AS | d: 75 mm | D: 100 mm | Thickness: 1.00 mm
LS75100 Type: Thick washer LS | d: 75 mm | D: 100 mm | Thickness: 5.75 mm
WS.81115 Type: Shaft washer WS | d: 75 mm | D: 100 mm | Thickness: 5.75 mm
GS.81115 Type: Housing washer GS | d: 75 mm | D: 100 mm | Thickness: 5.75 mm
AS80105 Type: Thin washer AS | d: 80 mm | D: 105 mm | Thickness: 1.00 mm
LS80105 Type: Thick washer LS | d: 80 mm | D: 105 mm | Thickness: 5.75 mm
WS.81116 Type: Shaft washer WS | d: 80 mm | D: 105 mm | Thickness: 5.75 mm
GS.81116 Type: Housing washer GS | d: 80 mm | D: 105 mm | Thickness: 5.75 mm
AS120155 Type: Thin washer AS | d: 120 mm | D: 155 mm | Thickness: 1.00 mm
AS130170 Type: Thin washer AS | d: 130 mm | D: 170 mm | Thickness: 1.00 mm
LS130170 Type: Thick washer LS | d: 130 mm | D: 170 mm | Thickness: 9.00 mm
AS140180 Type: Thin washer AS | d: 140 mm | D: 180 mm | Thickness: 1.00 mm
AS150190 Type: Thin washer AS | d: 150 mm | D: 190 mm | Thickness: 1.00 mm
AS160200 Type: Thin washer AS | d: 160 mm | D: 200 mm | Thickness: 1.00 mm
WS.81206 Type: Shaft washer WS | d: 30 mm | D: 52 mm | Thickness: 4.25 mm
GS.81206 Type: Housing washer GS | d: 30 mm | D: 52 mm | Thickness: 4.25 mm
WS.81207 Type: Shaft washer WS | d: 35 mm | D: 62 mm | Thickness: 5.25 mm
GS.81207 Type: Housing washer GS | d: 35 mm | D: 62 mm | Thickness: 5.25 mm
WS.81208 Type: Shaft washer WS | d: 40 mm | D: 68 mm | Thickness: 5.00 mm
GS.81208 Type: Housing washer GS | d: 40 mm | D: 68 mm | Thickness: 5.00 mm
WS.81209 Type: Shaft washer WS | d: 45 mm | D: 73 mm | Thickness: 5.50 mm
GS.81209 Type: Housing washer GS | d: 45 mm | D: 73 mm | Thickness: 5.50 mm
WS.81210 Type: Shaft washer WS | d: 50 mm | D: 78 mm | Thickness: 6.5 mm
GS.81210 Type: Housing washer GS | d: 50 mm | D: 78 mm | Thickness: 6.5 mm
WS.81211 Type: Shaft washer WS | d: 55 mm | D: 90 mm | Thickness: 7.00 mm
GS.81211 Type: Housing washer GS | d: 55 mm | D: 90 mm | Thickness: 7.00 mm
WS.81212 Type: Shaft washer WS | d: 60 mm | D: 95 mm | Thickness: 7.50 mm
GS.81212 Type: Housing washer GS | d: 60 mm | D: 95 mm | Thickness: 7.50 mm
WS.81213 Type: Shaft washer WS | d: 65 mm | D: 100 mm | Thickness: 8.00 mm
GS.81213 Type: Housing washer GS | d: 65 mm | D: 100 mm | Thickness: 8.00 mm
WS.81214 Type: Shaft washer WS | d: 70 mm | D: 105 mm | Thickness: 8.00 mm
GS.81214 Type: Housing washer GS | d: 70 mm | D: 105 mm | Thickness: 8.00 mm
WS.81215 Type: Shaft washer WS | d: 75 mm | D: 110 mm | Thickness: 8.00 mm
GS.81215 Type: Housing washer GS | d: 75 mm | D: 110 mm | Thickness: 8.00 mm
WS.81216 Type: Shaft washer WS | d: 80 mm | D: 115 mm | Thickness: 8.50 mm
GS.81216 Type: Housing washer GS | d: 80 mm | D: 115 mm | Thickness: 8.50 mm
WS.81217 Type: Shaft washer WS | d: 85 mm | D: 125 mm | Thickness: 9.50 mm
GS.81217 Type: Housing washer GS | d: 85 mm | D: 125 mm | Thickness: 9.50 mm
WS.81218 Type: Shaft washer WS | d: 90 mm | D: 135 mm | Thickness: 10.50 mm
GS.81218 Type: Housing washer GS | d: 90 mm | D: 135 mm | Thickness: 10.50 mm
