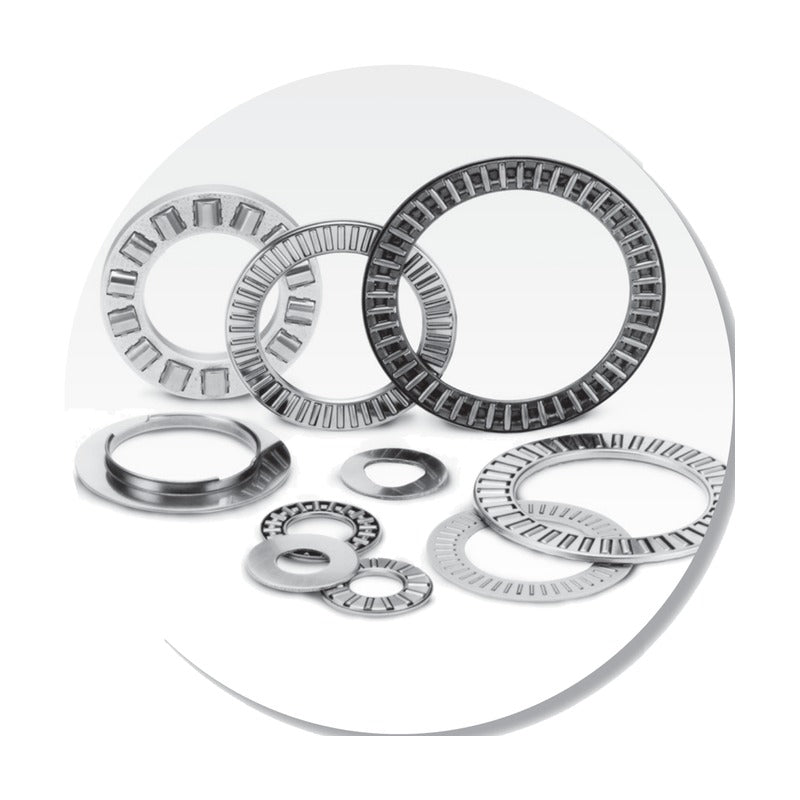

KOYO AX Unitized Thrust Bearings, Thin & Thick (Metric)

KOYO AX Unitized Thrust Bearings, Thin & Thick (Metric)

AX unitized thrust needle bearings in thin and thick versions (e.g. AX 5 13, AX 3,5 5 13) consisting of a needle roller cage and pressed thrust washer, metric series.

Key features

  • Needle cage retained in pressed washer
  • Thin and thick washer versions
  • Compact axial design
  • Use with CP thrust washers

Specifications

Bearing type Unitized thrust needle bearing
Series AX (thin / thick)
Source KOYO Needle Roller Bearings catalogue, p. B-6-26 to B-6-33
AX 5 13 d: 5 mm | D: 13 mm | B1: 2.3 mm | Ca: 3.00 kN | C0a: 5.70 kN | Mass: 0.001 kg
AX 3,5 5 13 d: 5 mm | D: 13 mm | B1: 3.5 mm | Ca: 3.00 kN | C0a: 5.70 kN | Mass: 0.002 kg
AX 6 14 d: 6 mm | D: 14 mm | B1: 2.3 mm | Ca: 3.15 kN | C0a: 6.35 kN | Mass: 0.001 kg
AX 3,5 6 14 d: 6 mm | D: 14 mm | B1: 3.5 mm | Ca: 3.15 kN | C0a: 6.35 kN | Mass: 0.002 kg
AX 7 15 d: 7 mm | D: 15 mm | B1: 2.3 mm | Ca: 3.55 kN | C0a: 7.60 kN | Mass: 0.002 kg
AX 3,5 7 15 d: 7 mm | D: 15 mm | B1: 3.5 mm | Ca: 3.55 kN | C0a: 7.60 kN | Mass: 0.003 kg
AX 8 16 d: 8 mm | D: 16 mm | B1: 2.3 mm | Ca: 3.70 kN | C0a: 8.30 kN | Mass: 0.002 kg
AX 3,5 8 16 d: 8 mm | D: 16 mm | B1: 3.5 mm | Ca: 3.70 kN | C0a: 8.30 kN | Mass: 0.003 kg
AX 9 17 d: 9 mm | D: 17 mm | B1: 2.3 mm | Ca: 4.05 kN | C0a: 9.50 kN | Mass: 0.002 kg
AX 3,5 9 17 d: 9 mm | D: 17 mm | B1: 3.5 mm | Ca: 4.05 kN | C0a: 9.50 kN | Mass: 0.004 kg
AX 4 10 22 d: 10 mm | D: 22 mm | B1: 4.0 mm | Ca: 5.00 kN | C0a: 10.90 kN | Mass: 0.007 kg
AX 12 26 d: 12 mm | D: 26 mm | B1: 2.8 mm | Ca: 6.90 kN | C0a: 17.70 kN | Mass: 0.006 kg
AX 4 12 26 d: 12 mm | D: 26 mm | B1: 4.0 mm | Ca: 6.90 kN | C0a: 17.70 kN | Mass: 0.010 kg
AX 13 26 d: 13 mm | D: 26 mm | B1: 2.8 mm | Ca: 6.90 kN | C0a: 17.70 kN | Mass: 0.006 kg
AX 4 13 26 d: 13 mm | D: 26 mm | B1: 4.0 mm | Ca: 6.90 kN | C0a: 17.70 kN | Mass: 0.010 kg
AX 15 28 d: 15 mm | D: 28 mm | B1: 2.8 mm | Ca: 7.40 kN | C0a: 20.00 kN | Mass: 0.007 kg
AX 4 15 28 d: 15 mm | D: 28 mm | B1: 4.0 mm | Ca: 7.40 kN | C0a: 20.00 kN | Mass: 0.009 kg
AX 17 30 d: 17 mm | D: 30 mm | B1: 2.8 mm | Ca: 7.80 kN | C0a: 22.00 kN | Mass: 0.008 kg
AX 4 17 30 d: 17 mm | D: 30 mm | B1: 4.0 mm | Ca: 7.80 kN | C0a: 22.00 kN | Mass: 0.010 kg
AX 19 32 d: 19 mm | D: 32 mm | B1: 2.8 mm | Ca: 8.00 kN | C0a: 23.30 kN | Mass: 0.009 kg
AX 4 19 32 d: 19 mm | D: 32 mm | B1: 4.0 mm | Ca: 8.00 kN | C0a: 23.30 kN | Mass: 0.013 kg
AX 5 20 35 d: 20 mm | D: 35 mm | B1: 5.0 mm | Ca: 11.80 kN | C0a: 39.00 kN | Mass: 0.018 kg
AX 25 42 d: 25 mm | D: 42 mm | B1: 2.8 mm | Ca: 13.30 kN | C0a: 49.00 kN | Mass: 0.012 kg
AX 5 25 42 d: 25 mm | D: 42 mm | B1: 5.0 mm | Ca: 13.30 kN | C0a: 49.00 kN | Mass: 0.025 kg
AX 27 44 d: 27 mm | D: 44 mm | B1: 2.8 mm | Ca: 13.70 kN | C0a: 52.00 kN | Mass: 0.012 kg
AX 30 47 d: 30 mm | D: 47 mm | B1: 2.8 mm | Ca: 14.50 kN | C0a: 57.00 kN | Mass: 0.014 kg
AX 5 30 47 d: 30 mm | D: 47 mm | B1: 5.0 mm | Ca: 14.50 kN | C0a: 57.00 kN | Mass: 0.029 kg
AX 35 52 d: 35 mm | D: 52 mm | B1: 2.8 mm | Ca: 18.90 kN | C0a: 84.00 kN | Mass: 0.019 kg
AX 5 35 52 d: 35 mm | D: 52 mm | B1: 5.0 mm | Ca: 18.90 kN | C0a: 84.00 kN | Mass: 0.035 kg
AX 35 53 d: 35 mm | D: 53 mm | B1: 2.8 mm | Ca: 18.90 kN | C0a: 84.00 kN | Mass: 0.019 kg
AX 5 35 53 d: 35 mm | D: 53 mm | B1: 5.0 mm | Ca: 18.90 kN | C0a: 84.00 kN | Mass: 0.036 kg
AX 40 60 d: 40 mm | D: 60 mm | B1: 2.8 mm | Ca: 20.40 kN | C0a: 96.00 kN | Mass: 0.024 kg
AX 5 40 60 d: 40 mm | D: 60 mm | B1: 5.0 mm | Ca: 20.40 kN | C0a: 96.00 kN | Mass: 0.046 kg
AX 45 65 d: 45 mm | D: 65 mm | B1: 2.8 mm | Ca: 21.80 kN | C0a: 109 kN | Mass: 0.025 kg
AX 5 45 65 d: 45 mm | D: 65 mm | B1: 5.0 mm | Ca: 21.80 kN | C0a: 109 kN | Mass: 0.050 kg
AX 50 70 d: 50 mm | D: 70 mm | B1: 2.8 mm | Ca: 22.50 kN | C0a: 118 kN | Mass: 0.026 kg
AX 5 50 70 d: 50 mm | D: 70 mm | B1: 5.0 mm | Ca: 22.50 kN | C0a: 118 kN | Mass: 0.055 kg
AX 55 78 d: 55 mm | D: 78 mm | B1: 2.8 mm | Ca: 28.50 kN | C0a: 164 kN | Mass: 0.034 kg
AX 6 55 78 d: 55 mm | D: 78 mm | B1: 6.0 mm | Ca: 28.50 kN | C0a: 164 kN | Mass: 0.089 kg
AX 6 60 85 d: 60 mm | D: 85 mm | B1: 6.0 mm | Ca: 31.50 kN | C0a: 193 kN | Mass: 0.106 kg
AX 3,5 65 90 d: 65 mm | D: 90 mm | B1: 3.5 mm | Ca: 33.50 kN | C0a: 210 kN | Mass: 0.059 kg
AX 6 65 90 d: 65 mm | D: 90 mm | B1: 6.0 mm | Ca: 33.50 kN | C0a: 210 kN | Mass: 0.114 kg
AX 3,5 70 95 d: 70 mm | D: 95 mm | B1: 3.5 mm | Ca: 34.50 kN | C0a: 223 kN | Mass: 0.061 kg
AX 6 70 95 d: 70 mm | D: 95 mm | B1: 6.0 mm | Ca: 34.50 kN | C0a: 223 kN | Mass: 0.120 kg
AX 3,5 75 100 d: 75 mm | D: 100 mm | B1: 3.5 mm | Ca: 36.00 kN | C0a: 240 kN | Mass: 0.065 kg
AX 6 75 100 d: 75 mm | D: 100 mm | B1: 6.0 mm | Ca: 36.00 kN | C0a: 240 kN | Mass: 0.127 kg
AX 3,5 80 105 d: 80 mm | D: 105 mm | B1: 3.5 mm | Ca: 36.50 kN | C0a: 253 kN | Mass: 0.069 kg
AX 6 80 105 d: 80 mm | D: 105 mm | B1: 6.0 mm | Ca: 36.50 kN | C0a: 253 kN | Mass: 0.134 kg
AX 3,5 85 110 d: 85 mm | D: 110 mm | B1: 3.5 mm | Ca: 38.00 kN | C0a: 270 kN | Mass: 0.078 kg
AX 6 85 110 d: 85 mm | D: 110 mm | B1: 6.0 mm | Ca: 38.00 kN | C0a: 270 kN | Mass: 0.142 kg
AX 4,5 90 120 d: 90 mm | D: 120 mm | B1: 4.5 mm | Ca: 59.00 kN | C0a: 360 kN | Mass: 0.117 kg
AX 8 90 120 d: 90 mm | D: 120 mm | B1: 8.0 mm | Ca: 59.00 kN | C0a: 360 kN | Mass: 0.238 kg
AX 9 100 135 d: 100 mm | D: 135 mm | B1: 9.0 mm | Ca: 73.00 kN | C0a: 490 kN | Mass: 0.364 kg
AX 4,5 110 145 d: 110 mm | D: 145 mm | B1: 4.5 mm | Ca: 77.00 kN | C0a: 550 kN | Mass: 0.168 kg
AX 9 110 145 d: 110 mm | D: 145 mm | B1: 9.0 mm | Ca: 77.00 kN | C0a: 550 kN | Mass: 0.393 kg
AX 4,5 120 155 d: 120 mm | D: 155 mm | B1: 4.5 mm | Ca: 80.00 kN | C0a: 590 kN | Mass: 0.182 kg
AX 9 120 155 d: 120 mm | D: 155 mm | B1: 9.0 mm | Ca: 80.00 kN | C0a: 590 kN | Mass: 0.424 kg
AX 11 130 170 d: 130 mm | D: 170 mm | B1: 11.0 mm | Ca: 106 kN | C0a: 710 kN | Mass: 0.660 kg
AX 11 140 180 d: 140 mm | D: 180 mm | B1: 9.0 mm | Ca: 111 kN | C0a: 770 kN | Mass: 0.670 kg
AX 11 150 190 d: 150 mm | D: 190 mm | B1: 9.0 mm | Ca: 115 kN | C0a: 830 kN | Mass: 0.710 kg
AX 11 160 200 d: 160 mm | D: 200 mm | B1: 9.0 mm | Ca: 118 kN | C0a: 870 kN | Mass: 0.760 kg
AX 12 170 215 d: 170 mm | D: 215 mm | B1: 12.0 mm | Ca: 165 kN | C0a: 1160 kN | Mass: 1.000 kg
AX 12 180 225 d: 180 mm | D: 225 mm | B1: 12.0 mm | Ca: 173 kN | C0a: 1250 kN | Mass: 1.050 kg
AX 14 190 240 d: 190 mm | D: 240 mm | B1: 13.9 mm | Ca: 230 kN | C0a: 1650 kN | Mass: 1.400 kg
AX 14 200 250 d: 200 mm | D: 250 mm | B1: 13.9 mm | Ca: 239 kN | C0a: 1730 kN | Mass: 1.500 kg
AX 14 220 270 d: 220 mm | D: 270 mm | B1: 13.9 mm | Ca: 248 kN | C0a: 1850 kN | Mass: 1.600 kg
AX 15 240 300 d: 240 mm | D: 300 mm | B1: 14.9 mm | Ca: 280 kN | C0a: 2240 kN | Mass: 2.300 kg
