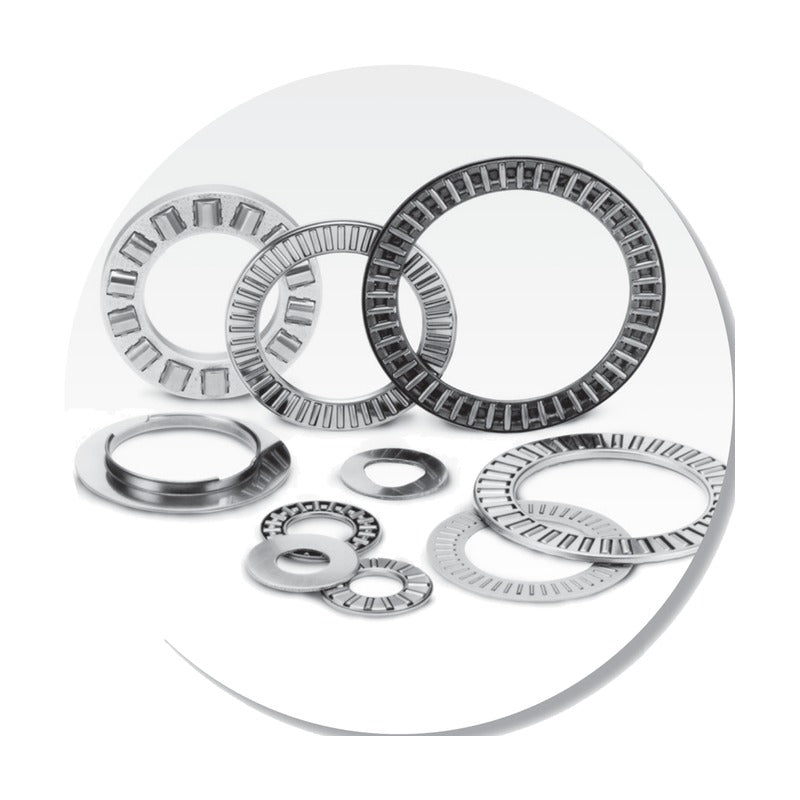

KOYO Thrust Needle Roller and Cage Assemblies (AXK, FNT, TP, TV)

KOYO Thrust Needle Roller and Cage Assemblies (AXK, FNT, TP, TV)

Metric thrust needle roller and cage assemblies of the AXK, FNT, FNTA, TP and TV series for use with AS, LS, WS, GS thrust washers or directly on hardened faces.

Key features

  • Very thin axial section
  • High axial load capacity and rigidity
  • Run on hardened shaft/housing faces or thrust washers
  • Polymer or steel cages
  • Bore d and outside diameter D listed

Specifications

Bearing type Thrust needle roller and cage assembly
Series AXK, FNT, FNTA, TP, TV
Dimension system Metric
Source KOYO Needle Roller Bearings catalogue, p. B-6-14 to B-6-21
AXK0619TN d: 6 mm | D: 19 mm | Ca: 6.37 kN | C0a: 14.3 kN | Mass: 0.001 kg
FNT-619 Ca: 6.82 kN | C0a: 15.6 kN | Mass: 0.002 kg
AXK0821TN d: 8 mm | D: 21 mm | Ca: 8.34 kN | C0a: 21.1 kN | Mass: 0.001 kg
FNT-821 Ca: 7.67 kN | C0a: 19.1 kN | Mass: 0.002 kg
AXK1024 d: 10 mm | D: 24 mm | Ca: 9.32 kN | C0a: 25.9 kN | Mass: 0.003 kg
FNT-1024 Ca: 9.14 kN | C0a: 25.2 kN | Mass: 0.002 kg
AXK1226 d: 12 mm | D: 26 mm | Ca: 10.8 kN | C0a: 32.3 kN | Mass: 0.004 kg
FNT-1226 Ca: 9.92 kN | C0a: 29.0 kN | Mass: 0.004 kg
AXK1528 d: 15 mm | D: 28 mm | Ca: 11.1 kN | C0a: 35.2 kN | Mass: 0.004 kg
FNT-1528 Ca: 10.2 kN | C0a: 31.3 kN | Mass: 0.004 kg
AXK1730TN d: 17 mm | D: 30 mm | Ca: 11.7 kN | C0a: 38.7 kN | Mass: 0.004 kg
FNT-1730 Ca: 10.8 kN | C0a: 34.8 kN | Mass: 0.004 kg
AXK2035 d: 20 mm | D: 35 mm | Ca: 12.8 kN | C0a: 45.4 kN | Mass: 0.006 kg
FNTA-2035 Ca: 13.8 kN | C0a: 50.7 kN | Mass: 0.005 kg
AXK2542 d: 25 mm | D: 42 mm | Ca: 14.3 kN | C0a: 56.8 kN | Mass: 0.007 kg
FNT-2542 Ca: 18.0 kN | C0a: 75.3 kN | Mass: 0.008 kg
AXK3047 d: 30 mm | D: 47 mm | Ca: 16.0 kN | C0a: 68.1 kN | Mass: 0.009 kg
FNTA-3047 Ca: 18.6 kN | C0a: 82.4 kN | Mass: 0.009 kg
AXK3552 d: 35 mm | D: 52 mm | Ca: 17.4 kN | C0a: 79.5 kN | Mass: 0.010 kg
FNT-3552 Ca: 21.7 kN | C0a: 104.0 kN | Mass: 0.010 kg
AXK4060 d: 40 mm | D: 60 mm | Ca: 27.1 kN | C0a: 110.0 kN | Mass: 0.016 kg
FNT-4060 Ca: 31.5 kN | C0a: 132.0 kN | Mass: 0.020 kg
AXK4565 d: 45 mm | D: 65 mm | Ca: 29.0 kN | C0a: 124.0 kN | Mass: 0.020 kg
FNT-4565 Ca: 37.6 kN | C0a: 172.0 kN | Mass: 0.024 kg
AXK5070 d: 50 mm | D: 70 mm | Ca: 30.8 kN | C0a: 137.0 kN | Mass: 0.020 kg
FNT-5070 Ca: 37.9 kN | C0a: 179.0 kN | Mass: 0.026 kg
AXK5578 d: 55 mm | D: 78 mm | Ca: 39.4 kN | C0a: 195.0 kN | Mass: 0.026 kg
FNT-5578 Ca: 48.5 kN | C0a: 254.0 kN | Mass: 0.033 kg
AXK6085 d: 60 mm | D: 85 mm | Ca: 44.5 kN | C0a: 234.0 kN | Mass: 0.035 kg
AXK6590 d: 65 mm | D: 90 mm | Ca: 46.7 kN | C0a: 254 kN | Mass: 0.036 kg
AXK7095 d: 70 mm | D: 95 mm | Ca: 53.8 kN | C0a: 253 kN | Mass: 0.055 kg
FNTA-7095 Ca: 66.6 kN | C0a: 333 kN | Mass: 0.057 kg
AXK75100 d: 75 mm | D: 100 mm | Ca: 55.1 kN | C0a: 266 kN | Mass: 0.058 kg
FNT-75100 Ca: 71.6 kN | C0a: 374 kN | Mass: 0.064 kg
AXK80105 d: 80 mm | D: 105 mm | Ca: 56.4 kN | C0a: 279 kN | Mass: 0.092 kg
FNTA-80105 Ca: 71.3 kN | C0a: 379 kN | Mass: 0.062 kg
AXK85110 d: 85 mm | D: 110 mm | Ca: 57.6 kN | C0a: 291 kN | Mass: 0.063 kg
AXK90120 d: 90 mm | D: 120 mm | Ca: 72.9 kN | C0a: 405 kN | Mass: 0.081 kg
AXK100135 d: 100 mm | D: 135 mm | Ca: 90.2 kN | C0a: 552 kN | Mass: 0.106 kg
AXK110145 d: 110 mm | D: 145 mm | Ca: 93.2 kN | C0a: 591 kN | Mass: 0.117 kg
AXK120155 d: 120 mm | D: 155 mm | Ca: 98.5 kN | C0a: 650 kN | Mass: 0.126 kg
AXK130170 d: 130 mm | D: 170 mm | Ca: 132 kN | C0a: 829 kN | Mass: 0.198 kg
AXK140180 d: 140 mm | D: 180 mm | Ca: 136 kN | C0a: 887 kN | Mass: 0.221 kg
AXK150190 d: 150 mm | D: 190 mm | Ca: 141 kN | C0a: 944 kN | Mass: 0.225 kg
AXK160200 d: 160 mm | D: 200 mm | Ca: 146 kN | C0a: 1000 kN | Mass: 0.249 kg
TP2035 d: 20 mm | D: 35 mm | Ca: 15 kN | C0a: 57 kN | Mass: 0.006 kg
Thrust BearingsKOYO
46 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Thrust Needle Roller and Cage Assemblies (AXK, FNT, TP, TV)

Brand KOYO·Thrust Bearings

Available part numbers (46)

AXK0619TN, FNT-619, AXK0821TN, FNT-821, AXK1024, FNT-1024, AXK1226, FNT-1226, AXK1528, FNT-1528 + 36 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AXK0619TNd: 6 mm | D: 19 mm | Ca: 6.37 kN | C0a: 14.3 kN | Mass: 0.001 kg
FNT-619Ca: 6.82 kN | C0a: 15.6 kN | Mass: 0.002 kg
AXK0821TNd: 8 mm | D: 21 mm | Ca: 8.34 kN | C0a: 21.1 kN | Mass: 0.001 kg
FNT-821Ca: 7.67 kN | C0a: 19.1 kN | Mass: 0.002 kg
AXK1024d: 10 mm | D: 24 mm | Ca: 9.32 kN | C0a: 25.9 kN | Mass: 0.003 kg
FNT-1024Ca: 9.14 kN | C0a: 25.2 kN | Mass: 0.002 kg
AXK1226d: 12 mm | D: 26 mm | Ca: 10.8 kN | C0a: 32.3 kN | Mass: 0.004 kg
FNT-1226Ca: 9.92 kN | C0a: 29.0 kN | Mass: 0.004 kg
AXK1528d: 15 mm | D: 28 mm | Ca: 11.1 kN | C0a: 35.2 kN | Mass: 0.004 kg
FNT-1528Ca: 10.2 kN | C0a: 31.3 kN | Mass: 0.004 kg
AXK1730TNd: 17 mm | D: 30 mm | Ca: 11.7 kN | C0a: 38.7 kN | Mass: 0.004 kg
FNT-1730Ca: 10.8 kN | C0a: 34.8 kN | Mass: 0.004 kg
AXK2035d: 20 mm | D: 35 mm | Ca: 12.8 kN | C0a: 45.4 kN | Mass: 0.006 kg
FNTA-2035Ca: 13.8 kN | C0a: 50.7 kN | Mass: 0.005 kg
AXK2542d: 25 mm | D: 42 mm | Ca: 14.3 kN | C0a: 56.8 kN | Mass: 0.007 kg
FNT-2542Ca: 18.0 kN | C0a: 75.3 kN | Mass: 0.008 kg
AXK3047d: 30 mm | D: 47 mm | Ca: 16.0 kN | C0a: 68.1 kN | Mass: 0.009 kg
FNTA-3047Ca: 18.6 kN | C0a: 82.4 kN | Mass: 0.009 kg
AXK3552d: 35 mm | D: 52 mm | Ca: 17.4 kN | C0a: 79.5 kN | Mass: 0.010 kg
FNT-3552Ca: 21.7 kN | C0a: 104.0 kN | Mass: 0.010 kg
AXK4060d: 40 mm | D: 60 mm | Ca: 27.1 kN | C0a: 110.0 kN | Mass: 0.016 kg
FNT-4060Ca: 31.5 kN | C0a: 132.0 kN | Mass: 0.020 kg
AXK4565d: 45 mm | D: 65 mm | Ca: 29.0 kN | C0a: 124.0 kN | Mass: 0.020 kg
FNT-4565Ca: 37.6 kN | C0a: 172.0 kN | Mass: 0.024 kg
AXK5070d: 50 mm | D: 70 mm | Ca: 30.8 kN | C0a: 137.0 kN | Mass: 0.020 kg
FNT-5070Ca: 37.9 kN | C0a: 179.0 kN | Mass: 0.026 kg
AXK5578d: 55 mm | D: 78 mm | Ca: 39.4 kN | C0a: 195.0 kN | Mass: 0.026 kg
FNT-5578Ca: 48.5 kN | C0a: 254.0 kN | Mass: 0.033 kg
AXK6085d: 60 mm | D: 85 mm | Ca: 44.5 kN | C0a: 234.0 kN | Mass: 0.035 kg
AXK6590d: 65 mm | D: 90 mm | Ca: 46.7 kN | C0a: 254 kN | Mass: 0.036 kg
AXK7095d: 70 mm | D: 95 mm | Ca: 53.8 kN | C0a: 253 kN | Mass: 0.055 kg
FNTA-7095Ca: 66.6 kN | C0a: 333 kN | Mass: 0.057 kg
AXK75100d: 75 mm | D: 100 mm | Ca: 55.1 kN | C0a: 266 kN | Mass: 0.058 kg
FNT-75100Ca: 71.6 kN | C0a: 374 kN | Mass: 0.064 kg
AXK80105d: 80 mm | D: 105 mm | Ca: 56.4 kN | C0a: 279 kN | Mass: 0.092 kg
FNTA-80105Ca: 71.3 kN | C0a: 379 kN | Mass: 0.062 kg
AXK85110d: 85 mm | D: 110 mm | Ca: 57.6 kN | C0a: 291 kN | Mass: 0.063 kg
AXK90120d: 90 mm | D: 120 mm | Ca: 72.9 kN | C0a: 405 kN | Mass: 0.081 kg
AXK100135d: 100 mm | D: 135 mm | Ca: 90.2 kN | C0a: 552 kN | Mass: 0.106 kg
AXK110145d: 110 mm | D: 145 mm | Ca: 93.2 kN | C0a: 591 kN | Mass: 0.117 kg
AXK120155d: 120 mm | D: 155 mm | Ca: 98.5 kN | C0a: 650 kN | Mass: 0.126 kg
AXK130170d: 130 mm | D: 170 mm | Ca: 132 kN | C0a: 829 kN | Mass: 0.198 kg
AXK140180d: 140 mm | D: 180 mm | Ca: 136 kN | C0a: 887 kN | Mass: 0.221 kg
AXK150190d: 150 mm | D: 190 mm | Ca: 141 kN | C0a: 944 kN | Mass: 0.225 kg
AXK160200d: 160 mm | D: 200 mm | Ca: 146 kN | C0a: 1000 kN | Mass: 0.249 kg
TP2035d: 20 mm | D: 35 mm | Ca: 15 kN | C0a: 57 kN | Mass: 0.006 kg
