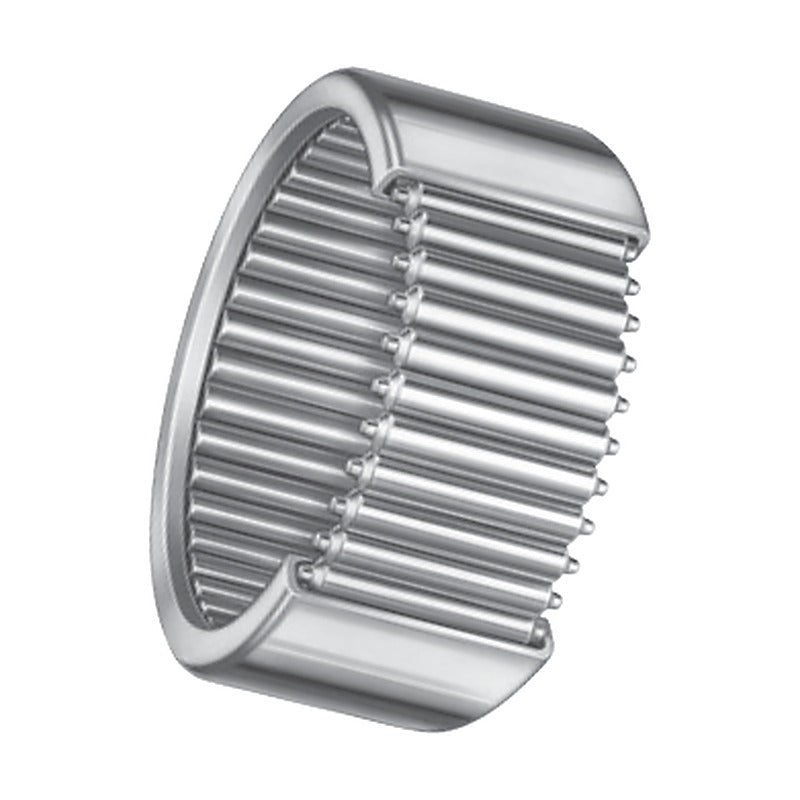

KOYO B, BH, M, MH, Y Inch Full Complement Drawn Cup Needle Bearings

KOYO B, BH, M, MH, Y Inch Full Complement Drawn Cup Needle Bearings

Inch-series full complement drawn cup needle roller bearings with open ends (B, BH, Y) or closed end (M-1, MH-1), to ANSI/ABMA 18.2.

Key features

  • Full complement design for high radial load
  • B / BH open ends, M / MH closed end
  • BH and MH heavy-section cups
  • Inch nominal dimensions (shown in mm)
  • Matching IR / IRA inner rings listed

Specifications

Bearing type Drawn cup needle roller bearing, full complement
Series B, BH, M, MH, Y
Dimension system Inch (values in mm)
Source KOYO Needle Roller Bearings catalogue, p. B-2-54 to B-2-62
B-34 Fw: 4.763 mm | D: 8.733 mm | Width C: 6.35 mm | Cr: 2.22 kN | C0r: 2.14 kN | Mass: 0.001 kg
M-341 Fw: 4.763 mm | D: 8.733 mm | Width C: 6.35 mm | Cr: 2.22 kN | C0r: 2.14 kN | Mass: 0.002 kg
B-36 Fw: 4.763 mm | D: 8.733 mm | Width C: 9.53 mm | Cr: 3.78 kN | C0r: 4.23 kN | Mass: 0.002 kg
M-361 Fw: 4.763 mm | D: 8.733 mm | Width C: 9.53 mm | Cr: 3.78 kN | C0r: 4.23 kN | Mass: 0.003 kg
B-44 Fw: 6.350 mm | D: 11.113 mm | Width C: 6.35 mm | Cr: 2.76 kN | C0r: 2.62 kN | Mass: 0.002 kg
M-441 Fw: 6.350 mm | D: 11.113 mm | Width C: 6.35 mm | Cr: 2.76 kN | C0r: 2.62 kN | Mass: 0.003 kg
B-45 Fw: 6.350 mm | D: 11.113 mm | Width C: 7.92 mm | Cr: 3.56 kN | C0r: 3.69 kN | Mass: 0.003 kg
M-451 Fw: 6.350 mm | D: 11.113 mm | Width C: 7.92 mm | Cr: 3.56 kN | C0r: 3.69 kN | Mass: 0.004 kg
B-47 Fw: 6.350 mm | D: 11.113 mm | Width C: 11.13 mm | Cr: 5.52 kN | C0r: 6.45 kN | Mass: 0.004 kg
M-471 Fw: 6.350 mm | D: 11.113 mm | Width C: 11.13 mm | Cr: 5.52 kN | C0r: 6.45 kN | Mass: 0.005 kg
B-55 Fw: 7.938 mm | D: 12.700 mm | Width C: 7.92 mm | Cr: 4.09 kN | C0r: 4.58 kN | Mass: 0.004 kg
M-551 Fw: 7.938 mm | D: 12.700 mm | Width C: 7.92 mm | Cr: 4.09 kN | C0r: 4.58 kN | Mass: 0.004 kg
B-57 Fw: 7.938 mm | D: 12.700 mm | Width C: 11.13 mm | Cr: 6.32 kN | C0r: 8.10 kN | Mass: 0.005 kg
M-571 Fw: 7.938 mm | D: 12.700 mm | Width C: 11.13 mm | Cr: 6.32 kN | C0r: 8.10 kN | Mass: 0.006 kg
BH-57 Fw: 7.938 mm | D: 14.288 mm | Width C: 11.13 mm | Cr: 7.03 kN | C0r: 7.34 kN | Mass: 0.007 kg
MH-571 Fw: 7.938 mm | D: 14.288 mm | Width C: 11.13 mm | Cr: 7.03 kN | C0r: 7.34 kN | Mass: 0.008 kg
B-65 Fw: 9.525 mm | D: 14.288 mm | Width C: 7.92 mm | Cr: 4.54 kN | C0r: 5.52 kN | Mass: 0.004 kg
M-651 Fw: 9.525 mm | D: 14.288 mm | Width C: 7.92 mm | Cr: 4.54 kN | C0r: 5.52 kN | Mass: 0.005 kg
B-66 Fw: 9.525 mm | D: 14.288 mm | Width C: 9.53 mm | Cr: 5.83 kN | C0r: 7.61 kN | Mass: 0.005 kg
M-661 Fw: 9.525 mm | D: 14.288 mm | Width C: 9.53 mm | Cr: 5.83 kN | C0r: 7.61 kN | Mass: 0.005 kg
B-68 Fw: 9.525 mm | D: 14.288 mm | Width C: 12.70 mm | Cr: 8.18 kN | C0r: 11.8 kN | Mass: 0.007 kg
M-681 Fw: 9.525 mm | D: 14.288 mm | Width C: 12.70 mm | Cr: 8.18 kN | C0r: 11.8 kN | Mass: 0.008 kg
B-610 Fw: 9.525 mm | D: 14.288 mm | Width C: 15.88 mm | Cr: 10.4 kN | C0r: 16.0 kN | Mass: 0.008 kg
M-6101 Fw: 9.525 mm | D: 14.288 mm | Width C: 15.88 mm | Cr: 10.4 kN | C0r: 16.0 kN | Mass: 0.010 kg
B-78 Fw: 11.113 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 8.99 kN | C0r: 13.8 kN | Mass: 0.008 kg
M-781 Fw: 11.113 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 8.99 kN | C0r: 13.8 kN | Mass: 0.009 kg
B-85 Fw: 12.700 mm | D: 17.463 mm | Width C: 7.92 mm | Cr: 5.34 kN | C0r: 7.38 kN | Mass: 0.005 kg
M-851 Fw: 12.700 mm | D: 17.463 mm | Width C: 7.92 mm | Cr: 5.34 kN | C0r: 7.38 kN | Mass: 0.006 kg
B-86 Fw: 12.700 mm | D: 17.463 mm | Width C: 9.53 mm | Cr: 6.85 kN | C0r: 10.1 kN | Mass: 0.006 kg
M-861 Fw: 12.700 mm | D: 17.463 mm | Width C: 9.53 mm | Cr: 6.85 kN | C0r: 10.1 kN | Mass: 0.007 kg
B-87 Fw: 12.700 mm | D: 17.463 mm | Width C: 11.13 mm | Cr: 8.32 kN | C0r: 13.0 kN | Mass: 0.007 kg
M-871 Fw: 12.700 mm | D: 17.463 mm | Width C: 11.13 mm | Cr: 8.32 kN | C0r: 13.0 kN | Mass: 0.008 kg
B-88 Fw: 12.700 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 9.61 kN | C0r: 15.7 kN | Mass: 0.009 kg
M-881 Fw: 12.700 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 9.61 kN | C0r: 15.7 kN | Mass: 0.010 kg
B-810 Fw: 12.700 mm | D: 17.463 mm | Width C: 15.88 mm | Cr: 12.2 kN | C0r: 21.3 kN | Mass: 0.010 kg
M-8101 Fw: 12.700 mm | D: 17.463 mm | Width C: 15.88 mm | Cr: 12.2 kN | C0r: 21.3 kN | Mass: 0.012 kg
B-812 Fw: 12.700 mm | D: 17.463 mm | Width C: 19.05 mm | Cr: 14.7 kN | C0r: 27.0 kN | Mass: 0.013 kg
M-8121 Fw: 12.700 mm | D: 17.463 mm | Width C: 19.05 mm | Cr: 14.7 kN | C0r: 27.0 kN | Mass: 0.014 kg
BH-812 Fw: 12.700 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 17.4 kN | C0r: 25.8 kN | Mass: 0.018 kg
MH-8121 Fw: 12.700 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 17.4 kN | C0r: 25.8 kN | Mass: 0.020 kg
B-95 Fw: 14.288 mm | D: 19.050 mm | Width C: 7.92 mm | Cr: 5.74 kN | C0r: 8.32 kN | Mass: 0.006 kg
M-951 Fw: 14.288 mm | D: 19.050 mm | Width C: 7.92 mm | Cr: 5.74 kN | C0r: 8.32 kN | Mass: 0.006 kg
B-96 Fw: 14.288 mm | D: 19.050 mm | Width C: 9.53 mm | Cr: 7.34 kN | C0r: 11.4 kN | Mass: 0.007 kg
M-961 Fw: 14.288 mm | D: 19.050 mm | Width C: 9.53 mm | Cr: 7.34 kN | C0r: 11.4 kN | Mass: 0.008 kg
B-97 Fw: 14.288 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 8.85 kN | C0r: 14.6 kN | Mass: 0.008 kg
M-971 Fw: 14.288 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 8.85 kN | C0r: 14.6 kN | Mass: 0.010 kg
B-98 Fw: 14.288 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 10.3 kN | C0r: 17.7 kN | Mass: 0.009 kg
M-981 Fw: 14.288 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 10.3 kN | C0r: 17.7 kN | Mass: 0.010 kg
B-910 Fw: 14.288 mm | D: 19.050 mm | Width C: 15.88 mm | Cr: 13.1 kN | C0r: 24.0 kN | Mass: 0.012 kg
M-9101 Fw: 14.288 mm | D: 19.050 mm | Width C: 15.88 mm | Cr: 13.1 kN | C0r: 24.0 kN | Mass: 0.013 kg
B-912 Fw: 14.288 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 15.7 kN | C0r: 30.3 kN | Mass: 0.014 kg
M-9121 Fw: 14.288 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 15.7 kN | C0r: 30.3 kN | Mass: 0.015 kg
B-105 Fw: 15.875 mm | D: 20.638 mm | Width C: 7.92 mm | Cr: 6.10 kN | C0r: 9.25 kN | Mass: 0.006 kg
M-1051 Fw: 15.875 mm | D: 20.638 mm | Width C: 7.92 mm | Cr: 6.10 kN | C0r: 9.25 kN | Mass: 0.007 kg
B-107 Fw: 15.875 mm | D: 20.638 mm | Width C: 11.13 mm | Cr: 9.39 kN | C0r: 16.2 kN | Mass: 0.009 kg
M-1071 Fw: 15.875 mm | D: 20.638 mm | Width C: 11.13 mm | Cr: 9.39 kN | C0r: 16.2 kN | Mass: 0.010 kg
B-108 Fw: 15.875 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 10.9 kN | C0r: 19.7 kN | Mass: 0.010 kg
M-1081 Fw: 15.875 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 10.9 kN | C0r: 19.7 kN | Mass: 0.012 kg
B-1010 Fw: 15.875 mm | D: 20.638 mm | Width C: 15.88 mm | Cr: 13.80 kN | C0r: 26.7 kN | Mass: 0.013 kg
M-10101 Fw: 15.875 mm | D: 20.638 mm | Width C: 15.88 mm | Cr: 13.80 kN | C0r: 26.7 kN | Mass: 0.015 kg
B-1012 Fw: 15.875 mm | D: 20.638 mm | Width C: 19.05 mm | Cr: 16.6 kN | C0r: 33.7 kN | Mass: 0.015 kg
M-10121 Fw: 15.875 mm | D: 20.638 mm | Width C: 19.05 mm | Cr: 16.6 kN | C0r: 33.7 kN | Mass: 0.017 kg
BH-108 Fw: 15.875 mm | D: 22.212 mm | Width C: 12.70 mm | Cr: 12.7 kN | C0r: 18.3 kN | Mass: 0.014 kg
MH-1081 Fw: 15.875 mm | D: 22.212 mm | Width C: 12.70 mm | Cr: 12.7 kN | C0r: 18.3 kN | Mass: 0.016 kg
B-116 Fw: 17.463 mm | D: 22.212 mm | Width C: 9.53 mm | Cr: 8.18 kN | C0r: 14.0 kN | Mass: 0.008 kg
M-1161 Fw: 17.463 mm | D: 22.212 mm | Width C: 9.53 mm | Cr: 8.18 kN | C0r: 14.0 kN | Mass: 0.009 kg
B-118 Fw: 17.463 mm | D: 22.212 mm | Width C: 12.70 mm | Cr: 11.5 kN | C0r: 21.7 kN | Mass: 0.011 kg
M-1181 Fw: 17.463 mm | D: 22.212 mm | Width C: 12.70 mm | Cr: 11.5 kN | C0r: 21.7 kN | Mass: 0.012 kg
B-1110 Fw: 17.463 mm | D: 22.212 mm | Width C: 15.88 mm | Cr: 14.6 kN | C0r: 29.4 kN | Mass: 0.014 kg
M-11101 Fw: 17.463 mm | D: 22.212 mm | Width C: 15.88 mm | Cr: 14.6 kN | C0r: 29.4 kN | Mass: 0.015 kg
B-1112 Fw: 17.463 mm | D: 22.212 mm | Width C: 19.05 mm | Cr: 17.4 kN | C0r: 37.1 kN | Mass: 0.016 kg
M-11121 Fw: 17.463 mm | D: 22.212 mm | Width C: 19.05 mm | Cr: 17.4 kN | C0r: 37.1 kN | Mass: 0.019 kg
BH-1110 Fw: 17.463 mm | D: 23.813 mm | Width C: 15.88 mm | Cr: 17.3 kN | C0r: 27.8 kN | Mass: 0.019 kg
MH-11101 Fw: 17.463 mm | D: 23.813 mm | Width C: 15.88 mm | Cr: 17.3 kN | C0r: 27.8 kN | Mass: 0.021 kg
B-126 Fw: 19.050 mm | D: 25.400 mm | Width C: 9.53 mm | Cr: 9.7 kN | C0r: 13.6 kN | Mass: 0.012 kg
M-1261 Fw: 19.050 mm | D: 25.400 mm | Width C: 9.53 mm | Cr: 9.7 kN | C0r: 13.6 kN | Mass: 0.014 kg
B-128 Fw: 19.050 mm | D: 25.400 mm | Width C: 12.70 mm | Cr: 14.1 kN | C0r: 22.0 kN | Mass: 0.016 kg
M-1281 Fw: 19.050 mm | D: 25.400 mm | Width C: 12.70 mm | Cr: 14.1 kN | C0r: 22.0 kN | Mass: 0.019 kg
B-1212 Fw: 19.050 mm | D: 25.400 mm | Width C: 19.05 mm | Cr: 21.9 kN | C0r: 38.7 kN | Mass: 0.024 kg
M-12121 Fw: 19.050 mm | D: 25.400 mm | Width C: 19.05 mm | Cr: 21.9 kN | C0r: 38.7 kN | Mass: 0.028 kg
B-138 Fw: 20.638 mm | D: 26.988 mm | Width C: 12.70 mm | Cr: 14.8 kN | C0r: 23.8 kN | Mass: 0.018 kg
M-1381 Fw: 20.638 mm | D: 26.988 mm | Width C: 12.70 mm | Cr: 14.8 kN | C0r: 23.8 kN | Mass: 0.020 kg
B-1314 Fw: 20.638 mm | D: 26.988 mm | Width C: 22.23 mm | Cr: 26.7 kN | C0r: 51.2 kN | Mass: 0.031 kg
M-13141 Fw: 20.638 mm | D: 26.988 mm | Width C: 22.23 mm | Cr: 26.7 kN | C0r: 51.2 kN | Mass: 0.035 kg
B-1316 Fw: 20.638 mm | D: 26.988 mm | Width C: 25.40 mm | Cr: 30.3 kN | C0r: 60.1 kN | Mass: 0.035 kg
M-13161 Fw: 20.638 mm | D: 26.988 mm | Width C: 25.40 mm | Cr: 30.3 kN | C0r: 60.1 kN | Mass: 0.040 kg
BH-138 Fw: 20.643 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 14.9 kN | C0r: 20.8 kN | Mass: 0.023 kg
MH-1381 Fw: 20.643 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 14.9 kN | C0r: 20.8 kN | Mass: 0.026 kg
BH-1310 Fw: 20.638 mm | D: 28.575 mm | Width C: 15.88 mm | Cr: 19.7 kN | C0r: 29.9 kN | Mass: 0.029 kg
MH-13101 Fw: 20.638 mm | D: 28.575 mm | Width C: 15.88 mm | Cr: 19.7 kN | C0r: 29.9 kN | Mass: 0.032 kg
BH-1312 Fw: 20.638 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 24.2 kN | C0r: 39.0 kN | Mass: 0.034 kg
MH-13121 Fw: 20.638 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 24.2 kN | C0r: 39.0 kN | Mass: 0.039 kg
B-146 Fw: 22.225 mm | D: 28.575 mm | Width C: 9.53 mm | Cr: 10.5 kN | C0r: 15.8 kN | Mass: 0.014 kg
M-1461 Fw: 22.225 mm | D: 28.575 mm | Width C: 9.53 mm | Cr: 10.5 kN | C0r: 15.8 kN | Mass: 0.016 kg
B-148 Fw: 22.225 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 15.4 kN | C0r: 25.6 kN | Mass: 0.019 kg
M-1481 Fw: 22.225 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 15.4 kN | C0r: 25.6 kN | Mass: 0.022 kg
B-1412 Fw: 22.225 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 23.9 kN | C0r: 45.4 kN | Mass: 0.028 kg
M-14121 Fw: 22.225 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 23.9 kN | C0r: 45.4 kN | Mass: 0.032 kg
B-1416 Fw: 22.225 mm | D: 28.575 mm | Width C: 25.40 mm | Cr: 31.6 kN | C0r: 64.9 kN | Mass: 0.038 kg
M-14161 Fw: 22.225 mm | D: 28.575 mm | Width C: 25.40 mm | Cr: 31.6 kN | C0r: 64.9 kN | Mass: 0.043 kg
BH-1410 Fw: 22.225 mm | D: 30.163 mm | Width C: 15.88 mm | Cr: 20.3 kN | C0r: 32.2 kN | Mass: 0.030 kg
MH-14101 Fw: 22.225 mm | D: 30.163 mm | Width C: 15.88 mm | Cr: 20.3 kN | C0r: 32.2 kN | Mass: 0.035 kg
BH-1412 Fw: 22.225 mm | D: 30.163 mm | Width C: 19.05 mm | Cr: 25.0 kN | C0r: 42.0 kN | Mass: 0.036 kg
MH-14121 Fw: 22.225 mm | D: 30.163 mm | Width C: 19.05 mm | Cr: 25.0 kN | C0r: 42.0 kN | Mass: 0.041 kg
B-1516 Fw: 23.813 mm | D: 30.163 mm | Width C: 25.40 mm | Cr: 32.8 kN | C0r: 69.4 kN | Mass: 0.040 kg
M-15161 Fw: 23.813 mm | D: 30.163 mm | Width C: 25.40 mm | Cr: 32.8 kN | C0r: 69.4 kN | Mass: 0.045 kg
B-167 Fw: 25.400 mm | D: 31.750 mm | Width C: 11.13 mm | Cr: 14.0 kN | C0r: 23.7 kN | Mass: 0.019 kg
M-1671 Fw: 25.400 mm | D: 31.750 mm | Width C: 11.13 mm | Cr: 14.0 kN | C0r: 23.7 kN | Mass: 0.021 kg
B-168 Fw: 25.400 mm | D: 31.750 mm | Width C: 12.70 mm | Cr: 16.5 kN | C0r: 29.3 kN | Mass: 0.021 kg
M-1681 Fw: 25.400 mm | D: 31.750 mm | Width C: 12.70 mm | Cr: 16.5 kN | C0r: 29.3 kN | Mass: 0.024 kg
B-1610 Fw: 25.400 mm | D: 31.750 mm | Width C: 15.88 mm | Cr: 21.2 kN | C0r: 40.5 kN | Mass: 0.026 kg
M-16101 Fw: 25.400 mm | D: 31.750 mm | Width C: 15.88 mm | Cr: 21.2 kN | C0r: 40.5 kN | Mass: 0.030 kg
B-1612 Fw: 25.400 mm | D: 31.750 mm | Width C: 19.05 mm | Cr: 25.7 kN | C0r: 51.6 kN | Mass: 0.032 kg
M-16121 Fw: 25.400 mm | D: 31.750 mm | Width C: 19.05 mm | Cr: 25.7 kN | C0r: 51.6 kN | Mass: 0.036 kg
B-1616 Fw: 25.400 mm | D: 31.750 mm | Width C: 25.40 mm | Cr: 33.9 kN | C0r: 74.3 kN | Mass: 0.043 kg
M-16161 Fw: 25.400 mm | D: 31.750 mm | Width C: 25.40 mm | Cr: 33.9 kN | C0r: 74.3 kN | Mass: 0.048 kg
BH-168 Fw: 25.400 mm | D: 33.338 mm | Width C: 12.70 mm | Cr: 16.6 kN | C0r: 25.6 kN | Mass: 0.027 kg
MH-1681 Fw: 25.400 mm | D: 33.338 mm | Width C: 12.70 mm | Cr: 16.6 kN | C0r: 25.6 kN | Mass: 0.031 kg
BH-1612 Fw: 25.400 mm | D: 33.338 mm | Width C: 19.05 mm | Cr: 27.1 kN | C0r: 48.0 kN | Mass: 0.041 kg
MH-16121 Fw: 25.400 mm | D: 33.338 mm | Width C: 19.05 mm | Cr: 27.1 kN | C0r: 48.0 kN | Mass: 0.046 kg
BH-1616 Fw: 25.400 mm | D: 33.338 mm | Width C: 25.40 mm | Cr: 36.5 kN | C0r: 70.3 kN | Mass: 0.054 kg
MH-16161 Fw: 25.400 mm | D: 33.338 mm | Width C: 25.40 mm | Cr: 36.5 kN | C0r: 70.3 kN | Mass: 0.062 kg
BH-1624 Fw: 25.400 mm | D: 33.338 mm | Width C: 38.10 mm | Cr: 53.4 kN | C0r: 115.2 kN | Mass: 0.082 kg
MH-16241 Fw: 25.400 mm | D: 33.338 mm | Width C: 38.10 mm | Cr: 53.4 kN | C0r: 115.2 kN | Mass: 0.093 kg
B-1710 Fw: 26.988 mm | D: 33.338 mm | Width C: 15.88 mm | Cr: 21.9 kN | C0r: 43.1 kN | Mass: 0.028 kg
M-17101 Fw: 26.988 mm | D: 33.338 mm | Width C: 15.88 mm | Cr: 21.9 kN | C0r: 43.1 kN | Mass: 0.032 kg
B-186 Fw: 28.575 mm | D: 34.925 mm | Width C: 9.53 mm | Cr: 12.1 kN | C0r: 20.4 kN | Mass: 0.018 kg
M-1861 Fw: 28.575 mm | D: 34.925 mm | Width C: 9.53 mm | Cr: 12.1 kN | C0r: 20.4 kN | Mass: 0.020 kg
B-188 Fw: 28.575 mm | D: 34.925 mm | Width C: 12.70 mm | Cr: 17.6 kN | C0r: 33.0 kN | Mass: 0.024 kg
M-1881 Fw: 28.575 mm | D: 34.925 mm | Width C: 12.70 mm | Cr: 17.6 kN | C0r: 33.0 kN | Mass: 0.027 kg
B-1812 Fw: 28.575 mm | D: 34.925 mm | Width C: 19.05 mm | Cr: 27.3 kN | C0r: 58.3 kN | Mass: 0.035 kg
M-18121 Fw: 28.575 mm | D: 34.925 mm | Width C: 19.05 mm | Cr: 27.3 kN | C0r: 58.3 kN | Mass: 0.040 kg
B-1816 Fw: 28.575 mm | D: 34.925 mm | Width C: 25.40 mm | Cr: 36.2 kN | C0r: 83.6 kN | Mass: 0.047 kg
M-18161 Fw: 28.575 mm | D: 34.925 mm | Width C: 25.40 mm | Cr: 36.2 kN | C0r: 83.6 kN | Mass: 0.054 kg
BH-1812 Fw: 28.575 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 31.5 kN | C0r: 52.9 kN | Mass: 0.056 kg
MH-18121 Fw: 28.575 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 31.5 kN | C0r: 52.9 kN | Mass: 0.063 kg
BH-1816 Fw: 28.575 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 42.5 kN | C0r: 77.8 kN | Mass: 0.074 kg
MH-18161 Fw: 28.575 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 42.5 kN | C0r: 77.8 kN | Mass: 0.084 kg
BH-1820 Fw: 28.575 mm | D: 38.100 mm | Width C: 31.75 mm | Cr: 52.9 kN | C0r: 103.2 kN | Mass: 0.093 kg
MH-18201 Fw: 28.575 mm | D: 38.100 mm | Width C: 31.75 mm | Cr: 52.9 kN | C0r: 103.2 kN | Mass: 0.105 kg
B-1910 Fw: 30.163 mm | D: 38.100 mm | Width C: 15.88 mm | Cr: 24.1 kN | C0r: 43.8 kN | Mass: 0.040 kg
M-19101 Fw: 30.163 mm | D: 38.100 mm | Width C: 15.88 mm | Cr: 24.1 kN | C0r: 43.8 kN | Mass: 0.045 kg
B-2010 Fw: 31.750 mm | D: 38.100 mm | Width C: 15.88 mm | Cr: 23.9 kN | C0r: 50.7 kN | Mass: 0.032 kg
M-20101 Fw: 31.750 mm | D: 38.100 mm | Width C: 15.88 mm | Cr: 23.9 kN | C0r: 50.7 kN | Mass: 0.044 kg
B-2012 Fw: 31.750 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 28.9 kN | C0r: 64.5 kN | Mass: 0.039 kg
M-20121 Fw: 31.750 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 28.9 kN | C0r: 64.5 kN | Mass: 0.045 kg
B-2016 Fw: 31.750 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 38.2 kN | C0r: 92.5 kN | Mass: 0.052 kg
M-20161 Fw: 31.750 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 38.2 kN | C0r: 92.5 kN | Mass: 0.059 kg
B-2020 Fw: 31.750 mm | D: 38.100 mm | Width C: 31.75 mm | Cr: 47.2 kN | C0r: 121.0 kN | Mass: 0.065 kg
M-20201 Fw: 31.750 mm | D: 38.100 mm | Width C: 31.75 mm | Cr: 47.2 kN | C0r: 121.0 kN | Mass: 0.073 kg
BH-208 Fw: 31.750 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.7 kN | C0r: 30.0 kN | Mass: 0.041 kg
MH-2081 Fw: 31.750 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.7 kN | C0r: 30.0 kN | Mass: 0.046 kg
BH-2012 Fw: 31.750 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 33.1 kN | C0r: 58.7 kN | Mass: 0.061 kg
MH-20121 Fw: 31.750 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 33.1 kN | C0r: 58.7 kN | Mass: 0.069 kg
BH-2016 Fw: 31.750 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 44.9 kN | C0r: 86.7 kN | Mass: 0.081 kg
MH-20161 Fw: 31.750 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 44.9 kN | C0r: 86.7 kN | Mass: 0.092 kg
BH-2020 Fw: 31.750 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 56.0 kN | C0r: 115.0 kN | Mass: 0.102 kg
MH-20201 Fw: 31.750 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 56.0 kN | C0r: 115.0 kN | Mass: 0.115 kg
B-218 Fw: 33.338 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.3 kN | C0r: 33.7 kN | Mass: 0.034 kg
M-2181 Fw: 33.338 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.3 kN | C0r: 33.7 kN | Mass: 0.039 kg
B-2110 Fw: 33.338 mm | D: 41.275 mm | Width C: 15.88 mm | Cr: 25.5 kN | C0r: 48.5 kN | Mass: 0.043 kg
M-21101 Fw: 33.338 mm | D: 41.275 mm | Width C: 15.88 mm | Cr: 25.5 kN | C0r: 48.5 kN | Mass: 0.049 kg
B-228 Fw: 34.925 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.5 kN | C0r: 40.4 kN | Mass: 0.028 kg
M-2281 Fw: 34.925 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.5 kN | C0r: 40.4 kN | Mass: 0.032 kg
B-2212 Fw: 34.925 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 30.4 kN | C0r: 71.2 kN | Mass: 0.043 kg
M-22121 Fw: 34.925 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 30.4 kN | C0r: 71.2 kN | Mass: 0.049 kg
B-2216 Fw: 34.925 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 40.2 kN | C0r: 102.0 kN | Mass: 0.057 kg
M-22161 Fw: 34.925 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 40.2 kN | C0r: 102.0 kN | Mass: 0.064 kg
B-2220 Fw: 34.925 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 49.4 kN | C0r: 133.0 kN | Mass: 0.071 kg
M-22201 Fw: 34.925 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 49.4 kN | C0r: 133.0 kN | Mass: 0.080 kg
BH-2212 Fw: 34.925 mm | D: 44.450 mm | Width C: 19.05 mm | Cr: 35.3 kN | C0r: 64.5 kN | Mass: 0.066 kg
MH-22121 Fw: 34.925 mm | D: 44.450 mm | Width C: 19.05 mm | Cr: 35.3 kN | C0r: 64.5 kN | Mass: 0.075 kg
BH-2216 Fw: 34.925 mm | D: 44.450 mm | Width C: 25.40 mm | Cr: 47.6 kN | C0r: 94.8 kN | Mass: 0.088 kg
MH-22161 Fw: 34.925 mm | D: 44.450 mm | Width C: 25.40 mm | Cr: 47.6 kN | C0r: 94.8 kN | Mass: 0.100 kg
B-248 Fw: 38.100 mm | D: 47.625 mm | Width C: 12.70 mm | Cr: 22.3 kN | C0r: 37.1 kN | Mass: 0.048 kg
M-2481 Fw: 38.100 mm | D: 47.625 mm | Width C: 12.70 mm | Cr: 22.3 kN | C0r: 37.1 kN | Mass: 0.054 kg
B-2410 Fw: 38.100 mm | D: 47.625 mm | Width C: 15.88 mm | Cr: 29.8 kN | C0r: 53.8 kN | Mass: 0.060 kg
M-24101 Fw: 38.100 mm | D: 47.625 mm | Width C: 15.88 mm | Cr: 29.8 kN | C0r: 53.8 kN | Mass: 0.068 kg
B-2412 Fw: 38.100 mm | D: 47.625 mm | Width C: 19.05 mm | Cr: 36.9 kN | C0r: 70.7 kN | Mass: 0.072 kg
M-24121 Fw: 38.100 mm | D: 47.625 mm | Width C: 19.05 mm | Cr: 36.9 kN | C0r: 70.7 kN | Mass: 0.081 kg
B-2414 Fw: 38.100 mm | D: 47.625 mm | Width C: 22.23 mm | Cr: 43.5 kN | C0r: 87.6 kN | Mass: 0.083 kg
M-24141 Fw: 38.100 mm | D: 47.625 mm | Width C: 22.23 mm | Cr: 43.5 kN | C0r: 87.6 kN | Mass: 0.095 kg
B-2416 Fw: 38.100 mm | D: 47.625 mm | Width C: 25.40 mm | Cr: 49.8 kN | C0r: 103.0 kN | Mass: 0.096 kg
M-24161 Fw: 38.100 mm | D: 47.625 mm | Width C: 25.40 mm | Cr: 49.8 kN | C0r: 103.0 kN | Mass: 0.108 kg
B-2420 Fw: 38.100 mm | D: 47.625 mm | Width C: 31.75 mm | Cr: 61.8 kN | C0r: 138.0 kN | Mass: 0.119 kg
M-24201 Fw: 38.100 mm | D: 47.625 mm | Width C: 31.75 mm | Cr: 61.8 kN | C0r: 138.0 kN | Mass: 0.135 kg
B-2610 Fw: 41.275 mm | D: 50.800 mm | Width C: 15.88 mm | Cr: 30.6 kN | C0r: 57.4 kN | Mass: 0.064 kg
M-26101 Fw: 41.275 mm | D: 50.800 mm | Width C: 15.88 mm | Cr: 30.6 kN | C0r: 57.4 kN | Mass: 0.073 kg
B-2620 Fw: 41.275 mm | D: 50.800 mm | Width C: 31.75 mm | Cr: 64.0 kN | C0r: 149.0 kN | Mass: 0.128 kg
M-26201 Fw: 41.275 mm | D: 50.800 mm | Width C: 31.75 mm | Cr: 64.0 kN | C0r: 149.0 kN | Mass: 0.145 kg
B-2812 Fw: 44.450 mm | D: 53.975 mm | Width C: 19.05 mm | Cr: 39.3 kN | C0r: 81.4 kN | Mass: 0.082 kg
M-28121 Fw: 44.450 mm | D: 53.975 mm | Width C: 19.05 mm | Cr: 39.3 kN | C0r: 81.4 kN | Mass: 0.093 kg
B-2816 Fw: 44.450 mm | D: 53.975 mm | Width C: 25.40 mm | Cr: 53.4 kN | C0r: 121.0 kN | Mass: 0.110 kg
M-28161 Fw: 44.450 mm | D: 53.975 mm | Width C: 25.40 mm | Cr: 53.4 kN | C0r: 121.0 kN | Mass: 0.124 kg
B-2824 Fw: 44.450 mm | D: 53.975 mm | Width C: 38.10 mm | Cr: 78.7 kN | C0r: 199.0 kN | Mass: 0.165 kg
M-26241 Fw: 44.450 mm | D: 53.975 mm | Width C: 38.10 mm | Cr: 78.7 kN | C0r: 199.0 kN | Mass: 0.186 kg
B-308 Fw: 47.625 mm | D: 57.150 mm | Width C: 12.70 mm | Cr: 25.1 kN | C0r: 46.3 kN | Mass: 0.059 kg
M-3081 Fw: 47.625 mm | D: 57.150 mm | Width C: 12.70 mm | Cr: 25.1 kN | C0r: 46.3 kN | Mass: 0.066 kg
B-3016 Fw: 47.625 mm | D: 57.150 mm | Width C: 25.40 mm | Cr: 56.0 kN | C0r: 130.0 kN | Mass: 0.117 kg
M-30161 Fw: 47.625 mm | D: 57.150 mm | Width C: 25.40 mm | Cr: 56.0 kN | C0r: 130.0 kN | Mass: 0.132 kg
B-328 Fw: 50.800 mm | D: 60.325 mm | Width C: 12.70 mm | Cr: 25.4 kN | C0r: 48.0 kN | Mass: 0.062 kg
M-3281 Fw: 50.800 mm | D: 60.325 mm | Width C: 12.70 mm | Cr: 25.4 kN | C0r: 48.0 kN | Mass: 0.070 kg
B-3216 Fw: 50.800 mm | D: 60.325 mm | Width C: 25.40 mm | Cr: 57.4 kN | C0r: 138.0 kN | Mass: 0.124 kg
M-32161 Fw: 50.800 mm | D: 60.325 mm | Width C: 25.40 mm | Cr: 57.4 kN | C0r: 138.0 kN | Mass: 0.140 kg
B-3220 Fw: 50.800 mm | D: 60.325 mm | Width C: 31.75 mm | Cr: 71.6 kN | C0r: 183.0 kN | Mass: 0.155 kg
M-32201 Fw: 50.800 mm | D: 60.325 mm | Width C: 31.75 mm | Cr: 71.6 kN | C0r: 183.0 kN | Mass: 0.175 kg
B-3224 Fw: 50.800 mm | D: 60.325 mm | Width C: 38.10 mm | Cr: 85.0 kN | C0r: 228.0 kN | Mass: 0.186 kg
M-32241 Fw: 50.800 mm | D: 60.325 mm | Width C: 38.10 mm | Cr: 85.0 kN | C0r: 228.0 kN | Mass: 0.211 kg
BH-3316 Fw: 52.388 mm | D: 64.292 mm | Width C: 25.40 mm | Cr: 64.0 kN | C0r: 133.0 kN | Mass: 0.162 kg
MH-33161 Fw: 52.388 mm | D: 64.292 mm | Width C: 25.40 mm | Cr: 64.0 kN | C0r: 133.0 kN | Mass: 0.184 kg
BH-3324 Fw: 52.388 mm | D: 64.292 mm | Width C: 38.10 mm | Cr: 97.0 kN | C0r: 226.0 kN | Mass: 0.244 kg
MH-33241 Fw: 52.388 mm | D: 64.292 mm | Width C: 38.10 mm | Cr: 97.0 kN | C0r: 226.0 kN | Mass: 0.276 kg
B-3416 Fw: 53.975 mm | D: 63.500 mm | Width C: 25.40 mm | Cr: 59.2 kN | C0r: 147.0 kN | Mass: 0.131 kg
M-34161 Fw: 53.975 mm | D: 63.500 mm | Width C: 25.40 mm | Cr: 59.2 kN | C0r: 147.0 kN | Mass: 0.148 kg
B-3424 Fw: 53.975 mm | D: 63.500 mm | Width C: 38.10 mm | Cr: 87.2 kN | C0r: 242.0 kN | Mass: 0.196 kg
M-34241 Fw: 53.975 mm | D: 63.500 mm | Width C: 38.10 mm | Cr: 87.2 kN | C0r: 242.0 kN | Mass: 0.223 kg
B-3612 Fw: 57.150 mm | D: 66.675 mm | Width C: 19.05 mm | Cr: 45.8 kN | C0r: 105.0 kN | Mass: 0.103 kg
M-36121 Fw: 57.150 mm | D: 66.675 mm | Width C: 19.05 mm | Cr: 45.8 kN | C0r: 105.0 kN | Mass: 0.117 kg
B-3624 Fw: 57.150 mm | D: 66.675 mm | Width C: 38.10 mm | Cr: 92.1 kN | C0r: 257.0 kN | Mass: 0.207 kg
M-36241 Fw: 57.150 mm | D: 66.675 mm | Width C: 38.10 mm | Cr: 92.1 kN | C0r: 257.0 kN | Mass: 0.235 kg
B-4216 Fw: 66.675 mm | D: 76.200 mm | Width C: 25.40 mm | Cr: 66.7 kN | C0r: 182.0 kN | Mass: 0.159 kg
M-42161 Fw: 66.675 mm | D: 76.200 mm | Width C: 25.40 mm | Cr: 66.7 kN | C0r: 182.0 kN | Mass: 0.181 kg
B-4420 Fw: 69.850 mm | D: 79.375 mm | Width C: 31.75 mm | Cr: 85.4 kN | C0r: 252.0 kN | Mass: 0.208 kg
M-44201 Fw: 69.850 mm | D: 79.375 mm | Width C: 31.75 mm | Cr: 85.4 kN | C0r: 252.0 kN | Mass: 0.235 kg
Needle Roller BearingsKOYO
224 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO B, BH, M, MH, Y Inch Full Complement Drawn Cup Needle Bearings

Brand KOYO·Needle Roller Bearings

Available part numbers (224)

B-34, M-341, B-36, M-361, B-44, M-441, B-45, M-451, B-47, M-471 + 214 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
B-34Fw: 4.763 mm | D: 8.733 mm | Width C: 6.35 mm | Cr: 2.22 kN | C0r: 2.14 kN | Mass: 0.001 kg
M-341Fw: 4.763 mm | D: 8.733 mm | Width C: 6.35 mm | Cr: 2.22 kN | C0r: 2.14 kN | Mass: 0.002 kg
B-36Fw: 4.763 mm | D: 8.733 mm | Width C: 9.53 mm | Cr: 3.78 kN | C0r: 4.23 kN | Mass: 0.002 kg
M-361Fw: 4.763 mm | D: 8.733 mm | Width C: 9.53 mm | Cr: 3.78 kN | C0r: 4.23 kN | Mass: 0.003 kg
B-44Fw: 6.350 mm | D: 11.113 mm | Width C: 6.35 mm | Cr: 2.76 kN | C0r: 2.62 kN | Mass: 0.002 kg
M-441Fw: 6.350 mm | D: 11.113 mm | Width C: 6.35 mm | Cr: 2.76 kN | C0r: 2.62 kN | Mass: 0.003 kg
B-45Fw: 6.350 mm | D: 11.113 mm | Width C: 7.92 mm | Cr: 3.56 kN | C0r: 3.69 kN | Mass: 0.003 kg
M-451Fw: 6.350 mm | D: 11.113 mm | Width C: 7.92 mm | Cr: 3.56 kN | C0r: 3.69 kN | Mass: 0.004 kg
B-47Fw: 6.350 mm | D: 11.113 mm | Width C: 11.13 mm | Cr: 5.52 kN | C0r: 6.45 kN | Mass: 0.004 kg
M-471Fw: 6.350 mm | D: 11.113 mm | Width C: 11.13 mm | Cr: 5.52 kN | C0r: 6.45 kN | Mass: 0.005 kg
B-55Fw: 7.938 mm | D: 12.700 mm | Width C: 7.92 mm | Cr: 4.09 kN | C0r: 4.58 kN | Mass: 0.004 kg
M-551Fw: 7.938 mm | D: 12.700 mm | Width C: 7.92 mm | Cr: 4.09 kN | C0r: 4.58 kN | Mass: 0.004 kg
B-57Fw: 7.938 mm | D: 12.700 mm | Width C: 11.13 mm | Cr: 6.32 kN | C0r: 8.10 kN | Mass: 0.005 kg
M-571Fw: 7.938 mm | D: 12.700 mm | Width C: 11.13 mm | Cr: 6.32 kN | C0r: 8.10 kN | Mass: 0.006 kg
BH-57Fw: 7.938 mm | D: 14.288 mm | Width C: 11.13 mm | Cr: 7.03 kN | C0r: 7.34 kN | Mass: 0.007 kg
MH-571Fw: 7.938 mm | D: 14.288 mm | Width C: 11.13 mm | Cr: 7.03 kN | C0r: 7.34 kN | Mass: 0.008 kg
B-65Fw: 9.525 mm | D: 14.288 mm | Width C: 7.92 mm | Cr: 4.54 kN | C0r: 5.52 kN | Mass: 0.004 kg
M-651Fw: 9.525 mm | D: 14.288 mm | Width C: 7.92 mm | Cr: 4.54 kN | C0r: 5.52 kN | Mass: 0.005 kg
B-66Fw: 9.525 mm | D: 14.288 mm | Width C: 9.53 mm | Cr: 5.83 kN | C0r: 7.61 kN | Mass: 0.005 kg
M-661Fw: 9.525 mm | D: 14.288 mm | Width C: 9.53 mm | Cr: 5.83 kN | C0r: 7.61 kN | Mass: 0.005 kg
B-68Fw: 9.525 mm | D: 14.288 mm | Width C: 12.70 mm | Cr: 8.18 kN | C0r: 11.8 kN | Mass: 0.007 kg
M-681Fw: 9.525 mm | D: 14.288 mm | Width C: 12.70 mm | Cr: 8.18 kN | C0r: 11.8 kN | Mass: 0.008 kg
B-610Fw: 9.525 mm | D: 14.288 mm | Width C: 15.88 mm | Cr: 10.4 kN | C0r: 16.0 kN | Mass: 0.008 kg
M-6101Fw: 9.525 mm | D: 14.288 mm | Width C: 15.88 mm | Cr: 10.4 kN | C0r: 16.0 kN | Mass: 0.010 kg
B-78Fw: 11.113 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 8.99 kN | C0r: 13.8 kN | Mass: 0.008 kg
M-781Fw: 11.113 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 8.99 kN | C0r: 13.8 kN | Mass: 0.009 kg
B-85Fw: 12.700 mm | D: 17.463 mm | Width C: 7.92 mm | Cr: 5.34 kN | C0r: 7.38 kN | Mass: 0.005 kg
M-851Fw: 12.700 mm | D: 17.463 mm | Width C: 7.92 mm | Cr: 5.34 kN | C0r: 7.38 kN | Mass: 0.006 kg
B-86Fw: 12.700 mm | D: 17.463 mm | Width C: 9.53 mm | Cr: 6.85 kN | C0r: 10.1 kN | Mass: 0.006 kg
M-861Fw: 12.700 mm | D: 17.463 mm | Width C: 9.53 mm | Cr: 6.85 kN | C0r: 10.1 kN | Mass: 0.007 kg
B-87Fw: 12.700 mm | D: 17.463 mm | Width C: 11.13 mm | Cr: 8.32 kN | C0r: 13.0 kN | Mass: 0.007 kg
M-871Fw: 12.700 mm | D: 17.463 mm | Width C: 11.13 mm | Cr: 8.32 kN | C0r: 13.0 kN | Mass: 0.008 kg
B-88Fw: 12.700 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 9.61 kN | C0r: 15.7 kN | Mass: 0.009 kg
M-881Fw: 12.700 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 9.61 kN | C0r: 15.7 kN | Mass: 0.010 kg
B-810Fw: 12.700 mm | D: 17.463 mm | Width C: 15.88 mm | Cr: 12.2 kN | C0r: 21.3 kN | Mass: 0.010 kg
M-8101Fw: 12.700 mm | D: 17.463 mm | Width C: 15.88 mm | Cr: 12.2 kN | C0r: 21.3 kN | Mass: 0.012 kg
B-812Fw: 12.700 mm | D: 17.463 mm | Width C: 19.05 mm | Cr: 14.7 kN | C0r: 27.0 kN | Mass: 0.013 kg
M-8121Fw: 12.700 mm | D: 17.463 mm | Width C: 19.05 mm | Cr: 14.7 kN | C0r: 27.0 kN | Mass: 0.014 kg
BH-812Fw: 12.700 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 17.4 kN | C0r: 25.8 kN | Mass: 0.018 kg
MH-8121Fw: 12.700 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 17.4 kN | C0r: 25.8 kN | Mass: 0.020 kg
B-95Fw: 14.288 mm | D: 19.050 mm | Width C: 7.92 mm | Cr: 5.74 kN | C0r: 8.32 kN | Mass: 0.006 kg
M-951Fw: 14.288 mm | D: 19.050 mm | Width C: 7.92 mm | Cr: 5.74 kN | C0r: 8.32 kN | Mass: 0.006 kg
B-96Fw: 14.288 mm | D: 19.050 mm | Width C: 9.53 mm | Cr: 7.34 kN | C0r: 11.4 kN | Mass: 0.007 kg
M-961Fw: 14.288 mm | D: 19.050 mm | Width C: 9.53 mm | Cr: 7.34 kN | C0r: 11.4 kN | Mass: 0.008 kg
B-97Fw: 14.288 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 8.85 kN | C0r: 14.6 kN | Mass: 0.008 kg
M-971Fw: 14.288 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 8.85 kN | C0r: 14.6 kN | Mass: 0.010 kg
B-98Fw: 14.288 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 10.3 kN | C0r: 17.7 kN | Mass: 0.009 kg
M-981Fw: 14.288 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 10.3 kN | C0r: 17.7 kN | Mass: 0.010 kg
B-910Fw: 14.288 mm | D: 19.050 mm | Width C: 15.88 mm | Cr: 13.1 kN | C0r: 24.0 kN | Mass: 0.012 kg
M-9101Fw: 14.288 mm | D: 19.050 mm | Width C: 15.88 mm | Cr: 13.1 kN | C0r: 24.0 kN | Mass: 0.013 kg
B-912Fw: 14.288 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 15.7 kN | C0r: 30.3 kN | Mass: 0.014 kg
M-9121Fw: 14.288 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 15.7 kN | C0r: 30.3 kN | Mass: 0.015 kg
B-105Fw: 15.875 mm | D: 20.638 mm | Width C: 7.92 mm | Cr: 6.10 kN | C0r: 9.25 kN | Mass: 0.006 kg
M-1051Fw: 15.875 mm | D: 20.638 mm | Width C: 7.92 mm | Cr: 6.10 kN | C0r: 9.25 kN | Mass: 0.007 kg
B-107Fw: 15.875 mm | D: 20.638 mm | Width C: 11.13 mm | Cr: 9.39 kN | C0r: 16.2 kN | Mass: 0.009 kg
M-1071Fw: 15.875 mm | D: 20.638 mm | Width C: 11.13 mm | Cr: 9.39 kN | C0r: 16.2 kN | Mass: 0.010 kg
B-108Fw: 15.875 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 10.9 kN | C0r: 19.7 kN | Mass: 0.010 kg
M-1081Fw: 15.875 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 10.9 kN | C0r: 19.7 kN | Mass: 0.012 kg
B-1010Fw: 15.875 mm | D: 20.638 mm | Width C: 15.88 mm | Cr: 13.80 kN | C0r: 26.7 kN | Mass: 0.013 kg
M-10101Fw: 15.875 mm | D: 20.638 mm | Width C: 15.88 mm | Cr: 13.80 kN | C0r: 26.7 kN | Mass: 0.015 kg
B-1012Fw: 15.875 mm | D: 20.638 mm | Width C: 19.05 mm | Cr: 16.6 kN | C0r: 33.7 kN | Mass: 0.015 kg
M-10121Fw: 15.875 mm | D: 20.638 mm | Width C: 19.05 mm | Cr: 16.6 kN | C0r: 33.7 kN | Mass: 0.017 kg
BH-108Fw: 15.875 mm | D: 22.212 mm | Width C: 12.70 mm | Cr: 12.7 kN | C0r: 18.3 kN | Mass: 0.014 kg
MH-1081Fw: 15.875 mm | D: 22.212 mm | Width C: 12.70 mm | Cr: 12.7 kN | C0r: 18.3 kN | Mass: 0.016 kg
B-116Fw: 17.463 mm | D: 22.212 mm | Width C: 9.53 mm | Cr: 8.18 kN | C0r: 14.0 kN | Mass: 0.008 kg
M-1161Fw: 17.463 mm | D: 22.212 mm | Width C: 9.53 mm | Cr: 8.18 kN | C0r: 14.0 kN | Mass: 0.009 kg
B-118Fw: 17.463 mm | D: 22.212 mm | Width C: 12.70 mm | Cr: 11.5 kN | C0r: 21.7 kN | Mass: 0.011 kg
M-1181Fw: 17.463 mm | D: 22.212 mm | Width C: 12.70 mm | Cr: 11.5 kN | C0r: 21.7 kN | Mass: 0.012 kg
B-1110Fw: 17.463 mm | D: 22.212 mm | Width C: 15.88 mm | Cr: 14.6 kN | C0r: 29.4 kN | Mass: 0.014 kg
M-11101Fw: 17.463 mm | D: 22.212 mm | Width C: 15.88 mm | Cr: 14.6 kN | C0r: 29.4 kN | Mass: 0.015 kg
B-1112Fw: 17.463 mm | D: 22.212 mm | Width C: 19.05 mm | Cr: 17.4 kN | C0r: 37.1 kN | Mass: 0.016 kg
M-11121Fw: 17.463 mm | D: 22.212 mm | Width C: 19.05 mm | Cr: 17.4 kN | C0r: 37.1 kN | Mass: 0.019 kg
BH-1110Fw: 17.463 mm | D: 23.813 mm | Width C: 15.88 mm | Cr: 17.3 kN | C0r: 27.8 kN | Mass: 0.019 kg
MH-11101Fw: 17.463 mm | D: 23.813 mm | Width C: 15.88 mm | Cr: 17.3 kN | C0r: 27.8 kN | Mass: 0.021 kg
B-126Fw: 19.050 mm | D: 25.400 mm | Width C: 9.53 mm | Cr: 9.7 kN | C0r: 13.6 kN | Mass: 0.012 kg
M-1261Fw: 19.050 mm | D: 25.400 mm | Width C: 9.53 mm | Cr: 9.7 kN | C0r: 13.6 kN | Mass: 0.014 kg
B-128Fw: 19.050 mm | D: 25.400 mm | Width C: 12.70 mm | Cr: 14.1 kN | C0r: 22.0 kN | Mass: 0.016 kg
M-1281Fw: 19.050 mm | D: 25.400 mm | Width C: 12.70 mm | Cr: 14.1 kN | C0r: 22.0 kN | Mass: 0.019 kg
B-1212Fw: 19.050 mm | D: 25.400 mm | Width C: 19.05 mm | Cr: 21.9 kN | C0r: 38.7 kN | Mass: 0.024 kg
M-12121Fw: 19.050 mm | D: 25.400 mm | Width C: 19.05 mm | Cr: 21.9 kN | C0r: 38.7 kN | Mass: 0.028 kg
B-138Fw: 20.638 mm | D: 26.988 mm | Width C: 12.70 mm | Cr: 14.8 kN | C0r: 23.8 kN | Mass: 0.018 kg
M-1381Fw: 20.638 mm | D: 26.988 mm | Width C: 12.70 mm | Cr: 14.8 kN | C0r: 23.8 kN | Mass: 0.020 kg
B-1314Fw: 20.638 mm | D: 26.988 mm | Width C: 22.23 mm | Cr: 26.7 kN | C0r: 51.2 kN | Mass: 0.031 kg
M-13141Fw: 20.638 mm | D: 26.988 mm | Width C: 22.23 mm | Cr: 26.7 kN | C0r: 51.2 kN | Mass: 0.035 kg
B-1316Fw: 20.638 mm | D: 26.988 mm | Width C: 25.40 mm | Cr: 30.3 kN | C0r: 60.1 kN | Mass: 0.035 kg
M-13161Fw: 20.638 mm | D: 26.988 mm | Width C: 25.40 mm | Cr: 30.3 kN | C0r: 60.1 kN | Mass: 0.040 kg
BH-138Fw: 20.643 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 14.9 kN | C0r: 20.8 kN | Mass: 0.023 kg
MH-1381Fw: 20.643 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 14.9 kN | C0r: 20.8 kN | Mass: 0.026 kg
BH-1310Fw: 20.638 mm | D: 28.575 mm | Width C: 15.88 mm | Cr: 19.7 kN | C0r: 29.9 kN | Mass: 0.029 kg
MH-13101Fw: 20.638 mm | D: 28.575 mm | Width C: 15.88 mm | Cr: 19.7 kN | C0r: 29.9 kN | Mass: 0.032 kg
BH-1312Fw: 20.638 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 24.2 kN | C0r: 39.0 kN | Mass: 0.034 kg
MH-13121Fw: 20.638 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 24.2 kN | C0r: 39.0 kN | Mass: 0.039 kg
B-146Fw: 22.225 mm | D: 28.575 mm | Width C: 9.53 mm | Cr: 10.5 kN | C0r: 15.8 kN | Mass: 0.014 kg
M-1461Fw: 22.225 mm | D: 28.575 mm | Width C: 9.53 mm | Cr: 10.5 kN | C0r: 15.8 kN | Mass: 0.016 kg
B-148Fw: 22.225 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 15.4 kN | C0r: 25.6 kN | Mass: 0.019 kg
M-1481Fw: 22.225 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 15.4 kN | C0r: 25.6 kN | Mass: 0.022 kg
B-1412Fw: 22.225 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 23.9 kN | C0r: 45.4 kN | Mass: 0.028 kg
M-14121Fw: 22.225 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 23.9 kN | C0r: 45.4 kN | Mass: 0.032 kg
B-1416Fw: 22.225 mm | D: 28.575 mm | Width C: 25.40 mm | Cr: 31.6 kN | C0r: 64.9 kN | Mass: 0.038 kg
M-14161Fw: 22.225 mm | D: 28.575 mm | Width C: 25.40 mm | Cr: 31.6 kN | C0r: 64.9 kN | Mass: 0.043 kg
BH-1410Fw: 22.225 mm | D: 30.163 mm | Width C: 15.88 mm | Cr: 20.3 kN | C0r: 32.2 kN | Mass: 0.030 kg
MH-14101Fw: 22.225 mm | D: 30.163 mm | Width C: 15.88 mm | Cr: 20.3 kN | C0r: 32.2 kN | Mass: 0.035 kg
BH-1412Fw: 22.225 mm | D: 30.163 mm | Width C: 19.05 mm | Cr: 25.0 kN | C0r: 42.0 kN | Mass: 0.036 kg
MH-14121Fw: 22.225 mm | D: 30.163 mm | Width C: 19.05 mm | Cr: 25.0 kN | C0r: 42.0 kN | Mass: 0.041 kg
B-1516Fw: 23.813 mm | D: 30.163 mm | Width C: 25.40 mm | Cr: 32.8 kN | C0r: 69.4 kN | Mass: 0.040 kg
M-15161Fw: 23.813 mm | D: 30.163 mm | Width C: 25.40 mm | Cr: 32.8 kN | C0r: 69.4 kN | Mass: 0.045 kg
B-167Fw: 25.400 mm | D: 31.750 mm | Width C: 11.13 mm | Cr: 14.0 kN | C0r: 23.7 kN | Mass: 0.019 kg
M-1671Fw: 25.400 mm | D: 31.750 mm | Width C: 11.13 mm | Cr: 14.0 kN | C0r: 23.7 kN | Mass: 0.021 kg
B-168Fw: 25.400 mm | D: 31.750 mm | Width C: 12.70 mm | Cr: 16.5 kN | C0r: 29.3 kN | Mass: 0.021 kg
M-1681Fw: 25.400 mm | D: 31.750 mm | Width C: 12.70 mm | Cr: 16.5 kN | C0r: 29.3 kN | Mass: 0.024 kg
B-1610Fw: 25.400 mm | D: 31.750 mm | Width C: 15.88 mm | Cr: 21.2 kN | C0r: 40.5 kN | Mass: 0.026 kg
M-16101Fw: 25.400 mm | D: 31.750 mm | Width C: 15.88 mm | Cr: 21.2 kN | C0r: 40.5 kN | Mass: 0.030 kg
B-1612Fw: 25.400 mm | D: 31.750 mm | Width C: 19.05 mm | Cr: 25.7 kN | C0r: 51.6 kN | Mass: 0.032 kg
M-16121Fw: 25.400 mm | D: 31.750 mm | Width C: 19.05 mm | Cr: 25.7 kN | C0r: 51.6 kN | Mass: 0.036 kg
B-1616Fw: 25.400 mm | D: 31.750 mm | Width C: 25.40 mm | Cr: 33.9 kN | C0r: 74.3 kN | Mass: 0.043 kg
M-16161Fw: 25.400 mm | D: 31.750 mm | Width C: 25.40 mm | Cr: 33.9 kN | C0r: 74.3 kN | Mass: 0.048 kg
BH-168Fw: 25.400 mm | D: 33.338 mm | Width C: 12.70 mm | Cr: 16.6 kN | C0r: 25.6 kN | Mass: 0.027 kg
MH-1681Fw: 25.400 mm | D: 33.338 mm | Width C: 12.70 mm | Cr: 16.6 kN | C0r: 25.6 kN | Mass: 0.031 kg
BH-1612Fw: 25.400 mm | D: 33.338 mm | Width C: 19.05 mm | Cr: 27.1 kN | C0r: 48.0 kN | Mass: 0.041 kg
MH-16121Fw: 25.400 mm | D: 33.338 mm | Width C: 19.05 mm | Cr: 27.1 kN | C0r: 48.0 kN | Mass: 0.046 kg
BH-1616Fw: 25.400 mm | D: 33.338 mm | Width C: 25.40 mm | Cr: 36.5 kN | C0r: 70.3 kN | Mass: 0.054 kg
MH-16161Fw: 25.400 mm | D: 33.338 mm | Width C: 25.40 mm | Cr: 36.5 kN | C0r: 70.3 kN | Mass: 0.062 kg
BH-1624Fw: 25.400 mm | D: 33.338 mm | Width C: 38.10 mm | Cr: 53.4 kN | C0r: 115.2 kN | Mass: 0.082 kg
MH-16241Fw: 25.400 mm | D: 33.338 mm | Width C: 38.10 mm | Cr: 53.4 kN | C0r: 115.2 kN | Mass: 0.093 kg
B-1710Fw: 26.988 mm | D: 33.338 mm | Width C: 15.88 mm | Cr: 21.9 kN | C0r: 43.1 kN | Mass: 0.028 kg
M-17101Fw: 26.988 mm | D: 33.338 mm | Width C: 15.88 mm | Cr: 21.9 kN | C0r: 43.1 kN | Mass: 0.032 kg
B-186Fw: 28.575 mm | D: 34.925 mm | Width C: 9.53 mm | Cr: 12.1 kN | C0r: 20.4 kN | Mass: 0.018 kg
M-1861Fw: 28.575 mm | D: 34.925 mm | Width C: 9.53 mm | Cr: 12.1 kN | C0r: 20.4 kN | Mass: 0.020 kg
B-188Fw: 28.575 mm | D: 34.925 mm | Width C: 12.70 mm | Cr: 17.6 kN | C0r: 33.0 kN | Mass: 0.024 kg
M-1881Fw: 28.575 mm | D: 34.925 mm | Width C: 12.70 mm | Cr: 17.6 kN | C0r: 33.0 kN | Mass: 0.027 kg
B-1812Fw: 28.575 mm | D: 34.925 mm | Width C: 19.05 mm | Cr: 27.3 kN | C0r: 58.3 kN | Mass: 0.035 kg
M-18121Fw: 28.575 mm | D: 34.925 mm | Width C: 19.05 mm | Cr: 27.3 kN | C0r: 58.3 kN | Mass: 0.040 kg
B-1816Fw: 28.575 mm | D: 34.925 mm | Width C: 25.40 mm | Cr: 36.2 kN | C0r: 83.6 kN | Mass: 0.047 kg
M-18161Fw: 28.575 mm | D: 34.925 mm | Width C: 25.40 mm | Cr: 36.2 kN | C0r: 83.6 kN | Mass: 0.054 kg
BH-1812Fw: 28.575 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 31.5 kN | C0r: 52.9 kN | Mass: 0.056 kg
MH-18121Fw: 28.575 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 31.5 kN | C0r: 52.9 kN | Mass: 0.063 kg
BH-1816Fw: 28.575 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 42.5 kN | C0r: 77.8 kN | Mass: 0.074 kg
MH-18161Fw: 28.575 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 42.5 kN | C0r: 77.8 kN | Mass: 0.084 kg
BH-1820Fw: 28.575 mm | D: 38.100 mm | Width C: 31.75 mm | Cr: 52.9 kN | C0r: 103.2 kN | Mass: 0.093 kg
MH-18201Fw: 28.575 mm | D: 38.100 mm | Width C: 31.75 mm | Cr: 52.9 kN | C0r: 103.2 kN | Mass: 0.105 kg
B-1910Fw: 30.163 mm | D: 38.100 mm | Width C: 15.88 mm | Cr: 24.1 kN | C0r: 43.8 kN | Mass: 0.040 kg
M-19101Fw: 30.163 mm | D: 38.100 mm | Width C: 15.88 mm | Cr: 24.1 kN | C0r: 43.8 kN | Mass: 0.045 kg
B-2010Fw: 31.750 mm | D: 38.100 mm | Width C: 15.88 mm | Cr: 23.9 kN | C0r: 50.7 kN | Mass: 0.032 kg
M-20101Fw: 31.750 mm | D: 38.100 mm | Width C: 15.88 mm | Cr: 23.9 kN | C0r: 50.7 kN | Mass: 0.044 kg
B-2012Fw: 31.750 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 28.9 kN | C0r: 64.5 kN | Mass: 0.039 kg
M-20121Fw: 31.750 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 28.9 kN | C0r: 64.5 kN | Mass: 0.045 kg
B-2016Fw: 31.750 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 38.2 kN | C0r: 92.5 kN | Mass: 0.052 kg
M-20161Fw: 31.750 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 38.2 kN | C0r: 92.5 kN | Mass: 0.059 kg
B-2020Fw: 31.750 mm | D: 38.100 mm | Width C: 31.75 mm | Cr: 47.2 kN | C0r: 121.0 kN | Mass: 0.065 kg
M-20201Fw: 31.750 mm | D: 38.100 mm | Width C: 31.75 mm | Cr: 47.2 kN | C0r: 121.0 kN | Mass: 0.073 kg
BH-208Fw: 31.750 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.7 kN | C0r: 30.0 kN | Mass: 0.041 kg
MH-2081Fw: 31.750 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.7 kN | C0r: 30.0 kN | Mass: 0.046 kg
BH-2012Fw: 31.750 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 33.1 kN | C0r: 58.7 kN | Mass: 0.061 kg
MH-20121Fw: 31.750 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 33.1 kN | C0r: 58.7 kN | Mass: 0.069 kg
BH-2016Fw: 31.750 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 44.9 kN | C0r: 86.7 kN | Mass: 0.081 kg
MH-20161Fw: 31.750 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 44.9 kN | C0r: 86.7 kN | Mass: 0.092 kg
BH-2020Fw: 31.750 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 56.0 kN | C0r: 115.0 kN | Mass: 0.102 kg
MH-20201Fw: 31.750 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 56.0 kN | C0r: 115.0 kN | Mass: 0.115 kg
B-218Fw: 33.338 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.3 kN | C0r: 33.7 kN | Mass: 0.034 kg
M-2181Fw: 33.338 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.3 kN | C0r: 33.7 kN | Mass: 0.039 kg
B-2110Fw: 33.338 mm | D: 41.275 mm | Width C: 15.88 mm | Cr: 25.5 kN | C0r: 48.5 kN | Mass: 0.043 kg
M-21101Fw: 33.338 mm | D: 41.275 mm | Width C: 15.88 mm | Cr: 25.5 kN | C0r: 48.5 kN | Mass: 0.049 kg
B-228Fw: 34.925 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.5 kN | C0r: 40.4 kN | Mass: 0.028 kg
M-2281Fw: 34.925 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 19.5 kN | C0r: 40.4 kN | Mass: 0.032 kg
B-2212Fw: 34.925 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 30.4 kN | C0r: 71.2 kN | Mass: 0.043 kg
M-22121Fw: 34.925 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 30.4 kN | C0r: 71.2 kN | Mass: 0.049 kg
B-2216Fw: 34.925 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 40.2 kN | C0r: 102.0 kN | Mass: 0.057 kg
M-22161Fw: 34.925 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 40.2 kN | C0r: 102.0 kN | Mass: 0.064 kg
B-2220Fw: 34.925 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 49.4 kN | C0r: 133.0 kN | Mass: 0.071 kg
M-22201Fw: 34.925 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 49.4 kN | C0r: 133.0 kN | Mass: 0.080 kg
BH-2212Fw: 34.925 mm | D: 44.450 mm | Width C: 19.05 mm | Cr: 35.3 kN | C0r: 64.5 kN | Mass: 0.066 kg
MH-22121Fw: 34.925 mm | D: 44.450 mm | Width C: 19.05 mm | Cr: 35.3 kN | C0r: 64.5 kN | Mass: 0.075 kg
BH-2216Fw: 34.925 mm | D: 44.450 mm | Width C: 25.40 mm | Cr: 47.6 kN | C0r: 94.8 kN | Mass: 0.088 kg
MH-22161Fw: 34.925 mm | D: 44.450 mm | Width C: 25.40 mm | Cr: 47.6 kN | C0r: 94.8 kN | Mass: 0.100 kg
B-248Fw: 38.100 mm | D: 47.625 mm | Width C: 12.70 mm | Cr: 22.3 kN | C0r: 37.1 kN | Mass: 0.048 kg
M-2481Fw: 38.100 mm | D: 47.625 mm | Width C: 12.70 mm | Cr: 22.3 kN | C0r: 37.1 kN | Mass: 0.054 kg
B-2410Fw: 38.100 mm | D: 47.625 mm | Width C: 15.88 mm | Cr: 29.8 kN | C0r: 53.8 kN | Mass: 0.060 kg
M-24101Fw: 38.100 mm | D: 47.625 mm | Width C: 15.88 mm | Cr: 29.8 kN | C0r: 53.8 kN | Mass: 0.068 kg
B-2412Fw: 38.100 mm | D: 47.625 mm | Width C: 19.05 mm | Cr: 36.9 kN | C0r: 70.7 kN | Mass: 0.072 kg
M-24121Fw: 38.100 mm | D: 47.625 mm | Width C: 19.05 mm | Cr: 36.9 kN | C0r: 70.7 kN | Mass: 0.081 kg
B-2414Fw: 38.100 mm | D: 47.625 mm | Width C: 22.23 mm | Cr: 43.5 kN | C0r: 87.6 kN | Mass: 0.083 kg
M-24141Fw: 38.100 mm | D: 47.625 mm | Width C: 22.23 mm | Cr: 43.5 kN | C0r: 87.6 kN | Mass: 0.095 kg
B-2416Fw: 38.100 mm | D: 47.625 mm | Width C: 25.40 mm | Cr: 49.8 kN | C0r: 103.0 kN | Mass: 0.096 kg
M-24161Fw: 38.100 mm | D: 47.625 mm | Width C: 25.40 mm | Cr: 49.8 kN | C0r: 103.0 kN | Mass: 0.108 kg
B-2420Fw: 38.100 mm | D: 47.625 mm | Width C: 31.75 mm | Cr: 61.8 kN | C0r: 138.0 kN | Mass: 0.119 kg
M-24201Fw: 38.100 mm | D: 47.625 mm | Width C: 31.75 mm | Cr: 61.8 kN | C0r: 138.0 kN | Mass: 0.135 kg
B-2610Fw: 41.275 mm | D: 50.800 mm | Width C: 15.88 mm | Cr: 30.6 kN | C0r: 57.4 kN | Mass: 0.064 kg
M-26101Fw: 41.275 mm | D: 50.800 mm | Width C: 15.88 mm | Cr: 30.6 kN | C0r: 57.4 kN | Mass: 0.073 kg
B-2620Fw: 41.275 mm | D: 50.800 mm | Width C: 31.75 mm | Cr: 64.0 kN | C0r: 149.0 kN | Mass: 0.128 kg
M-26201Fw: 41.275 mm | D: 50.800 mm | Width C: 31.75 mm | Cr: 64.0 kN | C0r: 149.0 kN | Mass: 0.145 kg
B-2812Fw: 44.450 mm | D: 53.975 mm | Width C: 19.05 mm | Cr: 39.3 kN | C0r: 81.4 kN | Mass: 0.082 kg
M-28121Fw: 44.450 mm | D: 53.975 mm | Width C: 19.05 mm | Cr: 39.3 kN | C0r: 81.4 kN | Mass: 0.093 kg
B-2816Fw: 44.450 mm | D: 53.975 mm | Width C: 25.40 mm | Cr: 53.4 kN | C0r: 121.0 kN | Mass: 0.110 kg
M-28161Fw: 44.450 mm | D: 53.975 mm | Width C: 25.40 mm | Cr: 53.4 kN | C0r: 121.0 kN | Mass: 0.124 kg
B-2824Fw: 44.450 mm | D: 53.975 mm | Width C: 38.10 mm | Cr: 78.7 kN | C0r: 199.0 kN | Mass: 0.165 kg
M-26241Fw: 44.450 mm | D: 53.975 mm | Width C: 38.10 mm | Cr: 78.7 kN | C0r: 199.0 kN | Mass: 0.186 kg
B-308Fw: 47.625 mm | D: 57.150 mm | Width C: 12.70 mm | Cr: 25.1 kN | C0r: 46.3 kN | Mass: 0.059 kg
M-3081Fw: 47.625 mm | D: 57.150 mm | Width C: 12.70 mm | Cr: 25.1 kN | C0r: 46.3 kN | Mass: 0.066 kg
B-3016Fw: 47.625 mm | D: 57.150 mm | Width C: 25.40 mm | Cr: 56.0 kN | C0r: 130.0 kN | Mass: 0.117 kg
M-30161Fw: 47.625 mm | D: 57.150 mm | Width C: 25.40 mm | Cr: 56.0 kN | C0r: 130.0 kN | Mass: 0.132 kg
B-328Fw: 50.800 mm | D: 60.325 mm | Width C: 12.70 mm | Cr: 25.4 kN | C0r: 48.0 kN | Mass: 0.062 kg
M-3281Fw: 50.800 mm | D: 60.325 mm | Width C: 12.70 mm | Cr: 25.4 kN | C0r: 48.0 kN | Mass: 0.070 kg
B-3216Fw: 50.800 mm | D: 60.325 mm | Width C: 25.40 mm | Cr: 57.4 kN | C0r: 138.0 kN | Mass: 0.124 kg
M-32161Fw: 50.800 mm | D: 60.325 mm | Width C: 25.40 mm | Cr: 57.4 kN | C0r: 138.0 kN | Mass: 0.140 kg
B-3220Fw: 50.800 mm | D: 60.325 mm | Width C: 31.75 mm | Cr: 71.6 kN | C0r: 183.0 kN | Mass: 0.155 kg
M-32201Fw: 50.800 mm | D: 60.325 mm | Width C: 31.75 mm | Cr: 71.6 kN | C0r: 183.0 kN | Mass: 0.175 kg
B-3224Fw: 50.800 mm | D: 60.325 mm | Width C: 38.10 mm | Cr: 85.0 kN | C0r: 228.0 kN | Mass: 0.186 kg
M-32241Fw: 50.800 mm | D: 60.325 mm | Width C: 38.10 mm | Cr: 85.0 kN | C0r: 228.0 kN | Mass: 0.211 kg
BH-3316Fw: 52.388 mm | D: 64.292 mm | Width C: 25.40 mm | Cr: 64.0 kN | C0r: 133.0 kN | Mass: 0.162 kg
MH-33161Fw: 52.388 mm | D: 64.292 mm | Width C: 25.40 mm | Cr: 64.0 kN | C0r: 133.0 kN | Mass: 0.184 kg
BH-3324Fw: 52.388 mm | D: 64.292 mm | Width C: 38.10 mm | Cr: 97.0 kN | C0r: 226.0 kN | Mass: 0.244 kg
MH-33241Fw: 52.388 mm | D: 64.292 mm | Width C: 38.10 mm | Cr: 97.0 kN | C0r: 226.0 kN | Mass: 0.276 kg
B-3416Fw: 53.975 mm | D: 63.500 mm | Width C: 25.40 mm | Cr: 59.2 kN | C0r: 147.0 kN | Mass: 0.131 kg
M-34161Fw: 53.975 mm | D: 63.500 mm | Width C: 25.40 mm | Cr: 59.2 kN | C0r: 147.0 kN | Mass: 0.148 kg
B-3424Fw: 53.975 mm | D: 63.500 mm | Width C: 38.10 mm | Cr: 87.2 kN | C0r: 242.0 kN | Mass: 0.196 kg
M-34241Fw: 53.975 mm | D: 63.500 mm | Width C: 38.10 mm | Cr: 87.2 kN | C0r: 242.0 kN | Mass: 0.223 kg
B-3612Fw: 57.150 mm | D: 66.675 mm | Width C: 19.05 mm | Cr: 45.8 kN | C0r: 105.0 kN | Mass: 0.103 kg
M-36121Fw: 57.150 mm | D: 66.675 mm | Width C: 19.05 mm | Cr: 45.8 kN | C0r: 105.0 kN | Mass: 0.117 kg
B-3624Fw: 57.150 mm | D: 66.675 mm | Width C: 38.10 mm | Cr: 92.1 kN | C0r: 257.0 kN | Mass: 0.207 kg
M-36241Fw: 57.150 mm | D: 66.675 mm | Width C: 38.10 mm | Cr: 92.1 kN | C0r: 257.0 kN | Mass: 0.235 kg
B-4216Fw: 66.675 mm | D: 76.200 mm | Width C: 25.40 mm | Cr: 66.7 kN | C0r: 182.0 kN | Mass: 0.159 kg
M-42161Fw: 66.675 mm | D: 76.200 mm | Width C: 25.40 mm | Cr: 66.7 kN | C0r: 182.0 kN | Mass: 0.181 kg
B-4420Fw: 69.850 mm | D: 79.375 mm | Width C: 31.75 mm | Cr: 85.4 kN | C0r: 252.0 kN | Mass: 0.208 kg
M-44201Fw: 69.850 mm | D: 79.375 mm | Width C: 31.75 mm | Cr: 85.4 kN | C0r: 252.0 kN | Mass: 0.235 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
