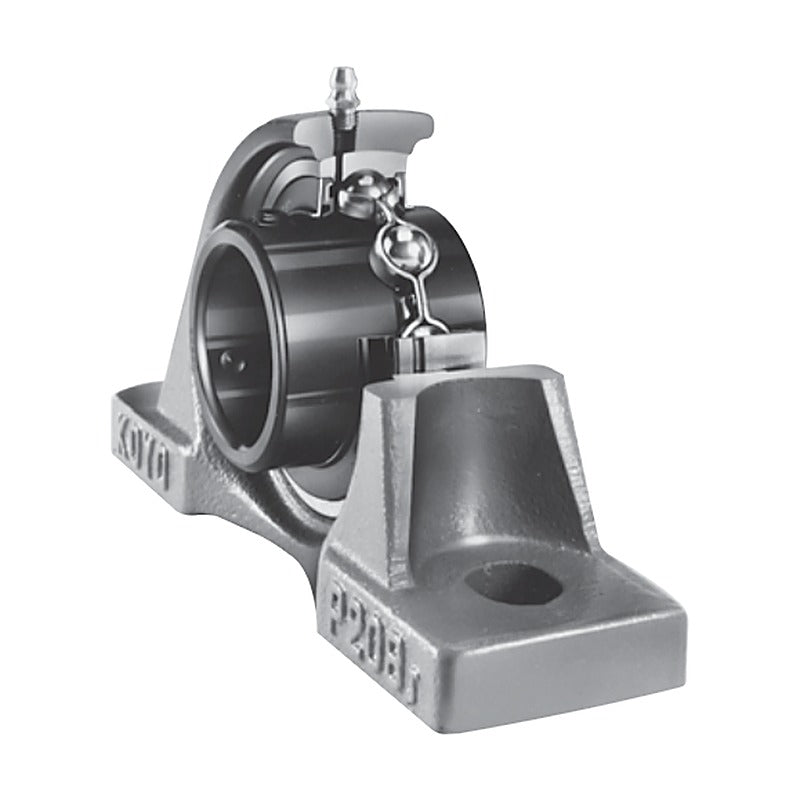

KOYO BLP Light Duty Pillow Block Units

Light duty cast iron pillow block units with SB insert bearings and set screw locking for light loads.

Key features

Pre-lubricated sealed ball bearing insert
Spherical seating compensates for shaft misalignment
Housing and insert replaceable separately
Unit number, housing number and insert bearing listed
Shaft diameter given in mm

Specifications

Product type	Ball bearing unit
Series	BLP Light Duty Pillow Blocks
Seal	Insert bearing sealed both sides
Source	KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B482-B483

BLP201		Shaft d: 12 mm \| Housing: LP203 \| Bearing: SB201 \| Cr: 9.55 kN
BLP202		Shaft d: 15 mm \| Housing: LP203 \| Bearing: SB202 \| Cr: 9.55 kN
BLP203		Shaft d: 17 mm \| Housing: LP203 \| Bearing: SB203 \| Cr: 9.55 kN
BLP204		Shaft d: 20 mm \| Housing: LP204 \| Bearing: SB204 \| Cr: 12.8 kN
BLP205		Shaft d: 25 mm \| Housing: LP205 \| Bearing: SB205 \| Cr: 14.0 kN
BLP206		Shaft d: 30 mm \| Housing: LP206 \| Bearing: SB206 \| Cr: 19.5 kN
BLP207		Shaft d: 35 mm \| Housing: LP207 \| Bearing: SB207 \| Cr: 25.7 kN
BLP208		Shaft d: 40 mm \| Housing: LP208 \| Bearing: SB208 \| Cr: 29.1 kN

Mounted Bearing UnitsKOYO

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO BLP Light Duty Pillow Block Units

Brand KOYO·Mounted Bearing Units

Available part numbers (8)

BLP201, BLP202, BLP203, BLP204, BLP205, BLP206, BLP207, BLP208

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	BLP201	Shaft d: 12 mm \| Housing: LP203 \| Bearing: SB201 \| Cr: 9.55 kN
	BLP202	Shaft d: 15 mm \| Housing: LP203 \| Bearing: SB202 \| Cr: 9.55 kN
	BLP203	Shaft d: 17 mm \| Housing: LP203 \| Bearing: SB203 \| Cr: 9.55 kN
	BLP204	Shaft d: 20 mm \| Housing: LP204 \| Bearing: SB204 \| Cr: 12.8 kN
	BLP205	Shaft d: 25 mm \| Housing: LP205 \| Bearing: SB205 \| Cr: 14.0 kN
	BLP206	Shaft d: 30 mm \| Housing: LP206 \| Bearing: SB206 \| Cr: 19.5 kN
	BLP207	Shaft d: 35 mm \| Housing: LP207 \| Bearing: SB207 \| Cr: 25.7 kN
	BLP208	Shaft d: 40 mm \| Housing: LP208 \| Bearing: SB208 \| Cr: 29.1 kN
