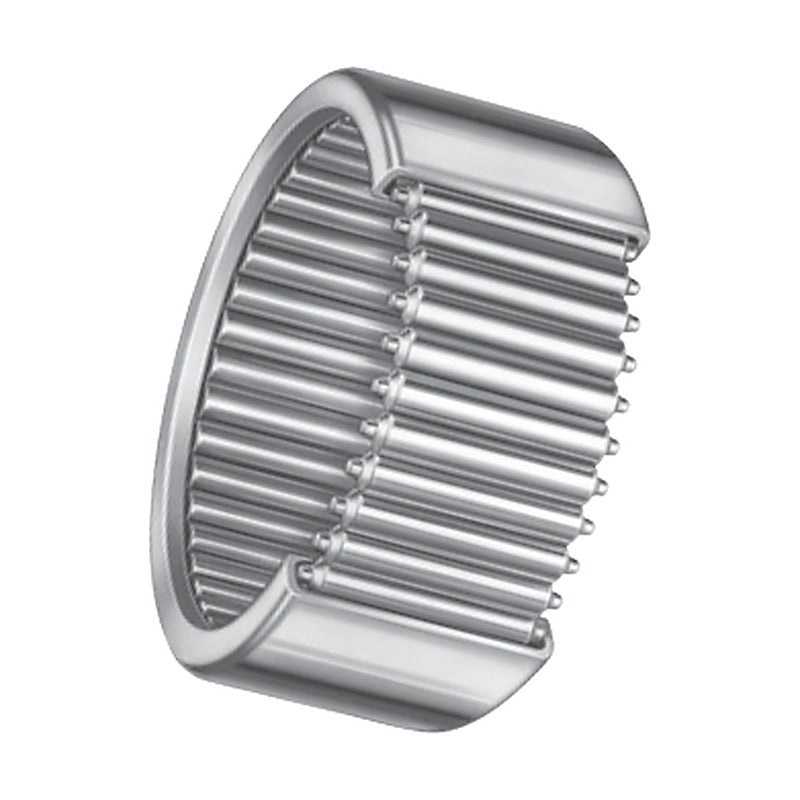

KOYO BM, BHM, YM Full Complement Drawn Cup Needle Roller Bearings

KOYO BM, BHM, YM Full Complement Drawn Cup Needle Roller Bearings

Metric full complement drawn cup needle roller bearings of the BM, BHM (heavy section) and YM series.

Key features

  • Full complement of needle rollers
  • BHM heavy-section cup
  • YM types with grease retention
  • Press fit into housing; no shoulders required

Specifications

Bearing type Drawn cup needle roller bearing, full complement
Series BM, BHM, YM
Source KOYO Needle Roller Bearings catalogue, p. B-2-42 to B-2-43
YM040811A Fw: 3.5 mm | D: 8 mm | Width C: 11 mm | Cr: 4.5 kN | C0r: 4.2 kN | Mass: 0.003 kg
6YM1110BM Fw: 6.13 mm | D: 11 mm | Width C: 9.7 mm | Cr: 5.55 kN | C0r: 6.3 kN | Mass: 0.004 kg
YM081310AM Fw: 8 mm | D: 13 mm | Width C: 10 mm | Cr: 6.6 kN | C0r: 8.35 kN | Mass: 0.006 kg
BM222925 Fw: 24 mm | D: 30 mm | Width C: 13 mm | Cr: 37.3 kN | C0r: 68.9 kN | Mass: 0.018 kg
34YM4225L Fw: 34 mm | D: 42 mm | Width C: 25 mm | Cr: 50.9 kN | C0r: 106 kN | Mass: 0.075 kg
YM3820PL Fw: 38 mm | D: 48 mm | Width C: 20 mm | Cr: 52.2 kN | C0r: 92.7 kN | Mass: 0.082 kg
Needle Roller BearingsKOYO
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO BM, BHM, YM Full Complement Drawn Cup Needle Roller Bearings

Brand KOYO·Needle Roller Bearings

Available part numbers (6)

YM040811A, 6YM1110BM, YM081310AM, BM222925, 34YM4225L, YM3820PL

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YM040811AFw: 3.5 mm | D: 8 mm | Width C: 11 mm | Cr: 4.5 kN | C0r: 4.2 kN | Mass: 0.003 kg
6YM1110BMFw: 6.13 mm | D: 11 mm | Width C: 9.7 mm | Cr: 5.55 kN | C0r: 6.3 kN | Mass: 0.004 kg
YM081310AMFw: 8 mm | D: 13 mm | Width C: 10 mm | Cr: 6.6 kN | C0r: 8.35 kN | Mass: 0.006 kg
BM222925Fw: 24 mm | D: 30 mm | Width C: 13 mm | Cr: 37.3 kN | C0r: 68.9 kN | Mass: 0.018 kg
34YM4225LFw: 34 mm | D: 42 mm | Width C: 25 mm | Cr: 50.9 kN | C0r: 106 kN | Mass: 0.075 kg
YM3820PLFw: 38 mm | D: 48 mm | Width C: 20 mm | Cr: 52.2 kN | C0r: 92.7 kN | Mass: 0.082 kg
