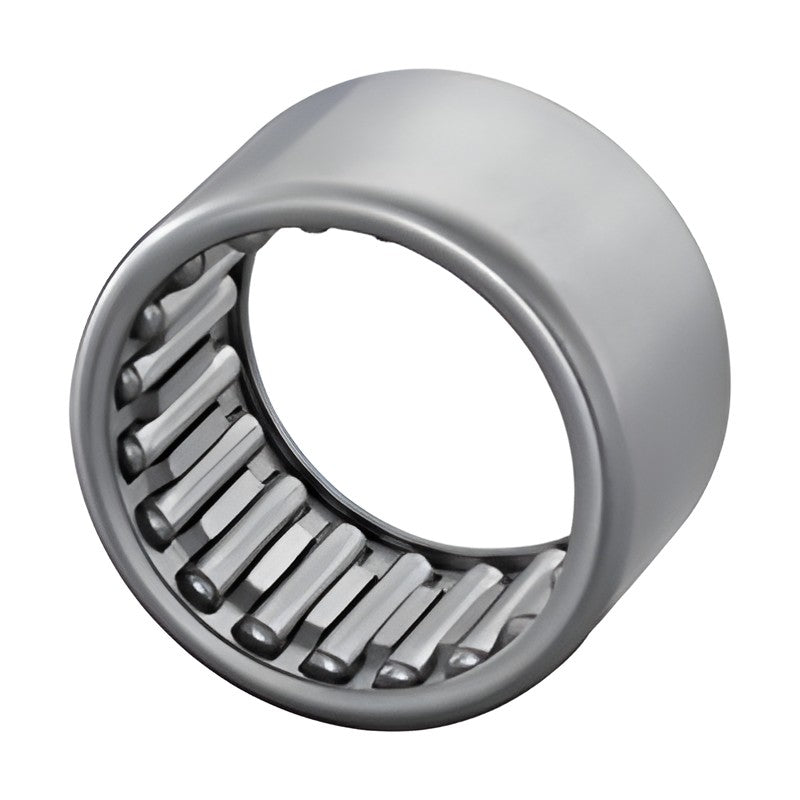

KOYO BTM, BHTM, BKM, BSM Drawn Cup Needle Roller Bearings (Metric)

KOYO BTM, BHTM, BKM, BSM Drawn Cup Needle Roller Bearings (Metric)

Metric caged drawn cup needle roller bearings of the BSM, BKM, BTM and BHTM series (open ends or closed end), including heavy-section BHTM types.

Key features

  • Drawn cup outer ring with caged needle rollers
  • BTM / BHTM open ends; BKM closed end
  • BHTM heavy-section cup for low-rigidity housings
  • Compact radial section

Specifications

Bearing type Drawn cup needle roller bearing, caged
Series BSM, BKM, BTM, BHTM
Source KOYO Needle Roller Bearings catalogue, p. B-2-20 to B-2-23
BTM101410A Fw: 9.8 mm | D: 13.8 mm | Width C: 10 mm | Cr: 3.75 kN | C0r: 4.25 kN | Mass: 0.004 kg
14BTM1916B-1 Fw: 14 mm | D: 19 mm | Width C: 16 mm | Cr: 8.8 kN | C0r: 11.9 kN | Mass: 0.011 kg
BTM172515 Fw: 17 mm | D: 25 mm | Width C: 15 mm | Cr: 13.2 kN | C0r: 14.9 kN | Mass: 0.020 kg
BTM1820 Fw: 18 mm | D: 25 mm | Width C: 20 mm | Cr: 16.7 kN | C0r: 22 kN | Mass: 0.024 kg
BTM202720-2 Fw: 20 mm | D: 27 mm | Width C: 20 mm | Cr: 19.6 kN | C0r: 27.6 kN | Mass: 0.027 kg
BTM2025 Fw: 20 mm | D: 27 mm | Width C: 25 mm | Cr: 24.3 kN | C0r: 36.4 kN | Mass: 0.033 kg
BTM222712A Fw: 21.6 mm | D: 26.645 mm | Width C: 12.4 mm | Cr: 9.15 kN | C0r: 13.9 kN | Mass: 0.012 kg
BTM283312J Fw: 28 mm | D: 33 mm | Width C: 12 mm | Cr: 9.5 kN | C0r: 15.8 kN | Mass: 0.015 kg
BSM5514BJ-2 Fw: 55.254 mm | D: 60.3 mm | Width C: 14 mm | Cr: 16.7 kN | C0r: 41 kN | Mass: 0.032 kg
Needle Roller BearingsKOYO
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO BTM, BHTM, BKM, BSM Drawn Cup Needle Roller Bearings (Metric)

Brand KOYO·Needle Roller Bearings

Available part numbers (9)

BTM101410A, 14BTM1916B-1, BTM172515, BTM1820, BTM202720-2, BTM2025, BTM222712A, BTM283312J, BSM5514BJ-2

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BTM101410AFw: 9.8 mm | D: 13.8 mm | Width C: 10 mm | Cr: 3.75 kN | C0r: 4.25 kN | Mass: 0.004 kg
14BTM1916B-1Fw: 14 mm | D: 19 mm | Width C: 16 mm | Cr: 8.8 kN | C0r: 11.9 kN | Mass: 0.011 kg
BTM172515Fw: 17 mm | D: 25 mm | Width C: 15 mm | Cr: 13.2 kN | C0r: 14.9 kN | Mass: 0.020 kg
BTM1820Fw: 18 mm | D: 25 mm | Width C: 20 mm | Cr: 16.7 kN | C0r: 22 kN | Mass: 0.024 kg
BTM202720-2Fw: 20 mm | D: 27 mm | Width C: 20 mm | Cr: 19.6 kN | C0r: 27.6 kN | Mass: 0.027 kg
BTM2025Fw: 20 mm | D: 27 mm | Width C: 25 mm | Cr: 24.3 kN | C0r: 36.4 kN | Mass: 0.033 kg
BTM222712AFw: 21.6 mm | D: 26.645 mm | Width C: 12.4 mm | Cr: 9.15 kN | C0r: 13.9 kN | Mass: 0.012 kg
BTM283312JFw: 28 mm | D: 33 mm | Width C: 12 mm | Cr: 9.5 kN | C0r: 15.8 kN | Mass: 0.015 kg
BSM5514BJ-2Fw: 55.254 mm | D: 60.3 mm | Width C: 14 mm | Cr: 16.7 kN | C0r: 41 kN | Mass: 0.032 kg
