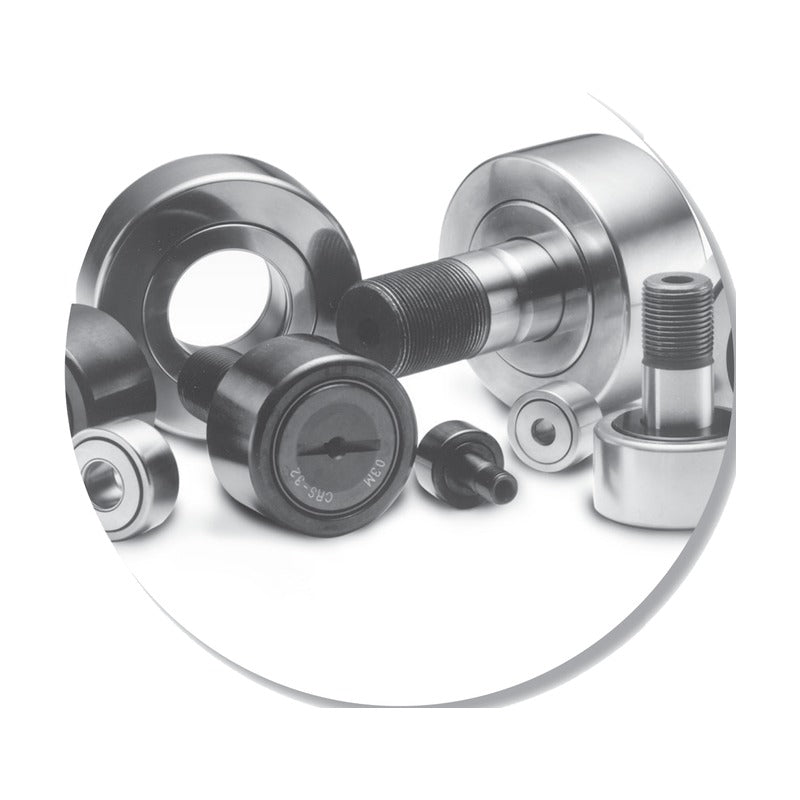

KOYO RSTO, STO, RNA22, NA22, NATR, NUTR Yoke-Type Track Rollers

KOYO RSTO, STO, RNA22, NA22, NATR, NUTR Yoke-Type Track Rollers

Metric yoke-type track rollers (roller followers): caged without inner ring (RSTO), with inner ring (STO), sealed (RNA22..2RS, NA22..2RS), with end washers (NATR, STO..ZZ) and full complement cylindrical roller NUTR types; DZ suffix denotes crowned outer ring.

Key features

  • Thick-walled outer ring for track running
  • Without or with inner ring
  • Sealed and end washer versions
  • NUTR full complement cylindrical roller type for high loads
  • Crowned outer ring option (DZ)

Specifications

Product type Yoke-type track roller
Series RSTO, STO, RNA22, NA22, NATR, STO..ZZ, NUTR
Dimension system Metric
Source KOYO Needle Roller Bearings catalogue, p. B-5-32 to B-5-37
RSTO5A.TN D: 16 mm | Width: 7.8 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.009 kg
RSTO5ADZ.TN D: 16 mm | Width: 7.8 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.009 kg
RSTO6 D: 19 mm | Width: 9.8 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.014 kg
RSTO6DZ D: 19 mm | Width: 9.8 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.014 kg
RSTO8 D: 24 mm | Width: 9.8 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.023 kg
RSTO8DZ D: 24 mm | Width: 9.8 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.023 kg
RSTO10 D: 30 mm | Width: 11.8 mm | Cr: 10.40 kN | C0r: 10.6 kN | Mass: 0.044 kg
RSTO10DZ D: 30 mm | Width: 11.8 mm | Cr: 10.40 kN | C0r: 10.6 kN | Mass: 0.044 kg
RSTO12 D: 32 mm | Width: 11.8 mm | Cr: 11.20 kN | C0r: 11.9 kN | Mass: 0.049 kg
RSTO12DZ D: 32 mm | Width: 11.8 mm | Cr: 11.20 kN | C0r: 11.9 kN | Mass: 0.049 kg
RSTO15 D: 35 mm | Width: 11.8 mm | Cr: 12.90 kN | C0r: 15.3 kN | Mass: 0.052 kg
RSTO15DZ D: 35 mm | Width: 11.8 mm | Cr: 12.90 kN | C0r: 15.3 kN | Mass: 0.052 kg
RSTO17 D: 40 mm | Width: 15.8 mm | Cr: 19.00 kN | C0r: 23.3 kN | Mass: 0.095 kg
RSTO17DZ D: 40 mm | Width: 15.8 mm | Cr: 19.00 kN | C0r: 23.3 kN | Mass: 0.095 kg
RSTO20 D: 47 mm | Width: 15.8 mm | Cr: 20.00 kN | C0r: 25.3 kN | Mass: 0.134 kg
RSTO20DZ D: 47 mm | Width: 15.8 mm | Cr: 20.00 kN | C0r: 25.3 kN | Mass: 0.134 kg
RSTO25 D: 52 mm | Width: 15.8 mm | Cr: 22.40 kN | C0r: 31.0 kN | Mass: 0.155 kg
RSTO25DZ D: 52 mm | Width: 15.8 mm | Cr: 22.40 kN | C0r: 31.0 kN | Mass: 0.155 kg
RSTO30 D: 62 mm | Width: 19.8 mm | Cr: 33.30 kN | C0r: 51.0 kN | Mass: 0.258 kg
RSTO30DZ D: 62 mm | Width: 19.8 mm | Cr: 33.30 kN | C0r: 51.0 kN | Mass: 0.258 kg
RSTO35 D: 72 mm | Width: 19.8 mm | Cr: 35.20 kN | C0r: 56.6 kN | Mass: 0.37 kg
RSTO35DZ D: 72 mm | Width: 19.8 mm | Cr: 35.20 kN | C0r: 56.6 kN | Mass: 0.37 kg
RSTO40 D: 80 mm | Width: 19.8 mm | Cr: 38.80 kN | C0r: 67.8 kN | Mass: 0.430 kg
RSTO40DZ D: 80 mm | Width: 19.8 mm | Cr: 38.80 kN | C0r: 67.8 kN | Mass: 0.430 kg
RSTO45 D: 85 mm | Width: 19.8 mm | Cr: 40.30 kN | C0r: 73.5 kN | Mass: 0.447 kg
RSTO50 D: 90 mm | Width: 19.8 mm | Cr: 41.80 kN | C0r: 79.2 kN | Mass: 0.495 kg
STO6 D: 19 mm | d: 6 mm | Width: 9.8 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.018 kg
STO6DZ D: 19 mm | d: 6 mm | Width: 9.8 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.018 kg
STO8 D: 24 mm | d: 8 mm | Width: 9.8 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.028 kg
STO8DZ D: 24 mm | d: 8 mm | Width: 9.8 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.028 kg
STO10 D: 30 mm | d: 10 mm | Width: 11.8 mm | Cr: 10.4 kN | C0r: 10.6 kN | Mass: 0.065 kg
STO10DZ D: 30 mm | d: 10 mm | Width: 11.8 mm | Cr: 10.4 kN | C0r: 10.6 kN | Mass: 0.065 kg
STO12 D: 32 mm | d: 12 mm | Width: 11.8 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.114 kg
STO12DZ D: 32 mm | d: 12 mm | Width: 11.8 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.114 kg
STO15 D: 35 mm | d: 15 mm | Width: 11.8 mm | Cr: 12.9 kN | C0r: 15.3 kN | Mass: 0.065 kg
STO15DZ D: 35 mm | d: 15 mm | Width: 11.8 mm | Cr: 12.9 kN | C0r: 15.3 kN | Mass: 0.065 kg
STO17 D: 40 mm | d: 17 mm | Width: 15.8 mm | Cr: 19.1 kN | C0r: 23.3 kN | Mass: 0.114 kg
STO17DZ D: 40 mm | d: 17 mm | Width: 15.8 mm | Cr: 19.1 kN | C0r: 23.3 kN | Mass: 0.114 kg
STO20 D: 47 mm | d: 20 mm | Width: 15.8 mm | Cr: 19.8 kN | C0r: 25.3 kN | Mass: 0.160 kg
STO20DZ D: 47 mm | d: 20 mm | Width: 15.8 mm | Cr: 19.8 kN | C0r: 25.3 kN | Mass: 0.160 kg
STO25 D: 52 mm | d: 25 mm | Width: 15.8 mm | Cr: 22.4 kN | C0r: 31.0 kN | Mass: 0.435 kg
STO25DZ D: 52 mm | d: 25 mm | Width: 15.8 mm | Cr: 22.4 kN | C0r: 31.0 kN | Mass: 0.435 kg
STO30 D: 62 mm | d: 30 mm | Width: 19.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.325 kg
STO30DZ D: 62 mm | d: 30 mm | Width: 19.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.325 kg
STO35 D: 72 mm | d: 35 mm | Width: 19.8 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.435 kg
STO35DZ D: 72 mm | d: 35 mm | Width: 19.8 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.435 kg
STO40 D: 80 mm | d: 40 mm | Width: 19.8 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.540 kg
STO40DZ D: 80 mm | d: 40 mm | Width: 19.8 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.540 kg
STO45 D: 85 mm | d: 45 mm | Width: 19.8 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.580 kg
STO45DZ D: 85 mm | d: 45 mm | Width: 19.8 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.580 kg
STO50 D: 90 mm | d: 50 mm | Width: 19.8 mm | Cr: 41.8 kN | C0r: 79.2 kN | Mass: 0.650 kg
STO50DZ D: 90 mm | d: 50 mm | Width: 19.8 mm | Cr: 41.8 kN | C0r: 79.2 kN | Mass: 0.650 kg
RNA22/6.2RS D: 19 mm | Width: 11.8 mm | Cr: 4.70 kN | C0r: 5.43 kN | Mass: 0.014 kg
RNA22/6.2RS.DZ D: 19 mm | Width: 11.8 mm | Cr: 4.70 kN | C0r: 5.43 kN | Mass: 0.014 kg
RNA22/8.2RS D: 24 mm | Width: 11.8 mm | Cr: 6.70 kN | C0r: 6.08 kN | Mass: 0.025 kg
RNA22/8.2RS.DZ D: 24 mm | Width: 11.8 mm | Cr: 6.70 kN | C0r: 6.08 kN | Mass: 0.025 kg
RNA2200.2RS D: 30 mm | Width: 13.8 mm | Cr: 8.50 kN | C0r: 9.45 kN | Mass: 0.049 kg
RNA2200.2RS.DZ D: 30 mm | Width: 13.8 mm | Cr: 8.50 kN | C0r: 9.45 kN | Mass: 0.049 kg
RNA2201.2RS D: 32 mm | Width: 13.8 mm | Cr: 9.00 kN | C0r: 10.5 kN | Mass: 0.053 kg
RNA2201.2RS.DZ D: 32 mm | Width: 13.8 mm | Cr: 9.00 kN | C0r: 10.5 kN | Mass: 0.053 kg
RNA2202.2RS D: 35 mm | Width: 13.8 mm | Cr: 12.2 kN | C0r: 14.5 kN | Mass: 0.055 kg
RNA2202.2RS.DZ D: 35 mm | Width: 13.8 mm | Cr: 12.2 kN | C0r: 14.5 kN | Mass: 0.055 kg
RNA2203.2RS D: 40 mm | Width: 15.8 mm | Cr: 16.3 kN | C0r: 17.8 kN | Mass: 0.090 kg
RNA2203.2RS.DZ D: 40 mm | Width: 15.8 mm | Cr: 16.3 kN | C0r: 17.8 kN | Mass: 0.090 kg
RNA2204.2RS D: 47 mm | Width: 17.8 mm | Cr: 19.6 kN | C0r: 20.2 kN | Mass: 0.150 kg
RNA2204.2RS.DZ D: 47 mm | Width: 17.8 mm | Cr: 19.6 kN | C0r: 20.2 kN | Mass: 0.150 kg
RNA2205.2RS D: 52 mm | Width: 17.8 mm | Cr: 21.6 kN | C0r: 24.3 kN | Mass: 0.171 kg
RNA2205.2RS.DZ D: 52 mm | Width: 17.8 mm | Cr: 21.6 kN | C0r: 24.3 kN | Mass: 0.171 kg
RNA2206.2RS D: 62 mm | Width: 19.8 mm | Cr: 29.0 kN | C0r: 32.8 kN | Mass: 0.285 kg
RNA2206.2RS.DZ D: 62 mm | Width: 19.8 mm | Cr: 29.0 kN | C0r: 32.8 kN | Mass: 0.285 kg
RNA2207.2RS D: 72 mm | Width: 22.8 mm | Cr: 40.5 kN | C0r: 52.5 kN | Mass: 0.490 kg
RNA2207.2RS.DZ D: 72 mm | Width: 22.8 mm | Cr: 40.5 kN | C0r: 52.5 kN | Mass: 0.490 kg
RNA2208.2RS D: 80 mm | Width: 22.8 mm | Cr: 44.0 kN | C0r: 60.0 kN | Mass: 0.515 kg
RNA2208.2RS.DZ D: 80 mm | Width: 22.8 mm | Cr: 44.0 kN | C0r: 60.0 kN | Mass: 0.515 kg
RNA2209.2RS D: 85 mm | Width: 22.8 mm | Cr: 45.6 kN | C0r: 63.9 kN | Mass: 0.565 kg
RNA2209.2RS.DZ D: 85 mm | Width: 22.8 mm | Cr: 45.6 kN | C0r: 63.9 kN | Mass: 0.565 kg
RNA2210.2RS D: 90 mm | Width: 22.8 mm | Cr: 48.5 kN | C0r: 71.3 kN | Mass: 0.590 kg
RNA2210.2RS.DZ D: 90 mm | Width: 22.8 mm | Cr: 48.5 kN | C0r: 71.3 kN | Mass: 0.590 kg
NA22/6.2RS D: 19 mm | d: 6 mm | Width: 11.8 mm | Cr: 4.70 kN | C0r: 5.43 kN | Mass: 0.018 kg
NA22/6.2RS.DZ D: 19 mm | d: 6 mm | Width: 11.8 mm | Cr: 4.70 kN | C0r: 5.43 kN | Mass: 0.018 kg
NA22/8.2RS D: 24 mm | d: 8 mm | Width: 11.8 mm | Cr: 6.70 kN | C0r: 6.08 kN | Mass: 0.031 kg
NA22/8.2RS.DZ D: 24 mm | d: 8 mm | Width: 11.8 mm | Cr: 6.70 kN | C0r: 6.08 kN | Mass: 0.031 kg
NA2200.2RS D: 30 mm | d: 10 mm | Width: 13.8 mm | Cr: 8.50 kN | C0r: 9.45 kN | Mass: 0.057 kg
NA2200.2RS.DZ D: 30 mm | d: 10 mm | Width: 13.8 mm | Cr: 8.50 kN | C0r: 9.45 kN | Mass: 0.057 kg
NA2201.2RS D: 32 mm | d: 12 mm | Width: 13.8 mm | Cr: 9.00 kN | C0r: 10.5 kN | Mass: 0.063 kg
NA2201.2RS.DZ D: 32 mm | d: 12 mm | Width: 13.8 mm | Cr: 9.00 kN | C0r: 10.5 kN | Mass: 0.063 kg
NA2202.2RS D: 35 mm | d: 15 mm | Width: 13.8 mm | Cr: 12.2 kN | C0r: 14.5 kN | Mass: 0.070 kg
NA2202.2RS.DZ D: 35 mm | d: 15 mm | Width: 13.8 mm | Cr: 12.2 kN | C0r: 14.5 kN | Mass: 0.070 kg
NA2203.2RS D: 40 mm | d: 17 mm | Width: 15.8 mm | Cr: 16.3 kN | C0r: 17.8 kN | Mass: 0.107 kg
NA2203.2RS.DZ D: 40 mm | d: 17 mm | Width: 15.8 mm | Cr: 16.3 kN | C0r: 17.8 kN | Mass: 0.107 kg
NA2204.2RS D: 47 mm | d: 20 mm | Width: 17.8 mm | Cr: 19.6 kN | C0r: 20.2 kN | Mass: 0.175 kg
NA2204.2RS.DZ D: 47 mm | d: 20 mm | Width: 17.8 mm | Cr: 19.6 kN | C0r: 20.2 kN | Mass: 0.175 kg
NA2205.2RS D: 52 mm | d: 25 mm | Width: 17.8 mm | Cr: 21.6 kN | C0r: 24.3 kN | Mass: 0.202 kg
NA2205.2RS.DZ D: 52 mm | d: 25 mm | Width: 17.8 mm | Cr: 21.6 kN | C0r: 24.3 kN | Mass: 0.202 kg
NA2206.2RS D: 62 mm | d: 30 mm | Width: 19.8 mm | Cr: 29.0 kN | C0r: 32.8 kN | Mass: 0.324 kg
NA2206.2RS.DZ D: 62 mm | d: 30 mm | Width: 19.8 mm | Cr: 29.0 kN | C0r: 32.8 kN | Mass: 0.324 kg
NA2207.2RS D: 72 mm | d: 35 mm | Width: 22.8 mm | Cr: 40.5 kN | C0r: 52.5 kN | Mass: 0.490 kg
NA2207.2RS.DZ D: 72 mm | d: 35 mm | Width: 22.8 mm | Cr: 40.5 kN | C0r: 52.5 kN | Mass: 0.490 kg
NA2208.2RS D: 80 mm | d: 40 mm | Width: 22.8 mm | Cr: 44.0 kN | C0r: 60.0 kN | Mass: 0.615 kg
NA2208.2RS.DZ D: 80 mm | d: 40 mm | Width: 22.8 mm | Cr: 44.0 kN | C0r: 60.0 kN | Mass: 0.615 kg
NA2209.2RS D: 85 mm | d: 45 mm | Width: 22.8 mm | Cr: 45.0 kN | C0r: 63.9 kN | Mass: 0.661 kg
NA2209.2RS.DZ D: 85 mm | d: 45 mm | Width: 22.8 mm | Cr: 45.0 kN | C0r: 63.9 kN | Mass: 0.661 kg
NA2210.2RS D: 90 mm | d: 50 mm | Width: 22.8 mm | Cr: 48.0 kN | C0r: 71.3 kN | Mass: 0.712 kg
NA2210.2RS.DZ D: 90 mm | d: 50 mm | Width: 22.8 mm | Cr: 48.0 kN | C0r: 71.3 kN | Mass: 0.712 kg
NATR5 D: 16 mm | d: 5 mm | Width: 11.0 mm | Cr: 4.62 kN | C0r: 5.19 kN | Mass: 0.017 kg
NATR5DZ D: 16 mm | d: 5 mm | Width: 11.0 mm | Cr: 4.62 kN | C0r: 5.19 kN | Mass: 0.017 kg
NATR6 D: 19 mm | d: 6 mm | Width: 11.0 mm | Cr: 4.84 kN | C0r: 5.66 kN | Mass: 0.022 kg
NATR6DZ D: 19 mm | d: 6 mm | Width: 11.0 mm | Cr: 4.84 kN | C0r: 5.66 kN | Mass: 0.022 kg
STO6ZZ D: 19 mm | d: 6 mm | Width: 13.8 mm | Cr: 5.37 kN | C0r: 6.47 kN | Mass: 0.024 kg
STO6ZZ.DZ D: 19 mm | d: 6 mm | Width: 13.8 mm | Cr: 5.37 kN | C0r: 6.47 kN | Mass: 0.024 kg
STO8ZZ D: 24 mm | d: 8 mm | Width: 13.8 mm | Cr: 5.82 kN | C0r: 7.54 kN | Mass: 0.040 kg
STO8ZZ.DZ D: 24 mm | d: 8 mm | Width: 13.8 mm | Cr: 5.82 kN | C0r: 7.54 kN | Mass: 0.040 kg
NATR8 D: 24 mm | d: 8 mm | Width: 14.0 mm | Cr: 8.39 kN | C0r: 8.67 kN | Mass: 0.043 kg
NATR8DZ D: 24 mm | d: 8 mm | Width: 14.0 mm | Cr: 8.39 kN | C0r: 8.67 kN | Mass: 0.043 kg
NATR10 D: 30 mm | d: 10 mm | Width: 14.0 mm | Cr: 9.57 kN | C0r: 9.45 kN | Mass: 0.068 kg
NATR10DZ D: 30 mm | d: 10 mm | Width: 14.0 mm | Cr: 9.57 kN | C0r: 9.45 kN | Mass: 0.068 kg
STO10ZZ D: 30 mm | d: 10 mm | Width: 15.8 mm | Cr: 10.4 kN | C0r: 10.6 kN | Mass: 0.071 kg
STO10ZZ.DZ D: 30 mm | d: 10 mm | Width: 15.8 mm | Cr: 10.4 kN | C0r: 10.6 kN | Mass: 0.071 kg
NATR12 D: 32 mm | d: 12 mm | Width: 14.0 mm | Cr: 10.2 kN | C0r: 10.5 kN | Mass: 0.075 kg
NATR12DZ D: 32 mm | d: 12 mm | Width: 14.0 mm | Cr: 10.2 kN | C0r: 10.5 kN | Mass: 0.075 kg
STO12ZZ D: 32 mm | d: 12 mm | Width: 15.8 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.078 kg
STO12ZZ.DZ D: 32 mm | d: 12 mm | Width: 15.8 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.078 kg
STO15ZZ D: 35 mm | d: 15 mm | Width: 15.8 mm | Cr: 12.9 kN | C0r: 15.3 kN | Mass: 0.089 kg
STO15ZZ.DZ D: 35 mm | d: 15 mm | Width: 15.8 mm | Cr: 12.9 kN | C0r: 15.3 kN | Mass: 0.089 kg
STO17ZZ D: 40 mm | d: 17 mm | Width: 19.8 mm | Cr: 19.0 kN | C0r: 23.3 kN | Mass: 0.145 kg
STO17ZZ.DZ D: 40 mm | d: 17 mm | Width: 19.8 mm | Cr: 19.0 kN | C0r: 23.3 kN | Mass: 0.145 kg
STO20ZZ D: 47 mm | d: 20 mm | Width: 19.8 mm | Cr: 20.0 kN | C0r: 25.4 kN | Mass: 0.200 kg
STO20ZZ.DZ D: 47 mm | d: 20 mm | Width: 19.8 mm | Cr: 20.0 kN | C0r: 25.4 kN | Mass: 0.200 kg
STO25ZZ D: 52 mm | d: 25 mm | Width: 19.8 mm | Cr: 22.4 kN | C0r: 31.1 kN | Mass: 0.240 kg
STO25ZZ.DZ D: 52 mm | d: 25 mm | Width: 19.8 mm | Cr: 22.4 kN | C0r: 31.1 kN | Mass: 0.240 kg
STO30ZZ D: 62 mm | d: 30 mm | Width: 24.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.412 kg
STO30ZZ.DZ D: 62 mm | d: 30 mm | Width: 24.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.412 kg
STO35ZZ D: 72 mm | d: 35 mm | Width: 24.8 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.555 kg
STO35ZZ.DZ D: 72 mm | d: 35 mm | Width: 24.8 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.555 kg
STO40ZZ D: 80 mm | d: 40 mm | Width: 25.8 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.700 kg
STO40ZZ.DZ D: 80 mm | d: 40 mm | Width: 25.8 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.700 kg
STO45ZZ D: 85 mm | d: 45 mm | Width: 25.8 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.770 kg
STO45ZZ.DZ D: 85 mm | d: 45 mm | Width: 25.8 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.770 kg
NUTR15 D: 35 mm | d: 15 mm | Width: 18 mm | Cr: 24.7 kN | C0r: 29.3 kN | Mass: 0.105 kg
NUTR15DZ D: 35 mm | d: 15 mm | Width: 18 mm | Cr: 24.7 kN | C0r: 29.3 kN | Mass: 0.105 kg
NUTR17 D: 40 mm | d: 17 mm | Width: 20 mm | Cr: 26.6 kN | C0r: 33.4 kN | Mass: 0.154 kg
NUTR17DZ D: 40 mm | d: 17 mm | Width: 20 mm | Cr: 26.6 kN | C0r: 33.4 kN | Mass: 0.154 kg
NUTR1542 D: 42 mm | d: 15 mm | Width: 18 mm | Cr: 22.8 kN | C0r: 29.4 kN | Mass: 0.166 kg
NUTR1542DZ D: 42 mm | d: 15 mm | Width: 18 mm | Cr: 22.8 kN | C0r: 29.4 kN | Mass: 0.166 kg
NUTR1747 D: 47 mm | d: 17 mm | Width: 20 mm | Cr: 24.5 kN | C0r: 33.3 kN | Mass: 0.230 kg
NUTR1747DZ D: 47 mm | d: 17 mm | Width: 20 mm | Cr: 24.5 kN | C0r: 33.3 kN | Mass: 0.230 kg
NUTR20 D: 47 mm | d: 20 mm | Width: 24 mm | Cr: 39.0 kN | C0r: 53.2 kN | Mass: 0.254 kg
NUTR20DZ D: 47 mm | d: 20 mm | Width: 24 mm | Cr: 39.0 kN | C0r: 53.2 kN | Mass: 0.254 kg
NUTR2052 D: 52 mm | d: 20 mm | Width: 24 mm | Cr: 39.0 kN | C0r: 53.2 kN | Mass: 0.326 kg
NUTR2052DZ D: 52 mm | d: 20 mm | Width: 24 mm | Cr: 39.0 kN | C0r: 53.2 kN | Mass: 0.326 kg
NUTR25 D: 52 mm | d: 25 mm | Width: 24 mm | Cr: 43.0 kN | C0r: 63.1 kN | Mass: 0.291 kg
NUTR25DZ D: 52 mm | d: 25 mm | Width: 24 mm | Cr: 43.0 kN | C0r: 63.1 kN | Mass: 0.291 kg
NUTR2562 D: 62 mm | d: 25 mm | Width: 24 mm | Cr: 43.0 kN | C0r: 63.1 kN | Mass: 0.460 kg
NUTR2562DZ D: 62 mm | d: 25 mm | Width: 24 mm | Cr: 43.0 kN | C0r: 63.1 kN | Mass: 0.460 kg
NUTR30 D: 62 mm | d: 30 mm | Width: 28 mm | Cr: 60.0 kN | C0r: 83.1 kN | Mass: 0.480 kg
NUTR30DZ D: 62 mm | d: 30 mm | Width: 28 mm | Cr: 60.0 kN | C0r: 83.1 kN | Mass: 0.480 kg
NUTR3072 D: 72 mm | d: 30 mm | Width: 28 mm | Cr: 60.0 kN | C0r: 83.1 kN | Mass: 0.711 kg
NUTR3072DZ D: 72 mm | d: 30 mm | Width: 28 mm | Cr: 60.0 kN | C0r: 83.1 kN | Mass: 0.711 kg
NUTR35 D: 72 mm | d: 35 mm | Width: 28 mm | Cr: 65.5 kN | C0r: 97.8 kN | Mass: 0.655 kg
NUTR35DZ D: 72 mm | d: 35 mm | Width: 28 mm | Cr: 65.5 kN | C0r: 97.8 kN | Mass: 0.655 kg
NUTR3580 D: 80 mm | d: 35 mm | Width: 28 mm | Cr: 65.5 kN | C0r: 97.8 kN | Mass: 0.865 kg
NUTR3580DZ D: 80 mm | d: 35 mm | Width: 28 mm | Cr: 65.5 kN | C0r: 97.8 kN | Mass: 0.865 kg
NUTR40 D: 80 mm | d: 40 mm | Width: 30 mm | Cr: 88.0 kN | C0r: 132 kN | Mass: 0.848 kg
NUTR40DZ D: 80 mm | d: 40 mm | Width: 30 mm | Cr: 88.0 kN | C0r: 132 kN | Mass: 0.848 kg
NUTR45 D: 85 mm | d: 45 mm | Width: 30 mm | Cr: 93.0 kN | C0r: 146 kN | Mass: 0.917 kg
NUTR45DZ D: 85 mm | d: 45 mm | Width: 30 mm | Cr: 93.0 kN | C0r: 146 kN | Mass: 0.917 kg
NUTR4090 D: 90 mm | d: 40 mm | Width: 30 mm | Cr: 88.0 kN | C0r: 132 kN | Mass: 1.162 kg
NUTR4090DZ D: 90 mm | d: 40 mm | Width: 30 mm | Cr: 88.0 kN | C0r: 132 kN | Mass: 1.162 kg
NUTR50 D: 90 mm | d: 50 mm | Width: 30 mm | Cr: 98.0 kN | C0r: 160 kN | Mass: 0.988 kg
NUTR50DZ D: 90 mm | d: 50 mm | Width: 30 mm | Cr: 98.0 kN | C0r: 160 kN | Mass: 0.988 kg
NUTR45100 D: 100 mm | d: 45 mm | Width: 30 mm | Cr: 93.0 kN | C0r: 146 kN | Mass: 1.412 kg
NUTR45100DZ D: 100 mm | d: 45 mm | Width: 30 mm | Cr: 93.0 kN | C0r: 146 kN | Mass: 1.412 kg
NUTR50110 D: 110 mm | d: 50 mm | Width: 30 mm | Cr: 98.0 kN | C0r: 160 kN | Mass: 1.727 kg
NUTR50110DZ D: 110 mm | d: 50 mm | Width: 30 mm | Cr: 98.0 kN | C0r: 160 kN | Mass: 1.727 kg
Track RollersKOYO
174 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO RSTO, STO, RNA22, NA22, NATR, NUTR Yoke-Type Track Rollers

Brand KOYO·Track Rollers

Available part numbers (174)

RSTO5A.TN, RSTO5ADZ.TN, RSTO6, RSTO6DZ, RSTO8, RSTO8DZ, RSTO10, RSTO10DZ, RSTO12, RSTO12DZ + 164 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RSTO5A.TND: 16 mm | Width: 7.8 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.009 kg
RSTO5ADZ.TND: 16 mm | Width: 7.8 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.009 kg
RSTO6D: 19 mm | Width: 9.8 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.014 kg
RSTO6DZD: 19 mm | Width: 9.8 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.014 kg
RSTO8D: 24 mm | Width: 9.8 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.023 kg
RSTO8DZD: 24 mm | Width: 9.8 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.023 kg
RSTO10D: 30 mm | Width: 11.8 mm | Cr: 10.40 kN | C0r: 10.6 kN | Mass: 0.044 kg
RSTO10DZD: 30 mm | Width: 11.8 mm | Cr: 10.40 kN | C0r: 10.6 kN | Mass: 0.044 kg
RSTO12D: 32 mm | Width: 11.8 mm | Cr: 11.20 kN | C0r: 11.9 kN | Mass: 0.049 kg
RSTO12DZD: 32 mm | Width: 11.8 mm | Cr: 11.20 kN | C0r: 11.9 kN | Mass: 0.049 kg
RSTO15D: 35 mm | Width: 11.8 mm | Cr: 12.90 kN | C0r: 15.3 kN | Mass: 0.052 kg
RSTO15DZD: 35 mm | Width: 11.8 mm | Cr: 12.90 kN | C0r: 15.3 kN | Mass: 0.052 kg
RSTO17D: 40 mm | Width: 15.8 mm | Cr: 19.00 kN | C0r: 23.3 kN | Mass: 0.095 kg
RSTO17DZD: 40 mm | Width: 15.8 mm | Cr: 19.00 kN | C0r: 23.3 kN | Mass: 0.095 kg
RSTO20D: 47 mm | Width: 15.8 mm | Cr: 20.00 kN | C0r: 25.3 kN | Mass: 0.134 kg
RSTO20DZD: 47 mm | Width: 15.8 mm | Cr: 20.00 kN | C0r: 25.3 kN | Mass: 0.134 kg
RSTO25D: 52 mm | Width: 15.8 mm | Cr: 22.40 kN | C0r: 31.0 kN | Mass: 0.155 kg
RSTO25DZD: 52 mm | Width: 15.8 mm | Cr: 22.40 kN | C0r: 31.0 kN | Mass: 0.155 kg
RSTO30D: 62 mm | Width: 19.8 mm | Cr: 33.30 kN | C0r: 51.0 kN | Mass: 0.258 kg
RSTO30DZD: 62 mm | Width: 19.8 mm | Cr: 33.30 kN | C0r: 51.0 kN | Mass: 0.258 kg
RSTO35D: 72 mm | Width: 19.8 mm | Cr: 35.20 kN | C0r: 56.6 kN | Mass: 0.37 kg
RSTO35DZD: 72 mm | Width: 19.8 mm | Cr: 35.20 kN | C0r: 56.6 kN | Mass: 0.37 kg
RSTO40D: 80 mm | Width: 19.8 mm | Cr: 38.80 kN | C0r: 67.8 kN | Mass: 0.430 kg
RSTO40DZD: 80 mm | Width: 19.8 mm | Cr: 38.80 kN | C0r: 67.8 kN | Mass: 0.430 kg
RSTO45D: 85 mm | Width: 19.8 mm | Cr: 40.30 kN | C0r: 73.5 kN | Mass: 0.447 kg
RSTO50D: 90 mm | Width: 19.8 mm | Cr: 41.80 kN | C0r: 79.2 kN | Mass: 0.495 kg
STO6D: 19 mm | d: 6 mm | Width: 9.8 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.018 kg
STO6DZD: 19 mm | d: 6 mm | Width: 9.8 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.018 kg
STO8D: 24 mm | d: 8 mm | Width: 9.8 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.028 kg
STO8DZD: 24 mm | d: 8 mm | Width: 9.8 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.028 kg
STO10D: 30 mm | d: 10 mm | Width: 11.8 mm | Cr: 10.4 kN | C0r: 10.6 kN | Mass: 0.065 kg
STO10DZD: 30 mm | d: 10 mm | Width: 11.8 mm | Cr: 10.4 kN | C0r: 10.6 kN | Mass: 0.065 kg
STO12D: 32 mm | d: 12 mm | Width: 11.8 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.114 kg
STO12DZD: 32 mm | d: 12 mm | Width: 11.8 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.114 kg
STO15D: 35 mm | d: 15 mm | Width: 11.8 mm | Cr: 12.9 kN | C0r: 15.3 kN | Mass: 0.065 kg
STO15DZD: 35 mm | d: 15 mm | Width: 11.8 mm | Cr: 12.9 kN | C0r: 15.3 kN | Mass: 0.065 kg
STO17D: 40 mm | d: 17 mm | Width: 15.8 mm | Cr: 19.1 kN | C0r: 23.3 kN | Mass: 0.114 kg
STO17DZD: 40 mm | d: 17 mm | Width: 15.8 mm | Cr: 19.1 kN | C0r: 23.3 kN | Mass: 0.114 kg
STO20D: 47 mm | d: 20 mm | Width: 15.8 mm | Cr: 19.8 kN | C0r: 25.3 kN | Mass: 0.160 kg
STO20DZD: 47 mm | d: 20 mm | Width: 15.8 mm | Cr: 19.8 kN | C0r: 25.3 kN | Mass: 0.160 kg
STO25D: 52 mm | d: 25 mm | Width: 15.8 mm | Cr: 22.4 kN | C0r: 31.0 kN | Mass: 0.435 kg
STO25DZD: 52 mm | d: 25 mm | Width: 15.8 mm | Cr: 22.4 kN | C0r: 31.0 kN | Mass: 0.435 kg
STO30D: 62 mm | d: 30 mm | Width: 19.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.325 kg
STO30DZD: 62 mm | d: 30 mm | Width: 19.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.325 kg
STO35D: 72 mm | d: 35 mm | Width: 19.8 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.435 kg
STO35DZD: 72 mm | d: 35 mm | Width: 19.8 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.435 kg
STO40D: 80 mm | d: 40 mm | Width: 19.8 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.540 kg
STO40DZD: 80 mm | d: 40 mm | Width: 19.8 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.540 kg
STO45D: 85 mm | d: 45 mm | Width: 19.8 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.580 kg
STO45DZD: 85 mm | d: 45 mm | Width: 19.8 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.580 kg
STO50D: 90 mm | d: 50 mm | Width: 19.8 mm | Cr: 41.8 kN | C0r: 79.2 kN | Mass: 0.650 kg
STO50DZD: 90 mm | d: 50 mm | Width: 19.8 mm | Cr: 41.8 kN | C0r: 79.2 kN | Mass: 0.650 kg
RNA22/6.2RSD: 19 mm | Width: 11.8 mm | Cr: 4.70 kN | C0r: 5.43 kN | Mass: 0.014 kg
RNA22/6.2RS.DZD: 19 mm | Width: 11.8 mm | Cr: 4.70 kN | C0r: 5.43 kN | Mass: 0.014 kg
RNA22/8.2RSD: 24 mm | Width: 11.8 mm | Cr: 6.70 kN | C0r: 6.08 kN | Mass: 0.025 kg
RNA22/8.2RS.DZD: 24 mm | Width: 11.8 mm | Cr: 6.70 kN | C0r: 6.08 kN | Mass: 0.025 kg
RNA2200.2RSD: 30 mm | Width: 13.8 mm | Cr: 8.50 kN | C0r: 9.45 kN | Mass: 0.049 kg
RNA2200.2RS.DZD: 30 mm | Width: 13.8 mm | Cr: 8.50 kN | C0r: 9.45 kN | Mass: 0.049 kg
RNA2201.2RSD: 32 mm | Width: 13.8 mm | Cr: 9.00 kN | C0r: 10.5 kN | Mass: 0.053 kg
RNA2201.2RS.DZD: 32 mm | Width: 13.8 mm | Cr: 9.00 kN | C0r: 10.5 kN | Mass: 0.053 kg
RNA2202.2RSD: 35 mm | Width: 13.8 mm | Cr: 12.2 kN | C0r: 14.5 kN | Mass: 0.055 kg
RNA2202.2RS.DZD: 35 mm | Width: 13.8 mm | Cr: 12.2 kN | C0r: 14.5 kN | Mass: 0.055 kg
RNA2203.2RSD: 40 mm | Width: 15.8 mm | Cr: 16.3 kN | C0r: 17.8 kN | Mass: 0.090 kg
RNA2203.2RS.DZD: 40 mm | Width: 15.8 mm | Cr: 16.3 kN | C0r: 17.8 kN | Mass: 0.090 kg
RNA2204.2RSD: 47 mm | Width: 17.8 mm | Cr: 19.6 kN | C0r: 20.2 kN | Mass: 0.150 kg
RNA2204.2RS.DZD: 47 mm | Width: 17.8 mm | Cr: 19.6 kN | C0r: 20.2 kN | Mass: 0.150 kg
RNA2205.2RSD: 52 mm | Width: 17.8 mm | Cr: 21.6 kN | C0r: 24.3 kN | Mass: 0.171 kg
RNA2205.2RS.DZD: 52 mm | Width: 17.8 mm | Cr: 21.6 kN | C0r: 24.3 kN | Mass: 0.171 kg
RNA2206.2RSD: 62 mm | Width: 19.8 mm | Cr: 29.0 kN | C0r: 32.8 kN | Mass: 0.285 kg
RNA2206.2RS.DZD: 62 mm | Width: 19.8 mm | Cr: 29.0 kN | C0r: 32.8 kN | Mass: 0.285 kg
RNA2207.2RSD: 72 mm | Width: 22.8 mm | Cr: 40.5 kN | C0r: 52.5 kN | Mass: 0.490 kg
RNA2207.2RS.DZD: 72 mm | Width: 22.8 mm | Cr: 40.5 kN | C0r: 52.5 kN | Mass: 0.490 kg
RNA2208.2RSD: 80 mm | Width: 22.8 mm | Cr: 44.0 kN | C0r: 60.0 kN | Mass: 0.515 kg
RNA2208.2RS.DZD: 80 mm | Width: 22.8 mm | Cr: 44.0 kN | C0r: 60.0 kN | Mass: 0.515 kg
RNA2209.2RSD: 85 mm | Width: 22.8 mm | Cr: 45.6 kN | C0r: 63.9 kN | Mass: 0.565 kg
RNA2209.2RS.DZD: 85 mm | Width: 22.8 mm | Cr: 45.6 kN | C0r: 63.9 kN | Mass: 0.565 kg
RNA2210.2RSD: 90 mm | Width: 22.8 mm | Cr: 48.5 kN | C0r: 71.3 kN | Mass: 0.590 kg
RNA2210.2RS.DZD: 90 mm | Width: 22.8 mm | Cr: 48.5 kN | C0r: 71.3 kN | Mass: 0.590 kg
NA22/6.2RSD: 19 mm | d: 6 mm | Width: 11.8 mm | Cr: 4.70 kN | C0r: 5.43 kN | Mass: 0.018 kg
NA22/6.2RS.DZD: 19 mm | d: 6 mm | Width: 11.8 mm | Cr: 4.70 kN | C0r: 5.43 kN | Mass: 0.018 kg
NA22/8.2RSD: 24 mm | d: 8 mm | Width: 11.8 mm | Cr: 6.70 kN | C0r: 6.08 kN | Mass: 0.031 kg
NA22/8.2RS.DZD: 24 mm | d: 8 mm | Width: 11.8 mm | Cr: 6.70 kN | C0r: 6.08 kN | Mass: 0.031 kg
NA2200.2RSD: 30 mm | d: 10 mm | Width: 13.8 mm | Cr: 8.50 kN | C0r: 9.45 kN | Mass: 0.057 kg
NA2200.2RS.DZD: 30 mm | d: 10 mm | Width: 13.8 mm | Cr: 8.50 kN | C0r: 9.45 kN | Mass: 0.057 kg
NA2201.2RSD: 32 mm | d: 12 mm | Width: 13.8 mm | Cr: 9.00 kN | C0r: 10.5 kN | Mass: 0.063 kg
NA2201.2RS.DZD: 32 mm | d: 12 mm | Width: 13.8 mm | Cr: 9.00 kN | C0r: 10.5 kN | Mass: 0.063 kg
NA2202.2RSD: 35 mm | d: 15 mm | Width: 13.8 mm | Cr: 12.2 kN | C0r: 14.5 kN | Mass: 0.070 kg
NA2202.2RS.DZD: 35 mm | d: 15 mm | Width: 13.8 mm | Cr: 12.2 kN | C0r: 14.5 kN | Mass: 0.070 kg
NA2203.2RSD: 40 mm | d: 17 mm | Width: 15.8 mm | Cr: 16.3 kN | C0r: 17.8 kN | Mass: 0.107 kg
NA2203.2RS.DZD: 40 mm | d: 17 mm | Width: 15.8 mm | Cr: 16.3 kN | C0r: 17.8 kN | Mass: 0.107 kg
NA2204.2RSD: 47 mm | d: 20 mm | Width: 17.8 mm | Cr: 19.6 kN | C0r: 20.2 kN | Mass: 0.175 kg
NA2204.2RS.DZD: 47 mm | d: 20 mm | Width: 17.8 mm | Cr: 19.6 kN | C0r: 20.2 kN | Mass: 0.175 kg
NA2205.2RSD: 52 mm | d: 25 mm | Width: 17.8 mm | Cr: 21.6 kN | C0r: 24.3 kN | Mass: 0.202 kg
NA2205.2RS.DZD: 52 mm | d: 25 mm | Width: 17.8 mm | Cr: 21.6 kN | C0r: 24.3 kN | Mass: 0.202 kg
NA2206.2RSD: 62 mm | d: 30 mm | Width: 19.8 mm | Cr: 29.0 kN | C0r: 32.8 kN | Mass: 0.324 kg
NA2206.2RS.DZD: 62 mm | d: 30 mm | Width: 19.8 mm | Cr: 29.0 kN | C0r: 32.8 kN | Mass: 0.324 kg
NA2207.2RSD: 72 mm | d: 35 mm | Width: 22.8 mm | Cr: 40.5 kN | C0r: 52.5 kN | Mass: 0.490 kg
NA2207.2RS.DZD: 72 mm | d: 35 mm | Width: 22.8 mm | Cr: 40.5 kN | C0r: 52.5 kN | Mass: 0.490 kg
NA2208.2RSD: 80 mm | d: 40 mm | Width: 22.8 mm | Cr: 44.0 kN | C0r: 60.0 kN | Mass: 0.615 kg
NA2208.2RS.DZD: 80 mm | d: 40 mm | Width: 22.8 mm | Cr: 44.0 kN | C0r: 60.0 kN | Mass: 0.615 kg
NA2209.2RSD: 85 mm | d: 45 mm | Width: 22.8 mm | Cr: 45.0 kN | C0r: 63.9 kN | Mass: 0.661 kg
NA2209.2RS.DZD: 85 mm | d: 45 mm | Width: 22.8 mm | Cr: 45.0 kN | C0r: 63.9 kN | Mass: 0.661 kg
NA2210.2RSD: 90 mm | d: 50 mm | Width: 22.8 mm | Cr: 48.0 kN | C0r: 71.3 kN | Mass: 0.712 kg
NA2210.2RS.DZD: 90 mm | d: 50 mm | Width: 22.8 mm | Cr: 48.0 kN | C0r: 71.3 kN | Mass: 0.712 kg
NATR5D: 16 mm | d: 5 mm | Width: 11.0 mm | Cr: 4.62 kN | C0r: 5.19 kN | Mass: 0.017 kg
NATR5DZD: 16 mm | d: 5 mm | Width: 11.0 mm | Cr: 4.62 kN | C0r: 5.19 kN | Mass: 0.017 kg
NATR6D: 19 mm | d: 6 mm | Width: 11.0 mm | Cr: 4.84 kN | C0r: 5.66 kN | Mass: 0.022 kg
NATR6DZD: 19 mm | d: 6 mm | Width: 11.0 mm | Cr: 4.84 kN | C0r: 5.66 kN | Mass: 0.022 kg
STO6ZZD: 19 mm | d: 6 mm | Width: 13.8 mm | Cr: 5.37 kN | C0r: 6.47 kN | Mass: 0.024 kg
STO6ZZ.DZD: 19 mm | d: 6 mm | Width: 13.8 mm | Cr: 5.37 kN | C0r: 6.47 kN | Mass: 0.024 kg
STO8ZZD: 24 mm | d: 8 mm | Width: 13.8 mm | Cr: 5.82 kN | C0r: 7.54 kN | Mass: 0.040 kg
STO8ZZ.DZD: 24 mm | d: 8 mm | Width: 13.8 mm | Cr: 5.82 kN | C0r: 7.54 kN | Mass: 0.040 kg
NATR8D: 24 mm | d: 8 mm | Width: 14.0 mm | Cr: 8.39 kN | C0r: 8.67 kN | Mass: 0.043 kg
NATR8DZD: 24 mm | d: 8 mm | Width: 14.0 mm | Cr: 8.39 kN | C0r: 8.67 kN | Mass: 0.043 kg
NATR10D: 30 mm | d: 10 mm | Width: 14.0 mm | Cr: 9.57 kN | C0r: 9.45 kN | Mass: 0.068 kg
NATR10DZD: 30 mm | d: 10 mm | Width: 14.0 mm | Cr: 9.57 kN | C0r: 9.45 kN | Mass: 0.068 kg
STO10ZZD: 30 mm | d: 10 mm | Width: 15.8 mm | Cr: 10.4 kN | C0r: 10.6 kN | Mass: 0.071 kg
STO10ZZ.DZD: 30 mm | d: 10 mm | Width: 15.8 mm | Cr: 10.4 kN | C0r: 10.6 kN | Mass: 0.071 kg
NATR12D: 32 mm | d: 12 mm | Width: 14.0 mm | Cr: 10.2 kN | C0r: 10.5 kN | Mass: 0.075 kg
NATR12DZD: 32 mm | d: 12 mm | Width: 14.0 mm | Cr: 10.2 kN | C0r: 10.5 kN | Mass: 0.075 kg
STO12ZZD: 32 mm | d: 12 mm | Width: 15.8 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.078 kg
STO12ZZ.DZD: 32 mm | d: 12 mm | Width: 15.8 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.078 kg
STO15ZZD: 35 mm | d: 15 mm | Width: 15.8 mm | Cr: 12.9 kN | C0r: 15.3 kN | Mass: 0.089 kg
STO15ZZ.DZD: 35 mm | d: 15 mm | Width: 15.8 mm | Cr: 12.9 kN | C0r: 15.3 kN | Mass: 0.089 kg
STO17ZZD: 40 mm | d: 17 mm | Width: 19.8 mm | Cr: 19.0 kN | C0r: 23.3 kN | Mass: 0.145 kg
STO17ZZ.DZD: 40 mm | d: 17 mm | Width: 19.8 mm | Cr: 19.0 kN | C0r: 23.3 kN | Mass: 0.145 kg
STO20ZZD: 47 mm | d: 20 mm | Width: 19.8 mm | Cr: 20.0 kN | C0r: 25.4 kN | Mass: 0.200 kg
STO20ZZ.DZD: 47 mm | d: 20 mm | Width: 19.8 mm | Cr: 20.0 kN | C0r: 25.4 kN | Mass: 0.200 kg
STO25ZZD: 52 mm | d: 25 mm | Width: 19.8 mm | Cr: 22.4 kN | C0r: 31.1 kN | Mass: 0.240 kg
STO25ZZ.DZD: 52 mm | d: 25 mm | Width: 19.8 mm | Cr: 22.4 kN | C0r: 31.1 kN | Mass: 0.240 kg
STO30ZZD: 62 mm | d: 30 mm | Width: 24.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.412 kg
STO30ZZ.DZD: 62 mm | d: 30 mm | Width: 24.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.412 kg
STO35ZZD: 72 mm | d: 35 mm | Width: 24.8 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.555 kg
STO35ZZ.DZD: 72 mm | d: 35 mm | Width: 24.8 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.555 kg
STO40ZZD: 80 mm | d: 40 mm | Width: 25.8 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.700 kg
STO40ZZ.DZD: 80 mm | d: 40 mm | Width: 25.8 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.700 kg
STO45ZZD: 85 mm | d: 45 mm | Width: 25.8 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.770 kg
STO45ZZ.DZD: 85 mm | d: 45 mm | Width: 25.8 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.770 kg
NUTR15D: 35 mm | d: 15 mm | Width: 18 mm | Cr: 24.7 kN | C0r: 29.3 kN | Mass: 0.105 kg
NUTR15DZD: 35 mm | d: 15 mm | Width: 18 mm | Cr: 24.7 kN | C0r: 29.3 kN | Mass: 0.105 kg
NUTR17D: 40 mm | d: 17 mm | Width: 20 mm | Cr: 26.6 kN | C0r: 33.4 kN | Mass: 0.154 kg
NUTR17DZD: 40 mm | d: 17 mm | Width: 20 mm | Cr: 26.6 kN | C0r: 33.4 kN | Mass: 0.154 kg
NUTR1542D: 42 mm | d: 15 mm | Width: 18 mm | Cr: 22.8 kN | C0r: 29.4 kN | Mass: 0.166 kg
NUTR1542DZD: 42 mm | d: 15 mm | Width: 18 mm | Cr: 22.8 kN | C0r: 29.4 kN | Mass: 0.166 kg
NUTR1747D: 47 mm | d: 17 mm | Width: 20 mm | Cr: 24.5 kN | C0r: 33.3 kN | Mass: 0.230 kg
NUTR1747DZD: 47 mm | d: 17 mm | Width: 20 mm | Cr: 24.5 kN | C0r: 33.3 kN | Mass: 0.230 kg
NUTR20D: 47 mm | d: 20 mm | Width: 24 mm | Cr: 39.0 kN | C0r: 53.2 kN | Mass: 0.254 kg
NUTR20DZD: 47 mm | d: 20 mm | Width: 24 mm | Cr: 39.0 kN | C0r: 53.2 kN | Mass: 0.254 kg
NUTR2052D: 52 mm | d: 20 mm | Width: 24 mm | Cr: 39.0 kN | C0r: 53.2 kN | Mass: 0.326 kg
NUTR2052DZD: 52 mm | d: 20 mm | Width: 24 mm | Cr: 39.0 kN | C0r: 53.2 kN | Mass: 0.326 kg
NUTR25D: 52 mm | d: 25 mm | Width: 24 mm | Cr: 43.0 kN | C0r: 63.1 kN | Mass: 0.291 kg
NUTR25DZD: 52 mm | d: 25 mm | Width: 24 mm | Cr: 43.0 kN | C0r: 63.1 kN | Mass: 0.291 kg
NUTR2562D: 62 mm | d: 25 mm | Width: 24 mm | Cr: 43.0 kN | C0r: 63.1 kN | Mass: 0.460 kg
NUTR2562DZD: 62 mm | d: 25 mm | Width: 24 mm | Cr: 43.0 kN | C0r: 63.1 kN | Mass: 0.460 kg
NUTR30D: 62 mm | d: 30 mm | Width: 28 mm | Cr: 60.0 kN | C0r: 83.1 kN | Mass: 0.480 kg
NUTR30DZD: 62 mm | d: 30 mm | Width: 28 mm | Cr: 60.0 kN | C0r: 83.1 kN | Mass: 0.480 kg
NUTR3072D: 72 mm | d: 30 mm | Width: 28 mm | Cr: 60.0 kN | C0r: 83.1 kN | Mass: 0.711 kg
NUTR3072DZD: 72 mm | d: 30 mm | Width: 28 mm | Cr: 60.0 kN | C0r: 83.1 kN | Mass: 0.711 kg
NUTR35D: 72 mm | d: 35 mm | Width: 28 mm | Cr: 65.5 kN | C0r: 97.8 kN | Mass: 0.655 kg
NUTR35DZD: 72 mm | d: 35 mm | Width: 28 mm | Cr: 65.5 kN | C0r: 97.8 kN | Mass: 0.655 kg
NUTR3580D: 80 mm | d: 35 mm | Width: 28 mm | Cr: 65.5 kN | C0r: 97.8 kN | Mass: 0.865 kg
NUTR3580DZD: 80 mm | d: 35 mm | Width: 28 mm | Cr: 65.5 kN | C0r: 97.8 kN | Mass: 0.865 kg
NUTR40D: 80 mm | d: 40 mm | Width: 30 mm | Cr: 88.0 kN | C0r: 132 kN | Mass: 0.848 kg
NUTR40DZD: 80 mm | d: 40 mm | Width: 30 mm | Cr: 88.0 kN | C0r: 132 kN | Mass: 0.848 kg
NUTR45D: 85 mm | d: 45 mm | Width: 30 mm | Cr: 93.0 kN | C0r: 146 kN | Mass: 0.917 kg
NUTR45DZD: 85 mm | d: 45 mm | Width: 30 mm | Cr: 93.0 kN | C0r: 146 kN | Mass: 0.917 kg
NUTR4090D: 90 mm | d: 40 mm | Width: 30 mm | Cr: 88.0 kN | C0r: 132 kN | Mass: 1.162 kg
NUTR4090DZD: 90 mm | d: 40 mm | Width: 30 mm | Cr: 88.0 kN | C0r: 132 kN | Mass: 1.162 kg
NUTR50D: 90 mm | d: 50 mm | Width: 30 mm | Cr: 98.0 kN | C0r: 160 kN | Mass: 0.988 kg
NUTR50DZD: 90 mm | d: 50 mm | Width: 30 mm | Cr: 98.0 kN | C0r: 160 kN | Mass: 0.988 kg
NUTR45100D: 100 mm | d: 45 mm | Width: 30 mm | Cr: 93.0 kN | C0r: 146 kN | Mass: 1.412 kg
NUTR45100DZD: 100 mm | d: 45 mm | Width: 30 mm | Cr: 93.0 kN | C0r: 146 kN | Mass: 1.412 kg
NUTR50110D: 110 mm | d: 50 mm | Width: 30 mm | Cr: 98.0 kN | C0r: 160 kN | Mass: 1.727 kg
NUTR50110DZD: 110 mm | d: 50 mm | Width: 30 mm | Cr: 98.0 kN | C0r: 160 kN | Mass: 1.727 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
