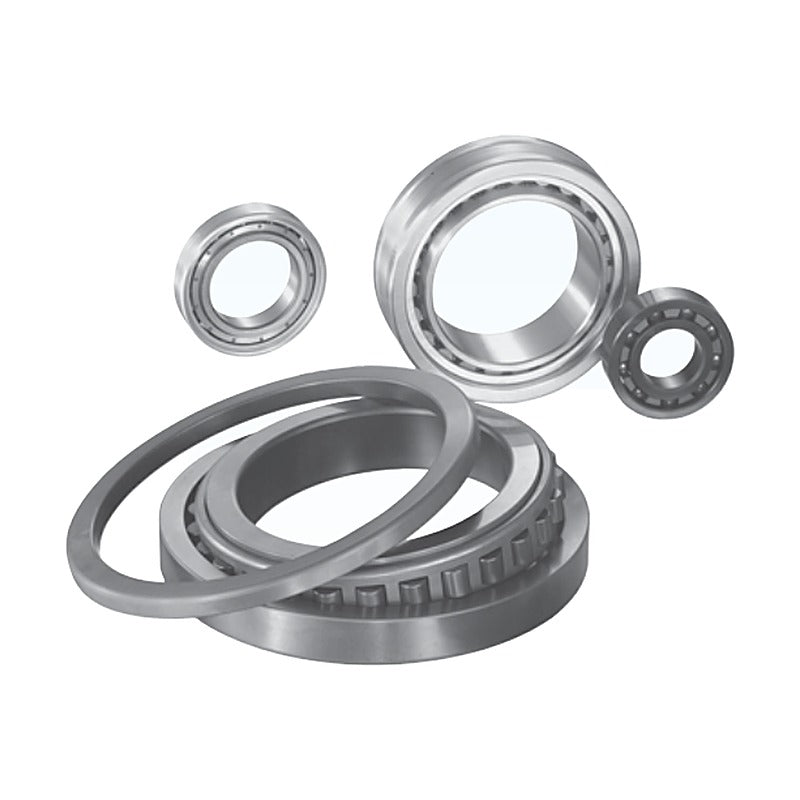

KOYO Ceramic & Hybrid Ceramic Ball Bearings (3NC, NC Series)

KOYO Ceramic & Hybrid Ceramic Ball Bearings (3NC, NC Series)

EXSEV ceramic bearing series: hybrid ceramic (3NC prefix, ceramic balls with steel rings) for high temperature, corrosion resistance, non-magnetism or electrical insulation, and full ceramic (NC prefix) bearings for up to 800 C and corrosive or magnetic environments.

Key features

  • Silicon nitride ceramic rolling elements
  • Hybrid (3NC) and full ceramic (NC) versions
  • High temperature, corrosion-resistant, non-magnetic and insulating variants
  • Lightweight with low centrifugal force
  • Bore 4 to 40 mm

Specifications

Bearing type Ceramic / hybrid ceramic ball bearing
Series 3NC (hybrid), NC (full ceramic)
Bore range 4 - 40 mm
Source KOYO Special Bearings catalogue, p. C17-C20
3NC604MD4 d: 4 mm | D: 12 mm | B: 4 mm | Type: Hybrid, corrosion resistant
3NC604YH4 d: 4 mm | D: 12 mm | B: 4 mm | Type: Hybrid, non-magnetic
3NC604ST4 d: 4 mm | D: 12 mm | B: 4 mm | Type: Hybrid, insulating
NC604 d: 4 mm | D: 12 mm | B: 4 mm | Type: Full ceramic,
3NC624MD4 d: 4 mm | D: 13 mm | B: 5 mm | Type: Hybrid, corrosion resistant
3NC624YH4 d: 4 mm | D: 13 mm | B: 5 mm | Type: Hybrid, non-magnetic
3NC624ST4 d: 4 mm | D: 13 mm | B: 5 mm | Type: Hybrid, insulating
NC624 d: 4 mm | D: 13 mm | B: 5 mm | Type: Full ceramic,
3NC605MD4 d: 5 mm | D: 14 mm | B: 5 mm | Type: Hybrid, corrosion resistant
3NC605YH4 d: 5 mm | D: 14 mm | B: 5 mm | Type: Hybrid, non-magnetic
3NC605ST4 d: 5 mm | D: 14 mm | B: 5 mm | Type: Hybrid, insulating
NC605 d: 5 mm | D: 14 mm | B: 5 mm | Type: Full ceramic,
3NC625MD4 d: 5 mm | D: 16 mm | B: 5 mm | Type: Hybrid, corrosion resistant
3NC625YH4 d: 5 mm | D: 16 mm | B: 5 mm | Type: Hybrid, non-magnetic
3NC625ST4 d: 5 mm | D: 16 mm | B: 5 mm | Type: Hybrid, insulating
NC625 d: 5 mm | D: 16 mm | B: 5 mm | Type: Full ceramic,
3NC606HT4 GF d: 6 mm | D: 17 mm | B: 6 mm | Type: Hybrid, high temp. up to 500 C
3NC606MD4 d: 6 mm | D: 17 mm | B: 6 mm | Type: Hybrid, corrosion resistant
3NC606YH4 d: 6 mm | D: 17 mm | B: 6 mm | Type: Hybrid, non-magnetic
3NC606ST4 d: 6 mm | D: 17 mm | B: 6 mm | Type: Hybrid, insulating
NC706V d: 6 mm | D: 17 mm | B: 6 mm | Type: Full ceramic, up to 800 C
NC606 d: 6 mm | D: 17 mm | B: 6 mm | Type: Full ceramic,
3NC626HT4 GF d: 6 mm | D: 19 mm | B: 6 mm | Type: Hybrid, high temp. up to 500 C
3NC626MD4 d: 6 mm | D: 19 mm | B: 6 mm | Type: Hybrid, corrosion resistant
3NC626YH4 d: 6 mm | D: 19 mm | B: 6 mm | Type: Hybrid, non-magnetic
3NC626ST4 d: 6 mm | D: 19 mm | B: 6 mm | Type: Hybrid, insulating
NC726V d: 6 mm | D: 19 mm | B: 6 mm | Type: Full ceramic, up to 800 C
NC626 d: 6 mm | D: 19 mm | B: 6 mm | Type: Full ceramic,
3NC607HT4 GF d: 7 mm | D: 19 mm | B: 6 mm | Type: Hybrid, high temp. up to 500 C
3NC607MD4 d: 7 mm | D: 19 mm | B: 6 mm | Type: Hybrid, corrosion resistant
3NC607YH4 d: 7 mm | D: 19 mm | B: 6 mm | Type: Hybrid, non-magnetic
3NC607ST4 d: 7 mm | D: 19 mm | B: 6 mm | Type: Hybrid, insulating
NC707V d: 7 mm | D: 19 mm | B: 6 mm | Type: Full ceramic, up to 800 C
NC607 d: 7 mm | D: 19 mm | B: 6 mm | Type: Full ceramic,
3NC627HT4 GF d: 7 mm | D: 22 mm | B: 7 mm | Type: Hybrid, high temp. up to 500 C
3NC627MD4 d: 7 mm | D: 22 mm | B: 7 mm | Type: Hybrid, corrosion resistant
3NC627YH4 d: 7 mm | D: 22 mm | B: 7 mm | Type: Hybrid, non-magnetic
3NC627ST4 d: 7 mm | D: 22 mm | B: 7 mm | Type: Hybrid, insulating
NC727V d: 7 mm | D: 22 mm | B: 7 mm | Type: Full ceramic, up to 800 C
NC627 d: 7 mm | D: 22 mm | B: 7 mm | Type: Full ceramic,
3NC608HT4 GF d: 8 mm | D: 22 mm | B: 7 mm | Type: Hybrid, high temp. up to 500 C
3NC608MD4 d: 8 mm | D: 22 mm | B: 7 mm | Type: Hybrid, corrosion resistant
3NC608YH4 d: 8 mm | D: 22 mm | B: 7 mm | Type: Hybrid, non-magnetic
3NC608ST4 d: 8 mm | D: 22 mm | B: 7 mm | Type: Hybrid, insulating
NC708V d: 8 mm | D: 22 mm | B: 7 mm | Type: Full ceramic, up to 800 C
NC608 d: 8 mm | D: 22 mm | B: 7 mm | Type: Full ceramic,
3NC628HT4 GF d: 8 mm | D: 24 mm | B: 8 mm | Type: Hybrid, high temp. up to 500 C
3NC628MD4 d: 8 mm | D: 24 mm | B: 8 mm | Type: Hybrid, corrosion resistant
3NC628YH4 d: 8 mm | D: 24 mm | B: 8 mm | Type: Hybrid, non-magnetic
3NC628ST4 d: 8 mm | D: 24 mm | B: 8 mm | Type: Hybrid, insulating
NC728V d: 8 mm | D: 24 mm | B: 8 mm | Type: Full ceramic, up to 800 C
NC628 d: 8 mm | D: 24 mm | B: 8 mm | Type: Full ceramic,
3NC609HT4 GF d: 9 mm | D: 24 mm | B: 7 mm | Type: Hybrid, high temp. up to 500 C
3NC609MD4 d: 9 mm | D: 24 mm | B: 7 mm | Type: Hybrid, corrosion resistant
3NC609YH4 d: 9 mm | D: 24 mm | B: 7 mm | Type: Hybrid, non-magnetic
3NC609ST4 d: 9 mm | D: 24 mm | B: 7 mm | Type: Hybrid, insulating
NC709V d: 9 mm | D: 24 mm | B: 7 mm | Type: Full ceramic, up to 800 C
NC609 d: 9 mm | D: 24 mm | B: 7 mm | Type: Full ceramic,
3NC629HT4 GF d: 9 mm | D: 26 mm | B: 8 mm | Type: Hybrid, high temp. up to 500 C
3NC629MD4 d: 9 mm | D: 26 mm | B: 8 mm | Type: Hybrid, corrosion resistant
3NC629YH4 d: 9 mm | D: 26 mm | B: 8 mm | Type: Hybrid, non-magnetic
3NC629ST4 d: 9 mm | D: 26 mm | B: 8 mm | Type: Hybrid, insulating
NC729V d: 9 mm | D: 26 mm | B: 8 mm | Type: Full ceramic, up to 800 C
NC629 d: 9 mm | D: 26 mm | B: 8 mm | Type: Full ceramic,
3NC6000HT4 GF d: 10 mm | D: 26 mm | B: 8 mm | Type: Hybrid, high temp. up to 500 C
3NC6000MD4 d: 10 mm | D: 26 mm | B: 8 mm | Type: Hybrid, corrosion resistant
3NC6000YH4 d: 10 mm | D: 26 mm | B: 8 mm | Type: Hybrid, non-magnetic
3NC6000ST4 d: 10 mm | D: 26 mm | B: 8 mm | Type: Hybrid, insulating
NC7000V d: 10 mm | D: 26 mm | B: 8 mm | Type: Full ceramic, up to 800 C
NC6000 d: 10 mm | D: 26 mm | B: 8 mm | Type: Full ceramic,
3NC6200HT4 GF d: 10 mm | D: 30 mm | B: 9 mm | Type: Hybrid, high temp. up to 500 C
3NC6200MD4 d: 10 mm | D: 30 mm | B: 9 mm | Type: Hybrid, corrosion resistant
3NC6200YH4 d: 10 mm | D: 30 mm | B: 9 mm | Type: Hybrid, non-magnetic
3NC6200ST4 d: 10 mm | D: 30 mm | B: 9 mm | Type: Hybrid, insulating
NC7200V d: 10 mm | D: 30 mm | B: 9 mm | Type: Full ceramic, up to 800 C
NC6200 d: 10 mm | D: 30 mm | B: 9 mm | Type: Full ceramic,
3NC6001HT4 GF d: 12 mm | D: 28 mm | B: 8 mm | Type: Hybrid, high temp. up to 500 C
3NC6001MD4 d: 12 mm | D: 28 mm | B: 8 mm | Type: Hybrid, corrosion resistant
3NC6001YH4 d: 12 mm | D: 28 mm | B: 8 mm | Type: Hybrid, non-magnetic
3NC6001ST4 d: 12 mm | D: 28 mm | B: 8 mm | Type: Hybrid, insulating
NC7001V d: 12 mm | D: 28 mm | B: 8 mm | Type: Full ceramic, up to 800 C
NC6001 d: 12 mm | D: 28 mm | B: 8 mm | Type: Full ceramic,
3NC6201HT4 GF d: 12 mm | D: 32 mm | B: 10 mm | Type: Hybrid, high temp. up to 500 C
3NC6201MD4 d: 12 mm | D: 32 mm | B: 10 mm | Type: Hybrid, corrosion resistant
3NC6201YH4 d: 12 mm | D: 32 mm | B: 10 mm | Type: Hybrid, non-magnetic
3NC6201ST4 d: 12 mm | D: 32 mm | B: 10 mm | Type: Hybrid, insulating
NC7201V d: 12 mm | D: 32 mm | B: 10 mm | Type: Full ceramic, up to 800 C
NC6201 d: 12 mm | D: 32 mm | B: 10 mm | Type: Full ceramic,
3NC6002HT4 GF d: 15 mm | D: 32 mm | B: 9 mm | Type: Hybrid, high temp. up to 500 C
3NC6002MD4 d: 15 mm | D: 32 mm | B: 9 mm | Type: Hybrid, corrosion resistant
3NC6002YH4 d: 15 mm | D: 32 mm | B: 9 mm | Type: Hybrid, non-magnetic
3NC6002ST4 d: 15 mm | D: 32 mm | B: 9 mm | Type: Hybrid, insulating
NC7002V d: 15 mm | D: 32 mm | B: 9 mm | Type: Full ceramic, up to 800 C
NC6002 d: 15 mm | D: 32 mm | B: 9 mm | Type: Full ceramic,
3NC6202HT4 GF d: 15 mm | D: 35 mm | B: 11 mm | Type: Hybrid, high temp. up to 500 C
3NC6202MD4 d: 15 mm | D: 35 mm | B: 11 mm | Type: Hybrid, corrosion resistant
3NC6202YH4 d: 15 mm | D: 35 mm | B: 11 mm | Type: Hybrid, non-magnetic
3NC6202ST4 d: 15 mm | D: 35 mm | B: 11 mm | Type: Hybrid, insulating
NC7202V d: 15 mm | D: 35 mm | B: 11 mm | Type: Full ceramic, up to 800 C
NC6202 d: 15 mm | D: 35 mm | B: 11 mm | Type: Full ceramic,
3NC6003HT4 GF d: 17 mm | D: 35 mm | B: 10 mm | Type: Hybrid, high temp. up to 500 C
3NC6003MD4 d: 17 mm | D: 35 mm | B: 10 mm | Type: Hybrid, corrosion resistant
3NC6003YH4 d: 17 mm | D: 35 mm | B: 10 mm | Type: Hybrid, non-magnetic
3NC6003ST4 d: 17 mm | D: 35 mm | B: 10 mm | Type: Hybrid, insulating
NC7003V d: 17 mm | D: 35 mm | B: 10 mm | Type: Full ceramic, up to 800 C
NC6003 d: 17 mm | D: 35 mm | B: 10 mm | Type: Full ceramic,
3NC6203HT4 GF d: 17 mm | D: 40 mm | B: 12 mm | Type: Hybrid, high temp. up to 500 C
3NC6203MD4 d: 17 mm | D: 40 mm | B: 12 mm | Type: Hybrid, corrosion resistant
3NC6203YH4 d: 17 mm | D: 40 mm | B: 12 mm | Type: Hybrid, non-magnetic
3NC6203ST4 d: 17 mm | D: 40 mm | B: 12 mm | Type: Hybrid, insulating
NC7203V d: 17 mm | D: 40 mm | B: 12 mm | Type: Full ceramic, up to 800 C
NC6203 d: 17 mm | D: 40 mm | B: 12 mm | Type: Full ceramic,
3NC6004HT4 GF d: 20 mm | D: 42 mm | B: 12 mm | Type: Hybrid, high temp. up to 500 C
3NC6004MD4 d: 20 mm | D: 42 mm | B: 12 mm | Type: Hybrid, corrosion resistant
3NC6004YH4 d: 20 mm | D: 42 mm | B: 12 mm | Type: Hybrid, non-magnetic
3NC6004ST4 d: 20 mm | D: 42 mm | B: 12 mm | Type: Hybrid, insulating
NC7004V d: 20 mm | D: 42 mm | B: 12 mm | Type: Full ceramic, up to 800 C
NC6004 d: 20 mm | D: 42 mm | B: 12 mm | Type: Full ceramic,
3NC6204HT4 GF d: 20 mm | D: 47 mm | B: 14 mm | Type: Hybrid, high temp. up to 500 C
3NC6204MD4 d: 20 mm | D: 47 mm | B: 14 mm | Type: Hybrid, corrosion resistant
3NC6204YH4 d: 20 mm | D: 47 mm | B: 14 mm | Type: Hybrid, non-magnetic
3NC6204ST4 d: 20 mm | D: 47 mm | B: 14 mm | Type: Hybrid, insulating
NC7204V d: 20 mm | D: 47 mm | B: 14 mm | Type: Full ceramic, up to 800 C
NC6204 d: 20 mm | D: 47 mm | B: 14 mm | Type: Full ceramic,
3NC6005HT4 GF d: 25 mm | D: 47 mm | B: 12 mm | Type: Hybrid, high temp. up to 500 C
3NC6005MD4 d: 25 mm | D: 47 mm | B: 12 mm | Type: Hybrid, corrosion resistant
3NC6005YH4 d: 25 mm | D: 47 mm | B: 12 mm | Type: Hybrid, non-magnetic
3NC6005ST4 d: 25 mm | D: 47 mm | B: 12 mm | Type: Hybrid, insulating
NC7005V d: 25 mm | D: 47 mm | B: 12 mm | Type: Full ceramic, up to 800 C
NC6005 d: 25 mm | D: 47 mm | B: 12 mm | Type: Full ceramic,
3NC6205HT4 GF d: 25 mm | D: 52 mm | B: 15 mm | Type: Hybrid, high temp. up to 500 C
3NC6205MD4 d: 25 mm | D: 52 mm | B: 15 mm | Type: Hybrid, corrosion resistant
3NC6205YH4 d: 25 mm | D: 52 mm | B: 15 mm | Type: Hybrid, non-magnetic
3NC6205ST4 d: 25 mm | D: 52 mm | B: 15 mm | Type: Hybrid, insulating
NC7205V d: 25 mm | D: 52 mm | B: 15 mm | Type: Full ceramic, up to 800 C
NC6205 d: 25 mm | D: 52 mm | B: 15 mm | Type: Full ceramic,
3NC6006HT4 GF d: 30 mm | D: 55 mm | B: 13 mm | Type: Hybrid, high temp. up to 500 C
3NC6006MD4 d: 30 mm | D: 55 mm | B: 13 mm | Type: Hybrid, corrosion resistant
3NC6006YH4 d: 30 mm | D: 55 mm | B: 13 mm | Type: Hybrid, non-magnetic
3NC6006ST4 d: 30 mm | D: 55 mm | B: 13 mm | Type: Hybrid, insulating
NC7006V d: 30 mm | D: 55 mm | B: 13 mm | Type: Full ceramic, up to 800 C
NC6006 d: 30 mm | D: 55 mm | B: 13 mm | Type: Full ceramic,
3NC6206HT4 GF d: 30 mm | D: 62 mm | B: 16 mm | Type: Hybrid, high temp. up to 500 C
3NC6206MD4 d: 30 mm | D: 62 mm | B: 16 mm | Type: Hybrid, corrosion resistant
3NC6206YH4 d: 30 mm | D: 62 mm | B: 16 mm | Type: Hybrid, non-magnetic
3NC6206ST4 d: 30 mm | D: 62 mm | B: 16 mm | Type: Hybrid, insulating
NC7206V d: 30 mm | D: 62 mm | B: 16 mm | Type: Full ceramic, up to 800 C
NC6206 d: 30 mm | D: 62 mm | B: 16 mm | Type: Full ceramic,
3NC6007HT4 GF d: 35 mm | D: 62 mm | B: 14 mm | Type: Hybrid, high temp. up to 500 C
3NC6007MD4 d: 35 mm | D: 62 mm | B: 14 mm | Type: Hybrid, corrosion resistant
3NC6007YH4 d: 35 mm | D: 62 mm | B: 14 mm | Type: Hybrid, non-magnetic
3NC6007ST4 d: 35 mm | D: 62 mm | B: 14 mm | Type: Hybrid, insulating
NC7007V d: 35 mm | D: 62 mm | B: 14 mm | Type: Full ceramic, up to 800 C
NC6007 d: 35 mm | D: 62 mm | B: 14 mm | Type: Full ceramic,
3NC6207HT4 GF d: 35 mm | D: 72 mm | B: 17 mm | Type: Hybrid, high temp. up to 500 C
3NC6207MD4 d: 35 mm | D: 72 mm | B: 17 mm | Type: Hybrid, corrosion resistant
3NC6207YH4 d: 35 mm | D: 72 mm | B: 17 mm | Type: Hybrid, non-magnetic
3NC6207ST4 d: 35 mm | D: 72 mm | B: 17 mm | Type: Hybrid, insulating
NC7207V d: 35 mm | D: 72 mm | B: 17 mm | Type: Full ceramic, up to 800 C
NC6207 d: 35 mm | D: 72 mm | B: 17 mm | Type: Full ceramic,
3NC6008HT4 GF d: 40 mm | D: 68 mm | B: 15 mm | Type: Hybrid, high temp. up to 500 C
3NC6008MD4 d: 40 mm | D: 68 mm | B: 15 mm | Type: Hybrid, corrosion resistant
3NC6008YH4 d: 40 mm | D: 68 mm | B: 15 mm | Type: Hybrid, non-magnetic
3NC6008ST4 d: 40 mm | D: 68 mm | B: 15 mm | Type: Hybrid, insulating
NC7008V d: 40 mm | D: 68 mm | B: 15 mm | Type: Full ceramic, up to 800 C
NC6008 d: 40 mm | D: 68 mm | B: 15 mm | Type: Full ceramic,
3NC6208HT4 GF d: 40 mm | D: 80 mm | B: 18 mm | Type: Hybrid, high temp. up to 500 C
3NC6208MD4 d: 40 mm | D: 80 mm | B: 18 mm | Type: Hybrid, corrosion resistant
3NC6208YH4 d: 40 mm | D: 80 mm | B: 18 mm | Type: Hybrid, non-magnetic
3NC6208ST4 d: 40 mm | D: 80 mm | B: 18 mm | Type: Hybrid, insulating
NC7208V d: 40 mm | D: 80 mm | B: 18 mm | Type: Full ceramic, up to 800 C
NC6208 d: 40 mm | D: 80 mm | B: 18 mm | Type: Full ceramic,
Deep Groove Ball BearingsKOYO
172 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Ceramic & Hybrid Ceramic Ball Bearings (3NC, NC Series)

Brand KOYO·Deep Groove Ball Bearings

Available part numbers (172)

3NC604MD4, 3NC604YH4, 3NC604ST4, NC604, 3NC624MD4, 3NC624YH4, 3NC624ST4, NC624, 3NC605MD4, 3NC605YH4 + 162 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3NC604MD4d: 4 mm | D: 12 mm | B: 4 mm | Type: Hybrid, corrosion resistant
3NC604YH4d: 4 mm | D: 12 mm | B: 4 mm | Type: Hybrid, non-magnetic
3NC604ST4d: 4 mm | D: 12 mm | B: 4 mm | Type: Hybrid, insulating
NC604d: 4 mm | D: 12 mm | B: 4 mm | Type: Full ceramic,
3NC624MD4d: 4 mm | D: 13 mm | B: 5 mm | Type: Hybrid, corrosion resistant
3NC624YH4d: 4 mm | D: 13 mm | B: 5 mm | Type: Hybrid, non-magnetic
3NC624ST4d: 4 mm | D: 13 mm | B: 5 mm | Type: Hybrid, insulating
NC624d: 4 mm | D: 13 mm | B: 5 mm | Type: Full ceramic,
3NC605MD4d: 5 mm | D: 14 mm | B: 5 mm | Type: Hybrid, corrosion resistant
3NC605YH4d: 5 mm | D: 14 mm | B: 5 mm | Type: Hybrid, non-magnetic
3NC605ST4d: 5 mm | D: 14 mm | B: 5 mm | Type: Hybrid, insulating
NC605d: 5 mm | D: 14 mm | B: 5 mm | Type: Full ceramic,
3NC625MD4d: 5 mm | D: 16 mm | B: 5 mm | Type: Hybrid, corrosion resistant
3NC625YH4d: 5 mm | D: 16 mm | B: 5 mm | Type: Hybrid, non-magnetic
3NC625ST4d: 5 mm | D: 16 mm | B: 5 mm | Type: Hybrid, insulating
NC625d: 5 mm | D: 16 mm | B: 5 mm | Type: Full ceramic,
3NC606HT4 GFd: 6 mm | D: 17 mm | B: 6 mm | Type: Hybrid, high temp. up to 500 C
3NC606MD4d: 6 mm | D: 17 mm | B: 6 mm | Type: Hybrid, corrosion resistant
3NC606YH4d: 6 mm | D: 17 mm | B: 6 mm | Type: Hybrid, non-magnetic
3NC606ST4d: 6 mm | D: 17 mm | B: 6 mm | Type: Hybrid, insulating
NC706Vd: 6 mm | D: 17 mm | B: 6 mm | Type: Full ceramic, up to 800 C
NC606d: 6 mm | D: 17 mm | B: 6 mm | Type: Full ceramic,
3NC626HT4 GFd: 6 mm | D: 19 mm | B: 6 mm | Type: Hybrid, high temp. up to 500 C
3NC626MD4d: 6 mm | D: 19 mm | B: 6 mm | Type: Hybrid, corrosion resistant
3NC626YH4d: 6 mm | D: 19 mm | B: 6 mm | Type: Hybrid, non-magnetic
3NC626ST4d: 6 mm | D: 19 mm | B: 6 mm | Type: Hybrid, insulating
NC726Vd: 6 mm | D: 19 mm | B: 6 mm | Type: Full ceramic, up to 800 C
NC626d: 6 mm | D: 19 mm | B: 6 mm | Type: Full ceramic,
3NC607HT4 GFd: 7 mm | D: 19 mm | B: 6 mm | Type: Hybrid, high temp. up to 500 C
3NC607MD4d: 7 mm | D: 19 mm | B: 6 mm | Type: Hybrid, corrosion resistant
3NC607YH4d: 7 mm | D: 19 mm | B: 6 mm | Type: Hybrid, non-magnetic
3NC607ST4d: 7 mm | D: 19 mm | B: 6 mm | Type: Hybrid, insulating
NC707Vd: 7 mm | D: 19 mm | B: 6 mm | Type: Full ceramic, up to 800 C
NC607d: 7 mm | D: 19 mm | B: 6 mm | Type: Full ceramic,
3NC627HT4 GFd: 7 mm | D: 22 mm | B: 7 mm | Type: Hybrid, high temp. up to 500 C
3NC627MD4d: 7 mm | D: 22 mm | B: 7 mm | Type: Hybrid, corrosion resistant
3NC627YH4d: 7 mm | D: 22 mm | B: 7 mm | Type: Hybrid, non-magnetic
3NC627ST4d: 7 mm | D: 22 mm | B: 7 mm | Type: Hybrid, insulating
NC727Vd: 7 mm | D: 22 mm | B: 7 mm | Type: Full ceramic, up to 800 C
NC627d: 7 mm | D: 22 mm | B: 7 mm | Type: Full ceramic,
3NC608HT4 GFd: 8 mm | D: 22 mm | B: 7 mm | Type: Hybrid, high temp. up to 500 C
3NC608MD4d: 8 mm | D: 22 mm | B: 7 mm | Type: Hybrid, corrosion resistant
3NC608YH4d: 8 mm | D: 22 mm | B: 7 mm | Type: Hybrid, non-magnetic
3NC608ST4d: 8 mm | D: 22 mm | B: 7 mm | Type: Hybrid, insulating
NC708Vd: 8 mm | D: 22 mm | B: 7 mm | Type: Full ceramic, up to 800 C
NC608d: 8 mm | D: 22 mm | B: 7 mm | Type: Full ceramic,
3NC628HT4 GFd: 8 mm | D: 24 mm | B: 8 mm | Type: Hybrid, high temp. up to 500 C
3NC628MD4d: 8 mm | D: 24 mm | B: 8 mm | Type: Hybrid, corrosion resistant
3NC628YH4d: 8 mm | D: 24 mm | B: 8 mm | Type: Hybrid, non-magnetic
3NC628ST4d: 8 mm | D: 24 mm | B: 8 mm | Type: Hybrid, insulating
NC728Vd: 8 mm | D: 24 mm | B: 8 mm | Type: Full ceramic, up to 800 C
NC628d: 8 mm | D: 24 mm | B: 8 mm | Type: Full ceramic,
3NC609HT4 GFd: 9 mm | D: 24 mm | B: 7 mm | Type: Hybrid, high temp. up to 500 C
3NC609MD4d: 9 mm | D: 24 mm | B: 7 mm | Type: Hybrid, corrosion resistant
3NC609YH4d: 9 mm | D: 24 mm | B: 7 mm | Type: Hybrid, non-magnetic
3NC609ST4d: 9 mm | D: 24 mm | B: 7 mm | Type: Hybrid, insulating
NC709Vd: 9 mm | D: 24 mm | B: 7 mm | Type: Full ceramic, up to 800 C
NC609d: 9 mm | D: 24 mm | B: 7 mm | Type: Full ceramic,
3NC629HT4 GFd: 9 mm | D: 26 mm | B: 8 mm | Type: Hybrid, high temp. up to 500 C
3NC629MD4d: 9 mm | D: 26 mm | B: 8 mm | Type: Hybrid, corrosion resistant
3NC629YH4d: 9 mm | D: 26 mm | B: 8 mm | Type: Hybrid, non-magnetic
3NC629ST4d: 9 mm | D: 26 mm | B: 8 mm | Type: Hybrid, insulating
NC729Vd: 9 mm | D: 26 mm | B: 8 mm | Type: Full ceramic, up to 800 C
NC629d: 9 mm | D: 26 mm | B: 8 mm | Type: Full ceramic,
3NC6000HT4 GFd: 10 mm | D: 26 mm | B: 8 mm | Type: Hybrid, high temp. up to 500 C
3NC6000MD4d: 10 mm | D: 26 mm | B: 8 mm | Type: Hybrid, corrosion resistant
3NC6000YH4d: 10 mm | D: 26 mm | B: 8 mm | Type: Hybrid, non-magnetic
3NC6000ST4d: 10 mm | D: 26 mm | B: 8 mm | Type: Hybrid, insulating
NC7000Vd: 10 mm | D: 26 mm | B: 8 mm | Type: Full ceramic, up to 800 C
NC6000d: 10 mm | D: 26 mm | B: 8 mm | Type: Full ceramic,
3NC6200HT4 GFd: 10 mm | D: 30 mm | B: 9 mm | Type: Hybrid, high temp. up to 500 C
3NC6200MD4d: 10 mm | D: 30 mm | B: 9 mm | Type: Hybrid, corrosion resistant
3NC6200YH4d: 10 mm | D: 30 mm | B: 9 mm | Type: Hybrid, non-magnetic
3NC6200ST4d: 10 mm | D: 30 mm | B: 9 mm | Type: Hybrid, insulating
NC7200Vd: 10 mm | D: 30 mm | B: 9 mm | Type: Full ceramic, up to 800 C
NC6200d: 10 mm | D: 30 mm | B: 9 mm | Type: Full ceramic,
3NC6001HT4 GFd: 12 mm | D: 28 mm | B: 8 mm | Type: Hybrid, high temp. up to 500 C
3NC6001MD4d: 12 mm | D: 28 mm | B: 8 mm | Type: Hybrid, corrosion resistant
3NC6001YH4d: 12 mm | D: 28 mm | B: 8 mm | Type: Hybrid, non-magnetic
3NC6001ST4d: 12 mm | D: 28 mm | B: 8 mm | Type: Hybrid, insulating
NC7001Vd: 12 mm | D: 28 mm | B: 8 mm | Type: Full ceramic, up to 800 C
NC6001d: 12 mm | D: 28 mm | B: 8 mm | Type: Full ceramic,
3NC6201HT4 GFd: 12 mm | D: 32 mm | B: 10 mm | Type: Hybrid, high temp. up to 500 C
3NC6201MD4d: 12 mm | D: 32 mm | B: 10 mm | Type: Hybrid, corrosion resistant
3NC6201YH4d: 12 mm | D: 32 mm | B: 10 mm | Type: Hybrid, non-magnetic
3NC6201ST4d: 12 mm | D: 32 mm | B: 10 mm | Type: Hybrid, insulating
NC7201Vd: 12 mm | D: 32 mm | B: 10 mm | Type: Full ceramic, up to 800 C
NC6201d: 12 mm | D: 32 mm | B: 10 mm | Type: Full ceramic,
3NC6002HT4 GFd: 15 mm | D: 32 mm | B: 9 mm | Type: Hybrid, high temp. up to 500 C
3NC6002MD4d: 15 mm | D: 32 mm | B: 9 mm | Type: Hybrid, corrosion resistant
3NC6002YH4d: 15 mm | D: 32 mm | B: 9 mm | Type: Hybrid, non-magnetic
3NC6002ST4d: 15 mm | D: 32 mm | B: 9 mm | Type: Hybrid, insulating
NC7002Vd: 15 mm | D: 32 mm | B: 9 mm | Type: Full ceramic, up to 800 C
NC6002d: 15 mm | D: 32 mm | B: 9 mm | Type: Full ceramic,
3NC6202HT4 GFd: 15 mm | D: 35 mm | B: 11 mm | Type: Hybrid, high temp. up to 500 C
3NC6202MD4d: 15 mm | D: 35 mm | B: 11 mm | Type: Hybrid, corrosion resistant
3NC6202YH4d: 15 mm | D: 35 mm | B: 11 mm | Type: Hybrid, non-magnetic
3NC6202ST4d: 15 mm | D: 35 mm | B: 11 mm | Type: Hybrid, insulating
NC7202Vd: 15 mm | D: 35 mm | B: 11 mm | Type: Full ceramic, up to 800 C
NC6202d: 15 mm | D: 35 mm | B: 11 mm | Type: Full ceramic,
3NC6003HT4 GFd: 17 mm | D: 35 mm | B: 10 mm | Type: Hybrid, high temp. up to 500 C
3NC6003MD4d: 17 mm | D: 35 mm | B: 10 mm | Type: Hybrid, corrosion resistant
3NC6003YH4d: 17 mm | D: 35 mm | B: 10 mm | Type: Hybrid, non-magnetic
3NC6003ST4d: 17 mm | D: 35 mm | B: 10 mm | Type: Hybrid, insulating
NC7003Vd: 17 mm | D: 35 mm | B: 10 mm | Type: Full ceramic, up to 800 C
NC6003d: 17 mm | D: 35 mm | B: 10 mm | Type: Full ceramic,
3NC6203HT4 GFd: 17 mm | D: 40 mm | B: 12 mm | Type: Hybrid, high temp. up to 500 C
3NC6203MD4d: 17 mm | D: 40 mm | B: 12 mm | Type: Hybrid, corrosion resistant
3NC6203YH4d: 17 mm | D: 40 mm | B: 12 mm | Type: Hybrid, non-magnetic
3NC6203ST4d: 17 mm | D: 40 mm | B: 12 mm | Type: Hybrid, insulating
NC7203Vd: 17 mm | D: 40 mm | B: 12 mm | Type: Full ceramic, up to 800 C
NC6203d: 17 mm | D: 40 mm | B: 12 mm | Type: Full ceramic,
3NC6004HT4 GFd: 20 mm | D: 42 mm | B: 12 mm | Type: Hybrid, high temp. up to 500 C
3NC6004MD4d: 20 mm | D: 42 mm | B: 12 mm | Type: Hybrid, corrosion resistant
3NC6004YH4d: 20 mm | D: 42 mm | B: 12 mm | Type: Hybrid, non-magnetic
3NC6004ST4d: 20 mm | D: 42 mm | B: 12 mm | Type: Hybrid, insulating
NC7004Vd: 20 mm | D: 42 mm | B: 12 mm | Type: Full ceramic, up to 800 C
NC6004d: 20 mm | D: 42 mm | B: 12 mm | Type: Full ceramic,
3NC6204HT4 GFd: 20 mm | D: 47 mm | B: 14 mm | Type: Hybrid, high temp. up to 500 C
3NC6204MD4d: 20 mm | D: 47 mm | B: 14 mm | Type: Hybrid, corrosion resistant
3NC6204YH4d: 20 mm | D: 47 mm | B: 14 mm | Type: Hybrid, non-magnetic
3NC6204ST4d: 20 mm | D: 47 mm | B: 14 mm | Type: Hybrid, insulating
NC7204Vd: 20 mm | D: 47 mm | B: 14 mm | Type: Full ceramic, up to 800 C
NC6204d: 20 mm | D: 47 mm | B: 14 mm | Type: Full ceramic,
3NC6005HT4 GFd: 25 mm | D: 47 mm | B: 12 mm | Type: Hybrid, high temp. up to 500 C
3NC6005MD4d: 25 mm | D: 47 mm | B: 12 mm | Type: Hybrid, corrosion resistant
3NC6005YH4d: 25 mm | D: 47 mm | B: 12 mm | Type: Hybrid, non-magnetic
3NC6005ST4d: 25 mm | D: 47 mm | B: 12 mm | Type: Hybrid, insulating
NC7005Vd: 25 mm | D: 47 mm | B: 12 mm | Type: Full ceramic, up to 800 C
NC6005d: 25 mm | D: 47 mm | B: 12 mm | Type: Full ceramic,
3NC6205HT4 GFd: 25 mm | D: 52 mm | B: 15 mm | Type: Hybrid, high temp. up to 500 C
3NC6205MD4d: 25 mm | D: 52 mm | B: 15 mm | Type: Hybrid, corrosion resistant
3NC6205YH4d: 25 mm | D: 52 mm | B: 15 mm | Type: Hybrid, non-magnetic
3NC6205ST4d: 25 mm | D: 52 mm | B: 15 mm | Type: Hybrid, insulating
NC7205Vd: 25 mm | D: 52 mm | B: 15 mm | Type: Full ceramic, up to 800 C
NC6205d: 25 mm | D: 52 mm | B: 15 mm | Type: Full ceramic,
3NC6006HT4 GFd: 30 mm | D: 55 mm | B: 13 mm | Type: Hybrid, high temp. up to 500 C
3NC6006MD4d: 30 mm | D: 55 mm | B: 13 mm | Type: Hybrid, corrosion resistant
3NC6006YH4d: 30 mm | D: 55 mm | B: 13 mm | Type: Hybrid, non-magnetic
3NC6006ST4d: 30 mm | D: 55 mm | B: 13 mm | Type: Hybrid, insulating
NC7006Vd: 30 mm | D: 55 mm | B: 13 mm | Type: Full ceramic, up to 800 C
NC6006d: 30 mm | D: 55 mm | B: 13 mm | Type: Full ceramic,
3NC6206HT4 GFd: 30 mm | D: 62 mm | B: 16 mm | Type: Hybrid, high temp. up to 500 C
3NC6206MD4d: 30 mm | D: 62 mm | B: 16 mm | Type: Hybrid, corrosion resistant
3NC6206YH4d: 30 mm | D: 62 mm | B: 16 mm | Type: Hybrid, non-magnetic
3NC6206ST4d: 30 mm | D: 62 mm | B: 16 mm | Type: Hybrid, insulating
NC7206Vd: 30 mm | D: 62 mm | B: 16 mm | Type: Full ceramic, up to 800 C
NC6206d: 30 mm | D: 62 mm | B: 16 mm | Type: Full ceramic,
3NC6007HT4 GFd: 35 mm | D: 62 mm | B: 14 mm | Type: Hybrid, high temp. up to 500 C
3NC6007MD4d: 35 mm | D: 62 mm | B: 14 mm | Type: Hybrid, corrosion resistant
3NC6007YH4d: 35 mm | D: 62 mm | B: 14 mm | Type: Hybrid, non-magnetic
3NC6007ST4d: 35 mm | D: 62 mm | B: 14 mm | Type: Hybrid, insulating
NC7007Vd: 35 mm | D: 62 mm | B: 14 mm | Type: Full ceramic, up to 800 C
NC6007d: 35 mm | D: 62 mm | B: 14 mm | Type: Full ceramic,
3NC6207HT4 GFd: 35 mm | D: 72 mm | B: 17 mm | Type: Hybrid, high temp. up to 500 C
3NC6207MD4d: 35 mm | D: 72 mm | B: 17 mm | Type: Hybrid, corrosion resistant
3NC6207YH4d: 35 mm | D: 72 mm | B: 17 mm | Type: Hybrid, non-magnetic
3NC6207ST4d: 35 mm | D: 72 mm | B: 17 mm | Type: Hybrid, insulating
NC7207Vd: 35 mm | D: 72 mm | B: 17 mm | Type: Full ceramic, up to 800 C
NC6207d: 35 mm | D: 72 mm | B: 17 mm | Type: Full ceramic,
3NC6008HT4 GFd: 40 mm | D: 68 mm | B: 15 mm | Type: Hybrid, high temp. up to 500 C
3NC6008MD4d: 40 mm | D: 68 mm | B: 15 mm | Type: Hybrid, corrosion resistant
3NC6008YH4d: 40 mm | D: 68 mm | B: 15 mm | Type: Hybrid, non-magnetic
3NC6008ST4d: 40 mm | D: 68 mm | B: 15 mm | Type: Hybrid, insulating
NC7008Vd: 40 mm | D: 68 mm | B: 15 mm | Type: Full ceramic, up to 800 C
NC6008d: 40 mm | D: 68 mm | B: 15 mm | Type: Full ceramic,
3NC6208HT4 GFd: 40 mm | D: 80 mm | B: 18 mm | Type: Hybrid, high temp. up to 500 C
3NC6208MD4d: 40 mm | D: 80 mm | B: 18 mm | Type: Hybrid, corrosion resistant
3NC6208YH4d: 40 mm | D: 80 mm | B: 18 mm | Type: Hybrid, non-magnetic
3NC6208ST4d: 40 mm | D: 80 mm | B: 18 mm | Type: Hybrid, insulating
NC7208Vd: 40 mm | D: 80 mm | B: 18 mm | Type: Full ceramic, up to 800 C
NC6208d: 40 mm | D: 80 mm | B: 18 mm | Type: Full ceramic,

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
