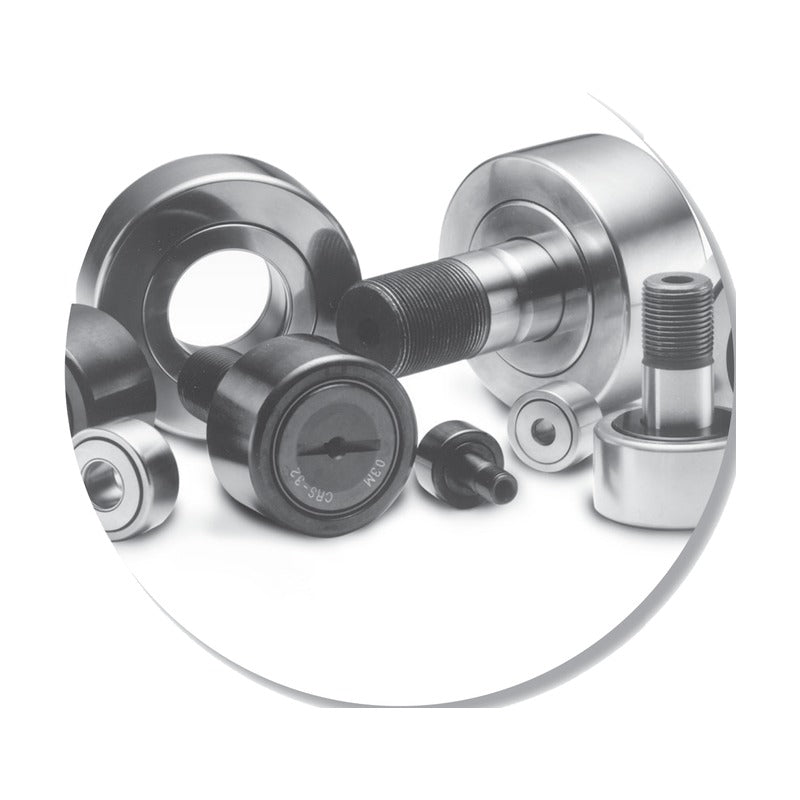

KOYO CM Stud Type Track Rollers / Cam Followers (Full Complement)

KOYO CM Stud Type Track Rollers / Cam Followers (Full Complement)

CM stud type track rollers (cam followers), full complement design, with cylindrical (M) or crowned (RM) outer ring, without seals or with seals (UUM, UURM). Outer diameter 13 to 90 mm.

Key features

  • Thick outer ring rolls directly on tracks and cams
  • Cylindrical (M) or crowned R500 (RM) outer ring
  • Sealed versions UUM / UURM
  • Threaded stud with hexagon or slot for mounting
  • Track roller load ratings and track capacity listed

Specifications

Product type Stud type track roller (cam follower)
Design Full Complement
Outer ring Cylindrical or crowned (R500 mm)
Seals Without (M, RM) / with (UUM, UURM)
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B450-B451
CM6M D: 16 mm | C: 11 mm | Stud d: 6 mm | L: 28 mm | Cr: 7.00 kN | Mass: 0.019 kg
CM6RM D: 16 mm | C: 11 mm | Stud d: 6 mm | L: 28 mm | Cr: 7.00 kN | Mass: 0.019 kg
CM6UUM D: 16 mm | C: 11 mm | Stud d: 6 mm | L: 28 mm | Cr: 7.00 kN | Mass: 0.019 kg
CM6UURM D: 16 mm | C: 11 mm | Stud d: 6 mm | L: 28 mm | Cr: 7.00 kN | Mass: 0.019 kg
CM8M D: 19 mm | C: 11 mm | Stud d: 8 mm | L: 32 mm | Cr: 8.05 kN | Mass: 0.029 kg
CM8RM D: 19 mm | C: 11 mm | Stud d: 8 mm | L: 32 mm | Cr: 8.05 kN | Mass: 0.029 kg
CM8UUM D: 19 mm | C: 11 mm | Stud d: 8 mm | L: 32 mm | Cr: 8.05 kN | Mass: 0.029 kg
CM8UURM D: 19 mm | C: 11 mm | Stud d: 8 mm | L: 32 mm | Cr: 8.05 kN | Mass: 0.029 kg
CM10M D: 22 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 9.35 kN | Mass: 0.044 kg
CM10RM D: 22 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 9.35 kN | Mass: 0.044 kg
CM10UUM D: 22 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 9.35 kN | Mass: 0.044 kg
CM10UURM D: 22 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 9.35 kN | Mass: 0.044 kg
CM10-1M D: 26 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 9.35 kN | Mass: 0.056 kg
CM10-1RM D: 26 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 9.35 kN | Mass: 0.056 kg
CM10-1UUM D: 26 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 9.35 kN | Mass: 0.056 kg
CM10-1UURM D: 26 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 9.35 kN | Mass: 0.056 kg
CM12M D: 30 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 13.2 kN | Mass: 0.089 kg
CM12RM D: 30 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 13.2 kN | Mass: 0.089 kg
CM12UUM D: 30 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 13.2 kN | Mass: 0.089 kg
CM12UURM D: 30 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 13.2 kN | Mass: 0.089 kg
CM12-1M D: 32 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 13.2 kN | Mass: 0.099 kg
CM12-1RM D: 32 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 13.2 kN | Mass: 0.099 kg
CM12-1UUM D: 32 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 13.2 kN | Mass: 0.099 kg
CM12-1UURM D: 32 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 13.2 kN | Mass: 0.099 kg
CM16M D: 35 mm | C: 18 mm | Stud d: 16 mm | L: 52 mm | Cr: 20.2 kN | Mass: 0.171 kg
CM16RM D: 35 mm | C: 18 mm | Stud d: 16 mm | L: 52 mm | Cr: 20.2 kN | Mass: 0.171 kg
CM16UUM D: 35 mm | C: 18 mm | Stud d: 16 mm | L: 52 mm | Cr: 20.2 kN | Mass: 0.171 kg
CM16UURM D: 35 mm | C: 18 mm | Stud d: 16 mm | L: 52 mm | Cr: 20.2 kN | Mass: 0.171 kg
CM18M D: 40 mm | C: 20 mm | Stud d: 18 mm | L: 58 mm | Cr: 23.1 kN | Mass: 0.248 kg
CM18RM D: 40 mm | C: 20 mm | Stud d: 18 mm | L: 58 mm | Cr: 23.1 kN | Mass: 0.248 kg
CM18UUM D: 40 mm | C: 20 mm | Stud d: 18 mm | L: 58 mm | Cr: 23.1 kN | Mass: 0.248 kg
CM18UURM D: 40 mm | C: 20 mm | Stud d: 18 mm | L: 58 mm | Cr: 23.1 kN | Mass: 0.248 kg
CM20M D: 47 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 30.7 kN | Mass: 0.393 kg
CM20RM D: 47 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 30.7 kN | Mass: 0.393 kg
CM20UUM D: 47 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 30.7 kN | Mass: 0.393 kg
CM20UURM D: 47 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 30.7 kN | Mass: 0.393 kg
CM20-1M D: 52 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 30.7 kN | Mass: 0.455 kg
CM20-1RM D: 52 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 30.7 kN | Mass: 0.455 kg
CM20-1UUM D: 52 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 30.7 kN | Mass: 0.455 kg
CM20-1UURM D: 52 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 30.7 kN | Mass: 0.455 kg
CM24M D: 62 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 46.5 kN | Mass: 0.810 kg
CM24RM D: 62 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 46.5 kN | Mass: 0.810 kg
CM24UUM D: 62 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 46.5 kN | Mass: 0.810 kg
CM24UURM D: 62 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 46.5 kN | Mass: 0.810 kg
CM24-1M D: 72 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 46.5 kN | Mass: 1.05 kg
CM24-1RM D: 72 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 46.5 kN | Mass: 1.05 kg
CM24-1UUM D: 72 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 46.5 kN | Mass: 1.05 kg
CM24-1UURM D: 72 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 46.5 kN | Mass: 1.05 kg
CM30M D: 80 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 1.64 kg
CM30RM D: 80 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 1.64 kg
CM30UUM D: 80 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 1.64 kg
CM30UURM D: 80 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 1.64 kg
CM30-1M D: 85 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 1.81 kg
CM30-1RM D: 85 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 1.81 kg
CM30-1UUM D: 85 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 1.81 kg
CM30-1UURM D: 85 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 1.81 kg
CM30-2M D: 90 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 2.00 kg
CM30-2RM D: 90 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 2.00 kg
CM30-2UUM D: 90 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 2.00 kg
CM30-2UURM D: 90 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 76.8 kN | Mass: 2.00 kg
