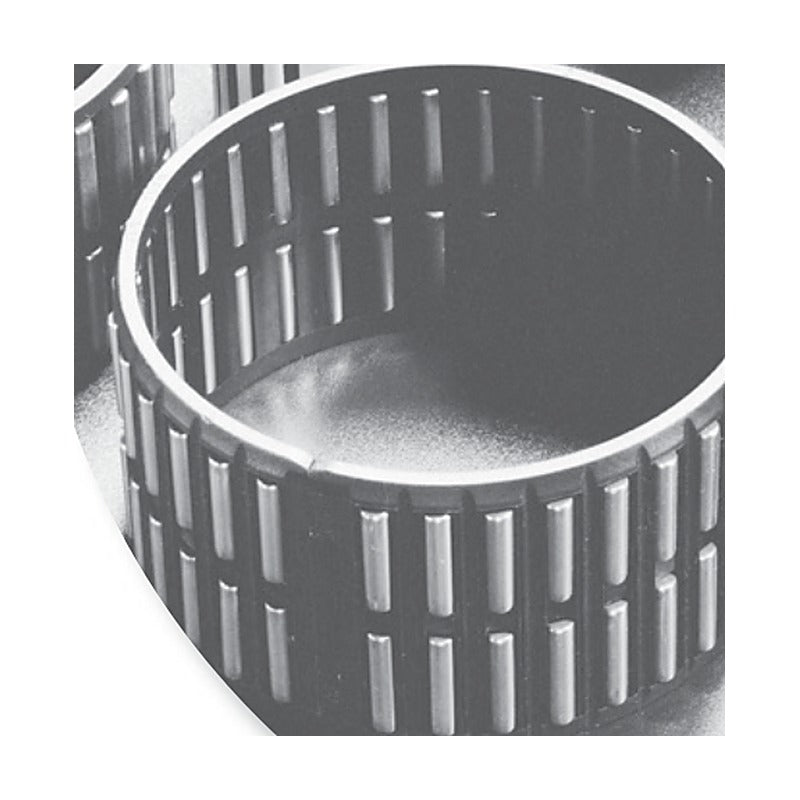

• KOYO Connecting Rod Needle Roller and Cage Assemblies (Metric)
1 1

KOYO Connecting Rod Needle Roller and Cage Assemblies (Metric)

KOYO Connecting Rod Needle Roller and Cage Assemblies (Metric)

Metric needle roller and cage assemblies for connecting rod crank pin ends (K BE, BE, GS, VE, VS P series) and wrist pin ends (K SE, R P, RE, UR P series) in engines and compressors.

Key features

  • Crank pin end: K..BE, BE, GS, VE, VS..P
  • Wrist pin end: K..SE, R..P, RE, UR..P
  • Guided by crank or piston bosses
  • High-strength cages for high accelerations
  • Matched to conrod bore and pin diameter

Specifications

Bearing type Needle roller and cage assembly, connecting rod
Application Crank pin end / wrist pin end
Dimension system Metric
Source KOYO Needle Roller Bearings catalogue, p. B-1-48 to B-1-54
K12X16X10BE Fw: 12 mm | Ew: 16 mm | Bc: 10 mm | Cr: 6.21 kN | C0r: 6.70 kN | Mass: 0.004 kg
K12X17X10BE Fw: 12 mm | Ew: 17 mm | Bc: 10 mm | Cr: 7.32 kN | C0r: 7.21 kN | Mass: 0.005 kg
K14X18X10BE Fw: 14 mm | Ew: 18 mm | Bc: 10 mm | Cr: 6.89 kN | C0r: 7.98 kN | Mass: 0.005 kg
K14X20X10BE Fw: 14 mm | Ew: 20 mm | Bc: 10 mm | Cr: 8.90 kN | C0r: 8.61 kN | Mass: 0.007 kg
K14X20X12BE Fw: 14 mm | Ew: 20 mm | Bc: 12 mm | Cr: 10.50 kN | C0r: 10.60 kN | Mass: 0.009 kg
K16X21X10BE Fw: 16 mm | Ew: 21 mm | Bc: 10 mm | Cr: 8.17 kN | C0r: 8.90 kN | Mass: 0.007 kg
K16X22X12BE Fw: 16 mm | Ew: 22 mm | Bc: 12 mm | Cr: 11.20 kN | C0r: 11.90 kN | Mass: 0.011 kg
K18X24X12BE Fw: 18 mm | Ew: 24 mm | Bc: 12 mm | Cr: 11.80 kN | C0r: 13.10 kN | Mass: 0.011 kg
WK18X24X13BE Fw: 18 mm | Ew: 24 mm | Bc: 13 mm | Cr: 12.80 kN | C0r: 14.60 kN | Mass: 0.011 kg
K18X24X15BE Fw: 18 mm | Ew: 24 mm | Bc: 15 mm | Cr: 13.30 kN | C0r: 15.20 kN | Mass: 0.014 kg
K19X25X15BE Fw: 19 mm | Ew: 25 mm | Bc: 15 mm | Cr: 14.70 kN | C0r: 17.60 kN | Mass: 0.014 kg
K20X26X12BE Fw: 20 mm | Ew: 26 mm | Bc: 12 mm | Cr: 13.30 kN | C0r: 15.80 kN | Mass: 0.013 kg
K20X26X17BE Fw: 20 mm | Ew: 26 mm | Bc: 17 mm | Cr: 14.90 kN | C0r: 18.20 kN | Mass: 0.017 kg
K22X28X13BE Fw: 22 mm | Ew: 28 mm | Bc: 13 mm | Cr: 13.90 kN | C0r: 17.10 kN | Mass: 0.015 kg
K22X29X16BE Fw: 22 mm | Ew: 29 mm | Bc: 16 mm | Cr: 18.50 kN | C0r: 22.30 kN | Mass: 0.021 kg
K24X30X13BE Fw: 24 mm | Ew: 30 mm | Bc: 13 mm | Cr: 14.40 kN | C0r: 18.40 kN | Mass: 0.016 kg
K24X30X15BE Fw: 24 mm | Ew: 30 mm | Bc: 15 mm | Cr: 15.30 kN | C0r: 19.70 kN | Mass: 0.018 kg
K24X30X17BE Fw: 24 mm | Ew: 30 mm | Bc: 17 mm | Cr: 19.00 kN | C0r: 26.30 kN | Mass: 0.021 kg
WK25X31X20BE Fw: 25 mm | Ew: 31 mm | Bc: 19.8 mm | Cr: 23.30 kN | C0r: 34.50 kN | Mass: 0.024 kg
K25X32X16BE Fw: 25 mm | Ew: 32 mm | Bc: 16 mm | Cr: 19.20 kN | C0r: 24.30 kN | Mass: 0.022 kg
K25X32X24BE Fw: 25 mm | Ew: 32 mm | Bc: 24 mm | Cr: 27.50 kN | C0r: 38.50 kN | Mass: 0.035 kg
K30X37X16BE Fw: 30 mm | Ew: 37 mm | Bc: 16 mm | Cr: 21.60 kN | C0r: 29.80 kN | Mass: 0.029 kg
K35X42X20BE Fw: 35 mm | Ew: 42 mm | Bc: 20 mm | Cr: 29.70 kN | C0r: 47.00 kN | Mass: 0.039 kg
12VS1610P-1 Fw: 12 mm | Ew: 16 mm | Bc: 10 mm | Cr: 5.95 kN | C0r: 6.35 kN | Mass: 0.004 kg
VE162212AB1-2 Fw: 16 mm | Ew: 22 mm | Bc: 12 mm | Cr: 9.65 kN | C0r: 9.8 kN | Mass: 0.011 kg
VE162213ASB1 Fw: 16 mm | Ew: 22 mm | Bc: 13.2 mm | Cr: 10.6 kN | C0r: 11 kN | Mass: 0.012 kg
17VS2314AP Fw: 17.6 mm | Ew: 22.8 mm | Bc: 14 mm | Cr: 11.2 kN | C0r: 12.1 kN | Mass: 0.013 kg
BE202614BSB1 Fw: 20 mm | Ew: 26 mm | Bc: 13.8 mm | Cr: 15.2 kN | C0r: 18.7 kN | Mass: 0.017 kg
20VS2614CP-2 Fw: 20 mm | Ew: 26 mm | Bc: 14 mm | Cr: 13.3 kN | C0r: 15.7 kN | Mass: 0.015 kg
BE202614SY1B1 Fw: 20 mm | Ew: 26 mm | Bc: 14 mm | Cr: 13.3 kN | C0r: 15.7 kN | Mass: 0.016 kg
22VS2814FP Fw: 22 mm | Ew: 28 mm | Bc: 14 mm | Cr: 13.2 kN | C0r: 15.9 kN | Mass: 0.016 kg
BE222816ASB1 Fw: 22 mm | Ew: 28 mm | Bc: 15.7 mm | Cr: 17.9 kN | C0r: 23.7 kN | Mass: 0.02 kg
VS22/16KP-1 Fw: 22 mm | Ew: 28 mm | Bc: 16 mm | Cr: 13.8 kN | C0r: 16.9 kN | Mass: 0.018 kg
22VS2916BP Fw: 22 mm | Ew: 29 mm | Bc: 16 mm | Cr: 15.7 kN | C0r: 18 kN | Mass: 0.021 kg
BE222917ASY1B1-2 Fw: 22 mm | Ew: 29 mm | Bc: 16.8 mm | Cr: 18.7 kN | C0r: 22.7 kN | Mass: 0.027 kg
23VS2812AP Fw: 23 mm | Ew: 28 mm | Bc: 12 mm | Cr: 11.6 kN | C0r: 15.5 kN | Mass: 0.013 kg
BE253216ASY1B1 Fw: 25 mm | Ew: 32 mm | Bc: 15.8 mm | Cr: 20.6 kN | C0r: 26.6 kN | Mass: 0.026 kg
BE263220ASB1 Fw: 26 mm | Ew: 32 mm | Bc: 19.8 mm | Cr: 22.9 kN | C0r: 34.2 kN | Mass: 0.03 kg
27VS3618P Fw: 27 mm | Ew: 36 mm | Bc: 18 mm | Cr: 23.4 kN | C0r: 27.1 kN | Mass: 0.042 kg
VE273621AB1 Fw: 27 mm | Ew: 36 mm | Bc: 20.8 mm | Cr: 29.8 kN | C0r: 37.1 kN | Mass: 0.047 kg
30VS3716AP-1 Fw: 30 mm | Ew: 37 mm | Bc: 16 mm | Cr: 20.8 kN | C0r: 28.3 kN | Mass: 0.03 kg
30VS3720P Fw: 30 mm | Ew: 37 mm | Bc: 20 mm | Cr: 24.6 kN | C0r: 35.2 kN | Mass: 0.036 kg
VE303818AB1 Fw: 30 mm | Ew: 38 mm | Bc: 17.8 mm | Cr: 26.5 kN | C0r: 35.4 kN | Mass: 0.038 kg
VE324020SB1 Fw: 32 mm | Ew: 40 mm | Bc: 20 mm | Cr: 29.9 kN | C0r: 42.2 kN | Mass: 0.048 kg
BE344320ASB1 Fw: 34 mm | Ew: 43 mm | Bc: 19.8 mm | Cr: 34.2 kN | C0r: 47.2 kN | Mass: 0.059 kg
GS344322-1 Fw: 34 mm | Ew: 43 mm | Bc: 22 mm | Cr: 37.7 kN | C0r: 53.5 kN | Mass: 0.063 kg
BE344420ASY1B1 Fw: 34 mm | Ew: 44 mm | Bc: 19.8 mm | Cr: 38.6 kN | C0r: 51.5 kN | Mass: 0.064 kg
35VS4320BP Fw: 35 mm | Ew: 43 mm | Bc: 20 mm | Cr: 32 kN | C0r: 47.4 kN | Mass: 0.051 kg
BE354322ASB1 Fw: 35 mm | Ew: 43 mm | Bc: 22 mm | Cr: 36.6 kN | C0r: 56.4 kN | Mass: 0.057 kg
BE354522ASYB1 Fw: 35 mm | Ew: 45 mm | Bc: 21.8 mm | Cr: 43.5 kN | C0r: 60.7 kN | Mass: 0.081 kg
BE354525ASYB1 Fw: 35 mm | Ew: 45 mm | Bc: 24.8 mm | Cr: 51.8 kN | C0r: 76.1 kN | Mass: 0.088 kg
VEU364621AB1-6 Fw: 36 mm | Ew: 46 mm | Bc: 20.8 mm | Cr: 32.3 kN | C0r: 41.4 kN | Mass: 0.067 kg
36VU4621P-2-2 Fw: 36 mm | Ew: 46 mm | Bc: 21 mm | Cr: 32.3 kN | C0r: 41.4 kN | Mass: 0.068 kg
37VS4725P-1 Fw: 37 mm | Ew: 47 mm | Bc: 25 mm | Cr: 43.9 kN | C0r: 61.9 kN | Mass: 0.082 kg
BE385023ASY1B3-5 Fw: 38 mm | Ew: 50 mm | Bc: 22.8 mm | Cr: 51.4 kN | C0r: 68.2 kN | Mass: 0.113 kg
BEU415024ASB1-10 Fw: 40.5 mm | Ew: 50 mm | Bc: 23.8 mm | Cr: 38.9 kN | C0r: 56.3 kN | Mass: 0.085 kg
K9X12X11,5SE Fw: 9 mm | Ew: 12 mm | Bc: 11.5 mm | Cr: 4.23 kN | C0r: 4.53 kN | Mass: 0.003 kg
K9X13X12,5SE Fw: 9 mm | Ew: 13 mm | Bc: 12.5 mm | Cr: 5.58 kN | C0r: 5.41 kN | Mass: 0.005 kg
K10X13X14,5SE Fw: 10 mm | Ew: 13 mm | Bc: 14.5 mm | Cr: 5.93 kN | C0r: 7.20 kN | Mass: 0.004 kg
K10X14X10SE Fw: 10 mm | Ew: 14 mm | Bc: 10 mm | Cr: 4.62 kN | C0r: 4.36 kN | Mass: 0.004 kg
K12X15X13SE Fw: 12 mm | Ew: 15 mm | Bc: 13 mm | Cr: 6.00 kN | C0r: 7.72 kN | Mass: 0.004 kg
K12X15X15SE Fw: 12 mm | Ew: 15 mm | Bc: 15 mm | Cr: 6.97 kN | C0r: 9.36 kN | Mass: 0.005 kg
K12X15X17,5SE Fw: 12 mm | Ew: 15 mm | Bc: 17.5 mm | Cr: 7.45 kN | C0r: 10.2 kN | Mass: 0.006 kg
K12X16X13SE Fw: 12 mm | Ew: 16 mm | Bc: 13 mm | Cr: 6.03 kN | C0r: 6.38 kN | Mass: 0.006 kg
K12X17X13SE Fw: 12 mm | Ew: 17 mm | Bc: 13 mm | Cr: 7.61 kN | C0r: 7.54 kN | Mass: 0.007 kg
K12X17X15SE Fw: 12 mm | Ew: 17 mm | Bc: 15 mm | Cr: 9.30 kN | C0r: 9.75 kN | Mass: 0.007 kg
K13X16X14SE Fw: 13 mm | Ew: 16 mm | Bc: 14 mm | Cr: 5.62 kN | C0r: 7.23 kN | Mass: 0.005 kg
K13X17X17,7SE Fw: 13 mm | Ew: 17 mm | Bc: 17.7 mm | Cr: 9.80 kN | C0r: 12.3 kN | Mass: 0.008 kg
K13X18X15SE Fw: 13 mm | Ew: 18 mm | Bc: 15 mm | Cr: 9.28 kN | C0r: 9.88 kN | Mass: 0.008 kg
K14X18X13SE Fw: 14 mm | Ew: 18 mm | Bc: 13 mm | Cr: 7.39 kN | C0r: 8.69 kN | Mass: 0.007 kg
K14X18X17SE Fw: 14 mm | Ew: 18 mm | Bc: 17 mm | Cr: 8.59 kN | C0r: 10.5 kN | Mass: 0.009 kg
K14X18X21SE Fw: 14 mm | Ew: 18 mm | Bc: 21 mm | Cr: 10.3 kN | C0r: 13.3 kN | Mass: 0.011 kg
K15X19X17SE Fw: 15 mm | Ew: 19 mm | Bc: 17 mm | Cr: 9.05 kN | C0r: 11.5 kN | Mass: 0.009 kg
K15X19X19,5SE Fw: 15 mm | Ew: 19 mm | Bc: 19.5 mm | Cr: 10.8 kN | C0r: 14.3 kN | Mass: 0.010 kg
K15X19X20SE Fw: 15 mm | Ew: 19 mm | Bc: 20 mm | Cr: 10.8 kN | C0r: 14.3 kN | Mass: 0.010 kg
K16X20X20SE Fw: 16 mm | Ew: 20 mm | Bc: 20 mm | Cr: 12.0 kN | C0r: 16.9 kN | Mass: 0.011 kg
K16X20X22SE Fw: 16 mm | Ew: 20 mm | Bc: 22 mm | Cr: 12.0 kN | C0r: 16.9 kN | Mass: 0.013 kg
K16X20X23SE Fw: 16 mm | Ew: 20 mm | Bc: 23 mm | Cr: 10.7 kN | C0r: 14.5 kN | Mass: 0.013 kg
K18X22X22SE Fw: 18 mm | Ew: 22 mm | Bc: 22 mm | Cr: 14.4 kN | C0r: 22.0 kN | Mass: 0.016 kg
K18X23X20SE Fw: 18 mm | Ew: 23 mm | Bc: 20 mm | Cr: 13.6 kN | C0r: 17.6 kN | Mass: 0.015 kg
K18X23X23SE Fw: 18 mm | Ew: 23 mm | Bc: 23 mm | Cr: 15.9 kN | C0r: 21.6 kN | Mass: 0.018 kg
K19X24X25,5SE Fw: 19 mm | Ew: 24 mm | Bc: 25.5 mm | Cr: 16.7 kN | C0r: 23.4 kN | Mass: 0.022 kg
K20X24X23SE Fw: 20 mm | Ew: 24 mm | Bc: 23 mm | Cr: 14.8 kN | C0r: 23.7 kN | Mass: 0.017 kg
K20X25X22SE Fw: 20 mm | Ew: 25 mm | Bc: 22 mm | Cr: 15.9 kN | C0r: 22.2 kN | Mass: 0.020 kg
K20X25X23SE Fw: 20 mm | Ew: 25 mm | Bc: 23 mm | Cr: 17.5 kN | C0r: 25.2 kN | Mass: 0.025 kg
9R1212P Fw: 9 mm | Ew: 12 mm | Bc: 12 mm | Cr: 5.25 kN | C0r: 5.95 kN | Mass: 0.004 kg
12R1615CP Fw: 12 mm | Ew: 16 mm | Bc: 14.8 mm | Cr: 8.35 kN | C0r: 9.8 kN | Mass: 0.008 kg
RE121615AL1 Fw: 12 mm | Ew: 16 mm | Bc: 15.4 mm | Cr: 8.35 kN | C0r: 9.8 kN | Mass: 0.008 kg
12UR1616P Fw: 12 mm | Ew: 16 mm | Bc: 16 mm | Cr: 7.7 kN | C0r: 8.75 kN | Mass: 0.008 kg
RE141816AL1 Fw: 14 mm | Ew: 18 mm | Bc: 15.8 mm | Cr: 9.4 kN | C0r: 11.8 kN | Mass: 0.01 kg
RE141817AL2-2 Fw: 14 mm | Ew: 18 mm | Bc: 16.5 mm | Cr: 10 kN | C0r: 12.8 kN | Mass: 0.01 kg
14R1818P Fw: 14 mm | Ew: 18 mm | Bc: 17.5 mm | Cr: 8.85 kN | C0r: 10.9 kN | Mass: 0.011 kg
UR14/20P Fw: 14 mm | Ew: 18 mm | Bc: 20 mm | Cr: 8.9 kN | C0r: 11 kN | Mass: 0.012 kg
RE151917BL3 Fw: 15 mm | Ew: 19 mm | Bc: 17.3 mm | Cr: 10.5 kN | C0r: 13.9 kN | Mass: 0.011 kg
15R1920BP-1 Fw: 15 mm | Ew: 19 mm | Bc: 20 mm | Cr: 12.1 kN | C0r: 16.6 kN | Mass: 0.013 kg
RE152018BL2 Fw: 15 mm | Ew: 20 mm | Bc: 17.8 mm | Cr: 12.3 kN | C0r: 14.7 kN | Mass: 0.014 kg
RE152020CL2 Fw: 15 mm | Ew: 20 mm | Bc: 19.8 mm | Cr: 14.3 kN | C0r: 17.9 kN | Mass: 0.016 kg
R16/18.8AP-2 Fw: 16 mm | Ew: 20 mm | Bc: 18.8 mm | Cr: 11 kN | C0r: 15.1 kN | Mass: 0.013 kg
R16/19.5FP Fw: 16 mm | Ew: 20 mm | Bc: 19.5 mm | Cr: 9.95 kN | C0r: 13.2 kN | Mass: 0.014 kg
RE162020AL2 Fw: 16 mm | Ew: 20 mm | Bc: 19.5 mm | Cr: 9.95 kN | C0r: 13.2 kN | Mass: 0.013 kg
R16/22.5EP Fw: 16 mm | Ew: 20 mm | Bc: 22.5 mm | Cr: 9.85 kN | C0r: 13 kN | Mass: 0.016 kg
16R2118BP-2 Fw: 16 mm | Ew: 21 mm | Bc: 17.5 mm | Cr: 12.2 kN | C0r: 14.8 kN | Mass: 0.016 kg
16R2120EP-2 Fw: 16 mm | Ew: 21 mm | Bc: 19.5 mm | Cr: 13.5 kN | C0r: 16.9 kN | Mass: 0.017 kg
RE162123AL2 Fw: 16 mm | Ew: 21 mm | Bc: 22.5 mm | Cr: 15.4 kN | C0r: 20 kN | Mass: 0.02 kg
RE182220AL1 Fw: 18 mm | Ew: 22 mm | Bc: 19.65 mm | Cr: 10.9 kN | C0r: 15.4 kN | Mass: 0.015 kg
18R2222P Fw: 18 mm | Ew: 22 mm | Bc: 22 mm | Cr: 12.1 kN | C0r: 17.6 kN | Mass: 0.017 kg
RE182224AL2 Fw: 18 mm | Ew: 22 mm | Bc: 23.6 mm | Cr: 13.3 kN | C0r: 20 kN | Mass: 0.017 kg
18R2322P Fw: 18 mm | Ew: 23 mm | Bc: 22 mm | Cr: 14.2 kN | C0r: 18.6 kN | Mass: 0.021 kg
RE182324AL2 Fw: 18 mm | Ew: 23 mm | Bc: 23.8 mm | Cr: 16.5 kN | C0r: 22.7 kN | Mass: 0.024 kg
RE192425AL1 Fw: 19 mm | Ew: 24 mm | Bc: 24.8 mm | Cr: 18.3 kN | C0r: 26.2 kN | Mass: 0.026 kg
20R2513P Fw: 20 mm | Ew: 25 mm | Bc: 13 mm | Cr: 11.9 kN | C0r: 15.3 kN | Mass: 0.013 kg
RE202522AL2 Fw: 20 mm | Ew: 25 mm | Bc: 21.8 mm | Cr: 17.6 kN | C0r: 25.3 kN | Mass: 0.024 kg
RE202523L1 Fw: 20 mm | Ew: 25 mm | Bc: 23 mm | Cr: 19.1 kN | C0r: 28.2 kN | Mass: 0.024 kg
RE202524L2-1 Fw: 20 mm | Ew: 25 mm | Bc: 24 mm | Cr: 16.3 kN | C0r: 23 kN | Mass: 0.026 kg
RE202528AL1 Fw: 20 mm | Ew: 25 mm | Bc: 27.8 mm | Cr: 21.7 kN | C0r: 33.2 kN | Mass: 0.03 kg
