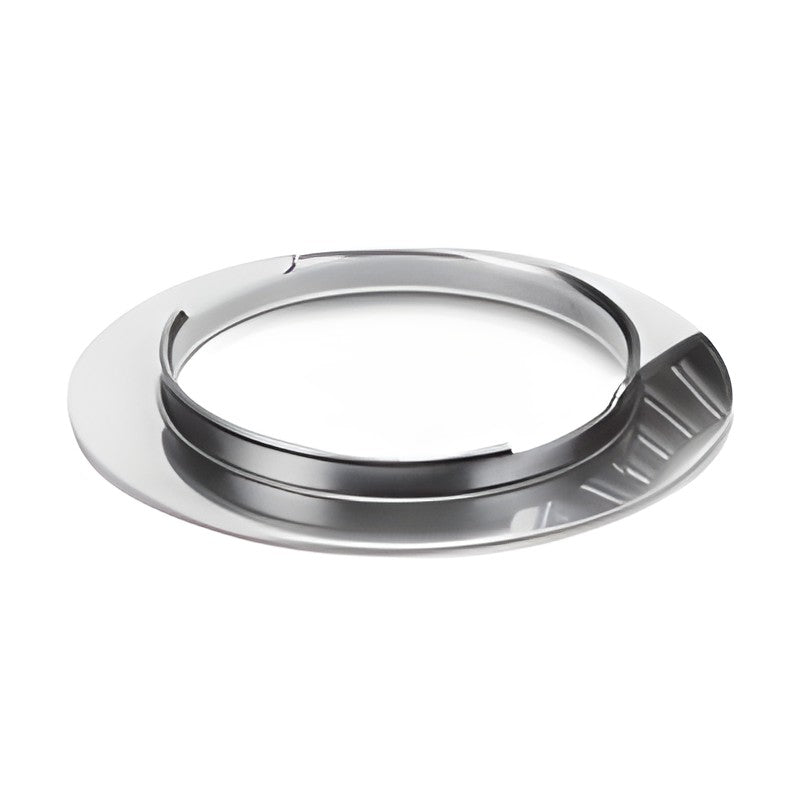

KOYO CP, CPN, CPR Thrust Washers (Thin, Thick, Heavy)

KOYO CP, CPN, CPR Thrust Washers (Thin, Thick, Heavy)

Metric CP thin and thick thrust washers, CPN precision washers and CPR heavy thrust washers for AX and AR unitized thrust bearings.

Key features

  • Hardened and ground thrust washers
  • Thin (CP) and thick (CP n) versions
  • CPN precision washers
  • CPR heavy washers for AR roller thrust bearings

Specifications

Product type Thrust washer
Types CP, CPN, CPR
Use with AX, AR thrust bearings
Source KOYO Needle Roller Bearings catalogue, p. B-6-27 to B-6-33, B-6-40 to B-6-43
CP 5 13 Type: Thin | d: 5 mm | d1: 12.4 mm | Thickness: 0.8 mm
CP 2 5 13 Type: Thick | d: 5 mm | d1: 12.4 mm | Thickness: 2.0 mm
CP 6 14 Type: Thin | d: 6 mm | d1: 13.4 mm | Thickness: 0.8 mm
CP 2 6 14 Type: Thick | d: 6 mm | d1: 13.4 mm | Thickness: 2.0 mm
CP 7 15 Type: Thin | d: 7 mm | d1: 14.4 mm | Thickness: 0.8 mm
CP 2 7 15 Type: Thick | d: 7 mm | d1: 14.4 mm | Thickness: 2.0 mm
CP 8 16 Type: Thin | d: 8 mm | d1: 15.4 mm | Thickness: 0.8 mm
CP 2 8 16 Type: Thick | d: 8 mm | d1: 15.4 mm | Thickness: 2.0 mm
CP 9 17 Type: Thin | d: 9 mm | d1: 16.4 mm | Thickness: 0.8 mm
CP 2 9 17 Type: Thick | d: 9 mm | d1: 16.4 mm | Thickness: 2.0 mm
CP 2 10 22 Type: Thick | d: 10 mm | d1: 21.5 mm | Thickness: 2.0 mm
CP 12 26 Type: Thin | d: 12 mm | d1: 25.5 mm | Thickness: 0.8 mm
CPN 2 12 26 Type: Precision | d: 12 mm | d1: 25.5 mm | Thickness: 2.0 mm
CP 2 12 26 Type: Thick | d: 12 mm | d1: 25.5 mm | Thickness: 2.0 mm
CP 13 26 Type: Thin | d: 13 mm | d1: 25.5 mm | Thickness: 0.8 mm
CP 2 13 26 Type: Thick | d: 13 mm | d1: 25.5 mm | Thickness: 2.0 mm
CP 15 28 Type: Thin | d: 15 mm | d1: 27.5 mm | Thickness: 0.8 mm
CPN 2 15 28 Type: Precision | d: 15 mm | d1: 27.5 mm | Thickness: 2.0 mm
CP 2 15 28 Type: Thick | d: 15 mm | d1: 27.5 mm | Thickness: 2.0 mm
CP 17 30 Type: Thin | d: 17 mm | d1: 29.5 mm | Thickness: 0.8 mm
CPN 7 17 30 Type: Precision | d: 17 mm | d1: 29.5 mm | Thickness: 7.0 mm
CP 2 17 30 Type: Thick | d: 17 mm | d1: 29.5 mm | Thickness: 2.0 mm
CP 19 32 Type: Thin | d: 19 mm | d1: 31.5 mm | Thickness: 0.8 mm
CP 2 19 32 Type: Thick | d: 19 mm | d1: 31.5 mm | Thickness: 2.0 mm
CP 3 20 35 Type: Thick | d: 20 mm | d1: 34.5 mm | Thickness: 3.0 mm
CPN 3 20 35 Type: Precision | d: 20 mm | d1: 34.5 mm | Thickness: 3.0 mm
CP 25 42 Type: Thin | d: 25 mm | d1: 41.5 mm | Thickness: 0.8 mm
CPN 3 25 42 Type: Precision | d: 25 mm | d1: 41.5 mm | Thickness: 3.0 mm
CP 3 25 42 Type: Thick | d: 25 mm | d1: 41.5 mm | Thickness: 3.0 mm
CP 27 44 Type: Thin | d: 27 mm | d1: 43.7 mm | Thickness: 0.8 mm
CP 30 47 Type: Thin | d: 30 mm | d1: 46.5 mm | Thickness: 0.8 mm
CPN 5 30 47 Type: Precision | d: 30 mm | d1: 46.5 mm | Thickness: 5.0 mm
CP 3 30 47 Type: Thick | d: 30 mm | d1: 46.5 mm | Thickness: 3.0 mm
CP 35 52 Type: Thin | d: 35 mm | d1: 51.5 mm | Thickness: 0.8 mm
CPN 3 35 52 Type: Precision | d: 35 mm | d1: 51.5 mm | Thickness: 3.0 mm
CP 3 35 52 Type: Thick | d: 35 mm | d1: 51.5 mm | Thickness: 3.0 mm
CP 35 53 Type: Thin | d: 35 mm | d1: 52.5 mm | Thickness: 0.8 mm
CP 3 35 53 Type: Thick | d: 35 mm | d1: 52.5 mm | Thickness: 3.0 mm
CP 40 60 Type: Thin | d: 40 mm | d1: 59.5 mm | Thickness: 0.8 mm
CPN 3 40 60 Type: Precision | d: 40 mm | d1: 59.5 mm | Thickness: 3.0 mm
CP 3 40 60 Type: Thick | d: 40 mm | d1: 59.5 mm | Thickness: 3.0 mm
CP 45 65 Type: Thin | d: 45 mm | d1: 64.4 mm | Thickness: 0.8 mm
CPN 3 45 65 Type: Precision | d: 45 mm | d1: 64.4 mm | Thickness: 3.0 mm
CP 3 45 65 Type: Thick | d: 45 mm | d1: 64.4 mm | Thickness: 3.0 mm
CP 50 70 Type: Thin | d: 50 mm | d1: 69.4 mm | Thickness: 0.8 mm
CP 3 50 70 Type: Thick | d: 50 mm | d1: 69.4 mm | Thickness: 3.0 mm
CP 55 78 Type: Thin | d: 55 mm | d1: 77.4 mm | Thickness: 0.8 mm
CP 4 55 78 Type: Thick | d: 55 mm | d1: 77.4 mm | Thickness: 4.0 mm
CP 4 60 85 Type: Thick | d: 60 mm | d1: 84.3 mm | Thickness: 4.0 mm
CP 1,5 65 90 Type: Thin | d: 65 mm | d1: 89.3 mm | Thickness: 1.5 mm
CP 4 65 90 Type: Thick | d: 65 mm | d1: 89.3 mm | Thickness: 4.0 mm
CP 1,5 70 95 Type: Thin | d: 70 mm | d1: 94.3 mm | Thickness: 1.5 mm
CPN 4 70 95 Type: Precision | d: 70 mm | d1: 94.3 mm | Thickness: 4.0 mm
CP 4 70 95 Type: Thick | d: 70 mm | d1: 94.3 mm | Thickness: 4.0 mm
CP 1,5 75 100 Type: Thin | d: 75 mm | d1: 99.3 mm | Thickness: 1.5 mm
CP 4 75 100 Type: Thick | d: 75 mm | d1: 99.3 mm | Thickness: 4.0 mm
CP 1,5 80 105 Type: Thin | d: 80 mm | d1: 104.3 mm | Thickness: 1.5 mm
CP 4 80 105 Type: Thick | d: 80 mm | d1: 104.3 mm | Thickness: 4.0 mm
CP 1,5 85 110 Type: Thin | d: 85 mm | d1: 109.3 mm | Thickness: 1.5 mm
CP 4 85 110 Type: Thick | d: 85 mm | d1: 109.3 mm | Thickness: 4.0 mm
CP 1,5 90 120 Type: Thin | d: 90 mm | d1: 118.8 mm | Thickness: 1.5 mm
CP 5 90 120 Type: Thick | d: 90 mm | d1: 118.8 mm | Thickness: 5.0 mm
CP 6 100 135 Type: Thick | d: 100 mm | d1: 133.8 mm | Thickness: 6.0 mm
CP 1,5 110 145 Type: Thin | d: 110 mm | d1: 143.8 mm | Thickness: 1.5 mm
CP 6 110 145 Type: Thick | d: 110 mm | d1: 143.8 mm | Thickness: 6.0 mm
CP 1,5 120 155 Type: Thin | d: 120 mm | d1: 153.8 mm | Thickness: 1.5 mm
CP 6 120 155 Type: Thick | d: 120 mm | d1: 153.8 mm | Thickness: 6.0 mm
CP 7 130 170 Type: Thick | d: 130 mm | d1: 168.7 mm | Thickness: 7.0 mm
CP 7 140 180 Type: Thick | d: 140 mm | d1: 178.7 mm | Thickness: 7.0 mm
CP 7 150 190 Type: Thick | d: 150 mm | d1: 188.7 mm | Thickness: 7.0 mm
CP 7 160 200 Type: Thick | d: 160 mm | d1: 198.7 mm | Thickness: 7.0 mm
CP 7 170 215 Type: Thick | d: 170 mm | d1: 213.5 mm | Thickness: 7.0 mm
CP 7 180 225 Type: Thick | d: 180 mm | d1: 223.5 mm | Thickness: 7.0 mm
CP 8 190 240 Type: Thick | d: 190 mm | d1: 238.3 mm | Thickness: 8.0 mm
CP 8 200 250 Type: Thick | d: 200 mm | d1: 248.3 mm | Thickness: 8.0 mm
CP 8 220 270 Type: Thick | d: 220 mm | d1: 268.3 mm | Thickness: 8.0 mm
CP 9 240 300 Type: Thick | d: 240 mm | d1: 298.5 mm | Thickness: 9.0 mm
CP 10 22 Type: Thin | d: 10 mm | D: 22 mm | Thickness: 0.8 mm
CP 20 35 Type: Thin | d: 20 mm | D: 34 mm | Thickness: 0.8 mm
CPR 4 25 52 Type: Heavy CPR | d: 25 mm | D: 52 mm | Thickness: 4 mm
CPR 5 30 60 Type: Heavy CPR | d: 30 mm | D: 60 mm | Thickness: 5 mm
CPR 5 35 68 Type: Heavy CPR | d: 35 mm | D: 68 mm | Thickness: 5 mm
CPR 6 40 78 Type: Heavy CPR | d: 40 mm | D: 78 mm | Thickness: 6 mm
CPR 8 45 85 Type: Heavy CPR | d: 45 mm | D: 85 mm | Thickness: 8 mm
CPR 8 50 95 Type: Heavy CPR | d: 50 mm | D: 95 mm | Thickness: 8 mm
CPR 8 55 105 Type: Heavy CPR | d: 55 mm | D: 105 mm | Thickness: 8 mm
CP 60 85 Type: Thin | d: 60 mm | D: 84 mm | Thickness: 0.8 mm
CPR 8 60 110 Type: Heavy CPR | d: 60 mm | D: 110 mm | Thickness: 8 mm
CPR 8 65 115 Type: Heavy CPR | d: 65 mm | D: 115 mm | Thickness: 8 mm
CPR 8 70 125 Type: Heavy CPR | d: 70 mm | D: 125 mm | Thickness: 8 mm
CPR 8 75 135 Type: Heavy CPR | d: 75 mm | D: 135 mm | Thickness: 8 mm
CPR 8 80 140 Type: Heavy CPR | d: 80 mm | D: 140 mm | Thickness: 8 mm
CPR 9 85 150 Type: Heavy CPR | d: 85 mm | D: 150 mm | Thickness: 9 mm
CPR 9 90 155 Type: Heavy CPR | d: 90 mm | D: 155 mm | Thickness: 9 mm
CPR 10 100 170 Type: Heavy CPR | d: 100 mm | D: 170 mm | Thickness: 10 mm
CPR 12 110 190 Type: Heavy CPR | d: 110 mm | D: 190 mm | Thickness: 12 mm
CPR 12 120 210 Type: Heavy CPR | d: 120 mm | D: 210 mm | Thickness: 12 mm
CPR 12 130 225 Type: Heavy CPR | d: 130 mm | D: 225 mm | Thickness: 12 mm
CPR 14 140 240 Type: Heavy CPR | d: 140 mm | D: 240 mm | Thickness: 14 mm
