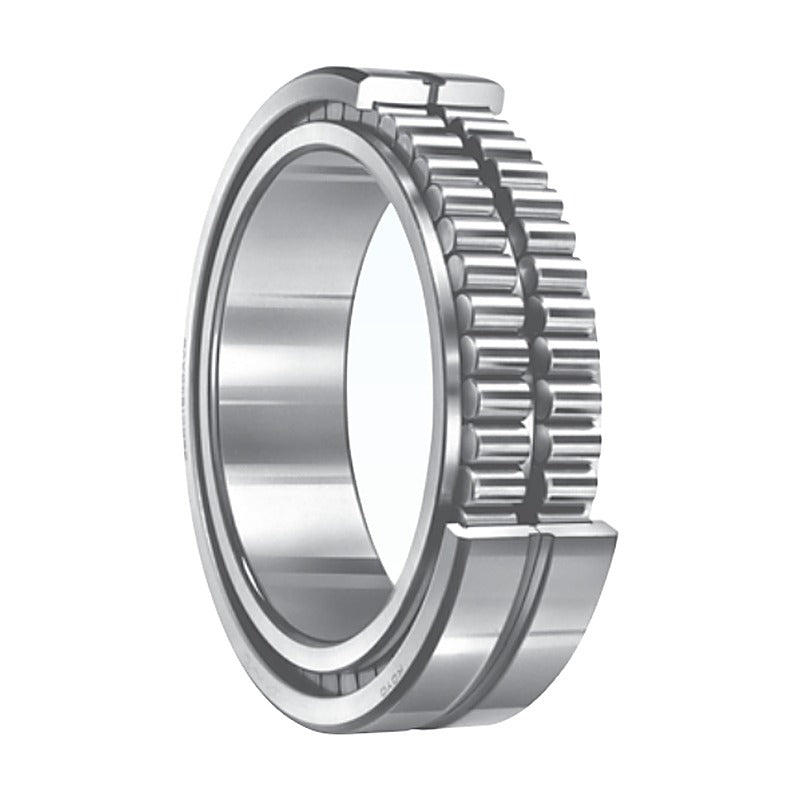

KOYO Crane Sheave Cylindrical Roller Bearings, Open (DC48, DC49)

KOYO Crane Sheave Cylindrical Roller Bearings, Open (DC48, DC49)

Open double-row full complement cylindrical roller bearings for crane sheaves, DC48 and DC49 series, in AVW and VW versions.

Key features

  • Full complement double-row design
  • High radial load capacity
  • Open type for oil or grease lubrication
  • DC48 and DC49 dimension series

Specifications

Bearing type Full complement cylindrical roller bearing
Series DC48, DC49 (AVW, VW)
Application Crane sheaves
Source KOYO Special Bearings catalogue, p. C80-C83
DC4910AVW d: 50 mm | D: 72 mm | B: 22 mm | Cr: 49.1 kN | C0r: 82.9 kN | Mass: 0.30 kg
DC4910VW d: 50 mm | D: 72 mm | B: 22 mm | Cr: 49.1 kN | C0r: 82.9 kN | Mass: 0.30 kg
DC4912AVW d: 60 mm | D: 85 mm | B: 25 mm | Cr: 72.7 kN | C0r: 136 kN | Mass: 0.46 kg
DC4912VW d: 60 mm | D: 85 mm | B: 25 mm | Cr: 72.7 kN | C0r: 136 kN | Mass: 0.46 kg
DC4914AVW d: 70 mm | D: 100 mm | B: 30 mm | Cr: 105 kN | C0r: 193 kN | Mass: 0.78 kg
DC4914VW d: 70 mm | D: 100 mm | B: 30 mm | Cr: 105 kN | C0r: 193 kN | Mass: 0.78 kg
DC4916AVW d: 80 mm | D: 110 mm | B: 30 mm | Cr: 114 kN | C0r: 218 kN | Mass: 0.88 kg
DC4916VW d: 80 mm | D: 110 mm | B: 30 mm | Cr: 114 kN | C0r: 218 kN | Mass: 0.88 kg
DC4918AVW d: 90 mm | D: 125 mm | B: 35 mm | Cr: 150 kN | C0r: 301 kN | Mass: 1.35 kg
DC4918VW d: 90 mm | D: 125 mm | B: 35 mm | Cr: 150 kN | C0r: 301 kN | Mass: 1.35 kg
DC4920AVW d: 100 mm | D: 140 mm | B: 40 mm | Cr: 194 kN | C0r: 400 kN | Mass: 1.95 kg
DC4920VW d: 100 mm | D: 140 mm | B: 40 mm | Cr: 194 kN | C0r: 400 kN | Mass: 1.95 kg
DC4922AVW d: 110 mm | D: 150 mm | B: 40 mm | Cr: 202 kN | C0r: 431 kN | Mass: 2.15 kg
DC4922VW d: 110 mm | D: 150 mm | B: 40 mm | Cr: 202 kN | C0r: 431 kN | Mass: 2.15 kg
DC4924AVW d: 120 mm | D: 165 mm | B: 45 mm | Cr: 226 kN | C0r: 479 kN | Mass: 2.95 kg
DC4924VW d: 120 mm | D: 165 mm | B: 45 mm | Cr: 226 kN | C0r: 479 kN | Mass: 2.95 kg
DC4926AVW d: 130 mm | D: 180 mm | B: 50 mm | Cr: 276 kN | C0r: 560 kN | Mass: 3.95 kg
DC4926VW d: 130 mm | D: 180 mm | B: 50 mm | Cr: 276 kN | C0r: 560 kN | Mass: 3.95 kg
DC4928AVW d: 140 mm | D: 190 mm | B: 50 mm | Cr: 284 kN | C0r: 589 kN | Mass: 4.20 kg
DC4928VW d: 140 mm | D: 190 mm | B: 50 mm | Cr: 284 kN | C0r: 589 kN | Mass: 4.20 kg
DC4830AVW d: 150 mm | D: 190 mm | B: 40 mm | Cr: 234 kN | C0r: 575 kN | Mass: 2.90 kg
DC4830VW d: 150 mm | D: 190 mm | B: 40 mm | Cr: 234 kN | C0r: 575 kN | Mass: 2.90 kg
DC4930AVW d: 150 mm | D: 210 mm | B: 60 mm | Cr: 406 kN | C0r: 842 kN | Mass: 6.65 kg
DC4930VW d: 150 mm | D: 210 mm | B: 60 mm | Cr: 406 kN | C0r: 842 kN | Mass: 6.65 kg
DC4832AVW d: 160 mm | D: 200 mm | B: 40 mm | Cr: 242 kN | C0r: 616 kN | Mass: 3.05 kg
DC4832VW d: 160 mm | D: 200 mm | B: 40 mm | Cr: 242 kN | C0r: 616 kN | Mass: 3.05 kg
DC4932AVW d: 160 mm | D: 220 mm | B: 60 mm | Cr: 428 kN | C0r: 895 kN | Mass: 7.00 kg
DC4932VW d: 160 mm | D: 220 mm | B: 60 mm | Cr: 428 kN | C0r: 895 kN | Mass: 7.00 kg
DC4834AVW d: 170 mm | D: 215 mm | B: 45 mm | Cr: 269 kN | C0r: 655 kN | Mass: 4.10 kg
DC4834VW d: 170 mm | D: 215 mm | B: 45 mm | Cr: 269 kN | C0r: 655 kN | Mass: 4.10 kg
DC4934AVW d: 170 mm | D: 230 mm | B: 60 mm | Cr: 440 kN | C0r: 944 kN | Mass: 7.35 kg
DC4934VW d: 170 mm | D: 230 mm | B: 60 mm | Cr: 440 kN | C0r: 944 kN | Mass: 7.35 kg
DC4836AVW d: 180 mm | D: 225 mm | B: 45 mm | Cr: 276 kN | C0r: 690 kN | Mass: 4.30 kg
DC4836VW d: 180 mm | D: 225 mm | B: 45 mm | Cr: 276 kN | C0r: 690 kN | Mass: 4.30 kg
DC4936AVW d: 180 mm | D: 250 mm | B: 69 mm | Cr: 547 kN | C0r: 1 140 kN | Mass: 10.7 kg
DC4936VW d: 180 mm | D: 250 mm | B: 69 mm | Cr: 547 kN | C0r: 1 140 kN | Mass: 10.7 kg
DC4838AVW d: 190 mm | D: 240 mm | B: 50 mm | Cr: 327 kN | C0r: 782 kN | Mass: 5.65 kg
DC4838VW d: 190 mm | D: 240 mm | B: 50 mm | Cr: 327 kN | C0r: 782 kN | Mass: 5.65 kg
DC4938AVW d: 190 mm | D: 260 mm | B: 69 mm | Cr: 555 kN | C0r: 1 200 kN | Mass: 11.2 kg
DC4938VW d: 190 mm | D: 260 mm | B: 69 mm | Cr: 555 kN | C0r: 1 200 kN | Mass: 11.2 kg
DC4840AVW d: 200 mm | D: 250 mm | B: 50 mm | Cr: 337 kN | C0r: 826 kN | Mass: 5.90 kg
DC4840VW d: 200 mm | D: 250 mm | B: 50 mm | Cr: 337 kN | C0r: 826 kN | Mass: 5.90 kg
DC4940AVW d: 200 mm | D: 280 mm | B: 80 mm | Cr: 667 kN | C0r: 1 500 kN | Mass: 15.7 kg
DC4940VW d: 200 mm | D: 280 mm | B: 80 mm | Cr: 667 kN | C0r: 1 500 kN | Mass: 15.7 kg
DC4844AVW d: 220 mm | D: 270 mm | B: 50 mm | Cr: 355 kN | C0r: 971 kN | Mass: 6.40 kg
DC4844VW d: 220 mm | D: 270 mm | B: 50 mm | Cr: 355 kN | C0r: 971 kN | Mass: 6.40 kg
DC4944AVW d: 220 mm | D: 300 mm | B: 80 mm | Cr: 707 kN | C0r: 1 600 kN | Mass: 17.1 kg
DC4944VW d: 220 mm | D: 300 mm | B: 80 mm | Cr: 707 kN | C0r: 1 600 kN | Mass: 17.1 kg
DC4848AVW d: 240 mm | D: 300 mm | B: 60 mm | Cr: 509 kN | C0r: 1 330 kN | Mass: 10.2 kg
DC4848VW d: 240 mm | D: 300 mm | B: 60 mm | Cr: 509 kN | C0r: 1 330 kN | Mass: 10.2 kg
DC4948AVW d: 240 mm | D: 320 mm | B: 80 mm | Cr: 735 kN | C0r: 1 720 kN | Mass: 18.4 kg
DC4948VW d: 240 mm | D: 320 mm | B: 80 mm | Cr: 735 kN | C0r: 1 720 kN | Mass: 18.4 kg
DC4852AVW d: 260 mm | D: 320 mm | B: 60 mm | Cr: 532 kN | C0r: 1 450 kN | Mass: 11.0 kg
DC4852VW d: 260 mm | D: 320 mm | B: 60 mm | Cr: 532 kN | C0r: 1 450 kN | Mass: 11.0 kg
DC4952AVW d: 260 mm | D: 360 mm | B: 100 mm | Cr: 1 070 kN | C0r: 2 520 kN | Mass: 32.0 kg
DC4952VW d: 260 mm | D: 360 mm | B: 100 mm | Cr: 1 070 kN | C0r: 2 520 kN | Mass: 32.0 kg
DC4856AVW d: 280 mm | D: 350 mm | B: 69 mm | Cr: 663 kN | C0r: 1 720 kN | Mass: 16.0 kg
DC4856VW d: 280 mm | D: 350 mm | B: 69 mm | Cr: 663 kN | C0r: 1 720 kN | Mass: 16.0 kg
DC4956AVW d: 280 mm | D: 380 mm | B: 100 mm | Cr: 1 130 kN | C0r: 2 700 kN | Mass: 33.9 kg
DC4956VW d: 280 mm | D: 380 mm | B: 100 mm | Cr: 1 130 kN | C0r: 2 700 kN | Mass: 33.9 kg
DC4860AVW d: 300 mm | D: 380 mm | B: 80 mm | Cr: 802 kN | C0r: 2 160 kN | Mass: 23.0 kg
DC4860VW d: 300 mm | D: 380 mm | B: 80 mm | Cr: 802 kN | C0r: 2 160 kN | Mass: 23.0 kg
DC4960AVW d: 300 mm | D: 420 mm | B: 118 mm | Cr: 1 560 kN | C0r: 3 710 kN | Mass: 53.0 kg
DC4960VW d: 300 mm | D: 420 mm | B: 118 mm | Cr: 1 560 kN | C0r: 3 710 kN | Mass: 53.0 kg
DC4864AVW d: 320 mm | D: 400 mm | B: 80 mm | Cr: 832 kN | C0r: 2 310 kN | Mass: 24.3 kg
DC4864VW d: 320 mm | D: 400 mm | B: 80 mm | Cr: 832 kN | C0r: 2 310 kN | Mass: 24.3 kg
DC4964AVW d: 320 mm | D: 440 mm | B: 118 mm | Cr: 1 620 kN | C0r: 3 940 kN | Mass: 56.0 kg
DC4964VW d: 320 mm | D: 440 mm | B: 118 mm | Cr: 1 620 kN | C0r: 3 940 kN | Mass: 56.0 kg
DC4868AVW d: 340 mm | D: 420 mm | B: 80 mm | Cr: 853 kN | C0r: 2 430 kN | Mass: 25.6 kg
DC4868VW d: 340 mm | D: 420 mm | B: 80 mm | Cr: 853 kN | C0r: 2 430 kN | Mass: 25.6 kg
DC4968AVW d: 340 mm | D: 460 mm | B: 118 mm | Cr: 1 660 kN | C0r: 4 150 kN | Mass: 59.0 kg
DC4968VW d: 340 mm | D: 460 mm | B: 118 mm | Cr: 1 660 kN | C0r: 4 150 kN | Mass: 59.0 kg
DC4872AVW d: 360 mm | D: 440 mm | B: 80 mm | Cr: 880 kN | C0r: 2 580 kN | Mass: 27.0 kg
DC4872VW d: 360 mm | D: 440 mm | B: 80 mm | Cr: 880 kN | C0r: 2 580 kN | Mass: 27.0 kg
DC4972AVW d: 360 mm | D: 480 mm | B: 118 mm | Cr: 1 700 kN | C0r: 4 390 kN | Mass: 62.0 kg
DC4972VW d: 360 mm | D: 480 mm | B: 118 mm | Cr: 1 700 kN | C0r: 4 390 kN | Mass: 62.0 kg
DC4876AVW d: 380 mm | D: 480 mm | B: 100 mm | Cr: 1 310 kN | C0r: 3 570 kN | Mass: 45.3 kg
DC4876VW d: 380 mm | D: 480 mm | B: 100 mm | Cr: 1 310 kN | C0r: 3 570 kN | Mass: 45.3 kg
DC4976AVW d: 380 mm | D: 520 mm | B: 140 mm | Cr: 2 290 kN | C0r: 5 600 kN | Mass: 92.3 kg
DC4976VW d: 380 mm | D: 520 mm | B: 140 mm | Cr: 2 290 kN | C0r: 5 600 kN | Mass: 92.3 kg
DC4980AVW d: 400 mm | D: 540 mm | B: 140 mm | Cr: 2 380 kN | C0r: 5 990 kN | Mass: 96.4 kg
DC4980VW d: 400 mm | D: 540 mm | B: 140 mm | Cr: 2 380 kN | C0r: 5 990 kN | Mass: 96.4 kg
DC4984AVW d: 420 mm | D: 560 mm | B: 140 mm | Cr: 2 440 kN | C0r: 6 270 kN | Mass: 101 kg
DC4984VW d: 420 mm | D: 560 mm | B: 140 mm | Cr: 2 440 kN | C0r: 6 270 kN | Mass: 101 kg
DC4988AVW d: 440 mm | D: 600 mm | B: 160 mm | Cr: 2 970 kN | C0r: 7 390 kN | Mass: 139 kg
DC4988VW d: 440 mm | D: 600 mm | B: 160 mm | Cr: 2 970 kN | C0r: 7 390 kN | Mass: 139 kg
