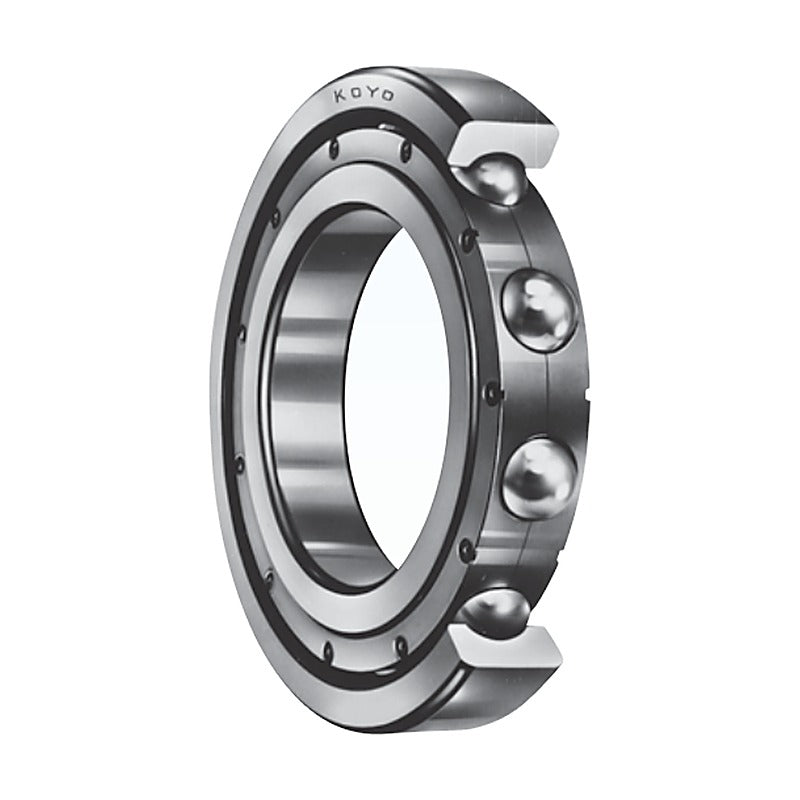

KOYO Deep Groove Ball Bearings with Snap Ring Groove (N, NR)

KOYO Deep Groove Ball Bearings with Snap Ring Groove (N, NR)

Single-row deep groove ball bearings with a snap ring groove on the outer ring (N) or supplied with a locating snap ring fitted (NR), for simple axial location in the housing.

Key features

  • N type: snap ring groove in outer ring
  • NR type: supplied with locating snap ring
  • Simplifies housing design and shortens assembly length
  • Available in 60, 62 and 63 series
  • Snap ring and groove dimensions to JIS

Specifications

Bearing type Single-row deep groove ball bearing
Outer ring Snap ring groove (N) / with snap ring (NR)
Series 60, 62, 63
Bore range 10 - 160 mm
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B32-B37
6200N d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.10 kN | C0r: 2.40 kN | Groove dia D1: 28.17 mm
6200NR d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.10 kN | C0r: 2.40 kN | Groove dia D1: 28.17 mm
6300N d: 10 mm | D: 35 mm | B: 11 mm | Cr: 8.10 kN | C0r: 3.45 kN | Groove dia D1: 33.17 mm
6300NR d: 10 mm | D: 35 mm | B: 11 mm | Cr: 8.10 kN | C0r: 3.45 kN | Groove dia D1: 33.17 mm
6201N d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.80 kN | C0r: 3.05 kN | Groove dia D1: 30.15 mm
6201NR d: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.80 kN | C0r: 3.05 kN | Groove dia D1: 30.15 mm
6301N d: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.70 kN | C0r: 4.20 kN | Groove dia D1: 34.77 mm
6301NR d: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.70 kN | C0r: 4.20 kN | Groove dia D1: 34.77 mm
6202N d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.65 kN | C0r: 3.75 kN | Groove dia D1: 33.17 mm
6202NR d: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.65 kN | C0r: 3.75 kN | Groove dia D1: 33.17 mm
6302N d: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Groove dia D1: 39.75 mm
6302NR d: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Groove dia D1: 39.75 mm
6203N d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN | Groove dia D1: 38.1 mm
6203NR d: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN | Groove dia D1: 38.1 mm
6303N d: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.6 kN | C0r: 6.65 kN | Groove dia D1: 44.6 mm
6303NR d: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.6 kN | C0r: 6.65 kN | Groove dia D1: 44.6 mm
6004N d: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.05 kN | Groove dia D1: 39.75 mm
6004NR d: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.05 kN | Groove dia D1: 39.75 mm
6204N d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Groove dia D1: 44.6 mm
6204NR d: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Groove dia D1: 44.6 mm
6304N d: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.85 kN | Groove dia D1: 49.73 mm
6304NR d: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.85 kN | Groove dia D1: 49.73 mm
60/22N d: 22 mm | D: 44 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.15 kN | Groove dia D1: 41.75 mm
60/22NR d: 22 mm | D: 44 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.15 kN | Groove dia D1: 41.75 mm
62/22N d: 22 mm | D: 50 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Groove dia D1: 47.6 mm
62/22NR d: 22 mm | D: 50 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Groove dia D1: 47.6 mm
63/22N d: 22 mm | D: 56 mm | B: 16 mm | Cr: 18.5 kN | C0r: 9.40 kN | Groove dia D1: 53.6 mm
63/22NR d: 22 mm | D: 56 mm | B: 16 mm | Cr: 18.5 kN | C0r: 9.40 kN | Groove dia D1: 53.6 mm
6005N d: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Groove dia D1: 44.6 mm
6005NR d: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Groove dia D1: 44.6 mm
6205N d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN | Groove dia D1: 49.73 mm
6205NR d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN | Groove dia D1: 49.73 mm
6305N d: 25 mm | D: 62 mm | B: 17 mm | Cr: 20.6 kN | C0r: 11.3 kN | Groove dia D1: 59.61 mm
6305NR d: 25 mm | D: 62 mm | B: 17 mm | Cr: 20.6 kN | C0r: 11.3 kN | Groove dia D1: 59.61 mm
60/28N d: 28 mm | D: 52 mm | B: 12 mm | Cr: 12.4 kN | C0r: 7.40 kN | Groove dia D1: 49.73 mm
60/28NR d: 28 mm | D: 52 mm | B: 12 mm | Cr: 12.4 kN | C0r: 7.40 kN | Groove dia D1: 49.73 mm
62/28N d: 28 mm | D: 58 mm | B: 16 mm | Cr: 17.9 kN | C0r: 9.75 kN | Groove dia D1: 55.6 mm
62/28NR d: 28 mm | D: 58 mm | B: 16 mm | Cr: 17.9 kN | C0r: 9.75 kN | Groove dia D1: 55.6 mm
63/28N d: 28 mm | D: 68 mm | B: 18 mm | Cr: 23.5 kN | C0r: 13.1 kN | Groove dia D1: 64.82 mm
63/28NR d: 28 mm | D: 68 mm | B: 18 mm | Cr: 23.5 kN | C0r: 13.1 kN | Groove dia D1: 64.82 mm
6006N d: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.25 kN | Groove dia D1: 52.6 mm
6006NR d: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.25 kN | Groove dia D1: 52.6 mm
6206N d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Groove dia D1: 59.61 mm
6206NR d: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Groove dia D1: 59.61 mm
6306N d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15.0 kN | Groove dia D1: 68.81 mm
6306NR d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15.0 kN | Groove dia D1: 68.81 mm
60/32N d: 32 mm | D: 58 mm | B: 13 mm | Cr: 15.0 kN | C0r: 9.15 kN | Groove dia D1: 55.6 mm
60/32NR d: 32 mm | D: 58 mm | B: 13 mm | Cr: 15.0 kN | C0r: 9.15 kN | Groove dia D1: 55.6 mm
62/32N d: 32 mm | D: 65 mm | B: 17 mm | Cr: 23.5 kN | C0r: 13.1 kN | Groove dia D1: 62.6 mm
62/32NR d: 32 mm | D: 65 mm | B: 17 mm | Cr: 23.5 kN | C0r: 13.1 kN | Groove dia D1: 62.6 mm
63/32N d: 32 mm | D: 75 mm | B: 20 mm | Cr: 30.1 kN | C0r: 16.2 kN | Groove dia D1: 71.83 mm
63/32NR d: 32 mm | D: 75 mm | B: 20 mm | Cr: 30.1 kN | C0r: 16.2 kN | Groove dia D1: 71.83 mm
6007N d: 35 mm | D: 62 mm | B: 14 mm | Cr: 15.9 kN | C0r: 10.3 kN | Groove dia D1: 59.61 mm
6007NR d: 35 mm | D: 62 mm | B: 14 mm | Cr: 15.9 kN | C0r: 10.3 kN | Groove dia D1: 59.61 mm
6207N d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.4 kN | Groove dia D1: 68.81 mm
6207NR d: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.4 kN | Groove dia D1: 68.81 mm
6307N d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.4 kN | C0r: 19.3 kN | Groove dia D1: 76.81 mm
6307NR d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.4 kN | C0r: 19.3 kN | Groove dia D1: 76.81 mm
6008N d: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.7 kN | C0r: 11.5 kN | Groove dia D1: 64.82 mm
6008NR d: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.7 kN | C0r: 11.5 kN | Groove dia D1: 64.82 mm
6208N d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Groove dia D1: 76.81 mm
6208NR d: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Groove dia D1: 76.81 mm
6308N d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.7 kN | C0r: 24.0 kN | Groove dia D1: 86.79 mm
6308NR d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.7 kN | C0r: 24.0 kN | Groove dia D1: 86.79 mm
6009N d: 45 mm | D: 75 mm | B: 16 mm | Cr: 21.0 kN | C0r: 15.1 kN | Groove dia D1: 71.83 mm
6009NR d: 45 mm | D: 75 mm | B: 16 mm | Cr: 21.0 kN | C0r: 15.1 kN | Groove dia D1: 71.83 mm
6209N d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.7 kN | C0r: 20.3 kN | Groove dia D1: 81.81 mm
6209NR d: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.7 kN | C0r: 20.3 kN | Groove dia D1: 81.81 mm
6309N d: 45 mm | D: 100 mm | B: 25 mm | Cr: 48.9 kN | C0r: 29.5 kN | Groove dia D1: 96.8 mm
6309NR d: 45 mm | D: 100 mm | B: 25 mm | Cr: 48.9 kN | C0r: 29.5 kN | Groove dia D1: 96.8 mm
6010N d: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Groove dia D1: 76.81 mm
6010NR d: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Groove dia D1: 76.81 mm
6210N d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35.1 kN | C0r: 23.3 kN | Groove dia D1: 86.79 mm
6210NR d: 50 mm | D: 90 mm | B: 20 mm | Cr: 35.1 kN | C0r: 23.3 kN | Groove dia D1: 86.79 mm
6310N d: 50 mm | D: 110 mm | B: 27 mm | Cr: 62.0 kN | C0r: 38.3 kN | Groove dia D1: 106.81 mm
6310NR d: 50 mm | D: 110 mm | B: 27 mm | Cr: 62.0 kN | C0r: 38.3 kN | Groove dia D1: 106.81 mm
6011N d: 55 mm | D: 90 mm | B: 18 mm | Cr: 28.3 kN | C0r: 21.2 kN | Groove dia D1: 86.79 mm
6011NR d: 55 mm | D: 90 mm | B: 18 mm | Cr: 28.3 kN | C0r: 21.2 kN | Groove dia D1: 86.79 mm
6211N d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.4 kN | C0r: 29.4 kN | Groove dia D1: 96.8 mm
6211NR d: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.4 kN | C0r: 29.4 kN | Groove dia D1: 96.8 mm
6311N d: 55 mm | D: 120 mm | B: 29 mm | Cr: 71.6 kN | C0r: 45.0 kN | Groove dia D1: 115.21 mm
6311NR d: 55 mm | D: 120 mm | B: 29 mm | Cr: 71.6 kN | C0r: 45.0 kN | Groove dia D1: 115.21 mm
6012N d: 60 mm | D: 95 mm | B: 18 mm | Cr: 29.4 kN | C0r: 23.2 kN | Groove dia D1: 91.82 mm
6012NR d: 60 mm | D: 95 mm | B: 18 mm | Cr: 29.4 kN | C0r: 23.2 kN | Groove dia D1: 91.82 mm
6212N d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.4 kN | C0r: 36.2 kN | Groove dia D1: 106.81 mm
6212NR d: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.4 kN | C0r: 36.2 kN | Groove dia D1: 106.81 mm
6312N d: 60 mm | D: 130 mm | B: 31 mm | Cr: 81.9 kN | C0r: 52.2 kN | Groove dia D1: 125.22 mm
6312NR d: 60 mm | D: 130 mm | B: 31 mm | Cr: 81.9 kN | C0r: 52.2 kN | Groove dia D1: 125.22 mm
6013N d: 65 mm | D: 100 mm | B: 18 mm | Cr: 30.5 kN | C0r: 25.2 kN | Groove dia D1: 96.8 mm
6013NR d: 65 mm | D: 100 mm | B: 18 mm | Cr: 30.5 kN | C0r: 25.2 kN | Groove dia D1: 96.8 mm
6213N d: 65 mm | D: 120 mm | B: 23 mm | Cr: 57.2 kN | C0r: 40.1 kN | Groove dia D1: 115.21 mm
6213NR d: 65 mm | D: 120 mm | B: 23 mm | Cr: 57.2 kN | C0r: 40.1 kN | Groove dia D1: 115.21 mm
6313N d: 65 mm | D: 140 mm | B: 33 mm | Cr: 92.7 kN | C0r: 59.9 kN | Groove dia D1: 135.23 mm
6313NR d: 65 mm | D: 140 mm | B: 33 mm | Cr: 92.7 kN | C0r: 59.9 kN | Groove dia D1: 135.23 mm
6014N d: 70 mm | D: 110 mm | B: 20 mm | Cr: 38.1 kN | C0r: 30.9 kN | Groove dia D1: 106.81 mm
6014NR d: 70 mm | D: 110 mm | B: 20 mm | Cr: 38.1 kN | C0r: 30.9 kN | Groove dia D1: 106.81 mm
6214N d: 70 mm | D: 125 mm | B: 24 mm | Cr: 62.2 kN | C0r: 44.1 kN | Groove dia D1: 120.22 mm
6214NR d: 70 mm | D: 125 mm | B: 24 mm | Cr: 62.2 kN | C0r: 44.1 kN | Groove dia D1: 120.22 mm
6314N d: 70 mm | D: 150 mm | B: 35 mm | Cr: 104 kN | C0r: 68.2 kN | Groove dia D1: 145.24 mm
6314NR d: 70 mm | D: 150 mm | B: 35 mm | Cr: 104 kN | C0r: 68.2 kN | Groove dia D1: 145.24 mm
6015N d: 75 mm | D: 115 mm | B: 20 mm | Cr: 39.6 kN | C0r: 33.5 kN | Groove dia D1: 111.81 mm
6015NR d: 75 mm | D: 115 mm | B: 20 mm | Cr: 39.6 kN | C0r: 33.5 kN | Groove dia D1: 111.81 mm
6215N d: 75 mm | D: 130 mm | B: 25 mm | Cr: 67.4 kN | C0r: 48.3 kN | Groove dia D1: 125.22 mm
6215NR d: 75 mm | D: 130 mm | B: 25 mm | Cr: 67.4 kN | C0r: 48.3 kN | Groove dia D1: 125.22 mm
6315N d: 75 mm | D: 160 mm | B: 37 mm | Cr: 113 kN | C0r: 77.2 kN | Groove dia D1: 155.22 mm
6315NR d: 75 mm | D: 160 mm | B: 37 mm | Cr: 113 kN | C0r: 77.2 kN | Groove dia D1: 155.22 mm
6016N d: 80 mm | D: 125 mm | B: 22 mm | Cr: 47.6 kN | C0r: 39.8 kN | Groove dia D1: 120.22 mm
6016NR d: 80 mm | D: 125 mm | B: 22 mm | Cr: 47.6 kN | C0r: 39.8 kN | Groove dia D1: 120.22 mm
6216N d: 80 mm | D: 140 mm | B: 26 mm | Cr: 72.7 kN | C0r: 53.0 kN | Groove dia D1: 135.23 mm
6216NR d: 80 mm | D: 140 mm | B: 26 mm | Cr: 72.7 kN | C0r: 53.0 kN | Groove dia D1: 135.23 mm
6316N d: 80 mm | D: 170 mm | B: 39 mm | Cr: 123 kN | C0r: 86.7 kN | Groove dia D1: 163.65 mm
6316NR d: 80 mm | D: 170 mm | B: 39 mm | Cr: 123 kN | C0r: 86.7 kN | Groove dia D1: 163.65 mm
6017N d: 85 mm | D: 130 mm | B: 22 mm | Cr: 49.5 kN | C0r: 43.1 kN | Groove dia D1: 125.22 mm
6017NR d: 85 mm | D: 130 mm | B: 22 mm | Cr: 49.5 kN | C0r: 43.1 kN | Groove dia D1: 125.22 mm
6217N d: 85 mm | D: 150 mm | B: 28 mm | Cr: 84.0 kN | C0r: 61.9 kN | Groove dia D1: 145.24 mm
6217NR d: 85 mm | D: 150 mm | B: 28 mm | Cr: 84.0 kN | C0r: 61.9 kN | Groove dia D1: 145.24 mm
6317N d: 85 mm | D: 180 mm | B: 41 mm | Cr: 133 kN | C0r: 96.8 kN | Groove dia D1: 173.66 mm
6317NR d: 85 mm | D: 180 mm | B: 41 mm | Cr: 133 kN | C0r: 96.8 kN | Groove dia D1: 173.66 mm
6018N d: 90 mm | D: 140 mm | B: 24 mm | Cr: 58.2 kN | C0r: 49.7 kN | Groove dia D1: 135.23 mm
6018NR d: 90 mm | D: 140 mm | B: 24 mm | Cr: 58.2 kN | C0r: 49.7 kN | Groove dia D1: 135.23 mm
6218N d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96.1 kN | C0r: 71.5 kN | Groove dia D1: 155.22 mm
6218NR d: 90 mm | D: 160 mm | B: 30 mm | Cr: 96.1 kN | C0r: 71.5 kN | Groove dia D1: 155.22 mm
6318N d: 90 mm | D: 190 mm | B: 43 mm | Cr: 143 kN | C0r: 107 kN | Groove dia D1: 183.64 mm
6318NR d: 90 mm | D: 190 mm | B: 43 mm | Cr: 143 kN | C0r: 107 kN | Groove dia D1: 183.64 mm
6019N d: 95 mm | D: 145 mm | B: 24 mm | Cr: 60.4 kN | C0r: 53.9 kN | Groove dia D1: 140.23 mm
6019NR d: 95 mm | D: 145 mm | B: 24 mm | Cr: 60.4 kN | C0r: 53.9 kN | Groove dia D1: 140.23 mm
6219N d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 81.9 kN | Groove dia D1: 163.65 mm
6219NR d: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 81.9 kN | Groove dia D1: 163.65 mm
6319N d: 95 mm | D: 200 mm | B: 45 mm | Cr: 153 kN | C0r: 119 kN | Groove dia D1: 193.65 mm
6319NR d: 95 mm | D: 200 mm | B: 45 mm | Cr: 153 kN | C0r: 119 kN | Groove dia D1: 193.65 mm
6020N d: 100 mm | D: 150 mm | B: 24 mm | Cr: 60.2 kN | C0r: 54.2 kN | Groove dia D1: 145.24 mm
6020NR d: 100 mm | D: 150 mm | B: 24 mm | Cr: 60.2 kN | C0r: 54.2 kN | Groove dia D1: 145.24 mm
6220N d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93.1 kN | Groove dia D1: 173.66 mm
6220NR d: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93.1 kN | Groove dia D1: 173.66 mm
6021N d: 105 mm | D: 160 mm | B: 26 mm | Cr: 72.3 kN | C0r: 65.8 kN | Groove dia D1: 155.22 mm
6021NR d: 105 mm | D: 160 mm | B: 26 mm | Cr: 72.3 kN | C0r: 65.8 kN | Groove dia D1: 155.22 mm
6221N d: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Groove dia D1: 183.64 mm
6221NR d: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Groove dia D1: 183.64 mm
6022N d: 110 mm | D: 170 mm | B: 28 mm | Cr: 82.0 kN | C0r: 73.0 kN | Groove dia D1: 163.65 mm
6022NR d: 110 mm | D: 170 mm | B: 28 mm | Cr: 82.0 kN | C0r: 73.0 kN | Groove dia D1: 163.65 mm
6222N d: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Groove dia D1: 193.65 mm
6222NR d: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Groove dia D1: 193.65 mm
6024N d: 120 mm | D: 180 mm | B: 28 mm | Cr: 85.0 kN | C0r: 79.3 kN | Groove dia D1: 173.66 mm
6024NR d: 120 mm | D: 180 mm | B: 28 mm | Cr: 85.0 kN | C0r: 79.3 kN | Groove dia D1: 173.66 mm
6026N d: 130 mm | D: 200 mm | B: 33 mm | Cr: 106 kN | C0r: 101 kN | Groove dia D1: 193.65 mm
6026NR d: 130 mm | D: 200 mm | B: 33 mm | Cr: 106 kN | C0r: 101 kN | Groove dia D1: 193.65 mm
Deep Groove Ball BearingsKOYO
146 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Deep Groove Ball Bearings with Snap Ring Groove (N, NR)

Brand KOYO·Deep Groove Ball Bearings

Available part numbers (146)

6200N, 6200NR, 6300N, 6300NR, 6201N, 6201NR, 6301N, 6301NR, 6202N, 6202NR + 136 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6200Nd: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.10 kN | C0r: 2.40 kN | Groove dia D1: 28.17 mm
6200NRd: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.10 kN | C0r: 2.40 kN | Groove dia D1: 28.17 mm
6300Nd: 10 mm | D: 35 mm | B: 11 mm | Cr: 8.10 kN | C0r: 3.45 kN | Groove dia D1: 33.17 mm
6300NRd: 10 mm | D: 35 mm | B: 11 mm | Cr: 8.10 kN | C0r: 3.45 kN | Groove dia D1: 33.17 mm
6201Nd: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.80 kN | C0r: 3.05 kN | Groove dia D1: 30.15 mm
6201NRd: 12 mm | D: 32 mm | B: 10 mm | Cr: 6.80 kN | C0r: 3.05 kN | Groove dia D1: 30.15 mm
6301Nd: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.70 kN | C0r: 4.20 kN | Groove dia D1: 34.77 mm
6301NRd: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.70 kN | C0r: 4.20 kN | Groove dia D1: 34.77 mm
6202Nd: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.65 kN | C0r: 3.75 kN | Groove dia D1: 33.17 mm
6202NRd: 15 mm | D: 35 mm | B: 11 mm | Cr: 7.65 kN | C0r: 3.75 kN | Groove dia D1: 33.17 mm
6302Nd: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Groove dia D1: 39.75 mm
6302NRd: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Groove dia D1: 39.75 mm
6203Nd: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN | Groove dia D1: 38.1 mm
6203NRd: 17 mm | D: 40 mm | B: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN | Groove dia D1: 38.1 mm
6303Nd: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.6 kN | C0r: 6.65 kN | Groove dia D1: 44.6 mm
6303NRd: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.6 kN | C0r: 6.65 kN | Groove dia D1: 44.6 mm
6004Nd: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.05 kN | Groove dia D1: 39.75 mm
6004NRd: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.05 kN | Groove dia D1: 39.75 mm
6204Nd: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Groove dia D1: 44.6 mm
6204NRd: 20 mm | D: 47 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Groove dia D1: 44.6 mm
6304Nd: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.85 kN | Groove dia D1: 49.73 mm
6304NRd: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.85 kN | Groove dia D1: 49.73 mm
60/22Nd: 22 mm | D: 44 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.15 kN | Groove dia D1: 41.75 mm
60/22NRd: 22 mm | D: 44 mm | B: 12 mm | Cr: 9.40 kN | C0r: 5.15 kN | Groove dia D1: 41.75 mm
62/22Nd: 22 mm | D: 50 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Groove dia D1: 47.6 mm
62/22NRd: 22 mm | D: 50 mm | B: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN | Groove dia D1: 47.6 mm
63/22Nd: 22 mm | D: 56 mm | B: 16 mm | Cr: 18.5 kN | C0r: 9.40 kN | Groove dia D1: 53.6 mm
63/22NRd: 22 mm | D: 56 mm | B: 16 mm | Cr: 18.5 kN | C0r: 9.40 kN | Groove dia D1: 53.6 mm
6005Nd: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Groove dia D1: 44.6 mm
6005NRd: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Groove dia D1: 44.6 mm
6205Nd: 25 mm | D: 52 mm | B: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN | Groove dia D1: 49.73 mm
6205NRd: 25 mm | D: 52 mm | B: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN | Groove dia D1: 49.73 mm
6305Nd: 25 mm | D: 62 mm | B: 17 mm | Cr: 20.6 kN | C0r: 11.3 kN | Groove dia D1: 59.61 mm
6305NRd: 25 mm | D: 62 mm | B: 17 mm | Cr: 20.6 kN | C0r: 11.3 kN | Groove dia D1: 59.61 mm
60/28Nd: 28 mm | D: 52 mm | B: 12 mm | Cr: 12.4 kN | C0r: 7.40 kN | Groove dia D1: 49.73 mm
60/28NRd: 28 mm | D: 52 mm | B: 12 mm | Cr: 12.4 kN | C0r: 7.40 kN | Groove dia D1: 49.73 mm
62/28Nd: 28 mm | D: 58 mm | B: 16 mm | Cr: 17.9 kN | C0r: 9.75 kN | Groove dia D1: 55.6 mm
62/28NRd: 28 mm | D: 58 mm | B: 16 mm | Cr: 17.9 kN | C0r: 9.75 kN | Groove dia D1: 55.6 mm
63/28Nd: 28 mm | D: 68 mm | B: 18 mm | Cr: 23.5 kN | C0r: 13.1 kN | Groove dia D1: 64.82 mm
63/28NRd: 28 mm | D: 68 mm | B: 18 mm | Cr: 23.5 kN | C0r: 13.1 kN | Groove dia D1: 64.82 mm
6006Nd: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.25 kN | Groove dia D1: 52.6 mm
6006NRd: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.25 kN | Groove dia D1: 52.6 mm
6206Nd: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Groove dia D1: 59.61 mm
6206NRd: 30 mm | D: 62 mm | B: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN | Groove dia D1: 59.61 mm
6306Nd: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15.0 kN | Groove dia D1: 68.81 mm
6306NRd: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15.0 kN | Groove dia D1: 68.81 mm
60/32Nd: 32 mm | D: 58 mm | B: 13 mm | Cr: 15.0 kN | C0r: 9.15 kN | Groove dia D1: 55.6 mm
60/32NRd: 32 mm | D: 58 mm | B: 13 mm | Cr: 15.0 kN | C0r: 9.15 kN | Groove dia D1: 55.6 mm
62/32Nd: 32 mm | D: 65 mm | B: 17 mm | Cr: 23.5 kN | C0r: 13.1 kN | Groove dia D1: 62.6 mm
62/32NRd: 32 mm | D: 65 mm | B: 17 mm | Cr: 23.5 kN | C0r: 13.1 kN | Groove dia D1: 62.6 mm
63/32Nd: 32 mm | D: 75 mm | B: 20 mm | Cr: 30.1 kN | C0r: 16.2 kN | Groove dia D1: 71.83 mm
63/32NRd: 32 mm | D: 75 mm | B: 20 mm | Cr: 30.1 kN | C0r: 16.2 kN | Groove dia D1: 71.83 mm
6007Nd: 35 mm | D: 62 mm | B: 14 mm | Cr: 15.9 kN | C0r: 10.3 kN | Groove dia D1: 59.61 mm
6007NRd: 35 mm | D: 62 mm | B: 14 mm | Cr: 15.9 kN | C0r: 10.3 kN | Groove dia D1: 59.61 mm
6207Nd: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.4 kN | Groove dia D1: 68.81 mm
6207NRd: 35 mm | D: 72 mm | B: 17 mm | Cr: 25.7 kN | C0r: 15.4 kN | Groove dia D1: 68.81 mm
6307Nd: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.4 kN | C0r: 19.3 kN | Groove dia D1: 76.81 mm
6307NRd: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.4 kN | C0r: 19.3 kN | Groove dia D1: 76.81 mm
6008Nd: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.7 kN | C0r: 11.5 kN | Groove dia D1: 64.82 mm
6008NRd: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.7 kN | C0r: 11.5 kN | Groove dia D1: 64.82 mm
6208Nd: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Groove dia D1: 76.81 mm
6208NRd: 40 mm | D: 80 mm | B: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN | Groove dia D1: 76.81 mm
6308Nd: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.7 kN | C0r: 24.0 kN | Groove dia D1: 86.79 mm
6308NRd: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.7 kN | C0r: 24.0 kN | Groove dia D1: 86.79 mm
6009Nd: 45 mm | D: 75 mm | B: 16 mm | Cr: 21.0 kN | C0r: 15.1 kN | Groove dia D1: 71.83 mm
6009NRd: 45 mm | D: 75 mm | B: 16 mm | Cr: 21.0 kN | C0r: 15.1 kN | Groove dia D1: 71.83 mm
6209Nd: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.7 kN | C0r: 20.3 kN | Groove dia D1: 81.81 mm
6209NRd: 45 mm | D: 85 mm | B: 19 mm | Cr: 32.7 kN | C0r: 20.3 kN | Groove dia D1: 81.81 mm
6309Nd: 45 mm | D: 100 mm | B: 25 mm | Cr: 48.9 kN | C0r: 29.5 kN | Groove dia D1: 96.8 mm
6309NRd: 45 mm | D: 100 mm | B: 25 mm | Cr: 48.9 kN | C0r: 29.5 kN | Groove dia D1: 96.8 mm
6010Nd: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Groove dia D1: 76.81 mm
6010NRd: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Groove dia D1: 76.81 mm
6210Nd: 50 mm | D: 90 mm | B: 20 mm | Cr: 35.1 kN | C0r: 23.3 kN | Groove dia D1: 86.79 mm
6210NRd: 50 mm | D: 90 mm | B: 20 mm | Cr: 35.1 kN | C0r: 23.3 kN | Groove dia D1: 86.79 mm
6310Nd: 50 mm | D: 110 mm | B: 27 mm | Cr: 62.0 kN | C0r: 38.3 kN | Groove dia D1: 106.81 mm
6310NRd: 50 mm | D: 110 mm | B: 27 mm | Cr: 62.0 kN | C0r: 38.3 kN | Groove dia D1: 106.81 mm
6011Nd: 55 mm | D: 90 mm | B: 18 mm | Cr: 28.3 kN | C0r: 21.2 kN | Groove dia D1: 86.79 mm
6011NRd: 55 mm | D: 90 mm | B: 18 mm | Cr: 28.3 kN | C0r: 21.2 kN | Groove dia D1: 86.79 mm
6211Nd: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.4 kN | C0r: 29.4 kN | Groove dia D1: 96.8 mm
6211NRd: 55 mm | D: 100 mm | B: 21 mm | Cr: 43.4 kN | C0r: 29.4 kN | Groove dia D1: 96.8 mm
6311Nd: 55 mm | D: 120 mm | B: 29 mm | Cr: 71.6 kN | C0r: 45.0 kN | Groove dia D1: 115.21 mm
6311NRd: 55 mm | D: 120 mm | B: 29 mm | Cr: 71.6 kN | C0r: 45.0 kN | Groove dia D1: 115.21 mm
6012Nd: 60 mm | D: 95 mm | B: 18 mm | Cr: 29.4 kN | C0r: 23.2 kN | Groove dia D1: 91.82 mm
6012NRd: 60 mm | D: 95 mm | B: 18 mm | Cr: 29.4 kN | C0r: 23.2 kN | Groove dia D1: 91.82 mm
6212Nd: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.4 kN | C0r: 36.2 kN | Groove dia D1: 106.81 mm
6212NRd: 60 mm | D: 110 mm | B: 22 mm | Cr: 52.4 kN | C0r: 36.2 kN | Groove dia D1: 106.81 mm
6312Nd: 60 mm | D: 130 mm | B: 31 mm | Cr: 81.9 kN | C0r: 52.2 kN | Groove dia D1: 125.22 mm
6312NRd: 60 mm | D: 130 mm | B: 31 mm | Cr: 81.9 kN | C0r: 52.2 kN | Groove dia D1: 125.22 mm
6013Nd: 65 mm | D: 100 mm | B: 18 mm | Cr: 30.5 kN | C0r: 25.2 kN | Groove dia D1: 96.8 mm
6013NRd: 65 mm | D: 100 mm | B: 18 mm | Cr: 30.5 kN | C0r: 25.2 kN | Groove dia D1: 96.8 mm
6213Nd: 65 mm | D: 120 mm | B: 23 mm | Cr: 57.2 kN | C0r: 40.1 kN | Groove dia D1: 115.21 mm
6213NRd: 65 mm | D: 120 mm | B: 23 mm | Cr: 57.2 kN | C0r: 40.1 kN | Groove dia D1: 115.21 mm
6313Nd: 65 mm | D: 140 mm | B: 33 mm | Cr: 92.7 kN | C0r: 59.9 kN | Groove dia D1: 135.23 mm
6313NRd: 65 mm | D: 140 mm | B: 33 mm | Cr: 92.7 kN | C0r: 59.9 kN | Groove dia D1: 135.23 mm
6014Nd: 70 mm | D: 110 mm | B: 20 mm | Cr: 38.1 kN | C0r: 30.9 kN | Groove dia D1: 106.81 mm
6014NRd: 70 mm | D: 110 mm | B: 20 mm | Cr: 38.1 kN | C0r: 30.9 kN | Groove dia D1: 106.81 mm
6214Nd: 70 mm | D: 125 mm | B: 24 mm | Cr: 62.2 kN | C0r: 44.1 kN | Groove dia D1: 120.22 mm
6214NRd: 70 mm | D: 125 mm | B: 24 mm | Cr: 62.2 kN | C0r: 44.1 kN | Groove dia D1: 120.22 mm
6314Nd: 70 mm | D: 150 mm | B: 35 mm | Cr: 104 kN | C0r: 68.2 kN | Groove dia D1: 145.24 mm
6314NRd: 70 mm | D: 150 mm | B: 35 mm | Cr: 104 kN | C0r: 68.2 kN | Groove dia D1: 145.24 mm
6015Nd: 75 mm | D: 115 mm | B: 20 mm | Cr: 39.6 kN | C0r: 33.5 kN | Groove dia D1: 111.81 mm
6015NRd: 75 mm | D: 115 mm | B: 20 mm | Cr: 39.6 kN | C0r: 33.5 kN | Groove dia D1: 111.81 mm
6215Nd: 75 mm | D: 130 mm | B: 25 mm | Cr: 67.4 kN | C0r: 48.3 kN | Groove dia D1: 125.22 mm
6215NRd: 75 mm | D: 130 mm | B: 25 mm | Cr: 67.4 kN | C0r: 48.3 kN | Groove dia D1: 125.22 mm
6315Nd: 75 mm | D: 160 mm | B: 37 mm | Cr: 113 kN | C0r: 77.2 kN | Groove dia D1: 155.22 mm
6315NRd: 75 mm | D: 160 mm | B: 37 mm | Cr: 113 kN | C0r: 77.2 kN | Groove dia D1: 155.22 mm
6016Nd: 80 mm | D: 125 mm | B: 22 mm | Cr: 47.6 kN | C0r: 39.8 kN | Groove dia D1: 120.22 mm
6016NRd: 80 mm | D: 125 mm | B: 22 mm | Cr: 47.6 kN | C0r: 39.8 kN | Groove dia D1: 120.22 mm
6216Nd: 80 mm | D: 140 mm | B: 26 mm | Cr: 72.7 kN | C0r: 53.0 kN | Groove dia D1: 135.23 mm
6216NRd: 80 mm | D: 140 mm | B: 26 mm | Cr: 72.7 kN | C0r: 53.0 kN | Groove dia D1: 135.23 mm
6316Nd: 80 mm | D: 170 mm | B: 39 mm | Cr: 123 kN | C0r: 86.7 kN | Groove dia D1: 163.65 mm
6316NRd: 80 mm | D: 170 mm | B: 39 mm | Cr: 123 kN | C0r: 86.7 kN | Groove dia D1: 163.65 mm
6017Nd: 85 mm | D: 130 mm | B: 22 mm | Cr: 49.5 kN | C0r: 43.1 kN | Groove dia D1: 125.22 mm
6017NRd: 85 mm | D: 130 mm | B: 22 mm | Cr: 49.5 kN | C0r: 43.1 kN | Groove dia D1: 125.22 mm
6217Nd: 85 mm | D: 150 mm | B: 28 mm | Cr: 84.0 kN | C0r: 61.9 kN | Groove dia D1: 145.24 mm
6217NRd: 85 mm | D: 150 mm | B: 28 mm | Cr: 84.0 kN | C0r: 61.9 kN | Groove dia D1: 145.24 mm
6317Nd: 85 mm | D: 180 mm | B: 41 mm | Cr: 133 kN | C0r: 96.8 kN | Groove dia D1: 173.66 mm
6317NRd: 85 mm | D: 180 mm | B: 41 mm | Cr: 133 kN | C0r: 96.8 kN | Groove dia D1: 173.66 mm
6018Nd: 90 mm | D: 140 mm | B: 24 mm | Cr: 58.2 kN | C0r: 49.7 kN | Groove dia D1: 135.23 mm
6018NRd: 90 mm | D: 140 mm | B: 24 mm | Cr: 58.2 kN | C0r: 49.7 kN | Groove dia D1: 135.23 mm
6218Nd: 90 mm | D: 160 mm | B: 30 mm | Cr: 96.1 kN | C0r: 71.5 kN | Groove dia D1: 155.22 mm
6218NRd: 90 mm | D: 160 mm | B: 30 mm | Cr: 96.1 kN | C0r: 71.5 kN | Groove dia D1: 155.22 mm
6318Nd: 90 mm | D: 190 mm | B: 43 mm | Cr: 143 kN | C0r: 107 kN | Groove dia D1: 183.64 mm
6318NRd: 90 mm | D: 190 mm | B: 43 mm | Cr: 143 kN | C0r: 107 kN | Groove dia D1: 183.64 mm
6019Nd: 95 mm | D: 145 mm | B: 24 mm | Cr: 60.4 kN | C0r: 53.9 kN | Groove dia D1: 140.23 mm
6019NRd: 95 mm | D: 145 mm | B: 24 mm | Cr: 60.4 kN | C0r: 53.9 kN | Groove dia D1: 140.23 mm
6219Nd: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 81.9 kN | Groove dia D1: 163.65 mm
6219NRd: 95 mm | D: 170 mm | B: 32 mm | Cr: 109 kN | C0r: 81.9 kN | Groove dia D1: 163.65 mm
6319Nd: 95 mm | D: 200 mm | B: 45 mm | Cr: 153 kN | C0r: 119 kN | Groove dia D1: 193.65 mm
6319NRd: 95 mm | D: 200 mm | B: 45 mm | Cr: 153 kN | C0r: 119 kN | Groove dia D1: 193.65 mm
6020Nd: 100 mm | D: 150 mm | B: 24 mm | Cr: 60.2 kN | C0r: 54.2 kN | Groove dia D1: 145.24 mm
6020NRd: 100 mm | D: 150 mm | B: 24 mm | Cr: 60.2 kN | C0r: 54.2 kN | Groove dia D1: 145.24 mm
6220Nd: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93.1 kN | Groove dia D1: 173.66 mm
6220NRd: 100 mm | D: 180 mm | B: 34 mm | Cr: 122 kN | C0r: 93.1 kN | Groove dia D1: 173.66 mm
6021Nd: 105 mm | D: 160 mm | B: 26 mm | Cr: 72.3 kN | C0r: 65.8 kN | Groove dia D1: 155.22 mm
6021NRd: 105 mm | D: 160 mm | B: 26 mm | Cr: 72.3 kN | C0r: 65.8 kN | Groove dia D1: 155.22 mm
6221Nd: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Groove dia D1: 183.64 mm
6221NRd: 105 mm | D: 190 mm | B: 36 mm | Cr: 133 kN | C0r: 105 kN | Groove dia D1: 183.64 mm
6022Nd: 110 mm | D: 170 mm | B: 28 mm | Cr: 82.0 kN | C0r: 73.0 kN | Groove dia D1: 163.65 mm
6022NRd: 110 mm | D: 170 mm | B: 28 mm | Cr: 82.0 kN | C0r: 73.0 kN | Groove dia D1: 163.65 mm
6222Nd: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Groove dia D1: 193.65 mm
6222NRd: 110 mm | D: 200 mm | B: 38 mm | Cr: 144 kN | C0r: 117 kN | Groove dia D1: 193.65 mm
6024Nd: 120 mm | D: 180 mm | B: 28 mm | Cr: 85.0 kN | C0r: 79.3 kN | Groove dia D1: 173.66 mm
6024NRd: 120 mm | D: 180 mm | B: 28 mm | Cr: 85.0 kN | C0r: 79.3 kN | Groove dia D1: 173.66 mm
6026Nd: 130 mm | D: 200 mm | B: 33 mm | Cr: 106 kN | C0r: 101 kN | Groove dia D1: 193.65 mm
6026NRd: 130 mm | D: 200 mm | B: 33 mm | Cr: 106 kN | C0r: 101 kN | Groove dia D1: 193.65 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
