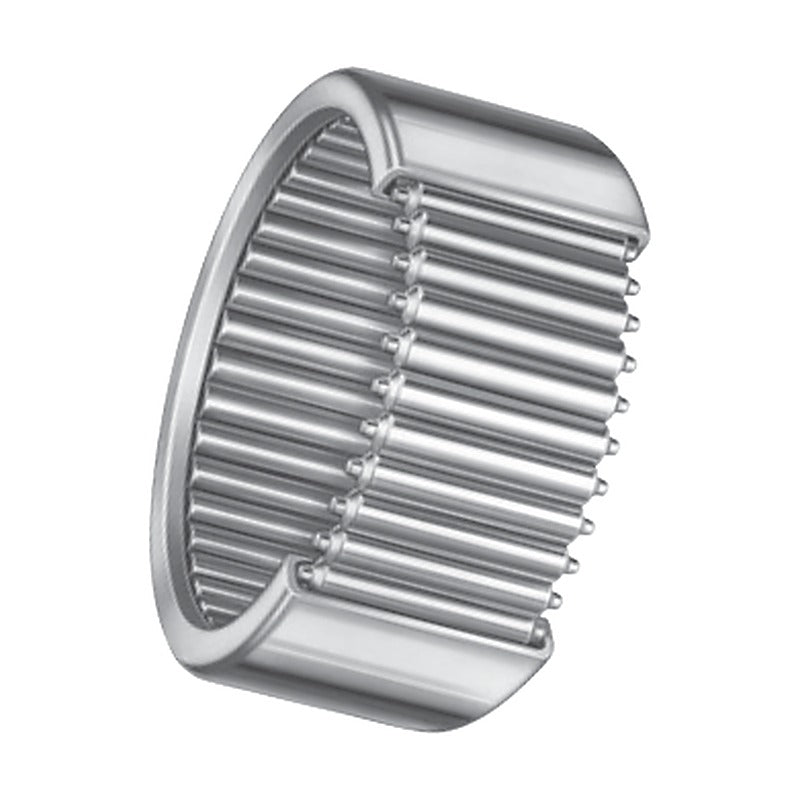

KOYO DL, DLF Full Complement Drawn Cup Needle Roller Bearings

KOYO DL, DLF Full Complement Drawn Cup Needle Roller Bearings

Metric full complement drawn cup needle roller bearings with open ends (DL) or closed end (DLF), for high radial loads at moderate speeds.

Key features

  • Full complement of needle rollers for maximum load
  • DL open ends; DLF closed end
  • Retained rollers for easy handling
  • Matching IM inner rings listed

Specifications

Bearing type Drawn cup needle roller bearing, full complement
Series DL, DLF
Source KOYO Needle Roller Bearings catalogue, p. B-2-38 to B-2-41
DL 6 10 Fw: 6 mm | D: 12 mm | Width C: 10 mm | Cr: 2.90 kN | C0r: 3.80 kN | Mass: 0.004 kg
DLF 6 10 Fw: 6 mm | D: 12 mm | Width C: 10 mm | Cr: 2.90 kN | C0r: 3.80 kN | Mass: 0.004 kg
DL 8 10 Fw: 8 mm | D: 14 mm | Width C: 10 mm | Cr: 4.50 kN | C0r: 6.50 kN | Mass: 0.005 kg
DLF 8 10 Fw: 8 mm | D: 14 mm | Width C: 10 mm | Cr: 4.50 kN | C0r: 6.50 kN | Mass: 0.006 kg
DL 9 14 12 Fw: 9 mm | D: 14 mm | Width C: 12 mm | Cr: 6.10 kN | C0r: 9.20 kN | Mass: 0.006 kg
DLF 9 14 12 Fw: 9 mm | D: 14 mm | Width C: 12 mm | Cr: 6.10 kN | C0r: 9.20 kN | Mass: 0.007 kg
DL 10 12 Fw: 10 mm | D: 16 mm | Width C: 12 mm | Cr: 7.00 kN | C0r: 10.9 kN | Mass: 0.008 kg
DLF 10 12 Fw: 10 mm | D: 16 mm | Width C: 12 mm | Cr: 7.00 kN | C0r: 10.9 kN | Mass: 0.009 kg
DL 12 10 Fw: 12 mm | D: 18 mm | Width C: 10 mm | Cr: 6.00 kN | C0r: 9.70 kN | Mass: 0.008 kg
DLF 12 10 Fw: 12 mm | D: 18 mm | Width C: 10 mm | Cr: 6.00 kN | C0r: 9.7 kN | Mass: 0.008 kg
DL 12 12 Fw: 12 mm | D: 18 mm | Width C: 12 mm | Cr: 7.00 kN | C0r: 11.5 kN | Mass: 0.009 kg
DLF 12 12 Fw: 12 mm | D: 18 mm | Width C: 12 mm | Cr: 7.00 kN | C0r: 11.5 kN | Mass: 0.010 kg
DL 13 12 Fw: 13 mm | D: 19 mm | Width C: 12 mm | Cr: 8.50 kN | C0r: 14.2 kN | Mass: 0.010 kg
DLF 13 12 Fw: 13 mm | D: 19 mm | Width C: 12 mm | Cr: 8.50 kN | C0r: 14.2 kN | Mass: 0.011 kg
DL 14 12 Fw: 14 mm | D: 20 mm | Width C: 12 mm | Cr: 7.90 kN | C0r: 13.5 kN | Mass: 0.011 kg
DLF 14 12 Fw: 14 mm | D: 20 mm | Width C: 12 mm | Cr: 7.90 kN | C0r: 13.5 kN | Mass: 0.012 kg
DL 15 12 Fw: 15 mm | D: 21 mm | Width C: 12 mm | Cr: 9.40 kN | C0r: 16.4 kN | Mass: 0.011 kg
DLF 15 12 Fw: 15 mm | D: 21 mm | Width C: 12 mm | Cr: 9.40 kN | C0r: 16.4 kN | Mass: 0.012 kg
DL 16 12 Fw: 16 mm | D: 22 mm | Width C: 12 mm | Cr: 8.70 kN | C0r: 15.5 kN | Mass: 0.012 kg
DL 17 12 Fw: 17 mm | D: 23 mm | Width C: 12 mm | Cr: 9.00 kN | C0r: 16.2 kN | Mass: 0.013 kg
DLF 17 12 Fw: 17 mm | D: 23 mm | Width C: 12 mm | Cr: 9.00 kN | C0r: 16.2 kN | Mass: 0.014 kg
DL 18 12 Fw: 18 mm | D: 24 mm | Width C: 12 mm | Cr: 10.7 kN | C0r: 19.5 kN | Mass: 0.014 kg
DLF 18 12 Fw: 18 mm | D: 24 mm | Width C: 12 mm | Cr: 10.7 kN | C0r: 19.5 kN | Mass: 0.016 kg
DL 18 16 Fw: 18 mm | D: 24 mm | Width C: 16 mm | Cr: 16.0 kN | C0r: 29.5 kN | Mass: 0.019 kg
DLF 18 16 Fw: 18 mm | D: 24 mm | Width C: 16 mm | Cr: 16.0 kN | C0r: 29.5 kN | Mass: 0.021 kg
DL 20 12 Fw: 20 mm | D: 26 mm | Width C: 12 mm | Cr: 10.2 kN | C0r: 19.5 kN | Mass: 0.015 kg
DLF 20 12 Fw: 20 mm | D: 26 mm | Width C: 12 mm | Cr: 10.2 kN | C0r: 19.5 kN | Mass: 0.017 kg
DL 20 16 Fw: 20 mm | D: 26 mm | Width C: 16 mm | Cr: 16.0 kN | C0r: 30.5 kN | Mass: 0.020 kg
DLF 20 16 Fw: 20 mm | D: 26 mm | Width C: 16 mm | Cr: 16.0 kN | C0r: 30.5 kN | Mass: 0.022 kg
DL 22 16 Fw: 22 mm | D: 28 mm | Width C: 16 mm | Cr: 17.0 kN | C0r: 33.0 kN | Mass: 0.022 kg
DLF 22 16 Fw: 22 mm | D: 28 mm | Width C: 16 mm | Cr: 17.0 kN | C0r: 33.0 kN | Mass: 0.025 kg
DL 25 16 Fw: 25 mm | D: 33 mm | Width C: 16 mm | Cr: 16.0 kN | C0r: 32.5 kN | Mass: 0.035 kg
DLF 25 16 Fw: 25 mm | D: 33 mm | Width C: 16 mm | Cr: 16.0 kN | C0r: 32.5 kN | Mass: 0.039 kg
DL 25 20 Fw: 25 mm | D: 33 mm | Width C: 20 mm | Cr: 22.8 kN | C0r: 46.0 kN | Mass: 0.043 kg
DLF 25 20 Fw: 25 mm | D: 33 mm | Width C: 20 mm | Cr: 22.8 kN | C0r: 46.0 kN | Mass: 0.047 kg
DL 28 20 Fw: 28 mm | D: 36 mm | Width C: 20 mm | Cr: 24.5 kN | C0r: 52.0 kN | Mass: 0.047 kg
DLF 28 20 Fw: 28 mm | D: 36 mm | Width C: 20 mm | Cr: 24.5 kN | C0r: 52.0 kN | Mass: 0.051 kg
DL 30 16 Fw: 30 mm | D: 38 mm | Width C: 16 mm | Cr: 21.7 kN | C0r: 46.5 kN | Mass: 0.040 kg
DLF 30 16 Fw: 30 mm | D: 38 mm | Width C: 16 mm | Cr: 21.7 kN | C0r: 46.5 kN | Mass: 0.045 kg
DL 30 20 Fw: 30 mm | D: 38 mm | Width C: 20 mm | Cr: 26.0 kN | C0r: 56.0 kN | Mass: 0.050 kg
DLF 30 20 Fw: 30 mm | D: 38 mm | Width C: 20 mm | Cr: 26.0 kN | C0r: 56.0 kN | Mass: 0.055 kg
DL 30 25 Fw: 30 mm | D: 38 mm | Width C: 25 mm | Cr: 35.5 kN | C0r: 76.0 kN | Mass: 0.063 kg
DLF 30 25 Fw: 30 mm | D: 38 mm | Width C: 25 mm | Cr: 35.5 kN | C0r: 76.0 kN | Mass: 0.068 kg
DL 35 16 Fw: 35 mm | D: 43 mm | Width C: 16 mm | Cr: 24.0 kN | C0r: 54.0 kN | Mass: 0.046 kg
DLF 35 16 Fw: 35 mm | D: 43 mm | Width C: 16 mm | Cr: 24.0 kN | C0r: 54.0 kN | Mass: 0.053 kg
DL 35 20 Fw: 35 mm | D: 43 mm | Width C: 20 mm | Cr: 29.0 kN | C0r: 65.0 kN | Mass: 0.057 kg
DLF 35 20 Fw: 35 mm | D: 43 mm | Width C: 20 mm | Cr: 29.0 kN | C0r: 65.0 kN | Mass: 0.064 kg
DL 40 16 Fw: 40 mm | D: 48 mm | Width C: 16 mm | Cr: 26.5 kN | C0r: 62.0 kN | Mass: 0.051 kg
DLF 40 16 Fw: 40 mm | D: 48 mm | Width C: 16 mm | Cr: 26.50 kN | C0r: 62.0 kN | Mass: 0.061 kg
DL 40 20 Fw: 40 mm | D: 48 mm | Width C: 20 mm | Cr: 36.0 kN | C0r: 84.0 kN | Mass: 0.064 kg
DLF 40 20 Fw: 40 mm | D: 48 mm | Width C: 20 mm | Cr: 36.0 kN | C0r: 84.0 kN | Mass: 0.074 kg
DL 44 16 Fw: 44 mm | D: 52 mm | Width C: 16 mm | Cr: 23.80 kN | C0r: 57.00 kN | Mass: 0.056 kg
DLF 44 16 Fw: 44 mm | D: 52 mm | Width C: 16 mm | Cr: 23.80 kN | C0r: 57.00 kN | Mass: 0.066 kg
DL 47 16 Fw: 47 mm | D: 55 mm | Width C: 16 mm | Cr: 25.00 kN | C0r: 61.00 kN | Mass: 0.060 kg
DLF 47 16 Fw: 47 mm | D: 55 mm | Width C: 16 mm | Cr: 25.00 kN | C0r: 61.00 kN | Mass: 0.071 kg
DL 50 12 Fw: 50 mm | D: 58 mm | Width C: 12 mm | Cr: 20.00 kN | C0r: 50.00 kN | Mass: 0.047 kg
DLF 50 12 Fw: 50 mm | D: 58 mm | Width C: 12 mm | Cr: 20.00 kN | C0r: 50.00 kN | Mass: 0.061 kg
DL 50 18 Fw: 50 mm | D: 58 mm | Width C: 18 mm | Cr: 36.50 kN | C0r: 92.00 kN | Mass: 0.071 kg
DLF 50 18 Fw: 50 mm | D: 58 mm | Width C: 18 mm | Cr: 36.50 kN | C0r: 92.00 kN | Mass: 0.085 kg
DL 50 20 Fw: 50 mm | D: 58 mm | Width C: 20 mm | Cr: 37.00 kN | C0r: 93.00 kN | Mass: 0.077 kg
DLF 50 20 Fw: 50 mm | D: 58 mm | Width C: 20 mm | Cr: 37.00 kN | C0r: 93.00 kN | Mass: 0.091 kg
DL 55 20 Fw: 55 mm | D: 63 mm | Width C: 20 mm | Cr: 39.5 kN | C0r: 102.0 kN | Mass: 0.086 kg
DLF 55 20 Fw: 55 mm | D: 63 mm | Width C: 20 mm | Cr: 39.5 kN | C0r: 102.0 kN | Mass: 0.102 kg
