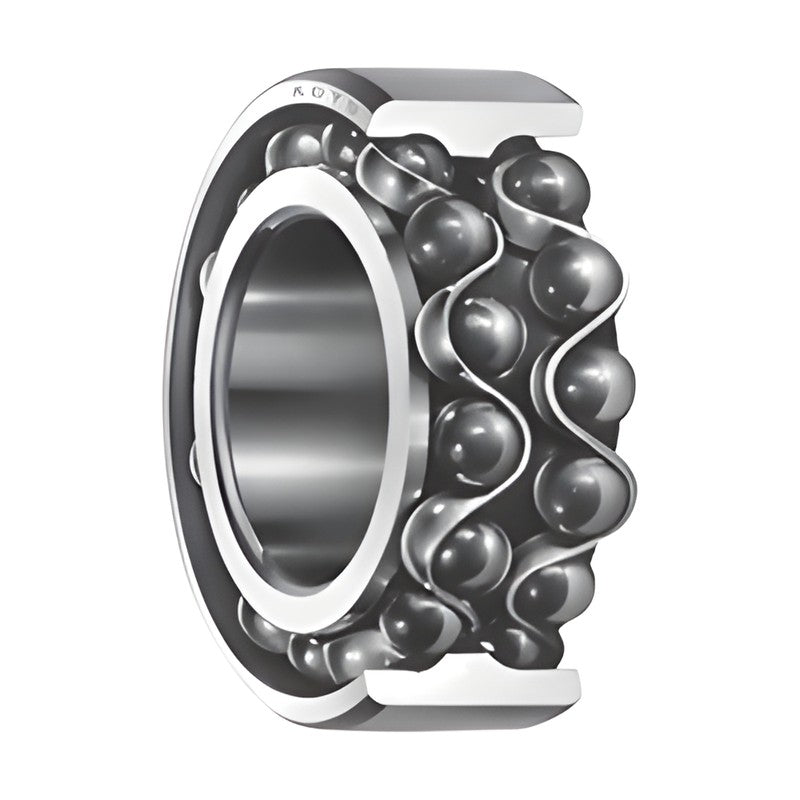

KOYO Double-Row Angular Contact Ball Bearings (32, 33, 52, 53)

KOYO Double-Row Angular Contact Ball Bearings (32, 33, 52, 53)

Double-row angular contact ball bearings: 32 and 33 series with filling slot, and 52 and 53 series without filling slot available open, shielded (ZZ) and contact sealed (2RS).

Key features

  • Equivalent to two single-row bearings back-to-back
  • Carry radial, axial (both directions) and moment loads
  • 52/53 series in open, ZZ and 2RS versions
  • Compact single-unit mounting

Specifications

Bearing type Double-row angular contact ball bearing
Series 32, 33, 52, 53
Seal / shield Open, ZZ, 2RS
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B124-B129
3200 d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 7.35 kN | C0r: 5.35 kN | Mass: 0.052 kg
3201 d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 9.70 kN | C0r: 7.15 kN | Mass: 0.063 kg
3202 d: 15 mm | D: 35 mm | B: 15.9 mm | Cr: 9.70 kN | C0r: 7.45 kN | Mass: 0.072 kg
3302 d: 15 mm | D: 42 mm | B: 19 mm | Cr: 15.2 kN | C0r: 11.9 kN | Mass: 0.132 kg
3203 d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 13.8 kN | C0r: 10.8 kN | Mass: 0.100 kg
5203 d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 13.2 kN | C0r: 8.15 kN | Mass: 0.091 kg
5203 ZZ d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 12.7 kN | C0r: 8.35 kN | Mass: 0.091 kg
5203 2RS d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 12.7 kN | C0r: 8.35 kN | Mass: 0.091 kg
3303 d: 17 mm | D: 47 mm | B: 22.2 mm | Cr: 21.7 kN | C0r: 17.1 kN | Mass: 0.192 kg
3204 d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 17.2 kN | C0r: 15.0 kN | Mass: 0.170 kg
5204 d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 19.7 kN | C0r: 12.5 kN | Mass: 0.120 kg
5204 ZZ d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 16.0 kN | C0r: 10.8 kN | Mass: 0.120 kg
5204 2RS d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 16.0 kN | C0r: 10.8 kN | Mass: 0.120 kg
3304 d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 20.8 kN | C0r: 18.4 kN | Mass: 0.230 kg
5304 d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 24.7 kN | C0r: 15.0 kN | Mass: 0.230 kg
5304 ZZ d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 19.8 kN | C0r: 12.8 kN | Mass: 0.230 kg
5304 2RS d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 19.8 kN | C0r: 12.8 kN | Mass: 0.230 kg
3205 d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 18.9 kN | C0r: 18.2 kN | Mass: 0.190 kg
5205 d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 21.4 kN | C0r: 14.8 kN | Mass: 0.190 kg
5205 ZZ d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 18.9 kN | C0r: 13.8 kN | Mass: 0.190 kg
5205 2RS d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 18.9 kN | C0r: 13.8 kN | Mass: 0.190 kg
3305 d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 28.9 kN | C0r: 26.5 kN | Mass: 0.369 kg
5305 d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 32.7 kN | C0r: 20.8 kN | Mass: 0.340 kg
5305 ZZ d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 27.5 kN | C0r: 18.5 kN | Mass: 0.340 kg
5305 2RS d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 27.5 kN | C0r: 18.5 kN | Mass: 0.340 kg
3206 d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 27.3 kN | C0r: 27.0 kN | Mass: 0.320 kg
5206 d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 29.7 kN | C0r: 21.3 kN | Mass: 0.290 kg
5206 ZZ d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 25.4 kN | C0r: 18.3 kN | Mass: 0.290 kg
5206 2RS d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 25.4 kN | C0r: 18.3 kN | Mass: 0.290 kg
3306 d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 38.1 kN | C0r: 36.1 kN | Mass: 0.585 kg
5306 d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 41.0 kN | C0r: 28.5 kN | Mass: 0.510 kg
5306 ZZ d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 34.3 kN | C0r: 25.2 kN | Mass: 0.510 kg
5306 2RS d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 34.3 kN | C0r: 25.2 kN | Mass: 0.510 kg
3207 d: 35 mm | D: 72 mm | B: 27 mm | Cr: 36.8 kN | C0r: 37.5 kN | Mass: 0.480 kg
5207 d: 35 mm | D: 72 mm | B: 27 mm | Cr: 39.2 kN | C0r: 29.0 kN | Mass: 0.430 kg
5207 ZZ d: 35 mm | D: 72 mm | B: 27 mm | Cr: 31.7 kN | C0r: 24.6 kN | Mass: 0.430 kg
5207 2RS d: 35 mm | D: 72 mm | B: 27 mm | Cr: 31.7 kN | C0r: 24.6 kN | Mass: 0.430 kg
3307 d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 48.6 kN | C0r: 46.8 kN | Mass: 0.816 kg
5307 d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 51.2 kN | C0r: 36.2 kN | Mass: 0.790 kg
5307 ZZ d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 46.1 kN | C0r: 32.8 kN | Mass: 0.790 kg
5307 2RS d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 46.1 kN | C0r: 32.8 kN | Mass: 0.790 kg
3208 d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 42.0 kN | C0r: 43.9 kN | Mass: 0.650 kg
5208 d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 44.4 kN | C0r: 33.6 kN | Mass: 0.570 kg
5208 ZZ d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 36.5 kN | C0r: 29.1 kN | Mass: 0.570 kg
5208 2RS d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 36.5 kN | C0r: 29.1 kN | Mass: 0.570 kg
3308 d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 54.1 kN | C0r: 53.8 kN | Mass: 1.07 kg
5308 d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 62.7 kN | C0r: 45.4 kN | Mass: 1.05 kg
5308 ZZ d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 51.4 kN | C0r: 37.8 kN | Mass: 1.05 kg
5308 2RS d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 51.4 kN | C0r: 37.8 kN | Mass: 1.05 kg
3209 d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 45.4 kN | C0r: 51.4 kN | Mass: 0.710 kg
5209 d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 49.9 kN | C0r: 38.4 kN | Mass: 0.620 kg
5209 ZZ d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 41.7 kN | C0r: 33.9 kN | Mass: 0.620 kg
5209 2RS d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 41.7 kN | C0r: 33.9 kN | Mass: 0.620 kg
3309 d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 66.1 kN | C0r: 67.3 kN | Mass: 1.42 kg
5309 d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 75.1 kN | C0r: 55.7 kN | Mass: 1.42 kg
5309 ZZ d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 68.9 kN | C0r: 51.4 kN | Mass: 1.42 kg
5309 2RS d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 68.9 kN | C0r: 51.4 kN | Mass: 1.42 kg
3210 d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 45.1 kN | C0r: 52.1 kN | Mass: 0.760 kg
5210 d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 53.3 kN | C0r: 43.6 kN | Mass: 0.670 kg
5210 ZZ d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 44.1 kN | C0r: 37.9 kN | Mass: 0.670 kg
5210 2RS d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 44.1 kN | C0r: 37.9 kN | Mass: 0.670 kg
3310 d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 86.1 kN | C0r: 88.6 kN | Mass: 1.95 kg
5310 d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 88.5 kN | C0r: 67.0 kN | Mass: 1.93 kg
5310 ZZ d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 81.8 kN | C0r: 62.2 kN | Mass: 1.93 kg
5310 2RS d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 81.8 kN | C0r: 62.2 kN | Mass: 1.93 kg
3211 d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 50.9 kN | C0r: 60.2 kN | Mass: 1.05 kg
5211 d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 65.9 kN | C0r: 55.2 kN | Mass: 0.960 kg
5211 ZZ d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 52.9 kN | C0r: 44.7 kN | Mass: 0.960 kg
5211 2RS d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 52.9 kN | C0r: 44.7 kN | Mass: 0.960 kg
3311 d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 101 kN | C0r: 106 kN | Mass: 2.53 kg
5311 d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 110 kN | C0r: 85.1 kN | Mass: 2.30 kg
5311 ZZ d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 95.7 kN | C0r: 74.3 kN | Mass: 2.30 kg
5311 2RS d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 95.7 kN | C0r: 74.3 kN | Mass: 2.30 kg
3212 d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 64.0 kN | C0r: 76.8 kN | Mass: 1.40 kg
5212 d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 74.4 kN | C0r: 60.8 kN | Mass: 1.36 kg
5212 ZZ d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 62.6 kN | C0r: 55.9 kN | Mass: 1.36 kg
5212 2RS d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 62.6 kN | C0r: 55.9 kN | Mass: 1.36 kg
3312 d: 60 mm | D: 130 mm | B: 54 mm | Cr: 125 kN | C0r: 132 kN | Mass: 3.24 kg
5312 d: 60 mm | D: 130 mm | B: 54 mm | Cr: 126 kN | C0r: 98.7 kN | Mass: 3.16 kg
5312 ZZ d: 60 mm | D: 130 mm | B: 54 mm | Cr: 110 kN | C0r: 87.1 kN | Mass: 3.16 kg
5312 2RS d: 60 mm | D: 130 mm | B: 54 mm | Cr: 110 kN | C0r: 87.1 kN | Mass: 3.16 kg
3213 d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 76.4 kN | C0r: 97.4 kN | Mass: 1.75 kg
5213 d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 86.9 kN | C0r: 75.3 kN | Mass: 1.66 kg
5213 ZZ d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 69.2 kN | C0r: 63.1 kN | Mass: 1.66 kg
5213 2RS d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 69.2 kN | C0r: 63.1 kN | Mass: 1.66 kg
3313 d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 142 kN | C0r: 153 kN | Mass: 4.08 kg
5313 d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 142 kN | C0r: 113 kN | Mass: 3.91 kg
5313 ZZ d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 142 kN | C0r: 113 kN | Mass: 3.91 kg
5313 2RS d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 142 kN | C0r: 113 kN | Mass: 3.91 kg
3214 d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 77.9 kN | C0r: 96.4 kN | Mass: 1.92 kg
5214 d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 94.5 kN | C0r: 82.6 kN | Mass: 1.81 kg
5214 ZZ d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 76.3 kN | C0r: 70.3 kN | Mass: 1.81 kg
5214 2RS d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 76.3 kN | C0r: 70.3 kN | Mass: 1.81 kg
3314 d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 151 kN | C0r: 160 kN | Mass: 5.04 kg
5314 d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 160 kN | C0r: 129 kN | Mass: 4.89 kg
5314 ZZ d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 160 kN | C0r: 129 kN | Mass: 4.89 kg
5314 2RS d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 160 kN | C0r: 129 kN | Mass: 4.89 kg
3215 d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 92.4 kN | C0r: 120 kN | Mass: 2.10 kg
3315 d: 75 mm | D: 160 mm | B: 68.3 mm | Cr: 169 kN | C0r: 189 kN | Mass: 6.16 kg
5315 d: 75 mm | D: 160 mm | B: 68.3 mm | Cr: 174 kN | C0r: 147 kN | Mass: 5.97 kg
5315 ZZ d: 75 mm | D: 160 mm | B: 68.3 mm | Cr: 174 kN | C0r: 147 kN | Mass: 5.97 kg
5315 2RS d: 75 mm | D: 160 mm | B: 68.3 mm | Cr: 174 kN | C0r: 147 kN | Mass: 5.97 kg
3216 d: 80 mm | D: 140 mm | B: 44.4 mm | Cr: 97.5 kN | C0r: 121 kN | Mass: 2.64 kg
3316 d: 80 mm | D: 170 mm | B: 68.3 mm | Cr: 184 kN | C0r: 213 kN | Mass: 6.93 kg
3217 d: 85 mm | D: 150 mm | B: 49.2 mm | Cr: 114 kN | C0r: 143 kN | Mass: 3.39 kg
3317 d: 85 mm | D: 180 mm | B: 73 mm | Cr: 188 kN | C0r: 219 kN | Mass: 8.30 kg
3218 d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 132 kN | C0r: 167 kN | Mass: 4.14 kg
3318 d: 90 mm | D: 190 mm | B: 73 mm | Cr: 205 kN | C0r: 242 kN | Mass: 9.23 kg
3219 d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 152 kN | C0r: 193 kN | Mass: 5.00 kg
3319 d: 95 mm | D: 200 mm | B: 77.8 mm | Cr: 218 kN | C0r: 270 kN | Mass: 10.9 kg
3220 d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 172 kN | C0r: 221 kN | Mass: 6.10 kg
3320 d: 100 mm | D: 215 mm | B: 82.6 mm | Cr: 249 kN | C0r: 324 kN | Mass: 13.5 kg
3221 d: 105 mm | D: 190 mm | B: 65.1 mm | Cr: 182 kN | C0r: 237 kN | Mass: 7.37 kg
3321 d: 105 mm | D: 225 mm | B: 87.3 mm | Cr: 265 kN | C0r: 354 kN | Mass: 15.6 kg
3222 d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 201 kN | C0r: 263 kN | Mass: 8.80 kg
3322 d: 110 mm | D: 240 mm | B: 92.1 mm | Cr: 281 kN | C0r: 388 kN | Mass: 18.9 kg
