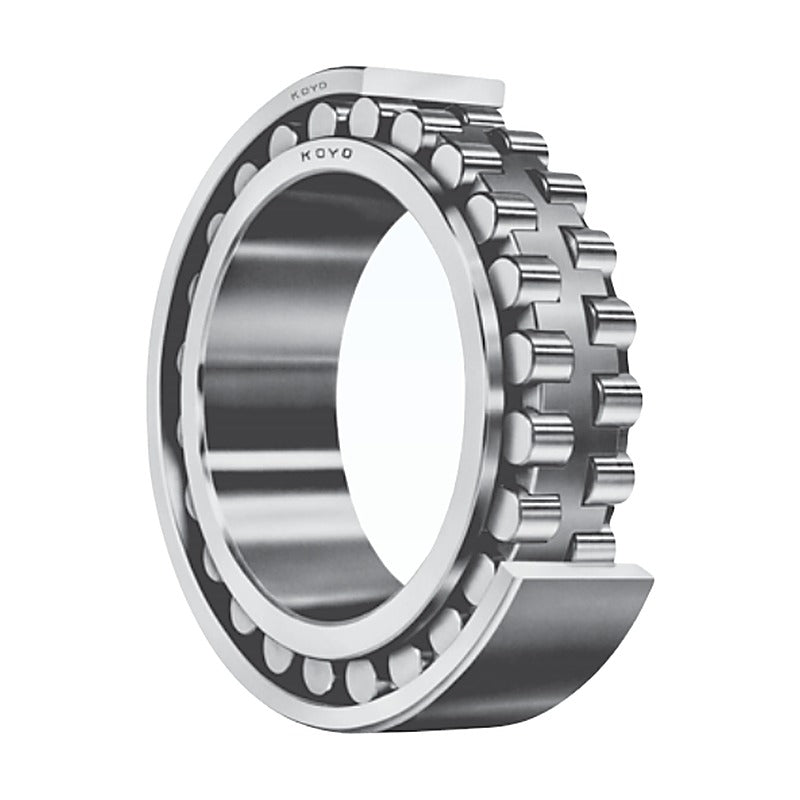

KOYO Double-Row Cylindrical Roller Bearings (NN30, NNU49, K)

KOYO Double-Row Cylindrical Roller Bearings (NN30, NNU49, K)

Double-row cylindrical roller bearings of the NN30 and NNU49 series with cylindrical or 1:12 tapered bore (K), offering high radial rigidity for machine tool spindles.

Key features

  • High radial rigidity and load capacity
  • NN: ribs on inner ring; NNU: ribs on outer ring
  • Tapered bore (K) allows clearance adjustment
  • Widely used in machine tool spindles

Specifications

Bearing type Double-row cylindrical roller bearing
Series NN30, NNU49
Bore Cylindrical or tapered 1:12 (K)
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B194-B199
NN3005 d: 25 mm | D: 47 mm | B: 16 mm | Cr: 25.7 kN | C0r: 30.0 kN | Mass: 0.127 kg
NN3005K d: 25 mm | D: 47 mm | B: 16 mm | Cr: 25.7 kN | C0r: 30.0 kN | Mass: 0.123 kg
NN3006 d: 30 mm | D: 55 mm | B: 19 mm | Cr: 36.8 kN | C0r: 44.1 kN | Mass: 0.198 kg
NN3006K d: 30 mm | D: 55 mm | B: 19 mm | Cr: 36.8 kN | C0r: 44.1 kN | Mass: 0.192 kg
NN3007 d: 35 mm | D: 62 mm | B: 20 mm | Cr: 39.1 kN | C0r: 50.0 kN | Mass: 0.253 kg
NN3007K d: 35 mm | D: 62 mm | B: 20 mm | Cr: 39.1 kN | C0r: 50.0 kN | Mass: 0.246 kg
NN3008 d: 40 mm | D: 68 mm | B: 21 mm | Cr: 41.3 kN | C0r: 55.9 kN | Mass: 0.307 kg
NN3008K d: 40 mm | D: 68 mm | B: 21 mm | Cr: 41.3 kN | C0r: 55.9 kN | Mass: 0.298 kg
NN3009 d: 45 mm | D: 75 mm | B: 23 mm | Cr: 53.4 kN | C0r: 71.9 kN | Mass: 0.404 kg
NN3009K d: 45 mm | D: 75 mm | B: 23 mm | Cr: 53.4 kN | C0r: 71.9 kN | Mass: 0.382 kg
NN3010 d: 50 mm | D: 80 mm | B: 23 mm | Cr: 52.8 kN | C0r: 72.6 kN | Mass: 0.429 kg
NN3010K d: 50 mm | D: 80 mm | B: 23 mm | Cr: 52.8 kN | C0r: 72.6 kN | Mass: 0.415 kg
NN3011 d: 55 mm | D: 90 mm | B: 26 mm | Cr: 71.2 kN | C0r: 101 kN | Mass: 0.637 kg
NN3011K d: 55 mm | D: 90 mm | B: 26 mm | Cr: 71.2 kN | C0r: 101 kN | Mass: 0.618 kg
NN3012 d: 60 mm | D: 95 mm | B: 26 mm | Cr: 72.8 kN | C0r: 106 kN | Mass: 0.685 kg
NN3012K d: 60 mm | D: 95 mm | B: 26 mm | Cr: 72.8 kN | C0r: 106 kN | Mass: 0.664 kg
NN3013 d: 65 mm | D: 100 mm | B: 26 mm | Cr: 74.5 kN | C0r: 111 kN | Mass: 0.728 kg
NN3013K d: 65 mm | D: 100 mm | B: 26 mm | Cr: 74.5 kN | C0r: 111 kN | Mass: 0.705 kg
NN3014 d: 70 mm | D: 110 mm | B: 30 mm | Cr: 96.9 kN | C0r: 148 kN | Mass: 1.04 kg
NN3014K d: 70 mm | D: 110 mm | B: 30 mm | Cr: 96.9 kN | C0r: 148 kN | Mass: 1.02 kg
NN3015 d: 75 mm | D: 115 mm | B: 30 mm | Cr: 99.0 kN | C0r: 155 kN | Mass: 1.11 kg
NN3015K d: 75 mm | D: 115 mm | B: 30 mm | Cr: 99.0 kN | C0r: 155 kN | Mass: 1.08 kg
NN3016 d: 80 mm | D: 125 mm | B: 34 mm | Cr: 119 kN | C0r: 186 kN | Mass: 1.55 kg
NN3016K d: 80 mm | D: 125 mm | B: 34 mm | Cr: 119 kN | C0r: 186 kN | Mass: 1.50 kg
NN3017 d: 85 mm | D: 130 mm | B: 34 mm | Cr: 121 kN | C0r: 194 kN | Mass: 1.63 kg
NN3017K d: 85 mm | D: 130 mm | B: 34 mm | Cr: 121 kN | C0r: 194 kN | Mass: 1.58 kg
NN3018 d: 90 mm | D: 140 mm | B: 37 mm | Cr: 142 kN | C0r: 228 kN | Mass: 2.07 kg
NN3018K d: 90 mm | D: 140 mm | B: 37 mm | Cr: 142 kN | C0r: 228 kN | Mass: 2.01 kg
NN3019 d: 95 mm | D: 145 mm | B: 37 mm | Cr: 150 kN | C0r: 246 kN | Mass: 2.17 kg
NN3019K d: 95 mm | D: 145 mm | B: 37 mm | Cr: 150 kN | C0r: 246 kN | Mass: 2.10 kg
NNU4920 d: 100 mm | D: 140 mm | B: 40 mm | Cr: 139 kN | C0r: 258 kN | Mass: 1.95 kg
NNU4920K d: 100 mm | D: 140 mm | B: 40 mm | Cr: 139 kN | C0r: 258 kN | Mass: 1.87 kg
NN3020 d: 100 mm | D: 150 mm | B: 37 mm | Cr: 157 kN | C0r: 265 kN | Mass: 2.28 kg
NN3020K d: 100 mm | D: 150 mm | B: 37 mm | Cr: 157 kN | C0r: 265 kN | Mass: 2.21 kg
NNU4921 d: 105 mm | D: 145 mm | B: 40 mm | Cr: 157 kN | C0r: 306 kN | Mass: 2.00 kg
NNU4921K d: 105 mm | D: 145 mm | B: 40 mm | Cr: 157 kN | C0r: 306 kN | Mass: 1.91 kg
NN3021 d: 105 mm | D: 160 mm | B: 41 mm | Cr: 197 kN | C0r: 322 kN | Mass: 2.88 kg
NN3021K d: 105 mm | D: 160 mm | B: 41 mm | Cr: 197 kN | C0r: 322 kN | Mass: 2.81 kg
NNU4922 d: 110 mm | D: 150 mm | B: 40 mm | Cr: 163 kN | C0r: 326 kN | Mass: 2.10 kg
NNU4922K d: 110 mm | D: 150 mm | B: 40 mm | Cr: 163 kN | C0r: 326 kN | Mass: 2.01 kg
NN3022 d: 110 mm | D: 170 mm | B: 45 mm | Cr: 221 kN | C0r: 361 kN | Mass: 3.65 kg
NN3022K d: 110 mm | D: 170 mm | B: 45 mm | Cr: 221 kN | C0r: 361 kN | Mass: 3.56 kg
NNU4924 d: 120 mm | D: 165 mm | B: 45 mm | Cr: 187 kN | C0r: 373 kN | Mass: 2.90 kg
NNU4924K d: 120 mm | D: 165 mm | B: 45 mm | Cr: 187 kN | C0r: 373 kN | Mass: 2.77 kg
NN3024 d: 120 mm | D: 180 mm | B: 46 mm | Cr: 232 kN | C0r: 392 kN | Mass: 4.00 kg
NN3024K d: 120 mm | D: 180 mm | B: 46 mm | Cr: 232 kN | C0r: 392 kN | Mass: 3.87 kg
NNU4926 d: 130 mm | D: 180 mm | B: 50 mm | Cr: 216 kN | C0r: 428 kN | Mass: 3.90 kg
NNU4926K d: 130 mm | D: 180 mm | B: 50 mm | Cr: 216 kN | C0r: 428 kN | Mass: 3.73 kg
NN3026 d: 130 mm | D: 200 mm | B: 52 mm | Cr: 283 kN | C0r: 476 kN | Mass: 5.94 kg
NN3026K d: 130 mm | D: 200 mm | B: 52 mm | Cr: 283 kN | C0r: 476 kN | Mass: 5.76 kg
NNU4928 d: 140 mm | D: 190 mm | B: 50 mm | Cr: 222 kN | C0r: 456 kN | Mass: 4.15 kg
NNU4928K d: 140 mm | D: 190 mm | B: 50 mm | Cr: 222 kN | C0r: 456 kN | Mass: 3.97 kg
NN3028 d: 140 mm | D: 210 mm | B: 53 mm | Cr: 297 kN | C0r: 516 kN | Mass: 6.41 kg
NN3028K d: 140 mm | D: 210 mm | B: 53 mm | Cr: 297 kN | C0r: 516 kN | Mass: 6.21 kg
NNU4930 d: 150 mm | D: 210 mm | B: 60 mm | Cr: 343 kN | C0r: 692 kN | Mass: 6.50 kg
NNU4930K d: 150 mm | D: 210 mm | B: 60 mm | Cr: 343 kN | C0r: 692 kN | Mass: 6.22 kg
NN3030 d: 150 mm | D: 225 mm | B: 56 mm | Cr: 334 kN | C0r: 587 kN | Mass: 7.74 kg
NN3030K d: 150 mm | D: 225 mm | B: 56 mm | Cr: 334 kN | C0r: 587 kN | Mass: 7.50 kg
NNU4932 d: 160 mm | D: 220 mm | B: 60 mm | Cr: 340 kN | C0r: 695 kN | Mass: 6.95 kg
NNU4932K d: 160 mm | D: 220 mm | B: 60 mm | Cr: 340 kN | C0r: 695 kN | Mass: 6.65 kg
NN3032 d: 160 mm | D: 240 mm | B: 60 mm | Cr: 398 kN | C0r: 695 kN | Mass: 9.38 kg
NN3032K d: 160 mm | D: 240 mm | B: 60 mm | Cr: 398 kN | C0r: 695 kN | Mass: 9.08 kg
NNU4934 d: 170 mm | D: 230 mm | B: 60 mm | Cr: 361 kN | C0r: 763 kN | Mass: 7.20 kg
NNU4934K d: 170 mm | D: 230 mm | B: 60 mm | Cr: 361 kN | C0r: 763 kN | Mass: 6.88 kg
NN3034 d: 170 mm | D: 260 mm | B: 67 mm | Cr: 471 kN | C0r: 824 kN | Mass: 12.8 kg
NN3034K d: 170 mm | D: 260 mm | B: 67 mm | Cr: 471 kN | C0r: 824 kN | Mass: 12.4 kg
NNU4936 d: 180 mm | D: 250 mm | B: 69 mm | Cr: 458 kN | C0r: 964 kN | Mass: 10.5 kg
NNU4936K d: 180 mm | D: 250 mm | B: 69 mm | Cr: 458 kN | C0r: 964 kN | Mass: 10.1 kg
NN3036 d: 180 mm | D: 280 mm | B: 74 mm | Cr: 561 kN | C0r: 958 kN | Mass: 16.8 kg
NN3036K d: 180 mm | D: 280 mm | B: 74 mm | Cr: 561 kN | C0r: 958 kN | Mass: 16.3 kg
NNU4938 d: 190 mm | D: 260 mm | B: 69 mm | Cr: 465 kN | C0r: 996 kN | Mass: 11.0 kg
NNU4938K d: 190 mm | D: 260 mm | B: 69 mm | Cr: 465 kN | C0r: 996 kN | Mass: 10.5 kg
NN3038 d: 190 mm | D: 290 mm | B: 75 mm | Cr: 598 kN | C0r: 1 020 kN | Mass: 17.6 kg
NN3038K d: 190 mm | D: 290 mm | B: 75 mm | Cr: 598 kN | C0r: 1 020 kN | Mass: 17.1 kg
NNU4940 d: 200 mm | D: 280 mm | B: 80 mm | Cr: 509 kN | C0r: 1 050 kN | Mass: 15.4 kg
NNU4940K d: 200 mm | D: 280 mm | B: 80 mm | Cr: 509 kN | C0r: 1 050 kN | Mass: 14.7 kg
NN3040 d: 200 mm | D: 310 mm | B: 82 mm | Cr: 638 kN | C0r: 1 120 kN | Mass: 22.5 kg
NN3040K d: 200 mm | D: 310 mm | B: 82 mm | Cr: 638 kN | C0r: 1 120 kN | Mass: 21.8 kg
NNU4944 d: 220 mm | D: 300 mm | B: 80 mm | Cr: 561 kN | C0r: 1 220 kN | Mass: 16.7 kg
NNU4944K d: 220 mm | D: 300 mm | B: 80 mm | Cr: 561 kN | C0r: 1 220 kN | Mass: 16.0 kg
NN3044 d: 220 mm | D: 340 mm | B: 90 mm | Cr: 752 kN | C0r: 1 370 kN | Mass: 29.3 kg
NN3044K d: 220 mm | D: 340 mm | B: 90 mm | Cr: 752 kN | C0r: 1 370 kN | Mass: 28.4 kg
NNU4948 d: 240 mm | D: 320 mm | B: 80 mm | Cr: 588 kN | C0r: 1 340 kN | Mass: 18.0 kg
NNU4948K d: 240 mm | D: 320 mm | B: 80 mm | Cr: 588 kN | C0r: 1 340 kN | Mass: 17.2 kg
NN3048 d: 240 mm | D: 360 mm | B: 92 mm | Cr: 864 kN | C0r: 1 590 kN | Mass: 32.8 kg
NN3048K d: 240 mm | D: 360 mm | B: 92 mm | Cr: 864 kN | C0r: 1 590 kN | Mass: 31.8 kg
NNU4952 d: 260 mm | D: 360 mm | B: 100 mm | Cr: 941 kN | C0r: 2 050 kN | Mass: 31.4 kg
NNU4952K d: 260 mm | D: 360 mm | B: 100 mm | Cr: 941 kN | C0r: 2 050 kN | Mass: 30.0 kg
NN3052 d: 260 mm | D: 400 mm | B: 104 mm | Cr: 1 030 kN | C0r: 1 830 kN | Mass: 47.4 kg
NN3052K d: 260 mm | D: 400 mm | B: 104 mm | Cr: 1 030 kN | C0r: 1 830 kN | Mass: 46.0 kg
NNU4956 d: 280 mm | D: 380 mm | B: 100 mm | Cr: 976 kN | C0r: 2 200 kN | Mass: 33.1 kg
NNU4956K d: 280 mm | D: 380 mm | B: 100 mm | Cr: 976 kN | C0r: 2 200 kN | Mass: 31.6 kg
NN3056 d: 280 mm | D: 420 mm | B: 106 mm | Cr: 1 090 kN | C0r: 2 010 kN | Mass: 51.2 kg
NN3056K d: 280 mm | D: 420 mm | B: 106 mm | Cr: 1 090 kN | C0r: 2 010 kN | Mass: 49.6 kg
NNU4960 d: 300 mm | D: 420 mm | B: 118 mm | Cr: 1 170 kN | C0r: 2 720 kN | Mass: 51.9 kg
NNU4960K d: 300 mm | D: 420 mm | B: 118 mm | Cr: 1 170 kN | C0r: 2 720 kN | Mass: 49.7 kg
NN3060 d: 300 mm | D: 460 mm | B: 118 mm | Cr: 1 290 kN | C0r: 2 460 kN | Mass: 70.8 kg
NN3060K d: 300 mm | D: 460 mm | B: 118 mm | Cr: 1 290 kN | C0r: 2 460 kN | Mass: 68.7 kg
NNU4964 d: 320 mm | D: 440 mm | B: 118 mm | Cr: 1 220 kN | C0r: 2 750 kN | Mass: 53.7 kg
NNU4964K d: 320 mm | D: 440 mm | B: 118 mm | Cr: 1 220 kN | C0r: 2 750 kN | Mass: 51.4 kg
NN3064 d: 320 mm | D: 480 mm | B: 121 mm | Cr: 1 350 kN | C0r: 2 670 kN | Mass: 76.4 kg
NN3064K d: 320 mm | D: 480 mm | B: 121 mm | Cr: 1 350 kN | C0r: 2 670 kN | Mass: 74.0 kg
NNU4968 d: 340 mm | D: 460 mm | B: 118 mm | Cr: 1 270 kN | C0r: 2 930 kN | Mass: 56.8 kg
NNU4968K d: 340 mm | D: 460 mm | B: 118 mm | Cr: 1 270 kN | C0r: 2 930 kN | Mass: 54.3 kg
NN3068 d: 340 mm | D: 520 mm | B: 133 mm | Cr: 1 580 kN | C0r: 3 090 kN | Mass: 101 kg
NN3068K d: 340 mm | D: 520 mm | B: 133 mm | Cr: 1 580 kN | C0r: 3 090 kN | Mass: 97.8 kg
NN3072 d: 360 mm | D: 540 mm | B: 134 mm | Cr: 1 560 kN | C0r: 3 090 kN | Mass: 107 kg
NN3072K d: 360 mm | D: 540 mm | B: 134 mm | Cr: 1 560 kN | C0r: 3 090 kN | Mass: 104 kg
NN3076 d: 380 mm | D: 560 mm | B: 135 mm | Cr: 1 650 kN | C0r: 3 350 kN | Mass: 113 kg
NN3076K d: 380 mm | D: 560 mm | B: 135 mm | Cr: 1 650 kN | C0r: 3 350 kN | Mass: 109 kg
NN3080 d: 400 mm | D: 600 mm | B: 148 mm | Cr: 2 030 kN | C0r: 4 140 kN | Mass: 146 kg
NN3080K d: 400 mm | D: 600 mm | B: 148 mm | Cr: 2 030 kN | C0r: 4 140 kN | Mass: 141 kg
NN3084 d: 420 mm | D: 620 mm | B: 150 mm | Cr: 2 310 kN | C0r: 4 570 kN | Mass: 154 kg
NN3084K d: 420 mm | D: 620 mm | B: 150 mm | Cr: 2 310 kN | C0r: 4 570 kN | Mass: 149 kg
NN3088 d: 440 mm | D: 650 mm | B: 157 mm | Cr: 2 520 kN | C0r: 5 060 kN | Mass: 177 kg
NN3088K d: 440 mm | D: 650 mm | B: 157 mm | Cr: 2 520 kN | C0r: 5 060 kN | Mass: 171 kg
NN3092 d: 460 mm | D: 680 mm | B: 163 mm | Cr: 2 700 kN | C0r: 5 480 kN | Mass: 201 kg
NN3092K d: 460 mm | D: 680 mm | B: 163 mm | Cr: 2 700 kN | C0r: 5 480 kN | Mass: 195 kg
NN3096 d: 480 mm | D: 700 mm | B: 165 mm | Cr: 2 770 kN | C0r: 5 710 kN | Mass: 211 kg
NN3096K d: 480 mm | D: 700 mm | B: 165 mm | Cr: 2 770 kN | C0r: 5 710 kN | Mass: 204 kg
Cylindrical Roller BearingsKOYO
120 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Double-Row Cylindrical Roller Bearings (NN30, NNU49, K)

Brand KOYO·Cylindrical Roller Bearings

Available part numbers (120)

NN3005, NN3005K, NN3006, NN3006K, NN3007, NN3007K, NN3008, NN3008K, NN3009, NN3009K + 110 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NN3005d: 25 mm | D: 47 mm | B: 16 mm | Cr: 25.7 kN | C0r: 30.0 kN | Mass: 0.127 kg
NN3005Kd: 25 mm | D: 47 mm | B: 16 mm | Cr: 25.7 kN | C0r: 30.0 kN | Mass: 0.123 kg
NN3006d: 30 mm | D: 55 mm | B: 19 mm | Cr: 36.8 kN | C0r: 44.1 kN | Mass: 0.198 kg
NN3006Kd: 30 mm | D: 55 mm | B: 19 mm | Cr: 36.8 kN | C0r: 44.1 kN | Mass: 0.192 kg
NN3007d: 35 mm | D: 62 mm | B: 20 mm | Cr: 39.1 kN | C0r: 50.0 kN | Mass: 0.253 kg
NN3007Kd: 35 mm | D: 62 mm | B: 20 mm | Cr: 39.1 kN | C0r: 50.0 kN | Mass: 0.246 kg
NN3008d: 40 mm | D: 68 mm | B: 21 mm | Cr: 41.3 kN | C0r: 55.9 kN | Mass: 0.307 kg
NN3008Kd: 40 mm | D: 68 mm | B: 21 mm | Cr: 41.3 kN | C0r: 55.9 kN | Mass: 0.298 kg
NN3009d: 45 mm | D: 75 mm | B: 23 mm | Cr: 53.4 kN | C0r: 71.9 kN | Mass: 0.404 kg
NN3009Kd: 45 mm | D: 75 mm | B: 23 mm | Cr: 53.4 kN | C0r: 71.9 kN | Mass: 0.382 kg
NN3010d: 50 mm | D: 80 mm | B: 23 mm | Cr: 52.8 kN | C0r: 72.6 kN | Mass: 0.429 kg
NN3010Kd: 50 mm | D: 80 mm | B: 23 mm | Cr: 52.8 kN | C0r: 72.6 kN | Mass: 0.415 kg
NN3011d: 55 mm | D: 90 mm | B: 26 mm | Cr: 71.2 kN | C0r: 101 kN | Mass: 0.637 kg
NN3011Kd: 55 mm | D: 90 mm | B: 26 mm | Cr: 71.2 kN | C0r: 101 kN | Mass: 0.618 kg
NN3012d: 60 mm | D: 95 mm | B: 26 mm | Cr: 72.8 kN | C0r: 106 kN | Mass: 0.685 kg
NN3012Kd: 60 mm | D: 95 mm | B: 26 mm | Cr: 72.8 kN | C0r: 106 kN | Mass: 0.664 kg
NN3013d: 65 mm | D: 100 mm | B: 26 mm | Cr: 74.5 kN | C0r: 111 kN | Mass: 0.728 kg
NN3013Kd: 65 mm | D: 100 mm | B: 26 mm | Cr: 74.5 kN | C0r: 111 kN | Mass: 0.705 kg
NN3014d: 70 mm | D: 110 mm | B: 30 mm | Cr: 96.9 kN | C0r: 148 kN | Mass: 1.04 kg
NN3014Kd: 70 mm | D: 110 mm | B: 30 mm | Cr: 96.9 kN | C0r: 148 kN | Mass: 1.02 kg
NN3015d: 75 mm | D: 115 mm | B: 30 mm | Cr: 99.0 kN | C0r: 155 kN | Mass: 1.11 kg
NN3015Kd: 75 mm | D: 115 mm | B: 30 mm | Cr: 99.0 kN | C0r: 155 kN | Mass: 1.08 kg
NN3016d: 80 mm | D: 125 mm | B: 34 mm | Cr: 119 kN | C0r: 186 kN | Mass: 1.55 kg
NN3016Kd: 80 mm | D: 125 mm | B: 34 mm | Cr: 119 kN | C0r: 186 kN | Mass: 1.50 kg
NN3017d: 85 mm | D: 130 mm | B: 34 mm | Cr: 121 kN | C0r: 194 kN | Mass: 1.63 kg
NN3017Kd: 85 mm | D: 130 mm | B: 34 mm | Cr: 121 kN | C0r: 194 kN | Mass: 1.58 kg
NN3018d: 90 mm | D: 140 mm | B: 37 mm | Cr: 142 kN | C0r: 228 kN | Mass: 2.07 kg
NN3018Kd: 90 mm | D: 140 mm | B: 37 mm | Cr: 142 kN | C0r: 228 kN | Mass: 2.01 kg
NN3019d: 95 mm | D: 145 mm | B: 37 mm | Cr: 150 kN | C0r: 246 kN | Mass: 2.17 kg
NN3019Kd: 95 mm | D: 145 mm | B: 37 mm | Cr: 150 kN | C0r: 246 kN | Mass: 2.10 kg
NNU4920d: 100 mm | D: 140 mm | B: 40 mm | Cr: 139 kN | C0r: 258 kN | Mass: 1.95 kg
NNU4920Kd: 100 mm | D: 140 mm | B: 40 mm | Cr: 139 kN | C0r: 258 kN | Mass: 1.87 kg
NN3020d: 100 mm | D: 150 mm | B: 37 mm | Cr: 157 kN | C0r: 265 kN | Mass: 2.28 kg
NN3020Kd: 100 mm | D: 150 mm | B: 37 mm | Cr: 157 kN | C0r: 265 kN | Mass: 2.21 kg
NNU4921d: 105 mm | D: 145 mm | B: 40 mm | Cr: 157 kN | C0r: 306 kN | Mass: 2.00 kg
NNU4921Kd: 105 mm | D: 145 mm | B: 40 mm | Cr: 157 kN | C0r: 306 kN | Mass: 1.91 kg
NN3021d: 105 mm | D: 160 mm | B: 41 mm | Cr: 197 kN | C0r: 322 kN | Mass: 2.88 kg
NN3021Kd: 105 mm | D: 160 mm | B: 41 mm | Cr: 197 kN | C0r: 322 kN | Mass: 2.81 kg
NNU4922d: 110 mm | D: 150 mm | B: 40 mm | Cr: 163 kN | C0r: 326 kN | Mass: 2.10 kg
NNU4922Kd: 110 mm | D: 150 mm | B: 40 mm | Cr: 163 kN | C0r: 326 kN | Mass: 2.01 kg
NN3022d: 110 mm | D: 170 mm | B: 45 mm | Cr: 221 kN | C0r: 361 kN | Mass: 3.65 kg
NN3022Kd: 110 mm | D: 170 mm | B: 45 mm | Cr: 221 kN | C0r: 361 kN | Mass: 3.56 kg
NNU4924d: 120 mm | D: 165 mm | B: 45 mm | Cr: 187 kN | C0r: 373 kN | Mass: 2.90 kg
NNU4924Kd: 120 mm | D: 165 mm | B: 45 mm | Cr: 187 kN | C0r: 373 kN | Mass: 2.77 kg
NN3024d: 120 mm | D: 180 mm | B: 46 mm | Cr: 232 kN | C0r: 392 kN | Mass: 4.00 kg
NN3024Kd: 120 mm | D: 180 mm | B: 46 mm | Cr: 232 kN | C0r: 392 kN | Mass: 3.87 kg
NNU4926d: 130 mm | D: 180 mm | B: 50 mm | Cr: 216 kN | C0r: 428 kN | Mass: 3.90 kg
NNU4926Kd: 130 mm | D: 180 mm | B: 50 mm | Cr: 216 kN | C0r: 428 kN | Mass: 3.73 kg
NN3026d: 130 mm | D: 200 mm | B: 52 mm | Cr: 283 kN | C0r: 476 kN | Mass: 5.94 kg
NN3026Kd: 130 mm | D: 200 mm | B: 52 mm | Cr: 283 kN | C0r: 476 kN | Mass: 5.76 kg
NNU4928d: 140 mm | D: 190 mm | B: 50 mm | Cr: 222 kN | C0r: 456 kN | Mass: 4.15 kg
NNU4928Kd: 140 mm | D: 190 mm | B: 50 mm | Cr: 222 kN | C0r: 456 kN | Mass: 3.97 kg
NN3028d: 140 mm | D: 210 mm | B: 53 mm | Cr: 297 kN | C0r: 516 kN | Mass: 6.41 kg
NN3028Kd: 140 mm | D: 210 mm | B: 53 mm | Cr: 297 kN | C0r: 516 kN | Mass: 6.21 kg
NNU4930d: 150 mm | D: 210 mm | B: 60 mm | Cr: 343 kN | C0r: 692 kN | Mass: 6.50 kg
NNU4930Kd: 150 mm | D: 210 mm | B: 60 mm | Cr: 343 kN | C0r: 692 kN | Mass: 6.22 kg
NN3030d: 150 mm | D: 225 mm | B: 56 mm | Cr: 334 kN | C0r: 587 kN | Mass: 7.74 kg
NN3030Kd: 150 mm | D: 225 mm | B: 56 mm | Cr: 334 kN | C0r: 587 kN | Mass: 7.50 kg
NNU4932d: 160 mm | D: 220 mm | B: 60 mm | Cr: 340 kN | C0r: 695 kN | Mass: 6.95 kg
NNU4932Kd: 160 mm | D: 220 mm | B: 60 mm | Cr: 340 kN | C0r: 695 kN | Mass: 6.65 kg
NN3032d: 160 mm | D: 240 mm | B: 60 mm | Cr: 398 kN | C0r: 695 kN | Mass: 9.38 kg
NN3032Kd: 160 mm | D: 240 mm | B: 60 mm | Cr: 398 kN | C0r: 695 kN | Mass: 9.08 kg
NNU4934d: 170 mm | D: 230 mm | B: 60 mm | Cr: 361 kN | C0r: 763 kN | Mass: 7.20 kg
NNU4934Kd: 170 mm | D: 230 mm | B: 60 mm | Cr: 361 kN | C0r: 763 kN | Mass: 6.88 kg
NN3034d: 170 mm | D: 260 mm | B: 67 mm | Cr: 471 kN | C0r: 824 kN | Mass: 12.8 kg
NN3034Kd: 170 mm | D: 260 mm | B: 67 mm | Cr: 471 kN | C0r: 824 kN | Mass: 12.4 kg
NNU4936d: 180 mm | D: 250 mm | B: 69 mm | Cr: 458 kN | C0r: 964 kN | Mass: 10.5 kg
NNU4936Kd: 180 mm | D: 250 mm | B: 69 mm | Cr: 458 kN | C0r: 964 kN | Mass: 10.1 kg
NN3036d: 180 mm | D: 280 mm | B: 74 mm | Cr: 561 kN | C0r: 958 kN | Mass: 16.8 kg
NN3036Kd: 180 mm | D: 280 mm | B: 74 mm | Cr: 561 kN | C0r: 958 kN | Mass: 16.3 kg
NNU4938d: 190 mm | D: 260 mm | B: 69 mm | Cr: 465 kN | C0r: 996 kN | Mass: 11.0 kg
NNU4938Kd: 190 mm | D: 260 mm | B: 69 mm | Cr: 465 kN | C0r: 996 kN | Mass: 10.5 kg
NN3038d: 190 mm | D: 290 mm | B: 75 mm | Cr: 598 kN | C0r: 1 020 kN | Mass: 17.6 kg
NN3038Kd: 190 mm | D: 290 mm | B: 75 mm | Cr: 598 kN | C0r: 1 020 kN | Mass: 17.1 kg
NNU4940d: 200 mm | D: 280 mm | B: 80 mm | Cr: 509 kN | C0r: 1 050 kN | Mass: 15.4 kg
NNU4940Kd: 200 mm | D: 280 mm | B: 80 mm | Cr: 509 kN | C0r: 1 050 kN | Mass: 14.7 kg
NN3040d: 200 mm | D: 310 mm | B: 82 mm | Cr: 638 kN | C0r: 1 120 kN | Mass: 22.5 kg
NN3040Kd: 200 mm | D: 310 mm | B: 82 mm | Cr: 638 kN | C0r: 1 120 kN | Mass: 21.8 kg
NNU4944d: 220 mm | D: 300 mm | B: 80 mm | Cr: 561 kN | C0r: 1 220 kN | Mass: 16.7 kg
NNU4944Kd: 220 mm | D: 300 mm | B: 80 mm | Cr: 561 kN | C0r: 1 220 kN | Mass: 16.0 kg
NN3044d: 220 mm | D: 340 mm | B: 90 mm | Cr: 752 kN | C0r: 1 370 kN | Mass: 29.3 kg
NN3044Kd: 220 mm | D: 340 mm | B: 90 mm | Cr: 752 kN | C0r: 1 370 kN | Mass: 28.4 kg
NNU4948d: 240 mm | D: 320 mm | B: 80 mm | Cr: 588 kN | C0r: 1 340 kN | Mass: 18.0 kg
NNU4948Kd: 240 mm | D: 320 mm | B: 80 mm | Cr: 588 kN | C0r: 1 340 kN | Mass: 17.2 kg
NN3048d: 240 mm | D: 360 mm | B: 92 mm | Cr: 864 kN | C0r: 1 590 kN | Mass: 32.8 kg
NN3048Kd: 240 mm | D: 360 mm | B: 92 mm | Cr: 864 kN | C0r: 1 590 kN | Mass: 31.8 kg
NNU4952d: 260 mm | D: 360 mm | B: 100 mm | Cr: 941 kN | C0r: 2 050 kN | Mass: 31.4 kg
NNU4952Kd: 260 mm | D: 360 mm | B: 100 mm | Cr: 941 kN | C0r: 2 050 kN | Mass: 30.0 kg
NN3052d: 260 mm | D: 400 mm | B: 104 mm | Cr: 1 030 kN | C0r: 1 830 kN | Mass: 47.4 kg
NN3052Kd: 260 mm | D: 400 mm | B: 104 mm | Cr: 1 030 kN | C0r: 1 830 kN | Mass: 46.0 kg
NNU4956d: 280 mm | D: 380 mm | B: 100 mm | Cr: 976 kN | C0r: 2 200 kN | Mass: 33.1 kg
NNU4956Kd: 280 mm | D: 380 mm | B: 100 mm | Cr: 976 kN | C0r: 2 200 kN | Mass: 31.6 kg
NN3056d: 280 mm | D: 420 mm | B: 106 mm | Cr: 1 090 kN | C0r: 2 010 kN | Mass: 51.2 kg
NN3056Kd: 280 mm | D: 420 mm | B: 106 mm | Cr: 1 090 kN | C0r: 2 010 kN | Mass: 49.6 kg
NNU4960d: 300 mm | D: 420 mm | B: 118 mm | Cr: 1 170 kN | C0r: 2 720 kN | Mass: 51.9 kg
NNU4960Kd: 300 mm | D: 420 mm | B: 118 mm | Cr: 1 170 kN | C0r: 2 720 kN | Mass: 49.7 kg
NN3060d: 300 mm | D: 460 mm | B: 118 mm | Cr: 1 290 kN | C0r: 2 460 kN | Mass: 70.8 kg
NN3060Kd: 300 mm | D: 460 mm | B: 118 mm | Cr: 1 290 kN | C0r: 2 460 kN | Mass: 68.7 kg
NNU4964d: 320 mm | D: 440 mm | B: 118 mm | Cr: 1 220 kN | C0r: 2 750 kN | Mass: 53.7 kg
NNU4964Kd: 320 mm | D: 440 mm | B: 118 mm | Cr: 1 220 kN | C0r: 2 750 kN | Mass: 51.4 kg
NN3064d: 320 mm | D: 480 mm | B: 121 mm | Cr: 1 350 kN | C0r: 2 670 kN | Mass: 76.4 kg
NN3064Kd: 320 mm | D: 480 mm | B: 121 mm | Cr: 1 350 kN | C0r: 2 670 kN | Mass: 74.0 kg
NNU4968d: 340 mm | D: 460 mm | B: 118 mm | Cr: 1 270 kN | C0r: 2 930 kN | Mass: 56.8 kg
NNU4968Kd: 340 mm | D: 460 mm | B: 118 mm | Cr: 1 270 kN | C0r: 2 930 kN | Mass: 54.3 kg
NN3068d: 340 mm | D: 520 mm | B: 133 mm | Cr: 1 580 kN | C0r: 3 090 kN | Mass: 101 kg
NN3068Kd: 340 mm | D: 520 mm | B: 133 mm | Cr: 1 580 kN | C0r: 3 090 kN | Mass: 97.8 kg
NN3072d: 360 mm | D: 540 mm | B: 134 mm | Cr: 1 560 kN | C0r: 3 090 kN | Mass: 107 kg
NN3072Kd: 360 mm | D: 540 mm | B: 134 mm | Cr: 1 560 kN | C0r: 3 090 kN | Mass: 104 kg
NN3076d: 380 mm | D: 560 mm | B: 135 mm | Cr: 1 650 kN | C0r: 3 350 kN | Mass: 113 kg
NN3076Kd: 380 mm | D: 560 mm | B: 135 mm | Cr: 1 650 kN | C0r: 3 350 kN | Mass: 109 kg
NN3080d: 400 mm | D: 600 mm | B: 148 mm | Cr: 2 030 kN | C0r: 4 140 kN | Mass: 146 kg
NN3080Kd: 400 mm | D: 600 mm | B: 148 mm | Cr: 2 030 kN | C0r: 4 140 kN | Mass: 141 kg
NN3084d: 420 mm | D: 620 mm | B: 150 mm | Cr: 2 310 kN | C0r: 4 570 kN | Mass: 154 kg
NN3084Kd: 420 mm | D: 620 mm | B: 150 mm | Cr: 2 310 kN | C0r: 4 570 kN | Mass: 149 kg
NN3088d: 440 mm | D: 650 mm | B: 157 mm | Cr: 2 520 kN | C0r: 5 060 kN | Mass: 177 kg
NN3088Kd: 440 mm | D: 650 mm | B: 157 mm | Cr: 2 520 kN | C0r: 5 060 kN | Mass: 171 kg
NN3092d: 460 mm | D: 680 mm | B: 163 mm | Cr: 2 700 kN | C0r: 5 480 kN | Mass: 201 kg
NN3092Kd: 460 mm | D: 680 mm | B: 163 mm | Cr: 2 700 kN | C0r: 5 480 kN | Mass: 195 kg
NN3096d: 480 mm | D: 700 mm | B: 165 mm | Cr: 2 770 kN | C0r: 5 710 kN | Mass: 211 kg
NN3096Kd: 480 mm | D: 700 mm | B: 165 mm | Cr: 2 770 kN | C0r: 5 710 kN | Mass: 204 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
