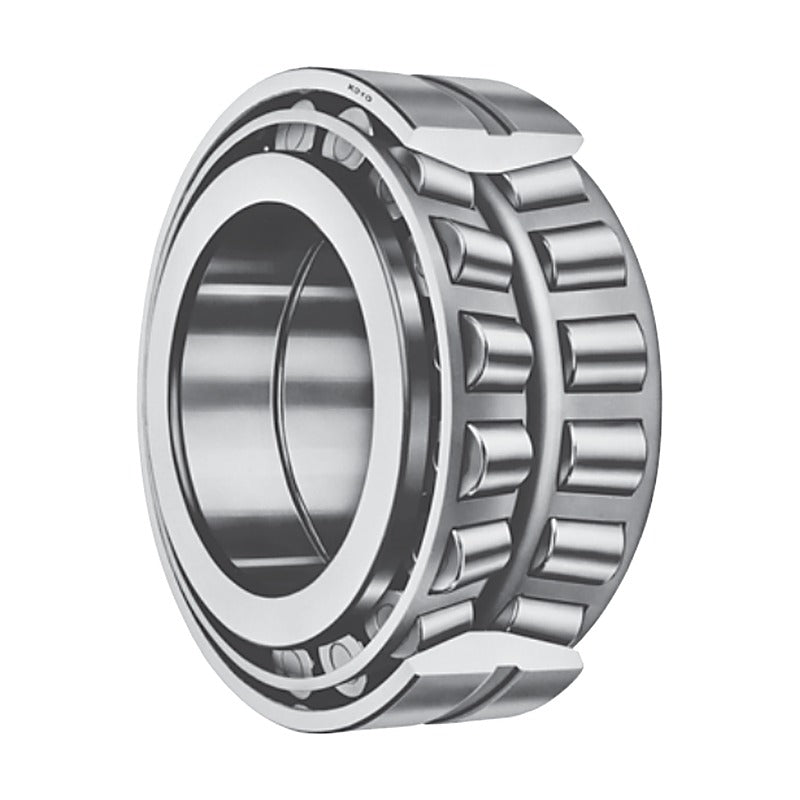

KOYO Double-Row Tapered Roller Bearings, TDO Type (46T)

KOYO Double-Row Tapered Roller Bearings, TDO Type (46T)

Double-row tapered roller bearings of TDO (back-to-back) type with double cup and two cones plus spacer, 46T series, bore 25 mm and above. Rigid against moment loads.

Key features

  • Back-to-back (TDO) arrangement with double cup
  • Carries radial and axial loads in both directions
  • High moment rigidity
  • Spacer sets the clearance; designation includes spacer width

Specifications

Bearing type Double-row tapered roller bearing
Arrangement TDO (back-to-back)
Series 46T
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B280-B295
46T30305DJR/29.5 d: 25 mm | D: 62 mm | T: 40 mm | Cr: 68.3 kN | C0r: 84.9 kN | Mass: 0.592 kg
46T30306DJR/31.5 d: 30 mm | D: 72 mm | T: 45 mm | Cr: 87.3 kN | C0r: 110 kN | Mass: 0.872 kg
46T30307DJR/35.5 d: 35 mm | D: 80 mm | T: 51 mm | Cr: 108 kN | C0r: 138 kN | Mass: 1.2 kg
46T30208JR/37.5 d: 40 mm | D: 80 mm | T: 45 mm | Cr: 108 kN | C0r: 138 kN | Mass: 0.954 kg
46T32208JR/43.5 d: 40 mm | D: 80 mm | T: 55 mm | Cr: 133 kN | C0r: 182 kN | Mass: 1.19 kg
46T30308DJR/39.5 d: 40 mm | D: 90 mm | T: 56 mm | Cr: 138 kN | C0r: 180 kN | Mass: 1.67 kg
46T30308JR/45.5 d: 40 mm | D: 90 mm | T: 56 mm | Cr: 155 kN | C0r: 202 kN | Mass: 1.67 kg
46T30209JR/37.5 d: 45 mm | D: 85 mm | T: 47 mm | Cr: 115 kN | C0r: 155 kN | Mass: 1.1 kg
46T32209JR-1/43.5 d: 45 mm | D: 85 mm | T: 55 mm | Cr: 144 kN | C0r: 207 kN | Mass: 1.31 kg
46T30309DJR/41.5 d: 45 mm | D: 100 mm | T: 60 mm | Cr: 163 kN | C0r: 214 kN | Mass: 2.15 kg
46T30309JR/49.5 d: 45 mm | D: 100 mm | T: 60 mm | Cr: 193 kN | C0r: 256 kN | Mass: 2.2 kg
46T30210JR/39.5 d: 50 mm | D: 90 mm | T: 49 mm | Cr: 131 kN | C0r: 183 kN | Mass: 1.22 kg
46T32210JR/43.5 d: 50 mm | D: 90 mm | T: 55 mm | Cr: 146 kN | C0r: 211 kN | Mass: 1.39 kg
46T30310JR/51.5 d: 50 mm | D: 110 mm | T: 64 mm | Cr: 236 kN | C0r: 305 kN | Mass: 2.68 kg
46T30310DJR/52.5 d: 50 mm | D: 110 mm | T: 73 mm | Cr: 198 kN | C0r: 266 kN | Mass: 3.11 kg
46T32310JR/71.5 d: 50 mm | D: 110 mm | T: 90 mm | Cr: 302 kN | C0r: 440 kN | Mass: 3.95 kg
46T30211JR/41.5 d: 55 mm | D: 100 mm | T: 51 mm | Cr: 162 kN | C0r: 226 kN | Mass: 1.6 kg
46T32211JR-1/48.5 d: 55 mm | D: 100 mm | T: 60 mm | Cr: 184 kN | C0r: 266 kN | Mass: 1.87 kg
46T30311DJR/49 d: 55 mm | D: 120 mm | T: 70 mm | Cr: 221 kN | C0r: 297 kN | Mass: 3.54 kg
46T30311JR/57 d: 55 mm | D: 120 mm | T: 70 mm | Cr: 256 kN | C0r: 341 kN | Mass: 3.57 kg
46T32311JR/76 d: 55 mm | D: 120 mm | T: 97 mm | Cr: 343 kN | C0r: 500 kN | Mass: 4.98 kg
46T30212JR/43.5 d: 60 mm | D: 110 mm | T: 53 mm | Cr: 182 kN | C0r: 254 kN | Mass: 2.04 kg
46T32212JR/54.5 d: 60 mm | D: 110 mm | T: 66 mm | Cr: 226 kN | C0r: 334 kN
46T30312DJR/51 d: 60 mm | D: 130 mm | T: 74 mm | Cr: 262 kN | C0r: 359 kN | Mass: 4.45 kg
46T30312JR/59 d: 60 mm | D: 130 mm | T: 74 mm | Cr: 297 kN | C0r: 401 kN | Mass: 4.46 kg
46T32312JR/81 d: 60 mm | D: 130 mm | T: 104 mm | Cr: 419 kN | C0r: 629 kN | Mass: 6.45 kg
46T30213JR/46.5 d: 65 mm | D: 120 mm | T: 56 mm | Cr: 220 kN | C0r: 311 kN
46T32213JR/61.5 d: 65 mm | D: 120 mm | T: 73 mm | Cr: 270 kN | C0r: 406 kN | Mass: 3.4 kg
46T30313DJR/53 d: 65 mm | D: 140 mm | T: 79 mm | Cr: 302 kN | C0r: 417 kN | Mass: 5.3 kg
46T30313JR/63 d: 65 mm | D: 140 mm | T: 79 mm | Cr: 349 kN | C0r: 478 kN | Mass: 5.51 kg
46T32313JR/84 d: 65 mm | D: 140 mm | T: 108 mm | Cr: 474 kN | C0r: 714 kN | Mass: 7.71 kg
46T30214JR/48.5 d: 70 mm | D: 125 mm | T: 59 mm | Cr: 236 kN | C0r: 346 kN
46T32214JR/61.5 d: 70 mm | D: 125 mm | T: 74 mm | Cr: 290 kN | C0r: 450 kN | Mass: 3.7 kg
46T30314DJR/57 d: 70 mm | D: 150 mm | T: 83 mm | Cr: 338 kN | C0r: 470 kN | Mass: 6.48 kg
46T30314JR/67 d: 70 mm | D: 150 mm | T: 83 mm | Cr: 394 kN | C0r: 546 kN | Mass: 6.65 kg
46T32314JR/92 d: 70 mm | D: 150 mm | T: 116 mm | Cr: 543 kN | C0r: 829 kN | Mass: 9.46 kg
46215 d: 75 mm | D: 115 mm | T: 30 mm | Cr: 71.7 kN | C0r: 105 kN | Mass: 0.994 kg
46215A d: 75 mm | D: 115 mm | T: 38 mm | Cr: 122 kN | C0r: 207 kN | Mass: 1.32 kg
46T30215JR/51.5 d: 75 mm | D: 130 mm | T: 62 mm | Cr: 244 kN | C0r: 362 kN | Mass: 3.12 kg
46T32215JR/61.5 d: 75 mm | D: 130 mm | T: 74 mm | Cr: 298 kN | C0r: 469 kN | Mass: 3.85 kg
46T30315JR/69 d: 75 mm | D: 160 mm | T: 87 mm | Cr: 445 kN | C0r: 621 kN | Mass: 7.8 kg
46T32315JR/99 d: 75 mm | D: 160 mm | T: 125 mm | Cr: 622 kN | C0r: 963 kN | Mass: 11.5 kg
46216 d: 80 mm | D: 125 mm | T: 34 mm | Cr: 108 kN | C0r: 155 kN | Mass: 1.38 kg
46T30216JR/51.5 d: 80 mm | D: 140 mm | T: 64 mm | Cr: 277 kN | C0r: 405 kN | Mass: 3.76 kg
46T32216JR/63.5 d: 80 mm | D: 140 mm | T: 78 mm | Cr: 347 kN | C0r: 542 kN | Mass: 4.71 kg
46T30316JR/73 d: 80 mm | D: 170 mm | T: 92 mm | Cr: 504 kN | C0r: 711 kN | Mass: 9.44 kg
46T30217JR/57 d: 85 mm | D: 150 mm | T: 70 mm | Cr: 313 kN | C0r: 463 kN | Mass: 4.79 kg
46T32217JR/69 d: 85 mm | D: 150 mm | T: 86 mm | Cr: 398 kN | C0r: 630 kN | Mass: 6.05 kg
46T30317JR/77 d: 85 mm | D: 180 mm | T: 98 mm | Cr: 543 kN | C0r: 768 kN | Mass: 11 kg
46T32317JR/108 d: 85 mm | D: 180 mm | T: 137 mm | Cr: 752 kN | C0r: 1 170 kN | Mass: 16 kg
46218 d: 90 mm | D: 140 mm | T: 37 mm | Cr: 136 kN | C0r: 199 kN | Mass: 1.89 kg
46218A d: 90 mm | D: 140 mm | T: 46 mm | Cr: 157 kN | C0r: 266 kN | Mass: 2.37 kg
46T30218JR/61 d: 90 mm | D: 160 mm | T: 74 mm | Cr: 350 kN | C0r: 522 kN | Mass: 5.85 kg
46T32218JR/77 d: 90 mm | D: 160 mm | T: 94 mm | Cr: 451 kN | C0r: 724 kN | Mass: 7.53 kg
46T30318JR/81 d: 90 mm | D: 190 mm | T: 102 mm | Cr: 592 kN | C0r: 841 kN | Mass: 13 kg
46T32318JR/115 d: 90 mm | D: 190 mm | T: 144 mm | Cr: 791 kN | C0r: 1 230 kN | Mass: 18.6 kg
46T30219JR/63 d: 95 mm | D: 170 mm | T: 78 mm | Cr: 396 kN | C0r: 598 kN | Mass: 7.01 kg
46T32219JR/83 d: 95 mm | D: 170 mm | T: 100 mm | Cr: 533 kN | C0r: 877 kN | Mass: 9.25 kg
46T30319JR/85 d: 95 mm | D: 200 mm | T: 108 mm | Cr: 638 kN | C0r: 909 kN | Mass: 14.8 kg
46T32319JR/118 d: 95 mm | D: 200 mm | T: 151 mm | Cr: 886 kN | C0r: 1 390 kN | Mass: 21.4 kg
46220A d: 100 mm | D: 150 mm | T: 46 mm | Cr: 180 kN | C0r: 293 kN | Mass: 2.53 kg
46320 d: 100 mm | D: 165 mm | T: 52 mm | Cr: 198 kN | C0r: 305 kN | Mass: 4.03 kg
46320A d: 100 mm | D: 165 mm | T: 65 mm | Cr: 265 kN | C0r: 443 kN | Mass: 4.97 kg
46T30220JR/67 d: 100 mm | D: 180 mm | T: 83 mm | Cr: 443 kN | C0r: 676 kN | Mass: 8.33 kg
46T32220JR/87 d: 100 mm | D: 180 mm | T: 107 mm | Cr: 596 kN | C0r: 990 kN | Mass: 11.1 kg
46T30320JR/87 d: 100 mm | D: 215 mm | T: 112 mm | Cr: 724 kN | C0r: 1 040 kN | Mass: 18.1 kg
46T32320JR/127 d: 100 mm | D: 215 mm | T: 162 mm | Cr: 993 kN | C0r: 1 570 kN | Mass: 27.2 kg
46T30221JR/70 d: 105 mm | D: 190 mm | T: 88 mm | Cr: 494 kN | C0r: 761 kN | Mass: 9.87 kg
46T32221JR/95 d: 105 mm | D: 190 mm | T: 115 mm | Cr: 672 kN | C0r: 1 130 kN | Mass: 13.5 kg
46T30321JR/91 d: 105 mm | D: 225 mm | T: 116 mm | Cr: 796 kN | C0r: 1 160 kN | Mass: 20.7 kg
46T32321JR/133 d: 105 mm | D: 225 mm | T: 170 mm | Cr: 1 090 kN | C0r: 1 730 kN | Mass: 30.9 kg
46222 d: 110 mm | D: 170 mm | T: 45 mm | Cr: 175 kN | C0r: 304 kN | Mass: 3.58 kg
46322 d: 110 mm | D: 180 mm | T: 56 mm | Cr: 245 kN | C0r: 388 kN | Mass: 5.13 kg
46322A d: 110 mm | D: 180 mm | T: 70 mm | Cr: 324 kN | C0r: 533 kN | Mass: 6.43 kg
46T30222JR/74 d: 110 mm | D: 200 mm | T: 92 mm | Cr: 556 kN | C0r: 868 kN | Mass: 11.6 kg
46T32222JR/101 d: 110 mm | D: 200 mm | T: 121 mm | Cr: 750 kN | C0r: 1 280 kN | Mass: 15.9 kg
46T30322JR/93 d: 110 mm | D: 240 mm | T: 118 mm | Cr: 824 kN | C0r: 1 180 kN | Mass: 23.8 kg
46T32322JR/142 d: 110 mm | D: 240 mm | T: 181 mm | Cr: 1 190 kN | C0r: 1 890 kN | Mass: 37.3 kg
46224 d: 120 mm | D: 180 mm | T: 46 mm | Cr: 185 kN | C0r: 317 kN | Mass: 3.81 kg
46224A d: 120 mm | D: 180 mm | T: 58 mm | Cr: 247 kN | C0r: 460 kN | Mass: 4.66 kg
46324 d: 120 mm | D: 200 mm | T: 62 mm | Cr: 292 kN | C0r: 470 kN | Mass: 7.28 kg
46324A d: 120 mm | D: 200 mm | T: 78 mm | Cr: 387 kN | C0r: 672 kN | Mass: 9.14 kg
46324AS d: 120 mm | D: 200 mm | T: 100 mm | Cr: 533 kN | C0r: 1 010 kN | Mass: 12.0 kg
46T30224JR/78 d: 120 mm | D: 215 mm | T: 97 mm | Cr: 595 kN | C0r: 945 kN | Mass: 13.9 kg
46T32224JR/109 d: 120 mm | D: 215 mm | T: 132 mm | Cr: 806 kN | C0r: 1 380 kN | Mass: 19.8 kg
46T30324JR/101 d: 120 mm | D: 260 mm | T: 128 mm | Cr: 976 kN | C0r: 1 430 kN | Mass: 30.6 kg
46T32324JR/145 d: 120 mm | D: 260 mm | T: 188 mm | Cr: 1 370 kN | C0r: 2 210 kN | Mass: 45.9 kg
46226 d: 130 mm | D: 200 mm | T: 52 mm | Cr: 239 kN | C0r: 425 kN | Mass: 5.57 kg
46226A d: 130 mm | D: 200 mm | T: 65 mm | Cr: 319 kN | C0r: 618 kN | Mass: 7.06 kg
46326 d: 130 mm | D: 210 mm | T: 64 mm | Cr: 322 kN | C0r: 535 kN | Mass: 7.81 kg
46326A d: 130 mm | D: 210 mm | T: 80 mm | Cr: 424 kN | C0r: 723 kN | Mass: 9.57 kg
46T30226JR/78.5 d: 130 mm | D: 230 mm | T: 98 mm | Cr: 646 kN | C0r: 1 020 kN | Mass: 15.7 kg
46T32226JR/117.5 d: 130 mm | D: 230 mm | T: 145 mm | Cr: 949 kN | C0r: 1 660 kN | Mass: 24.1 kg
46T30326JR/107.5 d: 130 mm | D: 280 mm | T: 137 mm | Cr: 1 130 kN | C0r: 1 670 kN | Mass: 38.1 kg
46228 d: 140 mm | D: 210 mm | T: 53 mm | Cr: 239 kN | C0r: 404 kN | Mass: 5.85 kg
46228A d: 140 mm | D: 210 mm | T: 66 mm | Cr: 360 kN | C0r: 639 kN | Mass: 7.18 kg
46328 d: 140 mm | D: 225 mm | T: 68 mm | Cr: 360 kN | C0r: 564 kN | Mass: 9.56 kg
46328A d: 140 mm | D: 225 mm | T: 85 mm | Cr: 475 kN | C0r: 836 kN | Mass: 11.8 kg
46T30228JR/82.5 d: 140 mm | D: 250 mm | T: 102 mm | Cr: 720 kN | C0r: 1 140 kN | Mass: 19.7 kg
46T32228JR/125.5 d: 140 mm | D: 250 mm | T: 153 mm | Cr: 1 090 kN | C0r: 1 920 kN | Mass: 30.2 kg
46T30328JR/115.5 d: 140 mm | D: 300 mm | T: 145 mm | Cr: 1 280 kN | C0r: 1 920 kN | Mass: 46.6 kg
46230 d: 150 mm | D: 225 mm | T: 56 mm | Cr: 278 kN | C0r: 476 kN | Mass: 7.09 kg
46230A d: 150 mm | D: 225 mm | T: 70 mm | Cr: 377 kN | C0r: 703 kN | Mass: 8.82 kg
46330 d: 150 mm | D: 250 mm | T: 80 mm | Cr: 467 kN | C0r: 786 kN | Mass: 14.6 kg
46330A d: 150 mm | D: 250 mm | T: 100 mm | Cr: 595 kN | C0r: 1 070 kN | Mass: 17.6 kg
46T30230JR/87 d: 150 mm | D: 270 mm | T: 109 mm | Cr: 827 kN | C0r: 1 330 kN | Mass: 24.6 kg
46T32230JR/130 d: 150 mm | D: 270 mm | T: 164 mm | Cr: 1 210 kN | C0r: 2 130 kN | Mass: 38 kg
46T30330JR/120 d: 150 mm | D: 320 mm | T: 154 mm | Cr: 1 430 kN | C0r: 2 160 kN | Mass: 56 kg
46232 d: 160 mm | D: 240 mm | T: 60 mm | Cr: 324 kN | C0r: 565 kN | Mass: 8.71 kg
46232A d: 160 mm | D: 240 mm | T: 75 mm | Cr: 406 kN | C0r: 756 kN | Mass: 10.6 kg
46332 d: 160 mm | D: 270 mm | T: 86 mm | Cr: 592 kN | C0r: 950 kN | Mass: 18.8 kg
46332A d: 160 mm | D: 270 mm | T: 108 mm | Cr: 727 kN | C0r: 1 270 kN | Mass: 23.1 kg
46T30232JR/91 d: 160 mm | D: 290 mm | T: 115 mm | Cr: 929 kN | C0r: 1 500 kN | Mass: 29.9 kg
46T32232JR/144 d: 160 mm | D: 290 mm | T: 178 mm | Cr: 1 360 kN | C0r: 2 420 kN | Mass: 47.6 kg
46234 d: 170 mm | D: 260 mm | T: 67 mm | Cr: 382 kN | C0r: 642 kN | Mass: 11.4 kg
46234A d: 170 mm | D: 260 mm | T: 84 mm | Cr: 502 kN | C0r: 969 kN | Mass: 14.7 kg
46334 d: 170 mm | D: 280 mm | T: 88 mm | Cr: 599 kN | C0r: 1 050 kN | Mass: 19.8 kg
46334A d: 170 mm | D: 280 mm | T: 110 mm | Cr: 776 kN | C0r: 1 390 kN | Mass: 24.7 kg
46T30234JR/97 d: 170 mm | D: 310 mm | T: 125 mm | Cr: 1 060 kN | C0r: 1 730 kN | Mass: 37.5 kg
46T32234JR/152 d: 170 mm | D: 310 mm | T: 192 mm | Cr: 1 540 kN | C0r: 2 760 kN | Mass: 58.8 kg
46236 d: 180 mm | D: 280 mm | T: 74 mm | Cr: 464 kN | C0r: 801 kN | Mass: 15.5 kg
46236A d: 180 mm | D: 280 mm | T: 93 mm | Cr: 584 kN | C0r: 1 080 kN | Mass: 19.0 kg
46336 d: 180 mm | D: 300 mm | T: 96 mm | Cr: 693 kN | C0r: 1 240 kN | Mass: 25.8 kg
46336A d: 180 mm | D: 300 mm | T: 120 mm | Cr: 894 kN | C0r: 1 630 kN | Mass: 31.3 kg
46T30236JR/99 d: 180 mm | D: 320 mm | T: 127 mm | Cr: 1 060 kN | C0r: 1 740 kN | Mass: 40.1 kg
46T32236JR/152 d: 180 mm | D: 320 mm | T: 192 mm | Cr: 1 640 kN | C0r: 3 030 kN | Mass: 62.5 kg
46238 d: 190 mm | D: 290 mm | T: 75 mm | Cr: 487 kN | C0r: 866 kN | Mass: 16.5 kg
46238A d: 190 mm | D: 290 mm | T: 94 mm | Cr: 632 kN | C0r: 1 170 kN | Mass: 20.0 kg
46338 d: 190 mm | D: 320 mm | T: 104 mm | Cr: 808 kN | C0r: 1 450 kN | Mass: 31.9 kg
46338A d: 190 mm | D: 320 mm | T: 130 mm | Cr: 1 020 kN | C0r: 1 860 kN | Mass: 39.0 kg
46T30238JR/105 d: 190 mm | D: 340 mm | T: 133 mm | Cr: 1 250 kN | C0r: 2 060 kN | Mass: 47.8 kg
46T32238JR/160 d: 190 mm | D: 340 mm | T: 204 mm | Cr: 1 870 kN | C0r: 3 480 kN | Mass: 75.1 kg
46240 d: 200 mm | D: 310 mm | T: 82 mm | Cr: 572 kN | C0r: 1 040 kN | Mass: 21.4 kg
46240A d: 200 mm | D: 310 mm | T: 103 mm | Cr: 713 kN | C0r: 1 380 kN | Mass: 26.3 kg
46340 d: 200 mm | D: 340 mm | T: 112 mm | Cr: 939 kN | C0r: 1 580 kN | Mass: 39.6 kg
46340A d: 200 mm | D: 340 mm | T: 140 mm | Cr: 1 110 kN | C0r: 2 040 kN | Mass: 48.2 kg
46T30240JR/110 d: 200 mm | D: 360 mm | T: 142 mm | Cr: 1 360 kN | C0r: 2 240 kN | Mass: 56.5 kg
46T32240JR/174 d: 200 mm | D: 360 mm | T: 218 mm | Cr: 2 130 kN | C0r: 3 760 kN | Mass: 88.2 kg
46244 d: 220 mm | D: 340 mm | T: 90 mm | Cr: 677 kN | C0r: 1 240 kN | Mass: 27.8 kg
46244A d: 220 mm | D: 340 mm | T: 113 mm | Cr: 832 kN | C0r: 1 620 kN | Mass: 34.2 kg
46344 d: 220 mm | D: 370 mm | T: 120 mm | Cr: 1 070 kN | C0r: 1 810 kN | Mass: 49.1 kg
46344A d: 220 mm | D: 370 mm | T: 150 mm | Cr: 1 330 kN | C0r: 2 470 kN | Mass: 60.1 kg
46T30244JR/114 d: 220 mm | D: 400 mm | T: 150 mm | Cr: 1 730 kN | C0r: 2 880 kN | Mass: 75.8 kg
46248 d: 240 mm | D: 360 mm | T: 92 mm | Cr: 768 kN | C0r: 1 430 kN | Mass: 29.6 kg
46248A d: 240 mm | D: 360 mm | T: 115 mm | Cr: 990 kN | C0r: 1 980 kN | Mass: 36.9 kg
46348 d: 240 mm | D: 400 mm | T: 128 mm | Cr: 1 190 kN | C0r: 2 180 kN | Mass: 59.0 kg
46348A d: 240 mm | D: 400 mm | T: 160 mm | Cr: 1 540 kN | C0r: 3 060 kN | Mass: 76.2 kg
46252 d: 260 mm | D: 400 mm | T: 104 mm | Cr: 935 kN | C0r: 1 830 kN | Mass: 44.6 kg
46252A d: 260 mm | D: 400 mm | T: 130 mm | Cr: 1 210 kN | C0r: 2 480 kN | Mass: 54.8 kg
46352 d: 260 mm | D: 440 mm | T: 144 mm | Cr: 1 510 kN | C0r: 2 880 kN | Mass: 83.8 kg
46352A d: 260 mm | D: 440 mm | T: 180 mm | Cr: 2 010 kN | C0r: 3 960 kN | Mass: 105 kg
46256 d: 280 mm | D: 420 mm | T: 106 mm | Cr: 1 010 kN | C0r: 1 970 kN | Mass: 46.9 kg
46256A d: 280 mm | D: 420 mm | T: 133 mm | Cr: 1 250 kN | C0r: 2 610 kN | Mass: 58.9 kg
46356 d: 280 mm | D: 460 mm | T: 146 mm | Cr: 1 550 kN | C0r: 2 930 kN | Mass: 90.0 kg
46356A d: 280 mm | D: 460 mm | T: 183 mm | Cr: 2 040 kN | C0r: 3 940 kN | Mass: 111 kg
46260 d: 300 mm | D: 460 mm | T: 118 mm | Cr: 1 290 kN | C0r: 2 400 kN | Mass: 64.6 kg
46260A d: 300 mm | D: 460 mm | T: 148 mm | Cr: 1 630 kN | C0r: 3 230 kN | Mass: 80.2 kg
46360 d: 300 mm | D: 500 mm | T: 160 mm | Cr: 1 980 kN | C0r: 3 540 kN | Mass: 116 kg
46360A d: 300 mm | D: 500 mm | T: 200 mm | Cr: 2 270 kN | C0r: 4 630 kN | Mass: 144 kg
46360D d: 300 mm | D: 500 mm | T: 200 mm | Cr: 2 500 kN | C0r: 4 650 kN | Mass: 139 kg
46264 d: 320 mm | D: 480 mm | T: 121 mm | Cr: 1 430 kN | C0r: 2 700 kN | Mass: 71.6 kg
46264A d: 320 mm | D: 480 mm | T: 151 mm | Cr: 1 650 kN | C0r: 3 410 kN | Mass: 87.7 kg
46364 d: 320 mm | D: 540 mm | T: 176 mm | Cr: 2 440 kN | C0r: 4 570 kN | Mass: 154 kg
46364A d: 320 mm | D: 540 mm | T: 220 mm | Cr: 2 610 kN | C0r: 5 390 kN | Mass: 190 kg
46268 d: 340 mm | D: 520 mm | T: 133 mm | Cr: 1 550 kN | C0r: 3 070 kN | Mass: 95.3 kg
46268A d: 340 mm | D: 520 mm | T: 165 mm | Cr: 1 930 kN | C0r: 4 060 kN | Mass: 117 kg
46368A d: 340 mm | D: 580 mm | T: 238 mm | Cr: 3 160 kN | C0r: 6 340 kN | Mass: 244 kg
46272 d: 360 mm | D: 540 mm | T: 134 mm | Cr: 1 660 kN | C0r: 3 290 kN | Mass: 93.0 kg
46272A d: 360 mm | D: 540 mm | T: 169 mm | Cr: 2 020 kN | C0r: 4 230 kN | Mass: 124 kg
46372 d: 360 mm | D: 600 mm | T: 192 mm | Cr: 2 680 kN | C0r: 4 880 kN | Mass: 206 kg
46372A d: 360 mm | D: 600 mm | T: 240 mm | Cr: 3 660 kN | C0r: 7 230 kN | Mass: 254 kg
46276 d: 380 mm | D: 560 mm | T: 135 mm | Cr: 1 740 kN | C0r: 3 560 kN | Mass: 100 kg
46276A d: 380 mm | D: 560 mm | T: 171 mm | Cr: 2 240 kN | C0r: 4 670 kN | Mass: 129 kg
46376 d: 380 mm | D: 620 mm | T: 194 mm | Cr: 2 870 kN | C0r: 5 220 kN | Mass: 215 kg
46376A d: 380 mm | D: 620 mm | T: 243 mm | Cr: 3 490 kN | C0r: 7 360 kN | Mass: 265 kg
46280 d: 400 mm | D: 600 mm | T: 148 mm | Cr: 1 870 kN | C0r: 3 720 kN | Mass: 135 kg
46280A d: 400 mm | D: 600 mm | T: 185 mm | Cr: 2 420 kN | C0r: 5 150 kN | Mass: 167 kg
46380 d: 400 mm | D: 650 mm | T: 200 mm | Cr: 2 980 kN | C0r: 5 920 kN | Mass: 243 kg
46380A d: 400 mm | D: 650 mm | T: 250 mm | Cr: 4 060 kN | C0r: 8 850 kN | Mass: 306 kg
46284 d: 420 mm | D: 620 mm | T: 150 mm | Cr: 2 010 kN | C0r: 4 130 kN | Mass: 142 kg
46284A d: 420 mm | D: 620 mm | T: 188 mm | Cr: 2 700 kN | C0r: 5 660 kN | Mass: 176 kg
46384 d: 420 mm | D: 700 mm | T: 224 mm | Cr: 3 700 kN | C0r: 6 880 kN | Mass: 325 kg
46384A d: 420 mm | D: 700 mm | T: 280 mm | Cr: 4 810 kN | C0r: 9 620 kN | Mass: 400 kg
46288 d: 440 mm | D: 650 mm | T: 157 mm | Cr: 2 260 kN | C0r: 4 430 kN | Mass: 156 kg
46288A d: 440 mm | D: 650 mm | T: 196 mm | Cr: 3 000 kN | C0r: 6 370 kN | Mass: 198 kg
46388 d: 440 mm | D: 720 mm | T: 226 mm | Cr: 3 940 kN | C0r: 8 110 kN | Mass: 354 kg
46388A d: 440 mm | D: 720 mm | T: 283 mm | Cr: 4 940 kN | C0r: 10 100 kN | Mass: 418 kg
46292 d: 460 mm | D: 680 mm | T: 163 mm | Cr: 2 500 kN | C0r: 5 340 kN | Mass: 196 kg
46292A d: 460 mm | D: 680 mm | T: 204 mm | Cr: 3 220 kN | C0r: 6 850 kN | Mass: 232 kg
46392 d: 460 mm | D: 760 mm | T: 240 mm | Cr: 4 580 kN | C0r: 9 000 kN | Mass: 424 kg
46392A d: 460 mm | D: 760 mm | T: 300 mm | Cr: 5 680 kN | C0r: 11 600 kN | Mass: 506 kg
46296 d: 480 mm | D: 700 mm | T: 165 mm | Cr: 2 530 kN | C0r: 5 300 kN | Mass: 186 kg
46296A d: 480 mm | D: 700 mm | T: 206 mm | Cr: 3 220 kN | C0r: 7 230 kN | Mass: 240 kg
46396 d: 480 mm | D: 790 mm | T: 248 mm | Cr: 4 640 kN | C0r: 8 920 kN | Mass: 457 kg
46396A d: 480 mm | D: 790 mm | T: 310 mm | Cr: 5 990 kN | C0r: 12 400 kN | Mass: 560 kg
462/500 d: 500 mm | D: 720 mm | T: 167 mm | Cr: 2 580 kN | C0r: 5 690 kN | Mass: 210 kg
462/500A d: 500 mm | D: 720 mm | T: 209 mm | Cr: 3 500 kN | C0r: 7 850 kN | Mass: 258 kg
463/500 d: 500 mm | D: 830 mm | T: 264 mm | Cr: 5 220 kN | C0r: 10 900 kN | Mass: 559 kg
463/500A d: 500 mm | D: 830 mm | T: 330 mm | Cr: 6 780 kN | C0r: 14 000 kN | Mass: 669 kg
Tapered Roller BearingsKOYO
199 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Double-Row Tapered Roller Bearings, TDO Type (46T)

Brand KOYO·Tapered Roller Bearings

Available part numbers (199)

46T30305DJR/29.5, 46T30306DJR/31.5, 46T30307DJR/35.5, 46T30208JR/37.5, 46T32208JR/43.5, 46T30308DJR/39.5, 46T30308JR/45.5, 46T30209JR/37.5, 46T32209JR-1/43.5, 46T30309DJR/41.5 + 189 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
46T30305DJR/29.5d: 25 mm | D: 62 mm | T: 40 mm | Cr: 68.3 kN | C0r: 84.9 kN | Mass: 0.592 kg
46T30306DJR/31.5d: 30 mm | D: 72 mm | T: 45 mm | Cr: 87.3 kN | C0r: 110 kN | Mass: 0.872 kg
46T30307DJR/35.5d: 35 mm | D: 80 mm | T: 51 mm | Cr: 108 kN | C0r: 138 kN | Mass: 1.2 kg
46T30208JR/37.5d: 40 mm | D: 80 mm | T: 45 mm | Cr: 108 kN | C0r: 138 kN | Mass: 0.954 kg
46T32208JR/43.5d: 40 mm | D: 80 mm | T: 55 mm | Cr: 133 kN | C0r: 182 kN | Mass: 1.19 kg
46T30308DJR/39.5d: 40 mm | D: 90 mm | T: 56 mm | Cr: 138 kN | C0r: 180 kN | Mass: 1.67 kg
46T30308JR/45.5d: 40 mm | D: 90 mm | T: 56 mm | Cr: 155 kN | C0r: 202 kN | Mass: 1.67 kg
46T30209JR/37.5d: 45 mm | D: 85 mm | T: 47 mm | Cr: 115 kN | C0r: 155 kN | Mass: 1.1 kg
46T32209JR-1/43.5d: 45 mm | D: 85 mm | T: 55 mm | Cr: 144 kN | C0r: 207 kN | Mass: 1.31 kg
46T30309DJR/41.5d: 45 mm | D: 100 mm | T: 60 mm | Cr: 163 kN | C0r: 214 kN | Mass: 2.15 kg
46T30309JR/49.5d: 45 mm | D: 100 mm | T: 60 mm | Cr: 193 kN | C0r: 256 kN | Mass: 2.2 kg
46T30210JR/39.5d: 50 mm | D: 90 mm | T: 49 mm | Cr: 131 kN | C0r: 183 kN | Mass: 1.22 kg
46T32210JR/43.5d: 50 mm | D: 90 mm | T: 55 mm | Cr: 146 kN | C0r: 211 kN | Mass: 1.39 kg
46T30310JR/51.5d: 50 mm | D: 110 mm | T: 64 mm | Cr: 236 kN | C0r: 305 kN | Mass: 2.68 kg
46T30310DJR/52.5d: 50 mm | D: 110 mm | T: 73 mm | Cr: 198 kN | C0r: 266 kN | Mass: 3.11 kg
46T32310JR/71.5d: 50 mm | D: 110 mm | T: 90 mm | Cr: 302 kN | C0r: 440 kN | Mass: 3.95 kg
46T30211JR/41.5d: 55 mm | D: 100 mm | T: 51 mm | Cr: 162 kN | C0r: 226 kN | Mass: 1.6 kg
46T32211JR-1/48.5d: 55 mm | D: 100 mm | T: 60 mm | Cr: 184 kN | C0r: 266 kN | Mass: 1.87 kg
46T30311DJR/49d: 55 mm | D: 120 mm | T: 70 mm | Cr: 221 kN | C0r: 297 kN | Mass: 3.54 kg
46T30311JR/57d: 55 mm | D: 120 mm | T: 70 mm | Cr: 256 kN | C0r: 341 kN | Mass: 3.57 kg
46T32311JR/76d: 55 mm | D: 120 mm | T: 97 mm | Cr: 343 kN | C0r: 500 kN | Mass: 4.98 kg
46T30212JR/43.5d: 60 mm | D: 110 mm | T: 53 mm | Cr: 182 kN | C0r: 254 kN | Mass: 2.04 kg
46T32212JR/54.5d: 60 mm | D: 110 mm | T: 66 mm | Cr: 226 kN | C0r: 334 kN
46T30312DJR/51d: 60 mm | D: 130 mm | T: 74 mm | Cr: 262 kN | C0r: 359 kN | Mass: 4.45 kg
46T30312JR/59d: 60 mm | D: 130 mm | T: 74 mm | Cr: 297 kN | C0r: 401 kN | Mass: 4.46 kg
46T32312JR/81d: 60 mm | D: 130 mm | T: 104 mm | Cr: 419 kN | C0r: 629 kN | Mass: 6.45 kg
46T30213JR/46.5d: 65 mm | D: 120 mm | T: 56 mm | Cr: 220 kN | C0r: 311 kN
46T32213JR/61.5d: 65 mm | D: 120 mm | T: 73 mm | Cr: 270 kN | C0r: 406 kN | Mass: 3.4 kg
46T30313DJR/53d: 65 mm | D: 140 mm | T: 79 mm | Cr: 302 kN | C0r: 417 kN | Mass: 5.3 kg
46T30313JR/63d: 65 mm | D: 140 mm | T: 79 mm | Cr: 349 kN | C0r: 478 kN | Mass: 5.51 kg
46T32313JR/84d: 65 mm | D: 140 mm | T: 108 mm | Cr: 474 kN | C0r: 714 kN | Mass: 7.71 kg
46T30214JR/48.5d: 70 mm | D: 125 mm | T: 59 mm | Cr: 236 kN | C0r: 346 kN
46T32214JR/61.5d: 70 mm | D: 125 mm | T: 74 mm | Cr: 290 kN | C0r: 450 kN | Mass: 3.7 kg
46T30314DJR/57d: 70 mm | D: 150 mm | T: 83 mm | Cr: 338 kN | C0r: 470 kN | Mass: 6.48 kg
46T30314JR/67d: 70 mm | D: 150 mm | T: 83 mm | Cr: 394 kN | C0r: 546 kN | Mass: 6.65 kg
46T32314JR/92d: 70 mm | D: 150 mm | T: 116 mm | Cr: 543 kN | C0r: 829 kN | Mass: 9.46 kg
46215d: 75 mm | D: 115 mm | T: 30 mm | Cr: 71.7 kN | C0r: 105 kN | Mass: 0.994 kg
46215Ad: 75 mm | D: 115 mm | T: 38 mm | Cr: 122 kN | C0r: 207 kN | Mass: 1.32 kg
46T30215JR/51.5d: 75 mm | D: 130 mm | T: 62 mm | Cr: 244 kN | C0r: 362 kN | Mass: 3.12 kg
46T32215JR/61.5d: 75 mm | D: 130 mm | T: 74 mm | Cr: 298 kN | C0r: 469 kN | Mass: 3.85 kg
46T30315JR/69d: 75 mm | D: 160 mm | T: 87 mm | Cr: 445 kN | C0r: 621 kN | Mass: 7.8 kg
46T32315JR/99d: 75 mm | D: 160 mm | T: 125 mm | Cr: 622 kN | C0r: 963 kN | Mass: 11.5 kg
46216d: 80 mm | D: 125 mm | T: 34 mm | Cr: 108 kN | C0r: 155 kN | Mass: 1.38 kg
46T30216JR/51.5d: 80 mm | D: 140 mm | T: 64 mm | Cr: 277 kN | C0r: 405 kN | Mass: 3.76 kg
46T32216JR/63.5d: 80 mm | D: 140 mm | T: 78 mm | Cr: 347 kN | C0r: 542 kN | Mass: 4.71 kg
46T30316JR/73d: 80 mm | D: 170 mm | T: 92 mm | Cr: 504 kN | C0r: 711 kN | Mass: 9.44 kg
46T30217JR/57d: 85 mm | D: 150 mm | T: 70 mm | Cr: 313 kN | C0r: 463 kN | Mass: 4.79 kg
46T32217JR/69d: 85 mm | D: 150 mm | T: 86 mm | Cr: 398 kN | C0r: 630 kN | Mass: 6.05 kg
46T30317JR/77d: 85 mm | D: 180 mm | T: 98 mm | Cr: 543 kN | C0r: 768 kN | Mass: 11 kg
46T32317JR/108d: 85 mm | D: 180 mm | T: 137 mm | Cr: 752 kN | C0r: 1 170 kN | Mass: 16 kg
46218d: 90 mm | D: 140 mm | T: 37 mm | Cr: 136 kN | C0r: 199 kN | Mass: 1.89 kg
46218Ad: 90 mm | D: 140 mm | T: 46 mm | Cr: 157 kN | C0r: 266 kN | Mass: 2.37 kg
46T30218JR/61d: 90 mm | D: 160 mm | T: 74 mm | Cr: 350 kN | C0r: 522 kN | Mass: 5.85 kg
46T32218JR/77d: 90 mm | D: 160 mm | T: 94 mm | Cr: 451 kN | C0r: 724 kN | Mass: 7.53 kg
46T30318JR/81d: 90 mm | D: 190 mm | T: 102 mm | Cr: 592 kN | C0r: 841 kN | Mass: 13 kg
46T32318JR/115d: 90 mm | D: 190 mm | T: 144 mm | Cr: 791 kN | C0r: 1 230 kN | Mass: 18.6 kg
46T30219JR/63d: 95 mm | D: 170 mm | T: 78 mm | Cr: 396 kN | C0r: 598 kN | Mass: 7.01 kg
46T32219JR/83d: 95 mm | D: 170 mm | T: 100 mm | Cr: 533 kN | C0r: 877 kN | Mass: 9.25 kg
46T30319JR/85d: 95 mm | D: 200 mm | T: 108 mm | Cr: 638 kN | C0r: 909 kN | Mass: 14.8 kg
46T32319JR/118d: 95 mm | D: 200 mm | T: 151 mm | Cr: 886 kN | C0r: 1 390 kN | Mass: 21.4 kg
46220Ad: 100 mm | D: 150 mm | T: 46 mm | Cr: 180 kN | C0r: 293 kN | Mass: 2.53 kg
46320d: 100 mm | D: 165 mm | T: 52 mm | Cr: 198 kN | C0r: 305 kN | Mass: 4.03 kg
46320Ad: 100 mm | D: 165 mm | T: 65 mm | Cr: 265 kN | C0r: 443 kN | Mass: 4.97 kg
46T30220JR/67d: 100 mm | D: 180 mm | T: 83 mm | Cr: 443 kN | C0r: 676 kN | Mass: 8.33 kg
46T32220JR/87d: 100 mm | D: 180 mm | T: 107 mm | Cr: 596 kN | C0r: 990 kN | Mass: 11.1 kg
46T30320JR/87d: 100 mm | D: 215 mm | T: 112 mm | Cr: 724 kN | C0r: 1 040 kN | Mass: 18.1 kg
46T32320JR/127d: 100 mm | D: 215 mm | T: 162 mm | Cr: 993 kN | C0r: 1 570 kN | Mass: 27.2 kg
46T30221JR/70d: 105 mm | D: 190 mm | T: 88 mm | Cr: 494 kN | C0r: 761 kN | Mass: 9.87 kg
46T32221JR/95d: 105 mm | D: 190 mm | T: 115 mm | Cr: 672 kN | C0r: 1 130 kN | Mass: 13.5 kg
46T30321JR/91d: 105 mm | D: 225 mm | T: 116 mm | Cr: 796 kN | C0r: 1 160 kN | Mass: 20.7 kg
46T32321JR/133d: 105 mm | D: 225 mm | T: 170 mm | Cr: 1 090 kN | C0r: 1 730 kN | Mass: 30.9 kg
46222d: 110 mm | D: 170 mm | T: 45 mm | Cr: 175 kN | C0r: 304 kN | Mass: 3.58 kg
46322d: 110 mm | D: 180 mm | T: 56 mm | Cr: 245 kN | C0r: 388 kN | Mass: 5.13 kg
46322Ad: 110 mm | D: 180 mm | T: 70 mm | Cr: 324 kN | C0r: 533 kN | Mass: 6.43 kg
46T30222JR/74d: 110 mm | D: 200 mm | T: 92 mm | Cr: 556 kN | C0r: 868 kN | Mass: 11.6 kg
46T32222JR/101d: 110 mm | D: 200 mm | T: 121 mm | Cr: 750 kN | C0r: 1 280 kN | Mass: 15.9 kg
46T30322JR/93d: 110 mm | D: 240 mm | T: 118 mm | Cr: 824 kN | C0r: 1 180 kN | Mass: 23.8 kg
46T32322JR/142d: 110 mm | D: 240 mm | T: 181 mm | Cr: 1 190 kN | C0r: 1 890 kN | Mass: 37.3 kg
46224d: 120 mm | D: 180 mm | T: 46 mm | Cr: 185 kN | C0r: 317 kN | Mass: 3.81 kg
46224Ad: 120 mm | D: 180 mm | T: 58 mm | Cr: 247 kN | C0r: 460 kN | Mass: 4.66 kg
46324d: 120 mm | D: 200 mm | T: 62 mm | Cr: 292 kN | C0r: 470 kN | Mass: 7.28 kg
46324Ad: 120 mm | D: 200 mm | T: 78 mm | Cr: 387 kN | C0r: 672 kN | Mass: 9.14 kg
46324ASd: 120 mm | D: 200 mm | T: 100 mm | Cr: 533 kN | C0r: 1 010 kN | Mass: 12.0 kg
46T30224JR/78d: 120 mm | D: 215 mm | T: 97 mm | Cr: 595 kN | C0r: 945 kN | Mass: 13.9 kg
46T32224JR/109d: 120 mm | D: 215 mm | T: 132 mm | Cr: 806 kN | C0r: 1 380 kN | Mass: 19.8 kg
46T30324JR/101d: 120 mm | D: 260 mm | T: 128 mm | Cr: 976 kN | C0r: 1 430 kN | Mass: 30.6 kg
46T32324JR/145d: 120 mm | D: 260 mm | T: 188 mm | Cr: 1 370 kN | C0r: 2 210 kN | Mass: 45.9 kg
46226d: 130 mm | D: 200 mm | T: 52 mm | Cr: 239 kN | C0r: 425 kN | Mass: 5.57 kg
46226Ad: 130 mm | D: 200 mm | T: 65 mm | Cr: 319 kN | C0r: 618 kN | Mass: 7.06 kg
46326d: 130 mm | D: 210 mm | T: 64 mm | Cr: 322 kN | C0r: 535 kN | Mass: 7.81 kg
46326Ad: 130 mm | D: 210 mm | T: 80 mm | Cr: 424 kN | C0r: 723 kN | Mass: 9.57 kg
46T30226JR/78.5d: 130 mm | D: 230 mm | T: 98 mm | Cr: 646 kN | C0r: 1 020 kN | Mass: 15.7 kg
46T32226JR/117.5d: 130 mm | D: 230 mm | T: 145 mm | Cr: 949 kN | C0r: 1 660 kN | Mass: 24.1 kg
46T30326JR/107.5d: 130 mm | D: 280 mm | T: 137 mm | Cr: 1 130 kN | C0r: 1 670 kN | Mass: 38.1 kg
46228d: 140 mm | D: 210 mm | T: 53 mm | Cr: 239 kN | C0r: 404 kN | Mass: 5.85 kg
46228Ad: 140 mm | D: 210 mm | T: 66 mm | Cr: 360 kN | C0r: 639 kN | Mass: 7.18 kg
46328d: 140 mm | D: 225 mm | T: 68 mm | Cr: 360 kN | C0r: 564 kN | Mass: 9.56 kg
46328Ad: 140 mm | D: 225 mm | T: 85 mm | Cr: 475 kN | C0r: 836 kN | Mass: 11.8 kg
46T30228JR/82.5d: 140 mm | D: 250 mm | T: 102 mm | Cr: 720 kN | C0r: 1 140 kN | Mass: 19.7 kg
46T32228JR/125.5d: 140 mm | D: 250 mm | T: 153 mm | Cr: 1 090 kN | C0r: 1 920 kN | Mass: 30.2 kg
46T30328JR/115.5d: 140 mm | D: 300 mm | T: 145 mm | Cr: 1 280 kN | C0r: 1 920 kN | Mass: 46.6 kg
46230d: 150 mm | D: 225 mm | T: 56 mm | Cr: 278 kN | C0r: 476 kN | Mass: 7.09 kg
46230Ad: 150 mm | D: 225 mm | T: 70 mm | Cr: 377 kN | C0r: 703 kN | Mass: 8.82 kg
46330d: 150 mm | D: 250 mm | T: 80 mm | Cr: 467 kN | C0r: 786 kN | Mass: 14.6 kg
46330Ad: 150 mm | D: 250 mm | T: 100 mm | Cr: 595 kN | C0r: 1 070 kN | Mass: 17.6 kg
46T30230JR/87d: 150 mm | D: 270 mm | T: 109 mm | Cr: 827 kN | C0r: 1 330 kN | Mass: 24.6 kg
46T32230JR/130d: 150 mm | D: 270 mm | T: 164 mm | Cr: 1 210 kN | C0r: 2 130 kN | Mass: 38 kg
46T30330JR/120d: 150 mm | D: 320 mm | T: 154 mm | Cr: 1 430 kN | C0r: 2 160 kN | Mass: 56 kg
46232d: 160 mm | D: 240 mm | T: 60 mm | Cr: 324 kN | C0r: 565 kN | Mass: 8.71 kg
46232Ad: 160 mm | D: 240 mm | T: 75 mm | Cr: 406 kN | C0r: 756 kN | Mass: 10.6 kg
46332d: 160 mm | D: 270 mm | T: 86 mm | Cr: 592 kN | C0r: 950 kN | Mass: 18.8 kg
46332Ad: 160 mm | D: 270 mm | T: 108 mm | Cr: 727 kN | C0r: 1 270 kN | Mass: 23.1 kg
46T30232JR/91d: 160 mm | D: 290 mm | T: 115 mm | Cr: 929 kN | C0r: 1 500 kN | Mass: 29.9 kg
46T32232JR/144d: 160 mm | D: 290 mm | T: 178 mm | Cr: 1 360 kN | C0r: 2 420 kN | Mass: 47.6 kg
46234d: 170 mm | D: 260 mm | T: 67 mm | Cr: 382 kN | C0r: 642 kN | Mass: 11.4 kg
46234Ad: 170 mm | D: 260 mm | T: 84 mm | Cr: 502 kN | C0r: 969 kN | Mass: 14.7 kg
46334d: 170 mm | D: 280 mm | T: 88 mm | Cr: 599 kN | C0r: 1 050 kN | Mass: 19.8 kg
46334Ad: 170 mm | D: 280 mm | T: 110 mm | Cr: 776 kN | C0r: 1 390 kN | Mass: 24.7 kg
46T30234JR/97d: 170 mm | D: 310 mm | T: 125 mm | Cr: 1 060 kN | C0r: 1 730 kN | Mass: 37.5 kg
46T32234JR/152d: 170 mm | D: 310 mm | T: 192 mm | Cr: 1 540 kN | C0r: 2 760 kN | Mass: 58.8 kg
46236d: 180 mm | D: 280 mm | T: 74 mm | Cr: 464 kN | C0r: 801 kN | Mass: 15.5 kg
46236Ad: 180 mm | D: 280 mm | T: 93 mm | Cr: 584 kN | C0r: 1 080 kN | Mass: 19.0 kg
46336d: 180 mm | D: 300 mm | T: 96 mm | Cr: 693 kN | C0r: 1 240 kN | Mass: 25.8 kg
46336Ad: 180 mm | D: 300 mm | T: 120 mm | Cr: 894 kN | C0r: 1 630 kN | Mass: 31.3 kg
46T30236JR/99d: 180 mm | D: 320 mm | T: 127 mm | Cr: 1 060 kN | C0r: 1 740 kN | Mass: 40.1 kg
46T32236JR/152d: 180 mm | D: 320 mm | T: 192 mm | Cr: 1 640 kN | C0r: 3 030 kN | Mass: 62.5 kg
46238d: 190 mm | D: 290 mm | T: 75 mm | Cr: 487 kN | C0r: 866 kN | Mass: 16.5 kg
46238Ad: 190 mm | D: 290 mm | T: 94 mm | Cr: 632 kN | C0r: 1 170 kN | Mass: 20.0 kg
46338d: 190 mm | D: 320 mm | T: 104 mm | Cr: 808 kN | C0r: 1 450 kN | Mass: 31.9 kg
46338Ad: 190 mm | D: 320 mm | T: 130 mm | Cr: 1 020 kN | C0r: 1 860 kN | Mass: 39.0 kg
46T30238JR/105d: 190 mm | D: 340 mm | T: 133 mm | Cr: 1 250 kN | C0r: 2 060 kN | Mass: 47.8 kg
46T32238JR/160d: 190 mm | D: 340 mm | T: 204 mm | Cr: 1 870 kN | C0r: 3 480 kN | Mass: 75.1 kg
46240d: 200 mm | D: 310 mm | T: 82 mm | Cr: 572 kN | C0r: 1 040 kN | Mass: 21.4 kg
46240Ad: 200 mm | D: 310 mm | T: 103 mm | Cr: 713 kN | C0r: 1 380 kN | Mass: 26.3 kg
46340d: 200 mm | D: 340 mm | T: 112 mm | Cr: 939 kN | C0r: 1 580 kN | Mass: 39.6 kg
46340Ad: 200 mm | D: 340 mm | T: 140 mm | Cr: 1 110 kN | C0r: 2 040 kN | Mass: 48.2 kg
46T30240JR/110d: 200 mm | D: 360 mm | T: 142 mm | Cr: 1 360 kN | C0r: 2 240 kN | Mass: 56.5 kg
46T32240JR/174d: 200 mm | D: 360 mm | T: 218 mm | Cr: 2 130 kN | C0r: 3 760 kN | Mass: 88.2 kg
46244d: 220 mm | D: 340 mm | T: 90 mm | Cr: 677 kN | C0r: 1 240 kN | Mass: 27.8 kg
46244Ad: 220 mm | D: 340 mm | T: 113 mm | Cr: 832 kN | C0r: 1 620 kN | Mass: 34.2 kg
46344d: 220 mm | D: 370 mm | T: 120 mm | Cr: 1 070 kN | C0r: 1 810 kN | Mass: 49.1 kg
46344Ad: 220 mm | D: 370 mm | T: 150 mm | Cr: 1 330 kN | C0r: 2 470 kN | Mass: 60.1 kg
46T30244JR/114d: 220 mm | D: 400 mm | T: 150 mm | Cr: 1 730 kN | C0r: 2 880 kN | Mass: 75.8 kg
46248d: 240 mm | D: 360 mm | T: 92 mm | Cr: 768 kN | C0r: 1 430 kN | Mass: 29.6 kg
46248Ad: 240 mm | D: 360 mm | T: 115 mm | Cr: 990 kN | C0r: 1 980 kN | Mass: 36.9 kg
46348d: 240 mm | D: 400 mm | T: 128 mm | Cr: 1 190 kN | C0r: 2 180 kN | Mass: 59.0 kg
46348Ad: 240 mm | D: 400 mm | T: 160 mm | Cr: 1 540 kN | C0r: 3 060 kN | Mass: 76.2 kg
46252d: 260 mm | D: 400 mm | T: 104 mm | Cr: 935 kN | C0r: 1 830 kN | Mass: 44.6 kg
46252Ad: 260 mm | D: 400 mm | T: 130 mm | Cr: 1 210 kN | C0r: 2 480 kN | Mass: 54.8 kg
46352d: 260 mm | D: 440 mm | T: 144 mm | Cr: 1 510 kN | C0r: 2 880 kN | Mass: 83.8 kg
46352Ad: 260 mm | D: 440 mm | T: 180 mm | Cr: 2 010 kN | C0r: 3 960 kN | Mass: 105 kg
46256d: 280 mm | D: 420 mm | T: 106 mm | Cr: 1 010 kN | C0r: 1 970 kN | Mass: 46.9 kg
46256Ad: 280 mm | D: 420 mm | T: 133 mm | Cr: 1 250 kN | C0r: 2 610 kN | Mass: 58.9 kg
46356d: 280 mm | D: 460 mm | T: 146 mm | Cr: 1 550 kN | C0r: 2 930 kN | Mass: 90.0 kg
46356Ad: 280 mm | D: 460 mm | T: 183 mm | Cr: 2 040 kN | C0r: 3 940 kN | Mass: 111 kg
46260d: 300 mm | D: 460 mm | T: 118 mm | Cr: 1 290 kN | C0r: 2 400 kN | Mass: 64.6 kg
46260Ad: 300 mm | D: 460 mm | T: 148 mm | Cr: 1 630 kN | C0r: 3 230 kN | Mass: 80.2 kg
46360d: 300 mm | D: 500 mm | T: 160 mm | Cr: 1 980 kN | C0r: 3 540 kN | Mass: 116 kg
46360Ad: 300 mm | D: 500 mm | T: 200 mm | Cr: 2 270 kN | C0r: 4 630 kN | Mass: 144 kg
46360Dd: 300 mm | D: 500 mm | T: 200 mm | Cr: 2 500 kN | C0r: 4 650 kN | Mass: 139 kg
46264d: 320 mm | D: 480 mm | T: 121 mm | Cr: 1 430 kN | C0r: 2 700 kN | Mass: 71.6 kg
46264Ad: 320 mm | D: 480 mm | T: 151 mm | Cr: 1 650 kN | C0r: 3 410 kN | Mass: 87.7 kg
46364d: 320 mm | D: 540 mm | T: 176 mm | Cr: 2 440 kN | C0r: 4 570 kN | Mass: 154 kg
46364Ad: 320 mm | D: 540 mm | T: 220 mm | Cr: 2 610 kN | C0r: 5 390 kN | Mass: 190 kg
46268d: 340 mm | D: 520 mm | T: 133 mm | Cr: 1 550 kN | C0r: 3 070 kN | Mass: 95.3 kg
46268Ad: 340 mm | D: 520 mm | T: 165 mm | Cr: 1 930 kN | C0r: 4 060 kN | Mass: 117 kg
46368Ad: 340 mm | D: 580 mm | T: 238 mm | Cr: 3 160 kN | C0r: 6 340 kN | Mass: 244 kg
46272d: 360 mm | D: 540 mm | T: 134 mm | Cr: 1 660 kN | C0r: 3 290 kN | Mass: 93.0 kg
46272Ad: 360 mm | D: 540 mm | T: 169 mm | Cr: 2 020 kN | C0r: 4 230 kN | Mass: 124 kg
46372d: 360 mm | D: 600 mm | T: 192 mm | Cr: 2 680 kN | C0r: 4 880 kN | Mass: 206 kg
46372Ad: 360 mm | D: 600 mm | T: 240 mm | Cr: 3 660 kN | C0r: 7 230 kN | Mass: 254 kg
46276d: 380 mm | D: 560 mm | T: 135 mm | Cr: 1 740 kN | C0r: 3 560 kN | Mass: 100 kg
46276Ad: 380 mm | D: 560 mm | T: 171 mm | Cr: 2 240 kN | C0r: 4 670 kN | Mass: 129 kg
46376d: 380 mm | D: 620 mm | T: 194 mm | Cr: 2 870 kN | C0r: 5 220 kN | Mass: 215 kg
46376Ad: 380 mm | D: 620 mm | T: 243 mm | Cr: 3 490 kN | C0r: 7 360 kN | Mass: 265 kg
46280d: 400 mm | D: 600 mm | T: 148 mm | Cr: 1 870 kN | C0r: 3 720 kN | Mass: 135 kg
46280Ad: 400 mm | D: 600 mm | T: 185 mm | Cr: 2 420 kN | C0r: 5 150 kN | Mass: 167 kg
46380d: 400 mm | D: 650 mm | T: 200 mm | Cr: 2 980 kN | C0r: 5 920 kN | Mass: 243 kg
46380Ad: 400 mm | D: 650 mm | T: 250 mm | Cr: 4 060 kN | C0r: 8 850 kN | Mass: 306 kg
46284d: 420 mm | D: 620 mm | T: 150 mm | Cr: 2 010 kN | C0r: 4 130 kN | Mass: 142 kg
46284Ad: 420 mm | D: 620 mm | T: 188 mm | Cr: 2 700 kN | C0r: 5 660 kN | Mass: 176 kg
46384d: 420 mm | D: 700 mm | T: 224 mm | Cr: 3 700 kN | C0r: 6 880 kN | Mass: 325 kg
46384Ad: 420 mm | D: 700 mm | T: 280 mm | Cr: 4 810 kN | C0r: 9 620 kN | Mass: 400 kg
46288d: 440 mm | D: 650 mm | T: 157 mm | Cr: 2 260 kN | C0r: 4 430 kN | Mass: 156 kg
46288Ad: 440 mm | D: 650 mm | T: 196 mm | Cr: 3 000 kN | C0r: 6 370 kN | Mass: 198 kg
46388d: 440 mm | D: 720 mm | T: 226 mm | Cr: 3 940 kN | C0r: 8 110 kN | Mass: 354 kg
46388Ad: 440 mm | D: 720 mm | T: 283 mm | Cr: 4 940 kN | C0r: 10 100 kN | Mass: 418 kg
46292d: 460 mm | D: 680 mm | T: 163 mm | Cr: 2 500 kN | C0r: 5 340 kN | Mass: 196 kg
46292Ad: 460 mm | D: 680 mm | T: 204 mm | Cr: 3 220 kN | C0r: 6 850 kN | Mass: 232 kg
46392d: 460 mm | D: 760 mm | T: 240 mm | Cr: 4 580 kN | C0r: 9 000 kN | Mass: 424 kg
46392Ad: 460 mm | D: 760 mm | T: 300 mm | Cr: 5 680 kN | C0r: 11 600 kN | Mass: 506 kg
46296d: 480 mm | D: 700 mm | T: 165 mm | Cr: 2 530 kN | C0r: 5 300 kN | Mass: 186 kg
46296Ad: 480 mm | D: 700 mm | T: 206 mm | Cr: 3 220 kN | C0r: 7 230 kN | Mass: 240 kg
46396d: 480 mm | D: 790 mm | T: 248 mm | Cr: 4 640 kN | C0r: 8 920 kN | Mass: 457 kg
46396Ad: 480 mm | D: 790 mm | T: 310 mm | Cr: 5 990 kN | C0r: 12 400 kN | Mass: 560 kg
462/500d: 500 mm | D: 720 mm | T: 167 mm | Cr: 2 580 kN | C0r: 5 690 kN | Mass: 210 kg
462/500Ad: 500 mm | D: 720 mm | T: 209 mm | Cr: 3 500 kN | C0r: 7 850 kN | Mass: 258 kg
463/500d: 500 mm | D: 830 mm | T: 264 mm | Cr: 5 220 kN | C0r: 10 900 kN | Mass: 559 kg
463/500Ad: 500 mm | D: 830 mm | T: 330 mm | Cr: 6 780 kN | C0r: 14 000 kN | Mass: 669 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
