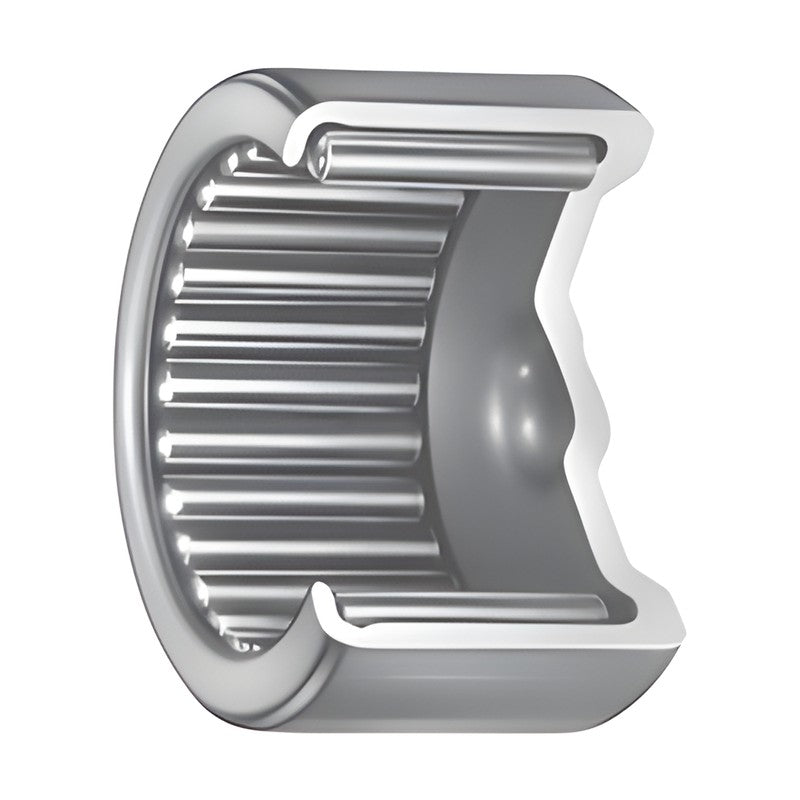

KOYO Drawn Cup Needle Roller Bearings (BTM, BHTM, BKM, MKM, BM, YM)

KOYO Drawn Cup Needle Roller Bearings (BTM, BHTM, BKM, MKM, BM, YM)

Drawn cup needle roller bearings with thin pressed outer ring, caged (BTM, BHTM, BKM, MKM, MHKM, BFNM) and full complement (BM, BHM, YM, MM) types, with open ends or closed end. Roller set bore Fw 4 mm and above.

Key features

  • Thin drawn cup outer ring, press-fit into housing
  • Caged types for higher speeds, full complement for higher loads
  • Open ends or closed end (shaft end sealing)
  • No housing shoulders or snap rings needed
  • Recommended shaft (h6) and housing (N7) dimensions given

Specifications

Bearing type Drawn cup needle roller bearing
Types BTM, BHTM, BKM, MKM, MHKM, BFNM, BM, BHM, YM, MM
Shaft tolerance h6
Housing tolerance N7
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B402-B423
4BFNM88 Fw: 4 mm | D: 8 mm | C: 8 mm | Cr: 1.60 kN | C0r: 1.25 kN | Mass: 1.3 g
5BFNM99 Fw: 5 mm | D: 9 mm | C: 9 mm | Cr: 2.40 kN | C0r: 2.15 kN | Mass: 1.8 g
6BTM109 Fw: 6 mm | D: 10 mm | C: 9 mm | Cr: 2.40 kN | C0r: 2.40 kN | Mass: 2.5 g
7BTM119 Fw: 7 mm | D: 11 mm | C: 9 mm | Cr: 2.55 kN | C0r: 2.70 kN | Mass: 2.9 g
8BTM1210 Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 3.25 kN | C0r: 3.85 kN | Mass: 3.6 g
8MKM1210 Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 3.25 kN | C0r: 3.85 kN | Mass: 4.1 g
BM081210 Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 4.95 kN | C0r: 7.50 kN | Mass: 3.7 g
8MM1210 Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 4.95 kN | C0r: 7.50 kN | Mass: 4.2 g
YM081210 Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 5.25 kN | C0r: 8.60 kN | Mass: 4.0 g
BHTM810 Fw: 8 mm | D: 15 mm | C: 10 mm | Cr: 4.00 kN | C0r: 3.30 kN | Mass: 6.5 g
MHKM810 Fw: 8 mm | D: 15 mm | C: 10 mm | Cr: 4.00 kN | C0r: 3.30 kN | Mass: 7.3 g
BHTM815 Fw: 8 mm | D: 15 mm | C: 15 mm | Cr: 7.45 kN | C0r: 6.50 kN | Mass: 9.4 g
BHTM820 Fw: 8 mm | D: 15 mm | C: 20 mm | Cr: 9.25 kN | C0r: 9.70 kN | Mass: 13 g
MHKM820 Fw: 8 mm | D: 15 mm | C: 20 mm | Cr: 9.25 kN | C0r: 9.70 kN | Mass: 14 g
9BM1310 Fw: 9 mm | D: 13 mm | C: 10 mm | Cr: 4.90 kN | C0r: 8.05 kN | Mass: 4.0 g
9MM1310 Fw: 9 mm | D: 13 mm | C: 10 mm | Cr: 4.90 kN | C0r: 8.05 kN | Mass: 4.6 g
9BTM1310A Fw: 9 mm | D: 13 mm | C: 10 mm | Cr: 3.35 kN | C0r: 4.10 kN | Mass: 3.8 g
9MKM1310 Fw: 9 mm | D: 13 mm | C: 10 mm | Cr: 3.35 kN | C0r: 4.10 kN | Mass: 4.3 g
9BTM1312 Fw: 9 mm | D: 13 mm | C: 12 mm | Cr: 4.20 kN | C0r: 5.50 kN | Mass: 4.6 g
9MKM1312 Fw: 9 mm | D: 13 mm | C: 12 mm | Cr: 4.20 kN | C0r: 5.50 kN | Mass: 5.2 g
BHTM912-1 Fw: 9 mm | D: 16 mm | C: 12 mm | Cr: 5.35 kN | C0r: 5.05 kN | Mass: 8.8 g
MHKM912 Fw: 9 mm | D: 16 mm | C: 12 mm | Cr: 5.35 kN | C0r: 5.05 kN | Mass: 9.9 g
BHTM916 Fw: 9 mm | D: 16 mm | C: 16 mm | Cr: 7.55 kN | C0r: 7.90 kN | Mass: 12 g
MHKM916 Fw: 9 mm | D: 16 mm | C: 16 mm | Cr: 7.55 kN | C0r: 7.90 kN | Mass: 13 g
10BM1410 Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 5.70 kN | C0r: 9.35 kN | Mass: 4.2 g
10MM1410 Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 5.70 kN | C0r: 9.35 kN | Mass: 4.8 g
10BTM1410 Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 3.55 kN | C0r: 4.55 kN | Mass: 4.2 g
10MKM1410 Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 3.55 kN | C0r: 4.55 kN | Mass: 4.8 g
10BTM1412 Fw: 10 mm | D: 14 mm | C: 12 mm | Cr: 4.40 kN | C0r: 6.00 kN | Mass: 5.0 g
10MKM1412 Fw: 10 mm | D: 14 mm | C: 12 mm | Cr: 4.40 kN | C0r: 6.00 kN | Mass: 5.7 g
BTM101415 Fw: 10 mm | D: 14 mm | C: 15 mm | Cr: 5.65 kN | C0r: 8.25 kN | Mass: 6.4 g
BHTM1010 Fw: 10 mm | D: 17 mm | C: 10 mm | Cr: 4.65 kN | C0r: 4.25 kN | Mass: 7.8 g
MHKM1010 Fw: 10 mm | D: 17 mm | C: 10 mm | Cr: 4.65 kN | C0r: 4.25 kN | Mass: 8.9 g
BHTM1012-1 Fw: 10 mm | D: 17 mm | C: 12 mm | Cr: 6.00 kN | C0r: 5.90 kN | Mass: 9.4 g
MHKM1012 Fw: 10 mm | D: 17 mm | C: 12 mm | Cr: 6.00 kN | C0r: 5.90 kN | Mass: 11 g
BHTM1015 Fw: 10 mm | D: 17 mm | C: 15 mm | Cr: 7.85 kN | C0r: 8.45 kN | Mass: 12 g
BHTM1020 Fw: 10 mm | D: 17 mm | C: 20 mm | Cr: 10.7 kN | C0r: 12.5 kN | Mass: 16 g
MHKM1020 Fw: 10 mm | D: 17 mm | C: 20 mm | Cr: 10.7 kN | C0r: 12.5 kN | Mass: 18 g
12BTM1610 Fw: 12 mm | D: 16 mm | C: 10 mm | Cr: 4.00 kN | C0r: 5.60 kN | Mass: 5.0 g
12MKM1610 Fw: 12 mm | D: 16 mm | C: 10 mm | Cr: 4.00 kN | C0r: 5.60 kN | Mass: 5.6 g
12BTM1810 Fw: 12 mm | D: 18 mm | C: 10 mm | Cr: 4.60 kN | C0r: 4.80 kN | Mass: 7.2 g
12MKM1810 Fw: 12 mm | D: 18 mm | C: 10 mm | Cr: 4.60 kN | C0r: 4.80 kN | Mass: 8.2 g
12BM1812 Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 8.40 kN | C0r: 12.6 kN | Mass: 9.7 g
12MM1812 Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 8.40 kN | C0r: 12.6 kN | Mass: 11 g
12BTM1812 Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 5.95 kN | C0r: 6.70 kN | Mass: 7.6 g
12MKM1812 Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 5.95 kN | C0r: 6.70 kN | Mass: 8.5 g
12BTM1815A Fw: 12 mm | D: 18 mm | C: 15 mm | Cr: 6.10 kN | C0r: 7.32 kN | Mass: 12 g
12BKM1816UU Fw: 12 mm | D: 18 mm | C: 16 mm | Cr: 5.65 kN | C0r: 6.25 kN | Mass: 11 g
BHTM1212-1 Fw: 12 mm | D: 19 mm | C: 12 mm | Cr: 6.70 kN | C0r: 6.95 kN | Mass: 10 g
MHKM1212 Fw: 12 mm | D: 19 mm | C: 12 mm | Cr: 6.70 kN | C0r: 6.95 kN | Mass: 12 g
BHTM1215-1 Fw: 12 mm | D: 19 mm | C: 15 mm | Cr: 8.85 kN | C0r: 9.95 kN | Mass: 13 g
MKM121915 Fw: 12 mm | D: 19 mm | C: 15 mm | Cr: 8.85 kN | C0r: 9.95 kN
BHTM1220 Fw: 12 mm | D: 19 mm | C: 20 mm | Cr: 12.1 kN | C0r: 14.9 kN | Mass: 17 g
MHKM1220 Fw: 12 mm | D: 19 mm | C: 20 mm | Cr: 12.1 kN | C0r: 14.9 kN | Mass: 19 g
BHTM1225 Fw: 12 mm | D: 19 mm | C: 25 mm | Cr: 15.0 kN | C0r: 19.6 kN | Mass: 21 g
BKM131715J Fw: 13 mm | D: 17 mm | C: 15 mm | Cr: 5.10 kN | C0r: 7.85 kN | Mass: 7.1 g
13BM1912 Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 8.55 kN | C0r: 13.4 kN | Mass: 10 g
13BTM1912 Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 5.85 kN | C0r: 6.70 kN | Mass: 9.5 g
13MKM1912 Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 5.85 kN | C0r: 6.70 kN | Mass: 11 g
BKM131914J Fw: 13 mm | D: 19 mm | C: 14 mm | Cr: 7.65 kN | C0r: 9.60 kN | Mass: 11 g
13BTM2012J Fw: 13 mm | D: 20 mm | C: 12 mm | Cr: 7.50 kN | C0r: 8.40 kN | Mass: 11 g
BKM132114BJ Fw: 13 mm | D: 21 mm | C: 14 mm | Cr: 9.75 kN | C0r: 10.5 kN | Mass: 15 g
BTM141912A Fw: 13 mm | C: 12 mm | Cr: 6.25 kN | C0r: 7.95 kN | Mass: 9.5 g
14BM1916 Fw: 14 mm | D: 19 mm | C: 16 mm | Cr: 11.7 kN | C0r: 23.3 kN | Mass: 12 g
14MM1916 Fw: 14 mm | D: 19 mm | C: 16 mm | Cr: 11.7 kN | C0r: 23.3 kN | Mass: 14 g
14BTM1916B Fw: 14 mm | D: 19 mm | C: 16 mm | Cr: 7.85 kN | C0r: 11.7 kN | Mass: 11 g
14MKM1916 Fw: 14 mm | D: 19 mm | C: 16 mm | Cr: 7.85 kN | C0r: 11.7 kN | Mass: 12 g
14BM2012 Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 9.15 kN | C0r: 14.6 kN | Mass: 11 g
14MM2012 Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 9.15 kN | C0r: 14.6 kN | Mass: 12 g
14BTM2012 Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 6.10 kN | C0r: 7.20 kN | Mass: 9.8 g
14MKM2012 Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 6.10 kN | C0r: 7.20 kN | Mass: 11 g
14BM2016 Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 12.7 kN | C0r: 22.4 kN | Mass: 15 g
14MM2016 Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 12.7 kN | C0r: 22.4 kN | Mass: 17 g
14BTM2016 Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 8.75 kN | C0r: 11.4 kN | Mass: 13 g
14MKM2016 Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 8.75 kN | C0r: 11.4 kN | Mass: 15 g
14BKM2025JUU Fw: 14 mm | D: 20 mm | C: 25 mm | Cr: 12.2 kN | C0r: 15.5 kN | Mass: 20 g
BHTM1416 Fw: 14 mm | D: 22 mm | C: 16 mm | Cr: 11.1 kN | C0r: 12.6 kN | Mass: 19 g
MHKM1416 Fw: 14 mm | D: 22 mm | C: 16 mm | Cr: 11.1 kN | C0r: 12.6 kN | Mass: 21 g
BHTM1420 Fw: 14 mm | D: 22 mm | C: 20 mm | Cr: 14.4 kN | C0r: 17.5 kN | Mass: 23 g
MHKM1420 Fw: 14 mm | D: 22 mm | C: 20 mm | Cr: 14.4 kN | C0r: 17.5 kN | Mass: 26 g
BTM152014A Fw: 14 mm | D: 14.50 mm | C: 19.50 mm | Cr: 7.55 kN | C0r: 10.9 kN | Mass: 9.5 g
15BTM2016C-2 Fw: 15 mm | D: 20 mm | C: 16 mm | Cr: 8.15 kN | C0r: 12.6 kN | Mass: 12 g
15BM2110 Fw: 15 mm | D: 21 mm | C: 10 mm | Cr: 7.70 kN | C0r: 11.8 kN | Mass: 9.4 g
15BTM2110JA Fw: 15 mm | D: 21 mm | C: 10 mm | Cr: 5.25 kN | C0r: 6.25 kN | Mass: 9.5 g
15BM2112 Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 9.70 kN | C0r: 15.9 kN | Mass: 12 g
15MM2112 Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 9.70 kN | C0r: 15.9 kN | Mass: 13 g
15BTM2112-1 Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 7.00 kN | C0r: 8.80 kN | Mass: 11 g
15MKM2112 Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 7.00 kN | C0r: 8.80 kN | Mass: 12 g
15BM2116 Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 13.4 kN | C0r: 24.2 kN | Mass: 16 g
15MM2116 Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 13.4 kN | C0r: 24.2 kN | Mass: 18 g
15BTM2116 Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 9.80 kN | C0r: 13.6 kN | Mass: 14 g
15MKM2116 Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 9.80 kN | C0r: 13.6 kN | Mass: 16 g
15BTM2122 Fw: 15 mm | D: 21 mm | C: 22 mm | Cr: 13.0 kN | C0r: 19.5 kN | Mass: 20 g
BHTM1510 Fw: 15 mm | D: 22 mm | C: 10 mm | Cr: 6.15 kN | C0r: 6.45 kN | Mass: 9.9 g
MHKM1510 Fw: 15 mm | D: 22 mm | C: 10 mm | Cr: 6.15 kN | C0r: 6.45 kN | Mass: 11 g
BHTM1512A Fw: 15 mm | D: 22 mm | C: 12 mm | Cr: 6.90 kN | C0r: 7.95 kN | Mass: 12 g
MHKM1512 Fw: 15 mm | D: 22 mm | C: 12 mm | Cr: 6.90 kN | C0r: 7.95 kN | Mass: 14 g
BHTM1515-1 Fw: 15 mm | D: 22 mm | C: 15 mm | Cr: 10.9 kN | C0r: 13.3 kN | Mass: 10 g
BHTM1520 Fw: 15 mm | D: 22 mm | C: 20 mm | Cr: 14.2 kN | C0r: 18.8 kN | Mass: 20 g
MHKM1520 Fw: 15 mm | D: 22 mm | C: 20 mm | Cr: 14.2 kN | C0r: 18.8 kN | Mass: 23 g
BHTM1525 Fw: 15 mm | D: 22 mm | C: 25 mm | Cr: 17.7 kN | C0r: 25.0 kN | Mass: 26 g
16BM2212 Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 10.2 kN | C0r: 17.1 kN | Mass: 12 g
16MM2212 Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 10.2 kN | C0r: 17.1 kN | Mass: 14 g
16BTM2212A Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 7.60 kN | C0r: 9.80 kN | Mass: 11 g
16MKM2212 Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 7.60 kN | C0r: 9.80 kN | Mass: 12 g
16BM2216 Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 14.1 kN | C0r: 25.9 kN | Mass: 17 g
16MM2216 Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 14.1 kN | C0r: 25.9 kN | Mass: 19 g
16BTM2216 Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 10.7 kN | C0r: 15.1 kN | Mass: 15 g
16MKM2216 Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 10.7 kN | C0r: 15.1 kN | Mass: 17 g
16BTM2222B Fw: 16 mm | D: 22 mm | C: 22 mm | Cr: 16.2 kN | C0r: 22.9 kN | Mass: 20 g
BHTM1612 Fw: 16 mm | D: 24 mm | C: 12 mm | Cr: 8.00 kN | C0r: 8.45 kN | Mass: 15 g
BHTM1616A Fw: 16 mm | D: 24 mm | C: 16 mm | Cr: 12.2 kN | C0r: 14.9 kN | Mass: 20 g
MHKM1616 Fw: 16 mm | D: 24 mm | C: 16 mm | Cr: 12.2 kN | C0r: 14.9 kN | Mass: 23 g
MKM162414U Fw: 16 mm | Cr: 8.45 kN | C0r: 9.05 kN | Mass: 19 g
17BTM2215 Fw: 17 mm | Cr: 6.15 kN | C0r: 9.60 kN | Mass: 10 g
BTM1710 Fw: 17 mm | D: 22 mm | C: 10 mm | Cr: 5.05 kN | C0r: 6.90 kN | Mass: 8.2 g
BM1713-1 Fw: 17 mm | D: 22 mm | C: 13 mm | Cr: 10.6 kN | C0r: 21.6 kN | Mass: 12 g
17BM2312 Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 10.3 kN | C0r: 17.9 kN | Mass: 13 g
17MM2312 Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 10.3 kN | C0r: 17.9 kN | Mass: 15 g
BTM172312 Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 7.65 kN | C0r: 10.2 kN | Mass: 12 g
17BM2320 Fw: 17 mm | D: 23 mm | C: 20 mm | Cr: 18.0 kN | C0r: 36.7 kN | Mass: 23 g
YM172412-1 Fw: 17 mm | D: 24 mm | C: 12 mm | Cr: 12.8 kN | C0r: 21.0 kN | Mass: 17 g
BHTM1715-1 Fw: 17 mm | D: 24 mm | C: 15 mm | Cr: 11.2 kN | C0r: 14.8 kN | Mass: 17 g
BM172417-1 Fw: 17 mm | D: 24 mm | C: 17 mm | Cr: 16.0 kN | C0r: 27.9 kN | Mass: 23 g
BHKM1720JBU Fw: 17 mm | D: 24 mm | C: 20 mm | Cr: 12.9 kN | C0r: 17.6 kN | Mass: 22 g
BHM1720A Fw: 17 mm | D: 24 mm | C: 20 mm | Cr: 19.0 kN | C0r: 21.9 kN | Mass: 27 g
BHTM1720-1 Fw: 17 mm | D: 24 mm | C: 20 mm | Cr: 15.1 kN | C0r: 21.6 kN | Mass: 24 g
MHKM1720 Fw: 17 mm | D: 24 mm | C: 20 mm | Cr: 15.1 kN | C0r: 21.6 kN | Mass: 27 g
BHM1725 Fw: 17 mm | D: 24 mm | C: 25 mm | Cr: 23.8 kN | C0r: 46.6 kN | Mass: 35 g
BTM172425 Fw: 17 mm | D: 24 mm | C: 25 mm | Cr: 19.0 kN | C0r: 29.0 kN | Mass: 22 g
BHKM1726JUU Fw: 17 mm | D: 24 mm | C: 26 mm | Cr: 16.0 kN | C0r: 23.3 kN | Mass: 29 g
BHKM1730JU Fw: 17 mm | D: 24 mm | C: 30 mm | Cr: 20.1 kN | C0r: 31.3 kN | Mass: 35 g
BKM172514UH-1 Fw: 17 mm | D: 25 mm | C: 14 mm | Cr: 7.30 kN | C0r: 7.90 kN | Mass: 18 g
BKM172515 Fw: 17 mm | D: 25 mm | C: 15 mm | Cr: 10.9 kN | C0r: 13.1 kN | Mass: 20 g
17BKM2517JBUUH Fw: 17 mm | D: 25 mm | Cr: 7.30 kN | C0r: 7.90 kN | Mass: 20 g
BKM172518UH Fw: 17 mm | D: 25 mm | C: 18 mm | Cr: 10.9 kN | C0r: 13.1 kN | Mass: 24 g
BKM172520UH-1 Fw: 17 mm | D: 25 mm | C: 20 mm | Cr: 12.9 kN | C0r: 16.3 kN | Mass: 27 g
18BM2412 Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 10.8 kN | C0r: 19.2 kN | Mass: 17 g
18MM2412 Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 10.8 kN | C0r: 19.2 kN | Mass: 20 g
18BTM2412 Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 7.90 kN | C0r: 10.9 kN | Mass: 12 g
18BM2416 Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 16.5 kN | C0r: 29.1 kN | Mass: 18 g
18MM2416 Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 16.5 kN | C0r: 29.1 kN | Mass: 21 g
18YM2416 Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 17.2 kN | C0r: 30.7 kN | Mass: 19 g
BTM182416 Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 11.1 kN | C0r: 16.8 kN | Mass: 17 g
BTM1813 Fw: 18 mm | D: 25 mm | C: 13 mm | Cr: 9.40 kN | C0r: 11.8 kN | Mass: 15 g
BTM1815 Fw: 18 mm | D: 25 mm | C: 15 mm | Cr: 10.4 kN | C0r: 9.25 kN | Mass: 18 g
BTM1817A Fw: 18 mm | D: 25 mm | C: 17 mm | Cr: 12.2 kN | C0r: 17.7 kN | Mass: 20 g
BTM1819 Fw: 18 mm | D: 25 mm | C: 19 mm | Cr: 14.4 kN | C0r: 20.5 kN | Mass: 22 g
BTM182520 Fw: 18 mm | D: 25 mm | C: 20 mm | Cr: 15.2 kN | C0r: 22.1 kN | Mass: 24 g
MKM1820 Fw: 18 mm | D: 25 mm | C: 20 mm | Cr: 15.2 kN | C0r: 22.1 kN | Mass: 27 g
BTM1825A Fw: 18 mm | D: 25 mm | C: 25 mm | Cr: 18.9 kN | C0r: 29.2 kN | Mass: 29 g
BHTM1920 Fw: 19 mm | D: 27 mm | C: 20 mm | Cr: 17.0 kN | C0r: 23.4 kN | Mass: 30 g
20BTM2920 C: 20 mm | Cr: 18.8 kN | C0r: 23.6 kN | Mass: 36 g
20BM2612 Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 10.6 kN | C0r: 20.4 kN | Mass: 15 g
20MM2612 Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 10.6 kN | C0r: 20.4 kN | Mass: 17 g
20BTM2612 Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 8.50 kN | C0r: 12.6 kN | Mass: 14 g
20MKM2612 Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 8.50 kN | C0r: 12.6 kN | Mass: 16 g
YM202614 Fw: 20 mm | D: 26 mm | C: 14 mm | Cr: 15.1 kN | C0r: 31.4 kN | Mass: 19 g
20BM2616 Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 14.8 kN | C0r: 31.4 kN | Mass: 21 g
20MM2616 Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 14.8 kN | C0r: 31.4 kN | Mass: 23 g
BTM202616 Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 12.4 kN | C0r: 20.3 kN | Mass: 19 g
20MKM2616 Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 12.4 kN | C0r: 20.3 kN | Mass: 21 g
20BM2620 Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 18.8 kN | C0r: 42.5 kN | Mass: 26 g
20MM2620 Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 18.8 kN | C0r: 42.5 kN | Mass: 30 g
20BTM2620A Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 15.2 kN | C0r: 26.4 kN | Mass: 24 g
BM2013 Fw: 20 mm | D: 27 mm | C: 13 mm | Cr: 13.1 kN | C0r: 22.2 kN | Mass: 18 g
MM2013 Fw: 20 mm | D: 27 mm | C: 13 mm | Cr: 13.1 kN | C0r: 22.2 kN | Mass: 21 g
BM2015 Fw: 20 mm | D: 27 mm | C: 15 mm | Cr: 15.6 kN | C0r: 27.7 kN | Mass: 22 g
BTM2015 Fw: 20 mm | D: 27 mm | C: 15 mm | Cr: 13.1 kN | C0r: 18.7 kN | Mass: 20 g
BTM202720-1 Fw: 20 mm | D: 27 mm | C: 20 mm | Cr: 17.7 kN | C0r: 27.6 kN | Mass: 25 g
MKM2020 Fw: 20 mm | D: 27 mm | C: 20 mm | Cr: 17.7 kN | C0r: 27.6 kN | Mass: 28 g
BKM2024JAU Fw: 20 mm | D: 27 mm | Cr: 18.4 kN | C0r: 28.8 kN | Mass: 32 g
BTM202725 Fw: 20 mm | D: 27 mm | C: 25 mm | Cr: 22.1 kN | C0r: 36.6 kN | Mass: 33 g
BKM2026JUU Fw: 20 mm | D: 27 mm | C: 26 mm | Cr: 18.4 kN | C0r: 28.8 kN | Mass: 33 g
BM2026 Fw: 20 mm | D: 27 mm | C: 26 mm | Cr: 27.6 kN | C0r: 58.0 kN | Mass: 40 g
BKM2030JUU Fw: 20 mm | D: 27 mm | C: 30 mm | Cr: 21.8 kN | C0r: 36.0 kN | Mass: 38 g
BTM202730 Fw: 20 mm | D: 27 mm | C: 30 mm | Cr: 25.4 kN | C0r: 43.8 kN | Mass: 40 g
MKM2030 Fw: 20 mm | D: 27 mm | C: 30 mm | Cr: 25.4 kN | C0r: 43.8 kN | Mass: 45 g
BKM2035JUU Fw: 20 mm | D: 27 mm | C: 35 mm | Cr: 28.7 kN | C0r: 45.4 kN | Mass: 45 g
20BTM2820A Fw: 20 mm | D: 28 mm | C: 20 mm | Cr: 17.4 kN | C0r: 22.3 kN | Mass: 31 g
21YM2720J Fw: 21 mm | D: 27 mm | C: 20 mm | Cr: 20.5 kN | C0r: 47.6 kN | Mass: 29 g
22BM2812 Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 11.6 kN | C0r: 22.9 kN | Mass: 16 g
22MM2812 Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 11.6 kN | C0r: 22.9 kN | Mass: 18 g
22BTM2812 Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 9.10 kN | C0r: 13.5 kN | Mass: 14 g
22MKM2812 Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 9.10 kN | C0r: 13.5 kN | Mass: 16 g
22BM2816 Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 16.1 kN | C0r: 35.0 kN | Mass: 22 g
22MM2816 Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 16.1 kN | C0r: 35.0 kN | Mass: 25 g
22BTM2816A Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 12.7 kN | C0r: 20.8 kN | Mass: 19 g
22MKM2816 Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 12.7 kN | C0r: 20.8 kN | Mass: 22 g
22BM2820 Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 20.3 kN | C0r: 47.2 kN | Mass: 29 g
22MM2820 Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 20.3 kN | C0r: 47.2 kN | Mass: 32 g
22BTM2820 Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 14.9 kN | C0r: 26.5 kN | Mass: 25 g
22MKM2820 Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 14.9 kN | C0r: 26.5 kN | Mass: 28 g
YM222820 Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 21.0 kN | C0r: 49.5 kN | Mass: 30 g
BTM2212 Fw: 22 mm | D: 29 mm | C: 12 mm | Cr: 9.22 kN | C0r: 13.0 kN | Mass: 19 g
BTM2215 Fw: 22 mm | D: 29 mm | C: 15 mm | Cr: 12.0 kN | C0r: 18.3 kN | Mass: 22 g
BM2220B Fw: 22 mm | D: 29 mm | C: 20 mm | Cr: 21.9 kN | C0r: 45.2 kN | Mass: 33 g
BTM2220A Fw: 22 mm | D: 29 mm | C: 20 mm | Cr: 16.2 kN | C0r: 26.7 kN | Mass: 30 g
MKM2220 Fw: 22 mm | D: 29 mm | C: 20 mm | Cr: 16.2 kN | C0r: 26.7 kN | Mass: 33 g
BTM2225 Fw: 22 mm | D: 29 mm | C: 25 mm | Cr: 20.4 kN | C0r: 36.1 kN | Mass: 37 g
22BTM3018 Fw: 22 mm | D: 30 mm | C: 18 mm | Cr: 16.7 kN | C0r: 24.5 kN | Mass: 31 g
BTM243013J Fw: 24 mm | D: 30 mm | C: 13 mm | Cr: 9.55 kN | C0r: 15.7 kN | Mass: 47 g
BTM2420 Fw: 24 mm | D: 31 mm | C: 20 mm | Cr: 17.7 kN | C0r: 29.4 kN | Mass: 31 g
MKM2420 Fw: 24 mm | D: 31 mm | C: 20 mm | Cr: 17.7 kN | C0r: 29.4 kN | Mass: 35 g
BM2425A Fw: 24 mm | D: 31 mm | C: 25 mm | Cr: 31.6 kN | C0r: 65.4 kN | Mass: 45 g
BTM2428 Fw: 24 mm | D: 31 mm | C: 28 mm | Cr: 23.9 kN | C0r: 43.0 kN | Mass: 44 g
24MKM3520 Fw: 24 mm | D: 35 mm | C: 20 mm | Cr: 21.0 kN | C0r: 25.8 kN | Mass: 52 g
25BTM3119A Fw: 25 mm | D: 31 mm | C: 19 mm | Cr: 16.3 kN | C0r: 30.1 kN | Mass: 26 g
BTM2512 Fw: 25 mm | D: 32 mm | C: 12 mm | Cr: 9.05 kN | C0r: 12.4 kN | Mass: 19 g
MKM2512 Fw: 25 mm | D: 32 mm | C: 12 mm | Cr: 9.05 kN | C0r: 12.4 kN | Mass: 21 g
BM2516 Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 18.7 kN | C0r: 37.9 kN | Mass: 28 g
BTM2516 Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 15.3 kN | C0r: 24.6 kN | Mass: 26 g
MKM2516 Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 15.3 kN | C0r: 24.6 kN | Mass: 30 g
BM2520 Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 23.8 kN | C0r: 51.7 kN | Mass: 36 g
MM2520 Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 23.8 kN | C0r: 51.7 kN | Mass: 41 g
BTM2520A Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 19.1 kN | C0r: 32.5 kN | Mass: 33 g
MTM2520M Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 19.1 kN | C0r: 32.5 kN
BM2526 Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 30.9 kN | C0r: 72.4 kN | Mass: 48 g
BTM2526 Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 23.7 kN | C0r: 43.1 kN | Mass: 42 g
MKM2526 Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 23.7 kN | C0r: 43.1 kN | Mass: 48 g
BHTM2510A Fw: 25 mm | D: 33 mm | C: 10 mm | Cr: 8.50 kN | C0r: 10.3 kN | Mass: 18 g
BHM2515 Fw: 25 mm | D: 33 mm | C: 15 mm | Cr: 19.5 kN | C0r: 32.0 kN | Mass: 30 g
BHTM2515-1 Fw: 25 mm | D: 33 mm | C: 15 mm | Cr: 13.9 kN | C0r: 19.7 kN | Mass: 27 g
BHTM2520-1 Fw: 25 mm | D: 33 mm | C: 20 mm | Cr: 19.2 kN | C0r: 29.7 kN | Mass: 37 g
MHKM2520 Fw: 25 mm | D: 33 mm | C: 20 mm | Cr: 19.2 kN | C0r: 29.7 kN | Mass: 41 g
BHM2525 Fw: 25 mm | D: 33 mm | C: 25 mm | Cr: 31.3 kN | C0r: 66.3 kN | Mass: 53 g
BHTM2525 Fw: 25 mm | D: 33 mm | C: 25 mm | Cr: 24.5 kN | C0r: 40.6 kN | Mass: 46 g
BHM2530 Fw: 25 mm | D: 33 mm | C: 30 mm | Cr: 37.4 kN | C0r: 83.3 kN | Mass: 65 g
BHTM2530-1 Fw: 25 mm | D: 33 mm | C: 30 mm | Cr: 27.7 kN | C0r: 47.4 kN | Mass: 54 g
MHKM2530 Fw: 25 mm | D: 33 mm | C: 30 mm | Cr: 27.7 kN | C0r: 47.4 kN | Mass: 61 g
BHKM2535JU Fw: 25 mm | D: 33 mm | C: 35 mm | Cr: 29.8 kN | C0r: 52.3 kN | Mass: 62 g
BTM263316A Fw: 25 mm | C: 16 mm | Cr: 14.2 kN | C0r: 22.4 kN | Mass: 28 g
BKM263112A Fw: 26 mm | Cr: 8.60 kN | C0r: 14.5 kN | Mass: 14 g
BHTM2616 Fw: 26 mm | D: 34 mm | C: 16 mm | Cr: 15.3 kN | C0r: 22.5 kN | Mass: 30 g
MHKM2616 Fw: 26 mm | D: 34 mm | C: 16 mm | Cr: 15.3 kN | C0r: 22.5 kN | Mass: 34 g
BHTM2620A Fw: 26 mm | D: 34 mm | C: 20 mm | Cr: 20.0 kN | C0r: 31.6 kN | Mass: 38 g
MHKM2620 Fw: 26 mm | D: 34 mm | C: 20 mm | Cr: 20.0 kN | C0r: 31.6 kN | Mass: 43 g
BM2817 Fw: 28 mm | D: 34 mm | C: 17 mm | Cr: 16.8 kN | C0r: 49.7 kN | Mass: 29 g
BM2824 Fw: 28 mm | D: 34 mm | C: 24 mm | Cr: 29.0 kN | C0r: 76.7 kN | Mass: 42 g
YM2825B Fw: 28 mm | D: 34 mm | C: 25 mm | Cr: 34.8 kN | C0r: 85.9 kN | Mass: 45 g
28BM3516 Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 20.2 kN | C0r: 42.9 kN | Mass: 95 g
28MM3516 Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 20.2 kN | C0r: 42.9 kN | Mass: 107 g
28BTM3516 Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 15.9 kN | C0r: 26.2 kN | Mass: 28 g
28MKM3516 Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 15.9 kN | C0r: 26.2 kN | Mass: 31 g
28BM3520 Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 25.7 kN | C0r: 58.3 kN | Mass: 118 g
28MM3520 Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 25.7 kN | C0r: 58.3 kN | Mass: 133 g
28BTM3520 Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 19.0 kN | C0r: 33.1 kN | Mass: 35 g
28MKM3520 Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 19.0 kN | C0r: 33.1 kN | Mass: 39 g
BTM283621JA Fw: 28 mm | D: 36 mm | Cr: 22.8 kN | C0r: 39.3 kN | Mass: 43 g
BTM283623J Fw: 28 mm | D: 36 mm | C: 23 mm | Cr: 22.8 kN | C0r: 39.3 kN | Mass: 49 g
BTM283720 Fw: 28 mm | D: 37 mm | C: 20 mm | Cr: 21.6 kN | C0r: 33.0 kN | Mass: 46 g
MHKM2820 Fw: 28 mm | D: 37 mm | C: 20 mm | Cr: 21.6 kN | C0r: 33.0 kN | Mass: 52 g
28BHM3730 Fw: 28 mm | D: 37 mm | C: 30 mm | Cr: 43.7 kN | C0r: 94.7 kN | Mass: 80 g
BHTM2830 Fw: 28 mm | D: 37 mm | C: 30 mm | Cr: 32.8 kN | C0r: 56.5 kN | Mass: 70 g
MHKM2830 Fw: 28 mm | D: 37 mm | C: 30 mm | Cr: 32.8 kN | C0r: 56.5 kN | Mass: 79 g
BM283930A Fw: 28 mm | D: 39 mm | C: 30 mm | Cr: 44.5 kN | C0r: 85.9 kN | Mass: 100 g
BTM303712 Fw: 30 mm | D: 37 mm | C: 12 mm | Cr: 12.1 kN | C0r: 18.8 kN | Mass: 22 g
30MKM3712 Fw: 30 mm | D: 37 mm | C: 12 mm | Cr: 12.1 kN | C0r: 18.8 kN | Mass: 25 g
30BM3716 Fw: 30 mm | D: 37 mm | C: 16 mm | Cr: 21.1 kN | C0r: 28.2 kN | Mass: 33 g
30BTM3716BM Fw: 30 mm | D: 37 mm | C: 16 mm | Cr: 17.1 kN | C0r: 29.3 kN | Mass: 30 g
30MKM3716 Fw: 30 mm | D: 37 mm | C: 16 mm | Cr: 17.1 kN | C0r: 29.3 kN | Mass: 33 g
30BM3720 Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 26.8 kN | C0r: 62.5 kN | Mass: 42 g
30MM3720 Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 26.8 kN | C0r: 62.5 kN | Mass: 48 g
30BTM3720 Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 20.7 kN | C0r: 40.4 kN | Mass: 40 g
30MKM3720 Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 20.7 kN | C0r: 40.4 kN | Mass: 45 g
30YM3720 Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 32.2 kN | C0r: 70.1 kN | Mass: 45 g
30BM3726 Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 34.8 kN | C0r: 87.3 kN | Mass: 56 g
30BTM3726 Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 26.7 kN | C0r: 52.0 kN | Mass: 48 g
30MKM3726 Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 26.7 kN | C0r: 52.0 kN | Mass: 55 g
30YM3726 Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 37.1 kN | C0r: 94.9 kN | Mass: 60 g
BTM3021A Fw: 30 mm | D: 38 mm | C: 21 mm | Cr: 23.4 kN | C0r: 40.4 kN | Mass: 45 g
BM3025 Fw: 30 mm | D: 38 mm | C: 25 mm | Cr: 38.0 kN | C0r: 79.8 kN | Mass: 62 g
BHTM3015 Fw: 30 mm | D: 40 mm | C: 15 mm | Cr: 16.6 kN | C0r: 22.3 kN | Mass: 41 g
BHTM3020 Fw: 30 mm | D: 40 mm | C: 20 mm | Cr: 23.1 kN | C0r: 34.0 kN | Mass: 55 g
MHKM3020 Fw: 30 mm | D: 40 mm | C: 20 mm | Cr: 23.1 kN | C0r: 34.0 kN | Mass: 62 g
BHM3025 Fw: 30 mm | D: 40 mm | C: 25 mm | Cr: 37.3 kN | C0r: 75.4 kN | Mass: 80 g
BHTM3025-1 Fw: 30 mm | D: 40 mm | C: 25 mm | Cr: 29.4 kN | C0r: 46.5 kN | Mass: 69 g
BHTM3030-1A Fw: 30 mm | D: 40 mm | C: 30 mm | Cr: 35.3 kN | C0r: 58.8 kN | Mass: 83 g
MHKM3030 Fw: 30 mm | D: 40 mm | C: 30 mm | Cr: 35.3 kN | C0r: 58.8 kN | Mass: 94 g
BKM304030JU Fw: 30 mm | D: 40 mm | C: 30 mm | Cr: 30.8 kN | C0r: 49.3 kN | Mass: 77 g
31BTM3918A Fw: 31 mm | D: 39 mm | Cr: 20.6 kN | C0r: 34.6 kN | Mass: 39 g
32BTM3811A Fw: 32 mm | D: 38 mm | C: 11 mm | Cr: 4.90 kN | C0r: 6.75 kN | Mass: 15 g
32YM4020P Fw: 32 mm | D: 40 mm | C: 20 mm | Cr: 31.9 kN | C0r: 73.3 kN | Mass: 56 g
32BTM4025PL Fw: 32 mm | D: 40 mm | C: 25 mm | Cr: 27.6 kN | C0r: 50.8 kN | Mass: 57 g
BHTM3220A Fw: 32 mm | D: 42 mm | C: 20 mm | Cr: 23.4 kN | C0r: 34.8 kN | Mass: 57 g
MHKM3220 Fw: 32 mm | D: 42 mm | C: 20 mm | Cr: 23.4 kN | C0r: 34.8 kN | Mass: 64 g
YM3220 Fw: 32 mm | D: 42 mm | C: 20 mm | Cr: 37.4 kN | C0r: 69.1 kN | Mass: 71 g
BHTM3230 Fw: 32 mm | D: 42 mm | C: 30 mm | Cr: 36.6 kN | C0r: 61.9 kN | Mass: 86 g
MHKM3230 Fw: 32 mm | D: 42 mm | C: 30 mm | Cr: 36.6 kN | C0r: 61.9 kN | Mass: 98 g
YM3230 Fw: 32 mm | D: 42 mm | C: 30 mm | Cr: 55.0 kN | C0r: 113 kN | Mass: 109 g
BTM344017A Fw: 32 mm | C: 17 mm | Cr: 16.8 kN | C0r: 33.5 kN | Mass: 34 g
34BTM4012A Fw: 34 mm | D: 40 mm | C: 12 mm | Cr: 7.30 kN | C0r: 11.7 kN | Mass: 20 g
34YM4225 Fw: 34 mm | D: 42 mm | C: 25 mm | Cr: 37.2 kN | C0r: 94.1 kN | Mass: 74 g
BSM354126AJ Fw: 35 mm | Cr: 22.7 kN | C0r: 56.0 kN | Mass: 44 g
BTM3512 Fw: 35 mm | D: 42 mm | C: 12 mm | Cr: 13.3 kN | C0r: 22.8 kN | Mass: 26 g
BM3516 Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 22.2 kN | C0r: 52.9 kN | Mass: 38 g
BTM3516 Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 18.5 kN | C0r: 34.7 kN | Mass: 35 g
MKM3516 Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 18.5 kN | C0r: 34.7 kN | Mass: 39 g
BKM354220-1UU Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 13.3 kN | C0r: 22.8 kN | Mass: 38 g
BM3520 Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 28.2 kN | C0r: 72.2 kN | Mass: 49 g
MM3520 Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 28.2 kN | C0r: 72.2 kN | Mass: 56 g
BTM3520 Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 23.4 kN | C0r: 47.0 kN | Mass: 43 g
MKM3520 Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 23.4 kN | C0r: 47.0 kN | Mass: 49 g
YM3521A Fw: 35 mm | D: 42 mm | C: 21 mm | Cr: 28.8 kN | C0r: 79.2 kN | Mass: 55 g
BM3526 Fw: 35 mm | D: 42 mm | C: 26 mm | Cr: 36.7 kN | C0r: 101 kN | Mass: 66 g
BTM3526 Fw: 35 mm | D: 42 mm | C: 26 mm | Cr: 30.1 kN | C0r: 65.2 kN | Mass: 57 g
MKM3526 Fw: 35 mm | D: 42 mm | C: 26 mm | Cr: 30.1 kN | C0r: 65.2 kN | Mass: 64 g
BTM3528 Fw: 35 mm | D: 42 mm | C: 28 mm | Cr: 31.3 kN | C0r: 68.6 kN | Mass: 63 g
BKM354246UUH Fw: 35 mm | D: 42 mm | C: 46 mm | Cr: 26.2 kN | C0r: 57.5 kN | Mass: 101 g
BHTM3515 Fw: 35 mm | D: 45 mm | C: 15 mm | Cr: 18.4 kN | C0r: 26.6 kN | Mass: 47 g
BHM3518 Fw: 35 mm | D: 45 mm | C: 18 mm | Cr: 20.5 kN | C0r: 33.4 kN | Mass: 62 g
BHTM3520 Fw: 35 mm | D: 45 mm | C: 20 mm | Cr: 26.0 kN | C0r: 41.7 kN | Mass: 64 g
MHKM3520 Fw: 35 mm | D: 45 mm | C: 20 mm | Cr: 26.0 kN | C0r: 41.7 kN | Mass: 72 g
BHTM3525 Fw: 35 mm | D: 45 mm | C: 25 mm | Cr: 32.8 kN | C0r: 56.2 kN | Mass: 80 g
BHTM3530 Fw: 35 mm | D: 45 mm | C: 30 mm | Cr: 39.4 kN | C0r: 71.0 kN | Mass: 96 g
MHKM3530 Fw: 35 mm | D: 45 mm | C: 30 mm | Cr: 39.4 kN | C0r: 71.0 kN | Mass: 109 g
36BM4216 Fw: 36 mm | D: 42 mm | C: 16 mm | Cr: 19.6 kN | C0r: 55.9 kN | Mass: 35 g
36YM4425L Fw: 36 mm | D: 44 mm | C: 25 mm | Cr: 42.0 kN | C0r: 99.2 kN | Mass: 78 g
36BTM4824 Fw: 36 mm | D: 48 mm | C: 24 mm | Cr: 33.2 kN | C0r: 48.7 kN | Mass: 95 g
37BTM4312A Fw: 37 mm | D: 43 mm | C: 12 mm | Cr: 8.00 kN | C0r: 13.6 kN | Mass: 23 g
BTM3720 Fw: 37 mm | D: 47 mm | C: 20 mm | Cr: 25.1 kN | C0r: 39.9 kN | Mass: 64 g
MKM3720 Fw: 37 mm | D: 47 mm | C: 20 mm | Cr: 25.1 kN | C0r: 39.9 kN | Mass: 72 g
BTM3730 Fw: 37 mm | D: 47 mm | C: 30 mm | Cr: 38.2 kN | C0r: 68.4 kN | Mass: 96 g
MKM3730 Fw: 37 mm | D: 47 mm | C: 30 mm | Cr: 38.2 kN | C0r: 68.4 kN | Mass: 109 g
BTM384512A Fw: 38 mm | D: 45 mm | C: 12 mm | Cr: 12.7 kN | C0r: 23.0 kN | Mass: 29 g
BTM3820A Fw: 38 mm | D: 48 mm | C: 20 mm | Cr: 27.1 kN | C0r: 44.5 kN | Mass: 67 g
MKM3820 Fw: 38 mm | D: 48 mm | C: 20 mm | Cr: 27.1 kN | C0r: 44.5 kN | Mass: 76 g
YM3820P Fw: 38 mm | D: 48 mm | C: 20 mm | Cr: 42.0 kN | C0r: 82.8 kN | Mass: 82 g
BTM3830PL Fw: 38 mm | D: 48 mm | C: 30 mm | Cr: 41.2 kN | C0r: 76.2 kN | Mass: 102 g
MKM3830 Fw: 38 mm | D: 48 mm | C: 30 mm | Cr: 41.2 kN | C0r: 76.2 kN | Mass: 115 g
BTM3845-OH Fw: 38 mm | D: 48 mm | C: 45 mm | Cr: 58.9 kN | C0r: 121 kN | Mass: 151 g
40BTM4712A Fw: 40 mm | D: 47 mm | C: 12 mm | Cr: 9.75 kN | C0r: 10.4 kN | Mass: 27 g
40BM4716 Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 23.8 kN | C0r: 60.5 kN | Mass: 43 g
40BTM4716 Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 18.7 kN | C0r: 37.1 kN | Mass: 39 g
40MKM4716 Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 18.7 kN | C0r: 37.1 kN | Mass: 44 g
40BM4720 Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 30.3 kN | C0r: 82.6 kN | Mass: 56 g
40MM4720 Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 30.3 kN | C0r: 82.6 kN | Mass: 63 g
40BTM4720 Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 23.7 kN | C0r: 50.4 kN | Mass: 48 g
40MKM4720 Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 23.7 kN | C0r: 50.4 kN | Mass: 55 g
BM4015-1 Fw: 40 mm | D: 50 mm | C: 15 mm | Cr: 23.4 kN | C0r: 45.2 kN | Mass: 55 g
BTM4015 Fw: 40 mm | D: 50 mm | C: 15 mm | Cr: 20.2 kN | C0r: 31.2 kN | Mass: 54 g
BTM4020 Fw: 40 mm | D: 50 mm | C: 20 mm | Cr: 28.5 kN | C0r: 48.5 kN | Mass: 73 g
MKM4020 Fw: 40 mm | D: 50 mm | C: 20 mm | Cr: 28.5 kN | C0r: 48.5 kN | Mass: 82 g
BTM4025 Fw: 40 mm | D: 50 mm | C: 25 mm | Cr: 36.2 kN | C0r: 66.2 kN | Mass: 91 g
BTM4030-1 Fw: 40 mm | D: 50 mm | C: 30 mm | Cr: 43.0 kN | C0r: 82.5 kN | Mass: 109 g
MKM4030 Fw: 40 mm | D: 50 mm | C: 30 mm | Cr: 43.0 kN | C0r: 82.5 kN | Mass: 123 g
BTM4040-OH Fw: 40 mm | D: 50 mm | C: 40 mm | Cr: 54.8 kN | C0r: 113 kN | Mass: 141 g
YM405120J Fw: 40 mm | D: 51 mm | C: 20 mm | Cr: 40.2 kN | C0r: 84.7 kN | Mass: 96 g
40BTM5130J Fw: 40 mm | D: 51 mm | C: 30 mm | Cr: 43.5 kN | C0r: 76.6 kN | Mass: 112 g
YM405320JM Fw: 40 mm | D: 53 mm | C: 20 mm | Cr: 46.7 kN | C0r: 87.3 kN | Mass: 114 g
BTM424709AJ Fw: 40 mm | D: 41.50 mm | C: 46.50 mm | Cr: 7.00 kN | C0r: 13.9 kN | Mass: 15 g
BTM425330J Fw: 42 mm | D: 53 mm | C: 30 mm | Cr: 45.7 kN | C0r: 83.9 kN | Mass: 121 g
43BTM4912A Fw: 43 mm | D: 49 mm | C: 12 mm | Cr: 8.35 kN | C0r: 15.1 kN | Mass: 25 g
44BTM4914A Fw: 43 mm | D: 43.52 mm | Cr: 12.0 kN | C0r: 29.0 kN | Mass: 28 g
45BTM5212A Fw: 45 mm | D: 52 mm | C: 12 mm | Cr: 13.7 kN | C0r: 26.9 kN | Mass: 34 g
45BM5216 Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 23.8 kN | C0r: 65.9 kN | Mass: 49 g
45BTM5216 Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 19.1 kN | C0r: 41.3 kN | Mass: 45 g
45MKM5216 Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 19.1 kN | C0r: 41.3 kN | Mass: 51 g
45BM5220 Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 30.4 kN | C0r: 90.1 kN | Mass: 62 g
45MM5220 Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 30.4 kN | C0r: 90.1 kN | Mass: 71 g
45BTM5220A Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 23.3 kN | C0r: 33.4 kN | Mass: 79 g
MKM4520 Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 23.3 kN | C0r: 33.4 kN | Mass: 90 g
BTM4530 Fw: 45 mm | D: 52 mm | C: 30 mm | Cr: 45.3 kN | C0r: 91.7 kN | Mass: 120 g
MKM4530 Fw: 45 mm | D: 52 mm | C: 30 mm | Cr: 45.3 kN | C0r: 91.7 kN | Mass: 136 g
BTM4520A Fw: 45 mm | D: 55 mm | C: 20 mm | Cr: 30.0 kN | C0r: 53.9 kN | Mass: 79 g
BTM485630J Fw: 48 mm | D: 56 mm | C: 30 mm | Cr: 41.0 kN | C0r: 100 kN | Mass: 102 g
BTM505816J Fw: 50 mm | D: 58 mm | C: 16 mm | Cr: 21.9 kN | C0r: 43.8 kN | Mass: 54 g
50BM5820 Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 35.8 kN | C0r: 98.0 kN | Mass: 78 g
50BTM5820J Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 28.4 kN | C0r: 61.0 kN | Mass: 68 g
50MKM5820 Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 28.4 kN | C0r: 61.0 kN | Mass: 76 g
50BM5825 Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 45.2 kN | C0r: 133 kN | Mass: 98 g
50BTM5825 Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 35.9 kN | C0r: 82.5 kN | Mass: 86 g
50MKM5825 Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 35.9 kN | C0r: 82.5 kN | Mass: 97 g
BTM5015 Fw: 50 mm | D: 62 mm | C: 15 mm | Cr: 24.3 kN | C0r: 36.4 kN | Mass: 73 g
BTM5020 Fw: 50 mm | D: 62 mm | C: 20 mm | Cr: 34.5 kN | C0r: 57.1 kN | Mass: 99 g
MKM5020 Fw: 50 mm | D: 62 mm | C: 20 mm | Cr: 34.5 kN | C0r: 57.1 kN | Mass: 112 g
BTM5025 Fw: 50 mm | D: 62 mm | C: 25 mm | Cr: 43.9 kN | C0r: 77.8 kN | Mass: 125 g
BTM5030 Fw: 50 mm | D: 62 mm | C: 30 mm | Cr: 52.8 kN | C0r: 98.5 kN | Mass: 153 g
MKM5030 Fw: 50 mm | D: 62 mm | C: 30 mm | Cr: 52.8 kN | C0r: 98.5 kN | Mass: 173 g
55BTM6320 Fw: 55 mm | D: 63 mm | C: 20 mm | Cr: 29.1 kN | C0r: 65.1 kN | Mass: 73 g
55BTM6720A Fw: 55 mm | D: 67 mm | C: 20 mm | Cr: 36.4 kN | C0r: 63.1 kN | Mass: 110 g
64BTM7321A Fw: 64 mm | C: 73.178 mm | Cr: 36.1 kN | C0r: 83.8 kN | Mass: 110 g
BTM667216J Fw: 66 mm | D: 72 mm | C: 16 mm | Cr: 21.9 kN | C0r: 61.1 kN | Mass: 54 g
BTM727915AJ Fw: 66 mm | D: 71.60 mm | Cr: 22.9 kN | C0r: 61.9 kN | Mass: 66 g
BTM778415AJ Fw: 66 mm | D: 76.50 mm | Cr: 23.5 kN | C0r: 65.4 kN | Mass: 70 g
Needle Roller BearingsKOYO
385 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Drawn Cup Needle Roller Bearings (BTM, BHTM, BKM, MKM, BM, YM)

Brand KOYO·Needle Roller Bearings

Available part numbers (385)

4BFNM88, 5BFNM99, 6BTM109, 7BTM119, 8BTM1210, 8MKM1210, BM081210, 8MM1210, YM081210, BHTM810 + 375 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
4BFNM88Fw: 4 mm | D: 8 mm | C: 8 mm | Cr: 1.60 kN | C0r: 1.25 kN | Mass: 1.3 g
5BFNM99Fw: 5 mm | D: 9 mm | C: 9 mm | Cr: 2.40 kN | C0r: 2.15 kN | Mass: 1.8 g
6BTM109Fw: 6 mm | D: 10 mm | C: 9 mm | Cr: 2.40 kN | C0r: 2.40 kN | Mass: 2.5 g
7BTM119Fw: 7 mm | D: 11 mm | C: 9 mm | Cr: 2.55 kN | C0r: 2.70 kN | Mass: 2.9 g
8BTM1210Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 3.25 kN | C0r: 3.85 kN | Mass: 3.6 g
8MKM1210Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 3.25 kN | C0r: 3.85 kN | Mass: 4.1 g
BM081210Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 4.95 kN | C0r: 7.50 kN | Mass: 3.7 g
8MM1210Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 4.95 kN | C0r: 7.50 kN | Mass: 4.2 g
YM081210Fw: 8 mm | D: 12 mm | C: 10 mm | Cr: 5.25 kN | C0r: 8.60 kN | Mass: 4.0 g
BHTM810Fw: 8 mm | D: 15 mm | C: 10 mm | Cr: 4.00 kN | C0r: 3.30 kN | Mass: 6.5 g
MHKM810Fw: 8 mm | D: 15 mm | C: 10 mm | Cr: 4.00 kN | C0r: 3.30 kN | Mass: 7.3 g
BHTM815Fw: 8 mm | D: 15 mm | C: 15 mm | Cr: 7.45 kN | C0r: 6.50 kN | Mass: 9.4 g
BHTM820Fw: 8 mm | D: 15 mm | C: 20 mm | Cr: 9.25 kN | C0r: 9.70 kN | Mass: 13 g
MHKM820Fw: 8 mm | D: 15 mm | C: 20 mm | Cr: 9.25 kN | C0r: 9.70 kN | Mass: 14 g
9BM1310Fw: 9 mm | D: 13 mm | C: 10 mm | Cr: 4.90 kN | C0r: 8.05 kN | Mass: 4.0 g
9MM1310Fw: 9 mm | D: 13 mm | C: 10 mm | Cr: 4.90 kN | C0r: 8.05 kN | Mass: 4.6 g
9BTM1310AFw: 9 mm | D: 13 mm | C: 10 mm | Cr: 3.35 kN | C0r: 4.10 kN | Mass: 3.8 g
9MKM1310Fw: 9 mm | D: 13 mm | C: 10 mm | Cr: 3.35 kN | C0r: 4.10 kN | Mass: 4.3 g
9BTM1312Fw: 9 mm | D: 13 mm | C: 12 mm | Cr: 4.20 kN | C0r: 5.50 kN | Mass: 4.6 g
9MKM1312Fw: 9 mm | D: 13 mm | C: 12 mm | Cr: 4.20 kN | C0r: 5.50 kN | Mass: 5.2 g
BHTM912-1Fw: 9 mm | D: 16 mm | C: 12 mm | Cr: 5.35 kN | C0r: 5.05 kN | Mass: 8.8 g
MHKM912Fw: 9 mm | D: 16 mm | C: 12 mm | Cr: 5.35 kN | C0r: 5.05 kN | Mass: 9.9 g
BHTM916Fw: 9 mm | D: 16 mm | C: 16 mm | Cr: 7.55 kN | C0r: 7.90 kN | Mass: 12 g
MHKM916Fw: 9 mm | D: 16 mm | C: 16 mm | Cr: 7.55 kN | C0r: 7.90 kN | Mass: 13 g
10BM1410Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 5.70 kN | C0r: 9.35 kN | Mass: 4.2 g
10MM1410Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 5.70 kN | C0r: 9.35 kN | Mass: 4.8 g
10BTM1410Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 3.55 kN | C0r: 4.55 kN | Mass: 4.2 g
10MKM1410Fw: 10 mm | D: 14 mm | C: 10 mm | Cr: 3.55 kN | C0r: 4.55 kN | Mass: 4.8 g
10BTM1412Fw: 10 mm | D: 14 mm | C: 12 mm | Cr: 4.40 kN | C0r: 6.00 kN | Mass: 5.0 g
10MKM1412Fw: 10 mm | D: 14 mm | C: 12 mm | Cr: 4.40 kN | C0r: 6.00 kN | Mass: 5.7 g
BTM101415Fw: 10 mm | D: 14 mm | C: 15 mm | Cr: 5.65 kN | C0r: 8.25 kN | Mass: 6.4 g
BHTM1010Fw: 10 mm | D: 17 mm | C: 10 mm | Cr: 4.65 kN | C0r: 4.25 kN | Mass: 7.8 g
MHKM1010Fw: 10 mm | D: 17 mm | C: 10 mm | Cr: 4.65 kN | C0r: 4.25 kN | Mass: 8.9 g
BHTM1012-1Fw: 10 mm | D: 17 mm | C: 12 mm | Cr: 6.00 kN | C0r: 5.90 kN | Mass: 9.4 g
MHKM1012Fw: 10 mm | D: 17 mm | C: 12 mm | Cr: 6.00 kN | C0r: 5.90 kN | Mass: 11 g
BHTM1015Fw: 10 mm | D: 17 mm | C: 15 mm | Cr: 7.85 kN | C0r: 8.45 kN | Mass: 12 g
BHTM1020Fw: 10 mm | D: 17 mm | C: 20 mm | Cr: 10.7 kN | C0r: 12.5 kN | Mass: 16 g
MHKM1020Fw: 10 mm | D: 17 mm | C: 20 mm | Cr: 10.7 kN | C0r: 12.5 kN | Mass: 18 g
12BTM1610Fw: 12 mm | D: 16 mm | C: 10 mm | Cr: 4.00 kN | C0r: 5.60 kN | Mass: 5.0 g
12MKM1610Fw: 12 mm | D: 16 mm | C: 10 mm | Cr: 4.00 kN | C0r: 5.60 kN | Mass: 5.6 g
12BTM1810Fw: 12 mm | D: 18 mm | C: 10 mm | Cr: 4.60 kN | C0r: 4.80 kN | Mass: 7.2 g
12MKM1810Fw: 12 mm | D: 18 mm | C: 10 mm | Cr: 4.60 kN | C0r: 4.80 kN | Mass: 8.2 g
12BM1812Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 8.40 kN | C0r: 12.6 kN | Mass: 9.7 g
12MM1812Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 8.40 kN | C0r: 12.6 kN | Mass: 11 g
12BTM1812Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 5.95 kN | C0r: 6.70 kN | Mass: 7.6 g
12MKM1812Fw: 12 mm | D: 18 mm | C: 12 mm | Cr: 5.95 kN | C0r: 6.70 kN | Mass: 8.5 g
12BTM1815AFw: 12 mm | D: 18 mm | C: 15 mm | Cr: 6.10 kN | C0r: 7.32 kN | Mass: 12 g
12BKM1816UUFw: 12 mm | D: 18 mm | C: 16 mm | Cr: 5.65 kN | C0r: 6.25 kN | Mass: 11 g
BHTM1212-1Fw: 12 mm | D: 19 mm | C: 12 mm | Cr: 6.70 kN | C0r: 6.95 kN | Mass: 10 g
MHKM1212Fw: 12 mm | D: 19 mm | C: 12 mm | Cr: 6.70 kN | C0r: 6.95 kN | Mass: 12 g
BHTM1215-1Fw: 12 mm | D: 19 mm | C: 15 mm | Cr: 8.85 kN | C0r: 9.95 kN | Mass: 13 g
MKM121915Fw: 12 mm | D: 19 mm | C: 15 mm | Cr: 8.85 kN | C0r: 9.95 kN
BHTM1220Fw: 12 mm | D: 19 mm | C: 20 mm | Cr: 12.1 kN | C0r: 14.9 kN | Mass: 17 g
MHKM1220Fw: 12 mm | D: 19 mm | C: 20 mm | Cr: 12.1 kN | C0r: 14.9 kN | Mass: 19 g
BHTM1225Fw: 12 mm | D: 19 mm | C: 25 mm | Cr: 15.0 kN | C0r: 19.6 kN | Mass: 21 g
BKM131715JFw: 13 mm | D: 17 mm | C: 15 mm | Cr: 5.10 kN | C0r: 7.85 kN | Mass: 7.1 g
13BM1912Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 8.55 kN | C0r: 13.4 kN | Mass: 10 g
13BTM1912Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 5.85 kN | C0r: 6.70 kN | Mass: 9.5 g
13MKM1912Fw: 13 mm | D: 19 mm | C: 12 mm | Cr: 5.85 kN | C0r: 6.70 kN | Mass: 11 g
BKM131914JFw: 13 mm | D: 19 mm | C: 14 mm | Cr: 7.65 kN | C0r: 9.60 kN | Mass: 11 g
13BTM2012JFw: 13 mm | D: 20 mm | C: 12 mm | Cr: 7.50 kN | C0r: 8.40 kN | Mass: 11 g
BKM132114BJFw: 13 mm | D: 21 mm | C: 14 mm | Cr: 9.75 kN | C0r: 10.5 kN | Mass: 15 g
BTM141912AFw: 13 mm | C: 12 mm | Cr: 6.25 kN | C0r: 7.95 kN | Mass: 9.5 g
14BM1916Fw: 14 mm | D: 19 mm | C: 16 mm | Cr: 11.7 kN | C0r: 23.3 kN | Mass: 12 g
14MM1916Fw: 14 mm | D: 19 mm | C: 16 mm | Cr: 11.7 kN | C0r: 23.3 kN | Mass: 14 g
14BTM1916BFw: 14 mm | D: 19 mm | C: 16 mm | Cr: 7.85 kN | C0r: 11.7 kN | Mass: 11 g
14MKM1916Fw: 14 mm | D: 19 mm | C: 16 mm | Cr: 7.85 kN | C0r: 11.7 kN | Mass: 12 g
14BM2012Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 9.15 kN | C0r: 14.6 kN | Mass: 11 g
14MM2012Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 9.15 kN | C0r: 14.6 kN | Mass: 12 g
14BTM2012Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 6.10 kN | C0r: 7.20 kN | Mass: 9.8 g
14MKM2012Fw: 14 mm | D: 20 mm | C: 12 mm | Cr: 6.10 kN | C0r: 7.20 kN | Mass: 11 g
14BM2016Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 12.7 kN | C0r: 22.4 kN | Mass: 15 g
14MM2016Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 12.7 kN | C0r: 22.4 kN | Mass: 17 g
14BTM2016Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 8.75 kN | C0r: 11.4 kN | Mass: 13 g
14MKM2016Fw: 14 mm | D: 20 mm | C: 16 mm | Cr: 8.75 kN | C0r: 11.4 kN | Mass: 15 g
14BKM2025JUUFw: 14 mm | D: 20 mm | C: 25 mm | Cr: 12.2 kN | C0r: 15.5 kN | Mass: 20 g
BHTM1416Fw: 14 mm | D: 22 mm | C: 16 mm | Cr: 11.1 kN | C0r: 12.6 kN | Mass: 19 g
MHKM1416Fw: 14 mm | D: 22 mm | C: 16 mm | Cr: 11.1 kN | C0r: 12.6 kN | Mass: 21 g
BHTM1420Fw: 14 mm | D: 22 mm | C: 20 mm | Cr: 14.4 kN | C0r: 17.5 kN | Mass: 23 g
MHKM1420Fw: 14 mm | D: 22 mm | C: 20 mm | Cr: 14.4 kN | C0r: 17.5 kN | Mass: 26 g
BTM152014AFw: 14 mm | D: 14.50 mm | C: 19.50 mm | Cr: 7.55 kN | C0r: 10.9 kN | Mass: 9.5 g
15BTM2016C-2Fw: 15 mm | D: 20 mm | C: 16 mm | Cr: 8.15 kN | C0r: 12.6 kN | Mass: 12 g
15BM2110Fw: 15 mm | D: 21 mm | C: 10 mm | Cr: 7.70 kN | C0r: 11.8 kN | Mass: 9.4 g
15BTM2110JAFw: 15 mm | D: 21 mm | C: 10 mm | Cr: 5.25 kN | C0r: 6.25 kN | Mass: 9.5 g
15BM2112Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 9.70 kN | C0r: 15.9 kN | Mass: 12 g
15MM2112Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 9.70 kN | C0r: 15.9 kN | Mass: 13 g
15BTM2112-1Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 7.00 kN | C0r: 8.80 kN | Mass: 11 g
15MKM2112Fw: 15 mm | D: 21 mm | C: 12 mm | Cr: 7.00 kN | C0r: 8.80 kN | Mass: 12 g
15BM2116Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 13.4 kN | C0r: 24.2 kN | Mass: 16 g
15MM2116Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 13.4 kN | C0r: 24.2 kN | Mass: 18 g
15BTM2116Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 9.80 kN | C0r: 13.6 kN | Mass: 14 g
15MKM2116Fw: 15 mm | D: 21 mm | C: 16 mm | Cr: 9.80 kN | C0r: 13.6 kN | Mass: 16 g
15BTM2122Fw: 15 mm | D: 21 mm | C: 22 mm | Cr: 13.0 kN | C0r: 19.5 kN | Mass: 20 g
BHTM1510Fw: 15 mm | D: 22 mm | C: 10 mm | Cr: 6.15 kN | C0r: 6.45 kN | Mass: 9.9 g
MHKM1510Fw: 15 mm | D: 22 mm | C: 10 mm | Cr: 6.15 kN | C0r: 6.45 kN | Mass: 11 g
BHTM1512AFw: 15 mm | D: 22 mm | C: 12 mm | Cr: 6.90 kN | C0r: 7.95 kN | Mass: 12 g
MHKM1512Fw: 15 mm | D: 22 mm | C: 12 mm | Cr: 6.90 kN | C0r: 7.95 kN | Mass: 14 g
BHTM1515-1Fw: 15 mm | D: 22 mm | C: 15 mm | Cr: 10.9 kN | C0r: 13.3 kN | Mass: 10 g
BHTM1520Fw: 15 mm | D: 22 mm | C: 20 mm | Cr: 14.2 kN | C0r: 18.8 kN | Mass: 20 g
MHKM1520Fw: 15 mm | D: 22 mm | C: 20 mm | Cr: 14.2 kN | C0r: 18.8 kN | Mass: 23 g
BHTM1525Fw: 15 mm | D: 22 mm | C: 25 mm | Cr: 17.7 kN | C0r: 25.0 kN | Mass: 26 g
16BM2212Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 10.2 kN | C0r: 17.1 kN | Mass: 12 g
16MM2212Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 10.2 kN | C0r: 17.1 kN | Mass: 14 g
16BTM2212AFw: 16 mm | D: 22 mm | C: 12 mm | Cr: 7.60 kN | C0r: 9.80 kN | Mass: 11 g
16MKM2212Fw: 16 mm | D: 22 mm | C: 12 mm | Cr: 7.60 kN | C0r: 9.80 kN | Mass: 12 g
16BM2216Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 14.1 kN | C0r: 25.9 kN | Mass: 17 g
16MM2216Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 14.1 kN | C0r: 25.9 kN | Mass: 19 g
16BTM2216Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 10.7 kN | C0r: 15.1 kN | Mass: 15 g
16MKM2216Fw: 16 mm | D: 22 mm | C: 16 mm | Cr: 10.7 kN | C0r: 15.1 kN | Mass: 17 g
16BTM2222BFw: 16 mm | D: 22 mm | C: 22 mm | Cr: 16.2 kN | C0r: 22.9 kN | Mass: 20 g
BHTM1612Fw: 16 mm | D: 24 mm | C: 12 mm | Cr: 8.00 kN | C0r: 8.45 kN | Mass: 15 g
BHTM1616AFw: 16 mm | D: 24 mm | C: 16 mm | Cr: 12.2 kN | C0r: 14.9 kN | Mass: 20 g
MHKM1616Fw: 16 mm | D: 24 mm | C: 16 mm | Cr: 12.2 kN | C0r: 14.9 kN | Mass: 23 g
MKM162414UFw: 16 mm | Cr: 8.45 kN | C0r: 9.05 kN | Mass: 19 g
17BTM2215Fw: 17 mm | Cr: 6.15 kN | C0r: 9.60 kN | Mass: 10 g
BTM1710Fw: 17 mm | D: 22 mm | C: 10 mm | Cr: 5.05 kN | C0r: 6.90 kN | Mass: 8.2 g
BM1713-1Fw: 17 mm | D: 22 mm | C: 13 mm | Cr: 10.6 kN | C0r: 21.6 kN | Mass: 12 g
17BM2312Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 10.3 kN | C0r: 17.9 kN | Mass: 13 g
17MM2312Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 10.3 kN | C0r: 17.9 kN | Mass: 15 g
BTM172312Fw: 17 mm | D: 23 mm | C: 12 mm | Cr: 7.65 kN | C0r: 10.2 kN | Mass: 12 g
17BM2320Fw: 17 mm | D: 23 mm | C: 20 mm | Cr: 18.0 kN | C0r: 36.7 kN | Mass: 23 g
YM172412-1Fw: 17 mm | D: 24 mm | C: 12 mm | Cr: 12.8 kN | C0r: 21.0 kN | Mass: 17 g
BHTM1715-1Fw: 17 mm | D: 24 mm | C: 15 mm | Cr: 11.2 kN | C0r: 14.8 kN | Mass: 17 g
BM172417-1Fw: 17 mm | D: 24 mm | C: 17 mm | Cr: 16.0 kN | C0r: 27.9 kN | Mass: 23 g
BHKM1720JBUFw: 17 mm | D: 24 mm | C: 20 mm | Cr: 12.9 kN | C0r: 17.6 kN | Mass: 22 g
BHM1720AFw: 17 mm | D: 24 mm | C: 20 mm | Cr: 19.0 kN | C0r: 21.9 kN | Mass: 27 g
BHTM1720-1Fw: 17 mm | D: 24 mm | C: 20 mm | Cr: 15.1 kN | C0r: 21.6 kN | Mass: 24 g
MHKM1720Fw: 17 mm | D: 24 mm | C: 20 mm | Cr: 15.1 kN | C0r: 21.6 kN | Mass: 27 g
BHM1725Fw: 17 mm | D: 24 mm | C: 25 mm | Cr: 23.8 kN | C0r: 46.6 kN | Mass: 35 g
BTM172425Fw: 17 mm | D: 24 mm | C: 25 mm | Cr: 19.0 kN | C0r: 29.0 kN | Mass: 22 g
BHKM1726JUUFw: 17 mm | D: 24 mm | C: 26 mm | Cr: 16.0 kN | C0r: 23.3 kN | Mass: 29 g
BHKM1730JUFw: 17 mm | D: 24 mm | C: 30 mm | Cr: 20.1 kN | C0r: 31.3 kN | Mass: 35 g
BKM172514UH-1Fw: 17 mm | D: 25 mm | C: 14 mm | Cr: 7.30 kN | C0r: 7.90 kN | Mass: 18 g
BKM172515Fw: 17 mm | D: 25 mm | C: 15 mm | Cr: 10.9 kN | C0r: 13.1 kN | Mass: 20 g
17BKM2517JBUUHFw: 17 mm | D: 25 mm | Cr: 7.30 kN | C0r: 7.90 kN | Mass: 20 g
BKM172518UHFw: 17 mm | D: 25 mm | C: 18 mm | Cr: 10.9 kN | C0r: 13.1 kN | Mass: 24 g
BKM172520UH-1Fw: 17 mm | D: 25 mm | C: 20 mm | Cr: 12.9 kN | C0r: 16.3 kN | Mass: 27 g
18BM2412Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 10.8 kN | C0r: 19.2 kN | Mass: 17 g
18MM2412Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 10.8 kN | C0r: 19.2 kN | Mass: 20 g
18BTM2412Fw: 18 mm | D: 24 mm | C: 12 mm | Cr: 7.90 kN | C0r: 10.9 kN | Mass: 12 g
18BM2416Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 16.5 kN | C0r: 29.1 kN | Mass: 18 g
18MM2416Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 16.5 kN | C0r: 29.1 kN | Mass: 21 g
18YM2416Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 17.2 kN | C0r: 30.7 kN | Mass: 19 g
BTM182416Fw: 18 mm | D: 24 mm | C: 16 mm | Cr: 11.1 kN | C0r: 16.8 kN | Mass: 17 g
BTM1813Fw: 18 mm | D: 25 mm | C: 13 mm | Cr: 9.40 kN | C0r: 11.8 kN | Mass: 15 g
BTM1815Fw: 18 mm | D: 25 mm | C: 15 mm | Cr: 10.4 kN | C0r: 9.25 kN | Mass: 18 g
BTM1817AFw: 18 mm | D: 25 mm | C: 17 mm | Cr: 12.2 kN | C0r: 17.7 kN | Mass: 20 g
BTM1819Fw: 18 mm | D: 25 mm | C: 19 mm | Cr: 14.4 kN | C0r: 20.5 kN | Mass: 22 g
BTM182520Fw: 18 mm | D: 25 mm | C: 20 mm | Cr: 15.2 kN | C0r: 22.1 kN | Mass: 24 g
MKM1820Fw: 18 mm | D: 25 mm | C: 20 mm | Cr: 15.2 kN | C0r: 22.1 kN | Mass: 27 g
BTM1825AFw: 18 mm | D: 25 mm | C: 25 mm | Cr: 18.9 kN | C0r: 29.2 kN | Mass: 29 g
BHTM1920Fw: 19 mm | D: 27 mm | C: 20 mm | Cr: 17.0 kN | C0r: 23.4 kN | Mass: 30 g
20BTM2920C: 20 mm | Cr: 18.8 kN | C0r: 23.6 kN | Mass: 36 g
20BM2612Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 10.6 kN | C0r: 20.4 kN | Mass: 15 g
20MM2612Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 10.6 kN | C0r: 20.4 kN | Mass: 17 g
20BTM2612Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 8.50 kN | C0r: 12.6 kN | Mass: 14 g
20MKM2612Fw: 20 mm | D: 26 mm | C: 12 mm | Cr: 8.50 kN | C0r: 12.6 kN | Mass: 16 g
YM202614Fw: 20 mm | D: 26 mm | C: 14 mm | Cr: 15.1 kN | C0r: 31.4 kN | Mass: 19 g
20BM2616Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 14.8 kN | C0r: 31.4 kN | Mass: 21 g
20MM2616Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 14.8 kN | C0r: 31.4 kN | Mass: 23 g
BTM202616Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 12.4 kN | C0r: 20.3 kN | Mass: 19 g
20MKM2616Fw: 20 mm | D: 26 mm | C: 16 mm | Cr: 12.4 kN | C0r: 20.3 kN | Mass: 21 g
20BM2620Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 18.8 kN | C0r: 42.5 kN | Mass: 26 g
20MM2620Fw: 20 mm | D: 26 mm | C: 20 mm | Cr: 18.8 kN | C0r: 42.5 kN | Mass: 30 g
20BTM2620AFw: 20 mm | D: 26 mm | C: 20 mm | Cr: 15.2 kN | C0r: 26.4 kN | Mass: 24 g
BM2013Fw: 20 mm | D: 27 mm | C: 13 mm | Cr: 13.1 kN | C0r: 22.2 kN | Mass: 18 g
MM2013Fw: 20 mm | D: 27 mm | C: 13 mm | Cr: 13.1 kN | C0r: 22.2 kN | Mass: 21 g
BM2015Fw: 20 mm | D: 27 mm | C: 15 mm | Cr: 15.6 kN | C0r: 27.7 kN | Mass: 22 g
BTM2015Fw: 20 mm | D: 27 mm | C: 15 mm | Cr: 13.1 kN | C0r: 18.7 kN | Mass: 20 g
BTM202720-1Fw: 20 mm | D: 27 mm | C: 20 mm | Cr: 17.7 kN | C0r: 27.6 kN | Mass: 25 g
MKM2020Fw: 20 mm | D: 27 mm | C: 20 mm | Cr: 17.7 kN | C0r: 27.6 kN | Mass: 28 g
BKM2024JAUFw: 20 mm | D: 27 mm | Cr: 18.4 kN | C0r: 28.8 kN | Mass: 32 g
BTM202725Fw: 20 mm | D: 27 mm | C: 25 mm | Cr: 22.1 kN | C0r: 36.6 kN | Mass: 33 g
BKM2026JUUFw: 20 mm | D: 27 mm | C: 26 mm | Cr: 18.4 kN | C0r: 28.8 kN | Mass: 33 g
BM2026Fw: 20 mm | D: 27 mm | C: 26 mm | Cr: 27.6 kN | C0r: 58.0 kN | Mass: 40 g
BKM2030JUUFw: 20 mm | D: 27 mm | C: 30 mm | Cr: 21.8 kN | C0r: 36.0 kN | Mass: 38 g
BTM202730Fw: 20 mm | D: 27 mm | C: 30 mm | Cr: 25.4 kN | C0r: 43.8 kN | Mass: 40 g
MKM2030Fw: 20 mm | D: 27 mm | C: 30 mm | Cr: 25.4 kN | C0r: 43.8 kN | Mass: 45 g
BKM2035JUUFw: 20 mm | D: 27 mm | C: 35 mm | Cr: 28.7 kN | C0r: 45.4 kN | Mass: 45 g
20BTM2820AFw: 20 mm | D: 28 mm | C: 20 mm | Cr: 17.4 kN | C0r: 22.3 kN | Mass: 31 g
21YM2720JFw: 21 mm | D: 27 mm | C: 20 mm | Cr: 20.5 kN | C0r: 47.6 kN | Mass: 29 g
22BM2812Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 11.6 kN | C0r: 22.9 kN | Mass: 16 g
22MM2812Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 11.6 kN | C0r: 22.9 kN | Mass: 18 g
22BTM2812Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 9.10 kN | C0r: 13.5 kN | Mass: 14 g
22MKM2812Fw: 22 mm | D: 28 mm | C: 12 mm | Cr: 9.10 kN | C0r: 13.5 kN | Mass: 16 g
22BM2816Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 16.1 kN | C0r: 35.0 kN | Mass: 22 g
22MM2816Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 16.1 kN | C0r: 35.0 kN | Mass: 25 g
22BTM2816AFw: 22 mm | D: 28 mm | C: 16 mm | Cr: 12.7 kN | C0r: 20.8 kN | Mass: 19 g
22MKM2816Fw: 22 mm | D: 28 mm | C: 16 mm | Cr: 12.7 kN | C0r: 20.8 kN | Mass: 22 g
22BM2820Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 20.3 kN | C0r: 47.2 kN | Mass: 29 g
22MM2820Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 20.3 kN | C0r: 47.2 kN | Mass: 32 g
22BTM2820Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 14.9 kN | C0r: 26.5 kN | Mass: 25 g
22MKM2820Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 14.9 kN | C0r: 26.5 kN | Mass: 28 g
YM222820Fw: 22 mm | D: 28 mm | C: 20 mm | Cr: 21.0 kN | C0r: 49.5 kN | Mass: 30 g
BTM2212Fw: 22 mm | D: 29 mm | C: 12 mm | Cr: 9.22 kN | C0r: 13.0 kN | Mass: 19 g
BTM2215Fw: 22 mm | D: 29 mm | C: 15 mm | Cr: 12.0 kN | C0r: 18.3 kN | Mass: 22 g
BM2220BFw: 22 mm | D: 29 mm | C: 20 mm | Cr: 21.9 kN | C0r: 45.2 kN | Mass: 33 g
BTM2220AFw: 22 mm | D: 29 mm | C: 20 mm | Cr: 16.2 kN | C0r: 26.7 kN | Mass: 30 g
MKM2220Fw: 22 mm | D: 29 mm | C: 20 mm | Cr: 16.2 kN | C0r: 26.7 kN | Mass: 33 g
BTM2225Fw: 22 mm | D: 29 mm | C: 25 mm | Cr: 20.4 kN | C0r: 36.1 kN | Mass: 37 g
22BTM3018Fw: 22 mm | D: 30 mm | C: 18 mm | Cr: 16.7 kN | C0r: 24.5 kN | Mass: 31 g
BTM243013JFw: 24 mm | D: 30 mm | C: 13 mm | Cr: 9.55 kN | C0r: 15.7 kN | Mass: 47 g
BTM2420Fw: 24 mm | D: 31 mm | C: 20 mm | Cr: 17.7 kN | C0r: 29.4 kN | Mass: 31 g
MKM2420Fw: 24 mm | D: 31 mm | C: 20 mm | Cr: 17.7 kN | C0r: 29.4 kN | Mass: 35 g
BM2425AFw: 24 mm | D: 31 mm | C: 25 mm | Cr: 31.6 kN | C0r: 65.4 kN | Mass: 45 g
BTM2428Fw: 24 mm | D: 31 mm | C: 28 mm | Cr: 23.9 kN | C0r: 43.0 kN | Mass: 44 g
24MKM3520Fw: 24 mm | D: 35 mm | C: 20 mm | Cr: 21.0 kN | C0r: 25.8 kN | Mass: 52 g
25BTM3119AFw: 25 mm | D: 31 mm | C: 19 mm | Cr: 16.3 kN | C0r: 30.1 kN | Mass: 26 g
BTM2512Fw: 25 mm | D: 32 mm | C: 12 mm | Cr: 9.05 kN | C0r: 12.4 kN | Mass: 19 g
MKM2512Fw: 25 mm | D: 32 mm | C: 12 mm | Cr: 9.05 kN | C0r: 12.4 kN | Mass: 21 g
BM2516Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 18.7 kN | C0r: 37.9 kN | Mass: 28 g
BTM2516Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 15.3 kN | C0r: 24.6 kN | Mass: 26 g
MKM2516Fw: 25 mm | D: 32 mm | C: 16 mm | Cr: 15.3 kN | C0r: 24.6 kN | Mass: 30 g
BM2520Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 23.8 kN | C0r: 51.7 kN | Mass: 36 g
MM2520Fw: 25 mm | D: 32 mm | C: 20 mm | Cr: 23.8 kN | C0r: 51.7 kN | Mass: 41 g
BTM2520AFw: 25 mm | D: 32 mm | C: 20 mm | Cr: 19.1 kN | C0r: 32.5 kN | Mass: 33 g
MTM2520MFw: 25 mm | D: 32 mm | C: 20 mm | Cr: 19.1 kN | C0r: 32.5 kN
BM2526Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 30.9 kN | C0r: 72.4 kN | Mass: 48 g
BTM2526Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 23.7 kN | C0r: 43.1 kN | Mass: 42 g
MKM2526Fw: 25 mm | D: 32 mm | C: 26 mm | Cr: 23.7 kN | C0r: 43.1 kN | Mass: 48 g
BHTM2510AFw: 25 mm | D: 33 mm | C: 10 mm | Cr: 8.50 kN | C0r: 10.3 kN | Mass: 18 g
BHM2515Fw: 25 mm | D: 33 mm | C: 15 mm | Cr: 19.5 kN | C0r: 32.0 kN | Mass: 30 g
BHTM2515-1Fw: 25 mm | D: 33 mm | C: 15 mm | Cr: 13.9 kN | C0r: 19.7 kN | Mass: 27 g
BHTM2520-1Fw: 25 mm | D: 33 mm | C: 20 mm | Cr: 19.2 kN | C0r: 29.7 kN | Mass: 37 g
MHKM2520Fw: 25 mm | D: 33 mm | C: 20 mm | Cr: 19.2 kN | C0r: 29.7 kN | Mass: 41 g
BHM2525Fw: 25 mm | D: 33 mm | C: 25 mm | Cr: 31.3 kN | C0r: 66.3 kN | Mass: 53 g
BHTM2525Fw: 25 mm | D: 33 mm | C: 25 mm | Cr: 24.5 kN | C0r: 40.6 kN | Mass: 46 g
BHM2530Fw: 25 mm | D: 33 mm | C: 30 mm | Cr: 37.4 kN | C0r: 83.3 kN | Mass: 65 g
BHTM2530-1Fw: 25 mm | D: 33 mm | C: 30 mm | Cr: 27.7 kN | C0r: 47.4 kN | Mass: 54 g
MHKM2530Fw: 25 mm | D: 33 mm | C: 30 mm | Cr: 27.7 kN | C0r: 47.4 kN | Mass: 61 g
BHKM2535JUFw: 25 mm | D: 33 mm | C: 35 mm | Cr: 29.8 kN | C0r: 52.3 kN | Mass: 62 g
BTM263316AFw: 25 mm | C: 16 mm | Cr: 14.2 kN | C0r: 22.4 kN | Mass: 28 g
BKM263112AFw: 26 mm | Cr: 8.60 kN | C0r: 14.5 kN | Mass: 14 g
BHTM2616Fw: 26 mm | D: 34 mm | C: 16 mm | Cr: 15.3 kN | C0r: 22.5 kN | Mass: 30 g
MHKM2616Fw: 26 mm | D: 34 mm | C: 16 mm | Cr: 15.3 kN | C0r: 22.5 kN | Mass: 34 g
BHTM2620AFw: 26 mm | D: 34 mm | C: 20 mm | Cr: 20.0 kN | C0r: 31.6 kN | Mass: 38 g
MHKM2620Fw: 26 mm | D: 34 mm | C: 20 mm | Cr: 20.0 kN | C0r: 31.6 kN | Mass: 43 g
BM2817Fw: 28 mm | D: 34 mm | C: 17 mm | Cr: 16.8 kN | C0r: 49.7 kN | Mass: 29 g
BM2824Fw: 28 mm | D: 34 mm | C: 24 mm | Cr: 29.0 kN | C0r: 76.7 kN | Mass: 42 g
YM2825BFw: 28 mm | D: 34 mm | C: 25 mm | Cr: 34.8 kN | C0r: 85.9 kN | Mass: 45 g
28BM3516Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 20.2 kN | C0r: 42.9 kN | Mass: 95 g
28MM3516Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 20.2 kN | C0r: 42.9 kN | Mass: 107 g
28BTM3516Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 15.9 kN | C0r: 26.2 kN | Mass: 28 g
28MKM3516Fw: 28 mm | D: 35 mm | C: 16 mm | Cr: 15.9 kN | C0r: 26.2 kN | Mass: 31 g
28BM3520Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 25.7 kN | C0r: 58.3 kN | Mass: 118 g
28MM3520Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 25.7 kN | C0r: 58.3 kN | Mass: 133 g
28BTM3520Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 19.0 kN | C0r: 33.1 kN | Mass: 35 g
28MKM3520Fw: 28 mm | D: 35 mm | C: 20 mm | Cr: 19.0 kN | C0r: 33.1 kN | Mass: 39 g
BTM283621JAFw: 28 mm | D: 36 mm | Cr: 22.8 kN | C0r: 39.3 kN | Mass: 43 g
BTM283623JFw: 28 mm | D: 36 mm | C: 23 mm | Cr: 22.8 kN | C0r: 39.3 kN | Mass: 49 g
BTM283720Fw: 28 mm | D: 37 mm | C: 20 mm | Cr: 21.6 kN | C0r: 33.0 kN | Mass: 46 g
MHKM2820Fw: 28 mm | D: 37 mm | C: 20 mm | Cr: 21.6 kN | C0r: 33.0 kN | Mass: 52 g
28BHM3730Fw: 28 mm | D: 37 mm | C: 30 mm | Cr: 43.7 kN | C0r: 94.7 kN | Mass: 80 g
BHTM2830Fw: 28 mm | D: 37 mm | C: 30 mm | Cr: 32.8 kN | C0r: 56.5 kN | Mass: 70 g
MHKM2830Fw: 28 mm | D: 37 mm | C: 30 mm | Cr: 32.8 kN | C0r: 56.5 kN | Mass: 79 g
BM283930AFw: 28 mm | D: 39 mm | C: 30 mm | Cr: 44.5 kN | C0r: 85.9 kN | Mass: 100 g
BTM303712Fw: 30 mm | D: 37 mm | C: 12 mm | Cr: 12.1 kN | C0r: 18.8 kN | Mass: 22 g
30MKM3712Fw: 30 mm | D: 37 mm | C: 12 mm | Cr: 12.1 kN | C0r: 18.8 kN | Mass: 25 g
30BM3716Fw: 30 mm | D: 37 mm | C: 16 mm | Cr: 21.1 kN | C0r: 28.2 kN | Mass: 33 g
30BTM3716BMFw: 30 mm | D: 37 mm | C: 16 mm | Cr: 17.1 kN | C0r: 29.3 kN | Mass: 30 g
30MKM3716Fw: 30 mm | D: 37 mm | C: 16 mm | Cr: 17.1 kN | C0r: 29.3 kN | Mass: 33 g
30BM3720Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 26.8 kN | C0r: 62.5 kN | Mass: 42 g
30MM3720Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 26.8 kN | C0r: 62.5 kN | Mass: 48 g
30BTM3720Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 20.7 kN | C0r: 40.4 kN | Mass: 40 g
30MKM3720Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 20.7 kN | C0r: 40.4 kN | Mass: 45 g
30YM3720Fw: 30 mm | D: 37 mm | C: 20 mm | Cr: 32.2 kN | C0r: 70.1 kN | Mass: 45 g
30BM3726Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 34.8 kN | C0r: 87.3 kN | Mass: 56 g
30BTM3726Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 26.7 kN | C0r: 52.0 kN | Mass: 48 g
30MKM3726Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 26.7 kN | C0r: 52.0 kN | Mass: 55 g
30YM3726Fw: 30 mm | D: 37 mm | C: 26 mm | Cr: 37.1 kN | C0r: 94.9 kN | Mass: 60 g
BTM3021AFw: 30 mm | D: 38 mm | C: 21 mm | Cr: 23.4 kN | C0r: 40.4 kN | Mass: 45 g
BM3025Fw: 30 mm | D: 38 mm | C: 25 mm | Cr: 38.0 kN | C0r: 79.8 kN | Mass: 62 g
BHTM3015Fw: 30 mm | D: 40 mm | C: 15 mm | Cr: 16.6 kN | C0r: 22.3 kN | Mass: 41 g
BHTM3020Fw: 30 mm | D: 40 mm | C: 20 mm | Cr: 23.1 kN | C0r: 34.0 kN | Mass: 55 g
MHKM3020Fw: 30 mm | D: 40 mm | C: 20 mm | Cr: 23.1 kN | C0r: 34.0 kN | Mass: 62 g
BHM3025Fw: 30 mm | D: 40 mm | C: 25 mm | Cr: 37.3 kN | C0r: 75.4 kN | Mass: 80 g
BHTM3025-1Fw: 30 mm | D: 40 mm | C: 25 mm | Cr: 29.4 kN | C0r: 46.5 kN | Mass: 69 g
BHTM3030-1AFw: 30 mm | D: 40 mm | C: 30 mm | Cr: 35.3 kN | C0r: 58.8 kN | Mass: 83 g
MHKM3030Fw: 30 mm | D: 40 mm | C: 30 mm | Cr: 35.3 kN | C0r: 58.8 kN | Mass: 94 g
BKM304030JUFw: 30 mm | D: 40 mm | C: 30 mm | Cr: 30.8 kN | C0r: 49.3 kN | Mass: 77 g
31BTM3918AFw: 31 mm | D: 39 mm | Cr: 20.6 kN | C0r: 34.6 kN | Mass: 39 g
32BTM3811AFw: 32 mm | D: 38 mm | C: 11 mm | Cr: 4.90 kN | C0r: 6.75 kN | Mass: 15 g
32YM4020PFw: 32 mm | D: 40 mm | C: 20 mm | Cr: 31.9 kN | C0r: 73.3 kN | Mass: 56 g
32BTM4025PLFw: 32 mm | D: 40 mm | C: 25 mm | Cr: 27.6 kN | C0r: 50.8 kN | Mass: 57 g
BHTM3220AFw: 32 mm | D: 42 mm | C: 20 mm | Cr: 23.4 kN | C0r: 34.8 kN | Mass: 57 g
MHKM3220Fw: 32 mm | D: 42 mm | C: 20 mm | Cr: 23.4 kN | C0r: 34.8 kN | Mass: 64 g
YM3220Fw: 32 mm | D: 42 mm | C: 20 mm | Cr: 37.4 kN | C0r: 69.1 kN | Mass: 71 g
BHTM3230Fw: 32 mm | D: 42 mm | C: 30 mm | Cr: 36.6 kN | C0r: 61.9 kN | Mass: 86 g
MHKM3230Fw: 32 mm | D: 42 mm | C: 30 mm | Cr: 36.6 kN | C0r: 61.9 kN | Mass: 98 g
YM3230Fw: 32 mm | D: 42 mm | C: 30 mm | Cr: 55.0 kN | C0r: 113 kN | Mass: 109 g
BTM344017AFw: 32 mm | C: 17 mm | Cr: 16.8 kN | C0r: 33.5 kN | Mass: 34 g
34BTM4012AFw: 34 mm | D: 40 mm | C: 12 mm | Cr: 7.30 kN | C0r: 11.7 kN | Mass: 20 g
34YM4225Fw: 34 mm | D: 42 mm | C: 25 mm | Cr: 37.2 kN | C0r: 94.1 kN | Mass: 74 g
BSM354126AJFw: 35 mm | Cr: 22.7 kN | C0r: 56.0 kN | Mass: 44 g
BTM3512Fw: 35 mm | D: 42 mm | C: 12 mm | Cr: 13.3 kN | C0r: 22.8 kN | Mass: 26 g
BM3516Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 22.2 kN | C0r: 52.9 kN | Mass: 38 g
BTM3516Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 18.5 kN | C0r: 34.7 kN | Mass: 35 g
MKM3516Fw: 35 mm | D: 42 mm | C: 16 mm | Cr: 18.5 kN | C0r: 34.7 kN | Mass: 39 g
BKM354220-1UUFw: 35 mm | D: 42 mm | C: 20 mm | Cr: 13.3 kN | C0r: 22.8 kN | Mass: 38 g
BM3520Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 28.2 kN | C0r: 72.2 kN | Mass: 49 g
MM3520Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 28.2 kN | C0r: 72.2 kN | Mass: 56 g
BTM3520Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 23.4 kN | C0r: 47.0 kN | Mass: 43 g
MKM3520Fw: 35 mm | D: 42 mm | C: 20 mm | Cr: 23.4 kN | C0r: 47.0 kN | Mass: 49 g
YM3521AFw: 35 mm | D: 42 mm | C: 21 mm | Cr: 28.8 kN | C0r: 79.2 kN | Mass: 55 g
BM3526Fw: 35 mm | D: 42 mm | C: 26 mm | Cr: 36.7 kN | C0r: 101 kN | Mass: 66 g
BTM3526Fw: 35 mm | D: 42 mm | C: 26 mm | Cr: 30.1 kN | C0r: 65.2 kN | Mass: 57 g
MKM3526Fw: 35 mm | D: 42 mm | C: 26 mm | Cr: 30.1 kN | C0r: 65.2 kN | Mass: 64 g
BTM3528Fw: 35 mm | D: 42 mm | C: 28 mm | Cr: 31.3 kN | C0r: 68.6 kN | Mass: 63 g
BKM354246UUHFw: 35 mm | D: 42 mm | C: 46 mm | Cr: 26.2 kN | C0r: 57.5 kN | Mass: 101 g
BHTM3515Fw: 35 mm | D: 45 mm | C: 15 mm | Cr: 18.4 kN | C0r: 26.6 kN | Mass: 47 g
BHM3518Fw: 35 mm | D: 45 mm | C: 18 mm | Cr: 20.5 kN | C0r: 33.4 kN | Mass: 62 g
BHTM3520Fw: 35 mm | D: 45 mm | C: 20 mm | Cr: 26.0 kN | C0r: 41.7 kN | Mass: 64 g
MHKM3520Fw: 35 mm | D: 45 mm | C: 20 mm | Cr: 26.0 kN | C0r: 41.7 kN | Mass: 72 g
BHTM3525Fw: 35 mm | D: 45 mm | C: 25 mm | Cr: 32.8 kN | C0r: 56.2 kN | Mass: 80 g
BHTM3530Fw: 35 mm | D: 45 mm | C: 30 mm | Cr: 39.4 kN | C0r: 71.0 kN | Mass: 96 g
MHKM3530Fw: 35 mm | D: 45 mm | C: 30 mm | Cr: 39.4 kN | C0r: 71.0 kN | Mass: 109 g
36BM4216Fw: 36 mm | D: 42 mm | C: 16 mm | Cr: 19.6 kN | C0r: 55.9 kN | Mass: 35 g
36YM4425LFw: 36 mm | D: 44 mm | C: 25 mm | Cr: 42.0 kN | C0r: 99.2 kN | Mass: 78 g
36BTM4824Fw: 36 mm | D: 48 mm | C: 24 mm | Cr: 33.2 kN | C0r: 48.7 kN | Mass: 95 g
37BTM4312AFw: 37 mm | D: 43 mm | C: 12 mm | Cr: 8.00 kN | C0r: 13.6 kN | Mass: 23 g
BTM3720Fw: 37 mm | D: 47 mm | C: 20 mm | Cr: 25.1 kN | C0r: 39.9 kN | Mass: 64 g
MKM3720Fw: 37 mm | D: 47 mm | C: 20 mm | Cr: 25.1 kN | C0r: 39.9 kN | Mass: 72 g
BTM3730Fw: 37 mm | D: 47 mm | C: 30 mm | Cr: 38.2 kN | C0r: 68.4 kN | Mass: 96 g
MKM3730Fw: 37 mm | D: 47 mm | C: 30 mm | Cr: 38.2 kN | C0r: 68.4 kN | Mass: 109 g
BTM384512AFw: 38 mm | D: 45 mm | C: 12 mm | Cr: 12.7 kN | C0r: 23.0 kN | Mass: 29 g
BTM3820AFw: 38 mm | D: 48 mm | C: 20 mm | Cr: 27.1 kN | C0r: 44.5 kN | Mass: 67 g
MKM3820Fw: 38 mm | D: 48 mm | C: 20 mm | Cr: 27.1 kN | C0r: 44.5 kN | Mass: 76 g
YM3820PFw: 38 mm | D: 48 mm | C: 20 mm | Cr: 42.0 kN | C0r: 82.8 kN | Mass: 82 g
BTM3830PLFw: 38 mm | D: 48 mm | C: 30 mm | Cr: 41.2 kN | C0r: 76.2 kN | Mass: 102 g
MKM3830Fw: 38 mm | D: 48 mm | C: 30 mm | Cr: 41.2 kN | C0r: 76.2 kN | Mass: 115 g
BTM3845-OHFw: 38 mm | D: 48 mm | C: 45 mm | Cr: 58.9 kN | C0r: 121 kN | Mass: 151 g
40BTM4712AFw: 40 mm | D: 47 mm | C: 12 mm | Cr: 9.75 kN | C0r: 10.4 kN | Mass: 27 g
40BM4716Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 23.8 kN | C0r: 60.5 kN | Mass: 43 g
40BTM4716Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 18.7 kN | C0r: 37.1 kN | Mass: 39 g
40MKM4716Fw: 40 mm | D: 47 mm | C: 16 mm | Cr: 18.7 kN | C0r: 37.1 kN | Mass: 44 g
40BM4720Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 30.3 kN | C0r: 82.6 kN | Mass: 56 g
40MM4720Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 30.3 kN | C0r: 82.6 kN | Mass: 63 g
40BTM4720Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 23.7 kN | C0r: 50.4 kN | Mass: 48 g
40MKM4720Fw: 40 mm | D: 47 mm | C: 20 mm | Cr: 23.7 kN | C0r: 50.4 kN | Mass: 55 g
BM4015-1Fw: 40 mm | D: 50 mm | C: 15 mm | Cr: 23.4 kN | C0r: 45.2 kN | Mass: 55 g
BTM4015Fw: 40 mm | D: 50 mm | C: 15 mm | Cr: 20.2 kN | C0r: 31.2 kN | Mass: 54 g
BTM4020Fw: 40 mm | D: 50 mm | C: 20 mm | Cr: 28.5 kN | C0r: 48.5 kN | Mass: 73 g
MKM4020Fw: 40 mm | D: 50 mm | C: 20 mm | Cr: 28.5 kN | C0r: 48.5 kN | Mass: 82 g
BTM4025Fw: 40 mm | D: 50 mm | C: 25 mm | Cr: 36.2 kN | C0r: 66.2 kN | Mass: 91 g
BTM4030-1Fw: 40 mm | D: 50 mm | C: 30 mm | Cr: 43.0 kN | C0r: 82.5 kN | Mass: 109 g
MKM4030Fw: 40 mm | D: 50 mm | C: 30 mm | Cr: 43.0 kN | C0r: 82.5 kN | Mass: 123 g
BTM4040-OHFw: 40 mm | D: 50 mm | C: 40 mm | Cr: 54.8 kN | C0r: 113 kN | Mass: 141 g
YM405120JFw: 40 mm | D: 51 mm | C: 20 mm | Cr: 40.2 kN | C0r: 84.7 kN | Mass: 96 g
40BTM5130JFw: 40 mm | D: 51 mm | C: 30 mm | Cr: 43.5 kN | C0r: 76.6 kN | Mass: 112 g
YM405320JMFw: 40 mm | D: 53 mm | C: 20 mm | Cr: 46.7 kN | C0r: 87.3 kN | Mass: 114 g
BTM424709AJFw: 40 mm | D: 41.50 mm | C: 46.50 mm | Cr: 7.00 kN | C0r: 13.9 kN | Mass: 15 g
BTM425330JFw: 42 mm | D: 53 mm | C: 30 mm | Cr: 45.7 kN | C0r: 83.9 kN | Mass: 121 g
43BTM4912AFw: 43 mm | D: 49 mm | C: 12 mm | Cr: 8.35 kN | C0r: 15.1 kN | Mass: 25 g
44BTM4914AFw: 43 mm | D: 43.52 mm | Cr: 12.0 kN | C0r: 29.0 kN | Mass: 28 g
45BTM5212AFw: 45 mm | D: 52 mm | C: 12 mm | Cr: 13.7 kN | C0r: 26.9 kN | Mass: 34 g
45BM5216Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 23.8 kN | C0r: 65.9 kN | Mass: 49 g
45BTM5216Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 19.1 kN | C0r: 41.3 kN | Mass: 45 g
45MKM5216Fw: 45 mm | D: 52 mm | C: 16 mm | Cr: 19.1 kN | C0r: 41.3 kN | Mass: 51 g
45BM5220Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 30.4 kN | C0r: 90.1 kN | Mass: 62 g
45MM5220Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 30.4 kN | C0r: 90.1 kN | Mass: 71 g
45BTM5220AFw: 45 mm | D: 52 mm | C: 20 mm | Cr: 23.3 kN | C0r: 33.4 kN | Mass: 79 g
MKM4520Fw: 45 mm | D: 52 mm | C: 20 mm | Cr: 23.3 kN | C0r: 33.4 kN | Mass: 90 g
BTM4530Fw: 45 mm | D: 52 mm | C: 30 mm | Cr: 45.3 kN | C0r: 91.7 kN | Mass: 120 g
MKM4530Fw: 45 mm | D: 52 mm | C: 30 mm | Cr: 45.3 kN | C0r: 91.7 kN | Mass: 136 g
BTM4520AFw: 45 mm | D: 55 mm | C: 20 mm | Cr: 30.0 kN | C0r: 53.9 kN | Mass: 79 g
BTM485630JFw: 48 mm | D: 56 mm | C: 30 mm | Cr: 41.0 kN | C0r: 100 kN | Mass: 102 g
BTM505816JFw: 50 mm | D: 58 mm | C: 16 mm | Cr: 21.9 kN | C0r: 43.8 kN | Mass: 54 g
50BM5820Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 35.8 kN | C0r: 98.0 kN | Mass: 78 g
50BTM5820JFw: 50 mm | D: 58 mm | C: 20 mm | Cr: 28.4 kN | C0r: 61.0 kN | Mass: 68 g
50MKM5820Fw: 50 mm | D: 58 mm | C: 20 mm | Cr: 28.4 kN | C0r: 61.0 kN | Mass: 76 g
50BM5825Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 45.2 kN | C0r: 133 kN | Mass: 98 g
50BTM5825Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 35.9 kN | C0r: 82.5 kN | Mass: 86 g
50MKM5825Fw: 50 mm | D: 58 mm | C: 25 mm | Cr: 35.9 kN | C0r: 82.5 kN | Mass: 97 g
BTM5015Fw: 50 mm | D: 62 mm | C: 15 mm | Cr: 24.3 kN | C0r: 36.4 kN | Mass: 73 g
BTM5020Fw: 50 mm | D: 62 mm | C: 20 mm | Cr: 34.5 kN | C0r: 57.1 kN | Mass: 99 g
MKM5020Fw: 50 mm | D: 62 mm | C: 20 mm | Cr: 34.5 kN | C0r: 57.1 kN | Mass: 112 g
BTM5025Fw: 50 mm | D: 62 mm | C: 25 mm | Cr: 43.9 kN | C0r: 77.8 kN | Mass: 125 g
BTM5030Fw: 50 mm | D: 62 mm | C: 30 mm | Cr: 52.8 kN | C0r: 98.5 kN | Mass: 153 g
MKM5030Fw: 50 mm | D: 62 mm | C: 30 mm | Cr: 52.8 kN | C0r: 98.5 kN | Mass: 173 g
55BTM6320Fw: 55 mm | D: 63 mm | C: 20 mm | Cr: 29.1 kN | C0r: 65.1 kN | Mass: 73 g
55BTM6720AFw: 55 mm | D: 67 mm | C: 20 mm | Cr: 36.4 kN | C0r: 63.1 kN | Mass: 110 g
64BTM7321AFw: 64 mm | C: 73.178 mm | Cr: 36.1 kN | C0r: 83.8 kN | Mass: 110 g
BTM667216JFw: 66 mm | D: 72 mm | C: 16 mm | Cr: 21.9 kN | C0r: 61.1 kN | Mass: 54 g
BTM727915AJFw: 66 mm | D: 71.60 mm | Cr: 22.9 kN | C0r: 61.9 kN | Mass: 66 g
BTM778415AJFw: 66 mm | D: 76.50 mm | Cr: 23.5 kN | C0r: 65.4 kN | Mass: 70 g

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
