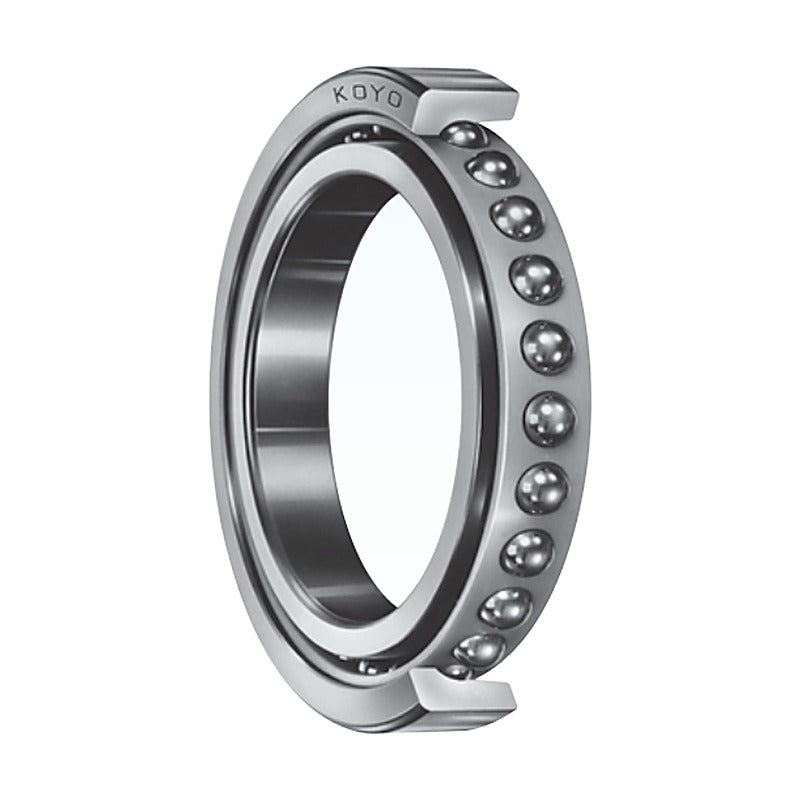

KOYO Four-Point Contact Ball Bearings (62..BI, 63..BI)

KOYO Four-Point Contact Ball Bearings (62..BI, 63..BI)

Four-point contact ball bearings with split inner ring (BI suffix) in the 62 and 63 series, carrying axial loads in both directions plus moderate radial loads.

Key features

  • Split inner ring allows a high number of balls
  • Axial load capacity in both directions
  • 62 and 63 series, bore 20-75 mm and above
  • Compact alternative to paired angular contact bearings

Specifications

Bearing type Four-point contact ball bearing
Inner ring Two-piece (BI)
Series 62, 63
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B130-B133
6204BI d: 20 mm | D: 47 mm | B: 14 mm | Cr: 23.5 kN | C0r: 15.3 kN | Mass: 0.129 kg
6304BI d: 20 mm | D: 52 mm | B: 15 mm | Cr: 27.4 kN | C0r: 18.1 kN | Mass: 0.179 kg
6205BI d: 25 mm | D: 52 mm | B: 15 mm | Cr: 26.7 kN | C0r: 18.8 kN | Mass: 0.156 kg
6305BI d: 25 mm | D: 62 mm | B: 17 mm | Cr: 40.8 kN | C0r: 28.0 kN | Mass: 0.285 kg
6206BI d: 30 mm | D: 62 mm | B: 16 mm | Cr: 36.3 kN | C0r: 27.6 kN | Mass: 0.241 kg
6306BI d: 30 mm | D: 72 mm | B: 19 mm | Cr: 49.5 kN | C0r: 36.6 kN | Mass: 0.426 kg
6207BI d: 35 mm | D: 72 mm | B: 17 mm | Cr: 47.1 kN | C0r: 36.7 kN | Mass: 0.351 kg
6307BI d: 35 mm | D: 80 mm | B: 21 mm | Cr: 61.2 kN | C0r: 46.4 kN | Mass: 0.565 kg
6208BI d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.9 kN | C0r: 46.5 kN | Mass: 0.451 kg
6308BI d: 40 mm | D: 90 mm | B: 23 mm | Cr: 74.1 kN | C0r: 57.6 kN | Mass: 0.778 kg
6209BI d: 45 mm | D: 85 mm | B: 19 mm | Cr: 58.7 kN | C0r: 51.3 kN | Mass: 0.512 kg
6309BI d: 45 mm | D: 100 mm | B: 25 mm | Cr: 87.9 kN | C0r: 70.0 kN | Mass: 1.04 kg
6210BI d: 50 mm | D: 90 mm | B: 20 mm | Cr: 65.4 kN | C0r: 58.0 kN | Mass: 0.575 kg
6310BI d: 50 mm | D: 110 mm | B: 27 mm | Cr: 103 kN | C0r: 83.7 kN | Mass: 1.35 kg
6211BI d: 55 mm | D: 100 mm | B: 21 mm | Cr: 80.0 kN | C0r: 72.3 kN | Mass: 0.763 kg
6311BI d: 55 mm | D: 120 mm | B: 29 mm | Cr: 119 kN | C0r: 98.5 kN | Mass: 1.72 kg
6212BI d: 60 mm | D: 110 mm | B: 22 mm | Cr: 91.7 kN | C0r: 87.6 kN | Mass: 0.983 kg
6312BI d: 60 mm | D: 130 mm | B: 31 mm | Cr: 145 kN | C0r: 126 kN | Mass: 2.17 kg
6213BI d: 65 mm | D: 120 mm | B: 23 mm | Cr: 95.1 kN | C0r: 90.1 kN | Mass: 1.23 kg
6313BI d: 65 mm | D: 140 mm | B: 33 mm | Cr: 164 kN | C0r: 145 kN | Mass: 2.67 kg
6214BI d: 70 mm | D: 125 mm | B: 24 mm | Cr: 103 kN | C0r: 99.0 kN | Mass: 1.35 kg
6314BI d: 70 mm | D: 150 mm | B: 35 mm | Cr: 184 kN | C0r: 165 kN | Mass: 3.25 kg
6215BI d: 75 mm | D: 130 mm | B: 25 mm | Cr: 108 kN | C0r: 108 kN | Mass: 1.47 kg
6315BI d: 75 mm | D: 160 mm | B: 37 mm | Cr: 200 kN | C0r: 187 kN | Mass: 3.90 kg
6216BI d: 80 mm | D: 140 mm | B: 26 mm | Cr: 126 kN | C0r: 128 kN | Mass: 1.80 kg
6316BI d: 80 mm | D: 170 mm | B: 39 mm | Cr: 217 kN | C0r: 210 kN | Mass: 4.63 kg
6217BI d: 85 mm | D: 150 mm | B: 28 mm | Cr: 146 kN | C0r: 150 kN | Mass: 2.25 kg
6317BI d: 85 mm | D: 180 mm | B: 41 mm | Cr: 234 kN | C0r: 234 kN | Mass: 5.45 kg
6218BI d: 90 mm | D: 160 mm | B: 30 mm | Cr: 167 kN | C0r: 173 kN | Mass: 2.77 kg
6318BI d: 90 mm | D: 190 mm | B: 43 mm | Cr: 252 kN | C0r: 260 kN | Mass: 6.36 kg
6219BI d: 95 mm | D: 170 mm | B: 32 mm | Cr: 190 kN | C0r: 198 kN | Mass: 3.37 kg
6319BI d: 95 mm | D: 200 mm | B: 45 mm | Cr: 269 kN | C0r: 287 kN | Mass: 7.37 kg
6220BI d: 100 mm | D: 180 mm | B: 34 mm | Cr: 201 kN | C0r: 213 kN | Mass: 4.02 kg
6222BI d: 110 mm | D: 200 mm | B: 38 mm | Cr: 242 kN | C0r: 275 kN | Mass: 5.64 kg
Angular Contact Ball BearingsKOYO
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Four-Point Contact Ball Bearings (62..BI, 63..BI)

Brand KOYO·Angular Contact Ball Bearings

Available part numbers (34)

6204BI, 6304BI, 6205BI, 6305BI, 6206BI, 6306BI, 6207BI, 6307BI, 6208BI, 6308BI + 24 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6204BId: 20 mm | D: 47 mm | B: 14 mm | Cr: 23.5 kN | C0r: 15.3 kN | Mass: 0.129 kg
6304BId: 20 mm | D: 52 mm | B: 15 mm | Cr: 27.4 kN | C0r: 18.1 kN | Mass: 0.179 kg
6205BId: 25 mm | D: 52 mm | B: 15 mm | Cr: 26.7 kN | C0r: 18.8 kN | Mass: 0.156 kg
6305BId: 25 mm | D: 62 mm | B: 17 mm | Cr: 40.8 kN | C0r: 28.0 kN | Mass: 0.285 kg
6206BId: 30 mm | D: 62 mm | B: 16 mm | Cr: 36.3 kN | C0r: 27.6 kN | Mass: 0.241 kg
6306BId: 30 mm | D: 72 mm | B: 19 mm | Cr: 49.5 kN | C0r: 36.6 kN | Mass: 0.426 kg
6207BId: 35 mm | D: 72 mm | B: 17 mm | Cr: 47.1 kN | C0r: 36.7 kN | Mass: 0.351 kg
6307BId: 35 mm | D: 80 mm | B: 21 mm | Cr: 61.2 kN | C0r: 46.4 kN | Mass: 0.565 kg
6208BId: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.9 kN | C0r: 46.5 kN | Mass: 0.451 kg
6308BId: 40 mm | D: 90 mm | B: 23 mm | Cr: 74.1 kN | C0r: 57.6 kN | Mass: 0.778 kg
6209BId: 45 mm | D: 85 mm | B: 19 mm | Cr: 58.7 kN | C0r: 51.3 kN | Mass: 0.512 kg
6309BId: 45 mm | D: 100 mm | B: 25 mm | Cr: 87.9 kN | C0r: 70.0 kN | Mass: 1.04 kg
6210BId: 50 mm | D: 90 mm | B: 20 mm | Cr: 65.4 kN | C0r: 58.0 kN | Mass: 0.575 kg
6310BId: 50 mm | D: 110 mm | B: 27 mm | Cr: 103 kN | C0r: 83.7 kN | Mass: 1.35 kg
6211BId: 55 mm | D: 100 mm | B: 21 mm | Cr: 80.0 kN | C0r: 72.3 kN | Mass: 0.763 kg
6311BId: 55 mm | D: 120 mm | B: 29 mm | Cr: 119 kN | C0r: 98.5 kN | Mass: 1.72 kg
6212BId: 60 mm | D: 110 mm | B: 22 mm | Cr: 91.7 kN | C0r: 87.6 kN | Mass: 0.983 kg
6312BId: 60 mm | D: 130 mm | B: 31 mm | Cr: 145 kN | C0r: 126 kN | Mass: 2.17 kg
6213BId: 65 mm | D: 120 mm | B: 23 mm | Cr: 95.1 kN | C0r: 90.1 kN | Mass: 1.23 kg
6313BId: 65 mm | D: 140 mm | B: 33 mm | Cr: 164 kN | C0r: 145 kN | Mass: 2.67 kg
6214BId: 70 mm | D: 125 mm | B: 24 mm | Cr: 103 kN | C0r: 99.0 kN | Mass: 1.35 kg
6314BId: 70 mm | D: 150 mm | B: 35 mm | Cr: 184 kN | C0r: 165 kN | Mass: 3.25 kg
6215BId: 75 mm | D: 130 mm | B: 25 mm | Cr: 108 kN | C0r: 108 kN | Mass: 1.47 kg
6315BId: 75 mm | D: 160 mm | B: 37 mm | Cr: 200 kN | C0r: 187 kN | Mass: 3.90 kg
6216BId: 80 mm | D: 140 mm | B: 26 mm | Cr: 126 kN | C0r: 128 kN | Mass: 1.80 kg
6316BId: 80 mm | D: 170 mm | B: 39 mm | Cr: 217 kN | C0r: 210 kN | Mass: 4.63 kg
6217BId: 85 mm | D: 150 mm | B: 28 mm | Cr: 146 kN | C0r: 150 kN | Mass: 2.25 kg
6317BId: 85 mm | D: 180 mm | B: 41 mm | Cr: 234 kN | C0r: 234 kN | Mass: 5.45 kg
6218BId: 90 mm | D: 160 mm | B: 30 mm | Cr: 167 kN | C0r: 173 kN | Mass: 2.77 kg
6318BId: 90 mm | D: 190 mm | B: 43 mm | Cr: 252 kN | C0r: 260 kN | Mass: 6.36 kg
6219BId: 95 mm | D: 170 mm | B: 32 mm | Cr: 190 kN | C0r: 198 kN | Mass: 3.37 kg
6319BId: 95 mm | D: 200 mm | B: 45 mm | Cr: 269 kN | C0r: 287 kN | Mass: 7.37 kg
6220BId: 100 mm | D: 180 mm | B: 34 mm | Cr: 201 kN | C0r: 213 kN | Mass: 4.02 kg
6222BId: 110 mm | D: 200 mm | B: 38 mm | Cr: 242 kN | C0r: 275 kN | Mass: 5.64 kg
