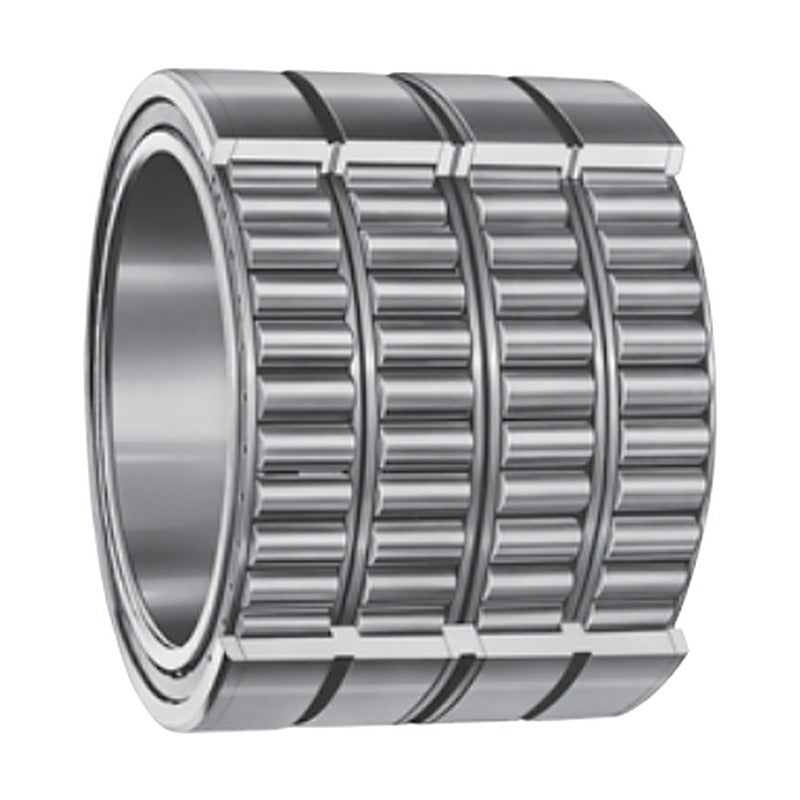

KOYO Four-Row Cylindrical Roller Bearings for Rolling Mill Roll Necks

KOYO Four-Row Cylindrical Roller Bearings for Rolling Mill Roll Necks

Four-row cylindrical roller bearings for rolling mill roll necks (FC and 4CR series), bore 100 to over 500 mm, in various ring designs with machined or pin-type cages.

Key features

  • Very high radial load capacity
  • Separable rings for roll change
  • Machined or pin-type cages
  • Multiple inner/outer ring design variants
  • Metric and inch sizes

Specifications

Bearing type Four-row cylindrical roller bearing
Series FC, 4CR
Application Rolling mill roll necks
Source KOYO Special Bearings catalogue, p. C86-C103
20FC14120 d: 100 mm | D: 140 mm | B: 120 mm | Cr: 485 kN | C0r: 945 kN | Mass: 5.6 kg
22FC1790 d: 110 mm | D: 170 mm | B: 90 mm | Cr: 428 kN | C0r: 692 kN | Mass: 7.4 kg
22FC18120 d: 110 mm | D: 180 mm | B: 120 mm | Cr: 636 kN | C0r: 971 kN | Mass: 12 kg
23FC1690 d: 115 mm | D: 165 mm | B: 90 mm | Cr: 398 kN | C0r: 751 kN | Mass: 6.5 kg
24FC1787 d: 120 mm | D: 165 mm | B: 87 mm | Cr: 374 kN | C0r: 745 kN | Mass: 5.6 kg
4CR120 d: 120 mm | D: 180 mm | B: 105 mm | Cr: 487 kN | C0r: 796 kN | Mass: 9.3 kg
25FC17150 d: 127 mm | D: 174.65 mm | B: 150.812 mm | Cr: 630 kN | C0r: 1 300 kN | Mass: 10.5 kg
25FC20127 d: 127 mm | D: 203.2 mm | B: 127 mm | Cr: 740 kN | C0r: 1 180 kN | Mass: 15.4 kg
26FC20104 d: 130 mm | D: 200 mm | B: 104 mm | Cr: 566 kN | C0r: 953 kN | Mass: 11.8 kg
26FC20125 d: 130 mm | D: 200 mm | B: 125 mm | Cr: 752 kN | C0r: 1 310 kN | Mass: 14.4 kg
28FC19119W d: 140 mm | D: 190 mm | B: 119 mm | Cr: 565 kN | C0r: 1 160 kN | Mass: 9.6 kg
28FC21116 d: 140 mm | D: 210 mm | B: 116 mm | Cr: 675 kN | C0r: 1 120 kN | Mass: 13.5 kg
29FC21155 d: 145 mm | D: 210 mm | B: 155 mm | Cr: 845 kN | C0r: 1 710 kN | Mass: 17.8 kg
313924 d: 145 mm | D: 225 mm | B: 156 mm | Cr: 912 kN | C0r: 1 680 kN | Mass: 22.9 kg
30FC20120 d: 150 mm | D: 200 mm | B: 120 mm | Cr: 672 kN | C0r: 1 400 kN | Mass: 10.1 kg
30FC21120 d: 150 mm | D: 210 mm | B: 120 mm | Cr: 686 kN | C0r: 1 380 kN | Mass: 12.8 kg
30FC21150 d: 150 mm | D: 210 mm | B: 150 mm | Cr: 872 kN | C0r: 1 780 kN | Mass: 15.9 kg
30FC22150 d: 150 mm | D: 220 mm | B: 150 mm | Cr: 887 kN | C0r: 1 760 kN | Mass: 19.2 kg
30FC22150A d: 150 mm | D: 220 mm | B: 150 mm | Cr: 889 kN | C0r: 1 760 kN | Mass: 19.5 kg
313891-1 d: 150 mm | D: 230 mm | B: 156 mm | Cr: 961 kN | C0r: 1 810 kN | Mass: 23.8 kg
32FC22180 d: 160 mm | D: 220 mm | B: 180 mm | Cr: 964 kN | C0r: 2 170 kN | Mass: 20.5 kg
314190 d: 160 mm | D: 230 mm | B: 130 mm | Cr: 867 kN | C0r: 1 740 kN | Mass: 17.7 kg
32FC23170 d: 160 mm | D: 230 mm | B: 168 mm | Cr: 1 040 kN | C0r: 2 210 kN | Mass: 22.8 kg
32FC23170A d: 160 mm | D: 230 mm | B: 168 mm | Cr: 1 040 kN | C0r: 2 200 kN | Mass: 23.1 kg
32FC23170B d: 160 mm | D: 230 mm | B: 168 mm | Cr: 1 110 kN | C0r: 2 210 kN | Mass: 22.6 kg
32FC23180A d: 160 mm | D: 230 mm | B: 180 mm | Cr: 1 140 kN | C0r: 2 270 kN | Mass: 24.1 kg
32FC24120W d: 160 mm | D: 240 mm | B: 120 mm | Cr: 663 kN | C0r: 1 140 kN | Mass: 18.5 kg
32FC24170 d: 160 mm | D: 240 mm | B: 170 mm | Cr: 1 180 kN | C0r: 2 220 kN | Mass: 26.8 kg
34FC23120 d: 170 mm | D: 230 mm | B: 120 mm | Cr: 782 kN | C0r: 1 680 kN | Mass: 14.4 kg
34FC24156A d: 170 mm | D: 240 mm | B: 156 mm | Cr: 972 kN | C0r: 2 050 kN | Mass: 22.4 kg
34FC24156B d: 170 mm | D: 240 mm | B: 156 mm | Cr: 1 060 kN | C0r: 2 100 kN | Mass: 21.8 kg
34FC24190 d: 170 mm | D: 240 mm | B: 190 mm | Cr: 1 260 kN | C0r: 2 620 kN | Mass: 26.9 kg
34FC25168 d: 170 mm | D: 250 mm | B: 168 mm | Cr: 1 170 kN | C0r: 2 230 kN | Mass: 27.6 kg
34FC25170 d: 170 mm | D: 250 mm | B: 170 mm | Cr: 1 170 kN | C0r: 2 230 kN | Mass: 27.8 kg
34FC26150 d: 170 mm | D: 260 mm | B: 150 mm | Cr: 1 100 kN | C0r: 2 000 kN | Mass: 28.8 kg
36FC26150 d: 178 mm | D: 258.75 mm | B: 150 mm | Cr: 1 090 kN | C0r: 2 070 kN | Mass: 25.8 kg
36FC25156A d: 180 mm | D: 250 mm | B: 156 mm | Cr: 1 020 kN | C0r: 2 130 kN | Mass: 23.3 kg
313812W d: 180 mm | D: 260 mm | B: 168 mm | Cr: 1 150 kN | C0r: 2 390 kN | Mass: 29.7 kg
36FC26168 d: 180 mm | D: 260 mm | B: 168 mm | Cr: 1 230 kN | C0r: 2 420 kN | Mass: 29.3 kg
36FC27180 d: 180 mm | D: 265 mm | B: 180 mm | Cr: 1 300 kN | C0r: 2 600 kN | Mass: 33.6 kg
38FC26168-1 d: 190 mm | D: 260 mm | B: 168 mm | Cr: 1 140 kN | C0r: 2 600 kN | Mass: 26.5 kg
38FC27170 d: 190 mm | D: 270 mm | B: 170 mm | Cr: 1 140 kN | C0r: 2 310 kN | Mass: 30.8 kg
38FC27170A d: 190 mm | D: 270 mm | B: 170 mm | Cr: 1 140 kN | C0r: 2 310 kN | Mass: 31.0 kg
314199 d: 190 mm | D: 270 mm | B: 200 mm | Cr: 1 460 kN | C0r: 3 080 kN | Mass: 36.1 kg
38FC28200 d: 190 mm | D: 280 mm | B: 200 mm | Cr: 1 550 kN | C0r: 3 100 kN | Mass: 42 kg
38FC29190 d: 190 mm | D: 290 mm | B: 190 mm | Cr: 1 550 kN | C0r: 2 860 kN
39FC30226 d: 195 mm | D: 300 mm | B: 226 mm | Cr: 1 960 kN | C0r: 3 690 kN | Mass: 57.9 kg
314553 d: 200 mm | D: 270 mm | B: 170 mm | Cr: 1 190 kN | C0r: 2 780 kN | Mass: 28.0 kg
40FC28152BW d: 200 mm | D: 280 mm | B: 152 mm | Cr: 1 100 kN | C0r: 2 150 kN | Mass: 28.0 kg
40FC28170 d: 200 mm | D: 280 mm | B: 170 mm | Cr: 1 280 kN | C0r: 2 620 kN | Mass: 31.7 kg
40FC28188 d: 200 mm | D: 280 mm | B: 188 mm | Cr: 1 350 kN | C0r: 2 810 kN | Mass: 35.0 kg
40FC28190A d: 200 mm | D: 280 mm | B: 190 mm | Cr: 1 460 kN | C0r: 3 100 kN | Mass: 36.0 kg
313893-1 d: 200 mm | D: 280 mm | B: 200 mm | Cr: 1 450 kN | C0r: 3 090 kN | Mass: 37.7 kg
40FC28200 d: 200 mm | D: 280 mm | B: 200 mm | Cr: 1 450 kN | C0r: 3 330 kN | Mass: 38.7 kg
313811 d: 200 mm | D: 290 mm | B: 192 mm | Cr: 1 460 kN | C0r: 3 030 kN | Mass: 42.0 kg
40FC31160 d: 200 mm | D: 310 mm | B: 160 mm | Cr: 1 260 kN | C0r: 2 240 kN | Mass: 44.6 kg
40FC31206 d: 200 mm | D: 310 mm | B: 206 mm | Cr: 1 790 kN | C0r: 3 240 kN | Mass: 56.6 kg
41FC30170 d: 206 mm | D: 299.97 mm | B: 170 mm | Cr: 1 470 kN | C0r: 2 780 kN | Mass: 39.2 kg
42FC29192 d: 210 mm | D: 290 mm | B: 192 mm | Cr: 1 460 kN | C0r: 3 270 kN | Mass: 38.1 kg
42FC30210 d: 210 mm | D: 300 mm | B: 210 mm | Cr: 1 660 kN | C0r: 3 490 kN | Mass: 47.3 kg
44FC30150W d: 220 mm | D: 300 mm | B: 150 mm | Cr: 1 210 kN | C0r: 2 500 kN | Mass: 30.7 kg
313837-1 d: 220 mm | D: 310 mm | B: 192 mm | Cr: 1 520 kN | C0r: 3 270 kN | Mass: 45.5 kg
313837A d: 220 mm | D: 310 mm | B: 192 mm | Cr: 1 630 kN | C0r: 3 420 kN | Mass: 44.9 kg
44FC31192W d: 220 mm | D: 310 mm | B: 192 mm | Cr: 1 450 kN | C0r: 2 980 kN | Mass: 43.9 kg
44FC31225A d: 220 mm | D: 310 mm | B: 225 mm | Cr: 1 880 kN | C0r: 4 160 kN | Mass: 53.5 kg
44FC32210 d: 220 mm | D: 320 mm | B: 210 mm | Cr: 1 760 kN | C0r: 3 490 kN | Mass: 55.4 kg
44FC32210-1 d: 220 mm | D: 320 mm | B: 210 mm | Cr: 1 810 kN | C0r: 3 740 kN | Mass: 56.7 kg
44FC34180A d: 220 mm | D: 340 mm | B: 180 mm | Cr: 1 500 kN | C0r: 2 750 kN | Mass: 59.0 kg
313824A d: 230 mm | D: 330 mm | B: 206 mm | Cr: 1 880 kN | C0r: 3 980 kN | Mass: 57.5 kg
46FC34260 d: 230 mm | D: 340 mm | B: 260 mm | Cr: 2 310 kN | C0r: 4 900 kN | Mass: 81.2 kg
47FC34200 d: 237 mm | D: 339.67 mm | B: 200 mm | Cr: 1 840 kN | C0r: 3 780 kN | Mass: 58.0 kg
312943/1YD d: 240 mm | D: 330 mm | B: 220 mm | Cr: 1 780 kN | C0r: 4 250 kN | Mass: 55.5 kg
48FC33220 d: 240 mm | D: 330 mm | B: 220 mm | Cr: 1 830 kN | C0r: 4 120 kN | Mass: 54.3 kg
48FC33220BW d: 240 mm | D: 330 mm | B: 220 mm | Cr: 1 770 kN | C0r: 4 070 kN | Mass: 55.5 kg
48FC33250W d: 240 mm | D: 330 mm | B: 250 mm | Cr: 2 160 kN | C0r: 4 910 kN | Mass: 63.7 kg
48FC34200 d: 240 mm | D: 340 mm | B: 200 mm | Cr: 1 880 kN | C0r: 3 780 kN | Mass: 56.3 kg
48FC34220 d: 240 mm | D: 340 mm | B: 220 mm | Cr: 2 000 kN | C0r: 4 240 kN | Mass: 63.4 kg
50FC35220 d: 250 mm | D: 350 mm | B: 220 mm | Cr: 1 930 kN | C0r: 4 200 kN | Mass: 64.6 kg
52FC35260 d: 260 mm | D: 355 mm | B: 260 mm | Cr: 2 290 kN | C0r: 5 440 kN | Mass: 75.0 kg
52FC36192W d: 260 mm | D: 360 mm | B: 192 mm | Cr: 1 750 kN | C0r: 3 740 kN | Mass: 59.8 kg
52FC36200 d: 260 mm | D: 360 mm | B: 200 mm | Cr: 1 880 kN | C0r: 4 110 kN | Mass: 62.0 kg
52FC36230CW d: 260 mm | D: 360 mm | B: 230 mm | Cr: 2 140 kN | C0r: 4 900 kN | Mass: 69.7 kg
52FC36230D d: 260 mm | D: 360 mm | B: 230 mm | Cr: 2 020 kN | C0r: 4 790 kN | Mass: 72.6 kg
52FC36260 d: 260 mm | D: 360 mm | B: 260 mm | Cr: 2 300 kN | C0r: 5 320 kN | Mass: 80.0 kg
52FC37268W d: 260 mm | D: 368 mm | B: 268 mm | Cr: 2 740 kN | C0r: 5 990 kN | Mass: 89.9 kg
313823 d: 260 mm | D: 370 mm | B: 220 mm | Cr: 2 000 kN | C0r: 4 330 kN | Mass: 76.0 kg
313823A d: 260 mm | D: 370 mm | B: 220 mm | Cr: 2 180 kN | C0r: 4 480 kN | Mass: 75.0 kg
52FC37260 d: 260 mm | D: 370 mm | B: 260 mm | Cr: 2 640 kN | C0r: 5 740 kN | Mass: 88.5 kg
53FC37234A d: 265 mm | D: 370 mm | B: 234 mm | Cr: 2 290 kN | C0r: 4 910 kN | Mass: 76.3 kg
53FC37234B d: 265 mm | D: 370 mm | B: 234 mm | Cr: 2 270 kN | C0r: 5 290 kN | Mass: 78.5 kg
54FC38230 d: 270 mm | D: 380 mm | B: 230 mm | Cr: 2 330 kN | C0r: 4 910 kN | Mass: 80.0 kg
56FC38170W d: 280 mm | D: 380 mm | B: 170 mm | Cr: 1 710 kN | C0r: 3 590 kN | Mass: 55.0 kg
313822 d: 280 mm | D: 390 mm | B: 220 mm | Cr: 2 070 kN | C0r: 4 640 kN
313822A d: 280 mm | D: 390 mm | B: 220 mm | Cr: 2 180 kN | C0r: 4 670 kN | Mass: 79.7 kg
313822C d: 280 mm | D: 390 mm | B: 220 mm | Cr: 2 520 kN | C0r: 5 350 kN | Mass: 79.7 kg
313822D d: 280 mm | D: 390 mm | B: 220 mm | Cr: 2 320 kN | C0r: 5 100 kN | Mass: 80.1 kg
56FC39240 d: 280 mm | D: 390 mm | B: 240 mm | Cr: 2 460 kN | C0r: 5 620 kN | Mass: 88.1 kg
56FC39275B d: 280 mm | D: 390 mm | B: 275 mm | Cr: 2 680 kN | C0r: 6 110 kN | Mass: 100 kg
56FC39275J d: 280 mm | D: 390 mm | B: 275 mm | Cr: 3 040 kN | C0r: 6 850 kN | Mass: 102 kg
56FC41300 d: 280 mm | D: 410 mm | B: 300 mm | Cr: 3 730 kN | C0r: 8 400 kN | Mass: 137 kg
58FC39234 d: 290 mm | D: 390 mm | B: 234 mm | Cr: 2 300 kN | C0r: 5 500 kN | Mass: 80.0 kg
58FC40180W d: 290 mm | D: 400 mm | B: 180 mm | Cr: 1 880 kN | C0r: 4 010 kN | Mass: 68.3 kg
58FC41240 d: 290 mm | D: 410 mm | B: 240 mm | Cr: 2 610 kN | C0r: 5 540 kN | Mass: 99.0 kg
58FC42300 d: 290 mm | D: 420 mm | B: 300 mm | Cr: 3 100 kN | C0r: 6 960 kN | Mass: 138 kg
60FC40300A d: 300 mm | D: 400 mm | B: 300 mm | Cr: 2 920 kN | C0r: 7 310 kN | Mass: 103 kg
60FC42218 d: 300 mm | D: 420 mm | B: 218 mm | Cr: 2 350 kN | C0r: 5 010 kN | Mass: 93.0 kg
60FC42240 d: 300 mm | D: 420 mm | B: 240 mm | Cr: 2 660 kN | C0r: 5 750 kN | Mass: 102 kg
4CR300 d: 300 mm | D: 420 mm | B: 300 mm | Cr: 3 370 kN | C0r: 7 840 kN | Mass: 125 kg
60FC42300DW d: 300 mm | D: 420 mm | B: 300 mm | Cr: 3 420 kN | C0r: 7 750 kN | Mass: 127 kg
60FC42300L-2 d: 300 mm | D: 420 mm | B: 300 mm | Cr: 3 750 kN | C0r: 8 690 kN | Mass: 129 kg
60FC42300W d: 300 mm | D: 420 mm | B: 300 mm | Cr: 3 250 kN | C0r: 7 270 kN | Mass: 127 kg
62FC42300 d: 310 mm | D: 420 mm | B: 300 mm | Cr: 3 090 kN | C0r: 7 370 kN | Mass: 119 kg
62FC43240 d: 310 mm | D: 430 mm | B: 240 mm | Cr: 2 640 kN | C0r: 5 770 kN | Mass: 105 kg
62FC44240 d: 310 mm | D: 440 mm | B: 240 mm | Cr: 2 820 kN | C0r: 5 730 kN | Mass: 113 kg
64FC44230/240 d: 320 mm | D: 440 mm | B: 230 mm | Cr: 2 530 kN | C0r: 5 490 kN | Mass: 103 kg
4CR320 d: 320 mm | D: 450 mm | B: 240 mm | Cr: 2 700 kN | C0r: 5 740 kN | Mass: 119 kg
64FC45240 d: 320 mm | D: 450 mm | B: 240 mm | Cr: 2 700 kN | C0r: 5 730 kN | Mass: 117 kg
64FC45240CW d: 320 mm | D: 450 mm | B: 240 mm | Cr: 2 770 kN | C0r: 5 930 kN
64FC46340A d: 320 mm | D: 460 mm | B: 340 mm | Cr: 3 860 kN | C0r: 8 730 kN | Mass: 187 kg
64FC48290 d: 320 mm | D: 480 mm | B: 290 mm | Cr: 4 080 kN | C0r: 8 450 kN | Mass: 189 kg
314274A d: 320 mm | D: 480 mm | B: 350 mm | Cr: 5 010 kN | C0r: 11 000 kN | Mass: 227 kg
66FC44200AW d: 330 mm | D: 440 mm | B: 200 mm | Cr: 2 340 kN | C0r: 5 220 kN | Mass: 83.4 kg
66FC44200W d: 330 mm | D: 440 mm | B: 200 mm | Cr: 2 050 kN | C0r: 4 670 kN | Mass: 83.0 kg
66FC46340 d: 330 mm | D: 460 mm | B: 340 mm | Cr: 3 860 kN | C0r: 9 150 kN | Mass: 172 kg
66FC46340B d: 330 mm | D: 460 mm | B: 340 mm | Cr: 4 060 kN | C0r: 9 800 kN | Mass: 176 kg
66FC46380W d: 330 mm | D: 460 mm | B: 380 mm | Cr: 4 380 kN | C0r: 10 800 kN | Mass: 195 kg
68FC45250W d: 340 mm | D: 445 mm | B: 250 mm | Cr: 2 510 kN | C0r: 6 110 kN | Mass: 100 kg
68FC45250BW d: 340 mm | D: 450 mm | B: 250 mm | Cr: 2 750 kN | C0r: 6 480 kN | Mass: 106 kg
68FC48350-2 d: 340 mm | D: 480 mm | B: 350 mm | Cr: 4 580 kN | C0r: 11 100 kN | Mass: 211 kg
68FC48350D d: 340 mm | D: 480 mm | B: 350 mm | Cr: 4 780 kN | C0r: 11 500 kN | Mass: 201 kg
68FC48350L d: 340 mm | D: 480 mm | B: 350 mm | Cr: 4 840 kN | C0r: 11 400 kN | Mass: 201 kg
68FC48350N d: 340 mm | D: 480 mm | B: 385 mm | Cr: 4 780 kN | C0r: 11 500 kN | Mass: 209 kg
68FC49300 d: 340 mm | D: 490 mm | B: 300 mm | Cr: 3 500 kN | C0r: 7 690 kN | Mass: 187 kg
68FC49300A d: 340 mm | D: 490 mm | B: 300 mm | Cr: 3 680 kN | C0r: 7 850 kN | Mass: 182 kg
69FC46254W d: 343.052 mm | D: 457.098 mm | B: 254 mm | Cr: 2 640 kN | C0r: 6 190 kN | Mass: 112 kg
70FC50460 d: 350 mm | D: 500 mm | B: 460 mm | Cr: 6 570 kN | C0r: 16 500 kN | Mass: 296 kg
72FC48290 d: 360 mm | D: 480 mm | B: 290 mm | Cr: 3 470 kN | C0r: 8 510 kN | Mass: 145 kg
72FC50250 d: 360 mm | D: 500 mm | B: 250 mm | Cr: 3 510 kN | C0r: 7 340 kN | Mass: 145 kg
72FC51370 d: 360 mm | D: 510 mm | B: 370 mm | Cr: 4 590 kN | C0r: 11 000 kN | Mass: 241 kg
72FC52380 d: 360 mm | D: 520 mm | B: 380 mm | Cr: 5 800 kN | C0r: 13 700 kN | Mass: 270 kg
74FC52380 d: 370 mm | D: 520 mm | B: 380 mm | Cr: 5 320 kN | C0r: 13 200 kN | Mass: 257 kg
74FC52400W d: 370 mm | D: 520 mm | B: 400 mm | Cr: 4 740 kN | C0r: 11 900 kN
74FC54400A d: 370 mm | D: 540 mm | B: 400 mm | Cr: 5 190 kN | C0r: 11 500 kN | Mass: 311 kg
75FC55400 d: 375 mm | D: 545 mm | B: 400 mm | Cr: 6 310 kN | C0r: 14 500 kN | Mass: 315 kg
76FC52280 d: 380 mm | D: 520 mm | B: 280 mm | Cr: 3 720 kN | C0r: 8 550 kN | Mass: 173 kg
76FC52290 d: 380 mm | D: 520 mm | B: 290 mm | Cr: 3 760 kN | C0r: 8 840 kN | Mass: 181 kg
76FC54300 d: 380 mm | D: 540 mm | B: 300 mm | Cr: 4 650 kN | C0r: 10 100 kN | Mass: 222 kg
76FC54340W d: 380 mm | D: 540 mm | B: 340 mm | Cr: 4 600 kN | C0r: 10 300 kN | Mass: 256 kg
76FC54360 d: 380 mm | D: 540 mm | B: 360 mm | Cr: 5 480 kN | C0r: 12 900 kN | Mass: 266 kg
76FC54380 d: 380 mm | D: 540 mm | B: 400 mm | Cr: 6 010 kN | C0r: 14 300 kN | Mass: 287 kg
76FC54400BW d: 380 mm | D: 540 mm | B: 400 mm | Cr: 6 040 kN | C0r: 14 600 kN | Mass: 298 kg
76FC54400DW d: 380 mm | D: 540 mm | B: 400 mm | Cr: 6 040 kN | C0r: 14 600 kN | Mass: 298 kg
78FC55400AW d: 390 mm | D: 550 mm | B: 400 mm | Cr: 5 130 kN | C0r: 12 400 kN | Mass: 296 kg
80FC52250W d: 400 mm | D: 520 mm | B: 250 mm | Cr: 2 920 kN | C0r: 7 100 kN | Mass: 133 kg
80FC56360 d: 400 mm | D: 560 mm | B: 360 mm | Cr: 5 570 kN | C0r: 13 400 kN | Mass: 277 kg
4CR400 d: 400 mm | D: 560 mm | B: 410 mm | Cr: 6 330 kN | C0r: 15 800 kN | Mass: 310 kg
80FC56410 d: 400 mm | D: 560 mm | B: 410 mm | Cr: 6 470 kN | C0r: 16 300 kN | Mass: 315 kg
80FC60380 d: 400 mm | D: 600 mm | B: 380 mm | Cr: 6 610 kN | C0r: 14 300 kN | Mass: 388 kg
81FC6130W d: 406.4 mm | D: 609.6 mm | B: 304.8 mm | Cr: 4 380 kN | C0r: 8 750 kN | Mass: 307 kg
82FC55400 d: 410 mm | D: 546 mm | B: 400 mm | Cr: 5 010 kN | C0r: 13 000 kN | Mass: 256 kg
82FC60440 d: 410 mm | D: 600 mm | B: 440 mm | Cr: 8 070 kN | C0r: 18 800 kN | Mass: 432 kg
84FC60410A d: 418.5 mm | D: 600 mm | B: 410 mm | Cr: 6 630 kN | C0r: 15 700 kN | Mass: 385 kg
84FC59350 d: 419 mm | D: 592 mm | B: 350 mm | Cr: 5 690 kN | C0r: 12 900 kN | Mass: 304 kg
84FC56280 d: 420 mm | D: 560 mm | B: 280 mm | Cr: 3 930 kN | C0r: 9 410 kN | Mass: 189 kg
84FC56400 d: 420 mm | D: 560 mm | B: 400 mm | Cr: 4 870 kN | C0r: 12 700 kN | Mass: 270 kg
84FC58320 d: 420 mm | D: 580 mm | B: 320 mm | Cr: 4 760 kN | C0r: 11 000 kN | Mass: 249 kg
4CR420A d: 420 mm | D: 600 mm | B: 440 mm | Cr: 7 240 kN | C0r: 17 700 kN | Mass: 420 kg
86FC59420 d: 430 mm | D: 591 mm | B: 420 mm | Cr: 6 550 kN | C0r: 16 800 kN | Mass: 345 kg
86FC59420-2 d: 430 mm | D: 591 mm | B: 420 mm | Cr: 6 520 kN | C0r: 17 400 kN | Mass: 349 kg
86FC59420A-1 d: 430 mm | D: 591 mm | B: 420 mm | Cr: 5 910 kN | C0r: 14 700 kN | Mass: 340 kg
86FC60450 d: 430 mm | D: 600 mm | B: 450 mm | Cr: 7 460 kN | C0r: 19 300 kN | Mass: 405 kg
88FC59270W d: 440 mm | D: 590 mm | B: 270 mm | Cr: 3 620 kN | C0r: 8 460 kN | Mass: 207 kg
4CR440 d: 440 mm | D: 620 mm | B: 450 mm | Cr: 7 900 kN | C0r: 20 000 kN | Mass: 440 kg
88FC62450AW d: 440 mm | D: 620 mm | B: 450 mm | Cr: 7 900 kN | C0r: 20 000 kN | Mass: 440 kg
88FC64420 d: 440 mm | D: 640 mm | B: 420 mm | Cr: 7 820 kN | C0r: 18 400 kN | Mass: 470 kg
88FC72452 d: 440 mm | D: 720 mm | B: 452 mm | Cr: 8 570 kN | C0r: 16 600 kN | Mass: 740 kg
89FC66324 d: 444.5 mm | D: 660.4 mm | B: 323.85 mm | Cr: 6 040 kN | C0r: 12 600 kN | Mass: 400 kg
4CR445 d: 445 mm | D: 635 mm | B: 375 mm | Cr: 6 240 kN | C0r: 14 600 kN | Mass: 385 kg
90FC63450A d: 450 mm | D: 630 mm | B: 450 mm | Cr: 6 820 kN | C0r: 16 600 kN | Mass: 433 kg
92FC60400 d: 460 mm | D: 600 mm | B: 400 mm | Cr: 5 300 kN | C0r: 14 300 kN | Mass: 287 kg
4CR460C d: 460 mm | D: 620 mm | B: 400 mm | Cr: 6 850 kN | C0r: 18 200 kN | Mass: 350 kg
92FC62400BW d: 460 mm | D: 620 mm | B: 400 mm | Cr: 6 510 kN | C0r: 17 000 kN | Mass: 350 kg
92FC62400D d: 460 mm | D: 620 mm | B: 400 mm | Cr: 5 900 kN | C0r: 14 800 kN | Mass: 340 kg
92FC65470W d: 460 mm | D: 650 mm | B: 470 mm | Cr: 8 990 kN | C0r: 22 200 kN | Mass: 494 kg
4CR460 d: 460 mm | D: 660 mm | B: 500 mm | Cr: 9 310 kN | C0r: 23 300 kN | Mass: 590 kg
92FC66500 d: 460 mm | D: 660 mm | B: 500 mm | Cr: 9 540 kN | C0r: 23 400 kN | Mass: 573 kg
4CR460D d: 460 mm | D: 680 mm | B: 400 mm | Cr: 7 910 kN | C0r: 16 600 kN | Mass: 510 kg
96FC65450B d: 480 mm | D: 650 mm | B: 450 mm | Cr: 8 480 kN | C0r: 22 400 kN | Mass: 440 kg
96FC65460 d: 480 mm | D: 650 mm | B: 460 mm | Cr: 7 730 kN | C0r: 20 800 kN | Mass: 443 kg
96FC68460 d: 480 mm | D: 680 mm | B: 460 mm | Cr: 8 620 kN | C0r: 21 300 kN | Mass: 545 kg
4CR480 d: 480 mm | D: 680 mm | B: 500 mm | Cr: 8 620 kN | C0r: 22 000 kN | Mass: 580 kg
4CR480B d: 480 mm | D: 680 mm | B: 500 mm | Cr: 8 620 kN | C0r: 22 000 kN | Mass: 580 kg
96FC68500A d: 480 mm | D: 680 mm | B: 500 mm | Cr: 9 550 kN | C0r: 24 300 kN | Mass: 595 kg
99FC62360 d: 495 mm | D: 615 mm | B: 360 mm | Cr: 4 030 kN | C0r: 12 000 kN | Mass: 235 kg
100FC67450A-3 d: 500 mm | D: 670 mm | B: 450 mm | Cr: 8 460 kN | C0r: 22 500 kN | Mass: 451 kg
100FC68405 d: 500 mm | D: 680 mm | B: 420 mm | Cr: 6 710 kN | C0r: 17 600 kN | Mass: 442 kg
100FC68450 d: 500 mm | D: 680 mm | B: 450 mm | Cr: 8 980 kN | C0r: 23 100 kN | Mass: 495 kg
100FC69510A d: 500 mm | D: 690 mm | B: 510 mm | Cr: 9 350 kN | C0r: 24 600 kN | Mass: 562 kg
100FC71480 d: 500 mm | D: 710 mm | B: 480 mm | Cr: 9 770 kN | C0r: 24 800 kN | Mass: 631 kg
100FC72400 d: 500 mm | D: 720 mm | B: 400 mm | Cr: 8 320 kN | C0r: 18 900 kN | Mass: 549 kg
100FC72530 d: 500 mm | D: 720 mm | B: 530 mm | Cr: 10 800 kN | C0r: 26 500 kN | Mass: 725 kg
100FC72530C d: 500 mm | D: 720 mm | B: 530 mm | Cr: 11 000 kN | C0r: 28 900 kN | Mass: 742 kg
100FC72530W d: 500 mm | D: 720 mm | B: 530 mm | Cr: 10 800 kN | C0r: 26 500 kN | Mass: 725 kg
Cylindrical Roller BearingsKOYO
203 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Four-Row Cylindrical Roller Bearings for Rolling Mill Roll Necks

Brand KOYO·Cylindrical Roller Bearings

Available part numbers (203)

20FC14120, 22FC1790, 22FC18120, 23FC1690, 24FC1787, 4CR120, 25FC17150, 25FC20127, 26FC20104, 26FC20125 + 193 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
20FC14120d: 100 mm | D: 140 mm | B: 120 mm | Cr: 485 kN | C0r: 945 kN | Mass: 5.6 kg
22FC1790d: 110 mm | D: 170 mm | B: 90 mm | Cr: 428 kN | C0r: 692 kN | Mass: 7.4 kg
22FC18120d: 110 mm | D: 180 mm | B: 120 mm | Cr: 636 kN | C0r: 971 kN | Mass: 12 kg
23FC1690d: 115 mm | D: 165 mm | B: 90 mm | Cr: 398 kN | C0r: 751 kN | Mass: 6.5 kg
24FC1787d: 120 mm | D: 165 mm | B: 87 mm | Cr: 374 kN | C0r: 745 kN | Mass: 5.6 kg
4CR120d: 120 mm | D: 180 mm | B: 105 mm | Cr: 487 kN | C0r: 796 kN | Mass: 9.3 kg
25FC17150d: 127 mm | D: 174.65 mm | B: 150.812 mm | Cr: 630 kN | C0r: 1 300 kN | Mass: 10.5 kg
25FC20127d: 127 mm | D: 203.2 mm | B: 127 mm | Cr: 740 kN | C0r: 1 180 kN | Mass: 15.4 kg
26FC20104d: 130 mm | D: 200 mm | B: 104 mm | Cr: 566 kN | C0r: 953 kN | Mass: 11.8 kg
26FC20125d: 130 mm | D: 200 mm | B: 125 mm | Cr: 752 kN | C0r: 1 310 kN | Mass: 14.4 kg
28FC19119Wd: 140 mm | D: 190 mm | B: 119 mm | Cr: 565 kN | C0r: 1 160 kN | Mass: 9.6 kg
28FC21116d: 140 mm | D: 210 mm | B: 116 mm | Cr: 675 kN | C0r: 1 120 kN | Mass: 13.5 kg
29FC21155d: 145 mm | D: 210 mm | B: 155 mm | Cr: 845 kN | C0r: 1 710 kN | Mass: 17.8 kg
313924d: 145 mm | D: 225 mm | B: 156 mm | Cr: 912 kN | C0r: 1 680 kN | Mass: 22.9 kg
30FC20120d: 150 mm | D: 200 mm | B: 120 mm | Cr: 672 kN | C0r: 1 400 kN | Mass: 10.1 kg
30FC21120d: 150 mm | D: 210 mm | B: 120 mm | Cr: 686 kN | C0r: 1 380 kN | Mass: 12.8 kg
30FC21150d: 150 mm | D: 210 mm | B: 150 mm | Cr: 872 kN | C0r: 1 780 kN | Mass: 15.9 kg
30FC22150d: 150 mm | D: 220 mm | B: 150 mm | Cr: 887 kN | C0r: 1 760 kN | Mass: 19.2 kg
30FC22150Ad: 150 mm | D: 220 mm | B: 150 mm | Cr: 889 kN | C0r: 1 760 kN | Mass: 19.5 kg
313891-1d: 150 mm | D: 230 mm | B: 156 mm | Cr: 961 kN | C0r: 1 810 kN | Mass: 23.8 kg
32FC22180d: 160 mm | D: 220 mm | B: 180 mm | Cr: 964 kN | C0r: 2 170 kN | Mass: 20.5 kg
314190d: 160 mm | D: 230 mm | B: 130 mm | Cr: 867 kN | C0r: 1 740 kN | Mass: 17.7 kg
32FC23170d: 160 mm | D: 230 mm | B: 168 mm | Cr: 1 040 kN | C0r: 2 210 kN | Mass: 22.8 kg
32FC23170Ad: 160 mm | D: 230 mm | B: 168 mm | Cr: 1 040 kN | C0r: 2 200 kN | Mass: 23.1 kg
32FC23170Bd: 160 mm | D: 230 mm | B: 168 mm | Cr: 1 110 kN | C0r: 2 210 kN | Mass: 22.6 kg
32FC23180Ad: 160 mm | D: 230 mm | B: 180 mm | Cr: 1 140 kN | C0r: 2 270 kN | Mass: 24.1 kg
32FC24120Wd: 160 mm | D: 240 mm | B: 120 mm | Cr: 663 kN | C0r: 1 140 kN | Mass: 18.5 kg
32FC24170d: 160 mm | D: 240 mm | B: 170 mm | Cr: 1 180 kN | C0r: 2 220 kN | Mass: 26.8 kg
34FC23120d: 170 mm | D: 230 mm | B: 120 mm | Cr: 782 kN | C0r: 1 680 kN | Mass: 14.4 kg
34FC24156Ad: 170 mm | D: 240 mm | B: 156 mm | Cr: 972 kN | C0r: 2 050 kN | Mass: 22.4 kg
34FC24156Bd: 170 mm | D: 240 mm | B: 156 mm | Cr: 1 060 kN | C0r: 2 100 kN | Mass: 21.8 kg
34FC24190d: 170 mm | D: 240 mm | B: 190 mm | Cr: 1 260 kN | C0r: 2 620 kN | Mass: 26.9 kg
34FC25168d: 170 mm | D: 250 mm | B: 168 mm | Cr: 1 170 kN | C0r: 2 230 kN | Mass: 27.6 kg
34FC25170d: 170 mm | D: 250 mm | B: 170 mm | Cr: 1 170 kN | C0r: 2 230 kN | Mass: 27.8 kg
34FC26150d: 170 mm | D: 260 mm | B: 150 mm | Cr: 1 100 kN | C0r: 2 000 kN | Mass: 28.8 kg
36FC26150d: 178 mm | D: 258.75 mm | B: 150 mm | Cr: 1 090 kN | C0r: 2 070 kN | Mass: 25.8 kg
36FC25156Ad: 180 mm | D: 250 mm | B: 156 mm | Cr: 1 020 kN | C0r: 2 130 kN | Mass: 23.3 kg
313812Wd: 180 mm | D: 260 mm | B: 168 mm | Cr: 1 150 kN | C0r: 2 390 kN | Mass: 29.7 kg
36FC26168d: 180 mm | D: 260 mm | B: 168 mm | Cr: 1 230 kN | C0r: 2 420 kN | Mass: 29.3 kg
36FC27180d: 180 mm | D: 265 mm | B: 180 mm | Cr: 1 300 kN | C0r: 2 600 kN | Mass: 33.6 kg
38FC26168-1d: 190 mm | D: 260 mm | B: 168 mm | Cr: 1 140 kN | C0r: 2 600 kN | Mass: 26.5 kg
38FC27170d: 190 mm | D: 270 mm | B: 170 mm | Cr: 1 140 kN | C0r: 2 310 kN | Mass: 30.8 kg
38FC27170Ad: 190 mm | D: 270 mm | B: 170 mm | Cr: 1 140 kN | C0r: 2 310 kN | Mass: 31.0 kg
314199d: 190 mm | D: 270 mm | B: 200 mm | Cr: 1 460 kN | C0r: 3 080 kN | Mass: 36.1 kg
38FC28200d: 190 mm | D: 280 mm | B: 200 mm | Cr: 1 550 kN | C0r: 3 100 kN | Mass: 42 kg
38FC29190d: 190 mm | D: 290 mm | B: 190 mm | Cr: 1 550 kN | C0r: 2 860 kN
39FC30226d: 195 mm | D: 300 mm | B: 226 mm | Cr: 1 960 kN | C0r: 3 690 kN | Mass: 57.9 kg
314553d: 200 mm | D: 270 mm | B: 170 mm | Cr: 1 190 kN | C0r: 2 780 kN | Mass: 28.0 kg
40FC28152BWd: 200 mm | D: 280 mm | B: 152 mm | Cr: 1 100 kN | C0r: 2 150 kN | Mass: 28.0 kg
40FC28170d: 200 mm | D: 280 mm | B: 170 mm | Cr: 1 280 kN | C0r: 2 620 kN | Mass: 31.7 kg
40FC28188d: 200 mm | D: 280 mm | B: 188 mm | Cr: 1 350 kN | C0r: 2 810 kN | Mass: 35.0 kg
40FC28190Ad: 200 mm | D: 280 mm | B: 190 mm | Cr: 1 460 kN | C0r: 3 100 kN | Mass: 36.0 kg
313893-1d: 200 mm | D: 280 mm | B: 200 mm | Cr: 1 450 kN | C0r: 3 090 kN | Mass: 37.7 kg
40FC28200d: 200 mm | D: 280 mm | B: 200 mm | Cr: 1 450 kN | C0r: 3 330 kN | Mass: 38.7 kg
313811d: 200 mm | D: 290 mm | B: 192 mm | Cr: 1 460 kN | C0r: 3 030 kN | Mass: 42.0 kg
40FC31160d: 200 mm | D: 310 mm | B: 160 mm | Cr: 1 260 kN | C0r: 2 240 kN | Mass: 44.6 kg
40FC31206d: 200 mm | D: 310 mm | B: 206 mm | Cr: 1 790 kN | C0r: 3 240 kN | Mass: 56.6 kg
41FC30170d: 206 mm | D: 299.97 mm | B: 170 mm | Cr: 1 470 kN | C0r: 2 780 kN | Mass: 39.2 kg
42FC29192d: 210 mm | D: 290 mm | B: 192 mm | Cr: 1 460 kN | C0r: 3 270 kN | Mass: 38.1 kg
42FC30210d: 210 mm | D: 300 mm | B: 210 mm | Cr: 1 660 kN | C0r: 3 490 kN | Mass: 47.3 kg
44FC30150Wd: 220 mm | D: 300 mm | B: 150 mm | Cr: 1 210 kN | C0r: 2 500 kN | Mass: 30.7 kg
313837-1d: 220 mm | D: 310 mm | B: 192 mm | Cr: 1 520 kN | C0r: 3 270 kN | Mass: 45.5 kg
313837Ad: 220 mm | D: 310 mm | B: 192 mm | Cr: 1 630 kN | C0r: 3 420 kN | Mass: 44.9 kg
44FC31192Wd: 220 mm | D: 310 mm | B: 192 mm | Cr: 1 450 kN | C0r: 2 980 kN | Mass: 43.9 kg
44FC31225Ad: 220 mm | D: 310 mm | B: 225 mm | Cr: 1 880 kN | C0r: 4 160 kN | Mass: 53.5 kg
44FC32210d: 220 mm | D: 320 mm | B: 210 mm | Cr: 1 760 kN | C0r: 3 490 kN | Mass: 55.4 kg
44FC32210-1d: 220 mm | D: 320 mm | B: 210 mm | Cr: 1 810 kN | C0r: 3 740 kN | Mass: 56.7 kg
44FC34180Ad: 220 mm | D: 340 mm | B: 180 mm | Cr: 1 500 kN | C0r: 2 750 kN | Mass: 59.0 kg
313824Ad: 230 mm | D: 330 mm | B: 206 mm | Cr: 1 880 kN | C0r: 3 980 kN | Mass: 57.5 kg
46FC34260d: 230 mm | D: 340 mm | B: 260 mm | Cr: 2 310 kN | C0r: 4 900 kN | Mass: 81.2 kg
47FC34200d: 237 mm | D: 339.67 mm | B: 200 mm | Cr: 1 840 kN | C0r: 3 780 kN | Mass: 58.0 kg
312943/1YDd: 240 mm | D: 330 mm | B: 220 mm | Cr: 1 780 kN | C0r: 4 250 kN | Mass: 55.5 kg
48FC33220d: 240 mm | D: 330 mm | B: 220 mm | Cr: 1 830 kN | C0r: 4 120 kN | Mass: 54.3 kg
48FC33220BWd: 240 mm | D: 330 mm | B: 220 mm | Cr: 1 770 kN | C0r: 4 070 kN | Mass: 55.5 kg
48FC33250Wd: 240 mm | D: 330 mm | B: 250 mm | Cr: 2 160 kN | C0r: 4 910 kN | Mass: 63.7 kg
48FC34200d: 240 mm | D: 340 mm | B: 200 mm | Cr: 1 880 kN | C0r: 3 780 kN | Mass: 56.3 kg
48FC34220d: 240 mm | D: 340 mm | B: 220 mm | Cr: 2 000 kN | C0r: 4 240 kN | Mass: 63.4 kg
50FC35220d: 250 mm | D: 350 mm | B: 220 mm | Cr: 1 930 kN | C0r: 4 200 kN | Mass: 64.6 kg
52FC35260d: 260 mm | D: 355 mm | B: 260 mm | Cr: 2 290 kN | C0r: 5 440 kN | Mass: 75.0 kg
52FC36192Wd: 260 mm | D: 360 mm | B: 192 mm | Cr: 1 750 kN | C0r: 3 740 kN | Mass: 59.8 kg
52FC36200d: 260 mm | D: 360 mm | B: 200 mm | Cr: 1 880 kN | C0r: 4 110 kN | Mass: 62.0 kg
52FC36230CWd: 260 mm | D: 360 mm | B: 230 mm | Cr: 2 140 kN | C0r: 4 900 kN | Mass: 69.7 kg
52FC36230Dd: 260 mm | D: 360 mm | B: 230 mm | Cr: 2 020 kN | C0r: 4 790 kN | Mass: 72.6 kg
52FC36260d: 260 mm | D: 360 mm | B: 260 mm | Cr: 2 300 kN | C0r: 5 320 kN | Mass: 80.0 kg
52FC37268Wd: 260 mm | D: 368 mm | B: 268 mm | Cr: 2 740 kN | C0r: 5 990 kN | Mass: 89.9 kg
313823d: 260 mm | D: 370 mm | B: 220 mm | Cr: 2 000 kN | C0r: 4 330 kN | Mass: 76.0 kg
313823Ad: 260 mm | D: 370 mm | B: 220 mm | Cr: 2 180 kN | C0r: 4 480 kN | Mass: 75.0 kg
52FC37260d: 260 mm | D: 370 mm | B: 260 mm | Cr: 2 640 kN | C0r: 5 740 kN | Mass: 88.5 kg
53FC37234Ad: 265 mm | D: 370 mm | B: 234 mm | Cr: 2 290 kN | C0r: 4 910 kN | Mass: 76.3 kg
53FC37234Bd: 265 mm | D: 370 mm | B: 234 mm | Cr: 2 270 kN | C0r: 5 290 kN | Mass: 78.5 kg
54FC38230d: 270 mm | D: 380 mm | B: 230 mm | Cr: 2 330 kN | C0r: 4 910 kN | Mass: 80.0 kg
56FC38170Wd: 280 mm | D: 380 mm | B: 170 mm | Cr: 1 710 kN | C0r: 3 590 kN | Mass: 55.0 kg
313822d: 280 mm | D: 390 mm | B: 220 mm | Cr: 2 070 kN | C0r: 4 640 kN
313822Ad: 280 mm | D: 390 mm | B: 220 mm | Cr: 2 180 kN | C0r: 4 670 kN | Mass: 79.7 kg
313822Cd: 280 mm | D: 390 mm | B: 220 mm | Cr: 2 520 kN | C0r: 5 350 kN | Mass: 79.7 kg
313822Dd: 280 mm | D: 390 mm | B: 220 mm | Cr: 2 320 kN | C0r: 5 100 kN | Mass: 80.1 kg
56FC39240d: 280 mm | D: 390 mm | B: 240 mm | Cr: 2 460 kN | C0r: 5 620 kN | Mass: 88.1 kg
56FC39275Bd: 280 mm | D: 390 mm | B: 275 mm | Cr: 2 680 kN | C0r: 6 110 kN | Mass: 100 kg
56FC39275Jd: 280 mm | D: 390 mm | B: 275 mm | Cr: 3 040 kN | C0r: 6 850 kN | Mass: 102 kg
56FC41300d: 280 mm | D: 410 mm | B: 300 mm | Cr: 3 730 kN | C0r: 8 400 kN | Mass: 137 kg
58FC39234d: 290 mm | D: 390 mm | B: 234 mm | Cr: 2 300 kN | C0r: 5 500 kN | Mass: 80.0 kg
58FC40180Wd: 290 mm | D: 400 mm | B: 180 mm | Cr: 1 880 kN | C0r: 4 010 kN | Mass: 68.3 kg
58FC41240d: 290 mm | D: 410 mm | B: 240 mm | Cr: 2 610 kN | C0r: 5 540 kN | Mass: 99.0 kg
58FC42300d: 290 mm | D: 420 mm | B: 300 mm | Cr: 3 100 kN | C0r: 6 960 kN | Mass: 138 kg
60FC40300Ad: 300 mm | D: 400 mm | B: 300 mm | Cr: 2 920 kN | C0r: 7 310 kN | Mass: 103 kg
60FC42218d: 300 mm | D: 420 mm | B: 218 mm | Cr: 2 350 kN | C0r: 5 010 kN | Mass: 93.0 kg
60FC42240d: 300 mm | D: 420 mm | B: 240 mm | Cr: 2 660 kN | C0r: 5 750 kN | Mass: 102 kg
4CR300d: 300 mm | D: 420 mm | B: 300 mm | Cr: 3 370 kN | C0r: 7 840 kN | Mass: 125 kg
60FC42300DWd: 300 mm | D: 420 mm | B: 300 mm | Cr: 3 420 kN | C0r: 7 750 kN | Mass: 127 kg
60FC42300L-2d: 300 mm | D: 420 mm | B: 300 mm | Cr: 3 750 kN | C0r: 8 690 kN | Mass: 129 kg
60FC42300Wd: 300 mm | D: 420 mm | B: 300 mm | Cr: 3 250 kN | C0r: 7 270 kN | Mass: 127 kg
62FC42300d: 310 mm | D: 420 mm | B: 300 mm | Cr: 3 090 kN | C0r: 7 370 kN | Mass: 119 kg
62FC43240d: 310 mm | D: 430 mm | B: 240 mm | Cr: 2 640 kN | C0r: 5 770 kN | Mass: 105 kg
62FC44240d: 310 mm | D: 440 mm | B: 240 mm | Cr: 2 820 kN | C0r: 5 730 kN | Mass: 113 kg
64FC44230/240d: 320 mm | D: 440 mm | B: 230 mm | Cr: 2 530 kN | C0r: 5 490 kN | Mass: 103 kg
4CR320d: 320 mm | D: 450 mm | B: 240 mm | Cr: 2 700 kN | C0r: 5 740 kN | Mass: 119 kg
64FC45240d: 320 mm | D: 450 mm | B: 240 mm | Cr: 2 700 kN | C0r: 5 730 kN | Mass: 117 kg
64FC45240CWd: 320 mm | D: 450 mm | B: 240 mm | Cr: 2 770 kN | C0r: 5 930 kN
64FC46340Ad: 320 mm | D: 460 mm | B: 340 mm | Cr: 3 860 kN | C0r: 8 730 kN | Mass: 187 kg
64FC48290d: 320 mm | D: 480 mm | B: 290 mm | Cr: 4 080 kN | C0r: 8 450 kN | Mass: 189 kg
314274Ad: 320 mm | D: 480 mm | B: 350 mm | Cr: 5 010 kN | C0r: 11 000 kN | Mass: 227 kg
66FC44200AWd: 330 mm | D: 440 mm | B: 200 mm | Cr: 2 340 kN | C0r: 5 220 kN | Mass: 83.4 kg
66FC44200Wd: 330 mm | D: 440 mm | B: 200 mm | Cr: 2 050 kN | C0r: 4 670 kN | Mass: 83.0 kg
66FC46340d: 330 mm | D: 460 mm | B: 340 mm | Cr: 3 860 kN | C0r: 9 150 kN | Mass: 172 kg
66FC46340Bd: 330 mm | D: 460 mm | B: 340 mm | Cr: 4 060 kN | C0r: 9 800 kN | Mass: 176 kg
66FC46380Wd: 330 mm | D: 460 mm | B: 380 mm | Cr: 4 380 kN | C0r: 10 800 kN | Mass: 195 kg
68FC45250Wd: 340 mm | D: 445 mm | B: 250 mm | Cr: 2 510 kN | C0r: 6 110 kN | Mass: 100 kg
68FC45250BWd: 340 mm | D: 450 mm | B: 250 mm | Cr: 2 750 kN | C0r: 6 480 kN | Mass: 106 kg
68FC48350-2d: 340 mm | D: 480 mm | B: 350 mm | Cr: 4 580 kN | C0r: 11 100 kN | Mass: 211 kg
68FC48350Dd: 340 mm | D: 480 mm | B: 350 mm | Cr: 4 780 kN | C0r: 11 500 kN | Mass: 201 kg
68FC48350Ld: 340 mm | D: 480 mm | B: 350 mm | Cr: 4 840 kN | C0r: 11 400 kN | Mass: 201 kg
68FC48350Nd: 340 mm | D: 480 mm | B: 385 mm | Cr: 4 780 kN | C0r: 11 500 kN | Mass: 209 kg
68FC49300d: 340 mm | D: 490 mm | B: 300 mm | Cr: 3 500 kN | C0r: 7 690 kN | Mass: 187 kg
68FC49300Ad: 340 mm | D: 490 mm | B: 300 mm | Cr: 3 680 kN | C0r: 7 850 kN | Mass: 182 kg
69FC46254Wd: 343.052 mm | D: 457.098 mm | B: 254 mm | Cr: 2 640 kN | C0r: 6 190 kN | Mass: 112 kg
70FC50460d: 350 mm | D: 500 mm | B: 460 mm | Cr: 6 570 kN | C0r: 16 500 kN | Mass: 296 kg
72FC48290d: 360 mm | D: 480 mm | B: 290 mm | Cr: 3 470 kN | C0r: 8 510 kN | Mass: 145 kg
72FC50250d: 360 mm | D: 500 mm | B: 250 mm | Cr: 3 510 kN | C0r: 7 340 kN | Mass: 145 kg
72FC51370d: 360 mm | D: 510 mm | B: 370 mm | Cr: 4 590 kN | C0r: 11 000 kN | Mass: 241 kg
72FC52380d: 360 mm | D: 520 mm | B: 380 mm | Cr: 5 800 kN | C0r: 13 700 kN | Mass: 270 kg
74FC52380d: 370 mm | D: 520 mm | B: 380 mm | Cr: 5 320 kN | C0r: 13 200 kN | Mass: 257 kg
74FC52400Wd: 370 mm | D: 520 mm | B: 400 mm | Cr: 4 740 kN | C0r: 11 900 kN
74FC54400Ad: 370 mm | D: 540 mm | B: 400 mm | Cr: 5 190 kN | C0r: 11 500 kN | Mass: 311 kg
75FC55400d: 375 mm | D: 545 mm | B: 400 mm | Cr: 6 310 kN | C0r: 14 500 kN | Mass: 315 kg
76FC52280d: 380 mm | D: 520 mm | B: 280 mm | Cr: 3 720 kN | C0r: 8 550 kN | Mass: 173 kg
76FC52290d: 380 mm | D: 520 mm | B: 290 mm | Cr: 3 760 kN | C0r: 8 840 kN | Mass: 181 kg
76FC54300d: 380 mm | D: 540 mm | B: 300 mm | Cr: 4 650 kN | C0r: 10 100 kN | Mass: 222 kg
76FC54340Wd: 380 mm | D: 540 mm | B: 340 mm | Cr: 4 600 kN | C0r: 10 300 kN | Mass: 256 kg
76FC54360d: 380 mm | D: 540 mm | B: 360 mm | Cr: 5 480 kN | C0r: 12 900 kN | Mass: 266 kg
76FC54380d: 380 mm | D: 540 mm | B: 400 mm | Cr: 6 010 kN | C0r: 14 300 kN | Mass: 287 kg
76FC54400BWd: 380 mm | D: 540 mm | B: 400 mm | Cr: 6 040 kN | C0r: 14 600 kN | Mass: 298 kg
76FC54400DWd: 380 mm | D: 540 mm | B: 400 mm | Cr: 6 040 kN | C0r: 14 600 kN | Mass: 298 kg
78FC55400AWd: 390 mm | D: 550 mm | B: 400 mm | Cr: 5 130 kN | C0r: 12 400 kN | Mass: 296 kg
80FC52250Wd: 400 mm | D: 520 mm | B: 250 mm | Cr: 2 920 kN | C0r: 7 100 kN | Mass: 133 kg
80FC56360d: 400 mm | D: 560 mm | B: 360 mm | Cr: 5 570 kN | C0r: 13 400 kN | Mass: 277 kg
4CR400d: 400 mm | D: 560 mm | B: 410 mm | Cr: 6 330 kN | C0r: 15 800 kN | Mass: 310 kg
80FC56410d: 400 mm | D: 560 mm | B: 410 mm | Cr: 6 470 kN | C0r: 16 300 kN | Mass: 315 kg
80FC60380d: 400 mm | D: 600 mm | B: 380 mm | Cr: 6 610 kN | C0r: 14 300 kN | Mass: 388 kg
81FC6130Wd: 406.4 mm | D: 609.6 mm | B: 304.8 mm | Cr: 4 380 kN | C0r: 8 750 kN | Mass: 307 kg
82FC55400d: 410 mm | D: 546 mm | B: 400 mm | Cr: 5 010 kN | C0r: 13 000 kN | Mass: 256 kg
82FC60440d: 410 mm | D: 600 mm | B: 440 mm | Cr: 8 070 kN | C0r: 18 800 kN | Mass: 432 kg
84FC60410Ad: 418.5 mm | D: 600 mm | B: 410 mm | Cr: 6 630 kN | C0r: 15 700 kN | Mass: 385 kg
84FC59350d: 419 mm | D: 592 mm | B: 350 mm | Cr: 5 690 kN | C0r: 12 900 kN | Mass: 304 kg
84FC56280d: 420 mm | D: 560 mm | B: 280 mm | Cr: 3 930 kN | C0r: 9 410 kN | Mass: 189 kg
84FC56400d: 420 mm | D: 560 mm | B: 400 mm | Cr: 4 870 kN | C0r: 12 700 kN | Mass: 270 kg
84FC58320d: 420 mm | D: 580 mm | B: 320 mm | Cr: 4 760 kN | C0r: 11 000 kN | Mass: 249 kg
4CR420Ad: 420 mm | D: 600 mm | B: 440 mm | Cr: 7 240 kN | C0r: 17 700 kN | Mass: 420 kg
86FC59420d: 430 mm | D: 591 mm | B: 420 mm | Cr: 6 550 kN | C0r: 16 800 kN | Mass: 345 kg
86FC59420-2d: 430 mm | D: 591 mm | B: 420 mm | Cr: 6 520 kN | C0r: 17 400 kN | Mass: 349 kg
86FC59420A-1d: 430 mm | D: 591 mm | B: 420 mm | Cr: 5 910 kN | C0r: 14 700 kN | Mass: 340 kg
86FC60450d: 430 mm | D: 600 mm | B: 450 mm | Cr: 7 460 kN | C0r: 19 300 kN | Mass: 405 kg
88FC59270Wd: 440 mm | D: 590 mm | B: 270 mm | Cr: 3 620 kN | C0r: 8 460 kN | Mass: 207 kg
4CR440d: 440 mm | D: 620 mm | B: 450 mm | Cr: 7 900 kN | C0r: 20 000 kN | Mass: 440 kg
88FC62450AWd: 440 mm | D: 620 mm | B: 450 mm | Cr: 7 900 kN | C0r: 20 000 kN | Mass: 440 kg
88FC64420d: 440 mm | D: 640 mm | B: 420 mm | Cr: 7 820 kN | C0r: 18 400 kN | Mass: 470 kg
88FC72452d: 440 mm | D: 720 mm | B: 452 mm | Cr: 8 570 kN | C0r: 16 600 kN | Mass: 740 kg
89FC66324d: 444.5 mm | D: 660.4 mm | B: 323.85 mm | Cr: 6 040 kN | C0r: 12 600 kN | Mass: 400 kg
4CR445d: 445 mm | D: 635 mm | B: 375 mm | Cr: 6 240 kN | C0r: 14 600 kN | Mass: 385 kg
90FC63450Ad: 450 mm | D: 630 mm | B: 450 mm | Cr: 6 820 kN | C0r: 16 600 kN | Mass: 433 kg
92FC60400d: 460 mm | D: 600 mm | B: 400 mm | Cr: 5 300 kN | C0r: 14 300 kN | Mass: 287 kg
4CR460Cd: 460 mm | D: 620 mm | B: 400 mm | Cr: 6 850 kN | C0r: 18 200 kN | Mass: 350 kg
92FC62400BWd: 460 mm | D: 620 mm | B: 400 mm | Cr: 6 510 kN | C0r: 17 000 kN | Mass: 350 kg
92FC62400Dd: 460 mm | D: 620 mm | B: 400 mm | Cr: 5 900 kN | C0r: 14 800 kN | Mass: 340 kg
92FC65470Wd: 460 mm | D: 650 mm | B: 470 mm | Cr: 8 990 kN | C0r: 22 200 kN | Mass: 494 kg
4CR460d: 460 mm | D: 660 mm | B: 500 mm | Cr: 9 310 kN | C0r: 23 300 kN | Mass: 590 kg
92FC66500d: 460 mm | D: 660 mm | B: 500 mm | Cr: 9 540 kN | C0r: 23 400 kN | Mass: 573 kg
4CR460Dd: 460 mm | D: 680 mm | B: 400 mm | Cr: 7 910 kN | C0r: 16 600 kN | Mass: 510 kg
96FC65450Bd: 480 mm | D: 650 mm | B: 450 mm | Cr: 8 480 kN | C0r: 22 400 kN | Mass: 440 kg
96FC65460d: 480 mm | D: 650 mm | B: 460 mm | Cr: 7 730 kN | C0r: 20 800 kN | Mass: 443 kg
96FC68460d: 480 mm | D: 680 mm | B: 460 mm | Cr: 8 620 kN | C0r: 21 300 kN | Mass: 545 kg
4CR480d: 480 mm | D: 680 mm | B: 500 mm | Cr: 8 620 kN | C0r: 22 000 kN | Mass: 580 kg
4CR480Bd: 480 mm | D: 680 mm | B: 500 mm | Cr: 8 620 kN | C0r: 22 000 kN | Mass: 580 kg
96FC68500Ad: 480 mm | D: 680 mm | B: 500 mm | Cr: 9 550 kN | C0r: 24 300 kN | Mass: 595 kg
99FC62360d: 495 mm | D: 615 mm | B: 360 mm | Cr: 4 030 kN | C0r: 12 000 kN | Mass: 235 kg
100FC67450A-3d: 500 mm | D: 670 mm | B: 450 mm | Cr: 8 460 kN | C0r: 22 500 kN | Mass: 451 kg
100FC68405d: 500 mm | D: 680 mm | B: 420 mm | Cr: 6 710 kN | C0r: 17 600 kN | Mass: 442 kg
100FC68450d: 500 mm | D: 680 mm | B: 450 mm | Cr: 8 980 kN | C0r: 23 100 kN | Mass: 495 kg
100FC69510Ad: 500 mm | D: 690 mm | B: 510 mm | Cr: 9 350 kN | C0r: 24 600 kN | Mass: 562 kg
100FC71480d: 500 mm | D: 710 mm | B: 480 mm | Cr: 9 770 kN | C0r: 24 800 kN | Mass: 631 kg
100FC72400d: 500 mm | D: 720 mm | B: 400 mm | Cr: 8 320 kN | C0r: 18 900 kN | Mass: 549 kg
100FC72530d: 500 mm | D: 720 mm | B: 530 mm | Cr: 10 800 kN | C0r: 26 500 kN | Mass: 725 kg
100FC72530Cd: 500 mm | D: 720 mm | B: 530 mm | Cr: 11 000 kN | C0r: 28 900 kN | Mass: 742 kg
100FC72530Wd: 500 mm | D: 720 mm | B: 530 mm | Cr: 10 800 kN | C0r: 26 500 kN | Mass: 725 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
