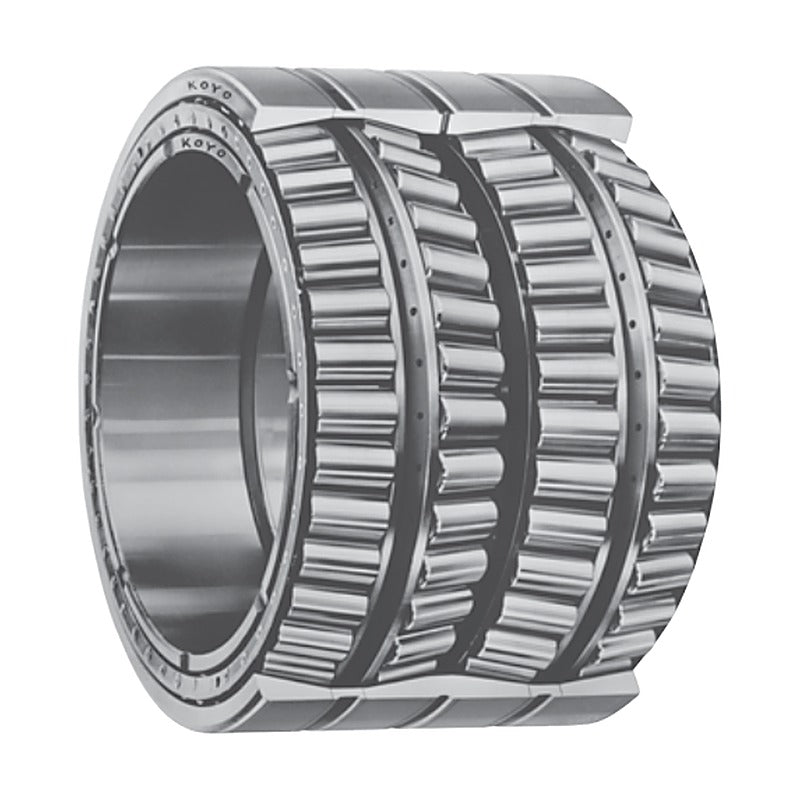

KOYO Four-Row Tapered Roller Bearings for Rolling Mill Roll Necks

KOYO Four-Row Tapered Roller Bearings for Rolling Mill Roll Necks

Four-row tapered roller bearings for rolling mill roll necks (37, 47, 4TR series and inch types), bore 65 to 500 mm, carrying heavy radial and axial loads.

Key features

  • Four rows of tapered rollers
  • Heavy combined radial and axial capacity
  • Metric and inch series
  • Supplied as matched assemblies with spacers
  • Several design variants

Specifications

Bearing type Four-row tapered roller bearing
Series 37, 47T, 4TR, inch
Application Rolling mill roll necks
Source KOYO Special Bearings catalogue, p. C104-C127
47T131010 d: 65 mm | D: 100 mm | B: 98 mm | Cr: 309 kN | C0r: 550 kN | Mass: 2.82 kg
47T1611 d: 80 mm | D: 115 mm | B: 88 mm | Cr: 265 kN | C0r: 543 kN | Mass: 2.99 kg
47T191310 d: 95 mm | D: 130 mm | B: 100 mm | Cr: 347 kN | C0r: 729 kN | Mass: 3.83 kg
37220 d: 100 mm | D: 140 mm | B: 104 mm | Cr: 338 kN | C0r: 661 kN | Mass: 4.6 kg
37220A d: 100 mm | D: 140 mm | B: 104 mm | Cr: 407 kN | C0r: 852 kN | Mass: 4.8 kg
47T2017 d: 100 mm | D: 170 mm | B: 155 mm | Cr: 787 kN | C0r: 1 470 kN | Mass: 14.7 kg
47T211615 d: 105 mm | D: 160 mm | B: 150 mm | Cr: 747 kN | C0r: 1 420 kN | Mass: 10.6 kg
37222 d: 110 mm | D: 155 mm | B: 114 mm | Cr: 475 kN | C0r: 955 kN | Mass: 6.45 kg
47T221612 d: 110 mm | D: 160 mm | B: 115 mm | Cr: 548 kN | C0r: 1 030 kN | Mass: 7.63 kg
47T221815 d: 110 mm | D: 180 mm | B: 154 mm | Cr: 882 kN | C0r: 1 530 kN | Mass: 15.4 kg
47T221817 d: 110 mm | D: 180 mm | B: 170 mm | Cr: 989 kN | C0r: 1 770 kN | Mass: 17 kg
47T231612A d: 115 mm | D: 155 mm | B: 115 mm | Cr: 437 kN | C0r: 1 020 kN | Mass: 6.12 kg
47T231612 d: 115 mm | D: 160 mm | B: 120 mm | Cr: 560 kN | C0r: 1 160 kN | Mass: 7.2 kg
37224 d: 120 mm | D: 170 mm | B: 124 mm | Cr: 472 kN | C0r: 943 kN | Mass: 8.56 kg
47T241713 d: 120 mm | D: 170 mm | B: 130 mm | Cr: 591 kN | C0r: 1 290 kN | Mass: 9.38 kg
47324 d: 120 mm | D: 200 mm | B: 132 mm | Cr: 706 kN | C0r: 1 200 kN | Mass: 16.5 kg
47T242117 d: 120 mm | D: 210 mm | B: 174 mm | Cr: 1 110 kN | C0r: 1 770 kN | Mass: 24.5 kg
L624549D/514/514D d: 120.650 mm | D: 161.925 mm | B: 106.365 mm | Cr: 322 kN | C0r: 771 kN | Mass: 6.24 kg
LM124449D/410/410D d: 120.650 mm | D: 166.688 mm | B: 152.414 mm | Cr: 637 kN | C0r: 1 460 kN | Mass: 9.84 kg
M224749D/710/710D d: 120.650 mm | D: 174.625 mm | B: 139.703 mm | Cr: 712 kN | C0r: 1 450 kN | Mass: 11.1 kg
48290D/20/20D d: 127.000 mm | D: 182.563 mm | B: 158.750 mm | Cr: 778 kN | C0r: 1 720 kN | Mass: 13.6 kg
37226 d: 130 mm | D: 184 mm | B: 134 mm | Cr: 645 kN | C0r: 1 330 kN | Mass: 11 kg
67390D/22/22D d: 133.350 mm | D: 196.850 mm | B: 193.675 mm | Cr: 1 070 kN | C0r: 2 240 kN | Mass: 19.8 kg
47T271816 d: 135 mm | D: 180 mm | B: 160 mm | Cr: 559 kN | C0r: 1 290 kN | Mass: 10.7 kg
47T272016 d: 135 mm | D: 195 mm | B: 160 mm | Cr: 938 kN | C0r: 1 930 kN | Mass: 15.4 kg
47T271916 d: 136.525 mm | D: 190.500 mm | B: 161.925 mm | Cr: 809 kN | C0r: 1 890 kN | Mass: 14.3 kg
48393D/20/20D d: 136.525 mm | D: 190.500 mm | B: 161.925 mm | Cr: 809 kN | C0r: 1 890 kN | Mass: 14.3 kg
48680D/20/20D d: 139.700 mm | D: 200.025 mm | B: 160.340 mm | Cr: 844 kN | C0r: 1 960 kN | Mass: 16.6 kg
37228 d: 140 mm | D: 198 mm | B: 144 mm | Cr: 770 kN | C0r: 1 650 kN | Mass: 13.6 kg
47228 d: 140 mm | D: 210 mm | B: 114 mm | Cr: 623 kN | C0r: 1 130 kN | Mass: 13.7 kg
47328 d: 140 mm | D: 225 mm | B: 145 mm | Cr: 973 kN | C0r: 1 610 kN | Mass: 21.2 kg
47T292013 d: 145 mm | D: 195 mm | B: 130 mm | Cr: 641 kN | C0r: 1 550 kN | Mass: 11.1 kg
47T302119 d: 150 mm | D: 210 mm | B: 190 mm | Cr: 993 kN | C0r: 2 270 kN | Mass: 20.2 kg
37230 d: 150 mm | D: 212 mm | B: 155 mm | Cr: 774 kN | C0r: 1 640 kN | Mass: 16.7 kg
M231649D/610/610D d: 152.400 mm | D: 222.250 mm | B: 174.625 mm | Cr: 1 080 kN | C0r: 2 390 kN | Mass: 22.8 kg
37232 d: 160 mm | D: 226 mm | B: 165 mm | Cr: 873 kN | C0r: 1 870 kN | Mass: 20.1 kg
47T322515 d: 160 mm | D: 250 mm | B: 145 mm | Cr: 1 090 kN | C0r: 1 870 kN | Mass: 25.4 kg
47T322717 d: 160 mm | D: 265 mm | B: 173 mm | Cr: 1 320 kN | C0r: 2 400 kN | Mass: 37.6 kg
46791D/20/21D d: 165.100 mm | D: 225.425 mm | B: 168.275 mm | Cr: 868 kN | C0r: 2 140 kN | Mass: 19.7 kg
67782D/20/21D d: 168.275 mm | D: 247.650 mm | B: 192.088 mm | Cr: 1 190 kN | C0r: 2 800 kN | Mass: 31.7 kg
47T342318 d: 170 mm | D: 230 mm | B: 175 mm | Cr: 1 030 kN | C0r: 2 370 kN | Mass: 19.9 kg
37234A d: 170 mm | D: 240 mm | B: 175 mm | Cr: 1 020 kN | C0r: 2 310 kN | Mass: 24.2 kg
47T342418A d: 170 mm | D: 240 mm | B: 175 mm | Cr: 1 120 kN | C0r: 2 340 kN | Mass: 24.7 kg
47T342616 d: 170 mm | D: 260 mm | B: 160 mm | Cr: 1 110 kN | C0r: 1 900 kN | Mass: 28.5 kg
47334/181 d: 170 mm | D: 280 mm | B: 181 mm | Cr: 1 330 kN | C0r: 2 420 kN | Mass: 44 kg
47334 d: 170 mm | D: 280 mm | B: 185 mm | Cr: 1 330 kN | C0r: 2 420 kN | Mass: 44.8 kg
67791D/20/21D d: 177.800 mm | D: 247.650 mm | B: 192.088 mm | Cr: 1 190 kN | C0r: 2 800 kN | Mass: 28.4 kg
82681D/20/20D d: 177.800 mm | D: 279.400 mm | B: 234.948 mm | Cr: 1 660 kN | C0r: 3 290 kN | Mass: 52.5 kg
EE91700D/112/113XD d: 177.800 mm | D: 285.750 mm | B: 222.245 mm | Cr: 1 520 kN | C0r: 2 860 kN | Mass: 53.7 kg
47T362519 d: 180 mm | D: 250 mm | B: 185 mm | Cr: 1 140 kN | C0r: 2 550 kN | Mass: 26.9 kg
37236 d: 180 mm | D: 254 mm | B: 185 mm | Cr: 1 140 kN | C0r: 2 550 kN | Mass: 29.1 kg
47T362616 d: 180 mm | D: 260 mm | B: 160 mm | Cr: 1 090 kN | C0r: 2 090 kN | Mass: 26.4 kg
47T362620 d: 180 mm | D: 260 mm | B: 200 mm | Cr: 1 390 kN | C0r: 2 950 kN | Mass: 33.6 kg
47T362818A d: 180 mm | D: 280 mm | B: 181 mm | Cr: 1 510 kN | C0r: 2 830 kN | Mass: 40.8 kg
47336 d: 180 mm | D: 300 mm | B: 202 mm | Cr: 1 580 kN | C0r: 2 750 kN | Mass: 54.9 kg
47T363028 d: 180 mm | D: 300 mm | B: 280 mm | Cr: 2 400 kN | C0r: 4 430 kN | Mass: 78.4 kg
47T372721B d: 187 mm | D: 270 mm | B: 210 mm | Cr: 1 660 kN | C0r: 3 570 kN | Mass: 39.1 kg
M238849D/810/810D d: 187.325 mm | D: 269.875 mm | B: 211.138 mm | Cr: 1 410 kN | C0r: 3 220 kN | Mass: 39.5 kg
37238 d: 190 mm | D: 268 mm | B: 196 mm | Cr: 1 210 kN | C0r: 2 760 kN | Mass: 33.4 kg
47T382716 d: 190 mm | D: 270 mm | B: 160 mm | Cr: 1 170 kN | C0r: 2 370 kN | Mass: 28.3 kg
4TR3827 d: 190.000 mm | D: 270.000 mm | B: 190.000 mm | Cr: 1 160 kN | C0r: 2 810 kN | Mass: 34.7 kg
67885D/67820/67820D d: 190.500 mm | D: 266.700 mm | B: 188.913 mm | Cr: 1 160 kN | C0r: 2 810 kN | Mass: 32.4 kg
M240648D/611/611D d: 198.438 mm | D: 284.163 mm | B: 225.425 mm | Cr: 1 740 kN | C0r: 3 780 kN | Mass: 44.7 kg
47T402821 d: 200 mm | D: 280 mm | B: 206 mm | Cr: 1 670 kN | C0r: 3 830 kN | Mass: 39.7 kg
37240 d: 200 mm | D: 282 mm | B: 206 mm | Cr: 1 490 kN | C0r: 3 380 kN | Mass: 39.6 kg
47T403423 d: 200 mm | D: 340 mm | B: 234 mm | Cr: 2 340 kN | C0r: 4 150 kN | Mass: 86 kg
EE132082D/125/126D d: 203.200 mm | D: 317.500 mm | B: 209.550 mm | Cr: 1 510 kN | C0r: 2 900 kN | Mass: 61 kg
93800D/125/127D d: 203.200 mm | D: 317.500 mm | B: 266.700 mm | Cr: 2 070 kN | C0r: 4 540 kN | Mass: 78.8 kg
47T413221 d: 205 mm | D: 320 mm | B: 205 mm | Cr: 1 740 kN | C0r: 3 030 kN | Mass: 58.9 kg
67985D/20/20D d: 206.375 mm | D: 282.575 mm | B: 184.150 mm | Cr: 1 200 kN | C0r: 2 830 kN | Mass: 33.9 kg
67986D/20/21D d: 206.375 mm | D: 282.575 mm | B: 190.500 mm | Cr: 1 200 kN | C0r: 2 830 kN | Mass: 34.8 kg
47T412821A d: 206.375 mm | D: 282.575 mm | B: 210.000 mm | Cr: 1 380 kN | C0r: 3 010 kN | Mass: 36.2 kg
47T433123 d: 215.090 mm | D: 311.150 mm | B: 228.600 mm | Cr: 1 750 kN | C0r: 4 040 kN | Mass: 57.5 kg
LM742749D/714/714D d: 215.900 mm | D: 288.925 mm | B: 177.800 mm | Cr: 1 220 kN | C0r: 3 120 kN | Mass: 32.8 kg
47T433427 d: 215.900 mm | D: 336.550 mm | B: 266.700 mm | Cr: 2 430 kN | C0r: 4 760 kN | Mass: 85.1 kg
47T433327 d: 216.103 mm | D: 330.200 mm | B: 269.875 mm | Cr: 2 500 kN | C0r: 5 120 kN | Mass: 81.6 kg
47T443023 d: 220 mm | D: 300 mm | B: 230 mm | Cr: 1 750 kN | C0r: 4 040 kN | Mass: 45.1 kg
37244 d: 220 mm | D: 310 mm | B: 226 mm | Cr: 1 690 kN | C0r: 3 880 kN | Mass: 52 kg
47T443220 d: 220 mm | D: 320 mm | B: 201 mm | Cr: 1 660 kN | C0r: 3 760 kN | Mass: 52.4 kg
47T443225 d: 220 mm | D: 320 mm | B: 250 mm | Cr: 1 930 kN | C0r: 4 230 kN | Mass: 64.7 kg
47T443326A d: 220 mm | D: 330 mm | B: 260 mm | Cr: 2 350 kN | C0r: 5 070 kN | Mass: 78.4 kg
47T443326B d: 220 mm | D: 330 mm | B: 260 mm | Cr: 2 330 kN | C0r: 4 860 kN | Mass: 77.5 kg
47244 d: 220 mm | D: 340 mm | B: 190 mm | Cr: 1 490 kN | C0r: 2 910 kN | Mass: 62.2 kg
47T443428-1 d: 220 mm | D: 340 mm | B: 280 mm | Cr: 2 720 kN | C0r: 5 580 kN | Mass: 95.1 kg
47T443431 d: 220 mm | D: 340 mm | B: 305 mm | Cr: 2 910 kN | C0r: 5 940 kN | Mass: 99.6 kg
47T443129A d: 220.662 mm | D: 314.325 mm | B: 290.000 mm | Cr: 2 300 kN | C0r: 5 050 kN | Mass: 70 kg
M244249D/210/210D d: 220.663 mm | D: 314.325 mm | B: 239.713 mm | Cr: 2 100 kN | C0r: 4 890 kN | Mass: 59 kg
4TR225A d: 225 mm | D: 320 mm | B: 230 mm | Cr: 1 670 kN | C0r: 3 730 kN | Mass: 57 kg
LM245149D/110/110D d: 228.600 mm | D: 311.150 mm | B: 200.025 mm | Cr: 1 660 kN | C0r: 3 760 kN | Mass: 41.8 kg
47T463119 d: 230 mm | D: 315 mm | B: 190 mm | Cr: 1 510 kN | C0r: 3 470 kN | Mass: 43 kg
8576D/20/20D d: 234.950 mm | D: 327.025 mm | B: 196.850 mm | Cr: 1 600 kN | C0r: 3 720 kN | Mass: 50.1 kg
47T473324 d: 235 mm | D: 325 mm | B: 240 mm | Cr: 2 200 kN | C0r: 5 310 kN | Mass: 60.5 kg
47T483225B d: 240 mm | D: 320 mm | B: 250 mm | Cr: 1 880 kN | C0r: 4 760 kN | Mass: 54.2 kg
37248 d: 240 mm | D: 338 mm | B: 248 mm | Cr: 2 360 kN | C0r: 5 360 kN | Mass: 68.4 kg
37248/DP1 d: 240 mm | D: 338 mm | B: 248 mm | Cr: 2 360 kN | C0r: 5 360 kN | Mass: 68.4 kg
47248 d: 240 mm | D: 360 mm | B: 194 mm | Cr: 1 830 kN | C0r: 3 580 kN | Mass: 66.5 kg
47T483621 d: 240 mm | D: 360 mm | B: 214 mm | Cr: 2 170 kN | C0r: 4 340 kN | Mass: 75.4 kg
47T483631A d: 240 mm | D: 360 mm | B: 308.5 mm | Cr: 3 320 kN | C0r: 7 400 kN | Mass: 112 kg
47T483729 d: 240 mm | D: 365 mm | B: 290 mm | Cr: 2 870 kN | C0r: 5 930 kN | Mass: 108 kg
47T484127A d: 240 mm | D: 410 mm | B: 270 mm | Cr: 3 220 kN | C0r: 5 520 kN | Mass: 144 kg
47T483523A d: 241.478 mm | D: 349.148 mm | B: 228.600 mm | Cr: 2 190 kN | C0r: 4 920 kN | Mass: 72.9 kg
EE127097D/135/136D d: 241.478 mm | D: 349.148 mm | B: 228.600 mm | Cr: 1 900 kN | C0r: 4 100 kN | Mass: 70.4 kg
47T493319 d: 244.475 mm | D: 327.025 mm | B: 193.675 mm | Cr: 1 470 kN | C0r: 3 500 kN | Mass: 44.4 kg
LM247748D/710/710D d: 244.475 mm | D: 327.025 mm | B: 193.675 mm | Cr: 1 570 kN | C0r: 3 780 kN | Mass: 44.4 kg
EE126096D/150/151D d: 244.475 mm | D: 381.000 mm | B: 304.800 mm | Cr: 2 700 kN | C0r: 5 870 kN | Mass: 129 kg
EE220975D/1575/1576D d: 247.650 mm | D: 400.050 mm | B: 253.995 mm | Cr: 2 600 kN | C0r: 5 140 kN | Mass: 123 kg
47T503524 d: 250 mm | D: 350 mm | B: 240 mm | Cr: 2 180 kN | C0r: 4 970 kN | Mass: 70 kg
47T503627 d: 250 mm | D: 365 mm | B: 270 mm | Cr: 2 650 kN | C0r: 6 340 kN | Mass: 96.7 kg
47T513615 d: 254.000 mm | D: 358.775 mm | B: 147.000 mm | Cr: 1 320 kN | C0r: 2 910 kN | Mass: 46.9 kg
47T513627A d: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 650 kN | C0r: 6 340 kN | Mass: 85.8 kg
47T513627B d: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 630 kN | C0r: 6 030 kN | Mass: 85.5 kg
47T513627C d: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 630 kN | C0r: 6 030 kN | Mass: 86.1 kg
M249748D/710/710D d: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 650 kN | C0r: 6 340 kN | Mass: 86 kg
47T523627A d: 260 mm | D: 360 mm | B: 272 mm | Cr: 2 910 kN | C0r: 7 020 kN | Mass: 83.6 kg
37252 d: 260 mm | D: 368 mm | B: 268 mm | Cr: 2 510 kN | C0r: 6 020 kN | Mass: 88.4 kg
47T524022 d: 260 mm | D: 400 mm | B: 220 mm | Cr: 2 390 kN | C0r: 4 520 kN | Mass: 98.5 kg
47T524026 d: 260 mm | D: 400 mm | B: 255 mm | Cr: 2 620 kN | C0r: 5 400 kN | Mass: 113 kg
47T524032 d: 260 mm | D: 400 mm | B: 320 mm | Cr: 3 270 kN | C0r: 7 070 kN | Mass: 145 kg
47352 d: 260 mm | D: 440 mm | B: 300 mm | Cr: 3 470 kN | C0r: 6 880 kN | Mass: 188 kg
HM252348D/310/310D d: 260.350 mm | D: 422.275 mm | B: 317.500 mm | Cr: 3 470 kN | C0r: 6 720 kN | Mass: 167 kg
47T533423 d: 266.700 mm | D: 335.600 mm | B: 228.600 mm | Cr: 1 850 kN | C0r: 5 260 kN | Mass: 46.4 kg
47T533623B d: 266.700 mm | D: 355.600 mm | B: 228.600 mm | Cr: 2 230 kN | C0r: 5 690 kN | Mass: 62.7 kg
76589D/20/20D d: 266.700 mm | D: 355.600 mm | B: 228.600 mm | Cr: 1 980 kN | C0r: 4 830 kN | Mass: 59.8 kg
47T533927-1 d: 266.700 mm | D: 393.700 mm | B: 269.878 mm | Cr: 2 990 kN | C0r: 6 460 kN | Mass: 112 kg
M252349D/310/310D d: 269.875 mm | D: 381.000 mm | B: 282.575 mm | Cr: 2 930 kN | C0r: 6 690 kN | Mass: 98.4 kg
47T543626 d: 270 mm | D: 364 mm | B: 260 mm | Cr: 2 370 kN | C0r: 5 720 kN | Mass: 72.8 kg
47254 d: 270 mm | D: 410 mm | B: 222 mm | Cr: 2 250 kN | C0r: 4 380 kN | Mass: 100 kg
47T553927 d: 276.225 mm | D: 393.700 mm | B: 269.878 mm | Cr: 2 730 kN | C0r: 5 830 kN | Mass: 101 kg
47T563927A d: 279.400 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 660 kN | C0r: 5 990 kN | Mass: 101 kg
47T563927B d: 279.400 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 660 kN | C0r: 5 990 kN | Mass: 101 kg
47T564131 d: 279.400 mm | D: 410.000 mm | B: 310.000 mm | Cr: 3 120 kN | C0r: 7 290 kN | Mass: 140 kg
LM654644D/610/610D d: 279.578 mm | D: 380.898 mm | B: 244.475 mm | Cr: 2 280 kN | C0r: 5 650 kN | Mass: 80.4 kg
47T563829 d: 280 mm | D: 380 mm | B: 290 mm | Cr: 2 810 kN | C0r: 6 940 kN | Mass: 91.8 kg
47T563829A d: 280 mm | D: 380 mm | B: 290 mm | Cr: 2 810 kN | C0r: 6 940 kN | Mass: 92.1 kg
37256X d: 280 mm | D: 395 mm | B: 288 mm | Cr: 2 880 kN | C0r: 6 900 kN | Mass: 110 kg
47T564029A d: 280 mm | D: 395 mm | B: 288 mm | Cr: 2 880 kN | C0r: 6 900 kN | Mass: 110 kg
47256 d: 280 mm | D: 420 mm | B: 225 mm | Cr: 2 390 kN | C0r: 4 950 kN | Mass: 104 kg
47T564632 d: 280 mm | D: 460 mm | B: 324 mm | Cr: 4 300 kN | C0r: 8 230 kN | Mass: 214 kg
47T563824 d: 280.268 mm | D: 379.887 mm | B: 244.475 mm | Cr: 2 280 kN | C0r: 5 650 kN | Mass: 80 kg
LM654648D/610/610D d: 285.750 mm | D: 380.898 mm | B: 244.475 mm | Cr: 2 280 kN | C0r: 5 650 kN | Mass: 75.6 kg
M255449D/410/410D d: 288.925 mm | D: 406.400 mm | B: 298.450 mm | Cr: 3 450 kN | C0r: 8 840 kN | Mass: 127 kg
EE330116D/166/167D d: 292.100 mm | D: 422.275 mm | B: 269.875 mm | Cr: 3 170 kN | C0r: 6 830 kN | Mass: 124 kg
47T604231 d: 300 mm | D: 420 mm | B: 310 mm | Cr: 3 390 kN | C0r: 8 050 kN | Mass: 132 kg
37260 d: 300 mm | D: 424 mm | B: 310 mm | Cr: 3 000 kN | C0r: 6 570 kN | Mass: 134 kg
47T604330 d: 300 mm | D: 430 mm | B: 300 mm | Cr: 3 320 kN | C0r: 7 630 kN | Mass: 141 kg
47T604331 d: 300 mm | D: 430 mm | B: 310 mm | Cr: 3 520 kN | C0r: 8 420 kN | Mass: 146 kg
47T604625 d: 300 mm | D: 460 mm | B: 248 mm | Cr: 3 060 kN | C0r: 6 300 kN | Mass: 149 kg
47T604636 d: 300 mm | D: 460 mm | B: 360 mm | Cr: 4 300 kN | C0r: 9 550 kN | Mass: 220 kg
47T604727A d: 300 mm | D: 470 mm | B: 270 mm | Cr: 3 500 kN | C0r: 6 440 kN | Mass: 165 kg
47T604729B d: 300 mm | D: 470 mm | B: 292 mm | Cr: 3 980 kN | C0r: 7 870 kN | Mass: 193 kg
47T604729C d: 300 mm | D: 470 mm | B: 292 mm | Cr: 4 120 kN | C0r: 8 210 kN | Mass: 198 kg
47T605035 d: 300 mm | D: 500 mm | B: 350 mm | Cr: 5 010 kN | C0r: 9 290 kN | Mass: 270 kg
HM256849D/810/810D d: 300.038 mm | D: 422.275 mm | B: 311.150 mm | Cr: 3 390 kN | C0r: 8 050 kN | Mass: 136 kg
47T614428C d: 304.648 mm | D: 438.048 mm | B: 279.400 mm | Cr: 3 230 kN | C0r: 6 980 kN | Mass: 133 kg
M757448D/410/410D d: 304.648 mm | D: 438.048 mm | B: 279.400 mm | Cr: 3 230 kN | C0r: 6 980 kN | Mass: 132 kg
M257149D/110/110D d: 304.800 mm | D: 419.100 mm | B: 269.875 mm | Cr: 2 840 kN | C0r: 6 950 kN | Mass: 110 kg
47T614838A d: 304.800 mm | D: 482.600 mm | B: 377.825 mm | Cr: 4 820 kN | C0r: 9 800 kN | Mass: 250 kg
EE724121D/195/196D d: 304.800 mm | D: 495.300 mm | B: 349.250 mm | Cr: 4 370 kN | C0r: 9 370 kN | Mass: 267 kg
M257248D/210/210D d: 304.902 mm | D: 412.648 mm | B: 266.7 mm | Cr: 2 990 kN | C0r: 7 280 kN | Mass: 101 kg
47T624331A d: 310 mm | D: 430 mm | B: 310 mm | Cr: 3 520 kN | C0r: 8 420 kN | Mass: 135 kg
47T6246A d: 310 mm | D: 460 mm | B: 325 mm | Cr: 4 200 kN | C0r: 9 500 kN | Mass: 188 kg
LM258649D/610/610D d: 317.500 mm | D: 422.275 mm | B: 269.875 mm | Cr: 2 930 kN | C0r: 7 450 kN | Mass: 104 kg
47T644533J d: 317.500 mm | D: 447.675 mm | B: 327.025 mm | Cr: 4 120 kN | C0r: 9 820 kN | Mass: 161 kg
47T644533L d: 317.500 mm | D: 447.675 mm | B: 327.025 mm | Cr: 4 280 kN | C0r: 10 100 kN | Mass: 161 kg
47T644434 d: 320 mm | D: 440 mm | B: 335 mm | Cr: 3 590 kN | C0r: 8 750 kN | Mass: 149 kg
47T644633 d: 320 mm | D: 460 mm | B: 325 mm | Cr: 4 030 kN | C0r: 9 420 kN | Mass: 175 kg
37264 d: 320 mm | D: 460 mm | B: 338 mm | Cr: 3 500 kN | C0r: 8 590 kN | Mass: 183 kg
47T644825 d: 320 mm | D: 480 mm | B: 254 mm | Cr: 3 400 kN | C0r: 6 940 kN | Mass: 161 kg
47T644826 d: 320 mm | D: 480 mm | B: 260 mm | Cr: 3 360 kN | C0r: 6 890 kN | Mass: 165 kg
47T644836-1 d: 320 mm | D: 480 mm | B: 360 mm | Cr: 4 970 kN | C0r: 11 000 kN | Mass: 229 kg
47T645038 d: 320 mm | D: 500 mm | B: 380 mm | Cr: 5 540 kN | C0r: 11 900 kN | Mass: 284 kg
47364 d: 320 mm | D: 540 mm | B: 364 mm | Cr: 5 380 kN | C0r: 10 600 kN | Mass: 340 kg
47T654323 d: 325 mm | D: 430 mm | B: 230 mm | Cr: 2 410 kN | C0r: 5 800 kN | Mass: 88.5 kg
47T654523 d: 327 mm | D: 445 mm | B: 230 mm | Cr: 2 620 kN | C0r: 6 080 kN | Mass: 102 kg
47T664430 d: 330.200 mm | D: 444.500 mm | B: 301.625 mm | Cr: 3 550 kN | C0r: 9 260 kN | Mass: 134 kg
47T665131A d: 330.200 mm | D: 508.000 mm | B: 307.975 mm | Cr: 4 320 kN | C0r: 8 500 kN | Mass: 219 kg
47T674634/DP d: 335.000 mm | D: 460.000 mm | B: 342.900 mm | Cr: 3 960 kN | C0r: 9 390 kN | Mass: 165 kg
HM261049D/010/010D d: 337.375 mm | D: 469.900 mm | B: 342.900 mm | Cr: 4 630 kN | C0r: 11 400 kN | Mass: 190 kg
37268A d: 340 mm | D: 480 mm | B: 350 mm | Cr: 4 700 kN | C0r: 11 700 kN | Mass: 198 kg
47T685228 d: 340 mm | D: 520 mm | B: 278 mm | Cr: 4 040 kN | C0r: 8 110 kN | Mass: 212 kg
47T685232 d: 340 mm | D: 520 mm | B: 323 mm | Cr: 4 380 kN | C0r: 8 930 kN | Mass: 242 kg
47T694625 d: 343.052 mm | D: 457.098 mm | B: 254.000 mm | Cr: 2 850 kN | C0r: 6 950 kN | Mass: 111 kg
47T694625/DP3 d: 343.052 mm | D: 457.098 mm | B: 254.000 mm | Cr: 2 850 kN | C0r: 6 950 kN | Mass: 111 kg
HM262749D/10/10D d: 346.075 mm | D: 488.950 mm | B: 358.775 mm | Cr: 4 620 kN | C0r: 11 600 kN | Mass: 214 kg
M262449D/10/10D d: 347.663 mm | D: 469.900 mm | B: 292.100 mm | Cr: 3 600 kN | C0r: 9 040 kN | Mass: 145 kg
47T714932 d: 355 mm | D: 490 mm | B: 316 mm | Cr: 4 160 kN | C0r: 10 000 kN | Mass: 180 kg
47T714827-1 d: 355.600 mm | D: 482.600 mm | B: 269.875 mm | Cr: 3 390 kN | C0r: 7 860 kN | Mass: 139 kg
LM763449D/410/410D d: 355.600 mm | D: 482.600 mm | B: 269.875 mm | Cr: 3 060 kN | C0r: 7 020 kN | Mass: 136 kg
M263349D/310/310D d: 355.600 mm | D: 488.950 mm | B: 317.500 mm | Cr: 4 370 kN | C0r: 10 900 kN | Mass: 182 kg
47T724838A d: 360 mm | D: 480 mm | B: 375 mm | Cr: 3 930 kN | C0r: 9 910 kN | Mass: 177 kg
47T724838C d: 360 mm | D: 480 mm | B: 375 mm | Cr: 4 190 kN | C0r: 11 100 kN | Mass: 183 kg
47T725137 d: 360 mm | D: 508 mm | B: 370 mm | Cr: 4 840 kN | C0r: 11 500 kN | Mass: 232 kg
47T725237 d: 360 mm | D: 520 mm | B: 370 mm | Cr: 4 920 kN | C0r: 11 400 kN | Mass: 259 kg
47T725241 d: 360 mm | D: 520 mm | B: 410 mm | Cr: 5 970 kN | C0r: 14 300 kN | Mass: 292 kg
47272 d: 360 mm | D: 540 mm | B: 280 mm | Cr: 3 790 kN | C0r: 7 820 kN | Mass: 221 kg
47T725428 d: 360 mm | D: 540 mm | B: 280 mm | Cr: 3 760 kN | C0r: 8 000 kN | Mass: 224 kg
47T7254 d: 360 mm | D: 540 mm | B: 460 mm | Cr: 6 440 kN | C0r: 15 800 kN | Mass: 373 kg
47T745238B d: 368.300 mm | D: 523.875 mm | B: 382.588 mm | Cr: 5 530 kN | C0r: 13 600 kN | Mass: 269 kg
47T745238D d: 368.300 mm | D: 523.875 mm | B: 382.588 mm | Cr: 5 620 kN | C0r: 14 100 kN | Mass: 265 kg
47T745238J d: 368.300 mm | D: 523.875 mm | B: 382.588 mm | Cr: 5 920 kN | C0r: 14 500 kN | Mass: 268 kg
HM265049D/010/010D d: 368.300 mm | D: 523.875 mm | B: 382.588 mm | Cr: 5 460 kN | C0r: 13 600 kN | Mass: 269 kg
47T745638 d: 368.300 mm | D: 563.000 mm | B: 382.588 mm | Cr: 6 300 kN | C0r: 13 600 kN | Mass: 344 kg
47T745235 d: 370 mm | D: 516 mm | B: 346 mm | Cr: 4 880 kN | C0r: 11 700 kN | Mass: 216 kg
47T745026 d: 374.650 mm | D: 501.650 mm | B: 260.350 mm | Cr: 2 930 kN | C0r: 7 750 kN | Mass: 145 kg
47T765236 d: 380 mm | D: 520 mm | B: 360 mm | Cr: 4 610 kN | C0r: 12 200 kN | Mass: 225 kg
47T765240 d: 380 mm | D: 520 mm | B: 400 mm | Cr: 5 020 kN | C0r: 13 000 kN | Mass: 248 kg
37276 d: 380 mm | D: 536 mm | B: 390 mm | Cr: 5 760 kN | C0r: 12 900 kN | Mass: 268 kg
47276 d: 380 mm | D: 560 mm | B: 282 mm | Cr: 3 670 kN | C0r: 7 580 kN | Mass: 232 kg
47T765629 d: 380 mm | D: 560 mm | B: 285 mm | Cr: 4 600 kN | C0r: 10 000 kN | Mass: 246 kg
47T765629A d: 380 mm | D: 560 mm | B: 285 mm | Cr: 4 420 kN | C0r: 9 240 kN | Mass: 244 kg
47T765633A d: 380 mm | D: 560 mm | B: 325 mm | Cr: 5 330 kN | C0r: 11 900 kN | Mass: 278 kg
47T765639 d: 380 mm | D: 560 mm | B: 360 mm | Cr: 5 310 kN | C0r: 11 800 kN | Mass: 307 kg
47T765637 d: 380 mm | D: 560 mm | B: 370 mm | Cr: 5 910 kN | C0r: 13 600 kN | Mass: 312 kg
47T765850 d: 380 mm | D: 580 mm | B: 500 mm | Cr: 7 410 kN | C0r: 17 500 kN | Mass: 478 kg
47376 d: 380 mm | D: 620 mm | B: 400 mm | Cr: 6 130 kN | C0r: 12 700 kN | Mass: 476 kg
47T766242 d: 380 mm | D: 620 mm | B: 418.5 mm | Cr: 7 080 kN | C0r: 14 000 kN | Mass: 499 kg
HM266449D/410/410D d: 384.175 mm | D: 546.100 mm | B: 400.050 mm | Cr: 6 530 kN | C0r: 16 900 kN | Mass: 315 kg
47T775547 d: 384.175 mm | D: 546.100 mm | B: 470.000 mm | Cr: 6 220 kN | C0r: 16 200 kN | Mass: 360 kg
47T785135A d: 390 mm | D: 510 mm | B: 350 mm | Cr: 4 300 kN | C0r: 11 700 kN | Mass: 186 kg
47T785135B d: 390 mm | D: 510 mm | B: 350 mm | Cr: 4 150 kN | C0r: 11 200 kN | Mass: 183 kg
47T795529 d: 395 mm | D: 545 mm | B: 288.7 mm | Cr: 3 330 kN | C0r: 7 680 kN | Mass: 190 kg
47T805638A d: 400 mm | D: 560 mm | B: 380 mm | Cr: 5 970 kN | C0r: 15 200 kN | Mass: 296 kg
47T805641 d: 400 mm | D: 564 mm | B: 412 mm | Cr: 6 470 kN | C0r: 16 500 kN | Mass: 329 kg
47T805930A d: 400 mm | D: 590 mm | B: 304 mm | Cr: 4 760 kN | C0r: 10 200 kN | Mass: 289 kg
47280 d: 400 mm | D: 600 mm | B: 308 mm | Cr: 4 810 kN | C0r: 9 930 kN | Mass: 310 kg
47T815529 d: 406.400 mm | D: 546.100 mm | B: 288.925 mm | Cr: 3 960 kN | C0r: 9 540 kN | Mass: 184 kg
47T815533B d: 406.400 mm | D: 546.100 mm | B: 330.000 mm | Cr: 4 800 kN | C0r: 12 400 kN | Mass: 214 kg
47T815638 d: 406.400 mm | D: 562.000 mm | B: 381.000 mm | Cr: 5 990 kN | C0r: 15 000 kN | Mass: 284 kg
M267949D/910/910XD d: 406.400 mm | D: 565.150 mm | B: 381.000 mm | Cr: 5 990 kN | C0r: 15 000 kN | Mass: 291 kg
M667947D/911/911D d: 409.575 mm | D: 546.100 mm | B: 334.963 mm | Cr: 4 570 kN | C0r: 11 500 kN | Mass: 213 kg
47T835943A d: 415.925 mm | D: 590.550 mm | B: 434.975 mm | Cr: 7 060 kN | C0r: 18 800 kN | Mass: 391 kg
47T845637 d: 420 mm | D: 560 mm | B: 370 mm | Cr: 4 950 kN | C0r: 13 600 kN | Mass: 252 kg
47T845644 d: 420 mm | D: 560 mm | B: 437 mm | Cr: 5 620 kN | C0r: 14 900 kN | Mass: 283 kg
37284 d: 420 mm | D: 592 mm | B: 432 mm | Cr: 6 030 kN | C0r: 15 700 kN | Mass: 374 kg
47284 d: 420 mm | D: 620 mm | B: 312 mm | Cr: 4 810 kN | C0r: 10 400 kN | Mass: 328 kg
47T846546 d: 420 mm | D: 650 mm | B: 460 mm | Cr: 8 560 kN | C0r: 18 300 kN | Mass: 558 kg
47T865734C d: 430 mm | D: 570 mm | B: 336 mm | Cr: 4 790 kN | C0r: 12 500 kN | Mass: 232 kg
47T865738 d: 430 mm | D: 570 mm | B: 380 mm | Cr: 5 640 kN | C0r: 15 900 kN | Mass: 269 kg
47T865734 d: 431.800 mm | D: 571.500 mm | B: 336.550 mm | Cr: 5 070 kN | C0r: 13 500 kN | Mass: 232 kg
LM769349D/310/310D d: 431.800 mm | D: 571.500 mm | B: 336.550 mm | Cr: 4 290 kN | C0r: 11 300 kN | Mass: 231 kg
EE931170D/250/251XD d: 431.800 mm | D: 635.000 mm | B: 355.600 mm | Cr: 6 310 kN | C0r: 13 700 kN | Mass: 385 kg
EE736173D/238/239D d: 432.003 mm | D: 609.524 mm | B: 317.500 mm | Cr: 5 210 kN | C0r: 12 100 kN | Mass: 291 kg
47T885842 d: 440 mm | D: 580 mm | B: 420 mm | Cr: 5 730 kN | C0r: 15 400 kN | Mass: 288 kg
37288 d: 440 mm | D: 620 mm | B: 454 mm | Cr: 7 110 kN | C0r: 17 500 kN | Mass: 417 kg
47T886246 d: 440 mm | D: 620 mm | B: 454 mm | Cr: 7 610 kN | C0r: 19 800 kN | Mass: 436 kg
47T886443 d: 440 mm | D: 635 mm | B: 430 mm | Cr: 7 560 kN | C0r: 18 000 kN | Mass: 450 kg
47T886447 d: 440 mm | D: 635 mm | B: 470 mm | Cr: 8 510 kN | C0r: 20 900 kN | Mass: 500 kg
47288 d: 440 mm | D: 650 mm | B: 326 mm | Cr: 5 080 kN | C0r: 11 000 kN | Mass: 361 kg
47288A d: 440 mm | D: 650 mm | B: 334 mm | Cr: 5 490 kN | C0r: 12 200 kN | Mass: 375 kg
47T886645 d: 440 mm | D: 660 mm | B: 450 mm | Cr: 8 690 kN | C0r: 19 000 kN | Mass: 532 kg
M270749D/710/710D d: 447.675 mm | D: 635.000 mm | B: 463.550 mm | Cr: 7 860 kN | C0r: 21 000 kN | Mass: 472 kg
M270449D/10/10D d: 449.949 mm | D: 594.949 mm | B: 368.000 mm | Cr: 5 980 kN | C0r: 16 200 kN | Mass: 278 kg
47T905845 d: 450 mm | D: 580 mm | B: 450 mm | Cr: 5 130 kN | C0r: 14 600 kN | Mass: 286 kg
47T916028A d: 457.200 mm | D: 596.900 mm | B: 279.400 mm | Cr: 4 260 kN | C0r: 11 400 kN | Mass: 307 kg
EE737179D/260/261D d: 457.200 mm | D: 660.400 mm | B: 323.847 mm | Cr: 5 700 kN | C0r: 12 700 kN | Mass: 365 kg
47T925928 d: 460 mm | D: 586 mm | B: 280 mm | Cr: 3 710 kN | C0r: 9 810 kN | Mass: 177 kg
47T926236 d: 460 mm | D: 615 mm | B: 360 mm | Cr: 5 000 kN | C0r: 13 300 kN | Mass: 292 kg
47T926342 d: 460 mm | D: 625 mm | B: 421 mm | Cr: 6 920 kN | C0r: 18 800 kN | Mass: 386 kg
37292 d: 460 mm | D: 650 mm | B: 474 mm | Cr: 7 680 kN | C0r: 19 400 kN | Mass: 495 kg
47T926838 d: 460 mm | D: 680 mm | B: 375 mm | Cr: 6 500 kN | C0r: 15 200 kN | Mass: 475 kg
47T927344 d: 460 mm | D: 730 mm | B: 440 mm | Cr: 8 650 kN | C0r: 17 700 kN | Mass: 710 kg
47T956037A d: 475.000 mm | D: 600.000 mm | B: 368.000 mm | Cr: 4 970 kN | C0r: 15 100 kN | Mass: 246 kg
47T966850 d: 479.425 mm | D: 679.450 mm | B: 495.300 mm | Cr: 9 660 kN | C0r: 25 400 kN | Mass: 591 kg
M272749D/710/710D d: 479.425 mm | D: 679.450 mm | B: 495.300 mm | Cr: 8 480 kN | C0r: 22 200 kN | Mass: 575 kg
37296 d: 480 mm | D: 678 mm | B: 494 mm | Cr: 9 160 kN | C0r: 23 300 kN | Mass: 563 kg
47T967039 d: 480 mm | D: 700 mm | B: 390 mm | Cr: 7 400 kN | C0r: 16 800 kN | Mass: 508 kg
47T967042C d: 480.000 mm | D: 700.000 mm | B: 420.000 mm | Cr: 8 060 kN | C0r: 18 800 kN | Mass: 540 kg
47T976233 d: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 830 kN | C0r: 13 400 kN | Mass: 240 kg
4TR19A d: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 830 kN | C0r: 13 400 kN | Mass: 240 kg
4TR19B d: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 5 270 kN | C0r: 15 000 kN | Mass: 243 kg
4TR19D d: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 5 210 kN | C0r: 15 000 kN | Mass: 240 kg
47T976242 d: 482.600 mm | D: 615.950 mm | B: 420.000 mm | Cr: 5 810 kN | C0r: 16 700 kN | Mass: 296 kg
47T976542A d: 482.600 mm | D: 647.700 mm | B: 417.512 mm | Cr: 7 390 kN | C0r: 20 300 kN | Mass: 397 kg
M272647D/610/610D d: 482.600 mm | D: 647.700 mm | B: 417.512 mm | Cr: 7 390 kN | C0r: 20 300 kN | Mass: 395 kg
47T986236 d: 488.950 mm | D: 622.300 mm | B: 365.125 mm | Cr: 4 950 kN | C0r: 13 900 kN | Mass: 262 kg
EE640193D/260/261D d: 488.950 mm | D: 660.400 mm | B: 361.950 mm | Cr: 6 200 kN | C0r: 15 800 kN | Mass: 357 kg
EE243193D/250/251D d: 489.026 mm | D: 634.873 mm | B: 320.675 mm | Cr: 4 520 kN | C0r: 13 200 kN | Mass: 263 kg
LM772749D/710/710D d: 489.026 mm | D: 634.873 mm | B: 320.675 mm | Cr: 4 930 kN | C0r: 13 700 kN | Mass: 261 kg
47T986339A d: 490 mm | D: 625 mm | B: 385 mm | Cr: 5 690 kN | C0r: 17 200 kN | Mass: 290 kg
47T986339B d: 490 mm | D: 625 mm | B: 385 mm | Cr: 5 540 kN | C0r: 16 600 kN | Mass: 285 kg
4TR500M d: 500 mm | D: 640 mm | B: 450 mm | Cr: 7 050 kN | C0r: 20 300 kN | Mass: 352 kg
4TR500B d: 500 mm | D: 670 mm | B: 515 mm | Cr: 9 110 kN | C0r: 25 700 kN | Mass: 510 kg
372/500 d: 500 mm | D: 705 mm | B: 515 mm | Cr: 9 530 kN | C0r: 24 500 kN | Mass: 641 kg
4TR500T d: 500 mm | D: 710 mm | B: 430 mm | Cr: 8 170 kN | C0r: 20 000 kN | Mass: 528 kg
4TR500J d: 500 mm | D: 720 mm | B: 400 mm | Cr: 7 990 kN | C0r: 18 700 kN | Mass: 547 kg
4TR500Q d: 500 mm | D: 760 mm | B: 420 mm | Cr: 8 730 kN | C0r: 19 300 kN | Mass: 698 kg
Tapered Roller BearingsKOYO
286 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Four-Row Tapered Roller Bearings for Rolling Mill Roll Necks

Brand KOYO·Tapered Roller Bearings

Available part numbers (286)

47T131010, 47T1611, 47T191310, 37220, 37220A, 47T2017, 47T211615, 37222, 47T221612, 47T221815 + 276 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
47T131010d: 65 mm | D: 100 mm | B: 98 mm | Cr: 309 kN | C0r: 550 kN | Mass: 2.82 kg
47T1611d: 80 mm | D: 115 mm | B: 88 mm | Cr: 265 kN | C0r: 543 kN | Mass: 2.99 kg
47T191310d: 95 mm | D: 130 mm | B: 100 mm | Cr: 347 kN | C0r: 729 kN | Mass: 3.83 kg
37220d: 100 mm | D: 140 mm | B: 104 mm | Cr: 338 kN | C0r: 661 kN | Mass: 4.6 kg
37220Ad: 100 mm | D: 140 mm | B: 104 mm | Cr: 407 kN | C0r: 852 kN | Mass: 4.8 kg
47T2017d: 100 mm | D: 170 mm | B: 155 mm | Cr: 787 kN | C0r: 1 470 kN | Mass: 14.7 kg
47T211615d: 105 mm | D: 160 mm | B: 150 mm | Cr: 747 kN | C0r: 1 420 kN | Mass: 10.6 kg
37222d: 110 mm | D: 155 mm | B: 114 mm | Cr: 475 kN | C0r: 955 kN | Mass: 6.45 kg
47T221612d: 110 mm | D: 160 mm | B: 115 mm | Cr: 548 kN | C0r: 1 030 kN | Mass: 7.63 kg
47T221815d: 110 mm | D: 180 mm | B: 154 mm | Cr: 882 kN | C0r: 1 530 kN | Mass: 15.4 kg
47T221817d: 110 mm | D: 180 mm | B: 170 mm | Cr: 989 kN | C0r: 1 770 kN | Mass: 17 kg
47T231612Ad: 115 mm | D: 155 mm | B: 115 mm | Cr: 437 kN | C0r: 1 020 kN | Mass: 6.12 kg
47T231612d: 115 mm | D: 160 mm | B: 120 mm | Cr: 560 kN | C0r: 1 160 kN | Mass: 7.2 kg
37224d: 120 mm | D: 170 mm | B: 124 mm | Cr: 472 kN | C0r: 943 kN | Mass: 8.56 kg
47T241713d: 120 mm | D: 170 mm | B: 130 mm | Cr: 591 kN | C0r: 1 290 kN | Mass: 9.38 kg
47324d: 120 mm | D: 200 mm | B: 132 mm | Cr: 706 kN | C0r: 1 200 kN | Mass: 16.5 kg
47T242117d: 120 mm | D: 210 mm | B: 174 mm | Cr: 1 110 kN | C0r: 1 770 kN | Mass: 24.5 kg
L624549D/514/514Dd: 120.650 mm | D: 161.925 mm | B: 106.365 mm | Cr: 322 kN | C0r: 771 kN | Mass: 6.24 kg
LM124449D/410/410Dd: 120.650 mm | D: 166.688 mm | B: 152.414 mm | Cr: 637 kN | C0r: 1 460 kN | Mass: 9.84 kg
M224749D/710/710Dd: 120.650 mm | D: 174.625 mm | B: 139.703 mm | Cr: 712 kN | C0r: 1 450 kN | Mass: 11.1 kg
48290D/20/20Dd: 127.000 mm | D: 182.563 mm | B: 158.750 mm | Cr: 778 kN | C0r: 1 720 kN | Mass: 13.6 kg
37226d: 130 mm | D: 184 mm | B: 134 mm | Cr: 645 kN | C0r: 1 330 kN | Mass: 11 kg
67390D/22/22Dd: 133.350 mm | D: 196.850 mm | B: 193.675 mm | Cr: 1 070 kN | C0r: 2 240 kN | Mass: 19.8 kg
47T271816d: 135 mm | D: 180 mm | B: 160 mm | Cr: 559 kN | C0r: 1 290 kN | Mass: 10.7 kg
47T272016d: 135 mm | D: 195 mm | B: 160 mm | Cr: 938 kN | C0r: 1 930 kN | Mass: 15.4 kg
47T271916d: 136.525 mm | D: 190.500 mm | B: 161.925 mm | Cr: 809 kN | C0r: 1 890 kN | Mass: 14.3 kg
48393D/20/20Dd: 136.525 mm | D: 190.500 mm | B: 161.925 mm | Cr: 809 kN | C0r: 1 890 kN | Mass: 14.3 kg
48680D/20/20Dd: 139.700 mm | D: 200.025 mm | B: 160.340 mm | Cr: 844 kN | C0r: 1 960 kN | Mass: 16.6 kg
37228d: 140 mm | D: 198 mm | B: 144 mm | Cr: 770 kN | C0r: 1 650 kN | Mass: 13.6 kg
47228d: 140 mm | D: 210 mm | B: 114 mm | Cr: 623 kN | C0r: 1 130 kN | Mass: 13.7 kg
47328d: 140 mm | D: 225 mm | B: 145 mm | Cr: 973 kN | C0r: 1 610 kN | Mass: 21.2 kg
47T292013d: 145 mm | D: 195 mm | B: 130 mm | Cr: 641 kN | C0r: 1 550 kN | Mass: 11.1 kg
47T302119d: 150 mm | D: 210 mm | B: 190 mm | Cr: 993 kN | C0r: 2 270 kN | Mass: 20.2 kg
37230d: 150 mm | D: 212 mm | B: 155 mm | Cr: 774 kN | C0r: 1 640 kN | Mass: 16.7 kg
M231649D/610/610Dd: 152.400 mm | D: 222.250 mm | B: 174.625 mm | Cr: 1 080 kN | C0r: 2 390 kN | Mass: 22.8 kg
37232d: 160 mm | D: 226 mm | B: 165 mm | Cr: 873 kN | C0r: 1 870 kN | Mass: 20.1 kg
47T322515d: 160 mm | D: 250 mm | B: 145 mm | Cr: 1 090 kN | C0r: 1 870 kN | Mass: 25.4 kg
47T322717d: 160 mm | D: 265 mm | B: 173 mm | Cr: 1 320 kN | C0r: 2 400 kN | Mass: 37.6 kg
46791D/20/21Dd: 165.100 mm | D: 225.425 mm | B: 168.275 mm | Cr: 868 kN | C0r: 2 140 kN | Mass: 19.7 kg
67782D/20/21Dd: 168.275 mm | D: 247.650 mm | B: 192.088 mm | Cr: 1 190 kN | C0r: 2 800 kN | Mass: 31.7 kg
47T342318d: 170 mm | D: 230 mm | B: 175 mm | Cr: 1 030 kN | C0r: 2 370 kN | Mass: 19.9 kg
37234Ad: 170 mm | D: 240 mm | B: 175 mm | Cr: 1 020 kN | C0r: 2 310 kN | Mass: 24.2 kg
47T342418Ad: 170 mm | D: 240 mm | B: 175 mm | Cr: 1 120 kN | C0r: 2 340 kN | Mass: 24.7 kg
47T342616d: 170 mm | D: 260 mm | B: 160 mm | Cr: 1 110 kN | C0r: 1 900 kN | Mass: 28.5 kg
47334/181d: 170 mm | D: 280 mm | B: 181 mm | Cr: 1 330 kN | C0r: 2 420 kN | Mass: 44 kg
47334d: 170 mm | D: 280 mm | B: 185 mm | Cr: 1 330 kN | C0r: 2 420 kN | Mass: 44.8 kg
67791D/20/21Dd: 177.800 mm | D: 247.650 mm | B: 192.088 mm | Cr: 1 190 kN | C0r: 2 800 kN | Mass: 28.4 kg
82681D/20/20Dd: 177.800 mm | D: 279.400 mm | B: 234.948 mm | Cr: 1 660 kN | C0r: 3 290 kN | Mass: 52.5 kg
EE91700D/112/113XDd: 177.800 mm | D: 285.750 mm | B: 222.245 mm | Cr: 1 520 kN | C0r: 2 860 kN | Mass: 53.7 kg
47T362519d: 180 mm | D: 250 mm | B: 185 mm | Cr: 1 140 kN | C0r: 2 550 kN | Mass: 26.9 kg
37236d: 180 mm | D: 254 mm | B: 185 mm | Cr: 1 140 kN | C0r: 2 550 kN | Mass: 29.1 kg
47T362616d: 180 mm | D: 260 mm | B: 160 mm | Cr: 1 090 kN | C0r: 2 090 kN | Mass: 26.4 kg
47T362620d: 180 mm | D: 260 mm | B: 200 mm | Cr: 1 390 kN | C0r: 2 950 kN | Mass: 33.6 kg
47T362818Ad: 180 mm | D: 280 mm | B: 181 mm | Cr: 1 510 kN | C0r: 2 830 kN | Mass: 40.8 kg
47336d: 180 mm | D: 300 mm | B: 202 mm | Cr: 1 580 kN | C0r: 2 750 kN | Mass: 54.9 kg
47T363028d: 180 mm | D: 300 mm | B: 280 mm | Cr: 2 400 kN | C0r: 4 430 kN | Mass: 78.4 kg
47T372721Bd: 187 mm | D: 270 mm | B: 210 mm | Cr: 1 660 kN | C0r: 3 570 kN | Mass: 39.1 kg
M238849D/810/810Dd: 187.325 mm | D: 269.875 mm | B: 211.138 mm | Cr: 1 410 kN | C0r: 3 220 kN | Mass: 39.5 kg
37238d: 190 mm | D: 268 mm | B: 196 mm | Cr: 1 210 kN | C0r: 2 760 kN | Mass: 33.4 kg
47T382716d: 190 mm | D: 270 mm | B: 160 mm | Cr: 1 170 kN | C0r: 2 370 kN | Mass: 28.3 kg
4TR3827d: 190.000 mm | D: 270.000 mm | B: 190.000 mm | Cr: 1 160 kN | C0r: 2 810 kN | Mass: 34.7 kg
67885D/67820/67820Dd: 190.500 mm | D: 266.700 mm | B: 188.913 mm | Cr: 1 160 kN | C0r: 2 810 kN | Mass: 32.4 kg
M240648D/611/611Dd: 198.438 mm | D: 284.163 mm | B: 225.425 mm | Cr: 1 740 kN | C0r: 3 780 kN | Mass: 44.7 kg
47T402821d: 200 mm | D: 280 mm | B: 206 mm | Cr: 1 670 kN | C0r: 3 830 kN | Mass: 39.7 kg
37240d: 200 mm | D: 282 mm | B: 206 mm | Cr: 1 490 kN | C0r: 3 380 kN | Mass: 39.6 kg
47T403423d: 200 mm | D: 340 mm | B: 234 mm | Cr: 2 340 kN | C0r: 4 150 kN | Mass: 86 kg
EE132082D/125/126Dd: 203.200 mm | D: 317.500 mm | B: 209.550 mm | Cr: 1 510 kN | C0r: 2 900 kN | Mass: 61 kg
93800D/125/127Dd: 203.200 mm | D: 317.500 mm | B: 266.700 mm | Cr: 2 070 kN | C0r: 4 540 kN | Mass: 78.8 kg
47T413221d: 205 mm | D: 320 mm | B: 205 mm | Cr: 1 740 kN | C0r: 3 030 kN | Mass: 58.9 kg
67985D/20/20Dd: 206.375 mm | D: 282.575 mm | B: 184.150 mm | Cr: 1 200 kN | C0r: 2 830 kN | Mass: 33.9 kg
67986D/20/21Dd: 206.375 mm | D: 282.575 mm | B: 190.500 mm | Cr: 1 200 kN | C0r: 2 830 kN | Mass: 34.8 kg
47T412821Ad: 206.375 mm | D: 282.575 mm | B: 210.000 mm | Cr: 1 380 kN | C0r: 3 010 kN | Mass: 36.2 kg
47T433123d: 215.090 mm | D: 311.150 mm | B: 228.600 mm | Cr: 1 750 kN | C0r: 4 040 kN | Mass: 57.5 kg
LM742749D/714/714Dd: 215.900 mm | D: 288.925 mm | B: 177.800 mm | Cr: 1 220 kN | C0r: 3 120 kN | Mass: 32.8 kg
47T433427d: 215.900 mm | D: 336.550 mm | B: 266.700 mm | Cr: 2 430 kN | C0r: 4 760 kN | Mass: 85.1 kg
47T433327d: 216.103 mm | D: 330.200 mm | B: 269.875 mm | Cr: 2 500 kN | C0r: 5 120 kN | Mass: 81.6 kg
47T443023d: 220 mm | D: 300 mm | B: 230 mm | Cr: 1 750 kN | C0r: 4 040 kN | Mass: 45.1 kg
37244d: 220 mm | D: 310 mm | B: 226 mm | Cr: 1 690 kN | C0r: 3 880 kN | Mass: 52 kg
47T443220d: 220 mm | D: 320 mm | B: 201 mm | Cr: 1 660 kN | C0r: 3 760 kN | Mass: 52.4 kg
47T443225d: 220 mm | D: 320 mm | B: 250 mm | Cr: 1 930 kN | C0r: 4 230 kN | Mass: 64.7 kg
47T443326Ad: 220 mm | D: 330 mm | B: 260 mm | Cr: 2 350 kN | C0r: 5 070 kN | Mass: 78.4 kg
47T443326Bd: 220 mm | D: 330 mm | B: 260 mm | Cr: 2 330 kN | C0r: 4 860 kN | Mass: 77.5 kg
47244d: 220 mm | D: 340 mm | B: 190 mm | Cr: 1 490 kN | C0r: 2 910 kN | Mass: 62.2 kg
47T443428-1d: 220 mm | D: 340 mm | B: 280 mm | Cr: 2 720 kN | C0r: 5 580 kN | Mass: 95.1 kg
47T443431d: 220 mm | D: 340 mm | B: 305 mm | Cr: 2 910 kN | C0r: 5 940 kN | Mass: 99.6 kg
47T443129Ad: 220.662 mm | D: 314.325 mm | B: 290.000 mm | Cr: 2 300 kN | C0r: 5 050 kN | Mass: 70 kg
M244249D/210/210Dd: 220.663 mm | D: 314.325 mm | B: 239.713 mm | Cr: 2 100 kN | C0r: 4 890 kN | Mass: 59 kg
4TR225Ad: 225 mm | D: 320 mm | B: 230 mm | Cr: 1 670 kN | C0r: 3 730 kN | Mass: 57 kg
LM245149D/110/110Dd: 228.600 mm | D: 311.150 mm | B: 200.025 mm | Cr: 1 660 kN | C0r: 3 760 kN | Mass: 41.8 kg
47T463119d: 230 mm | D: 315 mm | B: 190 mm | Cr: 1 510 kN | C0r: 3 470 kN | Mass: 43 kg
8576D/20/20Dd: 234.950 mm | D: 327.025 mm | B: 196.850 mm | Cr: 1 600 kN | C0r: 3 720 kN | Mass: 50.1 kg
47T473324d: 235 mm | D: 325 mm | B: 240 mm | Cr: 2 200 kN | C0r: 5 310 kN | Mass: 60.5 kg
47T483225Bd: 240 mm | D: 320 mm | B: 250 mm | Cr: 1 880 kN | C0r: 4 760 kN | Mass: 54.2 kg
37248d: 240 mm | D: 338 mm | B: 248 mm | Cr: 2 360 kN | C0r: 5 360 kN | Mass: 68.4 kg
37248/DP1d: 240 mm | D: 338 mm | B: 248 mm | Cr: 2 360 kN | C0r: 5 360 kN | Mass: 68.4 kg
47248d: 240 mm | D: 360 mm | B: 194 mm | Cr: 1 830 kN | C0r: 3 580 kN | Mass: 66.5 kg
47T483621d: 240 mm | D: 360 mm | B: 214 mm | Cr: 2 170 kN | C0r: 4 340 kN | Mass: 75.4 kg
47T483631Ad: 240 mm | D: 360 mm | B: 308.5 mm | Cr: 3 320 kN | C0r: 7 400 kN | Mass: 112 kg
47T483729d: 240 mm | D: 365 mm | B: 290 mm | Cr: 2 870 kN | C0r: 5 930 kN | Mass: 108 kg
47T484127Ad: 240 mm | D: 410 mm | B: 270 mm | Cr: 3 220 kN | C0r: 5 520 kN | Mass: 144 kg
47T483523Ad: 241.478 mm | D: 349.148 mm | B: 228.600 mm | Cr: 2 190 kN | C0r: 4 920 kN | Mass: 72.9 kg
EE127097D/135/136Dd: 241.478 mm | D: 349.148 mm | B: 228.600 mm | Cr: 1 900 kN | C0r: 4 100 kN | Mass: 70.4 kg
47T493319d: 244.475 mm | D: 327.025 mm | B: 193.675 mm | Cr: 1 470 kN | C0r: 3 500 kN | Mass: 44.4 kg
LM247748D/710/710Dd: 244.475 mm | D: 327.025 mm | B: 193.675 mm | Cr: 1 570 kN | C0r: 3 780 kN | Mass: 44.4 kg
EE126096D/150/151Dd: 244.475 mm | D: 381.000 mm | B: 304.800 mm | Cr: 2 700 kN | C0r: 5 870 kN | Mass: 129 kg
EE220975D/1575/1576Dd: 247.650 mm | D: 400.050 mm | B: 253.995 mm | Cr: 2 600 kN | C0r: 5 140 kN | Mass: 123 kg
47T503524d: 250 mm | D: 350 mm | B: 240 mm | Cr: 2 180 kN | C0r: 4 970 kN | Mass: 70 kg
47T503627d: 250 mm | D: 365 mm | B: 270 mm | Cr: 2 650 kN | C0r: 6 340 kN | Mass: 96.7 kg
47T513615d: 254.000 mm | D: 358.775 mm | B: 147.000 mm | Cr: 1 320 kN | C0r: 2 910 kN | Mass: 46.9 kg
47T513627Ad: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 650 kN | C0r: 6 340 kN | Mass: 85.8 kg
47T513627Bd: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 630 kN | C0r: 6 030 kN | Mass: 85.5 kg
47T513627Cd: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 630 kN | C0r: 6 030 kN | Mass: 86.1 kg
M249748D/710/710Dd: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 650 kN | C0r: 6 340 kN | Mass: 86 kg
47T523627Ad: 260 mm | D: 360 mm | B: 272 mm | Cr: 2 910 kN | C0r: 7 020 kN | Mass: 83.6 kg
37252d: 260 mm | D: 368 mm | B: 268 mm | Cr: 2 510 kN | C0r: 6 020 kN | Mass: 88.4 kg
47T524022d: 260 mm | D: 400 mm | B: 220 mm | Cr: 2 390 kN | C0r: 4 520 kN | Mass: 98.5 kg
47T524026d: 260 mm | D: 400 mm | B: 255 mm | Cr: 2 620 kN | C0r: 5 400 kN | Mass: 113 kg
47T524032d: 260 mm | D: 400 mm | B: 320 mm | Cr: 3 270 kN | C0r: 7 070 kN | Mass: 145 kg
47352d: 260 mm | D: 440 mm | B: 300 mm | Cr: 3 470 kN | C0r: 6 880 kN | Mass: 188 kg
HM252348D/310/310Dd: 260.350 mm | D: 422.275 mm | B: 317.500 mm | Cr: 3 470 kN | C0r: 6 720 kN | Mass: 167 kg
47T533423d: 266.700 mm | D: 335.600 mm | B: 228.600 mm | Cr: 1 850 kN | C0r: 5 260 kN | Mass: 46.4 kg
47T533623Bd: 266.700 mm | D: 355.600 mm | B: 228.600 mm | Cr: 2 230 kN | C0r: 5 690 kN | Mass: 62.7 kg
76589D/20/20Dd: 266.700 mm | D: 355.600 mm | B: 228.600 mm | Cr: 1 980 kN | C0r: 4 830 kN | Mass: 59.8 kg
47T533927-1d: 266.700 mm | D: 393.700 mm | B: 269.878 mm | Cr: 2 990 kN | C0r: 6 460 kN | Mass: 112 kg
M252349D/310/310Dd: 269.875 mm | D: 381.000 mm | B: 282.575 mm | Cr: 2 930 kN | C0r: 6 690 kN | Mass: 98.4 kg
47T543626d: 270 mm | D: 364 mm | B: 260 mm | Cr: 2 370 kN | C0r: 5 720 kN | Mass: 72.8 kg
47254d: 270 mm | D: 410 mm | B: 222 mm | Cr: 2 250 kN | C0r: 4 380 kN | Mass: 100 kg
47T553927d: 276.225 mm | D: 393.700 mm | B: 269.878 mm | Cr: 2 730 kN | C0r: 5 830 kN | Mass: 101 kg
47T563927Ad: 279.400 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 660 kN | C0r: 5 990 kN | Mass: 101 kg
47T563927Bd: 279.400 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 660 kN | C0r: 5 990 kN | Mass: 101 kg
47T564131d: 279.400 mm | D: 410.000 mm | B: 310.000 mm | Cr: 3 120 kN | C0r: 7 290 kN | Mass: 140 kg
LM654644D/610/610Dd: 279.578 mm | D: 380.898 mm | B: 244.475 mm | Cr: 2 280 kN | C0r: 5 650 kN | Mass: 80.4 kg
47T563829d: 280 mm | D: 380 mm | B: 290 mm | Cr: 2 810 kN | C0r: 6 940 kN | Mass: 91.8 kg
47T563829Ad: 280 mm | D: 380 mm | B: 290 mm | Cr: 2 810 kN | C0r: 6 940 kN | Mass: 92.1 kg
37256Xd: 280 mm | D: 395 mm | B: 288 mm | Cr: 2 880 kN | C0r: 6 900 kN | Mass: 110 kg
47T564029Ad: 280 mm | D: 395 mm | B: 288 mm | Cr: 2 880 kN | C0r: 6 900 kN | Mass: 110 kg
47256d: 280 mm | D: 420 mm | B: 225 mm | Cr: 2 390 kN | C0r: 4 950 kN | Mass: 104 kg
47T564632d: 280 mm | D: 460 mm | B: 324 mm | Cr: 4 300 kN | C0r: 8 230 kN | Mass: 214 kg
47T563824d: 280.268 mm | D: 379.887 mm | B: 244.475 mm | Cr: 2 280 kN | C0r: 5 650 kN | Mass: 80 kg
LM654648D/610/610Dd: 285.750 mm | D: 380.898 mm | B: 244.475 mm | Cr: 2 280 kN | C0r: 5 650 kN | Mass: 75.6 kg
M255449D/410/410Dd: 288.925 mm | D: 406.400 mm | B: 298.450 mm | Cr: 3 450 kN | C0r: 8 840 kN | Mass: 127 kg
EE330116D/166/167Dd: 292.100 mm | D: 422.275 mm | B: 269.875 mm | Cr: 3 170 kN | C0r: 6 830 kN | Mass: 124 kg
47T604231d: 300 mm | D: 420 mm | B: 310 mm | Cr: 3 390 kN | C0r: 8 050 kN | Mass: 132 kg
37260d: 300 mm | D: 424 mm | B: 310 mm | Cr: 3 000 kN | C0r: 6 570 kN | Mass: 134 kg
47T604330d: 300 mm | D: 430 mm | B: 300 mm | Cr: 3 320 kN | C0r: 7 630 kN | Mass: 141 kg
47T604331d: 300 mm | D: 430 mm | B: 310 mm | Cr: 3 520 kN | C0r: 8 420 kN | Mass: 146 kg
47T604625d: 300 mm | D: 460 mm | B: 248 mm | Cr: 3 060 kN | C0r: 6 300 kN | Mass: 149 kg
47T604636d: 300 mm | D: 460 mm | B: 360 mm | Cr: 4 300 kN | C0r: 9 550 kN | Mass: 220 kg
47T604727Ad: 300 mm | D: 470 mm | B: 270 mm | Cr: 3 500 kN | C0r: 6 440 kN | Mass: 165 kg
47T604729Bd: 300 mm | D: 470 mm | B: 292 mm | Cr: 3 980 kN | C0r: 7 870 kN | Mass: 193 kg
47T604729Cd: 300 mm | D: 470 mm | B: 292 mm | Cr: 4 120 kN | C0r: 8 210 kN | Mass: 198 kg
47T605035d: 300 mm | D: 500 mm | B: 350 mm | Cr: 5 010 kN | C0r: 9 290 kN | Mass: 270 kg
HM256849D/810/810Dd: 300.038 mm | D: 422.275 mm | B: 311.150 mm | Cr: 3 390 kN | C0r: 8 050 kN | Mass: 136 kg
47T614428Cd: 304.648 mm | D: 438.048 mm | B: 279.400 mm | Cr: 3 230 kN | C0r: 6 980 kN | Mass: 133 kg
M757448D/410/410Dd: 304.648 mm | D: 438.048 mm | B: 279.400 mm | Cr: 3 230 kN | C0r: 6 980 kN | Mass: 132 kg
M257149D/110/110Dd: 304.800 mm | D: 419.100 mm | B: 269.875 mm | Cr: 2 840 kN | C0r: 6 950 kN | Mass: 110 kg
47T614838Ad: 304.800 mm | D: 482.600 mm | B: 377.825 mm | Cr: 4 820 kN | C0r: 9 800 kN | Mass: 250 kg
EE724121D/195/196Dd: 304.800 mm | D: 495.300 mm | B: 349.250 mm | Cr: 4 370 kN | C0r: 9 370 kN | Mass: 267 kg
M257248D/210/210Dd: 304.902 mm | D: 412.648 mm | B: 266.7 mm | Cr: 2 990 kN | C0r: 7 280 kN | Mass: 101 kg
47T624331Ad: 310 mm | D: 430 mm | B: 310 mm | Cr: 3 520 kN | C0r: 8 420 kN | Mass: 135 kg
47T6246Ad: 310 mm | D: 460 mm | B: 325 mm | Cr: 4 200 kN | C0r: 9 500 kN | Mass: 188 kg
LM258649D/610/610Dd: 317.500 mm | D: 422.275 mm | B: 269.875 mm | Cr: 2 930 kN | C0r: 7 450 kN | Mass: 104 kg
47T644533Jd: 317.500 mm | D: 447.675 mm | B: 327.025 mm | Cr: 4 120 kN | C0r: 9 820 kN | Mass: 161 kg
47T644533Ld: 317.500 mm | D: 447.675 mm | B: 327.025 mm | Cr: 4 280 kN | C0r: 10 100 kN | Mass: 161 kg
47T644434d: 320 mm | D: 440 mm | B: 335 mm | Cr: 3 590 kN | C0r: 8 750 kN | Mass: 149 kg
47T644633d: 320 mm | D: 460 mm | B: 325 mm | Cr: 4 030 kN | C0r: 9 420 kN | Mass: 175 kg
37264d: 320 mm | D: 460 mm | B: 338 mm | Cr: 3 500 kN | C0r: 8 590 kN | Mass: 183 kg
47T644825d: 320 mm | D: 480 mm | B: 254 mm | Cr: 3 400 kN | C0r: 6 940 kN | Mass: 161 kg
47T644826d: 320 mm | D: 480 mm | B: 260 mm | Cr: 3 360 kN | C0r: 6 890 kN | Mass: 165 kg
47T644836-1d: 320 mm | D: 480 mm | B: 360 mm | Cr: 4 970 kN | C0r: 11 000 kN | Mass: 229 kg
47T645038d: 320 mm | D: 500 mm | B: 380 mm | Cr: 5 540 kN | C0r: 11 900 kN | Mass: 284 kg
47364d: 320 mm | D: 540 mm | B: 364 mm | Cr: 5 380 kN | C0r: 10 600 kN | Mass: 340 kg
47T654323d: 325 mm | D: 430 mm | B: 230 mm | Cr: 2 410 kN | C0r: 5 800 kN | Mass: 88.5 kg
47T654523d: 327 mm | D: 445 mm | B: 230 mm | Cr: 2 620 kN | C0r: 6 080 kN | Mass: 102 kg
47T664430d: 330.200 mm | D: 444.500 mm | B: 301.625 mm | Cr: 3 550 kN | C0r: 9 260 kN | Mass: 134 kg
47T665131Ad: 330.200 mm | D: 508.000 mm | B: 307.975 mm | Cr: 4 320 kN | C0r: 8 500 kN | Mass: 219 kg
47T674634/DPd: 335.000 mm | D: 460.000 mm | B: 342.900 mm | Cr: 3 960 kN | C0r: 9 390 kN | Mass: 165 kg
HM261049D/010/010Dd: 337.375 mm | D: 469.900 mm | B: 342.900 mm | Cr: 4 630 kN | C0r: 11 400 kN | Mass: 190 kg
37268Ad: 340 mm | D: 480 mm | B: 350 mm | Cr: 4 700 kN | C0r: 11 700 kN | Mass: 198 kg
47T685228d: 340 mm | D: 520 mm | B: 278 mm | Cr: 4 040 kN | C0r: 8 110 kN | Mass: 212 kg
47T685232d: 340 mm | D: 520 mm | B: 323 mm | Cr: 4 380 kN | C0r: 8 930 kN | Mass: 242 kg
47T694625d: 343.052 mm | D: 457.098 mm | B: 254.000 mm | Cr: 2 850 kN | C0r: 6 950 kN | Mass: 111 kg
47T694625/DP3d: 343.052 mm | D: 457.098 mm | B: 254.000 mm | Cr: 2 850 kN | C0r: 6 950 kN | Mass: 111 kg
HM262749D/10/10Dd: 346.075 mm | D: 488.950 mm | B: 358.775 mm | Cr: 4 620 kN | C0r: 11 600 kN | Mass: 214 kg
M262449D/10/10Dd: 347.663 mm | D: 469.900 mm | B: 292.100 mm | Cr: 3 600 kN | C0r: 9 040 kN | Mass: 145 kg
47T714932d: 355 mm | D: 490 mm | B: 316 mm | Cr: 4 160 kN | C0r: 10 000 kN | Mass: 180 kg
47T714827-1d: 355.600 mm | D: 482.600 mm | B: 269.875 mm | Cr: 3 390 kN | C0r: 7 860 kN | Mass: 139 kg
LM763449D/410/410Dd: 355.600 mm | D: 482.600 mm | B: 269.875 mm | Cr: 3 060 kN | C0r: 7 020 kN | Mass: 136 kg
M263349D/310/310Dd: 355.600 mm | D: 488.950 mm | B: 317.500 mm | Cr: 4 370 kN | C0r: 10 900 kN | Mass: 182 kg
47T724838Ad: 360 mm | D: 480 mm | B: 375 mm | Cr: 3 930 kN | C0r: 9 910 kN | Mass: 177 kg
47T724838Cd: 360 mm | D: 480 mm | B: 375 mm | Cr: 4 190 kN | C0r: 11 100 kN | Mass: 183 kg
47T725137d: 360 mm | D: 508 mm | B: 370 mm | Cr: 4 840 kN | C0r: 11 500 kN | Mass: 232 kg
47T725237d: 360 mm | D: 520 mm | B: 370 mm | Cr: 4 920 kN | C0r: 11 400 kN | Mass: 259 kg
47T725241d: 360 mm | D: 520 mm | B: 410 mm | Cr: 5 970 kN | C0r: 14 300 kN | Mass: 292 kg
47272d: 360 mm | D: 540 mm | B: 280 mm | Cr: 3 790 kN | C0r: 7 820 kN | Mass: 221 kg
47T725428d: 360 mm | D: 540 mm | B: 280 mm | Cr: 3 760 kN | C0r: 8 000 kN | Mass: 224 kg
47T7254d: 360 mm | D: 540 mm | B: 460 mm | Cr: 6 440 kN | C0r: 15 800 kN | Mass: 373 kg
47T745238Bd: 368.300 mm | D: 523.875 mm | B: 382.588 mm | Cr: 5 530 kN | C0r: 13 600 kN | Mass: 269 kg
47T745238Dd: 368.300 mm | D: 523.875 mm | B: 382.588 mm | Cr: 5 620 kN | C0r: 14 100 kN | Mass: 265 kg
47T745238Jd: 368.300 mm | D: 523.875 mm | B: 382.588 mm | Cr: 5 920 kN | C0r: 14 500 kN | Mass: 268 kg
HM265049D/010/010Dd: 368.300 mm | D: 523.875 mm | B: 382.588 mm | Cr: 5 460 kN | C0r: 13 600 kN | Mass: 269 kg
47T745638d: 368.300 mm | D: 563.000 mm | B: 382.588 mm | Cr: 6 300 kN | C0r: 13 600 kN | Mass: 344 kg
47T745235d: 370 mm | D: 516 mm | B: 346 mm | Cr: 4 880 kN | C0r: 11 700 kN | Mass: 216 kg
47T745026d: 374.650 mm | D: 501.650 mm | B: 260.350 mm | Cr: 2 930 kN | C0r: 7 750 kN | Mass: 145 kg
47T765236d: 380 mm | D: 520 mm | B: 360 mm | Cr: 4 610 kN | C0r: 12 200 kN | Mass: 225 kg
47T765240d: 380 mm | D: 520 mm | B: 400 mm | Cr: 5 020 kN | C0r: 13 000 kN | Mass: 248 kg
37276d: 380 mm | D: 536 mm | B: 390 mm | Cr: 5 760 kN | C0r: 12 900 kN | Mass: 268 kg
47276d: 380 mm | D: 560 mm | B: 282 mm | Cr: 3 670 kN | C0r: 7 580 kN | Mass: 232 kg
47T765629d: 380 mm | D: 560 mm | B: 285 mm | Cr: 4 600 kN | C0r: 10 000 kN | Mass: 246 kg
47T765629Ad: 380 mm | D: 560 mm | B: 285 mm | Cr: 4 420 kN | C0r: 9 240 kN | Mass: 244 kg
47T765633Ad: 380 mm | D: 560 mm | B: 325 mm | Cr: 5 330 kN | C0r: 11 900 kN | Mass: 278 kg
47T765639d: 380 mm | D: 560 mm | B: 360 mm | Cr: 5 310 kN | C0r: 11 800 kN | Mass: 307 kg
47T765637d: 380 mm | D: 560 mm | B: 370 mm | Cr: 5 910 kN | C0r: 13 600 kN | Mass: 312 kg
47T765850d: 380 mm | D: 580 mm | B: 500 mm | Cr: 7 410 kN | C0r: 17 500 kN | Mass: 478 kg
47376d: 380 mm | D: 620 mm | B: 400 mm | Cr: 6 130 kN | C0r: 12 700 kN | Mass: 476 kg
47T766242d: 380 mm | D: 620 mm | B: 418.5 mm | Cr: 7 080 kN | C0r: 14 000 kN | Mass: 499 kg
HM266449D/410/410Dd: 384.175 mm | D: 546.100 mm | B: 400.050 mm | Cr: 6 530 kN | C0r: 16 900 kN | Mass: 315 kg
47T775547d: 384.175 mm | D: 546.100 mm | B: 470.000 mm | Cr: 6 220 kN | C0r: 16 200 kN | Mass: 360 kg
47T785135Ad: 390 mm | D: 510 mm | B: 350 mm | Cr: 4 300 kN | C0r: 11 700 kN | Mass: 186 kg
47T785135Bd: 390 mm | D: 510 mm | B: 350 mm | Cr: 4 150 kN | C0r: 11 200 kN | Mass: 183 kg
47T795529d: 395 mm | D: 545 mm | B: 288.7 mm | Cr: 3 330 kN | C0r: 7 680 kN | Mass: 190 kg
47T805638Ad: 400 mm | D: 560 mm | B: 380 mm | Cr: 5 970 kN | C0r: 15 200 kN | Mass: 296 kg
47T805641d: 400 mm | D: 564 mm | B: 412 mm | Cr: 6 470 kN | C0r: 16 500 kN | Mass: 329 kg
47T805930Ad: 400 mm | D: 590 mm | B: 304 mm | Cr: 4 760 kN | C0r: 10 200 kN | Mass: 289 kg
47280d: 400 mm | D: 600 mm | B: 308 mm | Cr: 4 810 kN | C0r: 9 930 kN | Mass: 310 kg
47T815529d: 406.400 mm | D: 546.100 mm | B: 288.925 mm | Cr: 3 960 kN | C0r: 9 540 kN | Mass: 184 kg
47T815533Bd: 406.400 mm | D: 546.100 mm | B: 330.000 mm | Cr: 4 800 kN | C0r: 12 400 kN | Mass: 214 kg
47T815638d: 406.400 mm | D: 562.000 mm | B: 381.000 mm | Cr: 5 990 kN | C0r: 15 000 kN | Mass: 284 kg
M267949D/910/910XDd: 406.400 mm | D: 565.150 mm | B: 381.000 mm | Cr: 5 990 kN | C0r: 15 000 kN | Mass: 291 kg
M667947D/911/911Dd: 409.575 mm | D: 546.100 mm | B: 334.963 mm | Cr: 4 570 kN | C0r: 11 500 kN | Mass: 213 kg
47T835943Ad: 415.925 mm | D: 590.550 mm | B: 434.975 mm | Cr: 7 060 kN | C0r: 18 800 kN | Mass: 391 kg
47T845637d: 420 mm | D: 560 mm | B: 370 mm | Cr: 4 950 kN | C0r: 13 600 kN | Mass: 252 kg
47T845644d: 420 mm | D: 560 mm | B: 437 mm | Cr: 5 620 kN | C0r: 14 900 kN | Mass: 283 kg
37284d: 420 mm | D: 592 mm | B: 432 mm | Cr: 6 030 kN | C0r: 15 700 kN | Mass: 374 kg
47284d: 420 mm | D: 620 mm | B: 312 mm | Cr: 4 810 kN | C0r: 10 400 kN | Mass: 328 kg
47T846546d: 420 mm | D: 650 mm | B: 460 mm | Cr: 8 560 kN | C0r: 18 300 kN | Mass: 558 kg
47T865734Cd: 430 mm | D: 570 mm | B: 336 mm | Cr: 4 790 kN | C0r: 12 500 kN | Mass: 232 kg
47T865738d: 430 mm | D: 570 mm | B: 380 mm | Cr: 5 640 kN | C0r: 15 900 kN | Mass: 269 kg
47T865734d: 431.800 mm | D: 571.500 mm | B: 336.550 mm | Cr: 5 070 kN | C0r: 13 500 kN | Mass: 232 kg
LM769349D/310/310Dd: 431.800 mm | D: 571.500 mm | B: 336.550 mm | Cr: 4 290 kN | C0r: 11 300 kN | Mass: 231 kg
EE931170D/250/251XDd: 431.800 mm | D: 635.000 mm | B: 355.600 mm | Cr: 6 310 kN | C0r: 13 700 kN | Mass: 385 kg
EE736173D/238/239Dd: 432.003 mm | D: 609.524 mm | B: 317.500 mm | Cr: 5 210 kN | C0r: 12 100 kN | Mass: 291 kg
47T885842d: 440 mm | D: 580 mm | B: 420 mm | Cr: 5 730 kN | C0r: 15 400 kN | Mass: 288 kg
37288d: 440 mm | D: 620 mm | B: 454 mm | Cr: 7 110 kN | C0r: 17 500 kN | Mass: 417 kg
47T886246d: 440 mm | D: 620 mm | B: 454 mm | Cr: 7 610 kN | C0r: 19 800 kN | Mass: 436 kg
47T886443d: 440 mm | D: 635 mm | B: 430 mm | Cr: 7 560 kN | C0r: 18 000 kN | Mass: 450 kg
47T886447d: 440 mm | D: 635 mm | B: 470 mm | Cr: 8 510 kN | C0r: 20 900 kN | Mass: 500 kg
47288d: 440 mm | D: 650 mm | B: 326 mm | Cr: 5 080 kN | C0r: 11 000 kN | Mass: 361 kg
47288Ad: 440 mm | D: 650 mm | B: 334 mm | Cr: 5 490 kN | C0r: 12 200 kN | Mass: 375 kg
47T886645d: 440 mm | D: 660 mm | B: 450 mm | Cr: 8 690 kN | C0r: 19 000 kN | Mass: 532 kg
M270749D/710/710Dd: 447.675 mm | D: 635.000 mm | B: 463.550 mm | Cr: 7 860 kN | C0r: 21 000 kN | Mass: 472 kg
M270449D/10/10Dd: 449.949 mm | D: 594.949 mm | B: 368.000 mm | Cr: 5 980 kN | C0r: 16 200 kN | Mass: 278 kg
47T905845d: 450 mm | D: 580 mm | B: 450 mm | Cr: 5 130 kN | C0r: 14 600 kN | Mass: 286 kg
47T916028Ad: 457.200 mm | D: 596.900 mm | B: 279.400 mm | Cr: 4 260 kN | C0r: 11 400 kN | Mass: 307 kg
EE737179D/260/261Dd: 457.200 mm | D: 660.400 mm | B: 323.847 mm | Cr: 5 700 kN | C0r: 12 700 kN | Mass: 365 kg
47T925928d: 460 mm | D: 586 mm | B: 280 mm | Cr: 3 710 kN | C0r: 9 810 kN | Mass: 177 kg
47T926236d: 460 mm | D: 615 mm | B: 360 mm | Cr: 5 000 kN | C0r: 13 300 kN | Mass: 292 kg
47T926342d: 460 mm | D: 625 mm | B: 421 mm | Cr: 6 920 kN | C0r: 18 800 kN | Mass: 386 kg
37292d: 460 mm | D: 650 mm | B: 474 mm | Cr: 7 680 kN | C0r: 19 400 kN | Mass: 495 kg
47T926838d: 460 mm | D: 680 mm | B: 375 mm | Cr: 6 500 kN | C0r: 15 200 kN | Mass: 475 kg
47T927344d: 460 mm | D: 730 mm | B: 440 mm | Cr: 8 650 kN | C0r: 17 700 kN | Mass: 710 kg
47T956037Ad: 475.000 mm | D: 600.000 mm | B: 368.000 mm | Cr: 4 970 kN | C0r: 15 100 kN | Mass: 246 kg
47T966850d: 479.425 mm | D: 679.450 mm | B: 495.300 mm | Cr: 9 660 kN | C0r: 25 400 kN | Mass: 591 kg
M272749D/710/710Dd: 479.425 mm | D: 679.450 mm | B: 495.300 mm | Cr: 8 480 kN | C0r: 22 200 kN | Mass: 575 kg
37296d: 480 mm | D: 678 mm | B: 494 mm | Cr: 9 160 kN | C0r: 23 300 kN | Mass: 563 kg
47T967039d: 480 mm | D: 700 mm | B: 390 mm | Cr: 7 400 kN | C0r: 16 800 kN | Mass: 508 kg
47T967042Cd: 480.000 mm | D: 700.000 mm | B: 420.000 mm | Cr: 8 060 kN | C0r: 18 800 kN | Mass: 540 kg
47T976233d: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 830 kN | C0r: 13 400 kN | Mass: 240 kg
4TR19Ad: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 830 kN | C0r: 13 400 kN | Mass: 240 kg
4TR19Bd: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 5 270 kN | C0r: 15 000 kN | Mass: 243 kg
4TR19Dd: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 5 210 kN | C0r: 15 000 kN | Mass: 240 kg
47T976242d: 482.600 mm | D: 615.950 mm | B: 420.000 mm | Cr: 5 810 kN | C0r: 16 700 kN | Mass: 296 kg
47T976542Ad: 482.600 mm | D: 647.700 mm | B: 417.512 mm | Cr: 7 390 kN | C0r: 20 300 kN | Mass: 397 kg
M272647D/610/610Dd: 482.600 mm | D: 647.700 mm | B: 417.512 mm | Cr: 7 390 kN | C0r: 20 300 kN | Mass: 395 kg
47T986236d: 488.950 mm | D: 622.300 mm | B: 365.125 mm | Cr: 4 950 kN | C0r: 13 900 kN | Mass: 262 kg
EE640193D/260/261Dd: 488.950 mm | D: 660.400 mm | B: 361.950 mm | Cr: 6 200 kN | C0r: 15 800 kN | Mass: 357 kg
EE243193D/250/251Dd: 489.026 mm | D: 634.873 mm | B: 320.675 mm | Cr: 4 520 kN | C0r: 13 200 kN | Mass: 263 kg
LM772749D/710/710Dd: 489.026 mm | D: 634.873 mm | B: 320.675 mm | Cr: 4 930 kN | C0r: 13 700 kN | Mass: 261 kg
47T986339Ad: 490 mm | D: 625 mm | B: 385 mm | Cr: 5 690 kN | C0r: 17 200 kN | Mass: 290 kg
47T986339Bd: 490 mm | D: 625 mm | B: 385 mm | Cr: 5 540 kN | C0r: 16 600 kN | Mass: 285 kg
4TR500Md: 500 mm | D: 640 mm | B: 450 mm | Cr: 7 050 kN | C0r: 20 300 kN | Mass: 352 kg
4TR500Bd: 500 mm | D: 670 mm | B: 515 mm | Cr: 9 110 kN | C0r: 25 700 kN | Mass: 510 kg
372/500d: 500 mm | D: 705 mm | B: 515 mm | Cr: 9 530 kN | C0r: 24 500 kN | Mass: 641 kg
4TR500Td: 500 mm | D: 710 mm | B: 430 mm | Cr: 8 170 kN | C0r: 20 000 kN | Mass: 528 kg
4TR500Jd: 500 mm | D: 720 mm | B: 400 mm | Cr: 7 990 kN | C0r: 18 700 kN | Mass: 547 kg
4TR500Qd: 500 mm | D: 760 mm | B: 420 mm | Cr: 8 730 kN | C0r: 19 300 kN | Mass: 698 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
